AV-28
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO
2. Check continuity between audio unit harness connector terminal
and speaker harness connector terminal.
3. Check continuity between audio unit harness connector terminal and ground.
OK or NG
OK >> GO TO 2.
NG >> • Check connector housings for disconnected or loose terminals. • Repair harness or connector.
2.REAR SPEAKER SIGNAL CHECK
1. Connect audio unit connector and rear door speaker connector.
2. Turn ignition switch to ACC.
3. Push “POWER” switch.
4. Check the signal between audio unit harness connector termi- nals with CONSULT-III or oscilloscope.
OK or NG
OK >> Replace speaker. Refer to AV-29, "Removal and Instal-
lation" .
NG >> Replace audio unit. Refer to AV-29, "
Removal and
Installation" .
Te r m i n a l s
Continuity
Audio unit Speaker
Connector Terminal Connector Terminal
M43 4
D207 +
Ye s
5-
13 D307 +
14 -
Te r m i n a l s Continuity
Audio unit
—
Connector Terminal
M43 4
Ground No
5
13
14
WKIA5353E
Te r m i n a l s
Condi-tion Reference
signal
(+)
(-)
Con- nec- tor Te r m i -
nal Con-
nec- tor Te r m i -
nal
M43 5
M43 4
Re-
ceive
audio
signal
14
13
WKIA5354E
SKIA0177E
Revision: May 2010 2011 Versa
Page 426 of 3787
![NISSAN TIIDA 2011 Service Repair Manual AUDIOAV-29
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Removal and InstallationINFOID:0000000005931292
AUDIO UNIT
Removal
1. Disconnect the battery negative ter NISSAN TIIDA 2011 Service Repair Manual AUDIOAV-29
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Removal and InstallationINFOID:0000000005931292
AUDIO UNIT
Removal
1. Disconnect the battery negative ter](/manual-img/5/57396/w960_57396-425.png)
AUDIOAV-29
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Removal and InstallationINFOID:0000000005931292
AUDIO UNIT
Removal
1. Disconnect the battery negative terminal.
2. Remove cluster lid C. Refer to IP-11
.
3. Remove the audio unit screws (A), disconnect the connectors and remove the audio unit (1).
4. Remove the audio unit bracket.
Installation
Installation is in the reverse order of removal.
FRONT DOOR SPEAKER
Removal
1. Remove the front door finisher. Refer to EI-36.
2. Remove the front door speaker screws (A), disconnect the con- nector and remove the front door speaker (1).
Installation
Installation is in the reverse order of removal.
REAR DOOR SPEAKER
Removal
1. Remove the rear door finisher. Refer to EI-36.
2. Remove the rear door finisher screws (A), disconnect the con- nector and remove the rear door speaker (1).
Installation
Installation is in the reverse order of removal.
TWEETER
SKIB4726E
SKIB4728E
SKIB4729E
Revision: May 2010 2011 Versa
Page 427 of 3787
AV-30
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO
Removal
1. Remove the front pillar garnish. Refer to
EI-41.
2. Remove the tweeter screw (A), disconnect the connector and remove the tweeter (1).
Installation
Installation is in the reverse order of removal.
STEERING WHEEL AUDIO CONTROL SWITCHES
Removal
1. Remove the steering wheel. Refer to PS-7, "Removal and Installation".
2. Remove the steering wheel finisher cover.
3. Remove the screws and the steering wheel audio control switches.
Installation
Installation is in the reverse order of removal.
SKIB4730E
1. Steering wheel finisher cover 2. Steering wheel 3. Steering wheel audio control switch-
es
A. Screws
LKIA0769E
Revision: May 2010 2011 Versa
Page 428 of 3787
IPOD® CONNECTORAV-31
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
IPOD® CONNECTOR
Removal and InstallationINFOID:0000000005931293
REMOVAL
1. Remove the cluster lid C. Refer to IP-11, "Component Parts".
2. Push the pawl from the back of the cluster lid C to remove the iPod® connector (1).
INSTALLATION
Installation is in the reverse order of removal.
ALNIA1245ZZ
Revision: May 2010 2011 Versa
Page 429 of 3787
AV-32
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
IPOD® ADAPTER
IPOD® ADAPTER
Removal and InstallationINFOID:0000000005931294
REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the audio unit. Refer to
AV-29, "
Removal and Installation".
3. Disconnect the iPod® adapter connector, then remove the iPod® adapter.
INSTALLATION
Installation is in the reverse order of removal.
Revision: May 2010 2011 Versa
Page 430 of 3787
AUDIO ANTENNAAV-33
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
AUDIO ANTENNA
Location of AntennaINFOID:0000000005931295
Removal and Installati on of Roof AntennaINFOID:0000000005931296
REMOVAL
1. For hatchback, remove the luggage side upper finisher (LH). Refer to EI-56.
2. For sedan, remove the rear pillar finisher. Refer to EI-54, "
Removal and Installation - Sedan".
3. Remove rear assist grip (LH). Refer to EI-50
.
4. Remove three clips of headlining (rear side). Pull down headlining (rear side) and obtain space for work between vehicle and headlining.
5. Disconnect the roof antenna harness connectors.
6. Remove nut (A) and clips (B).
LKIA0934E
1. Roof antenna 2. Roof antenna base3. Audio unit
A. Audio antenna harness connector B. Harness clips C. Roof antenna harness connectors
Revision: May 2010 2011 Versa
Page 431 of 3787
AV-34
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO ANTENNA
• : Vehicle front
7. Remove the roof antenna.
INSTALLATION
Installation is in the reverse order of removal.
SKIB4772E
Revision: May 2010 2011 Versa
Page 432 of 3787
![NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-35
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
TELEPHONE
Component Parts and Har ness Connector LocationINFOID:0000000005931297
System DescriptionIN NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-35
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
TELEPHONE
Component Parts and Har ness Connector LocationINFOID:0000000005931297
System DescriptionIN](/manual-img/5/57396/w960_57396-431.png)
TELEPHONEAV-35
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
TELEPHONE

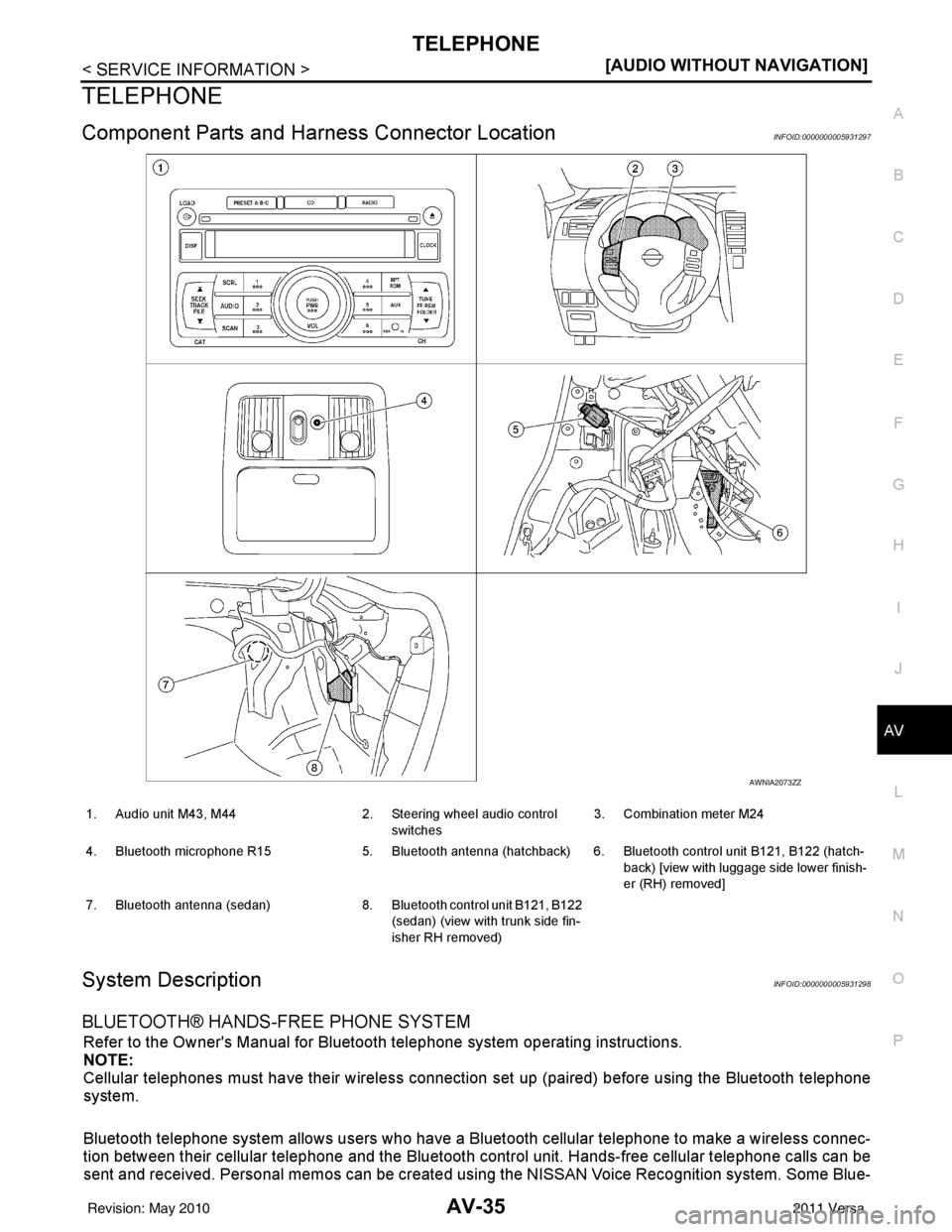

Component Parts and Har ness Connector LocationINFOID:0000000005931297
System DescriptionINFOID:0000000005931298
BLUETOOTH® HANDS-FREE PHONE SYSTEM
Refer to the Owner's Manual for Bluetooth telephone system operating instructions.
NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone
system.
Bluetooth telephone system allows users who have a Bl uetooth cellular telephone to make a wireless connec-
tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be
sent and received. Personal memos can be created using the NISSAN Voice Recognition system. Some Blue-
AWNIA2073ZZ
1. Audio unit M43, M44 2. Steering wheel audio control
switches 3. Combination meter M24
4. Bluetooth microphone R15 5. Bluetooth antenna (hatchback) 6. Bluetooth control unit B121, B122 (hatch-
back) [view with luggage side lower finish-
er (RH) removed]
7. Bluetooth antenna (sedan) 8. Bluetooth control unit B121, B122
(sedan) (view with trunk side fin-
isher RH removed)
Revision: May 2010 2011 Versa
