Page 3129 of 3787

NISSAN TIIDA 2011 Service Repair Manual INTERIOR ROOM LAMPLT-97
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

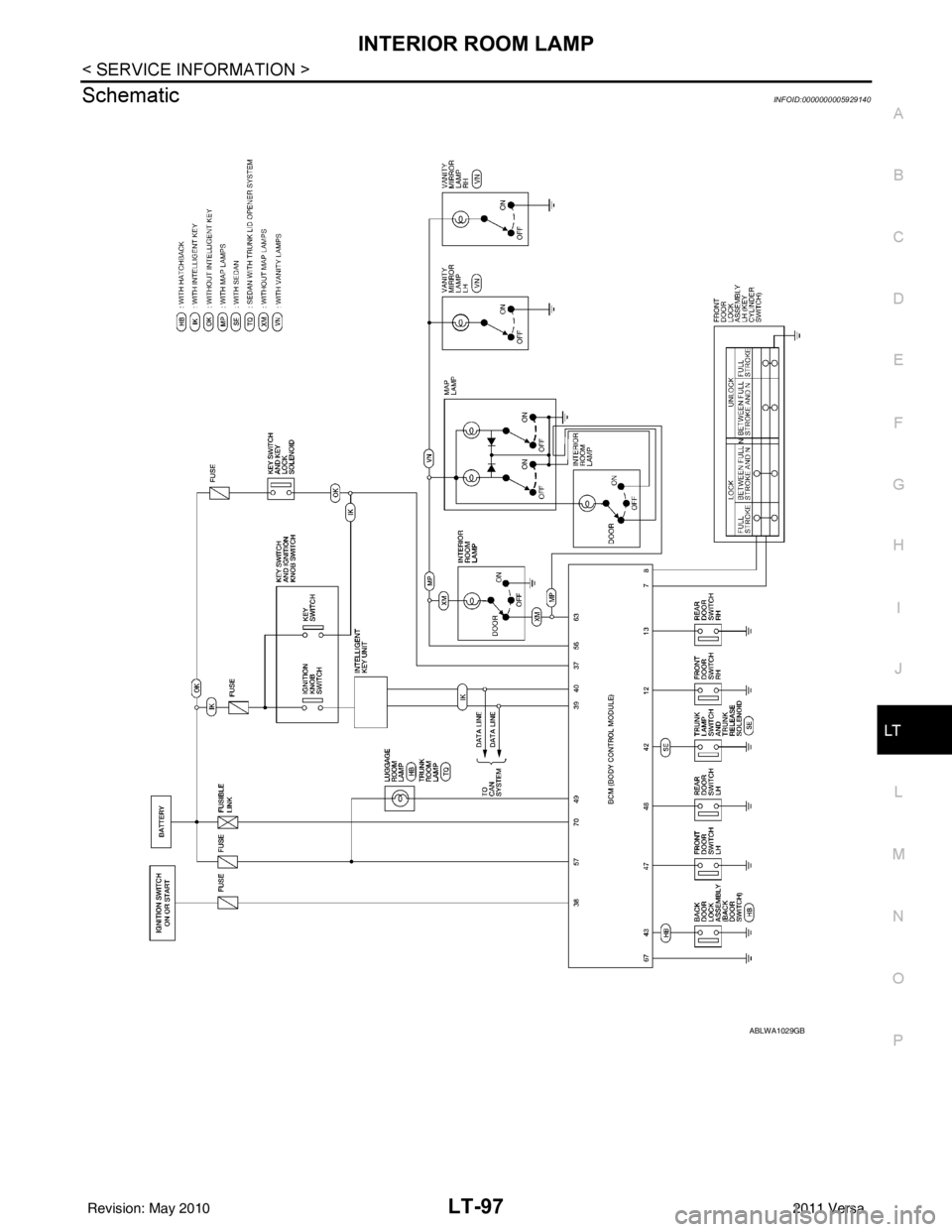

SchematicINFOID:0000000005929140
ABLWA1029GB
Revision: May 2010 2011 Versa

Page 3130 of 3787

NISSAN TIIDA 2011 Service Repair Manual LT-98
< SERVICE INFORMATION >
INTERIOR ROOM LAMP

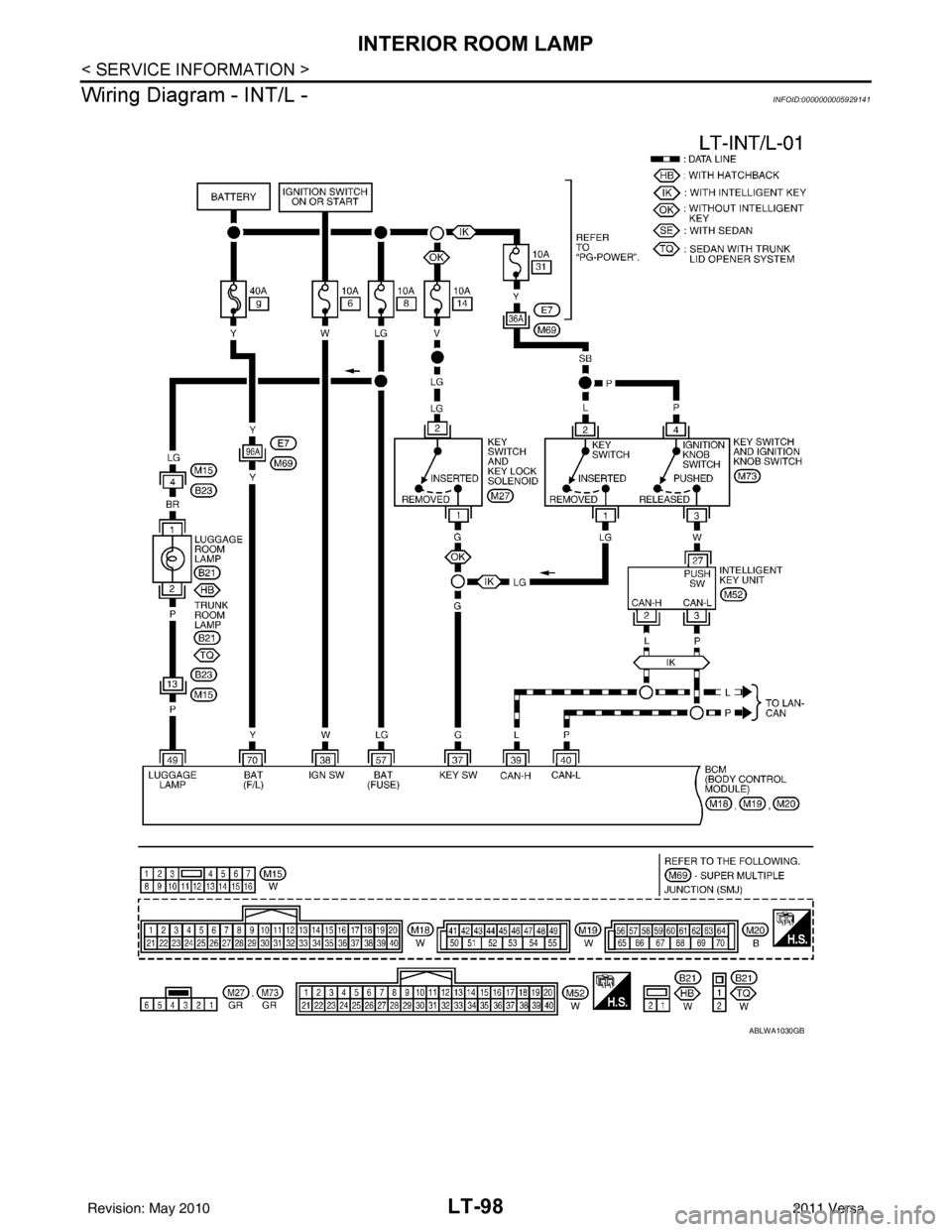

Wiring Diagram - INT/L -
INFOID:0000000005929141
ABLWA1030GB
Revision: May 2010 2011 Versa

Page 3131 of 3787

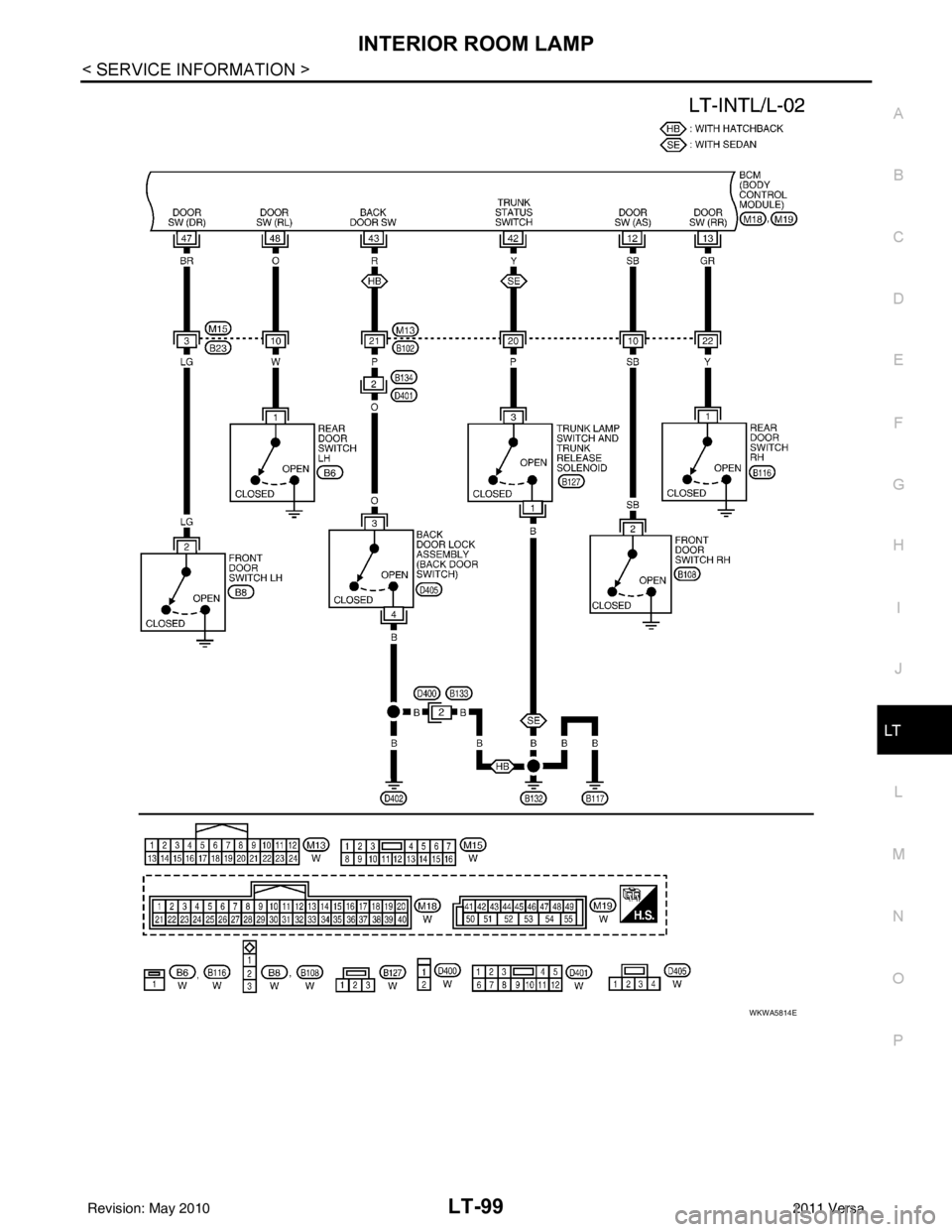

NISSAN TIIDA 2011 Service Repair Manual INTERIOR ROOM LAMPLT-99
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
WKWA5814E
Revision: May 2010 2011 Versa

Page 3132 of 3787

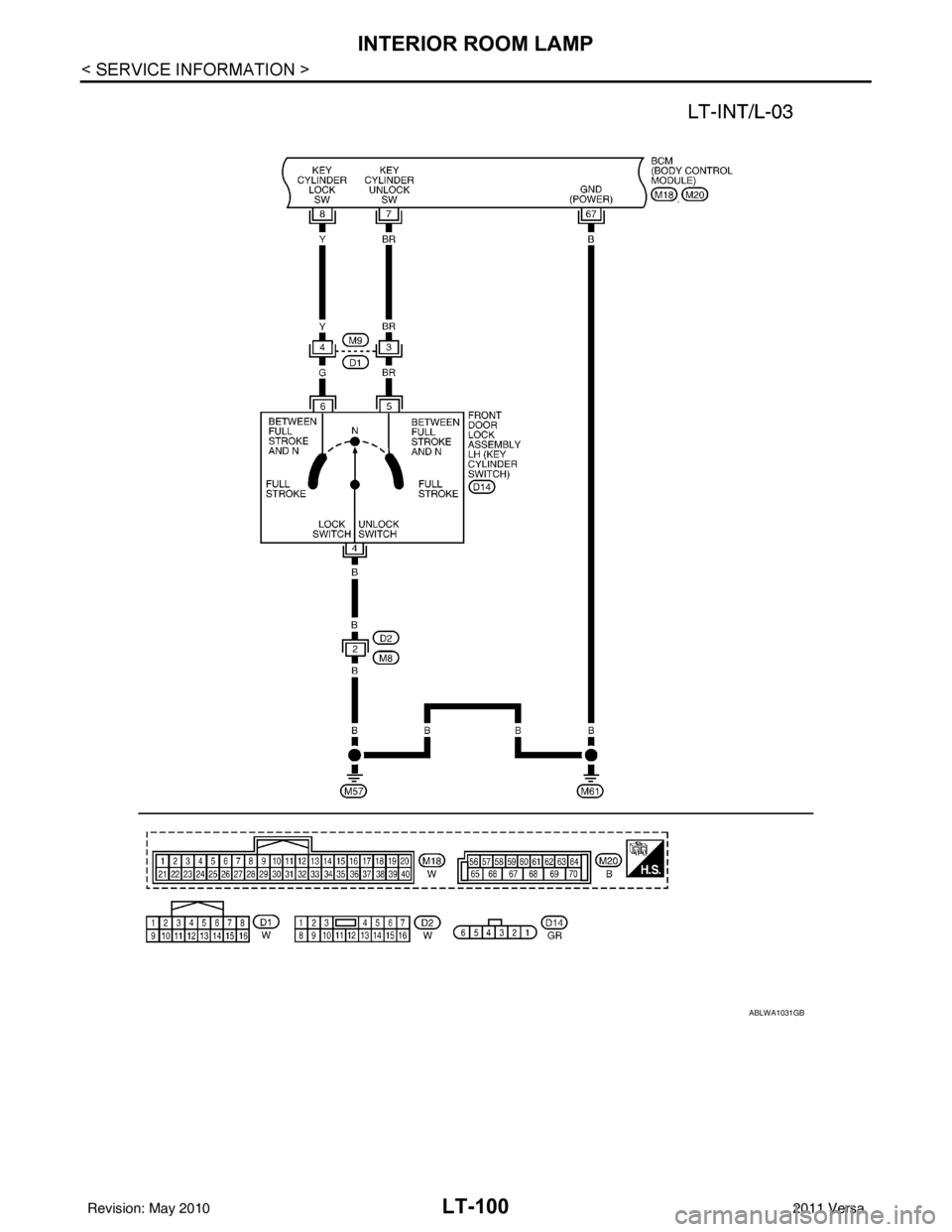

NISSAN TIIDA 2011 Service Repair Manual LT-100
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
ABLWA1031GB
Revision: May 20102011 Versa

Page 3133 of 3787

NISSAN TIIDA 2011 Service Repair Manual INTERIOR ROOM LAMPLT-101
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P

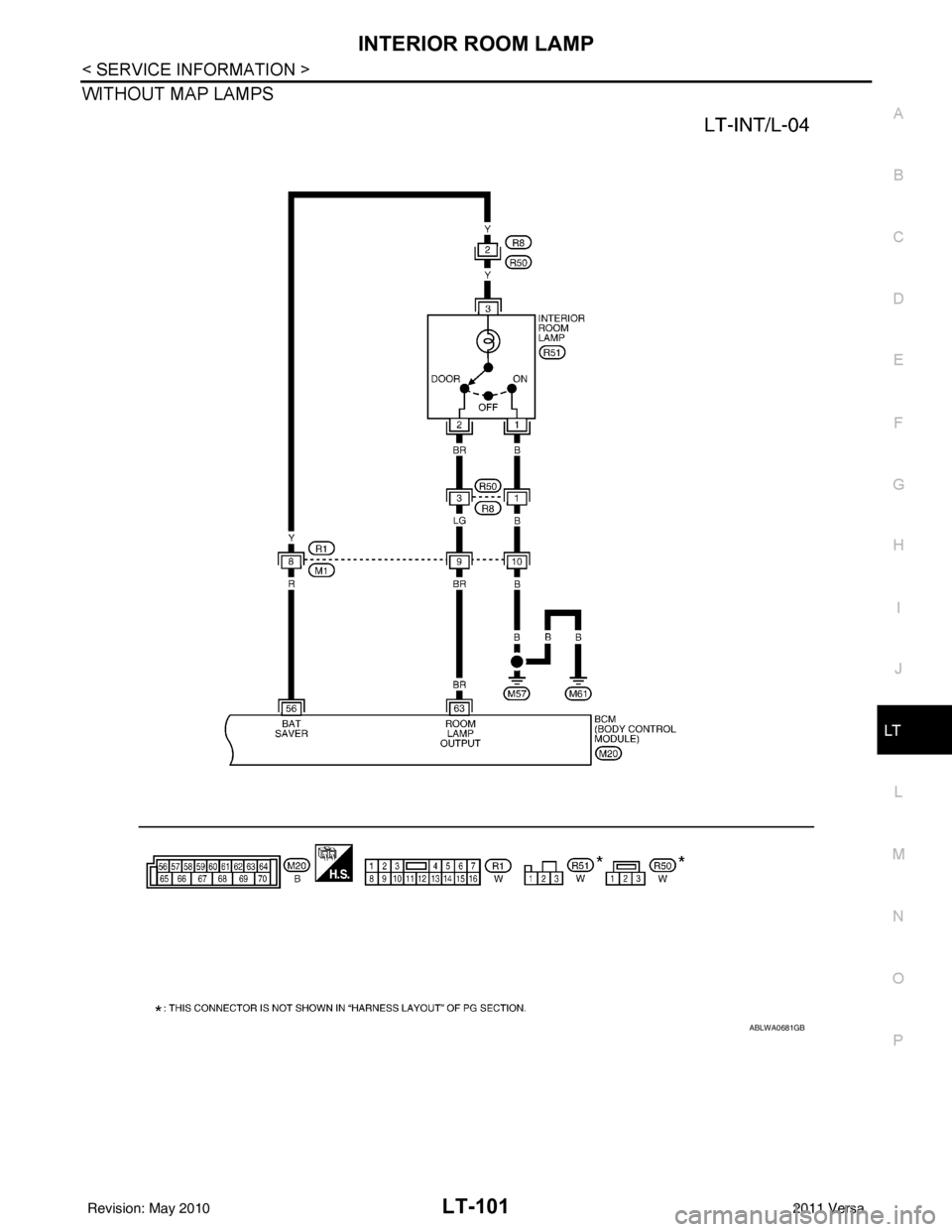

WITHOUT MAP LAMPS
ABLWA0681GB
Revision: May 2010 2011 Versa

Page 3134 of 3787

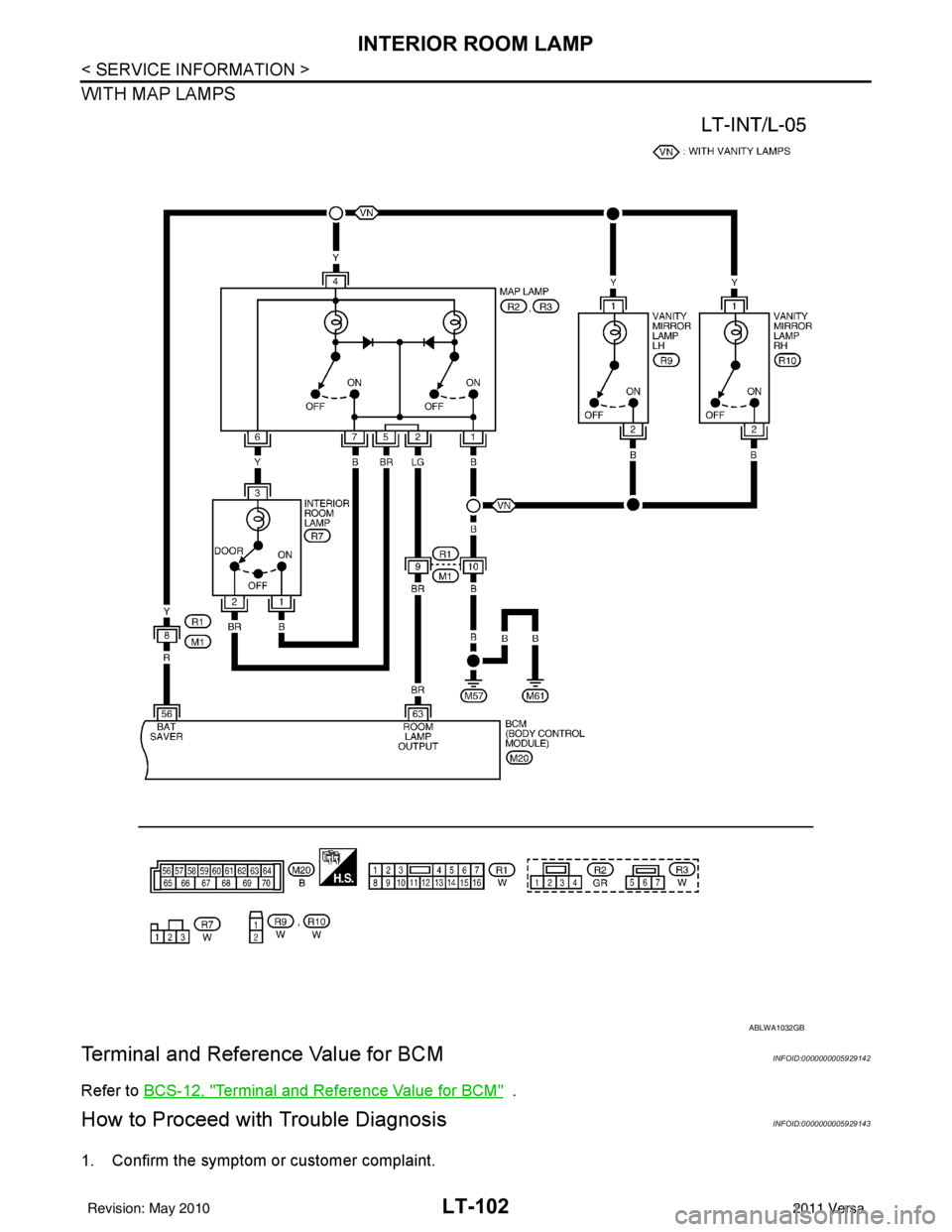

NISSAN TIIDA 2011 Service Repair Manual LT-102
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
WITH MAP LAMPS
Terminal and Reference Value for BCMINFOID:0000000005929142
Refer to BCS-12, "Terminal and Reference Value for BCM" .
How to Proceed

Page 3135 of 3787

NISSAN TIIDA 2011 Service Repair Manual INTERIOR ROOM LAMPLT-103
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
2. Understand operation description and function description. Refer to LT-93, "System Description" .
3. Perform the p

INTERIOR ROOM LAMPLT-103
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
LT
N
O P
2. Understand operation description and function description. Refer to LT-93, "System Description" .
3. Perform the preliminary check. Refer to LT-103, "
Preliminary Check" .
4. Check symptom and repair or replace the cause of the malfunction.
5. Does the interior room lamp operate norma lly? If YES, GO TO 6. If NO, GO TO 4.
6. Inspection End
Preliminary CheckINFOID:0000000005929144
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-16, "BCM Power Supply and Ground Circuit Inspection" .
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR IPDM E/R
Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .
CONSULT-III Function (BCM)INFOID:0000000006227569
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
ITEMS OF EACH PART
NOTE:
CONSULT-III will only display systems the vehicle possesses.
BCM diagnostic
test item Diagnostic mode
Content
Inspection by part WORK SUPPORT
Supports inspections and adjustments. Commands are transmitted to the BCM for
setting the status suitable for required operation, input/output signals are received
from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time. ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF DIAGNOSTIC RE- SULT Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The results of transmit/receive diagnosis of CAN communication can be read.
ECU IDENTIFICATION BCM part number can be read. CONFIGURATION Performs BCM configuration read/write functions.
System and item CONSULT-III dis-
play Diagnostic test mode (Inspection by part)
WORK
SUPPORT SELF
−
DIAG RE- SULTS CAN DIAG
SUPPORT MNTR DATA
MONITOR ECU
PA R T
NUMBER AC-
TIVE
TEST CON-
FIGU-
RATION
BCM BCM××× × ×
Power door lock sys-
tem DOOR LOCK
×× ×
Rear defogger REAR DEFOG-
GER
××
Warning chime BUZZER ××
Room lamp timer INT LAMP ×× ×
Headlamp HEAD LAMP×× ×
Wiper WIPER×× ×
Turn signal lamp
Hazard lamp FLASHER
××
Intelligent Key
2INTELLIGENT
KEY ××
Revision: May 2010
2011 Versa

Page 3136 of 3787

NISSAN TIIDA 2011 Service Repair Manual LT-104
< SERVICE INFORMATION >
INTERIOR ROOM LAMP
1 : With remote keyless entry system
2: With Intelligent Key system
WORK SUPPORT
Display Item List
Interior Room Lamp Control Does Not Operate (With M
