Page 1697 of 3787

NISSAN TIIDA 2011 Service Repair Manual P2122, P2123 APP SENSOREC-403
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

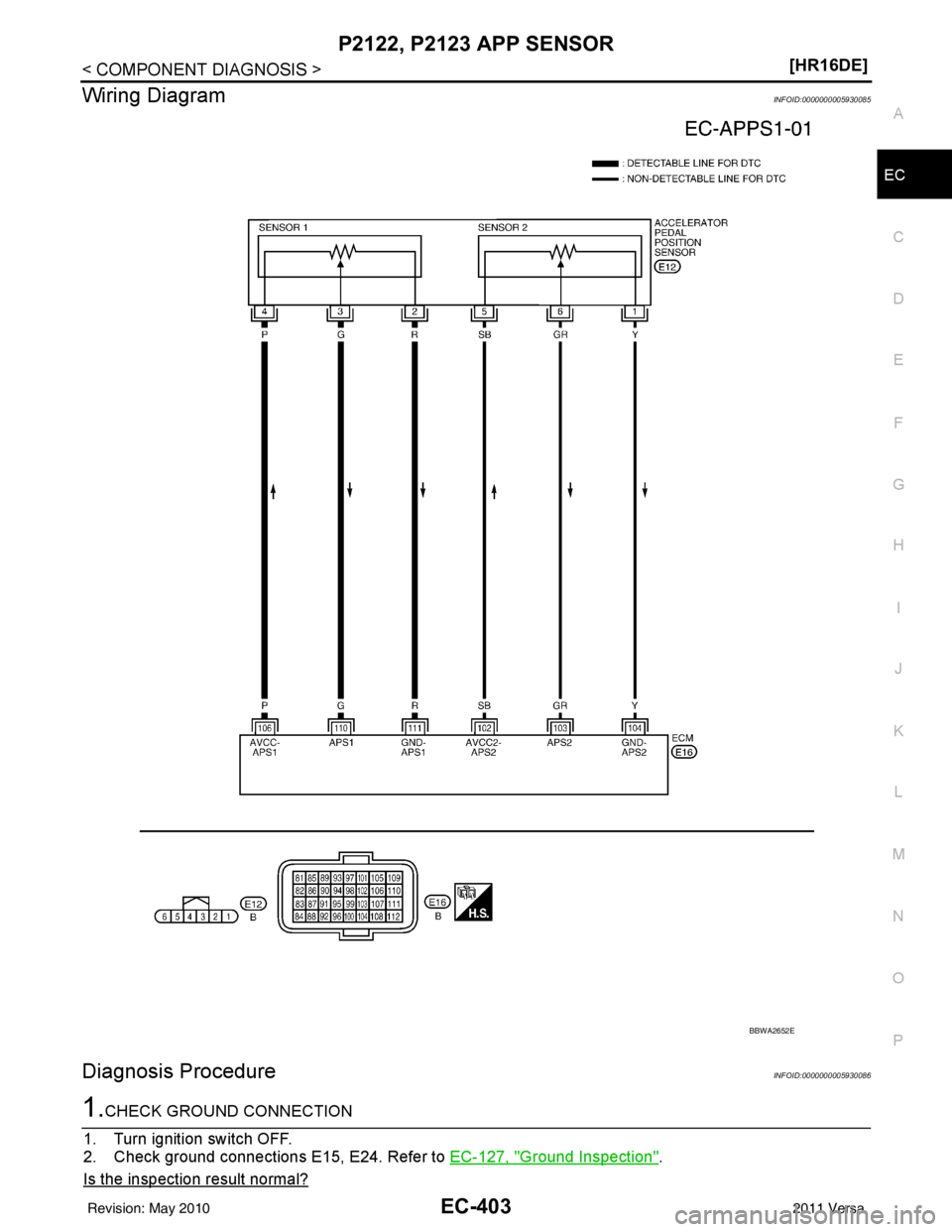

Wiring DiagramINFOID:0000000005930085
Diagnosis ProcedureINFOID:0000000005930086
1.CHECK GROUND CONNECTIO

Page 1698 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-404
< COMPONENT DIAGNOSIS >[HR16DE]
P2122, P2123 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal posi

Page 1699 of 3787

NISSAN TIIDA 2011 Service Repair Manual P2122, P2123 APP SENSOREC-405
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
EC-122, "Diagnosis Procedure".
>> INSPECTION END
Component InspectionINFOID:0000000005930087
1.

Page 1700 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-406
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
P2127, P2128 APP SENSOR
DescriptionINFOID:0000000006140995
The accelerator pedal position sensor is installed on the upper end
of the acc

EC-406
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
P2127, P2128 APP SENSOR
DescriptionINFOID:0000000006140995
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometer which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
The ECM judges the current opening angle of the accelerator pedal
from these signals and controls the throttle control motor based on
these signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The
ECM uses this signal for the engine operation such as fuel cut.
DTC LogicINFOID:0000000005930090
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-407, "Diagnosis Procedure".
NO >> INSPECTION END
PBIB1741E
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P2127 Accelerator pedal position
sensor 2 circuit low input An excessively low voltage from the APP
sensor 2 is sent to ECM. • Harness or connectors
(APP sensor 2 circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.]
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor
circuit is shorted.)
• Accelerator pedal position sensor (APP sensor 2)
• Crankshaft position sensor (POS)
• Refrigerant pressure sensor
• EVAP control system pressure sensor
P2128
Accelerator pedal position
sensor 2 circuit high input An excessively high
voltage from the APP
sensor 2 is sent to ECM.
Revision: May 2010 2011 Versa

Page 1701 of 3787

NISSAN TIIDA 2011 Service Repair Manual P2127, P2128 APP SENSOREC-407
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

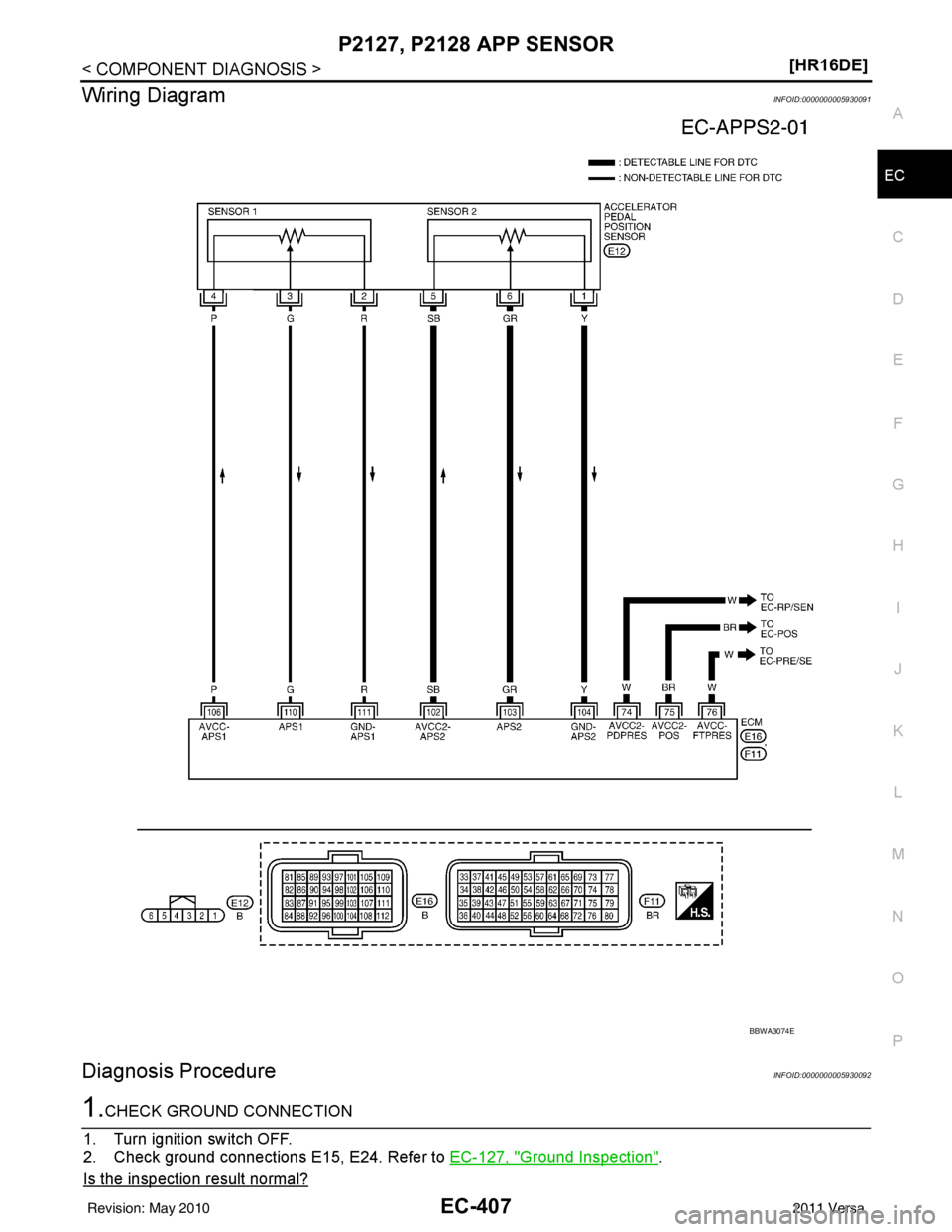

Wiring DiagramINFOID:0000000005930091
Diagnosis ProcedureINFOID:0000000005930092
1.CHECK GROUND CONNECTIO

Page 1702 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-408
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal po

Page 1703 of 3787

NISSAN TIIDA 2011 Service Repair Manual P2127, P2128 APP SENSOREC-409
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO

Page 1704 of 3787

NISSAN TIIDA 2011 Service Repair Manual EC-410
< COMPONENT DIAGNOSIS >[HR16DE]
P2127, P2128 APP SENSOR
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly. Refer to ACC-4, "
Remov
