NISSAN TIIDA 2011 Service Repair Manual CVT-42
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
CONSULT-III START PROCEDURE
• Using CONSULT-III, perform a cruise test and record the result.
• Print the result and ensure that shifts
a

CVT-42
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
CONSULT-III START PROCEDURE
• Using CONSULT-III, perform a cruise test and record the result.
• Print the result and ensure that shifts
and lock-ups take place as per Shift Schedule.
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
2. Touch “MAIN SIGNALS” to set recording condition.
3. See “Numerical Display”, “Barchart Display” or “Line Graph Display”.
4. Touch “START”.
5. When performing cruise test. Refer to CVT-43, "
Cruise Test" .
6. After finishing cruise test part, touch “RECORD”.
7. Touch “STORE”.
8. Touch “BACK”.
9. Touch “DISPLAY”.
10. Touch “PRINT”.
11. Check the monitor data printed out.
Check before Engine Is StartedINFOID:0000000005928755
1.CHECK O/D OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does O/D OFF indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF. 2. Perform self-diagnosis and note NG items.
Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)" .
3. Go to CVT-42, "
Check at Idle" .
NO >> Stop “Road Test”. Go to CVT-143, "
O/D OFF Indicator Lamp Does Not Come On" .
Check at IdleINFOID:0000000005928756
1.CHECK STARTING THE ENGINE
1. Park vehicle on flat surface.
2. Move selector lever to “P” or “N” position.
3. Turn ignition switch OFF.
4. Turn ignition switch START.
Is engine started?
YES >> GO TO 2.
NO >> Stop “Road Test”. Mark the box on the CVT-31, "
How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-145, "Engine Cannot Be Started in "P" and "N" Position" .
2.CHECK STARTING THE ENGINE
1. Turn ignition switch ON.
2. Move selector lever to “D”, “L” or “R” position.
3. Turn ignition switch START.
Is engine started?
YES >> Stop “Road Test”. Mark the box on the CVT-31, "How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-145, "Engine Cannot Be Started in "P" and "N" Position" .
NO >> GO TO 3.
Revision: May 2010 2011 Versa

Page 1098 of 3787

NISSAN TIIDA 2011 Service Repair Manual TROUBLE DIAGNOSISCVT-43
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3.CHECK “P” POSITION FUNCTION
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3

TROUBLE DIAGNOSISCVT-43
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3.CHECK “P” POSITION FUNCTION
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
5. Apply parking brake.
Does vehicle move when it is pushed forward or backward?
YES >> Mark the box CVT-145, "In "P" Position, Vehicle Moves Forward or Backward When Pushed" on
the CVT-31, "
How to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road
Te s t ” .
NO >> GO TO 4.
4.CHECK “N” POSITION FUNCTION
1. Start engine.
2. Move selector lever to “N” position.
3. Release parking brake.
Does vehicle move forward or backward?
YES >> Mark the box CVT-146, "In "N" Position, Vehicle Moves" on the CVT-31, "How to Perform Trouble
Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
NO >> GO TO 5.
5.CHECK SHIFT SHOCK
1. Apply foot brake.
2. Move selector lever to “R” position.
Is there large shock when changing from
“N” to “R” position?
YES >> Mark the box CVT-146, "Large Shock "N" → "R" Position" on the CVT-31, "How to Perform Trou-
ble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
NO >> GO TO 6.
6.CHECK “R” POSITION FUNCTION
Release foot brake for several seconds.
Does vehicle creep backward w hen foot brake is released?
YES >> GO TO 7.
NO >> Mark the box CVT-147, "
Vehicle Does Not Creep Backward in "R" Position" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
7.CHECK “D”, “L” POSITIONS FUNCTION
Move selector lever to “D” and “L” positions and check if vehicle creeps forward.
Does vehicle creep forward in all positions?
YES >> Go to CVT-43, "Cruise Test" .
NO >> Stop “Road Test”. Mark the box on the CVT-31, "
How to Perform Trouble Diagnosis for Quick and
Accurate Repair" . Go to CVT-148, "Vehicle Does Not Creep Forward in "D" or "L" Position" .
Cruise TestINFOID:0000000005928757
1.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 1
1. Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.
2. Park vehicle on flat surface.
3. Move selector lever to “P” position.
4. Start engine.
5. Move selector lever to “L” position. CVT fluid operating temperature: 50 - 80
°C (122 - 176° F)
Revision: May 2010 2011 Versa

Page 1099 of 3787

NISSAN TIIDA 2011 Service Repair Manual CVT-44
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS

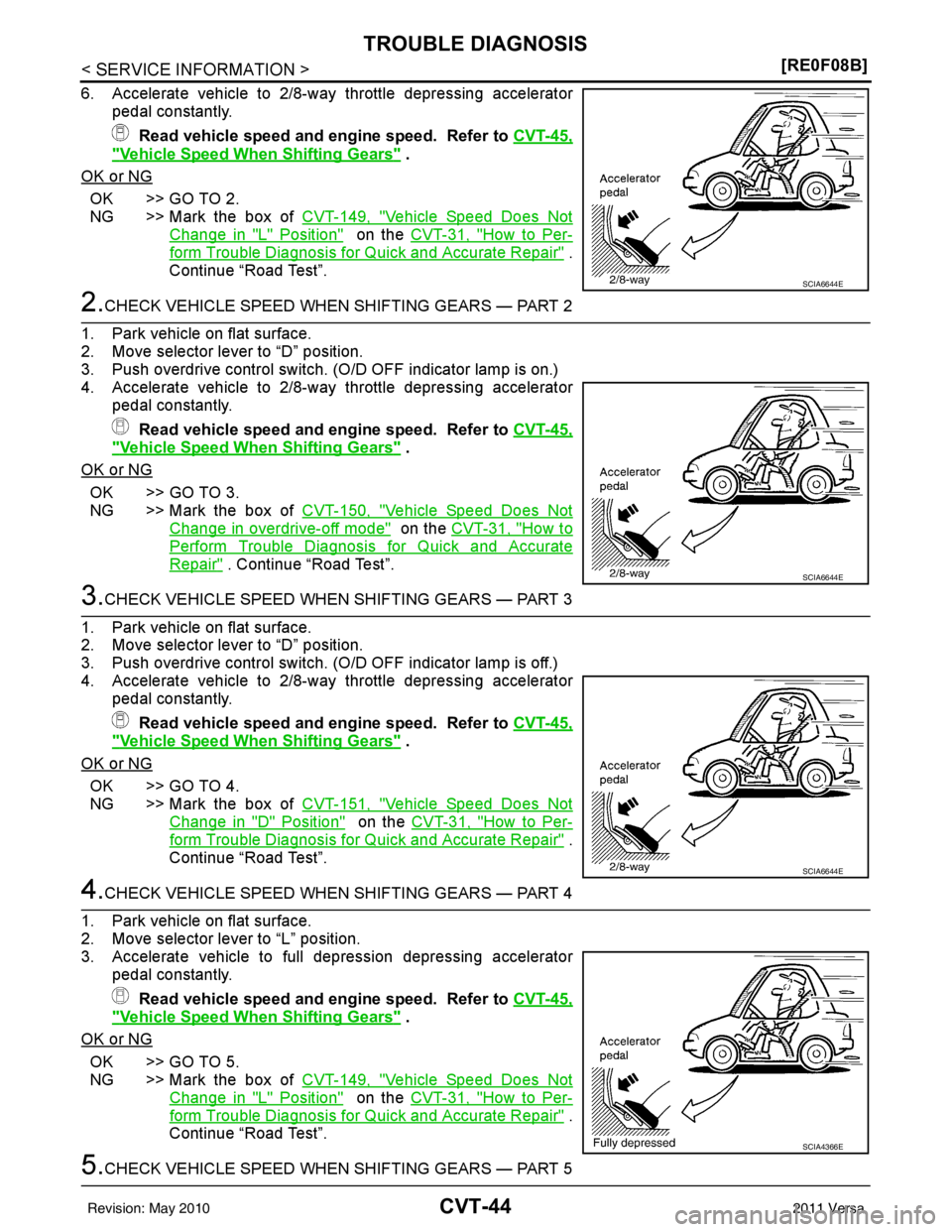

6. Accelerate vehicle to 2/8-way throttle depressing accelerator
pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"

CVT-44
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
6. Accelerate vehicle to 2/8-way throttle depressing accelerator
pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 2.
NG >> Mark the box of CVT-149, "
Vehicle Speed Does Not
Change in "L" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
2.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 2
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)
4. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 3.
NG >> Mark the box of CVT-150, "
Vehicle Speed Does Not
Change in overdrive-off mode" on the CVT-31, "How to
Perform Trouble Diagnosis for Quick and Accurate
Repair" . Continue “Road Test”.
3.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 3
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is off.)
4. Accelerate vehicle to 2/8-way throttle depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 4.
NG >> Mark the box of CVT-151, "
Vehicle Speed Does Not
Change in "D" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
4.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 4
1. Park vehicle on flat surface.
2. Move selector lever to “L” position.

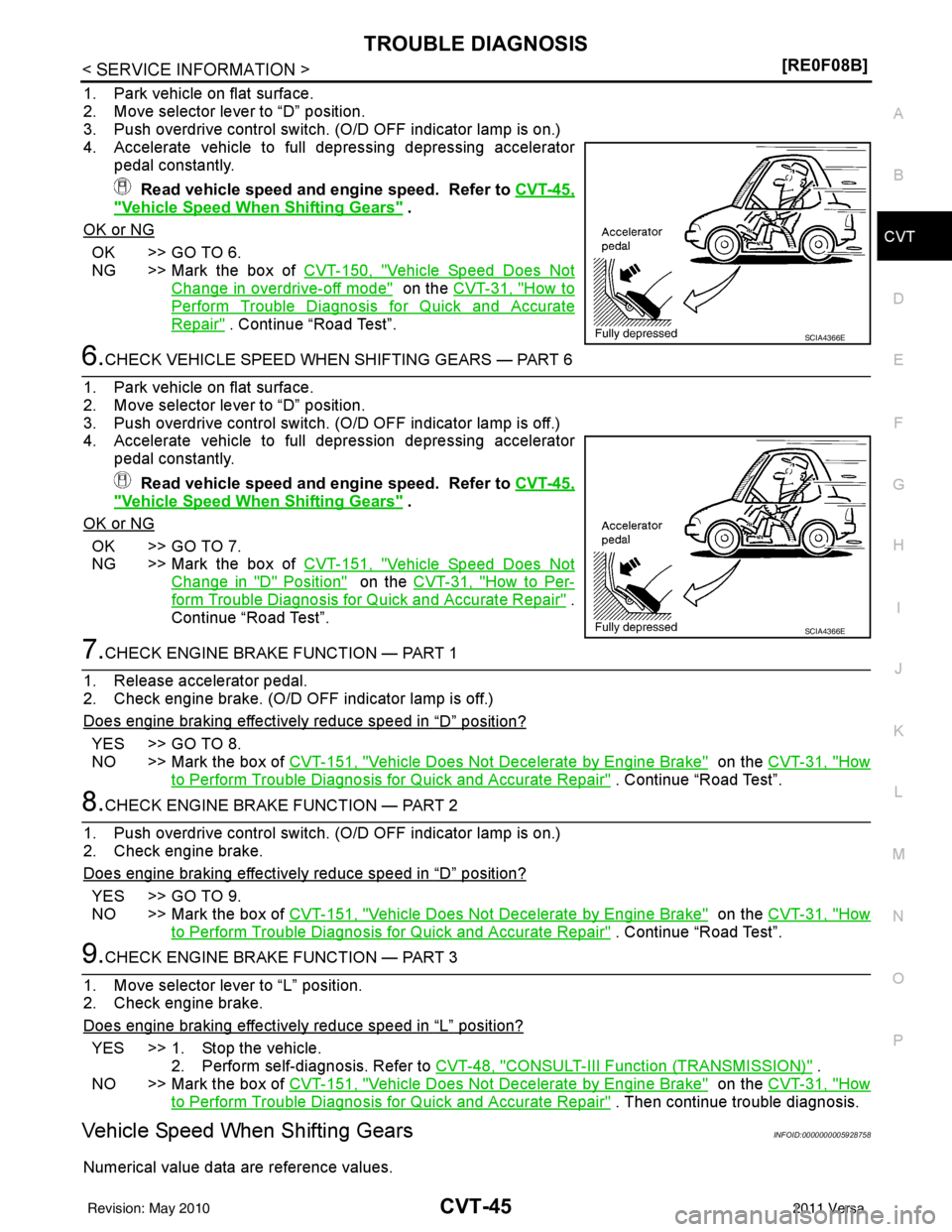

3. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 5.
NG >> Mark the box of CVT-149, "
Vehicle Speed Does Not
Change in "L" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
5.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 5
SCIA6644E
SCIA6644E
SCIA6644E
SCIA4366E
Revision: May 2010 2011 Versa

Page 1100 of 3787

NISSAN TIIDA 2011 Service Repair Manual TROUBLE DIAGNOSISCVT-45
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control swit

TROUBLE DIAGNOSISCVT-45
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is on.)
4. Accelerate vehicle to full depressing depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 6.
NG >> Mark the box of CVT-150, "
Vehicle Speed Does Not
Change in overdrive-off mode" on the CVT-31, "How to
Perform Trouble Diagnosis for Quick and Accurate
Repair" . Continue “Road Test”.
6.CHECK VEHICLE SPEED WHEN SHIFTING GEARS — PART 6
1. Park vehicle on flat surface.
2. Move selector lever to “D” position.
3. Push overdrive control switch. (O/D OFF indicator lamp is off.)
4. Accelerate vehicle to full depression depressing accelerator pedal constantly.
Read vehicle speed and engine speed. Refer to CVT-45,
"Vehicle Speed When Shifting Gears" .
OK or NG
OK >> GO TO 7.
NG >> Mark the box of CVT-151, "
Vehicle Speed Does Not
Change in "D" Position" on the CVT-31, "How to Per-
form Trouble Diagnosis for Quick and Accurate Repair" .
Continue “Road Test”.
7.CHECK ENGINE BRAKE FUNCTION — PART 1
1. Release accelerator pedal.
2. Check engine brake. (O/D OFF indicator lamp is off.)
Does engine braking effectively reduce speed in
“D” position?
YES >> GO TO 8.
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
8.CHECK ENGINE BRAKE FUNCTION — PART 2
1. Push overdrive control switch. (O/D OFF indicator lamp is on.)
2. Check engine brake.
Does engine braking effectively reduce speed in
“D” position?
YES >> GO TO 9.
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Continue “Road Test”.
9.CHECK ENGINE BRAKE FUNCTION — PART 3
1. Move selector lever to “L” position.
2. Check engine brake.
Does engine braking effectively reduce speed in
“L” position?
YES >> 1. Stop the vehicle. 2. Perform self-diagnosis. Refer to CVT-48, "
CONSULT-III Function (TRANSMISSION)" .
NO >> Mark the box of CVT-151, "
Vehicle Does Not Decelerate by Engine Brake" on the CVT-31, "How
to Perform Trouble Diagnosis for Quick and Accurate Repair" . Then continue trouble diagnosis.
Vehicle Speed When Shifting GearsINFOID:0000000005928758
Numerical value data are reference values.
SCIA4366E
SCIA4366E
Revision: May 2010 2011 Versa

Page 1101 of 3787

NISSAN TIIDA 2011 Service Repair Manual CVT-46
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
CAUTION:
Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).
TCM Terminal and Reference ValueI

Page 1102 of 3787

NISSAN TIIDA 2011 Service Repair Manual TROUBLE DIAGNOSISCVT-47
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
14 Y ROM assembly ——
15 G ROM assembly ——
18 GR P RANGE SW Selector lever in “P” po
sition. Ba

Page 1103 of 3787

NISSAN TIIDA 2011 Service Repair Manual CVT-48
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
*: This harness is not used.
CONSULT-III Functi
on (TRANSMISSION)INFOID:0000000005928760
CONSULT-III can display each diagnostic item using t

CVT-48
< SERVICE INFORMATION >[RE0F08B]
TROUBLE DIAGNOSIS
*: This harness is not used.
CONSULT-III Functi
on (TRANSMISSION)INFOID:0000000005928760
CONSULT-III can display each diagnostic item using the diagnostic test modes shown below.
FUNCTION
CONSULT-III REFERENCE VALUE
46 O Sensor power —
5.0 V
— 0 V
47 G CVT fluid tem-
perature sensor When CVT fluid temperature is 20
°C (68 °F) 2.0 V
When CVT fluid temperature is 80 °C (176 °F) 1.0 V
48 B Ground Always 0 V
Te r m i n a l
Wire
color Item
ConditionData (Approx.)
Diagnostic test mode Function
Work support This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on CONSULT-III.
Self-diagnostic results Self-diagnostic results can be read and erased quickly.
Data monitor Input/Output data in the TCM can be read.
CAN diagnostic support mon-
itor The results of transmit/receive diagnosis of CAN communication can be read.
CALIB data Characteristic information for TCM and CVT assembly can be read.
Function test Performed by CONSULT-III instead of a technician to determine whether each system is “OK” or “NG”.
ECU part number TCM part number can be read.
Item name Condition Display value (Approx.)
VSP SENSOR During driving Approximately matches the speedometer
reading.
ESTM VSP SIG*
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
ENG SPEED SIG Engine running Closely matches the tach ometer reading.
SEC HYDR SEN “N” position idle 1.0 V
ATF TEMP SEN When CVT fluid temperature is 20
°C (68 °F). 2.0 V
When CVT fluid temperature is 80 °C (176 °F). 1.0 V
VIGN SEN Ignition switch: ON Battery voltage
VEHICLE SPEED During driving Approximately matches the speedometer
reading.
PRI SPEED During driving (lock-up ON) Approximately matches the engine speed.
SEC SPEED During driving 50 X Approximately matches the speedom-
eter reading.
ENG SPEED Engine running Closely matches the tachom eter reading.
GEAR RATIO During driving 2.56 - 0.43
ACC PEDAL OPEN Released accelerator pedal - Fully depressed
accelerator pedal 0.0/8 - 8.0/8
SEC PRESS “N” position idle 0.8 MPa
Revision: May 2010 2011 Versa

Page 1104 of 3787

NISSAN TIIDA 2011 Service Repair Manual TROUBLE DIAGNOSISCVT-49
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
STM STEP During driving (− 20) - (+180) step
ISOLT1 Lock-up OFF
0.0 A
Lock-up ON 0.7 A
ISOLT2 Release your

Load next 8 pages

Page: < prev 1-10 ... 1065-1072 1073-1080 1081-1088 1089-1096 1097-1104 1105-1112 1113-1120 1121-1128 1129-1136 ... 3792 next >

pairing phone timing belt fuse box child seat heater roof
