Page 385 of 3787
AT-368
< SERVICE INFORMATION >
ASSEMBLY
a. With ABS
i. Install O-ring (3) to plug (1).
ii. Install plug (1) to converter housing (2).: Bolt
b. Without ABS
i. Install O-ring (3) to speedometer pinion (1).
ii. Install speedometer pinion (1) to converter housing (2). : Bolt
26. Tighten plug or speedometer pinion bolt to the specified torque. Refer to AT-237, "
Component".
27. Install accumulator pistons.
a. Install O-rings (1) on servo release accumulator piston (2) and N-D accumulator piston (3). Refer to AT-376, "
Accumulator".
b. Install return springs (1), servo release accumulator piston (2) and N-D accumulator piston (3) into transaxle case (4). Refer to
AT-376, "
Accumulator".
SCIA7747E
SCIA7462E
SCIA6033J
SCIA6042J
Revision: May 2010 2011 Versa
Page 386 of 3787
ASSEMBLYAT-369
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

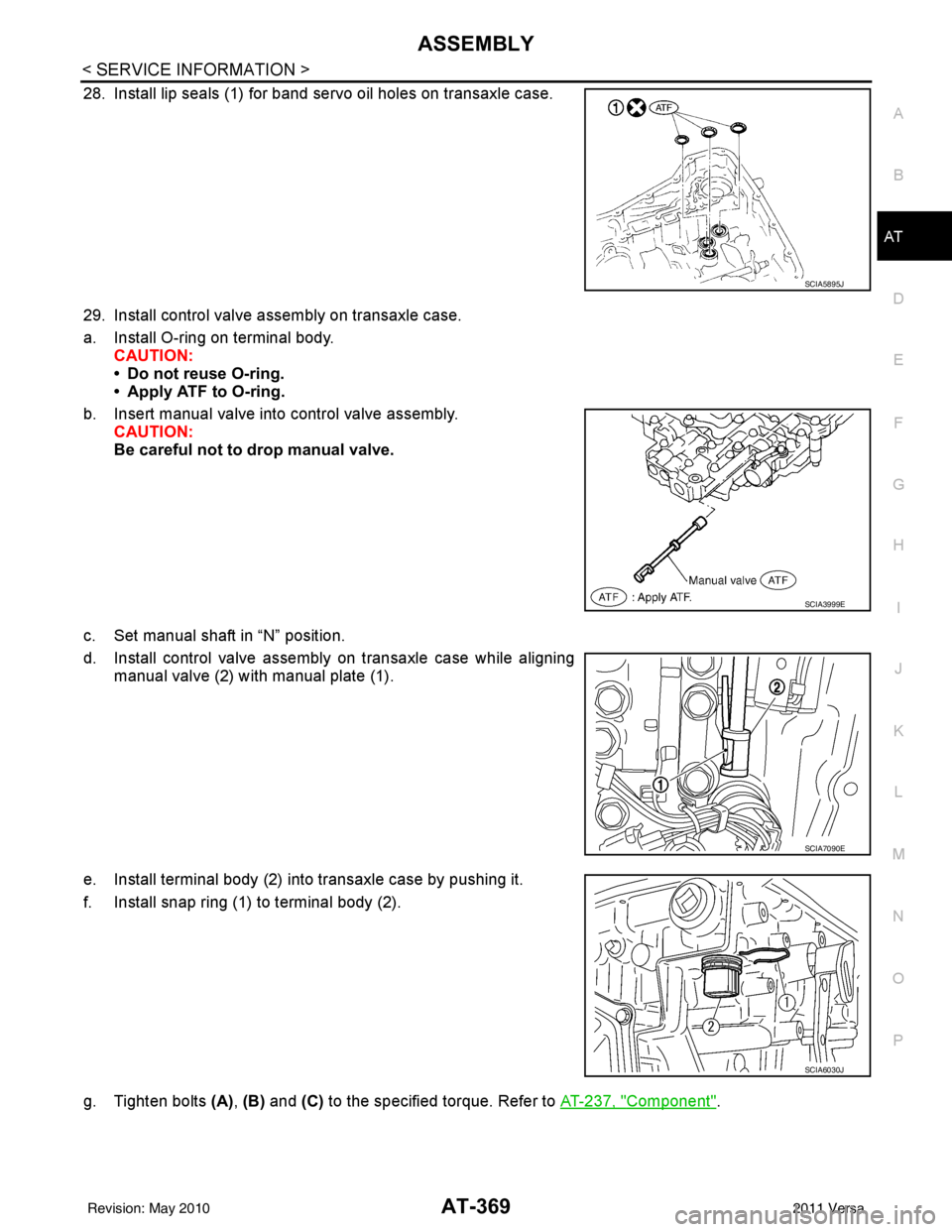

28. Install lip seals (1) for band servo oil holes on transaxle case.
29. Install control valve assembly on transaxle case.
a. Install O-ring on terminal body. CAUTION:
• Do not reuse O-ring.
• Apply ATF to O-ring.
b. Insert manual valve into control valve assembly. CAUTION:
Be careful not to drop manual valve.
c. Set manual shaft in “N” position.
d. Install control valve assembly on transaxle case while aligning manual valve (2) with manual plate (1).
e. Install terminal body (2) into transaxle case by pushing it.
f. Install snap ring (1) to terminal body (2).
g. Tighten bolts (A), (B) and (C) to the specified torque. Refer to AT-237, "
Component".
SCIA5895J
SCIA3999E
SCIA7090E
SCIA6030J
Revision: May 2010 2011 Versa
Page 387 of 3787

AT-370
< SERVICE INFORMATION >
ASSEMBLY
Bolt length, number and location:
30. Install oil pan.
a. Attach magnets on oil pan.
b. Install oil pan gasket on transaxle case.CAUTION:
• Completely remove all moisture, oil and old gasket , etc. from the oil pan gasket mating surface
of transaxle case.
• Do not reuse oil pan gasket.
c. Install oil pan on transaxle case. CAUTION:
Completely remove all moisture, oil and old gasket , etc. from the oil pan gasket mating surface of
oil pan.
d. Tighten oil pan bolts (1) to the specified torque. Refer to AT-237, "
Component".
• HR16DE engine models
• MR18DE engine models
CAUTION:
• Always replace oil pan bolts (1) as they are self-sealing bolts.
• Tighten four bolts in a criss-cross pattern to prevent dislocation of gasket.
e. Install drain plug gasket and drain plug (2) to oil pan. CAUTION:
Do not reuse drain plug gasket.
f. Tighten drain plug to the specified torque. Refer to AT-237, "
Component".
Bolt symbolABC
Bolt length “ ” [mm (in)] 40.0 mm
(1.575 in) 33.0 mm
(1.299 in) 43.5 mm
(1.713 in)
Number of bolts 562
SCIA5911J
SCIA6050J
SCIA8016E
Revision: May 2010 2011 Versa
Page 388 of 3787

ASSEMBLYAT-371
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

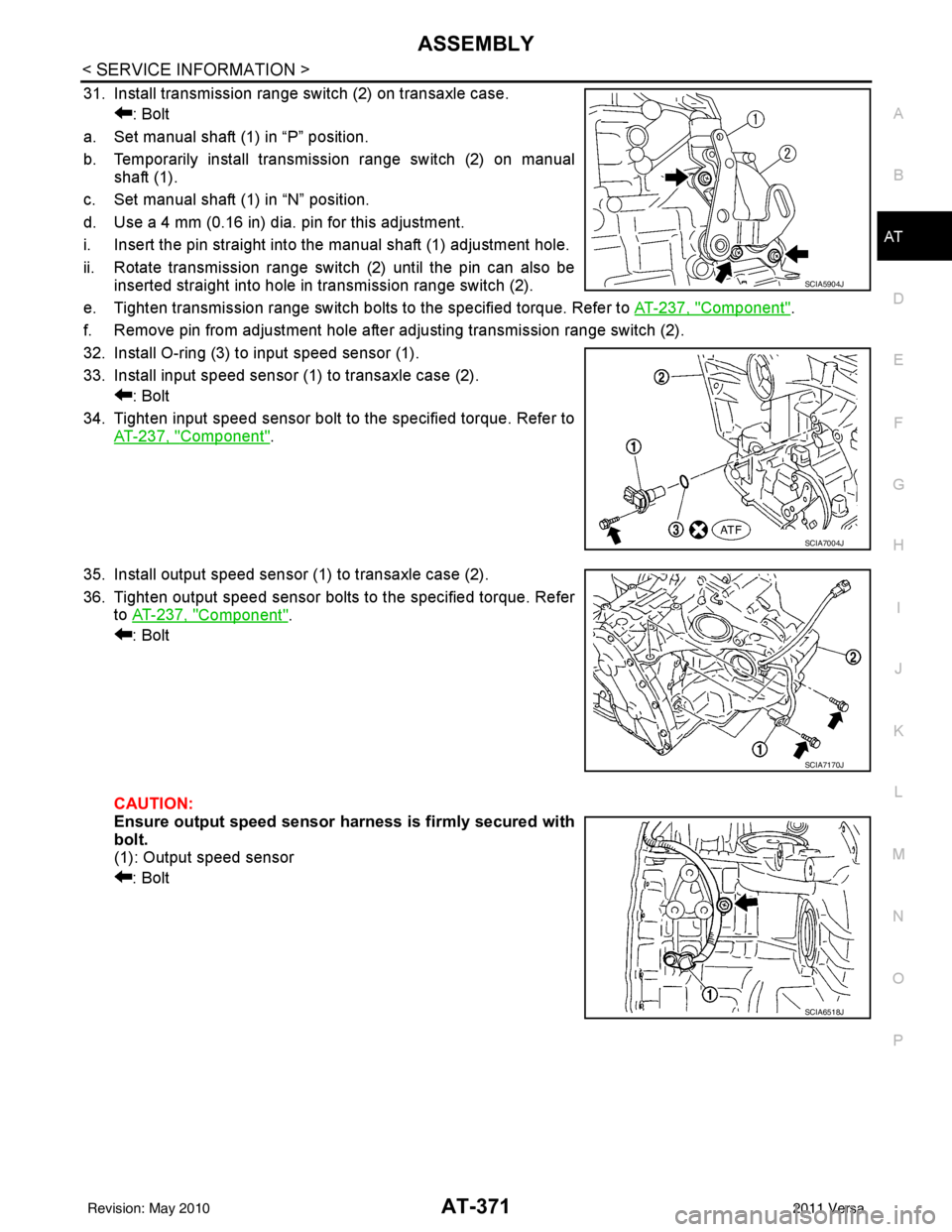

31. Install transmission range switch (2) on transaxle case. : Bolt
a. Set manual shaft (1) in “P” position.
b. Temporarily install transmission range switch (2) on manual shaft (1).
c. Set manual shaft (1) in “N” position.
d. Use a 4 mm (0.16 in) dia. pin for this adjustment.
i. Insert the pin straight into the manual shaft (1) adjustment hole.
ii. Rotate transmission range switch (2) until the pin can also be inserted straight into hole in transmission range switch (2).
e. Tighten transmission range switch bolts to the specified torque. Refer to AT-237, "
Component".
f. Remove pin from adjustment hole after adjusting transmission range switch (2).
32. Install O-ring (3) to input speed sensor (1).
33. Install input speed sensor (1) to transaxle case (2). : Bolt
34. Tighten input speed sensor bolt to the specified torque. Refer to AT-237, "
Component".
35. Install output speed sensor (1) to transaxle case (2).
36. Tighten output speed sensor bolts to the specified torque. Refer to AT-237, "
Component".
: Bolt
CAUTION:
Ensure output speed sensor harness is firmly secured with
bolt.
(1): Output speed sensor
: Bolt
SCIA5904J
SCIA7004J
SCIA7170J
SCIA6518J
Revision: May 2010 2011 Versa
Page 389 of 3787
AT-372
< SERVICE INFORMATION >
ASSEMBLY
37. Install torque converter.
a. Pour ATF into torque converter.•Approximately 1 liter (1 US qt, 7/8 Imp pt) of fluid is
required for a new torque converter.
• When reusing old torque converter, add the same amount
of ATF as was drained.
b. Install torque converter while aligning notches of torque con- verter with notches of oil pump.
c. Measure distance (A) to make sure that torque converter is in proper position.
SAT428DA
SAT429D
Distance (A)
HR16DE models : 16.2 mm (0.638 in) or more
MR18DE models : 14.4 mm (0.567 in) or more
SAT430D
Revision: May 2010 2011 Versa
Page 390 of 3787

SERVICE DATA AND SPECIFICATIONS (SDS)AT-373
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000005928309
*: Refer to MA-14.
Vehicle Speed at Which Gear Shifting OccursINFOID:0000000005928310
HR16DE engine models
MR18DE engine models
• At half throttle, the accelerator opening is 4/8 of the full opening.
Vehicle Speed at When Lock-up Occurs/ReleasesINFOID:0000000005928311
HR16DE engine models
MR18DE engine models
Engine HR16DEMR18DE
Automatic transaxle model RE4F03B
Automatic transaxle assembly Model code number 3CX3D, 3CX3E3CX0D
Transaxle gear ratio 1st
2.861
2nd 1.562
3rd 1.000
4th 0.697
Reverse 2.310
Final drive 4.072
Recommended fluid Genuine NISSAN Matic S ATF (Continental U.S. and Alaska) or
Canada NISSAN Automatic Transmission Fluid*
Fluid capacity [ (US qt, Imp qt)] 7.7 (8-1/8, 6-3/4)
7.9 (8-3/8, 7)
Throttle position Vehicle speed km/h (MPH)
D1 → D2D2 → D3D3 → D4D4 → D3D3 → D2D2 → D1
Full throttle 49 - 57
(31 - 35) 93 - 101
(58 - 62) 148 - 156
(92 - 96) 144 - 152
(90 - 94) 82 - 90
(51 - 55) 39 - 47
(25 - 29)
Half throttle 35 - 43
(22 - 26) 59 - 67
(37 - 41) 117 - 125
(73 - 77) 59 - 67
(37 - 41) 34 - 42
(22 - 26) 15 - 23
(10 - 14)
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D3D3 → D2D2 → D1
Full throttle 51 - 59
(32 - 37) 97 - 105
(60 - 65) 154 - 162
(96 - 101) 150 - 158
(93 - 98) 87 - 95
(54 - 59) 40 - 48
(25 - 30)
Half throttle 34 - 42
(21 - 26) 62 - 70
(39 - 43) 124 - 132
(77 - 82) 69 - 77
(43 - 48) 36 - 44
(22 - 27) 19 - 27
(12 - 17)
Throttle position Selector lever position Vehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
2.0/8 “D” position
73 - 81 (46 - 50) 49 - 57 (31 - 35)
“D” position (OD OFF) 86 - 94 (53 - 58) 82 - 90 (51 - 55)
Throttle position Selector lever position Vehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
2.0/8 “D” position
86 - 94 (53 - 58) 59 - 67 (37 - 42)
“D” position (OD OFF) 86 - 94 (53 - 58) 83 - 91 (52 - 57)
Revision: May 2010 2011 Versa
Page 391 of 3787

AT-374
< SERVICE INFORMATION >
SERVICE DATA AND SPECIFICATIONS (SDS)
Stall Speed
INFOID:0000000005928312
Line PressureINFOID:0000000005928313
Adjusting shims, Needle Bearings , Thrust Washers and Snap RingsINFOID:0000000005928314
OUTER DIAMETER AND INNER DIAMETER OF NEEDLE BEARINGS
HR16DE Engine Models
Unit: mm (in)
MR18DE Engine Models
Unit: mm (in)
OUTER DIAMETER AND INNER DIAMETER OF THRUST WASHERS
HR16DE Engine Models
Unit: mm (in)
MR18DE Engine Models
Engine HR16DEMR18DE
Stall revolution (rpm) 2,250 - 2,7002,310 - 2,770
Engine speed Line pressure kPa (kg/cm2, psi)
“D”, “2” and “1” po sitions “R” position
Idle speed 500 (5.1, 73)778 (7.9, 113)
Stall speed 1,173 (12.0, 170)1,825 (18.6, 265)
LocationOuter diameter Inner diameter
A 47.0 (1.850) 32.0 (1.260)
B 35.0 (1.378) 20.1 (0.791)
C 60.0 (2.362) 42.0 (1.654)
D 60.0 (2.362) 45.0 (1.772)
E 47.0 (1.850) 30.0 (1.181)
F 42.6 (1.677) 26.1 (1.028)
G 48.0 (1.890) 33.5 (1.319)
H 59.0 (2.323) 42.1 (1.657)
LocationOuter diameter Inner diameter
A 47.0 (1.850) 32.0 (1.260)
B 35.0 (1.378) 20.1 (0.791)
C 60.0 (2.362) 42.0 (1.654)
D 60.0 (2.362) 45.0 (1.772)
E 47.0 (1.850) 30.0 (1.181)
F 42.6 (1.677) 26.1 (1.028)
G 48.0 (1.890) 33.5 (1.319)
H 55.0 (2.165) 40.5 (1.594)
I 60.0 (2.362) 40.0 (1.575)
LocationOuter diameter Inner diameter
I 72.0 (2.835) 55.5 (2.185)
J, K 82.0 (3.228) 59.0 (2.323)
L 78.5 (3.091) 62.4 (2.457)
Revision: May 2010 2011 Versa
Page 392 of 3787

SERVICE DATA AND SPECIFICATIONS (SDS)AT-375
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Unit: mm (in)
OUTER DIAMETER AND INNER DIAMETER OF BEARING RACES AND ADJUSTING SHIMS
HR16DE Engine Models
Unit: mm (in)
MR18DE Engine Models
Unit: mm (in)
OUTER DIAMETER OF SNAP RINGS
Unit: mm (in)
INNER DIAMETER OF SNAP RINGS
Unit: mm (in)
Control ValvesINFOID:0000000005928315
CONTROL VALVE SPRINGS
Location Outer diameter Inner diameter
J 72.0 (2.835) 55.5 (2.185)
K, L 82.0 (3.228) 59.0 (2.323)
M 78.5 (3.091) 62.4 (2.457)
LocationOuter diameter Inner diameter
M 48.0 (1.890) 33.0 (1.299)
N 29.0 (1.142) 25.0 (0.984)
O 34.3 (1.350) 26.1 (1.028)
P 79.5 (3.130) 72.0 (2.835)
LocationOuter diameter Inner diameter
N 48.0 (1.890) 33.0 (1.299)
O 34.3 (1.350) 26.1 (1.028)
P 68.0 (2.677) 60.0 (2.632)
Q 72.0 (2.835) 61.0 (2.402)
Location Outer diameter
1 142.0 (5.59)
2
3
162.3 (6.39)
4
5
7 113.0 (4.45)
8 135.4 (5.33)
9 126.0 (4.96)
Location Inner diameter
6 32.0 (1.260)
10 63.5 (2.500)
Revision: May 2010 2011 Versa
