NISSAN TIIDA 2011 Service Repair Manual AV-36
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
tooth cellular telephones may not be recognized by t
he Bluetooth control unit. When a cellular telephone or
the Bluetooth control uni

AV-36
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
tooth cellular telephones may not be recognized by t
he Bluetooth control unit. When a cellular telephone or
the Bluetooth control unit is replaced, the telephone mu st be paired with the Bluetooth control unit. Different
cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.
Bluetooth Telephone System Diagram
Bluetooth Control Unit
When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the
Bluetooth control unit is initialized and performs various self checks. Initialization may take up to 10 seconds. If
a phone is present in the vehicle and paired with the Bluetooth control unit, NISSAN Voice Recognition will
then become active. Bluetooth telephone functions can be turned off using the NISSAN Voice Recognition
system. For Bluetooth contro l unit location, refer to AV-35, "
Component Parts and Harness Connector Loca-
tion".
Steering Wheel Audio Control Switches
When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes depending on which button is pushed. The Bluetooth control module uses this
signal to perform various functions while navigating through the voice recognition system.
The following functions can be performed using the steering wheel audio control switch:
• Initiate Self Diagnosis of the Bluetooth telephone system
• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume of calls
• Record memos
Volume Switch
Call volume can be adjusted using the audio unit volume switch.
Bluetooth Microphone
The Bluetooth microphone is located in the roof console assembly. The Bluetooth microphone sends a signal
to the Bluetooth control unit. The Bluetooth microphone c an be actively tested during self-diagnosis. For Blue-
tooth microphone location, refer to AV-35, "
Component Parts and Harness Connector Location".
Audio Unit
The audio unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.
AWNIA2074GB
Revision: May 2010 2011 Versa

Page 434 of 3787

NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-37
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P

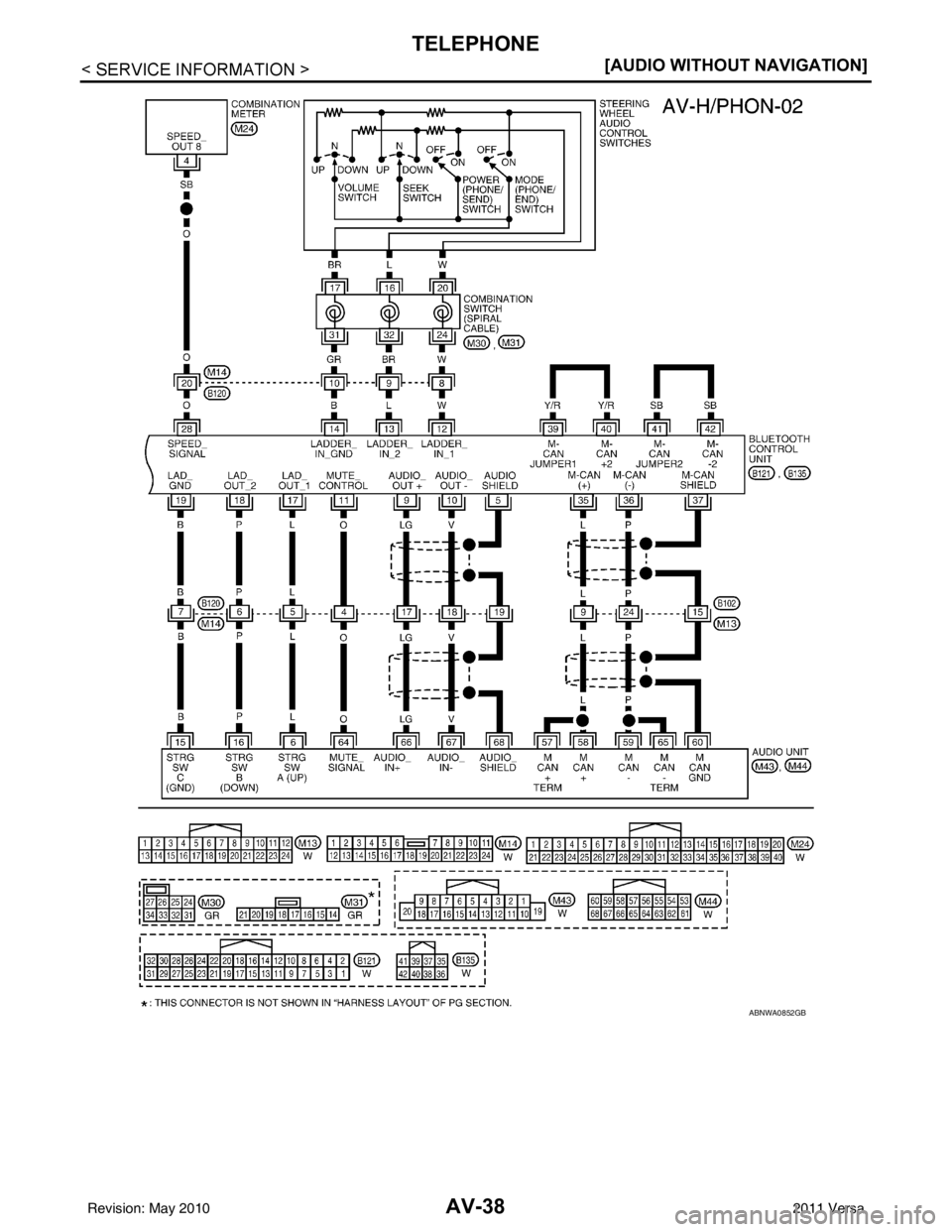

Wiring Diagram - H/PHON -INFOID:0000000005931299
ABNWA0851GB
Revision: May 2010 2011 Versa

Page 435 of 3787

NISSAN TIIDA 2011 Service Repair Manual AV-38
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
ABNWA0852GB
Revision: May 2010
2011 Versa

Page 436 of 3787

NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-39
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Bluetooth Control Unit Harnes s Connector Terminal LayoutINFOID:0000000005931300
Terminal and Referen

Page 437 of 3787

NISSAN TIIDA 2011 Service Repair Manual AV-40
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
14 (B) –Remote
control
ground
Input – – – Steering wheel audio
control switches do
not function.
17 (L) Ground Audio unit

Page 438 of 3787

NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-41
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Bluetooth Control Unit Self-Diagnosis FunctionINFOID:0000000005931302
The Bluetooth control unit has

TELEPHONEAV-41
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
Bluetooth Control Unit Self-Diagnosis FunctionINFOID:0000000005931302
The Bluetooth control unit has two diagnostic checks. The first diagnostic check is performed automatically
every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-
cian using the steering wheel audio control switches prior to trouble diagnosis.
BLUETOOTH CONTROL UNIT INITIALIZATION CHECKS
• Internal control unit failure
• Bluetooth antenna connection open or shorted
• Steering wheel audio control swit ches (SEND/END) stuck closed
• Vehicle speed pulse count
• Bluetooth Microphone connection test (with playback to operator)
• Bluetooth inquiry check
SELF-DIAGNOSIS MODE
1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth system to complete initialization and the Bluetooth ON indicator to stop flashing. This may take up to 10 seconds.
3. Press and hold the steering wheel audio control switch SEND
button for at least 5 seconds. The Bluetooth system will begin to
play a verbal prompt.
4. While the prompt is playing, momentarily press both the steering wheel audio control switches SEND and END buttons simulta-
neously. The Bluetooth system will sound a 5 second beep.
5. While the beep is sounding, momentarily press both the steering
wheel audio control switches SEND and END buttons simulta-
neously again.
6. The Bluetooth system has now entered into the diagnostic
mode. Results of the diagnostic checks will be verbalized to the
technician. Refer to AV-41, "
Workflow".
7. If there are no failure records to report, the speed pulse count
will be reported next.
8. After the speed pulse count is reported, an interactive Bluetooth microphone test will be performed. Follow the voice pr ompt. If the Bluetooth microphone test fails refer to
AV-41, "
Workflow".
9. Self-diagnosis mode is complete when the voice prompt says "All diagnostic functions completed". A short beep is heard.
WorkflowINFOID:0000000005931303
WKIA6003E
WKIA6004E
Flashing Pattern
(Bluetooth ON indicator) Failure Message
Action
1 "Internal failure" Replace Bluetooth control unit. Refer to AV-
46, "Removal and Installation".
2 "Bluetooth antenna open" 1. Inspect harness connection.
2. Replace Bluetooth antenna. Refer to AV- 4 6 , "
Removal and Installation".
3
"Bluetooth antenna shorted"
Revision: May 2010 2011 Versa

Page 439 of 3787

NISSAN TIIDA 2011 Service Repair Manual AV-42
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
TELEPHONE
Power Supply and Ground Circuit Inspection for Bluetooth Control Unit
INFOID:0000000005931304
1.CHECK FUSES
Make sure the following fu

Page 440 of 3787

NISSAN TIIDA 2011 Service Repair Manual TELEPHONEAV-43
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
2. Check continuity between the following Bluetooth control unit terminals and ground.
OK or NG
OK >>
