Page 2081 of 3787
![NISSAN TIIDA 2011 Service Repair Manual DTC P0300 - P0304 MULTIPLE CYLINDER MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
EC-787
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

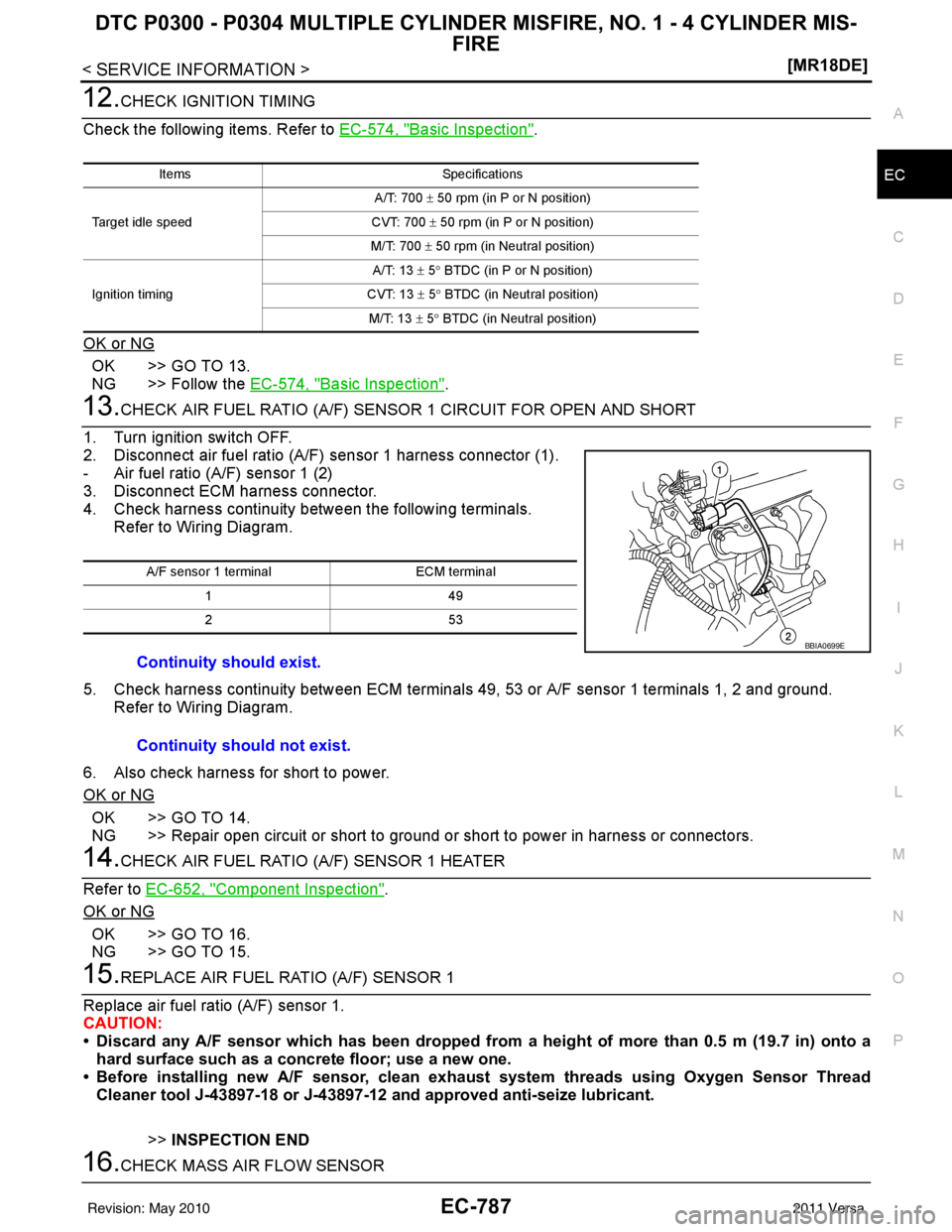

12.CHECK IGNITION TIMING
Check the following items. Re NISSAN TIIDA 2011 Service Repair Manual DTC P0300 - P0304 MULTIPLE CYLINDER MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
EC-787
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
12.CHECK IGNITION TIMING
Check the following items. Re](/manual-img/5/57396/w960_57396-2080.png)
DTC P0300 - P0304 MULTIPLE CYLINDER MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
EC-787
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
12.CHECK IGNITION TIMING
Check the following items. Refer to EC-574, "
Basic Inspection".
OK or NG
OK >> GO TO 13.
NG >> Follow the EC-574, "
Basic Inspection".
13.CHECK AIR FUEL RATIO (A/F) SENS OR 1 CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect air fuel ratio (A/F ) sensor 1 harness connector (1).
- Air fuel ratio (A/F) sensor 1 (2)
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between ECM terminals 49, 53 or A/F sensor 1 terminals 1, 2 and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to EC-652, "
Component Inspection".
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
15.REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:
• Discard any A/F sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a
hard surface such as a concrete floor; use a new one.
• Before installing new A/F senso r, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
>> INSPECTION END
16.CHECK MASS AIR FLOW SENSOR
Items Specifications
Target idle speed A/T: 700 ±
50 rpm (in P or N position)
CVT: 700 ± 50 rpm (in P or N position)
M/T: 700 ± 50 rpm (in Neutral position)
Ignition timing A/T: 13 ±
5° BTDC (in P or N position)
CVT: 13 ± 5 ° BTDC (in Neutral position)
M/T: 13 ± 5 ° BTDC (in Neutral position)
A/F sensor 1 terminal ECM terminal
14 9
25 3
Continuity should exist.
Continuity should not exist.
BBIA0699E
Revision: May 2010 2011 Versa
Page 2082 of 3787
![NISSAN TIIDA 2011 Service Repair Manual EC-788
< SERVICE INFORMATION >[MR18DE]
DTC P0300 - P0304 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. NISSAN TIIDA 2011 Service Repair Manual EC-788
< SERVICE INFORMATION >[MR18DE]
DTC P0300 - P0304 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2.](/manual-img/5/57396/w960_57396-2081.png)

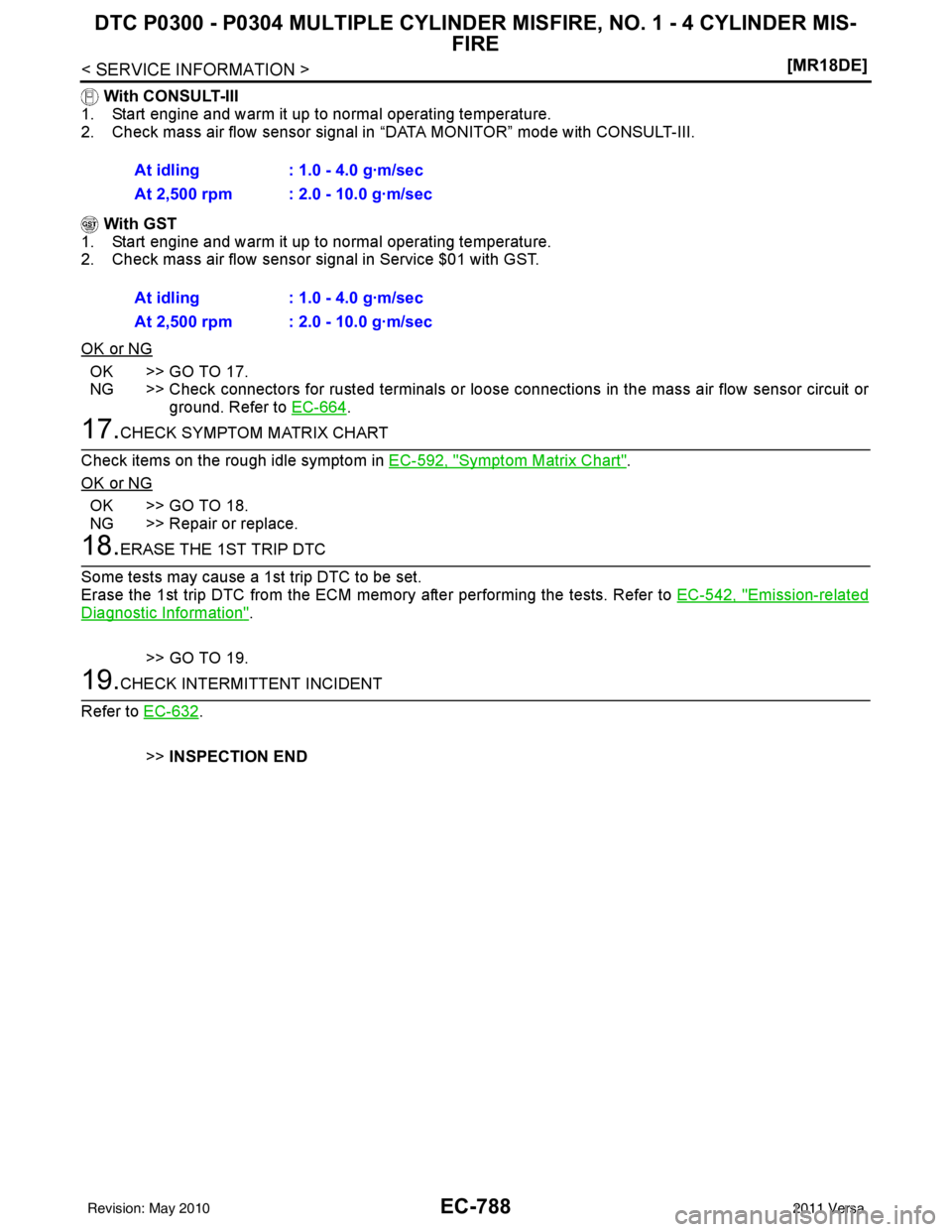

EC-788
< SERVICE INFORMATION >[MR18DE]
DTC P0300 - P0304 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 4 CYLINDER MIS-
FIRE
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-III.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK >> GO TO 17.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or ground. Refer to EC-664
.
17.CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-592, "
Symptom Matrix Chart".
OK or NG
OK >> GO TO 18.
NG >> Repair or replace.
18.ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memo ry after performing the tests. Refer to EC-542, "
Emission-related
Diagnostic Information".
>> GO TO 19.
19.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
At idling : 1.0 - 4.0 g·m/sec
At 2,500 rpm : 2.0 - 10.0 g·m/sec
At idling : 1.0 - 4.0 g·m/sec
At 2,500 rpm : 2.0 - 10.0 g·m/sec
Revision: May 2010
2011 Versa
Page 2083 of 3787
![NISSAN TIIDA 2011 Service Repair Manual DTC P0327, P0328 KSEC-789
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0327, P0328 KS
Component DescriptionINFOID:0000000006341948
The knock sensor (1) is attached
to the cyl NISSAN TIIDA 2011 Service Repair Manual DTC P0327, P0328 KSEC-789
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0327, P0328 KS
Component DescriptionINFOID:0000000006341948
The knock sensor (1) is attached
to the cyl](/manual-img/5/57396/w960_57396-2082.png)
DTC P0327, P0328 KSEC-789
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0327, P0328 KS
Component DescriptionINFOID:0000000006341948
The knock sensor (1) is attached
to the cylinder block. It senses
engine knocking using a piezoelectric element. A knocking vibration
from the cylinder block is sensed as vibrational pressure. This pres-
sure is converted into a voltage signal and sent to the ECM.
• : Vehicle front
On Board Diagnosis LogicINFOID:0000000006341949
The MIL will not light up for these self-diagnoses.
DTC Confirmation ProcedureINFOID:0000000006341950
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.
1. Start engine and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-791, "
Diagnosis Procedure".
PBIB3264E
DTC No. Trouble Diagnosis NameDTC Detected Condition Possible Cause
P0327
0327 Knock sensor circuit low
input An excessively low voltage from the sensor is
sent to ECM.
• Harness or connectors
(Knock sensor circuit is open or shorted.)
• Knock sensor
P0328
0328 Knock sensor circuit high
input An excessively high voltage from the sensor is
sent to ECM.
Revision: May 2010
2011 Versa
Page 2084 of 3787
EC-790
< SERVICE INFORMATION >[MR18DE]
DTC P0327, P0328 KS

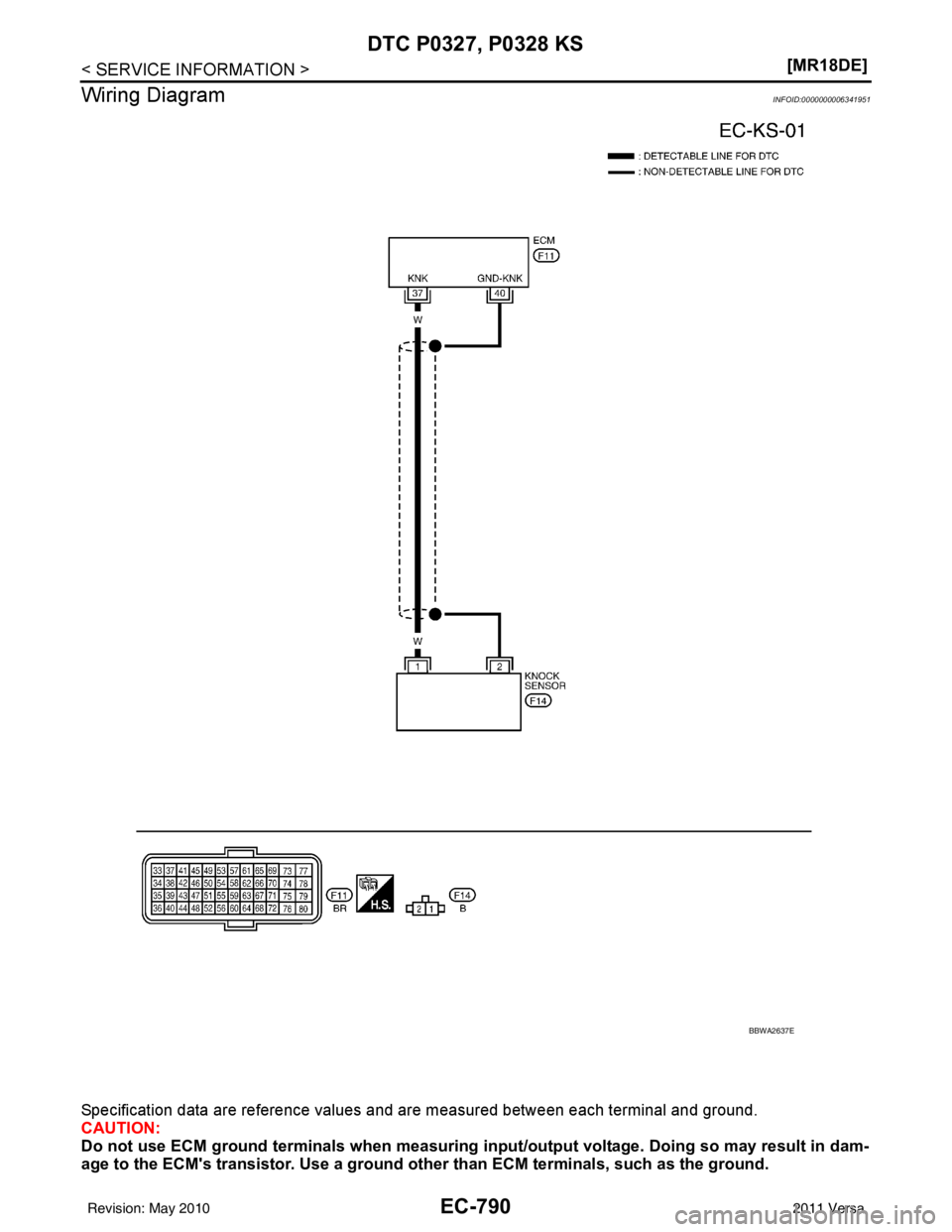

Wiring Diagram
INFOID:0000000006341951
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doi ng so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
BBWA2637E
Revision: May 2010 2011 Versa
Page 2085 of 3787
![NISSAN TIIDA 2011 Service Repair Manual DTC P0327, P0328 KSEC-791
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

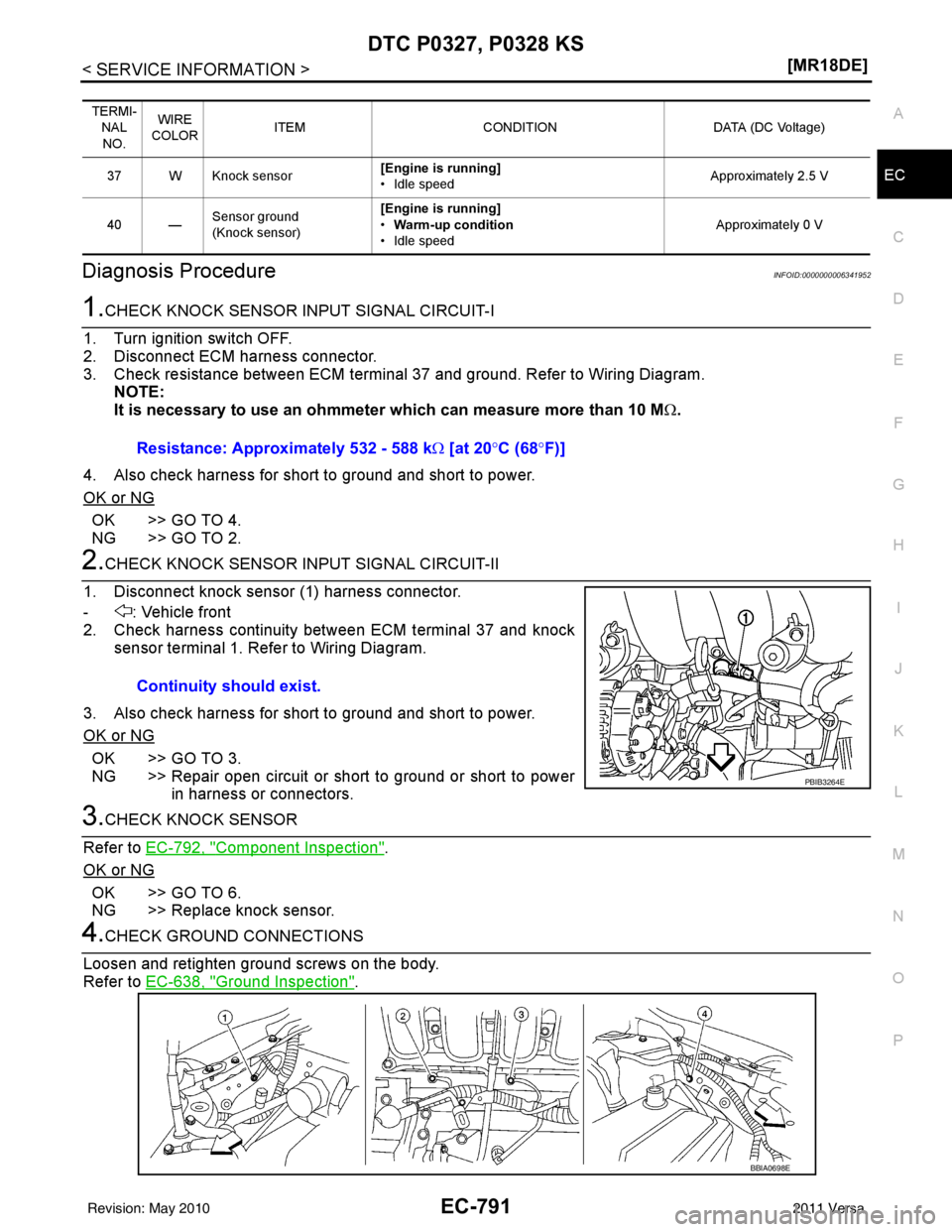

Diagnosis ProcedureINFOID:0000000006341952
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-I
1. Turn ignition switc NISSAN TIIDA 2011 Service Repair Manual DTC P0327, P0328 KSEC-791
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000006341952
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-I
1. Turn ignition switc](/manual-img/5/57396/w960_57396-2084.png)
DTC P0327, P0328 KSEC-791
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000006341952
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminal 37 and ground. Refer to Wiring Diagram. NOTE:
It is necessary to use an ohmmeter which can measure more than 10 MΩ .
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT-II
1. Disconnect knock sensor (1) harness connector.
- : Vehicle front
2. Check harness continuity between ECM terminal 37 and knock sensor terminal 1. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK KNOCK SENSOR
Refer to EC-792, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace knock sensor.
4.CHECK GROUND CONNECTIONS
Loosen and retighten ground screws on the body.
Refer to EC-638, "
Ground Inspection".
TERMI-
NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
37 W Knock sensor [Engine is running]
• Idle speed
Approximately 2.5 V
40 — Sensor ground
(Knock sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68° F)]
Continuity should exist.
PBIB3264E
BBIA0698E
Revision: May 2010 2011 Versa
Page 2086 of 3787
![NISSAN TIIDA 2011 Service Repair Manual EC-792
< SERVICE INFORMATION >[MR18DE]
DTC P0327, P0328 KS
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5.CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
1. Reconnect knock NISSAN TIIDA 2011 Service Repair Manual EC-792
< SERVICE INFORMATION >[MR18DE]
DTC P0327, P0328 KS
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5.CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
1. Reconnect knock](/manual-img/5/57396/w960_57396-2085.png)
EC-792
< SERVICE INFORMATION >[MR18DE]
DTC P0327, P0328 KS
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5.CHECK KNOCK SENSOR SHIELD CIRCUIT FOR OPEN AND SHORT
1. Reconnect knock sensor harness connector.
2. Check harness continuity between ECM terminal 40 and knock sensor terminal 2. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK INTERMITTENT INCIDENT
Refer to EC-632
.
>> INSPECTION END
Component InspectionINFOID:0000000006341953
KNOCK SENSOR
1. Check resistance between knock sensor terminal 1 and ground.
NOTE:
It is necessary to use an ohmmeter which can measure
more than 10 M Ω.
CAUTION:
Do not use any knock sensors that have been dropped or
physically damaged. Use only new ones.
2. If NG, replace knock sensor.
Removal and InstallationINFOID:0000000006341954
KNOCK SENSOR
Refer to EM-203, "Disassembly and Assembly".
:Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15
Continuity should exist
Resistance: Approximately 532 - 588 k Ω [at 20° C (68°F)]
SEF227W
Revision: May 2010 2011 Versa
Page 2087 of 3787
![NISSAN TIIDA 2011 Service Repair Manual DTC P0335 CKP SENSOR (POS)EC-793
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

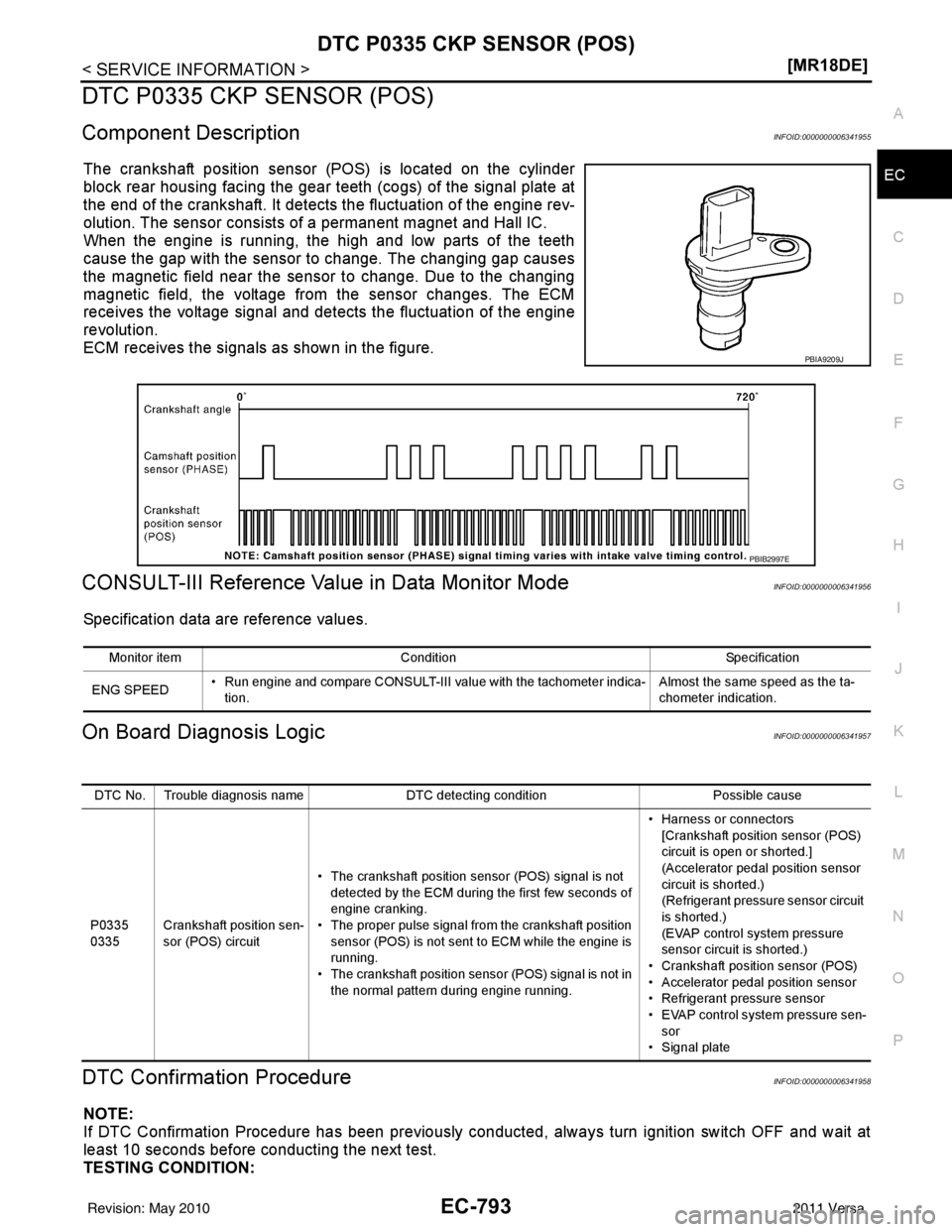

DTC P0335 CKP SENSOR (POS)
Component DescriptionINFOID:0000000006341955
The crankshaft position sensor NISSAN TIIDA 2011 Service Repair Manual DTC P0335 CKP SENSOR (POS)EC-793
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0335 CKP SENSOR (POS)
Component DescriptionINFOID:0000000006341955
The crankshaft position sensor](/manual-img/5/57396/w960_57396-2086.png)
DTC P0335 CKP SENSOR (POS)EC-793
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0335 CKP SENSOR (POS)
Component DescriptionINFOID:0000000006341955
The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear t
eeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution. The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change. The changing gap causes
the magnetic field near the sensor to change. Due to the changing
magnetic field, the voltage from the sensor changes. The ECM
receives the voltage signal and detects the fluctuation of the engine
revolution.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000006341956
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000006341957
DTC Confirmation ProcedureINFOID:0000000006341958
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
PBIA9209J
PBIB2997E
Monitor item Condition Specification
ENG SPEED • Run engine and compare CONSULT-III value with the tachometer indica-
tion. Almost the same speed as the ta-
chometer indication.
DTC No. Trouble diagnosis name
DTC detecting conditionPossible cause
P0335
0335 Crankshaft position sen-
sor (POS) circuit • The crankshaft position sensor (POS) signal is not
detected by the ECM during the first few seconds of
engine cranking.
• The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM while the engine is
running.
• The crankshaft position sensor (POS) signal is not in the normal pattern during engine running. • Harness or connectors
[Crankshaft position sensor (POS)
circuit is open or shorted.]
(Accelerator pedal position sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit
is shorted.)
(EVAP control system pressure
sensor circuit is shorted.)
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor
• EVAP control system pressure sen- sor
• Signal plate
Revision: May 2010 2011 Versa
Page 2088 of 3787
EC-794
< SERVICE INFORMATION >[MR18DE]
DTC P0335 CKP SENSOR (POS)
Before performing the following procedure, confirm
that battery voltage is more than 10.5 V with igni-
tion switch ON.
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-795, "
Diagnosis Procedure".

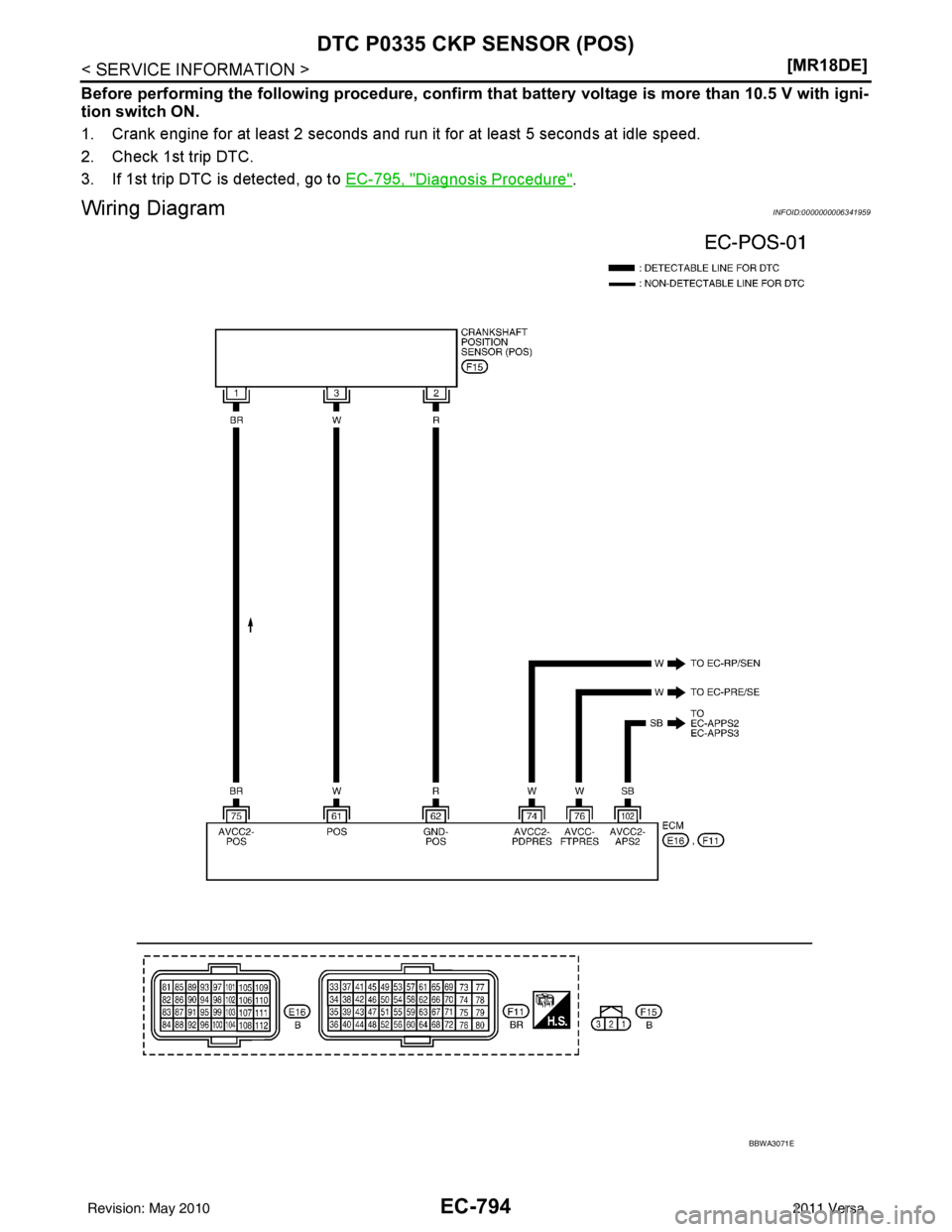

Wiring DiagramINFOID:0000000006341959
BBWA3071E
Revision: May 2010 2011 Versa
