Page 3425 of 3787

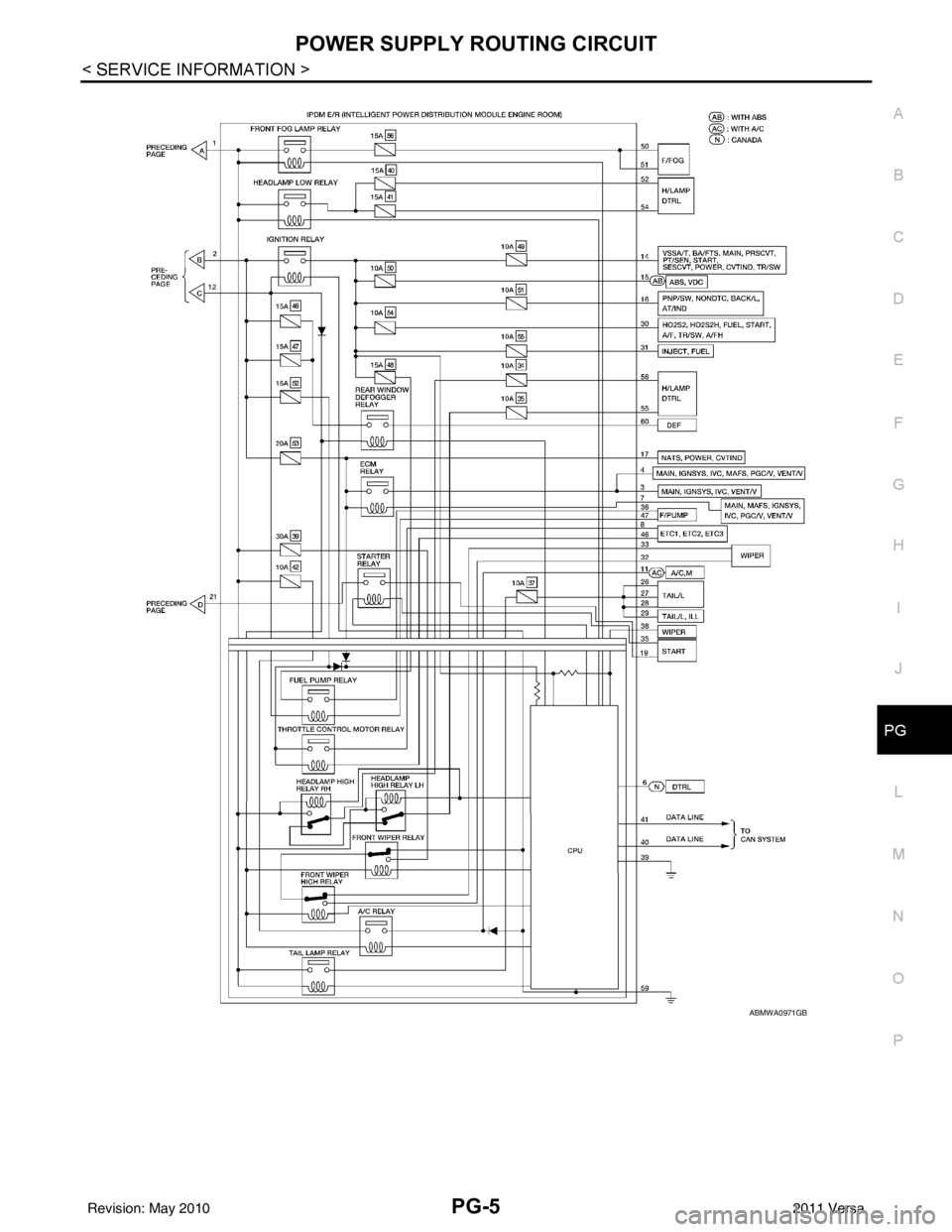

NISSAN TIIDA 2011 Service Repair Manual POWER SUPPLY ROUTING CIRCUITPG-5 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ABMWA0971GB Revision: May 2010 2011 Versa

Page 3426 of 3787

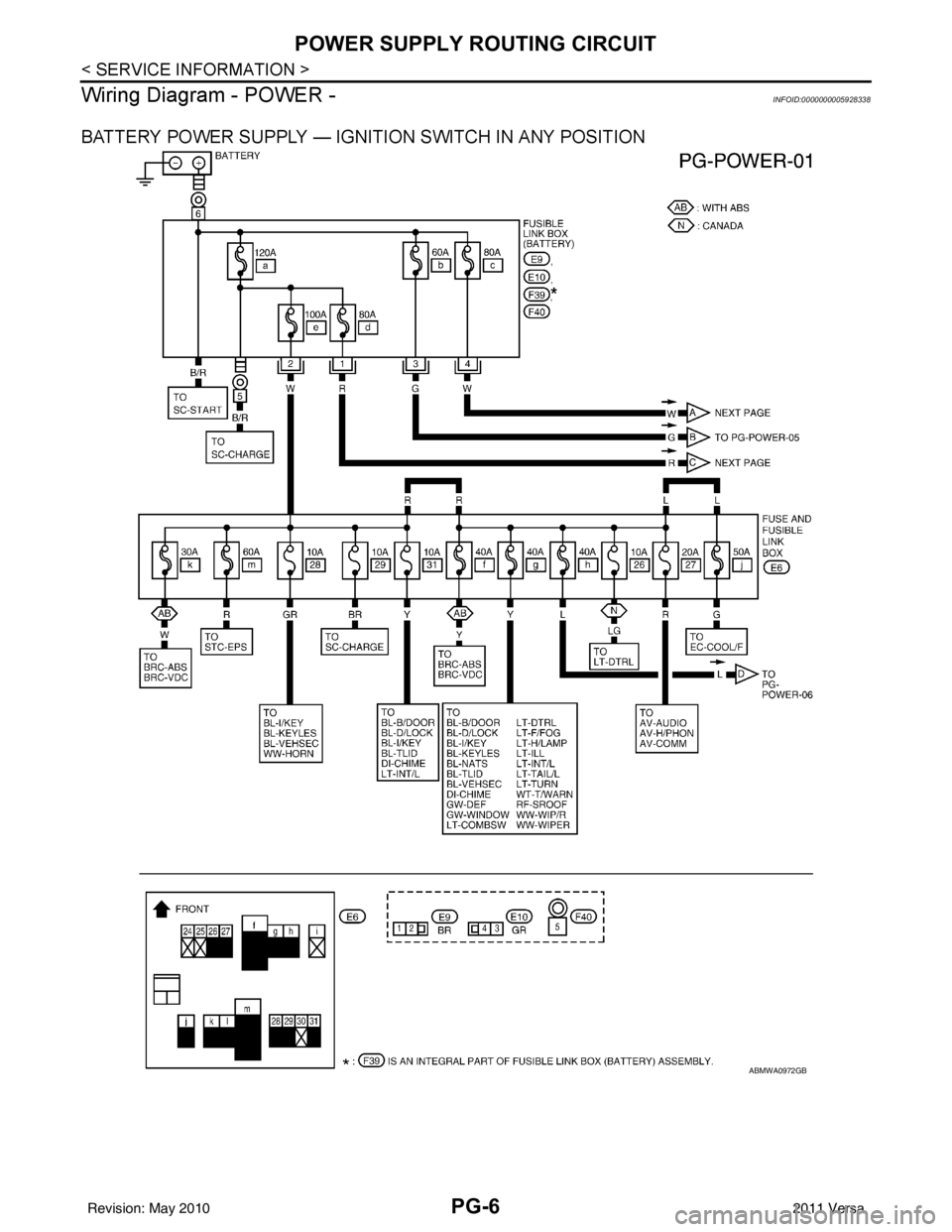

NISSAN TIIDA 2011 Service Repair Manual PG-6 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT Wiring Diagram - POWER - INFOID:0000000005928338 BATTERY POWER SUPPLY — IGNITION SWITCH IN ANY POSITION ABMWA0972GB Revision: May 2010 2011

Page 3427 of 3787

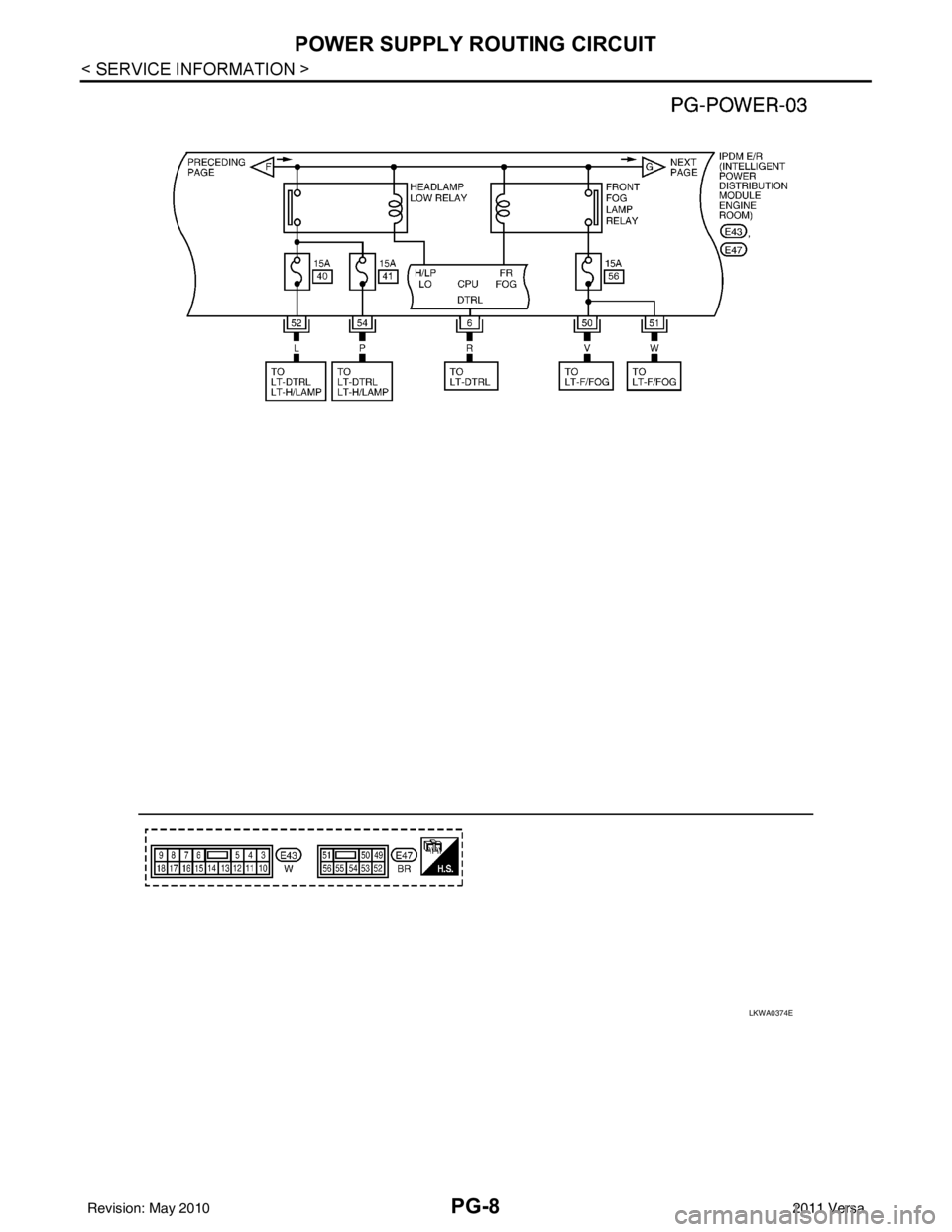

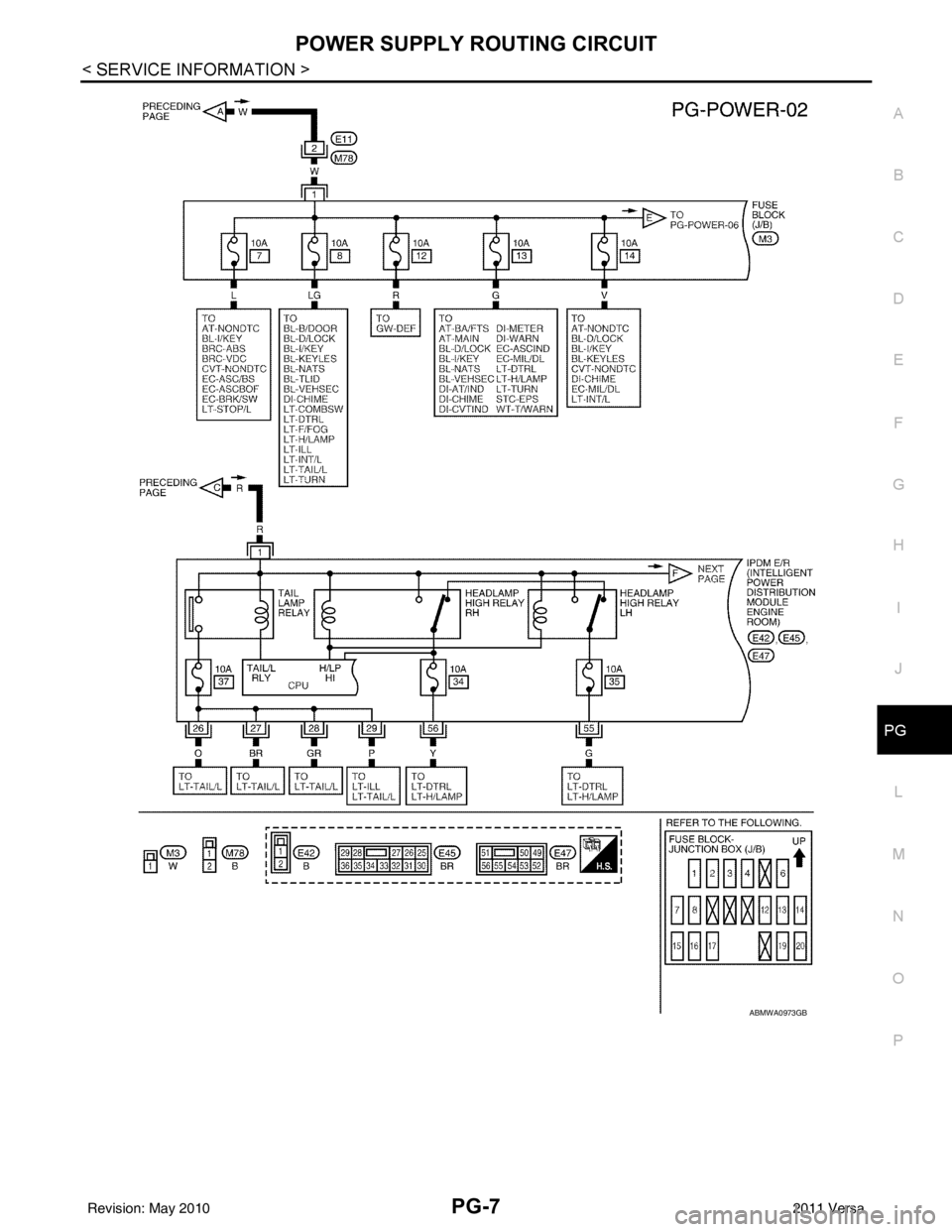

NISSAN TIIDA 2011 Service Repair Manual POWER SUPPLY ROUTING CIRCUITPG-7 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ABMWA0973GB Revision: May 2010 2011 Versa

Page 3428 of 3787

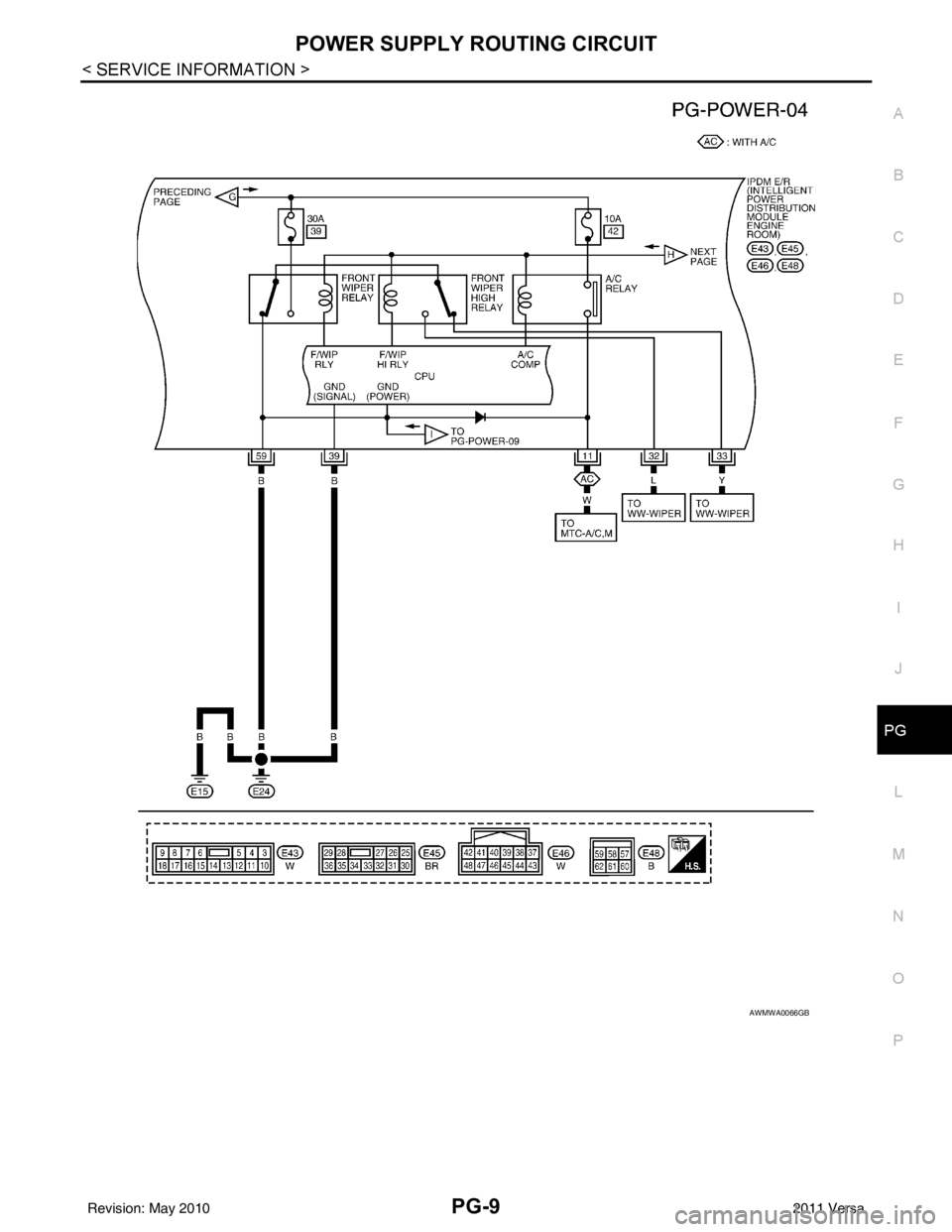

NISSAN TIIDA 2011 Service Repair Manual PG-8 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT LKWA0374E Revision: May 20102011 Versa

Page 3429 of 3787

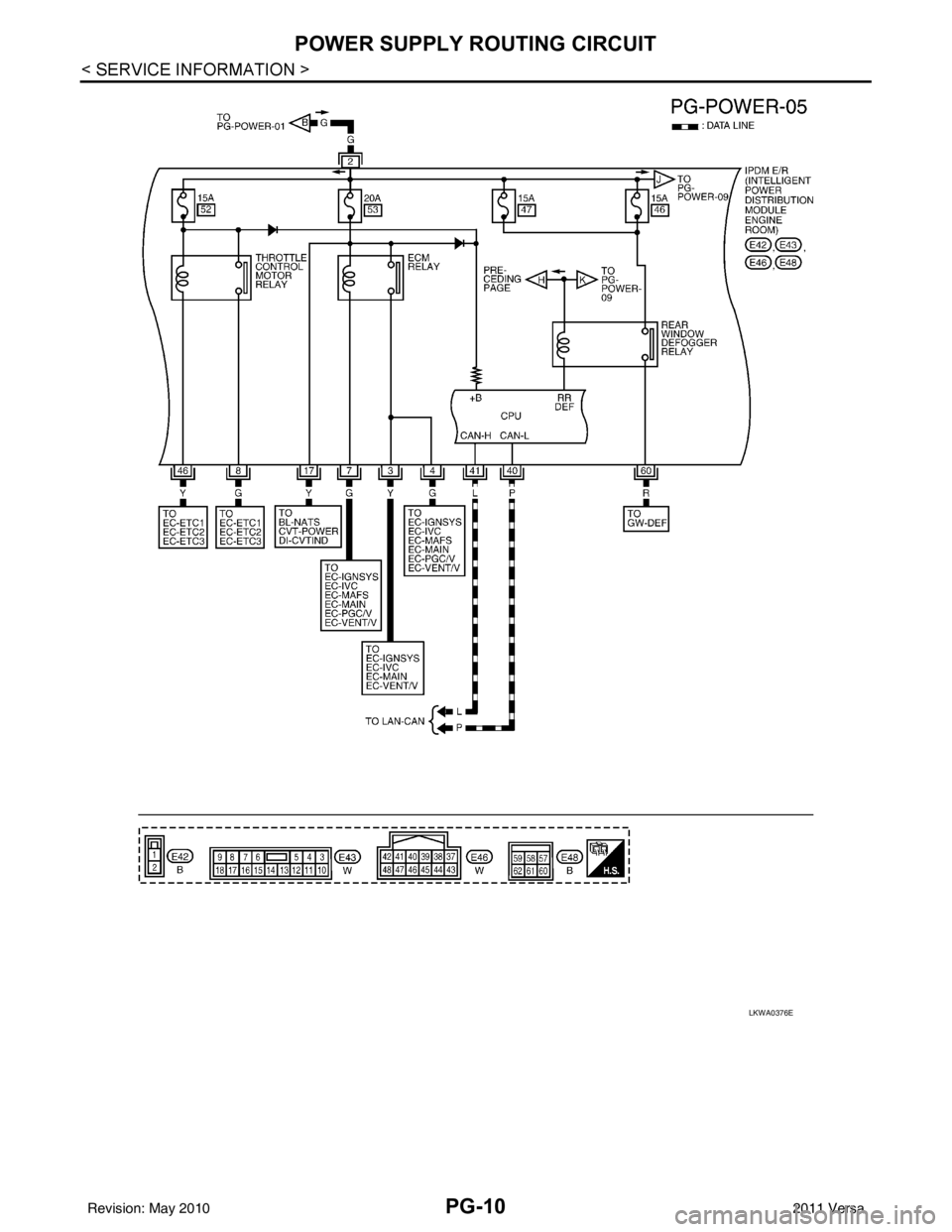

NISSAN TIIDA 2011 Service Repair Manual POWER SUPPLY ROUTING CIRCUITPG-9 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P AWMWA0066GB Revision: May 2010 2011 Versa

Page 3430 of 3787

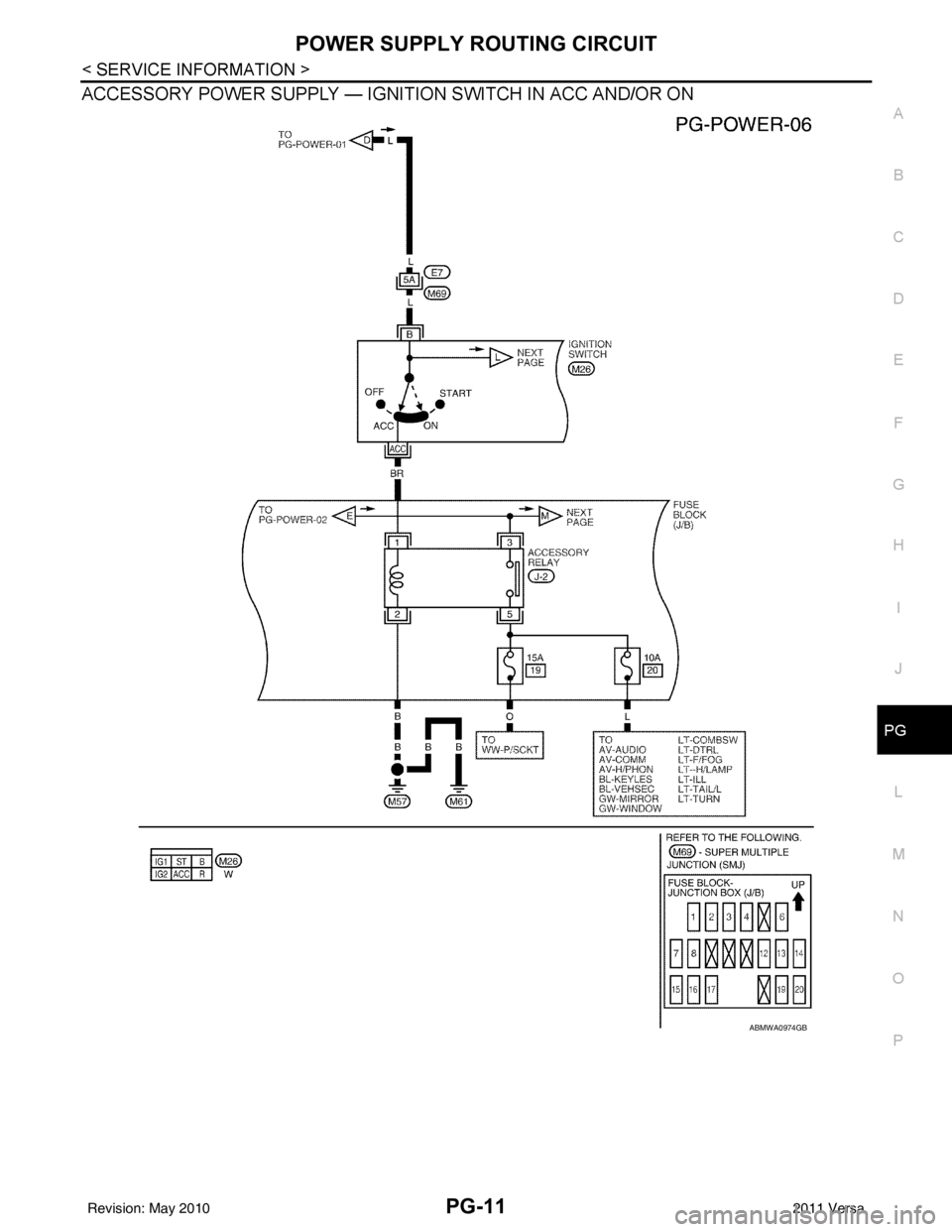

NISSAN TIIDA 2011 Service Repair Manual PG-10 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT LKWA0376E Revision: May 20102011 Versa

Page 3431 of 3787

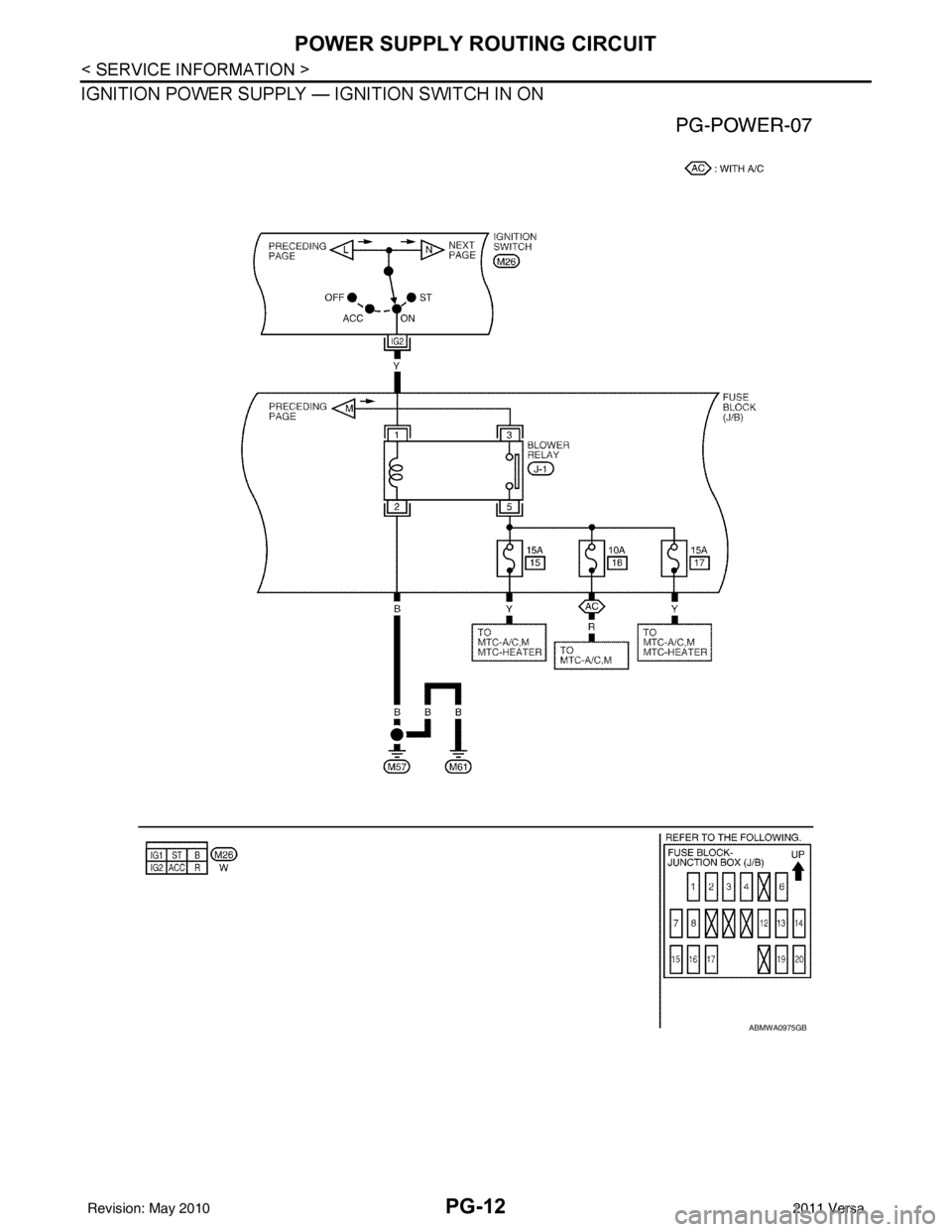

NISSAN TIIDA 2011 Service Repair Manual POWER SUPPLY ROUTING CIRCUITPG-11 < SERVICE INFORMATION > C DE F G H I J L M A B PG N O P ACCESSORY POWER SUPPLY — IGNITION SWITCH IN ACC AND/OR ON ABMWA0974GB Revision: May 2010 2011 Versa

Page 3432 of 3787

NISSAN TIIDA 2011 Service Repair Manual PG-12 < SERVICE INFORMATION > POWER SUPPLY ROUTING CIRCUIT IGNITION POWER SUPPLY — IGNITION SWITCH IN ON ABMWA0975GB Revision: May 20102011 Versa
