SWS -TroubleshootingSWS -Troubleshooting54B-37
Terminal
No.Normal condition Checking requirements Check item
30Ignition switch (IG2) power supplyIgnition switch: ONSystem voltage
31EarthAny time0V
POWER WINDOW MAIN SWITCH
Y0794AU
Terminal
No.Check itemChecking requirementsNormal condition
1---
2SWS communication line (with power
window motor assembly)Power window relay: ON0 - 12 V (pulse signal)
3-5---
6Power supplyPower window relay: ONSystem voltage
7---
8SWS communication line (with
ETACS-ECU)Any time0 - 12 V (pulse signal)
9EarthAny time0V
10---
POWER WINDOW MOTOR ASSEMBLY
Terminal
No.Check itemChecking requirementsNormal condition
1EarthAny time0V
2Power window sub-switch (DOWN)
input (passenger’s and rear doors only)Power window sub-switch: DOWN0V
3Power supplyPower window relay: ONSystem voltage
4Power window sub-switch (UP) input
(passenger’s and rear doors only)Power window sub-switch: UP0V
6SWS communication linePower window relay: ON0 - 12 V (pulse signal)

NOTES

55-1
HEATER, AIR
CONDITIONER AND
VENTILATION
CONTENTS
SERVICE SPECIFICATIONS 2.................
LUBRICANTS 2..............................
SPECIAL TOOLS 2...........................
TROUBLESHOOTING 3.......................
ON-VEHICLE SERVICE 14....................
Refrigerant Level Test through Performance Test 14.
Magnetic Clutch Test 14.........................
Receiver Drier Test 14..........................
Compressor Drive Belt Adjustment 15.............
Dual Pressure Switch Check 15..................
Charging 16...................................
Correcting Low Refrigerant Level in case the Service
can used 18...................................
Discharging System 19..........................
Refilling of Oil in the A/C System 19...............
Performance Test 20............................
Refrigerant Leak Repair 21......................
Blower Relay Continuity Check 22................
A/C Compressor Relay Continuity Check 22........Condenser Fan Relay (LO) Check 23.............
Condenser Fan Relay (HI) Check 23..............
Idle-up Operation Check 24.....................
HEATER CONTROL ASSEMBLY (A/C-ECU)
AND A/C SWITCH 25........................
HEATER UNIT AND BLOWER ASSEMBLY 28.
REGISTOR, BLOWER MOTOR AND
INSIDE/OUTSIDE AIR CHANGE OVER
DAMPER MOTOR 32.........................
EVAPORATOR AND AIR THERMO SENSOR
34 ...........................................
COMPRESSOR 36............................
CONDENSER ASSEMBLY AND CONDENSER
FAN ASSEMBLY 40...........................
REFRIGERANT LINES 42.....................
DUCTS 44...................................
VENTILATION 45.............................

ServiceSpecifications/Lubricants/
Special ToolsHEATER, AIR CONDITIONER AND VENTILATION-55-2
SERVICE SPECIFICATIONS
ItemStandard value
Idlid()NP85050Idlingspeed(rpm):NorPrange850±50Idlingspeed(rpm):NorPrange850±50Idlingspeed(rpm):NorPrange850r50
Idle-up speed (rpm): N or P range850±50
Register resistance (for blower motor)ΩHI - LO (between terminals 1 and 3)2.54g()
HI - ML (between terminals 1 and 6)1.24
HI - MH (between terminals 1 and 4)0.6
Air conditioner compressor air gap mm0.3 – 0.5
Refrigerant temperature switch operating temperature (_C)ContinuitySlightly below 150gppgp()
No continuity150 or higher (until tempera-
ture falls to 120 when OFF)
NOTE* : When disconnected the compressor connector at A/C ON
LUBRICANTS
ItemsSpecified lubricantsQuantity
Compressor oil mLSUN PAG 56130±10
Pipe couplingSUN PAG 56As required
Refrigerant (g)R134a (HFC-134a)550±20
SPECIAL TOOLS
ToolNumberNameUse
MB991367Special spannerFor use on the air conditioner compressor
armature locknut
MB991386Pin
MB991529Diagnosis code
check harnessFor inspecting the air conditioner using a
voltmeter

HEATER, AIR CONDITIONER AND VENTILATION-Troubleshooting55-3
TROUBLESHOOTING
BASIC FLOW OF TROUBLESHOOTING
Refer to Group 00 – How to Use Troubleshooting/Inspection Service Points.
INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptomInspection procedureReference page
Air conditioner not working at all155 - 3
Blower motor not working255 - 4
Air cannot be switched between inside and outside355 - 5
Rear defogger not working455-6
Cold air not coming out from the air outlet555 - 7
Magnet clutch not working normally655 - 8
Condenser fan not working at all755-9
Condenser fan not working only for LO855-10
Condenser fan not working only for HI955-11
INSPECTION PROCEDURE FOR TROUBLE SYMPTOM

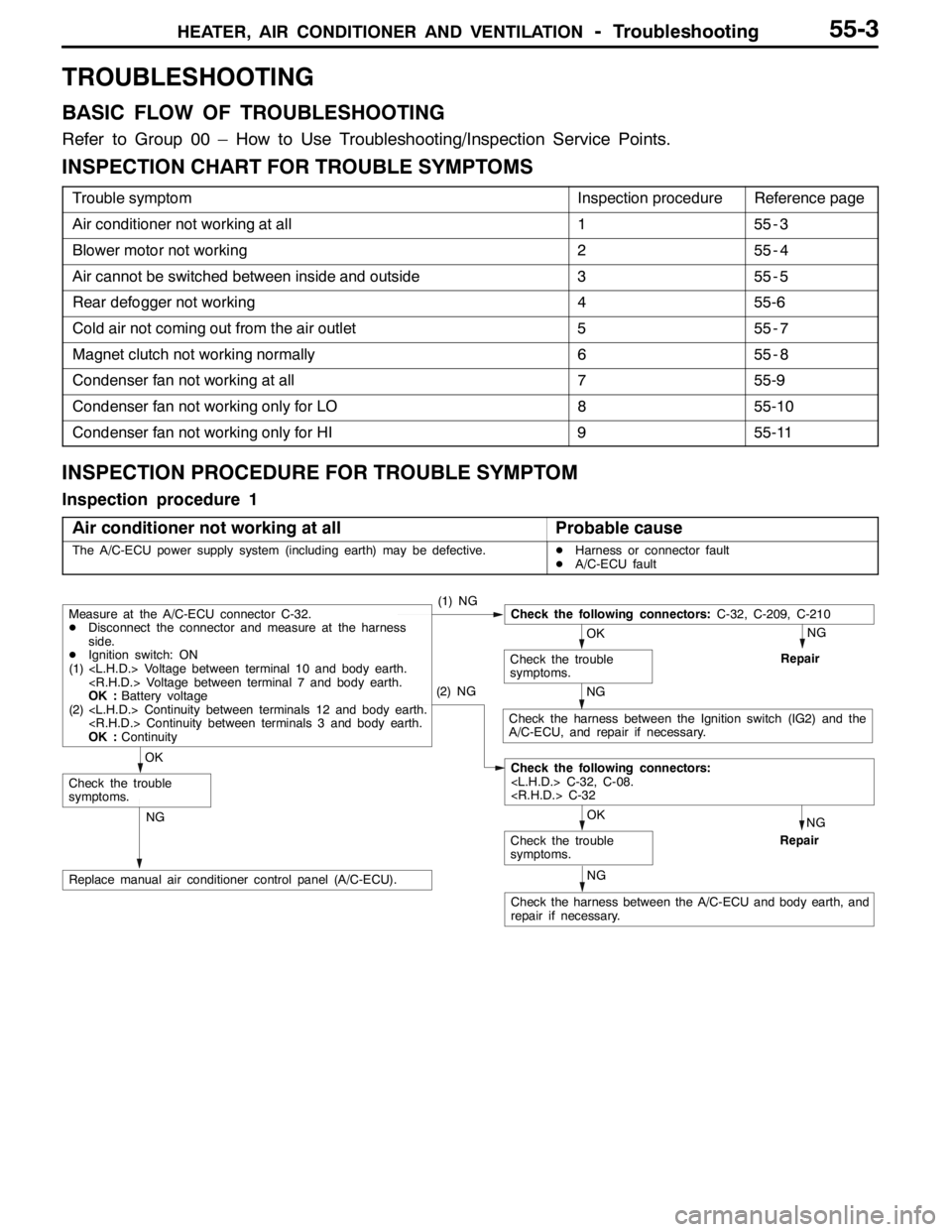

Inspection procedure 1
Air conditioner not working at all
Probable cause
The A/C-ECU power supply system (including earth) may be defective.DHarness or connector fault
DA/C-ECU fault
NG
Repair
NG
Check the harness between the Ignition switch (IG2) and the
A/C-ECU, and repair if necessary.
NG
Repair
NG
Check the harness between the A/C-ECU and body earth, and
repair if necessary.
NG
Replace manual air conditioner control panel (A/C-ECU).
OK
Check the trouble
symptoms.
Check the following connectors:
C-32, C-08.
C-32
(2) NG
OK
Check the trouble
symptoms.
Measure at the A/C-ECU connector C-32.
DDisconnect the connector and measure at the harness
side.
DIgnition switch: ON
(1) Voltage between terminal 10 and body earth.
Voltage between terminal 7 and body earth.
OK :Battery voltage
(2) Continuity between terminals 12 and body earth.
Continuity between terminals 3 and body earth.
OK :Continuity(1) NGCheck the following connectors:C-32, C-209, C-210
OK
Check the trouble
symptoms.

HEATER, AIR CONDITIONER AND VENTILATION-Troubleshooting55-4

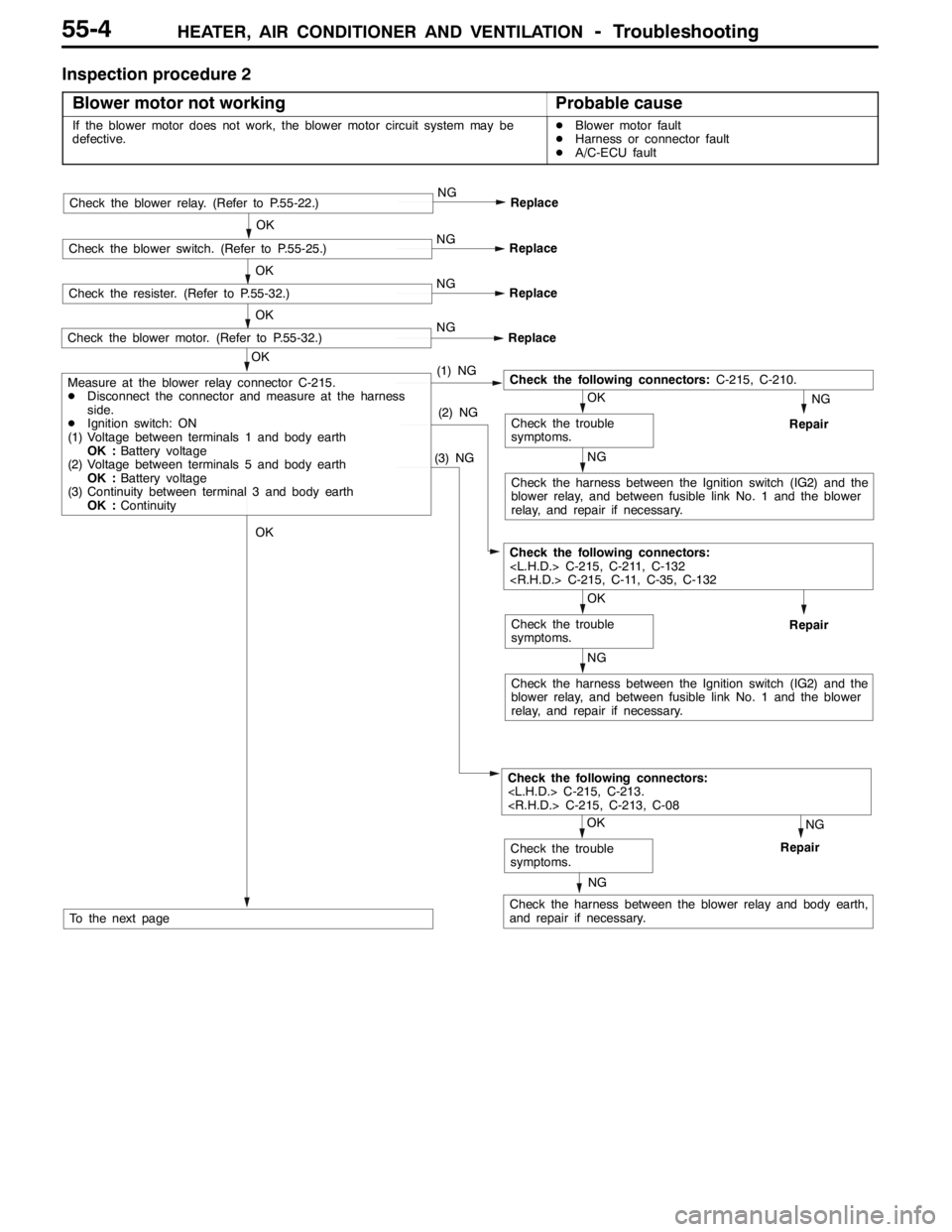

Inspection procedure 2
Blower motor not working
Probable cause
If the blower motor does not work, the blower motor circuit system may be
defective.DBlower motor fault
DHarness or connector fault
DA/C-ECU fault
NG
Replace
NG
Check the harness between the Ignition switch (IG2) and the
blower relay, and between fusible link No. 1 and the blower
relay, and repair if necessary.
OK
Check the trouble
symptoms.
NG
Repair
NG
Replace
OK
Check the resister. (Refer to P.55-32.)
NG
Replace
OK
Check the blower switch. (Refer to P.55-25.)
NG
Replace
OK
Check the blower relay. (Refer to P.55-22.)
NG
Repair
NG
Check the harness between the blower relay and body earth,
and repair if necessary.
OK
Check the trouble
symptoms.
Check the following connectors:
C-215, C-213.
C-215, C-213, C-08
(3) NG
OK
OK
(1) NG
Check the following connectors:C-215, C-210.
NG
Check the harness between the Ignition switch (IG2) and the
blower relay, and between fusible link No. 1 and the blower
relay, and repair if necessary.
OK
Check the trouble
symptoms.Repair
Check the following connectors:
C-215, C-211, C-132
C-215, C-11, C-35, C-132
(2) NG
Measure at the blower relay connector C-215.
DDisconnect the connector and measure at the harness
side.
DIgnition switch: ON
(1) Voltage between terminals 1 and body earth
OK :Battery voltage
(2) Voltage between terminals 5 and body earth
OK :Battery voltage
(3) Continuity between terminal 3 and body earth
OK :Continuity
To the next page
Check the blower motor. (Refer to P.55-32.)

HEATER, AIR CONDITIONER AND VENTILATION-Troubleshooting55-5
NG
Repair
NG
Repair
NG
Check the harness between the blower motor and the body
harness, and repair if necessary.
OK
Check the trouble
symptoms.
NG
Check the harness between the blower motor and the blower
relay, and repair if necessary.
OK
Check the trouble
symptoms.
Check the following connector:C-14.
(2) NG
OK
Check the trouble
symptoms.
NG
Check the harness between the blower switch and the
register, and between the register and blower motor, and
repair if necessary.
NG
Repair
OK
Measure at the blower motor connector C-14.
DDisconnect the connector and measure at the harness
side.
DIgnition switch: ON
DBlower switch position:4
(1) Voltage between terminal 1 and body earth
OK :Battery voltage
(2) Continuity between terminal 2 and body earth
OK :Continuity(1) NG

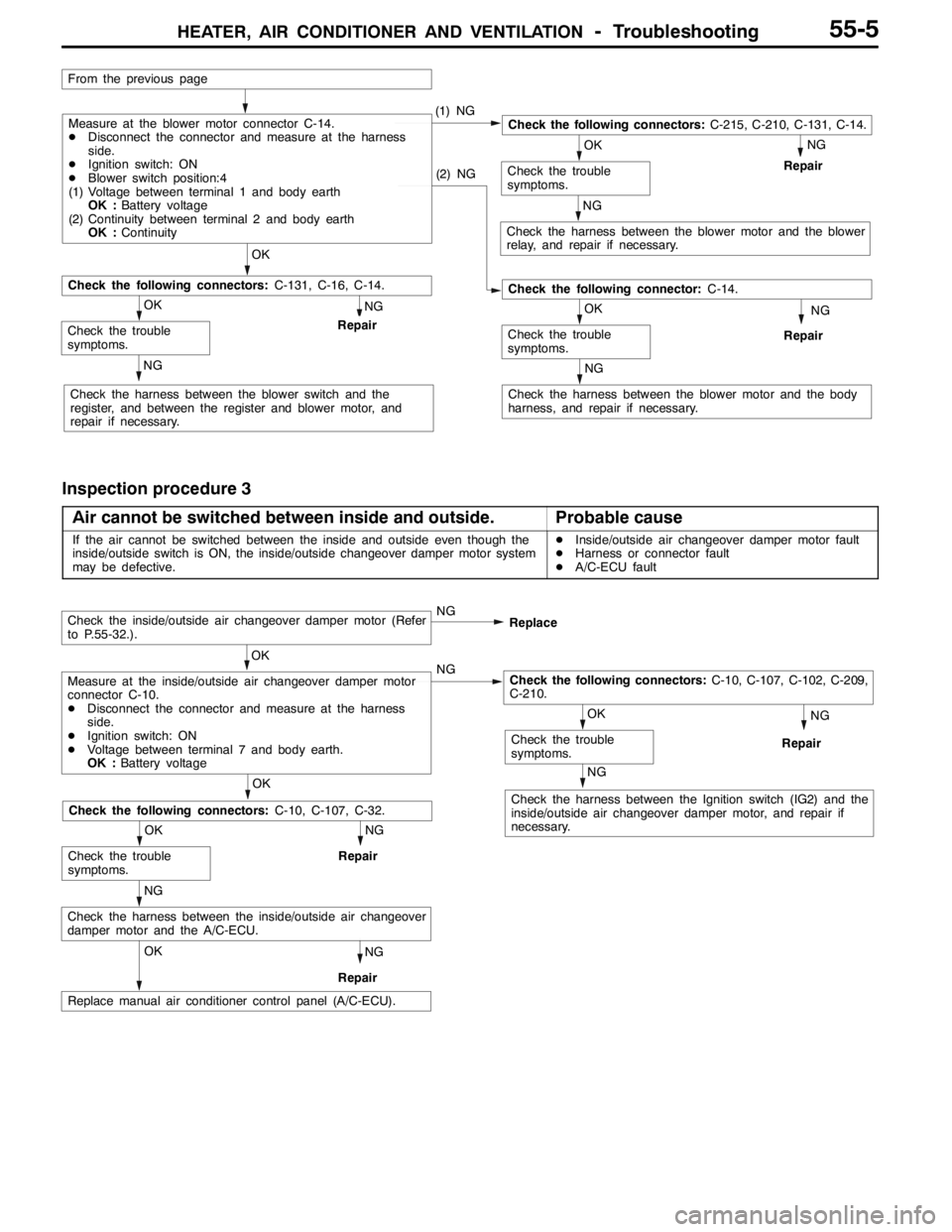

From the previous page
Check the following connectors:C-131, C-16, C-14.
Check the following connectors:C-215, C-210, C-131, C-14.
Inspection procedure 3
Air cannot be switched between inside and outside.
Probable cause
If the air cannot be switched between the inside and outside even though the
inside/outside switch is ON, the inside/outside changeover damper motor system
may be defective.DInside/outside air changeover damper motor fault
DHarness or connector fault
DA/C-ECU fault
NG
Replace
NG
Repair
OK
OK
Check the following connectors:C-10, C-107, C-32.
NG
Check the harness between the Ignition switch (IG2) and the
inside/outside air changeover damper motor, and repair if
necessary.
OK
Check the trouble
symptoms.
NG
Repair
OK
Measure at the inside/outside air changeover damper motor
connector C-10.
DDisconnect the connector and measure at the harness
side.
DIgnition switch: ON
DVoltage between terminal 7 and body earth.
OK :Battery voltageNGCheck the following connectors:C-10, C-107, C-102, C-209,
C-210.
Check the inside/outside air changeover damper motor (Refer
to P.55-32.).
NG
Repair
OK
Replace manual air conditioner control panel (A/C-ECU).
NG
Check the trouble
symptoms.
Check the harness between the inside/outside air changeover
damper motor and the A/C-ECU.

HEATER, AIR CONDITIONER AND VENTILATION-Troubleshooting55-6

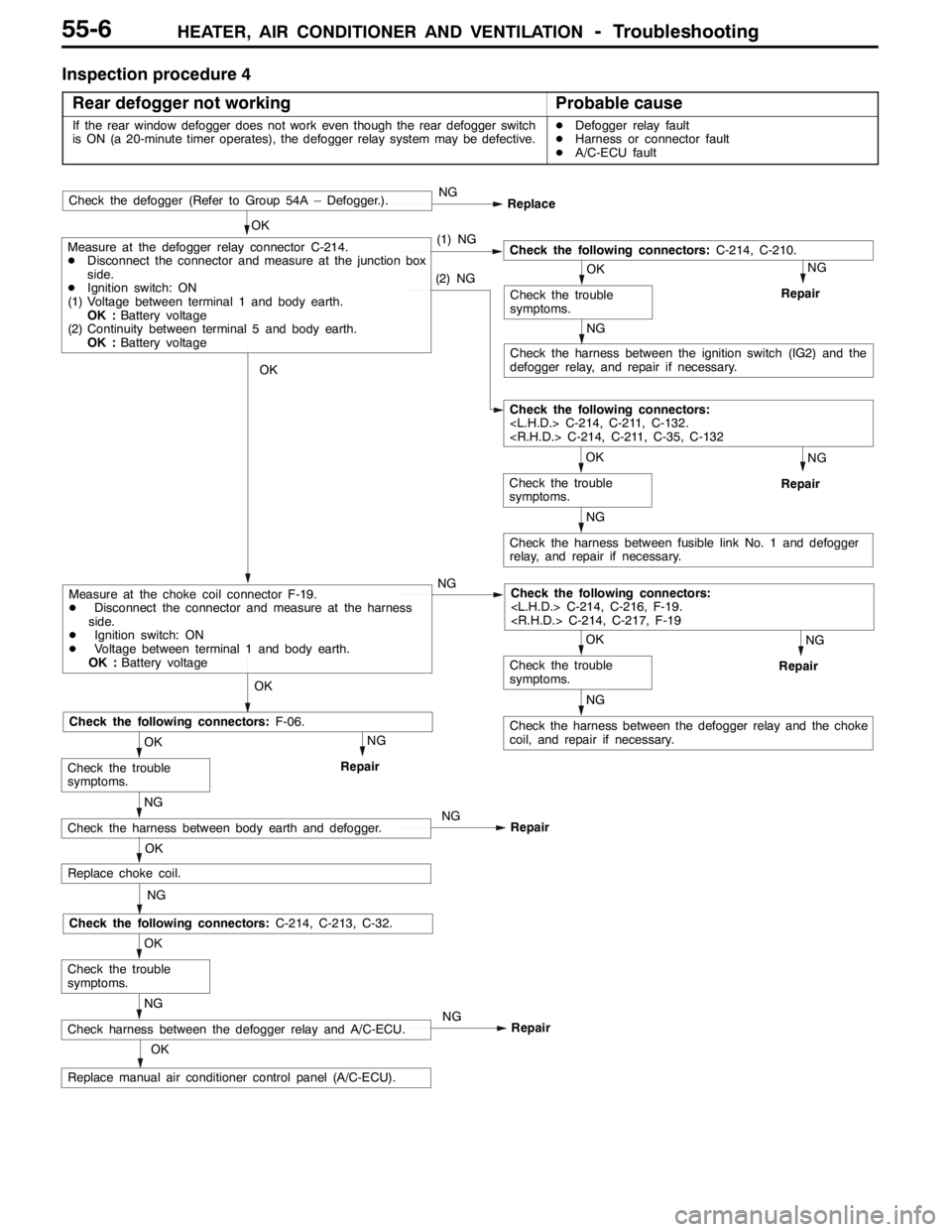

Inspection procedure 4
Rear defogger not working
Probable cause
If the rear window defogger does not work even though the rear defogger switch
is ON (a 20-minute timer operates), the defogger relay system may be defective.DDefogger relay fault
DHarness or connector fault
DA/C-ECU fault
NG
Check the harness between the ignition switch (IG2) and the
defogger relay, and repair if necessary.
NG
Repair
Replace manual air conditioner control panel (A/C-ECU).
OK
OK
Check the trouble
symptoms.
NG
Check the following connectors:C-214, C-213, C-32.
OK
Check the trouble
symptoms.
NG
Replace
NG
Repair
NG
Check the harness between fusible link No. 1 and defogger
relay, and repair if necessary.
OK
Check the trouble
symptoms.
Check the following connectors:
C-214, C-211, C-132.
C-214, C-211, C-35, C-132
(2) NG
NG
Repair
NG
Check the harness between the defogger relay and the choke
coil, and repair if necessary.
OK
Check the trouble
symptoms.
Check the following connectors:
C-214, C-216, F-19.
C-214, C-217, F-19
NG
Repair
Check the following connectors:F-06.
OK
OK
Measure at the choke coil connector F-19.
DDisconnect the connector and measure at the harness
side.
DIgnition switch: ON
DVoltage between terminal 1 and body earth.
OK :Battery voltageNG
OK
Measure at the defogger relay connector C-214.
DDisconnect the connector and measure at the junction box
side.
DIgnition switch: ON
(1) Voltage between terminal 1 and body earth.
OK :Battery voltage
(2) Continuity between terminal 5 and body earth.
OK :Battery voltage(1) NGCheck the following connectors:C-214, C-210.
OK
Check the trouble
symptoms.
NG
RepairNG
Check the harness between body earth and defogger.
NG
RepairNG
Check harness between the defogger relay and A/C-ECU.
OK
Replace choke coil.
Check the defogger (Refer to Group 54A – Defogger.).
