2007 MITSUBISHI LANCER EVOLUTION Service Repair Manual

MPI -Troubleshooting13A-37

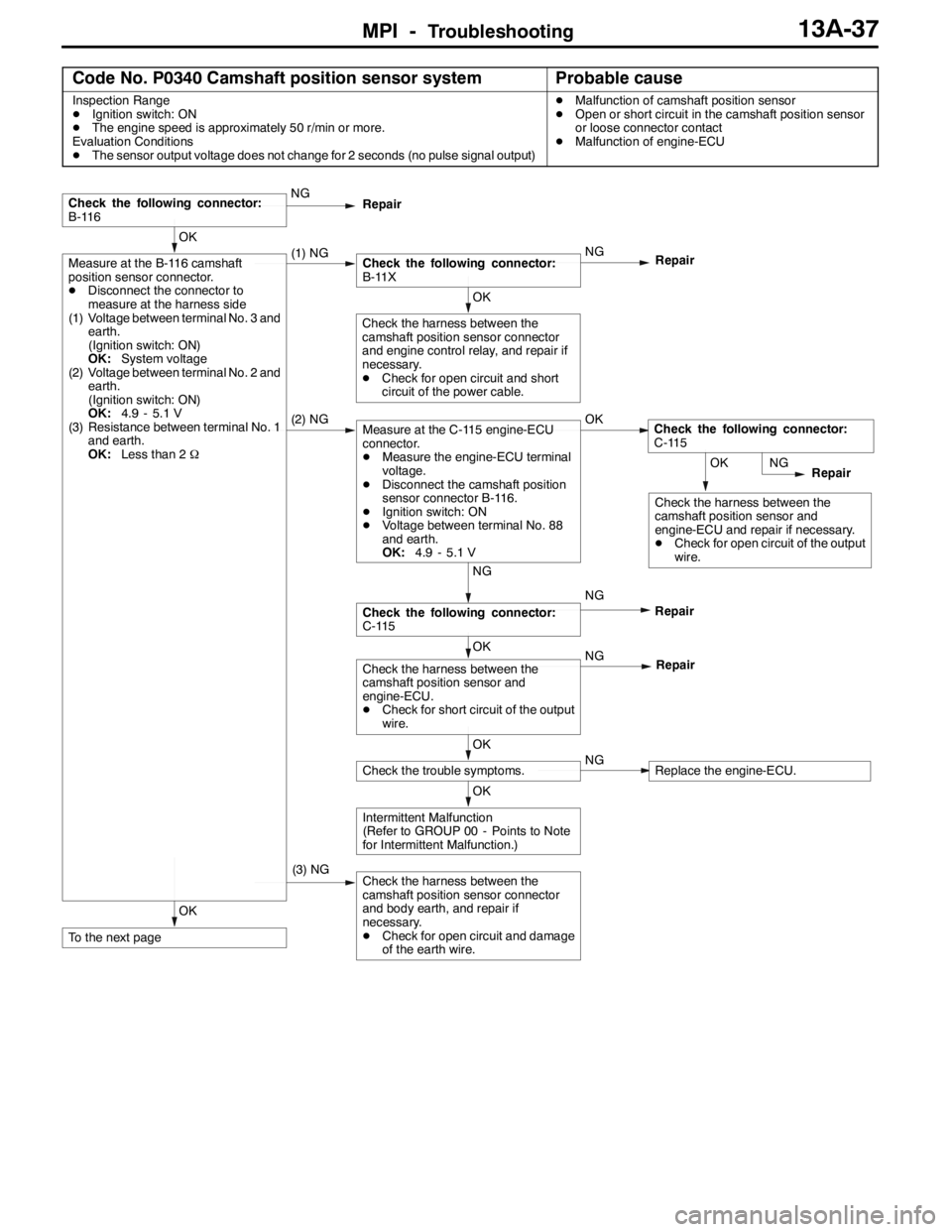

Code No. P0340 Camshaft position sensor systemProbable cause
Inspection Range
DIgnition switch: ON
DThe engine speed is approximately 50 r/min or more.
Evaluation Conditions
DThe sensor output voltage does not change for 2 seconds (no pulse signal output)DMalfunction of camshaft position sensor
DOpen or short circuit in the camshaft position sensor
or loose connector contact
DMalfunction of engine-ECU
OK
To the next page
(3) NGCheck the harness between the
camshaft position sensor connector
and body earth, and repair if
necessary.
DCheck for open circuit and damage
of the earth wire.
OK
Intermittent Malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunction.)
OK
Check the trouble symptoms.NGReplace the engine-ECU.
OK
Check the harness between the
camshaft position sensor and
engine-ECU.
DCheck for short circuit of the output
wire.NG
Repair
NG
Check the following connector:
C-115NG
Repair
OK
Check the harness between the
camshaft position sensor and
engine-ECU and repair if necessary.
DCheck for open circuit of the output
wire.NG
Repair
(2) NGMeasure at the C-115 engine-ECU
connector.
DMeasure the engine-ECU terminal
voltage.
DDisconnect the camshaft position
sensor connector B-116.
DIgnition switch: ON
DVoltage between terminal No. 88
and earth.
OK:4.9 - 5.1 VOKCheck the following connector:
C-115
OK
Check the harness between the
camshaft position sensor connector
and engine control relay, and repair if
necessary.
DCheck for open circuit and short
circuit of the power cable.
OK
Measure at the B-116 camshaft
position sensor connector.
DDisconnect the connector to
measure at the harness side
(1) Voltage between terminal No. 3 and
earth.
(Ignition switch: ON)
OK:System voltage
(2) Voltage between terminal No. 2 and
earth.
(Ignition switch: ON)
OK:4.9 - 5.1 V
(3) Resistance between terminal No. 1
and earth.
OK:Less than 2Ω(1) NGCheck the following connector:
B-11XNG
Repair
Check the following connector:
B-116NG
Repair

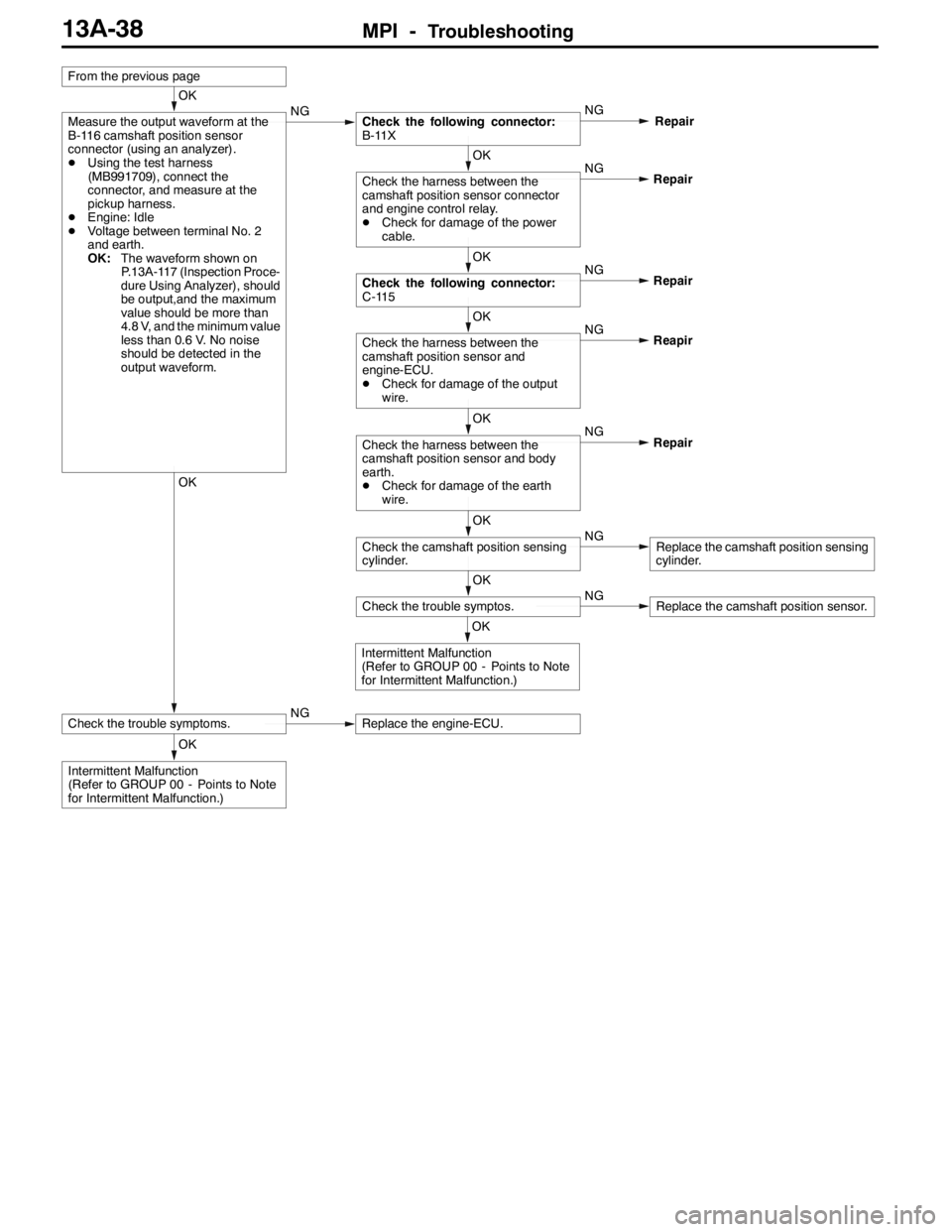

MPI -Troubleshooting13A-38
OK
Intermittent Malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunction.)
OK
Check the trouble symptoms.NGReplace the engine-ECU.
OK
Intermittent Malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunction.)
OK
Check the trouble symptos.NGReplace the camshaft position sensor.
OK
Check the camshaft position sensing
cylinder.NGReplace the camshaft position sensing
cylinder. NG
OK
Check the harness between the
camshaft position sensor and body
earth.
DCheck for damage of the earth
wire.Repair NG
OK
Check the harness between the
camshaft position sensor and
engine-ECU.
DCheck for damage of the output
wire.Reapir NG
OK
Check the following connector:
C-115Repair NG
OK
Check the harness between the
camshaft position sensor connector
and engine control relay.
DCheck for damage of the power
cable.Repair
OK
Measure the output waveform at the
B-116 camshaft position sensor
connector (using an analyzer).
DUsing the test harness
(MB991709), connect the
connector, and measure at the
pickup harness.
DEngine: Idle
DVoltage between terminal No. 2
and earth.
OK:The waveform shown on
P.13A-117 (Inspection Proce-
dure Using Analyzer), should
be output,and the maximum
value should be more than
4.8 V, and the minimum value
less than 0.6 V. No noise
should be detected in the
output waveform.NGCheck the following connector:
B-11XNG
Repair
From the previous page

MPI -Troubleshooting13A-39

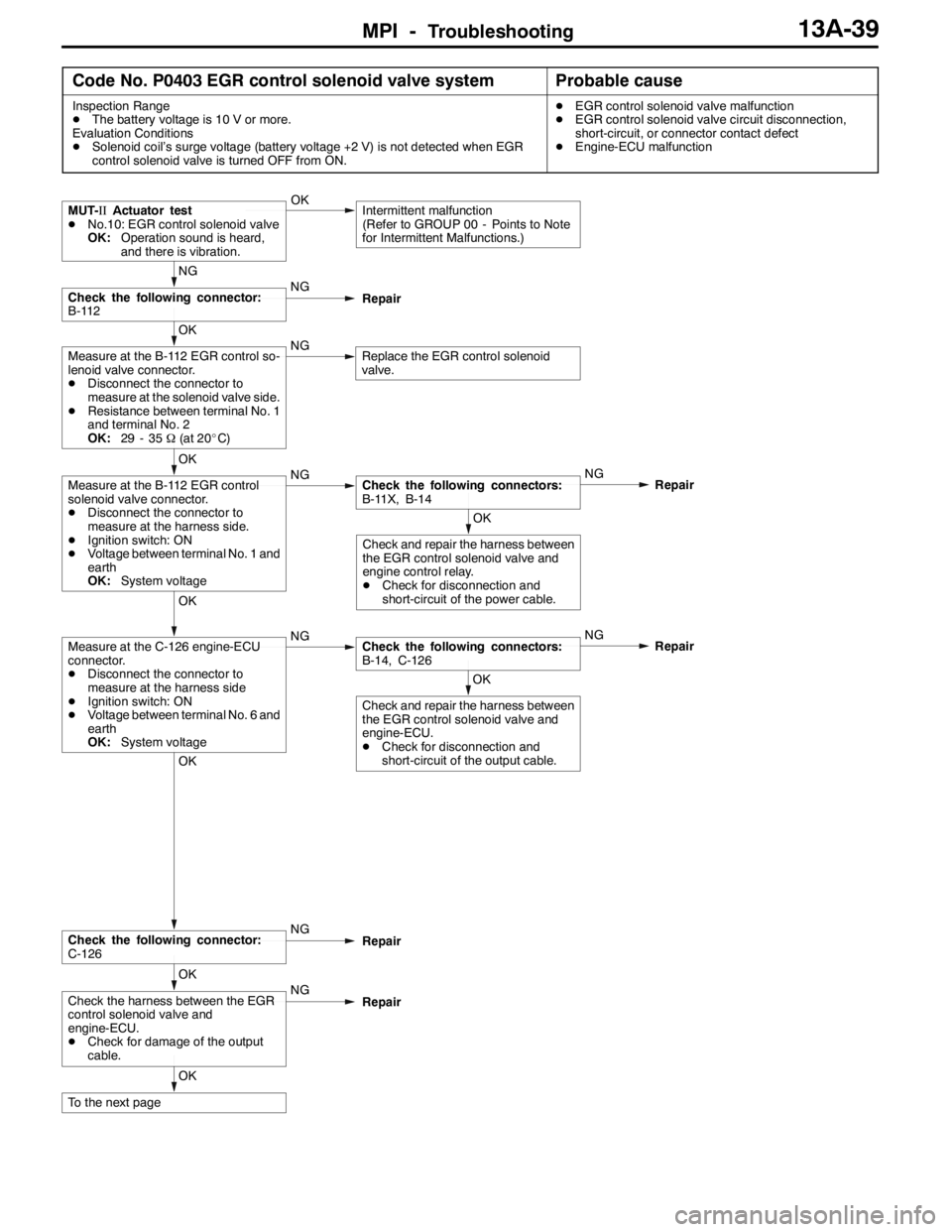

Code No. P0403 EGR control solenoid valve systemProbable cause
Inspection Range
DThe battery voltage is 10 V or more.
Evaluation Conditions
DSolenoid coil’s surge voltage (battery voltage +2 V) is not detected when EGR
control solenoid valve is turned OFF from ON.DEGR control solenoid valve malfunction
DEGR control solenoid valve circuit disconnection,
short-circuit, or connector contact defect
DEngine-ECU malfunction
OK
To the next page
OK
Check the harness between the EGR
control solenoid valve and
engine-ECU.
DCheck for damage of the output
cable.NG
Repair
OK
Check the following connector:
C-126NG
Repair
OK
Check and repair the harness between
the EGR control solenoid valve and
engine-ECU.
DCheck for disconnection and
short-circuit of the output cable.
OK
Measure at the C-126 engine-ECU
connector.
DDisconnect the connector to
measure at the harness side
DIgnition switch: ON
DVoltage between terminal No. 6 and
earth
OK:System voltageNGCheck the following connectors:
B-14, C-126NG
Repair
OK
Check and repair the harness between
the EGR control solenoid valve and
engine control relay.
DCheck for disconnection and
short-circuit of the power cable.
OK
Measure at the B-112 EGR control
solenoid valve connector.
DDisconnect the connector to
measure at the harness side.
DIgnition switch: ON
DVoltage between terminal No. 1 and
earth
OK:System voltageNGCheck the following connectors:
B-11X, B-14NG
Repair
OK
Measure at the B-112 EGR control so-
lenoid valve connector.
DDisconnect the connector to
measure at the solenoid valve side.
DResistance between terminal No. 1
and terminal No. 2
OK:29 - 35Ω(at 20_C)NGReplace the EGR control solenoid
valve.
NG
Check the following connector:
B-112NG
Repair
MUT-IIActuator test
DNo.10: EGR control solenoid valve
OK:Operation sound is heard,
and there is vibration.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)

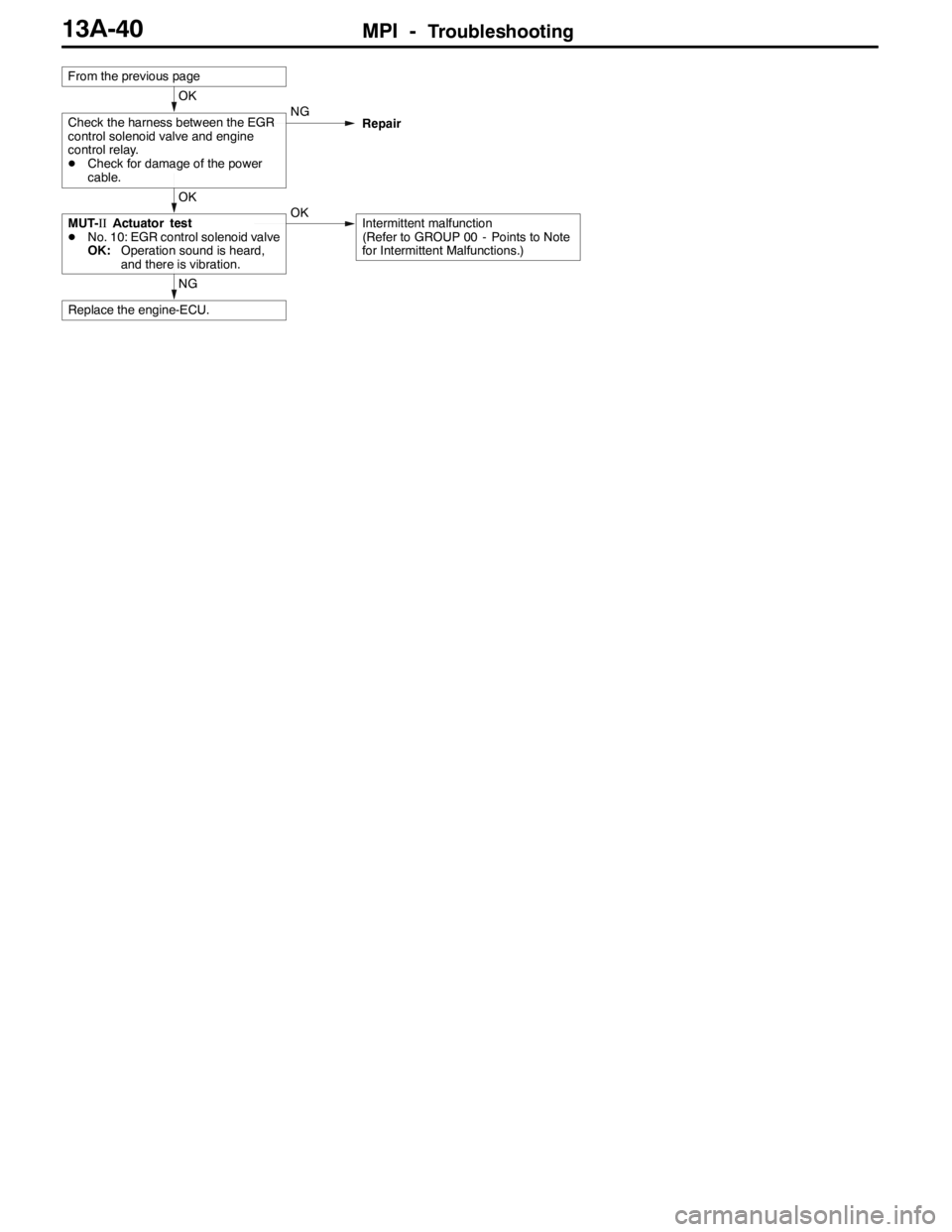

MPI -Troubleshooting13A-40
NG
Replace the engine-ECU.
OK
MUT-IIActuator test
DNo. 10: EGR control solenoid valve
OK:Operation sound is heard,
and there is vibration.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
Check the harness between the EGR
control solenoid valve and engine
control relay.
DCheck for damage of the power
cable.NG
Repair
From the previous page

MPI -Troubleshooting13A-41

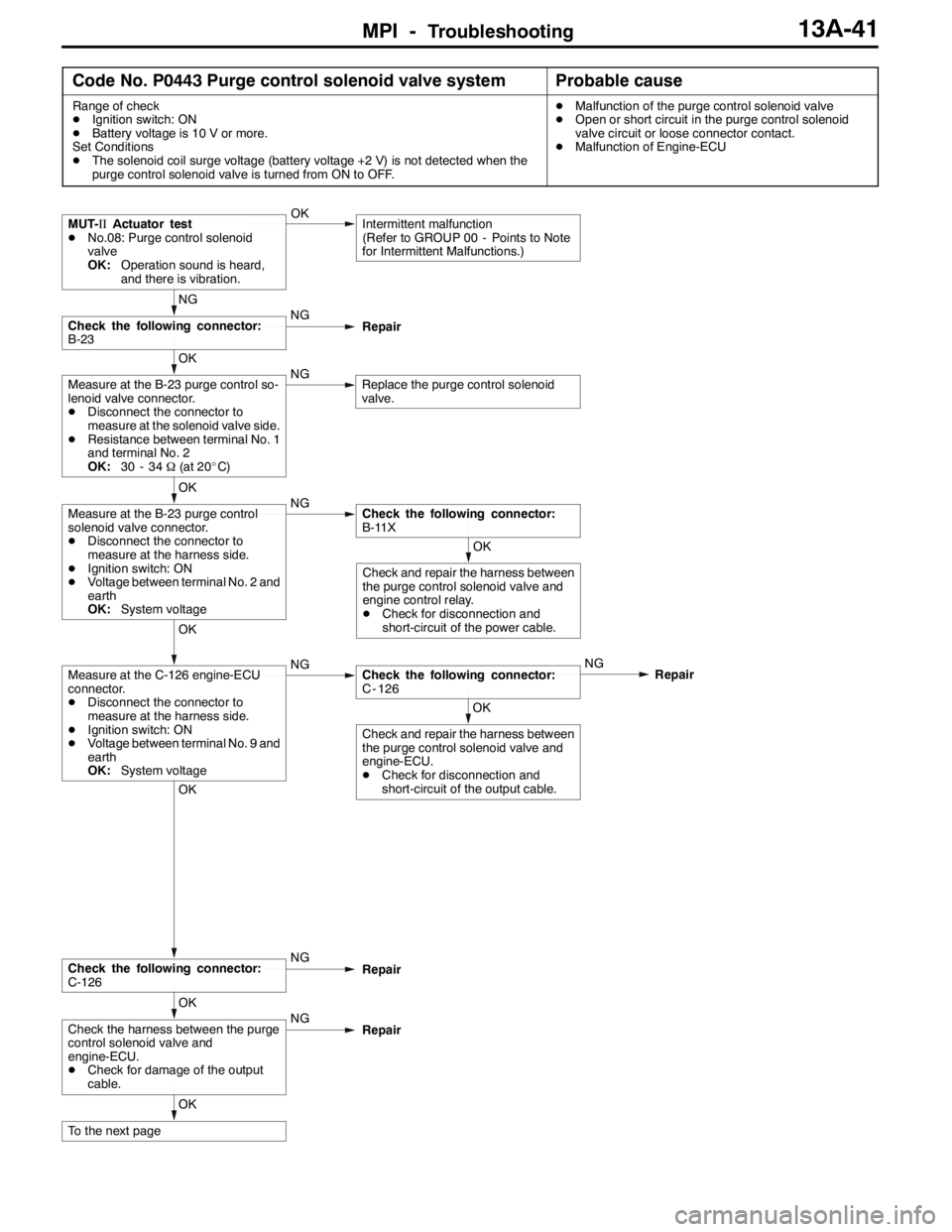

Code No. P0443 Purge control solenoid valve systemProbable cause
Range of check
DIgnition switch: ON
DBattery voltage is 10 V or more.
Set Conditions
DThe solenoid coil surge voltage (battery voltage +2 V) is not detected when the
purge control solenoid valve is turned from ON to OFF.DMalfunction of the purge control solenoid valve
DOpen or short circuit in the purge control solenoid
valve circuit or loose connector contact.
DMalfunction of Engine-ECU
OK
To the next page
OK
Check the harness between the purge
control solenoid valve and
engine-ECU.
DCheck for damage of the output
cable.NG
Repair
OK
Check the following connector:
C-126NG
Repair
OK
Check and repair the harness between
the purge control solenoid valve and
engine-ECU.
DCheck for disconnection and
short-circuit of the output cable.
OK
Measure at the C-126 engine-ECU
connector.
DDisconnect the connector to
measure at the harness side.
DIgnition switch: ON
DVoltage between terminal No. 9 and
earth
OK:System voltageNGCheck the following connector:
C - 126NG
Repair
OK
Check and repair the harness between
the purge control solenoid valve and
engine control relay.
DCheck for disconnection and
short-circuit of the power cable.
OK
Measure at the B-23 purge control
solenoid valve connector.
DDisconnect the connector to
measure at the harness side.
DIgnition switch: ON
DVoltage between terminal No. 2 and
earth
OK:System voltageNGCheck the following connector:
B-11X
OK
Measure at the B-23 purge control so-
lenoid valve connector.
DDisconnect the connector to
measure at the solenoid valve side.
DResistance between terminal No. 1
and terminal No. 2
OK:30 - 34Ω(at 20_C)NGReplace the purge control solenoid
valve.
NG
Check the following connector:
B-23NG
Repair
MUT-IIActuator test
DNo.08: Purge control solenoid
valve
OK:Operation sound is heard,
and there is vibration.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)

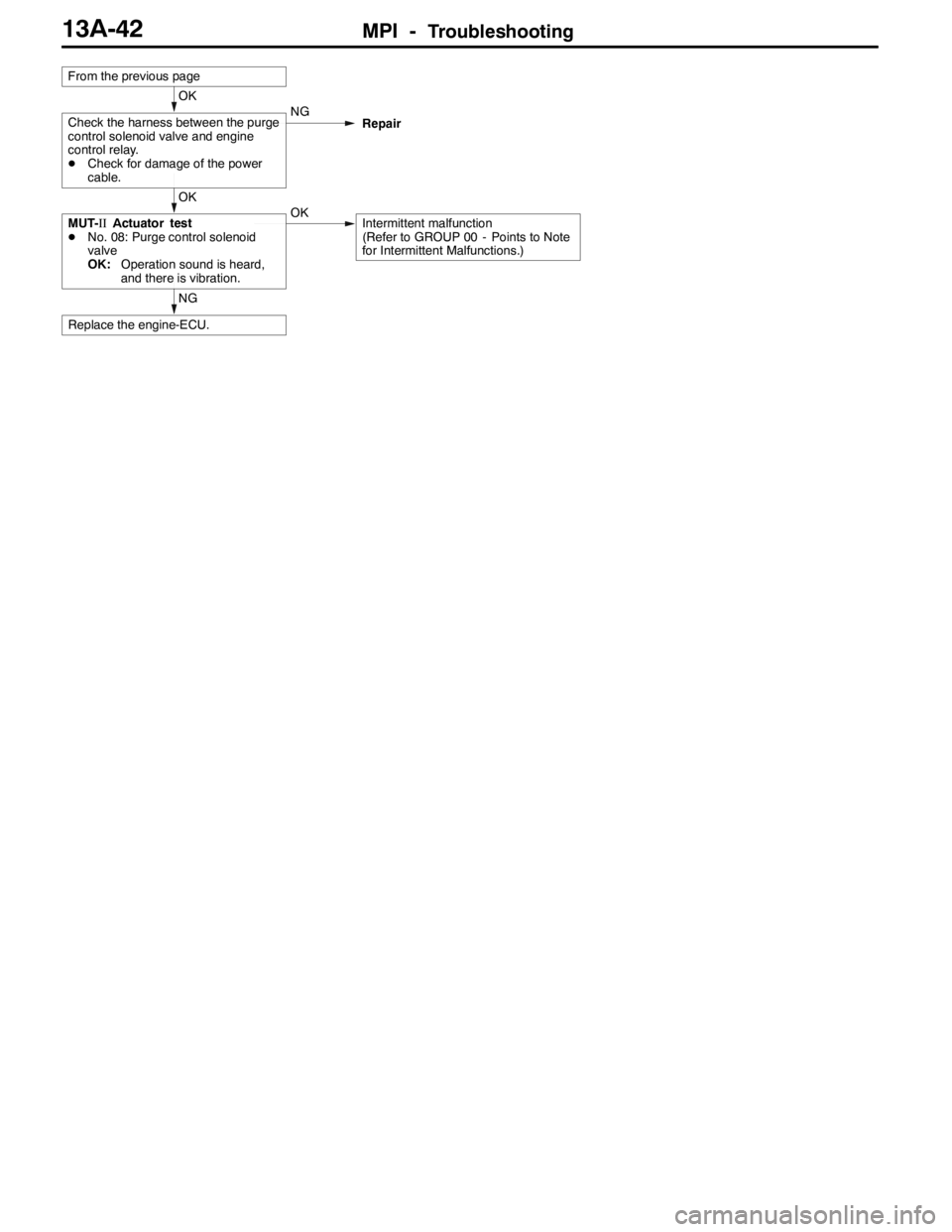

MPI -Troubleshooting13A-42
NG
Replace the engine-ECU.
OK
MUT-IIActuator test
DNo. 08: Purge control solenoid
valve
OK:Operation sound is heard,
and there is vibration.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
Check the harness between the purge
control solenoid valve and engine
control relay.
DCheck for damage of the power
cable.NG
Repair
From the previous page

MPI -Troubleshooting13A-43

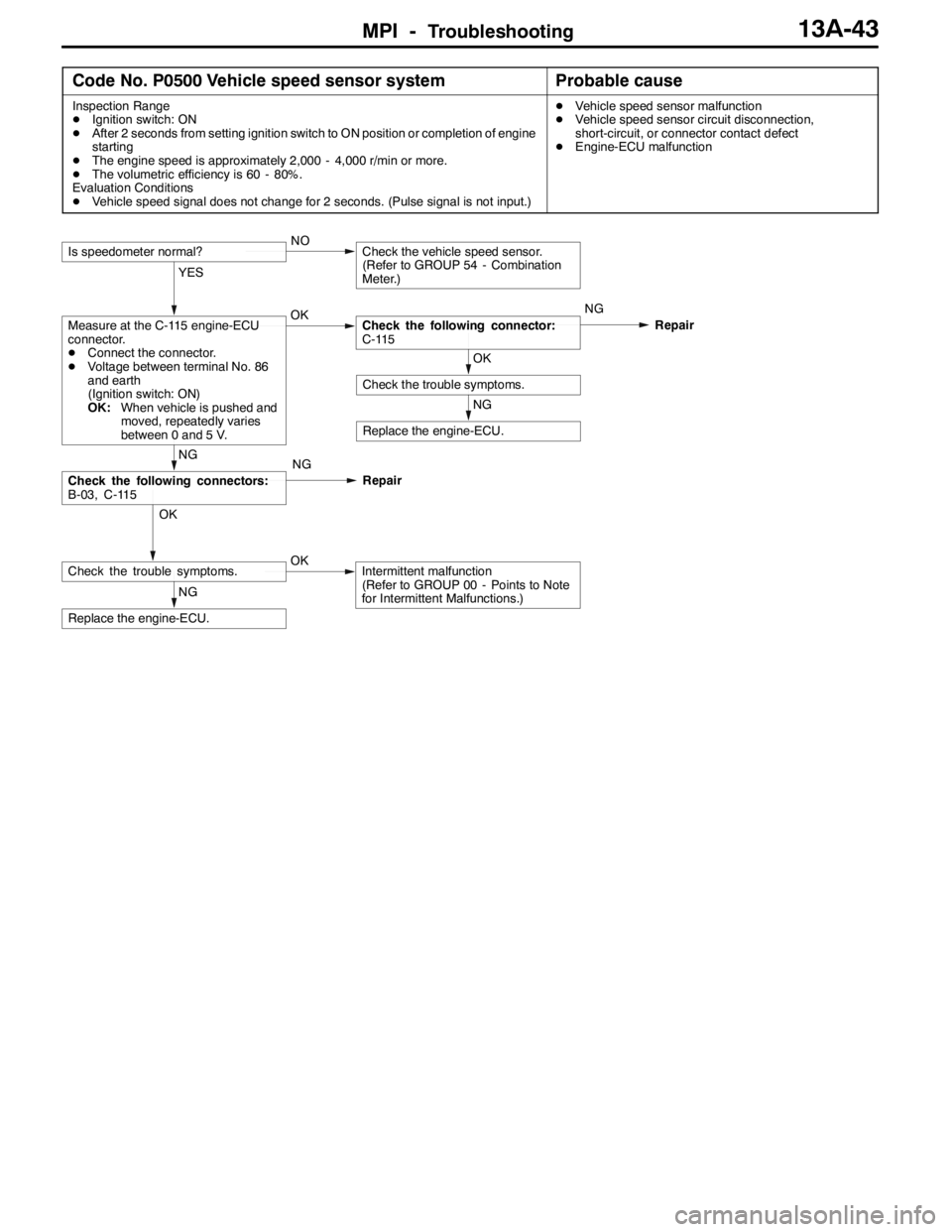

Code No. P0500 Vehicle speed sensor systemProbable cause
Inspection Range
DIgnition switch: ON
DAfter 2 seconds from setting ignition switch to ON position or completion of engine
starting
DThe engine speed is approximately 2,000 - 4,000 r/min or more.
DThe volumetric efficiency is 60 - 80%.
Evaluation Conditions
DVehicle speed signal does not change for 2 seconds. (Pulse signal is not input.)DVehicle speed sensor malfunction
DVehicle speed sensor circuit disconnection,
short-circuit, or connector contact defect
DEngine-ECU malfunction
NG
Replace the engine-ECU.
OK
Check the trouble symptoms.OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
NG
Check the following connectors:
B-03, C-115
NG
Replace the engine-ECU.
OK
Check the trouble symptoms.
YES
Measure at the C-115 engine-ECU
connector.
DConnect the connector.
DVoltage between terminal No. 86
and earth
(Ignition switch: ON)
OK:When vehicle is pushed and
moved, repeatedly varies
between 0 and 5 V.OKCheck the following connector:
C-115NG
Repair
Is speedometer normal?NOCheck the vehicle speed sensor.
(Refer to GROUP 54 - Combination
Meter.)
NG
Repair

MPI -Troubleshooting13A-44
Code No. P0505 Idle speed control systemProbable cause
Range of Check
DVehicle speed has reached 1.5 Km/h at least once.
DUnder the closed loop idle speed control.
Set Conditions
DActual idle speed has continued to be higher than the target idle speed by 300
r/min or more for 10 seconds.
Range fo Check
DVehicle speed has reached 1.5 km/h at least once.
DDuring idle speed closed loop control.
DThe highest temperature at the last drive is 45_C or less.
DEngine coolant temperature is approximately 80_C or more.
DBattery voltage is 10 V or more.
DBarometric pressure is 76 kPa or higher.
DIntake air temperature is - 10_C or more.
Set Conitions
DActual idle speed has been minimum 200 r/min higher than the target idle speed
for 10 seconds.
Range of Check
DDuring idle speed closed loop control.
DEngine coolant temperature is approximately 80_C or higher.
DBattery voltage is 10 V or higher.
DPower steering switch is off.
DVolumetric efficiency is 40 % or lower.
DBarometric pressure is 76 kPa or higher.
DIntake air temperature is - 10_C or more.
Set Conitions
DActual idle speed has been minimum 100 r/min higher than the target idle speed
for 10 seconds.DMalfunction of idle speed control servo
DOpen or short circuit in the idle speed control servo
circuit or loose connector contact
DMalfunction of engine-ECU
