2007 MITSUBISHI LANCER EVOLUTION Service Repair Manual

MPI -Troubleshooting13A-21
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 21 Engine coolant
temperature sensor
OK:When cool, more or less
the same as the ambient
temperature (air tempera-
ture) When warm,
80 - 120_CNGReplace the engine-ECU.
OK
Check and repair the harness between
the engine coolant temperature sensor
and engine-ECU.
DCheck for damage of the output
wire.
DCheck for damage of the earth
wire.
OK
Measure at the B-118 engine coolant
temperature sensor connector.
DUsing the test harness
(MB991658), connect the
connector, and measure at the
pickup harness.
DIgnition switch: ON
DVoltage between terminal No. 1
and the earth.
OK:Water temperature - 20_C
3.9 - 4.5 V
Water temperature 0_C
3.2 - 3.8 V
Water temperature 20_C
2.3 - 2.9 V
Water temperature 40_C
1.3 - 1.9 V
Water temperature 60_C
0.7 - 1.3 V
Water temperature 80_C
0.3 - 0.9 VNGCheck the following connector:
C-115NG
Repair
From the previous page
Code No. P0120 Throttle position sensor systemProbable cause
Inspection Range
DIgnition switch: ON
DExcluding for two seconds after ignition switch is set to “ON” position or two
seconds after engine start is completed.
Evaluation Conditions
DThe sensor output voltage is 0.2 V or less for 2 seconds.DThrottle position sensor malfunction
DThrottle position sensor circuit disconnection,
short-circuit, or connector contact defect
DEngine-ECU malfunction
Inspection Range
DThe engine speed is 1,000 r/min or less.
DThe volumetric efficiency is 60 % or less.
Evaluation Conditions
DThe sensor output voltage is 2.0 V or less for 2 seconds.
OK
To the next page
OK
Check the throttle position sensor.
(Refer to P.13A-134.)NGReplace the throttle position sensor.
NG
Check the following connector:
B-02NG
Repair
MUT-IIData list
DNo. 14 Throttle position sensor
(Refer to P.13A-103.)OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)

MPI -Troubleshooting13A-22
OK
To the next page
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 14 Throttle position sensor
(Refer to P.13A-114.)NGReplace the engine-ECU.
OK
Check the harness between the throttle
position sensor and engine-ECU.
DCheck for disconnection and
damage of the earth wire.NG
Repair
Check the following connector:
C-115NGRepair (2) NG
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 14 Throttle position sensor
(Refer to P.13A-114.)NGReplace the engine-ECU.
OK
Check the harness between the throttle
position sensor and engine-ECU.
DCheck for short-circuit of the
power cable.NG
Repair
NG
Check the following connector:
C-115NG
Repair
OK
Check and repair the harness between
the throttle position sensor and
engine-ECU.
DCheck for disconnection of the
power cable.NG
Repair
From the previous page
OK
Measure at the B-02 throttle position
sensor connector.
DDisconnect the connector to
measure at the harness side
(1) Voltage between terminal No. 1
and the earth.
(Ignition switch: ON)
OK:4.9 - 5.1 V
(2) Resistance between terminal No.
4 and earth
OK:Less than 2Ω(1) NGMeasure at the C-115 engine-ECU
connector.
DMeasure engine-ECU terminal
voltage.
DIgnition switch: ON
DVoltage between terminal No. 81
and earth.
OK:4.9 - 5.1 VOKCheck the following connector:
C-115

MPI -Troubleshooting13A-23
(3) NGAdjust the throttle position sensor.
(Refer to P.13A-126.)NG
Adjust
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
From the previous page
OK
Check and repair the harness between
the throttle position sensor and
engine-ECU.
DCheck for disconnection and
damage of the output wire.
OK
Measure at the C-115 engine-ECU
connector.
DMeasure the engine-ECU terminal
voltage.
DIgnition switch: ON
DVoltage between terminal No. 84
and the earth.
OK:Accelerator pedal fully
closed 0.535 - 0.735 V
Accelerator pedal fully
opened 4.5 - 5.0 VNGCheck the following connector:
C-115NGRepair
OK
MUT-IIData list
DNo. 14 Throttle position sensor
(Refer to P.13A-103.)NGReplace the engine-ECU.
OK
Check the following connector:
C-115NG
Repair
OK
Check and repair the harness between
the throttle position sensor and
engine-ECU.
DCheck for short-circuit and
damage of the output wire.
OK
Check the following connector:
C-115NG
Repair
OK
Check and repair the harness between
the throttle position sensor and
engine-ECU.
DCheck for damage of the power
cable.
DCheck for damage of the earth
wire.
OK
Measure at the B-02 throttle position
sensor connector.
DUsing the test harness
(MB991536), connect the
connector, and measure at the
pickup harness.
DIgnition switch: ON
(1) Voltage between terminal No. 1
and earth
OK:4.9 - 5.1 V
(2) Voltage between terminal No. 4
and earth
OK:Less than 0.5 V
(3) Voltage between terminal No. 2
and earth
OK:Accelerator pedal fully
closed 0.535 - 0.735 V
Accelerator pedal fully
opened 4.5 - 5.0 V(1), (2) NGCheck the following connector:
C-115NGRepair

MPI -Troubleshooting13A-24
Code No. P0130 Oxygen sensor (front) systemProbable cause
Inspection Range
DMore than 3 minutes passed after completion of start of engine
DThe engine coolant temperature is approximately more than 80_C.
DThe engine speed is more than 1,200 r/min.
DThe volumetric efficiency is 25% or more.
Evaluation Conditions
DWhen 5 V is applied to oxygen sensor (front) in engine-ECU while oxygen
sensor (front) output voltage is 0.2 V or less, the sensor output voltage is
4.5 V or more.DOxygen sensor (front) malfunction
DOxygen sensor (front) circuit disconnection,
short-circuit, or connector contact defect.
DEngine-ECU malfunction
OK
To the next pageOK
Check the harness between the
oxygen sensor (front) and
engine-ECU.
DCheck for damage of the output
wire.NG
Repair NG
OK
Check the following connector:
C-115Repair
(2) NGCheck the oxygen sensor (front).
(Refer to P.13A-134.)NGReplace the oxygen sensor (front).
OK
Check the harness between the
oxygen sensor (front) and
engine-ECU.
DCheck for damage of the earth
wire.NG
Repair
OK
Measure at the B-34 oxygen sensor
(front) connector.
DUsing the test harness
(MB998464), connect the
connector, and measure at the
pickup harness.
DEngine: After warm-up
(1) Voltage between terminal No. 2
and earth
OK:Less than 0.5 V
(2) Voltage between terminal No. 4
and the earth
DAt rapid deceleration from 4,000
r/min
OK:200 mV or less
DDuring rapid racing
OK:600 - 1,000 mV(1) NGCheck the following connector:
C-115NG
Repair
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 11 Oxygen sensor (front)
(Refer to P.13A-102.)NGReplace engine-ECU.
OK
Check the harness between the
oxygen sensor (front) and
engine-ECU.
DCheck for disconnection and
damage of the earth wire.NG
Repair
OK

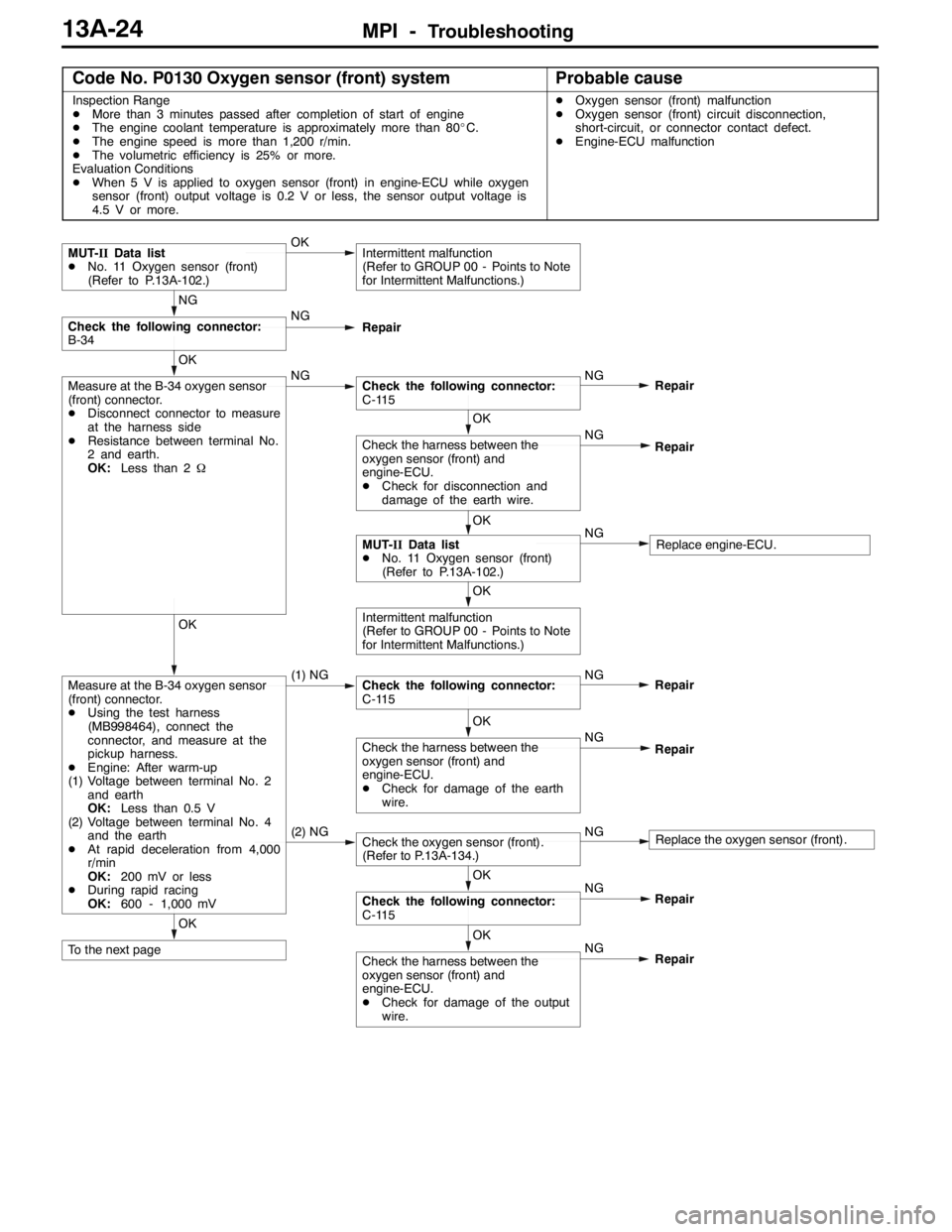

Measure at the B-34 oxygen sensor
(front) connector.
DDisconnect connector to measure
at the harness side
DResistance between terminal No.
2 and earth.
OK:Less than 2ΩNGCheck the following connector:
C-115NG
Repair
NG
Check the following connector:
B-34NG
Repair
MUT-IIData list
DNo. 11 Oxygen sensor (front)
(Refer to P.13A-102.)OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)

MPI -Troubleshooting13A-25
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 11 Oxygen sensor (front)
(Refer to P.13A-102.)NGReplace the engine-ECU.
OK
Check the following connector:
C-115NG
Repair
OK
Check and repair the harness between
the oxygen sensor (front) and
engine-ECU.
DCheck for disconnection of the
output wire.
OK

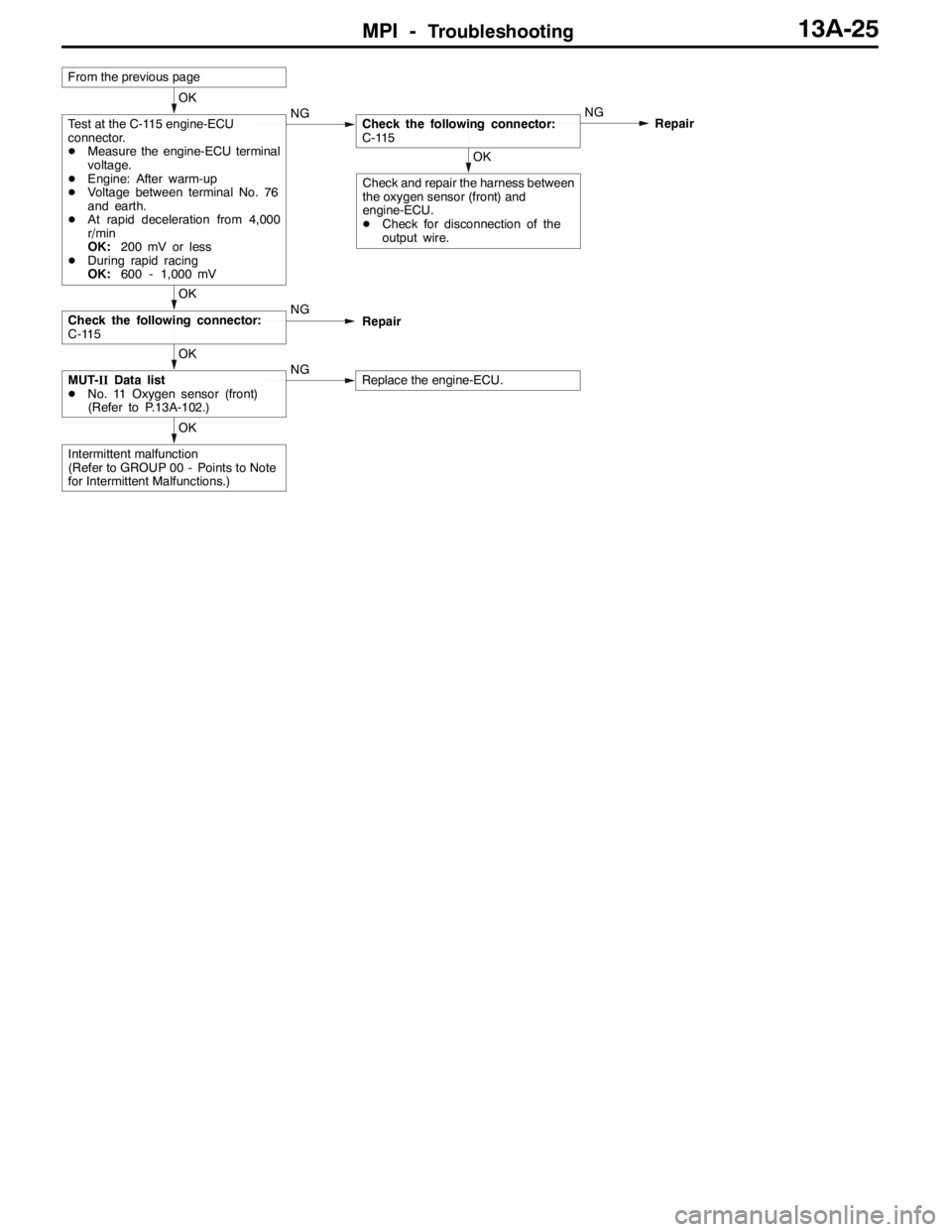

Test at the C-115 engine-ECU
connector.
DMeasure the engine-ECU terminal
voltage.
DEngine: After warm-up
DVoltage between terminal No. 76
and earth.
DAt rapid deceleration from 4,000
r/min
OK:200 mV or less
DDuring rapid racing
OK:600 - 1,000 mVNGCheck the following connector:
C-115NG
Repair
From the previous page

MPI -Troubleshooting13A-26
Code No. P0135 Oxygen sensor heater (front) systemProbable cause
Inspection Range
DThe engine coolant temperature is approximately more than 20_C.
DThe oxygen sensor heater (front) is ON.
DThe engine speed is more than 50 r/min.
DA/C relay: OFF, radiator fan: OFF
DThe battery voltage is 11 - 16 V.
Evaluation Conditions
DThe oxygen sensor heater (front) current is less than 0.2 A or more than 3.5
A for 4 seconds.DOxygen sensor heater (front) malfunction
DOxygen sensor heater (front) circuit disconnection,
short-circuit, or connector contact defect
DEngine-ECU malfunction
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
Check the trouble symptom.NGReplace the engine-ECU.
OK
Check the harness between the
oxygen sensor (front) and
engine-ECU.
DCheck for damage of the earth
wire.NG
repair
OK
Check the harness between the
oxygen sensor (front) and engine
control relay.
DCheck for damage of the power
cable.NG
Repair
OK
Check the following connector:
C-118NG
Repair
OK
Replace the engine-ECU.NG
OK
Check the harness between the
oxygen sensor (front) and
engine-ECU.
DCheck for disconnection and
short-circuit of the earth wire.Repair
OK
Measure at the C-118 engine-ECU
connector.
DMeasure the engine-ECU terminal
voltage.
DIgnition switch: ON
DVoltage between terminal No. 60
and earth.
OK:System voltageNGCheck the following connector:
C-118NG
Repair
OK
Check and repair the harness between
the oxygen sensor (front) and engine
control relay.
DCheck the power cable for
disconnection and short-circuit.
OK
Measure at the B-34 oxygen sensor
(front) connector.
DDisconnect the connector, and
measure at the harness.
DIgnition switch: ON
DVoltage between terminal No. 1
and earth
OK:System voltageNGCheck the following connector:
B-11XNG
Repair
OK

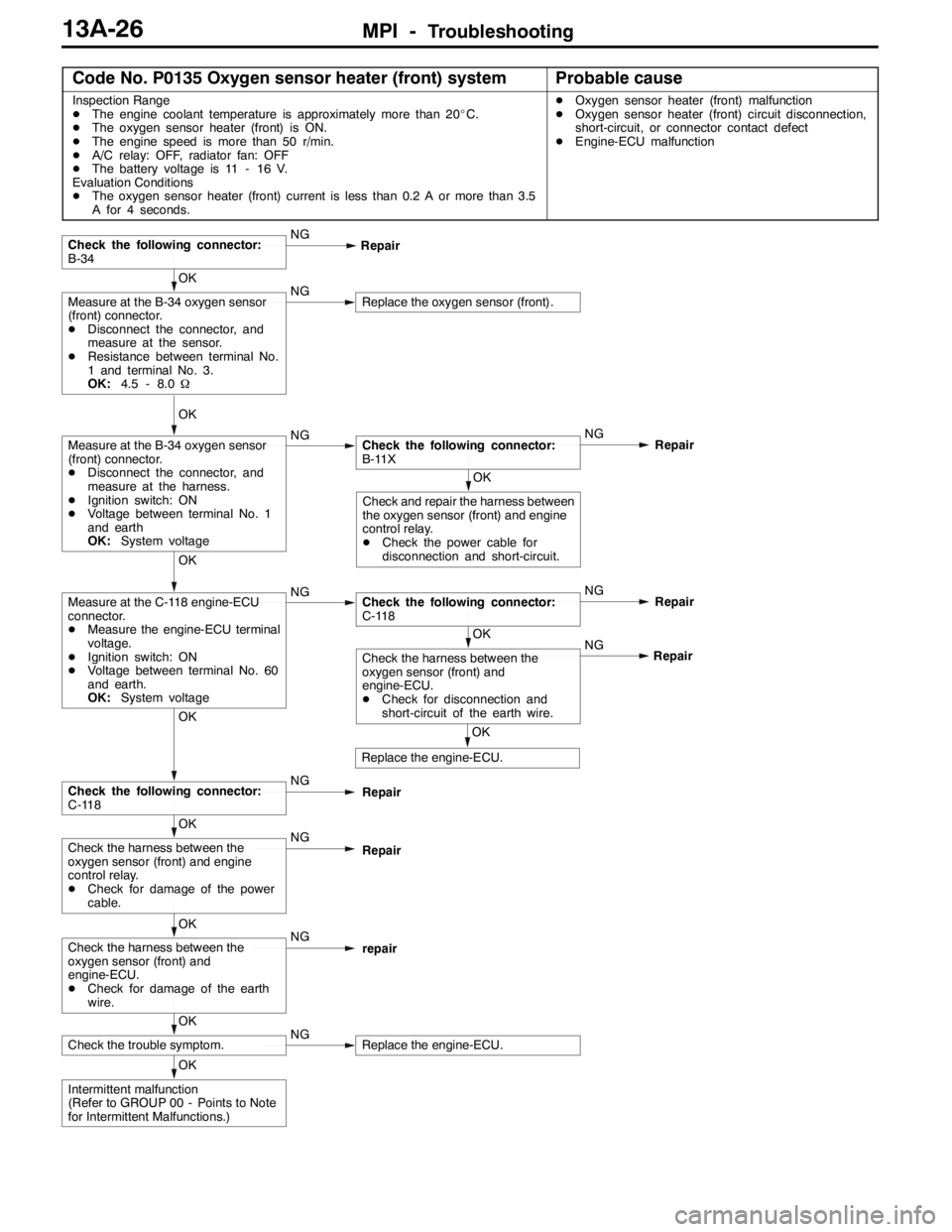

Measure at the B-34 oxygen sensor
(front) connector.
DDisconnect the connector, and
measure at the sensor.
DResistance between terminal No.
1 and terminal No. 3.
OK:4.5 - 8.0ΩNGReplace the oxygen sensor (front).
Check the following connector:
B-34NG
Repair

MPI -Troubleshooting13A-27
Code No. P0136 Oxygen sensor (rear) systemProbable cause
Inspection Range
DMore than 3 minutes passed after completion of start of engine
DThe engine coolant temperature is approximately more than 80_C.
DThe engine speed is more than 1,200 r/min.
DThe volumetric efficiency is 25% or more.
Evaluation Conditions
DWhen 5 V is applied to the oxygen sensor (rear), the output voltage is more
than 4.5 V.DOxygen sensor (rear) malfunction
DOxygen sensor (rear) circuit disconnection,
short-circuit, or connector contact defect.
DEngine-ECU malfunction
OK
To the next pageOK
Check the harness between the
oxygen sensor (rear) and engine-ECU.
DCheck for damage of the output
wire.NG
Repair NG
OK
Check the following connector:
C-115Repair
(2) NGCheck the oxygen sensor (rear).
(Refer to P.13A-135.)NGReplace the oxygen sensor (rear).
OK
Check the harness between the
oxygen sensor (rear) and engine-ECU.
DCheck for damage of the earth
wire.NG
Repair
OK

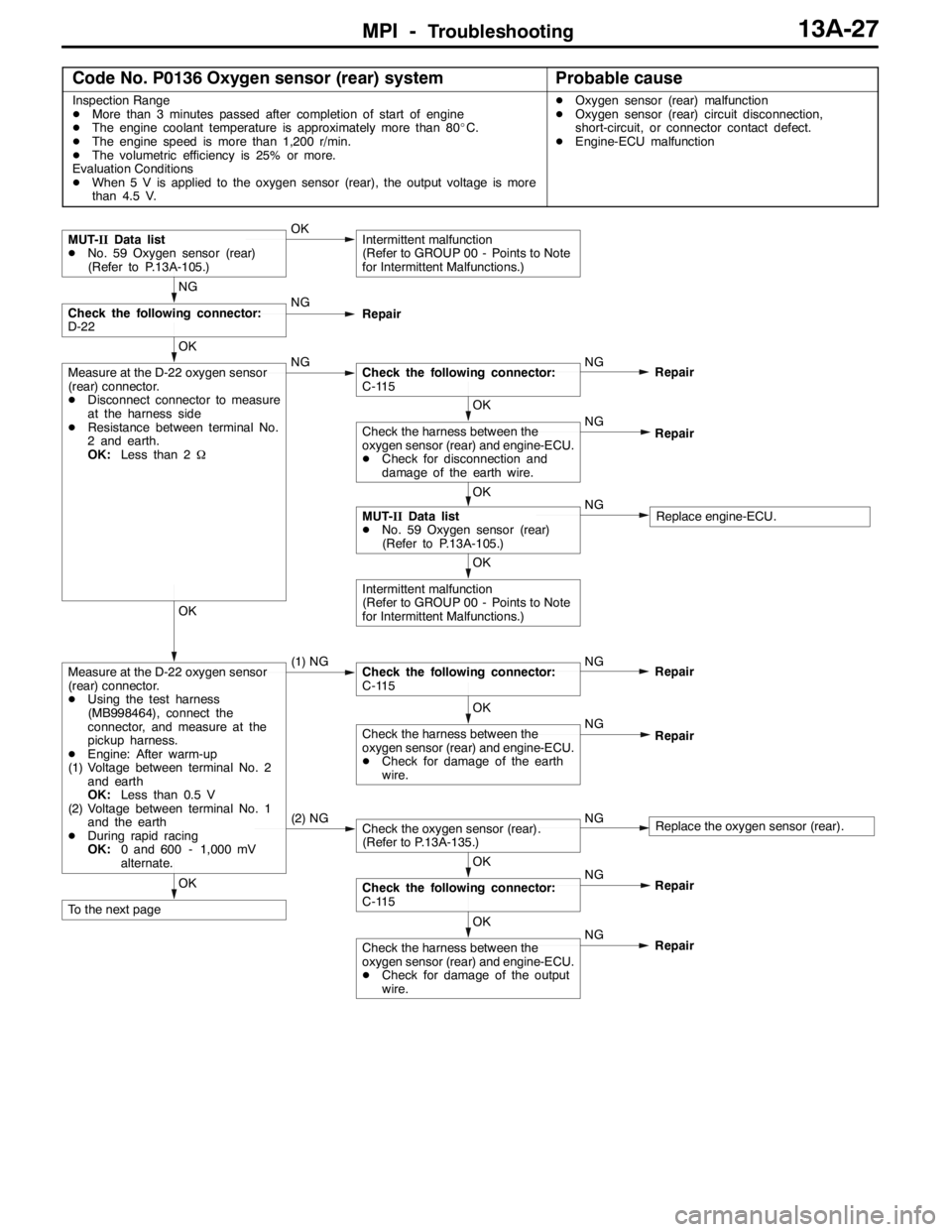

Measure at the D-22 oxygen sensor
(rear) connector.
DUsing the test harness
(MB998464), connect the
connector, and measure at the
pickup harness.
DEngine: After warm-up
(1) Voltage between terminal No. 2
and earth
OK:Less than 0.5 V
(2) Voltage between terminal No. 1
and the earth
DDuring rapid racing
OK:0 and 600 - 1,000 mV
alternate.(1) NGCheck the following connector:
C-115NG
Repair
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 59 Oxygen sensor (rear)
(Refer to P.13A-105.)NGReplace engine-ECU.
OK
Check the harness between the
oxygen sensor (rear) and engine-ECU.
DCheck for disconnection and
damage of the earth wire.NG
Repair
OK
Measure at the D-22 oxygen sensor
(rear) connector.
DDisconnect connector to measure
at the harness side
DResistance between terminal No.
2 and earth.
OK:Less than 2ΩNGCheck the following connector:
C-115NG
Repair
NG
Check the following connector:
D-22NG
Repair
MUT-IIData list
DNo. 59 Oxygen sensor (rear)
(Refer to P.13A-105.)OKIntermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)

MPI -Troubleshooting13A-28
OK
Intermittent malfunction
(Refer to GROUP 00 - Points to Note
for Intermittent Malfunctions.)
OK
MUT-IIData list
DNo. 59 Oxygen sensor (rear)
(Refer to P.13A-105.)NGReplace the engine-ECU.
OK
Check the following connector:
C-115NG
Repair
OK
Check and repair the harness between
the oxygen sensor (rear) and
engine-ECU.
DCheck for disconnection of the
output wire.
OK

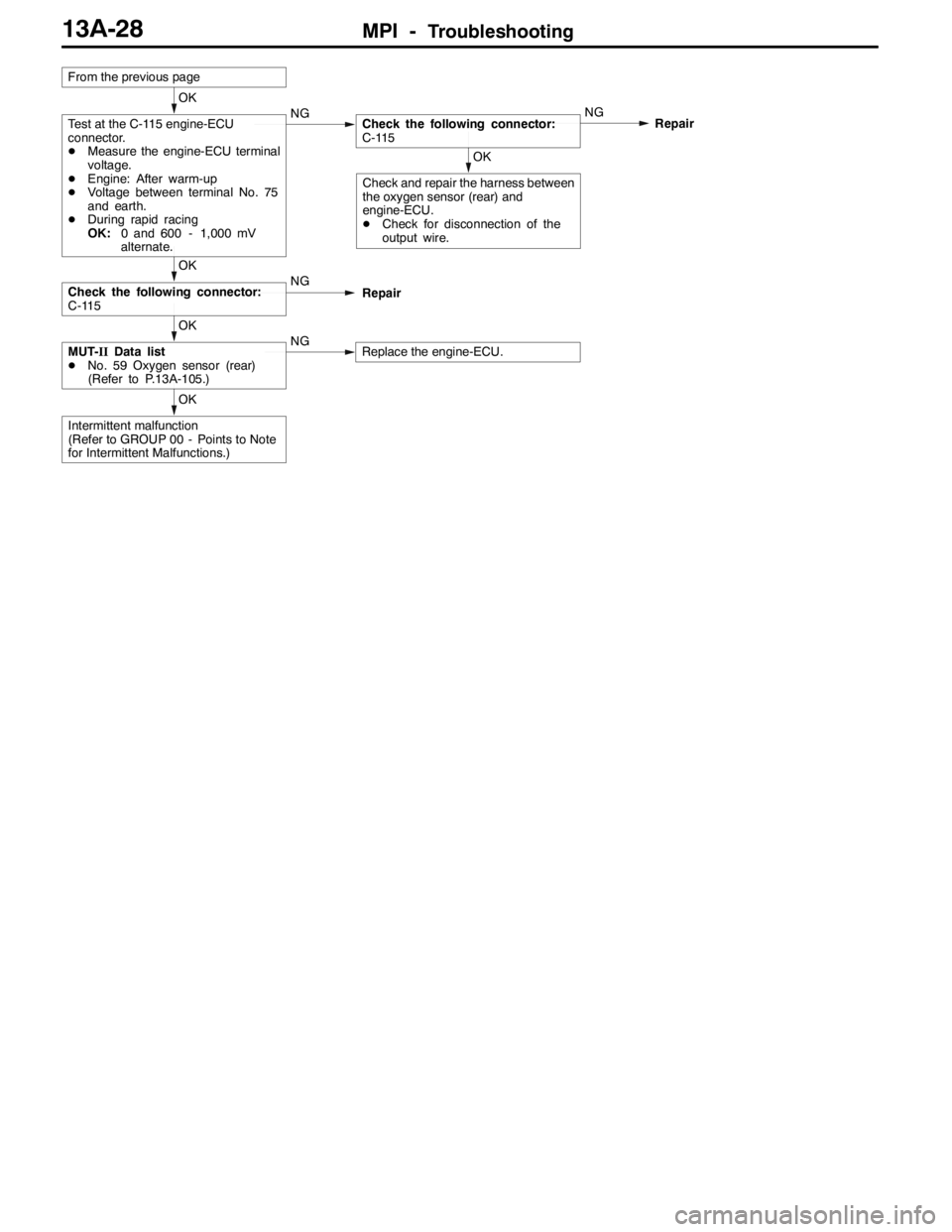

Test at the C-115 engine-ECU
connector.
DMeasure the engine-ECU terminal
voltage.
DEngine: After warm-up
DVoltage between terminal No. 75
and earth.
DDuring rapid racing
OK:0 and 600 - 1,000 mV
alternate.NGCheck the following connector:
C-115NG
Repair
From the previous page
