2007 MITSUBISHI LANCER EVOLUTION Service Repair Manual

CHASSIS ELECTRICAL -Combination Meter54A-17

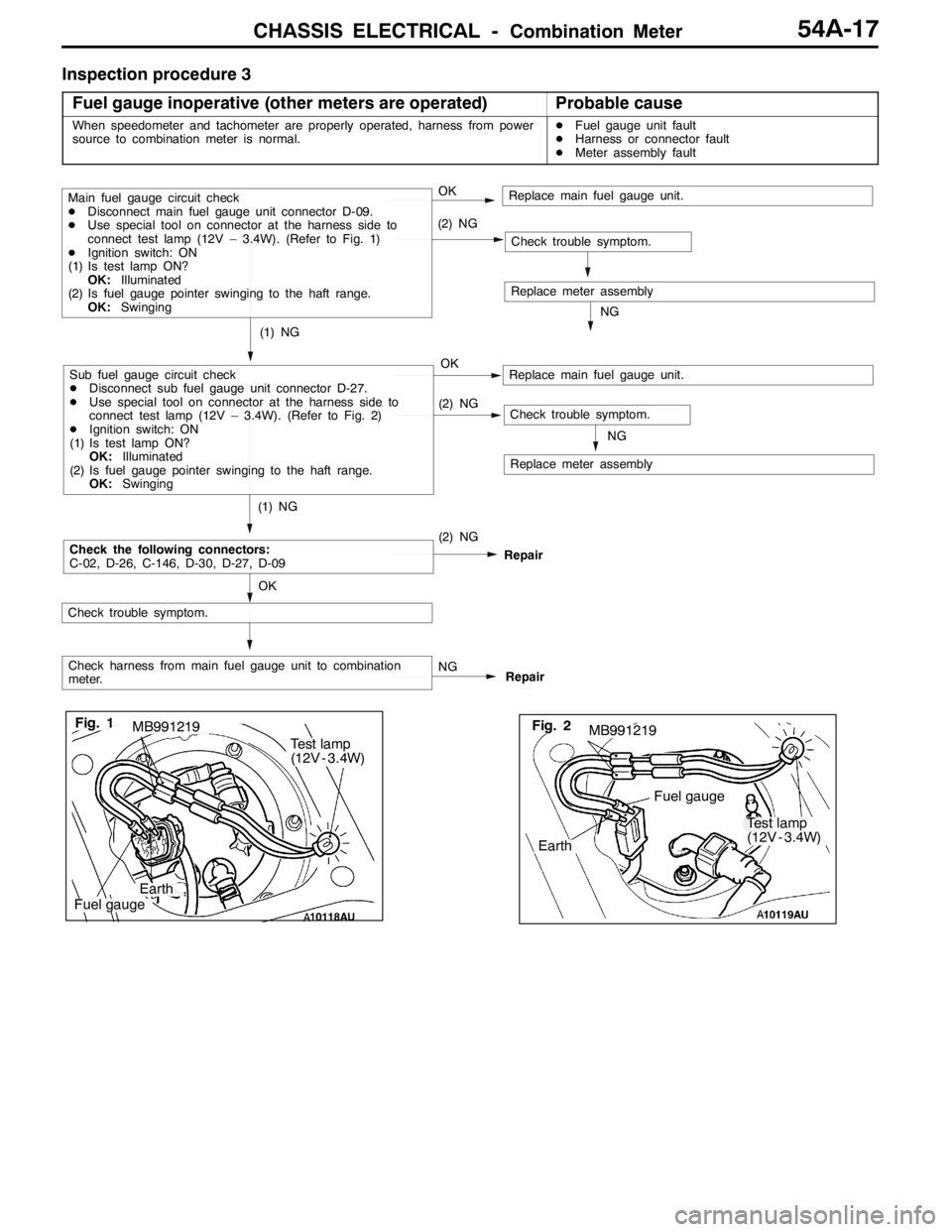

Inspection procedure 3
Fuel gauge inoperative (other meters are operated)
Probable cause
When speedometer and tachometer are properly operated, harness from power
source to combination meter is normal.DFuel gauge unit fault
DHarness or connector fault
DMeter assembly fault
OKReplace main fuel gauge unit.
NG
Check harness from main fuel gauge unit to combination
meter.Repair
Check trouble symptom.
Main fuel gauge circuit check
DDisconnect main fuel gauge unit connector D-09.
DUse special tool on connector at the harness side to
connect test lamp (12V – 3.4W). (Refer to Fig. 1)
DIgnition switch: ON
(1) Is test lamp ON?
OK:Illuminated
(2) Is fuel gauge pointer swinging to the haft range.
OK:Swinging
(1) NG
Fig. 1MB991219
Earth
Fuel gauge
Test lamp
(12V - 3.4W)
Repair
Check trouble symptom.
Check the following connectors:
C-02, D-26, C-146, D-30, D-27, D-09
Earth
Test lamp
(12V - 3.4W)
Fuel gauge
MB991219Fig. 2
Sub fuel gauge circuit check
DDisconnect sub fuel gauge unit connector D-27.
DUse special tool on connector at the harness side to
connect test lamp (12V – 3.4W). (Refer to Fig. 2)
DIgnition switch: ON
(1) Is test lamp ON?
OK:Illuminated
(2) Is fuel gauge pointer swinging to the haft range.
OK:Swinging
Replace meter assembly
OK (2) NG
(2) NG
Check trouble symptom.
Replace meter assemblyNG
Replace main fuel gauge unit.
(1) NG
OK
NG (2) NG

CHASSIS ELECTRICAL -Combination Meter54A-18
Inspection procedure 4
Water temperature gauge inoperative (other meters are
operated)
Probable cause
When speedometer and tachometer are properly operated, harness from power
source to combination meter is normal.DWater temperature gauge unit fault
DHarness or connector fault
DMeter assembly fault
OKReplace water temperature gauge unit.
NG
RepairNG
OK
Check trouble symptom.
Check water temperature gauge circuit.
DDisconnect water temperature gauge unit connector B-110.
DConnect test lamp (12V–5.2W - 12V–7.0W) to connector at
the harness side (Refer to Fig. 2).
DIgnition switch: ON
DIs test lamp ON?
OK:Illuminated
Check the following connectors:C-02, C-130, B-110
NG
RepairNG
OK
Check trouble symptom.
NG
Replace meter assembly.
Check harness from combination meter to water temperature
gauge.
Connector
EarthTest lamp
(12V - 3.4W
- 12V - 7.0W)
Fig. 2

CHASSIS ELECTRICAL -Combination MeterCHASSIS ELECTRICAL -Combination Meter54A-19
Inspection procedure 5All meters inoperative
Probable cause
When individual indicators and warning lamps are properly operated, harness
from power source (IG1) to combination meter is normal.D Meter assembly fault
D Harness or connector fault
NG Repair
NG
OK
Check trouble symptom. Repair
OK
Check the following connectors:
C-01, C-29, C-213
C-01, C-213
NG
Check harness from ignition switch (IG1) to combination meter.
Replace meter assembly. Repair
NG
OK
Check the following connectors:
C-01
NG
RepairCheck harness from combination meter to body earth.
ON-VEHICLE SERVICE
SPEEDOMETER CHECK
(1) Ensure that tire pressure indicates the value of tirepressure label.
(2) Place the vehicle on speedometer teste r.
(3)
(4) For prevention of front wheel lateral runout, install
extension fittings on front towing eye and tie down hook,
and install both ends on anchor plate.
(5) For prevention of vehicle from starting out, install chain or wire (the other end of which is tightly fixed on rear
towing eye) on the vehicle.
(6) Ensure that speedometer indication range is within standard value, or pointer deflection is within limit value.
Caution
During operation, avoid excessive acceleration and
deceleration.
Standard value:
Vehicle speed km/h4080120160
Indication range of
speedometer km/h37 - 4575 - 8811 3 -
132150 -
176
Limit:
Pointer deflection
(vehicle speed: 35 km/h or more): ±3 km/h
Extension
fitting
Front
Anchor plate
OK
Set the free rollers securely under rear wheels.

CHASSIS ELECTRICAL -Combination Meter54A-20
TACHOMETER CHECK
1. Insert paper clip (Zem clip) from harness side of the probe
for detection of engine speed to connect engine speed
indicator.
2. Compare measured values of individual engine speed
with tachometer values, and ensure that indication
allowance is within standard value.
Standard value:
Engine speed (rpm)Indication allowance of tachometer
rpm
700±70
2,000- 100 +150
3,000- 100 +225
4,000- 125 +275
5,000- 125 +325
6,000- 125 +375
7,000- 100 +400
8,000+400
FUEL GAUGE UNIT CHECK
Remove fuel gauge unit from fuel tank.
BASIC RESISTANCE OF FUEL GAUGE UNIT
1. When float of fuel gauge unit is in Position F and E,
ensure that resistance between fuel gauge unit terminal
and earth terminal is within standard value.
Standard Value:
Float PositionMain fuel gauge unitSub fuel gauge unit
Position F2±1Ω2±1Ω
Position E41±1Ω69±1Ω
2. When float is moved slowly between Position F and E,
also ensure that resistance is smoothly changing.
Paper clipEngine speed indicator
Probe for detection
of engine speed
Position F
Position E Main fuel gauge unit
Sub fuel gauge unit

CHASSIS ELECTRICAL -Combination Meter54A-21
FLOAT HEIGHT OF FUEL GAUGE UNIT
When float is moved to contact float arm on stopper,
ensure that Position F (A) and E (B) are within standard
value.
Standard Value:
FloatPositionMainfuelgaugeunitSubfuelgaugeunitFloatPositionMainfuelgaugeunitSubfuelgaugeunit
Position F (A)33.3 mm10.7 mm
Position E (B)121.9 mm138.6 mm
ENGINE COOLANT TEMPERATURE GAUGE
UNIT CHECK
1. Drain coolant. (Refer to GROUP 14 - On-vehicle Service)
2. Remove water temperature gauge unit.
3. Put water temperature gauge unit into the hot water in
specified temperature, and ensure that basic resistance
is within standard value.
Standard value: 70_C 104±13.5Ω
Reference value:
TemperatureResistanceΩ
50_C230
60_C155
80_C73
4. After inspection, apply specified sealant at threads of
water temperature gauge unit, and tighten to the specified
torque.
Semi-drying sealant: 3M ATD Part No.1215 or
equivalent
5. Refill coolant. (Refer to GROUP 14 - On-vehicle Service.)
Main fuel gauge unit
Sub fuel gauge unit
A
B
A
B
ThermometerCircuit tester
11±1 N·m

CHASSIS ELECTRICAL -Combination Meter54A-22
COMBINATION METER
REMOVAL AND INSTALLATION
3
1 2
Removal steps
1. Meter bezel
2. Instrument panel ornament
3. Combination meter
INSPECTION
COMBINATION METER INTERNAL RESISTANCE
CHECK
Use circuit tester to measure combination meter internal
resistance.
Standard Value:
Measuring
terminal No.Terminal nameStandard
valueΩ
1-50Water temperature gauge to earth233±3
1-51Fuel gauge to earth181±2

CHASSIS ELECTRICAL -Combination Meter54A-23
DISASSEMBLY AND REASSEMBLY
12
4
5
3
Disassembly step
1. Glass
2. Window plate
3. Circuit board cover4. Bulb
5. Meter assembly

CHASSIS ELECTRICAL -Headlamp Assembly54A-24
HEADLAMP ASSEMBLY
SERVICE SPECIFICATIONS
ItemStandard valueLimit
Headlamp aimingLow beamVertical
direction120mm (0.69_) below hor-
izontal line (H)±0.29_
Horizontal
directionPosition at which the
startup point of 15_is
crossed with vertical line
(V)±0.5_
High beamVertical
directionThe center of high intensi-
ty zone is on the point of
intersection of line (H) and
line (V).- 0.5_of the point of
intersection of line (H)
Horizontal
directionThe center of high intensi-
ty zone is on the point of
intersection of line (V).±0.5_of the center of
line (V)
Measurement of headlamp illuminous intensity
(at high beam)–30,000 cd or more per
one headlamp
NOTES ON HEADLAMP ASSEMBLY:
Plastic outer lens are equipped with headlamp assembly. For handling, care should be taken for
the following items:
DHeadlamps should not be illuminated for more than 3 minutes with scratch preventive protectors,
etc. covered on them.
DMasking such as taping should not be attached on outer lens.
DOuter lens surface should not be rubbed with a sharp-edged tool, etc.
DSpecified wax remover should be used for insistently washing.
DAuthorized Mitsubishi Genuine bulbs should be used.
TROUBLESHOOTING
Headlamps are controlled smart wiring system (SWS). For troubleshooting, refer to GROUP 54B.
NOTE
When ETACS-ECU is defective, headlamps can be illuminated only in a low beam mode as fail-safe
function.
ON-VEHICLE SERVICE
HEADLAMP AIMING
PRE-AIMING INSTRUCTION
1. Inspect for badly rusted or faulty headlamp assemblies.
2. These conditions must be corrected before a satisfactory
adjustment can be made.
3. Inspect tyres inflation, and adjust if necessary.
