Page 2057 of 2339

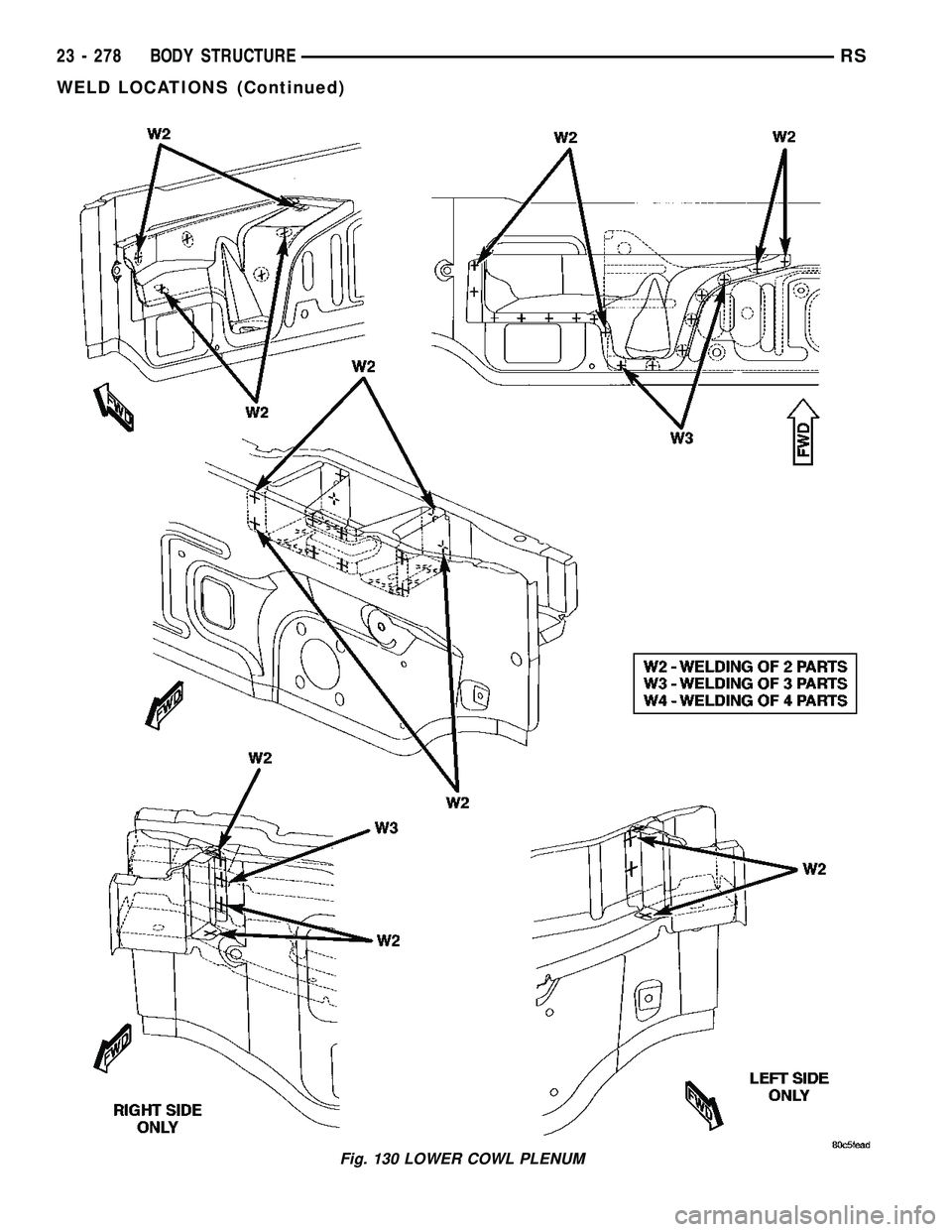

CHRYSLER VOYAGER 2005 Service Manual Fig. 130 LOWER COWL PLENUM 23 - 278 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2058 of 2339

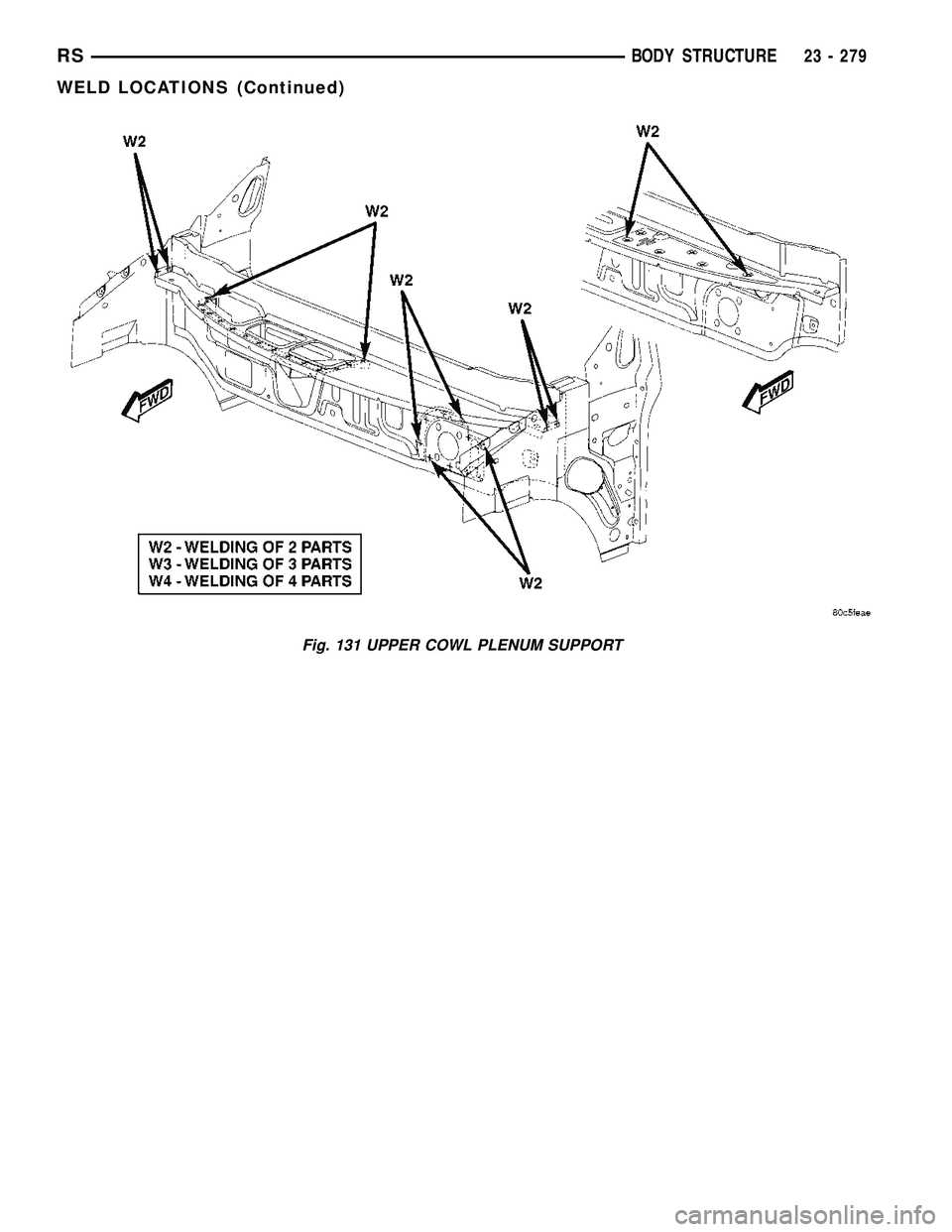

CHRYSLER VOYAGER 2005 Service Manual Fig. 131 UPPER COWL PLENUM SUPPORT RSBODY STRUCTURE23 - 279 WELD LOCATIONS (Continued)

Page 2059 of 2339

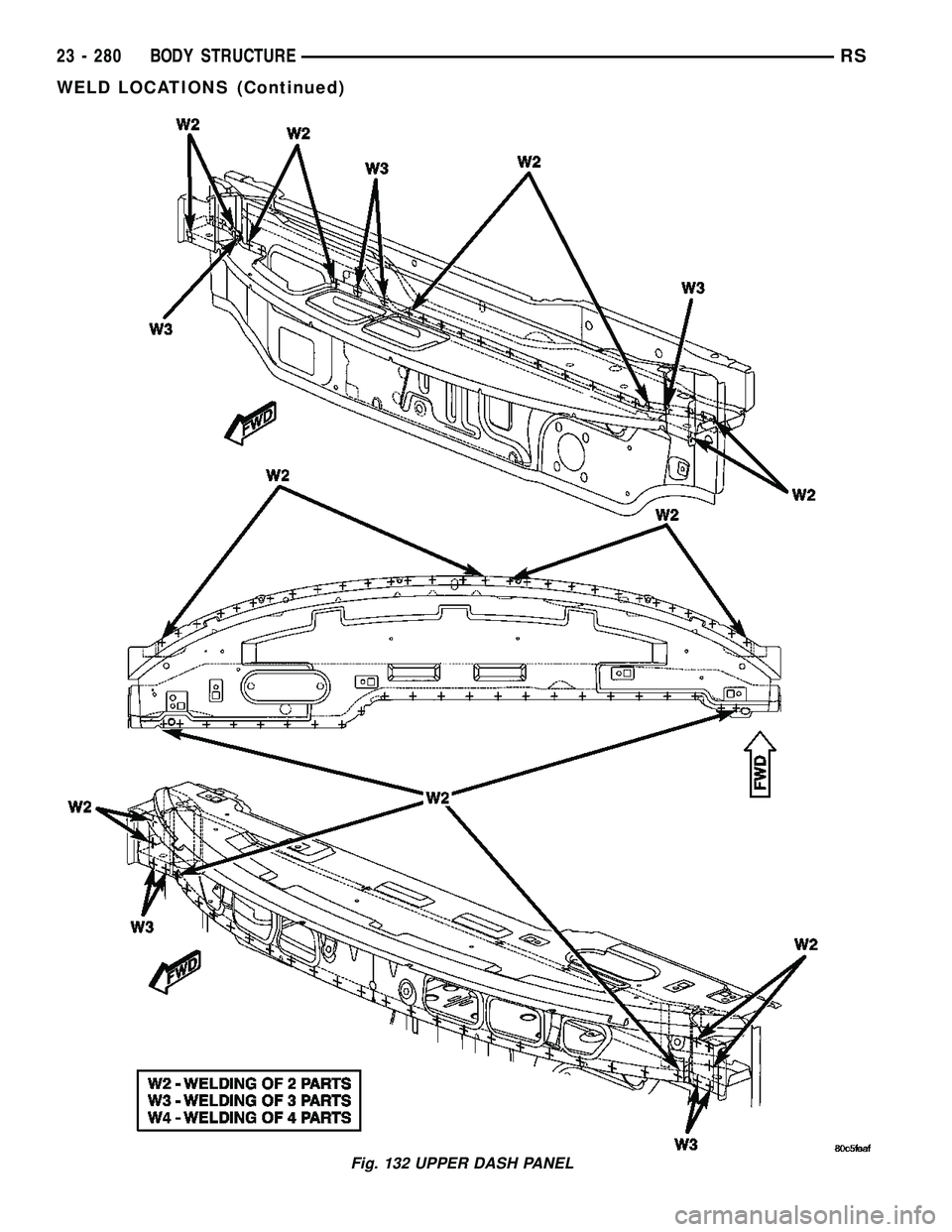

CHRYSLER VOYAGER 2005 Service Manual Fig. 132 UPPER DASH PANEL 23 - 280 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2060 of 2339

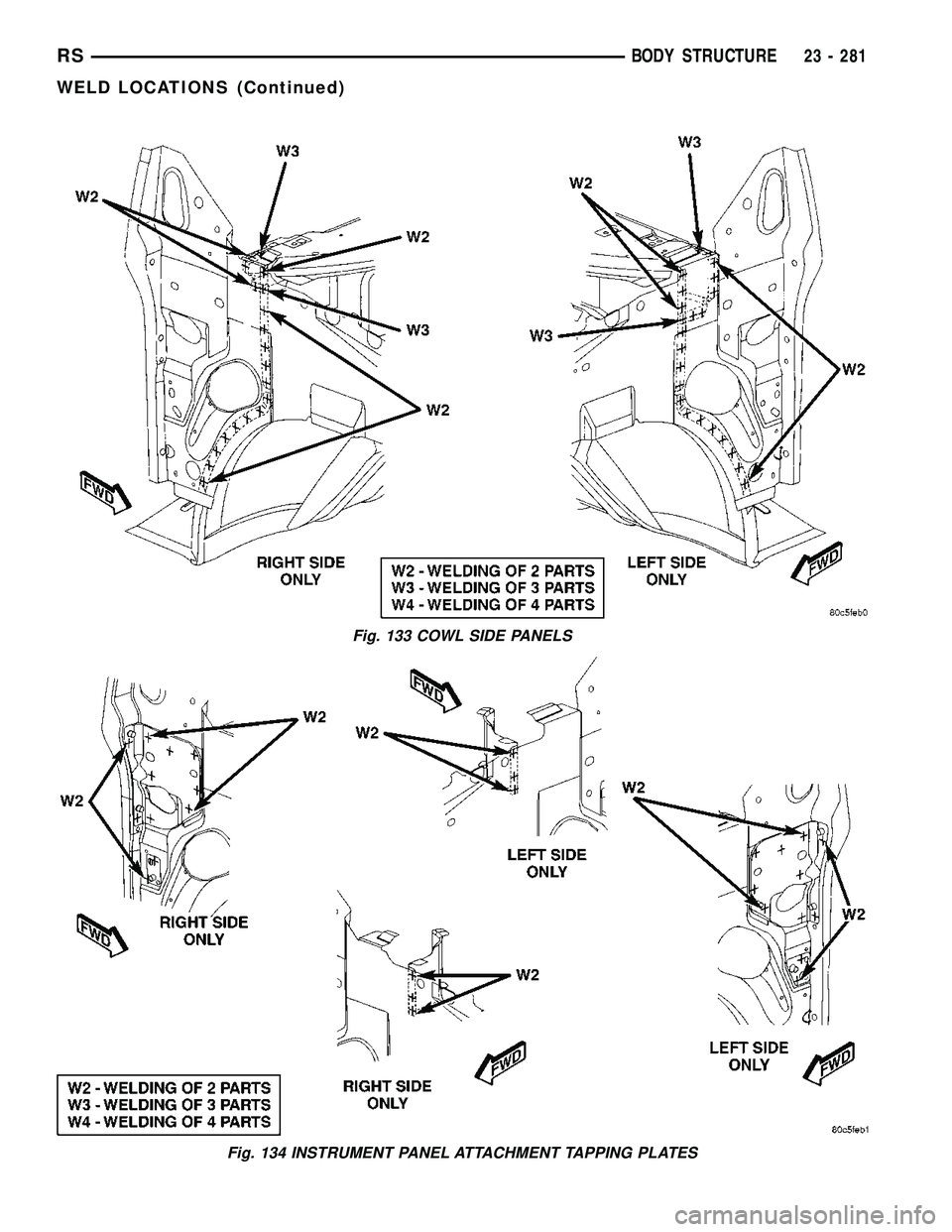

CHRYSLER VOYAGER 2005 Service Manual Fig. 133 COWL SIDE PANELS Fig. 134 INSTRUMENT PANEL ATTACHMENT TAPPING PLATES RSBODY STRUCTURE23 - 281 WELD LOCATIONS (Continued)

Page 2061 of 2339

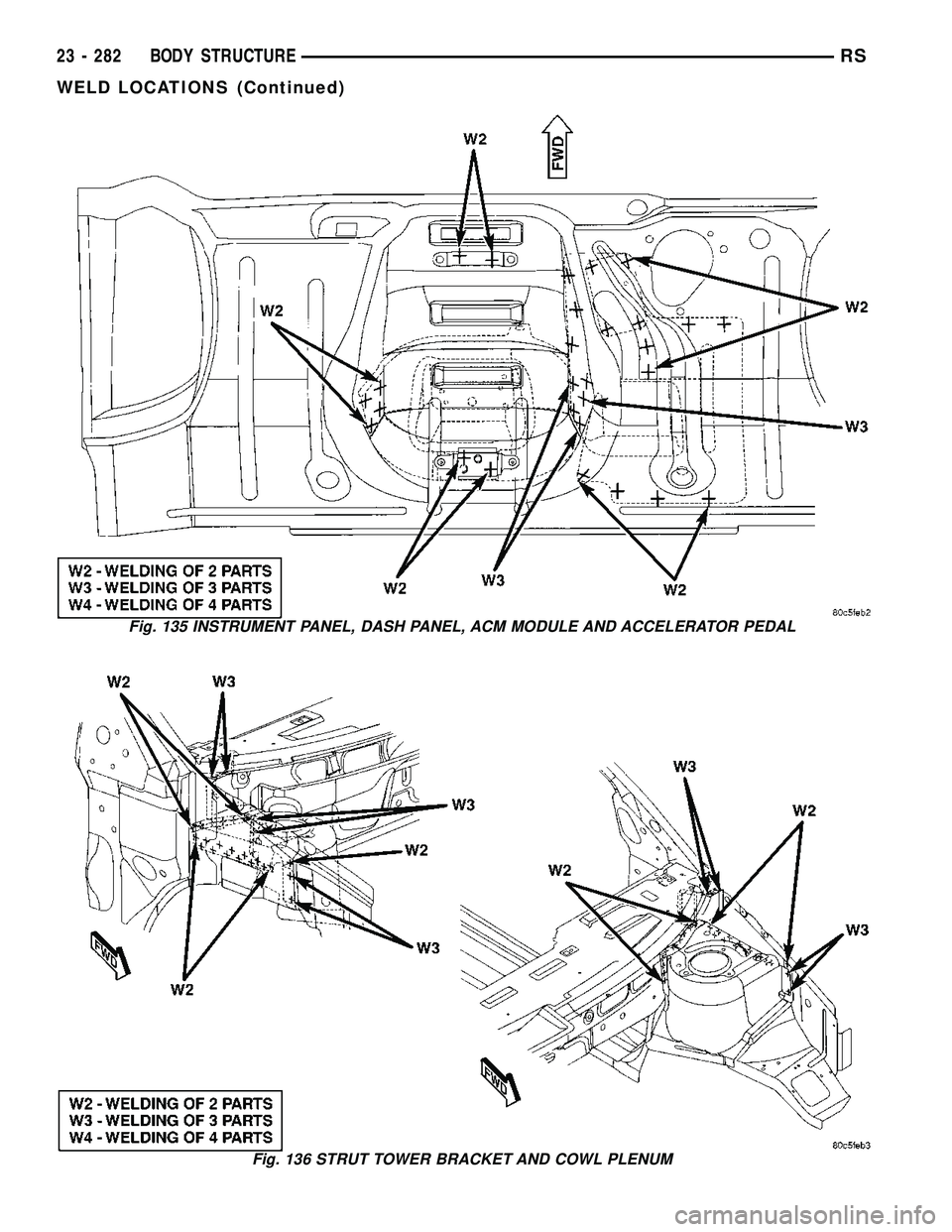

CHRYSLER VOYAGER 2005 Service Manual Fig. 135 INSTRUMENT PANEL, DASH PANEL, ACM MODULE AND ACCELERATOR PEDAL Fig. 136 STRUT TOWER BRACKET AND COWL PLENUM 23 - 282 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2062 of 2339

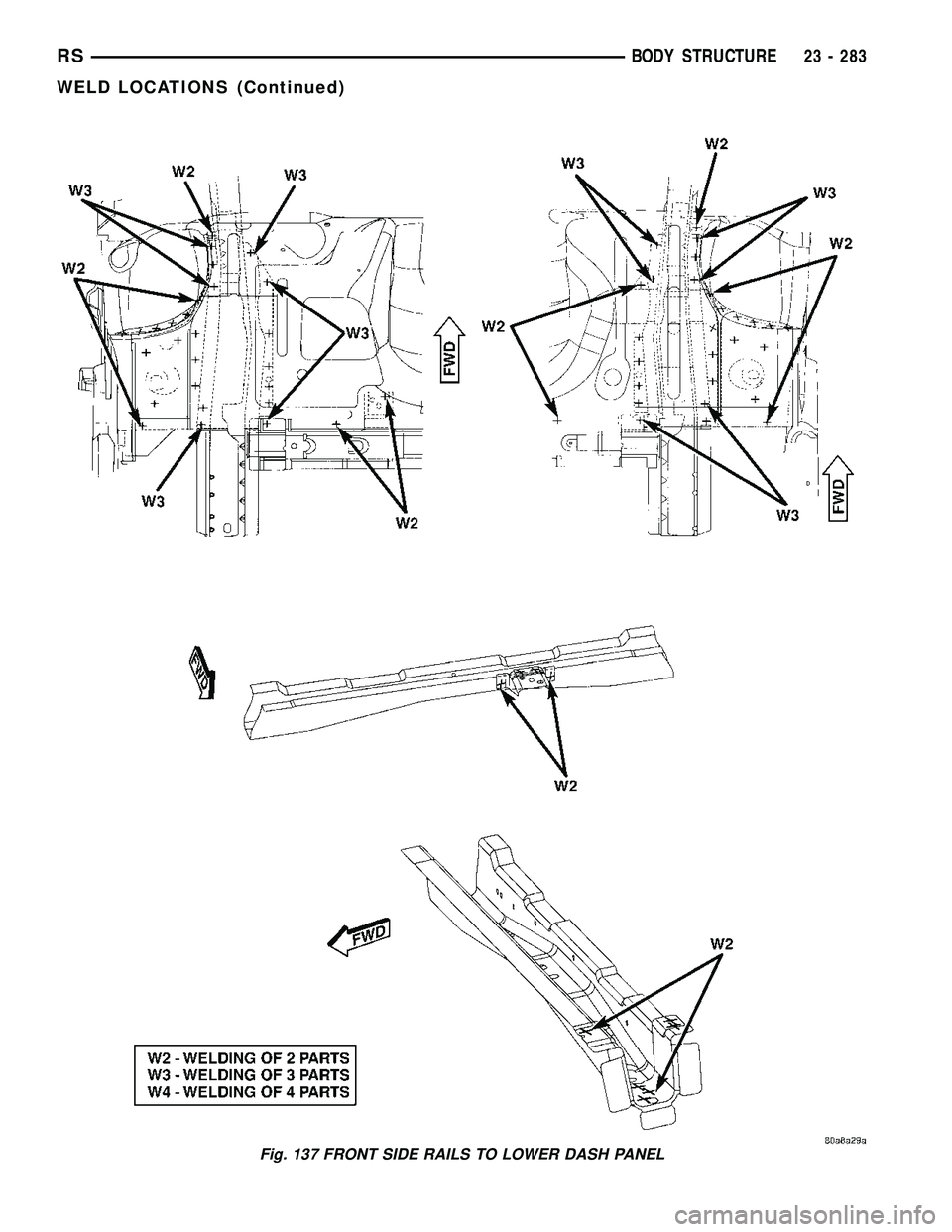

CHRYSLER VOYAGER 2005 Service Manual Fig. 137 FRONT SIDE RAILS TO LOWER DASH PANEL RSBODY STRUCTURE23 - 283 WELD LOCATIONS (Continued)

Page 2063 of 2339

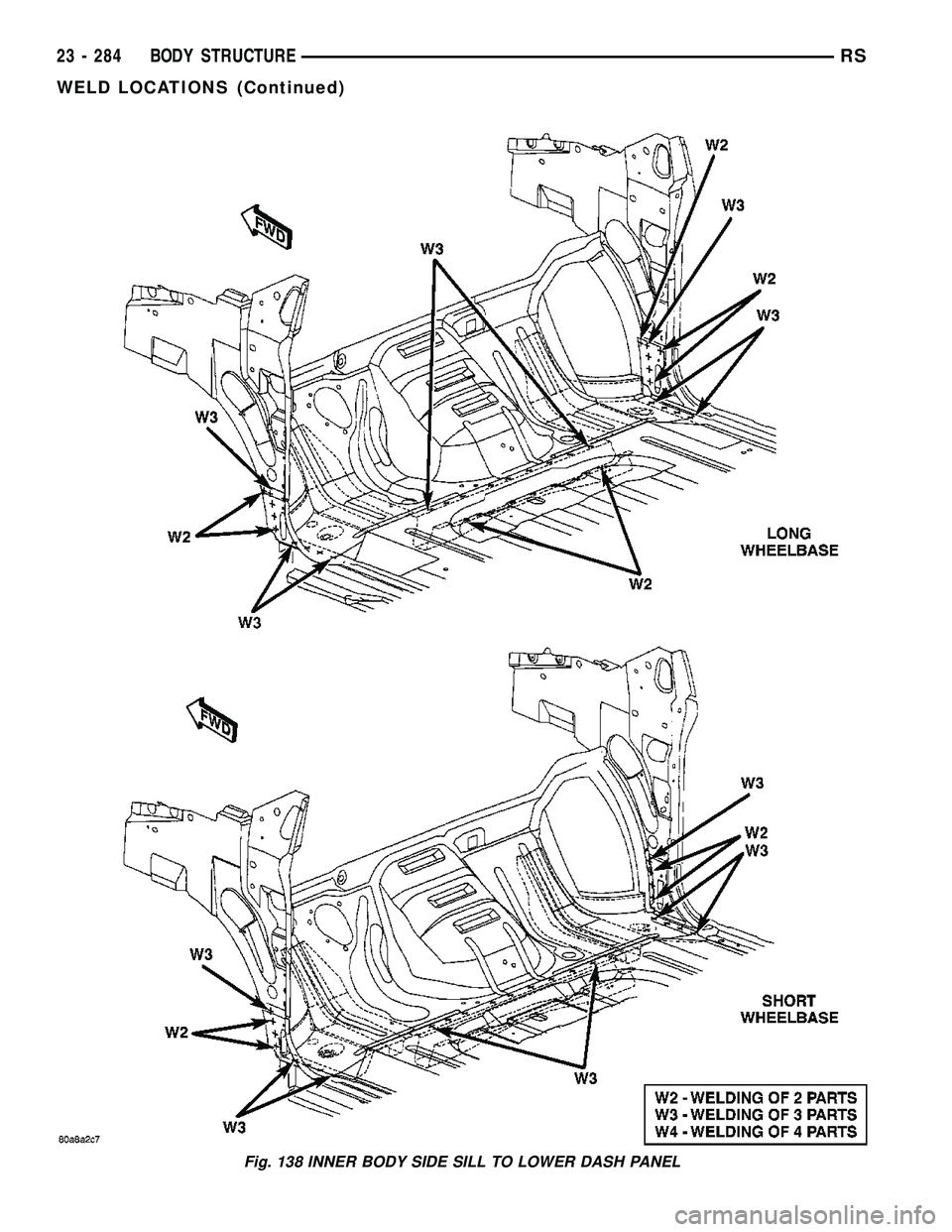

CHRYSLER VOYAGER 2005 Service Manual Fig. 138 INNER BODY SIDE SILL TO LOWER DASH PANEL 23 - 284 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2064 of 2339

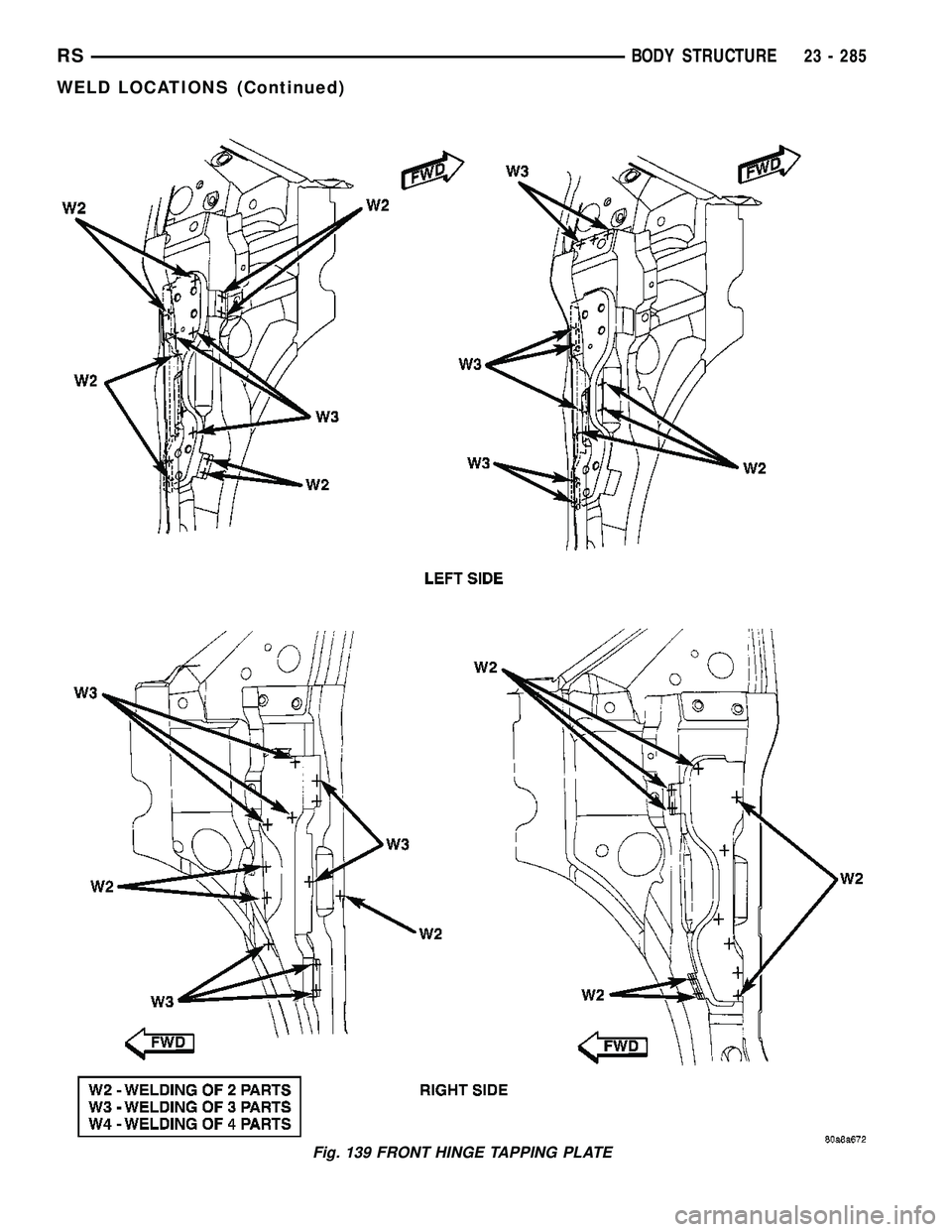

CHRYSLER VOYAGER 2005 Service Manual Fig. 139 FRONT HINGE TAPPING PLATE RSBODY STRUCTURE23 - 285 WELD LOCATIONS (Continued)
