Page 1977 of 2339

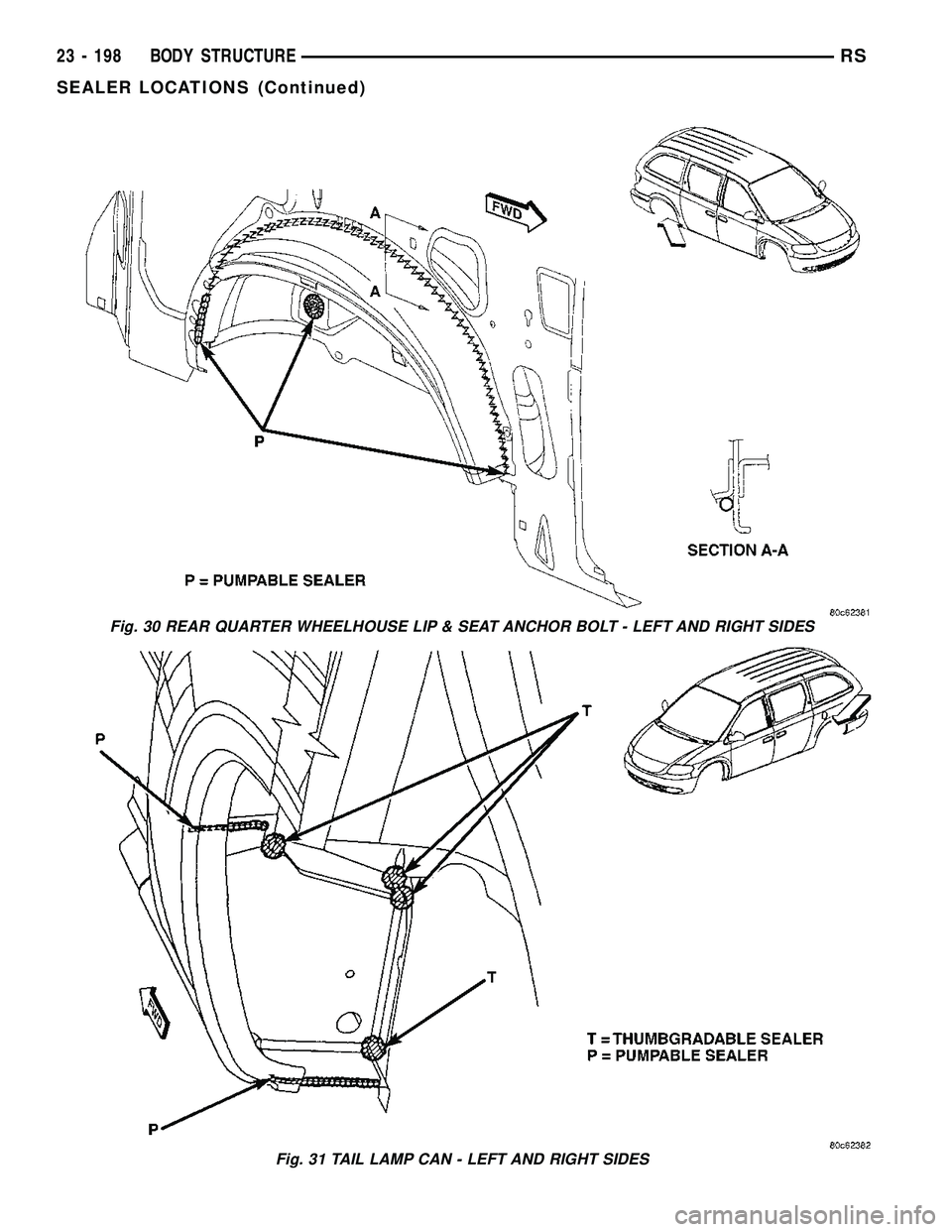

CHRYSLER VOYAGER 2005 Service Manual Fig. 30 REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES Fig. 31 TAIL LAMP CAN - LEFT AND RIGHT SIDES 23 - 198 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1978 of 2339

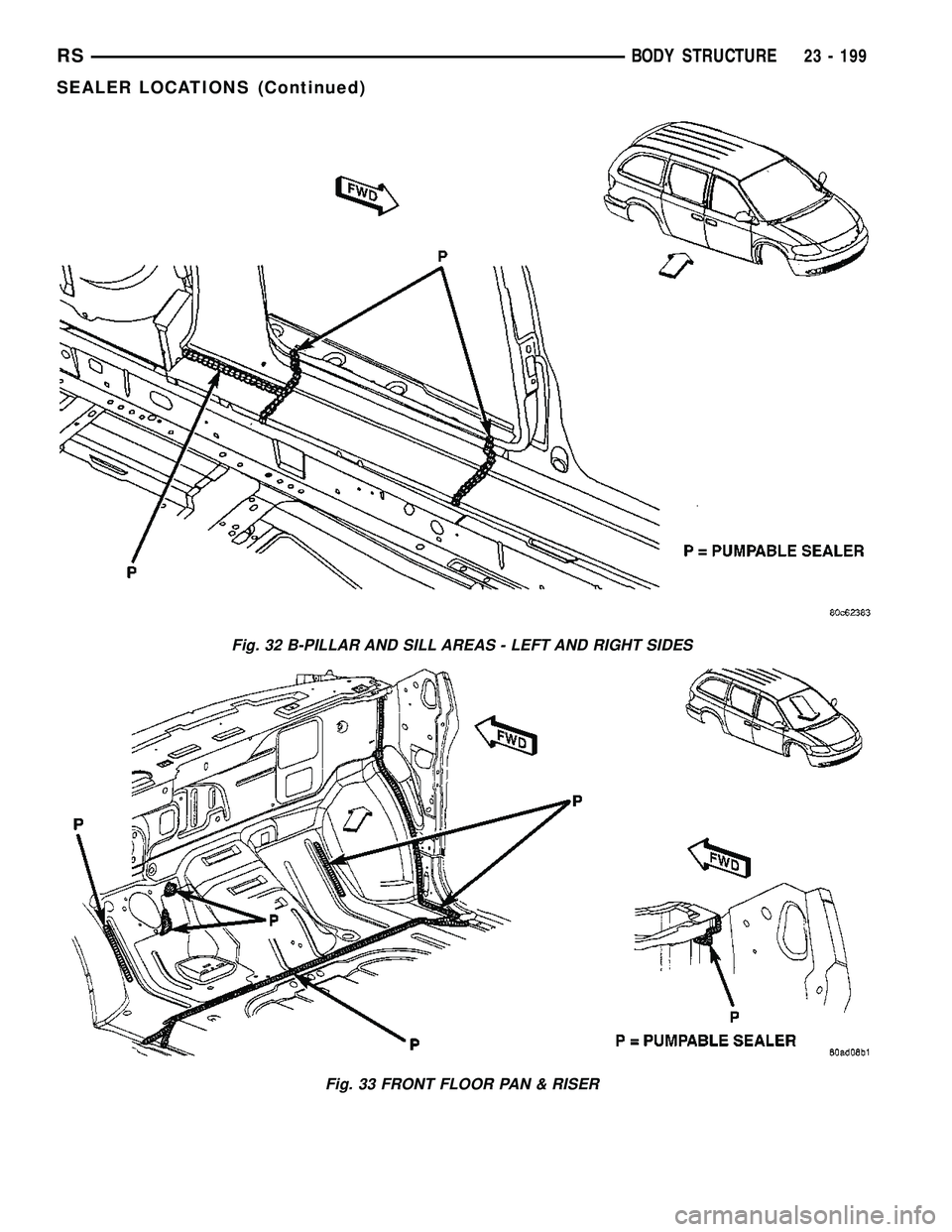

CHRYSLER VOYAGER 2005 Service Manual Fig. 32 B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES Fig. 33 FRONT FLOOR PAN & RISER RSBODY STRUCTURE23 - 199 SEALER LOCATIONS (Continued)

Page 1979 of 2339

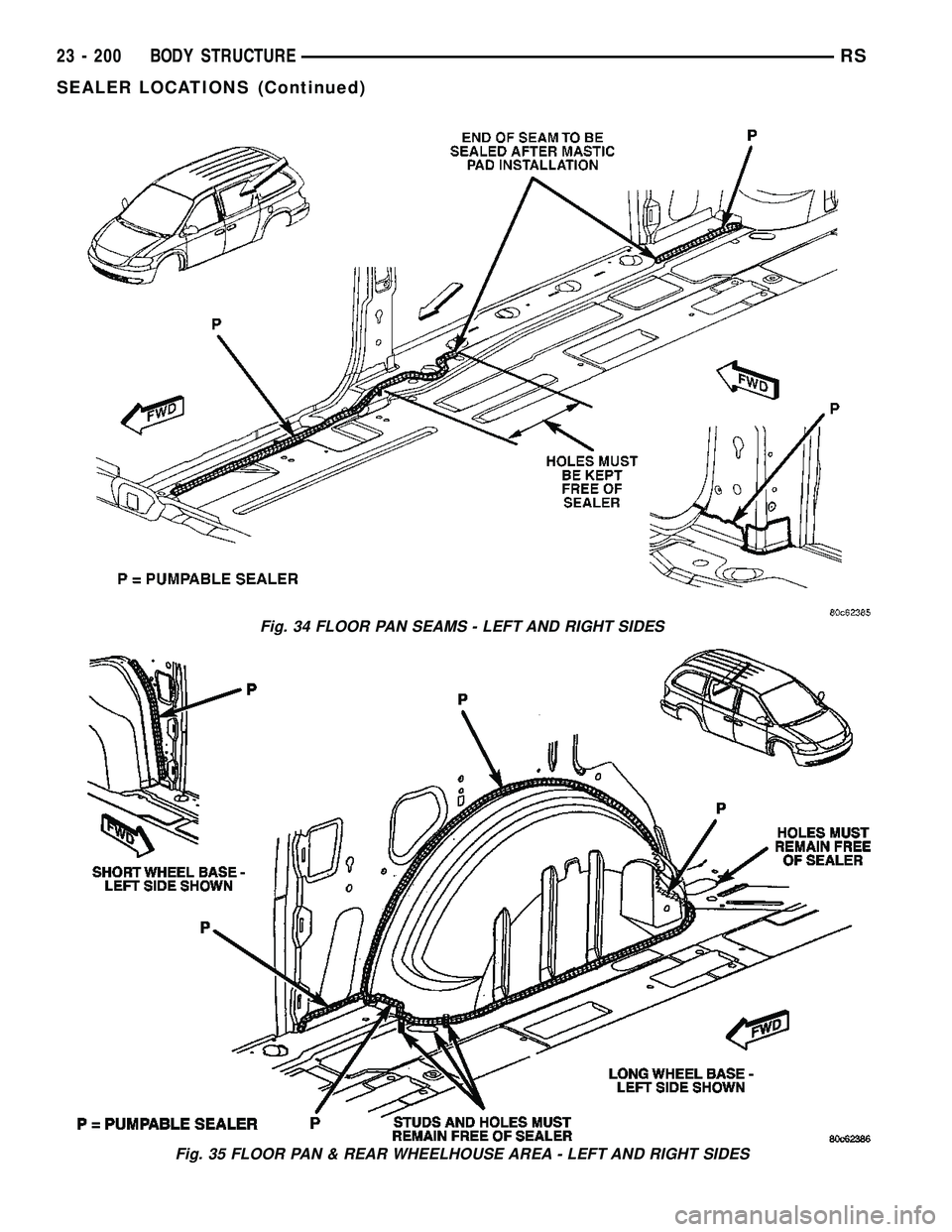

CHRYSLER VOYAGER 2005 Service Manual Fig. 34 FLOOR PAN SEAMS - LEFT AND RIGHT SIDES Fig. 35 FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES 23 - 200 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1980 of 2339

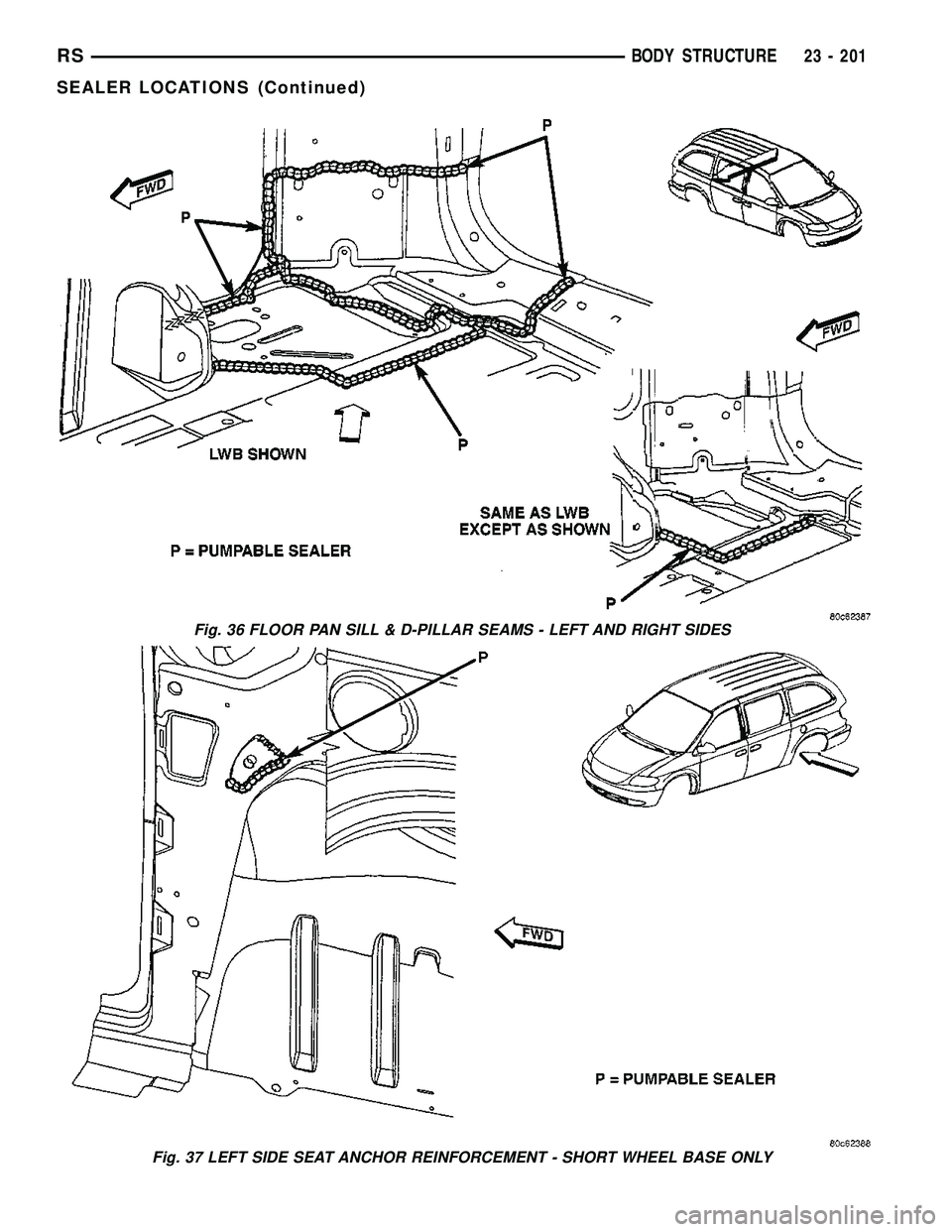

CHRYSLER VOYAGER 2005 Service Manual Fig. 36 FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES Fig. 37 LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 201 SEALER LOCATIONS (Continued)

Page 1981 of 2339

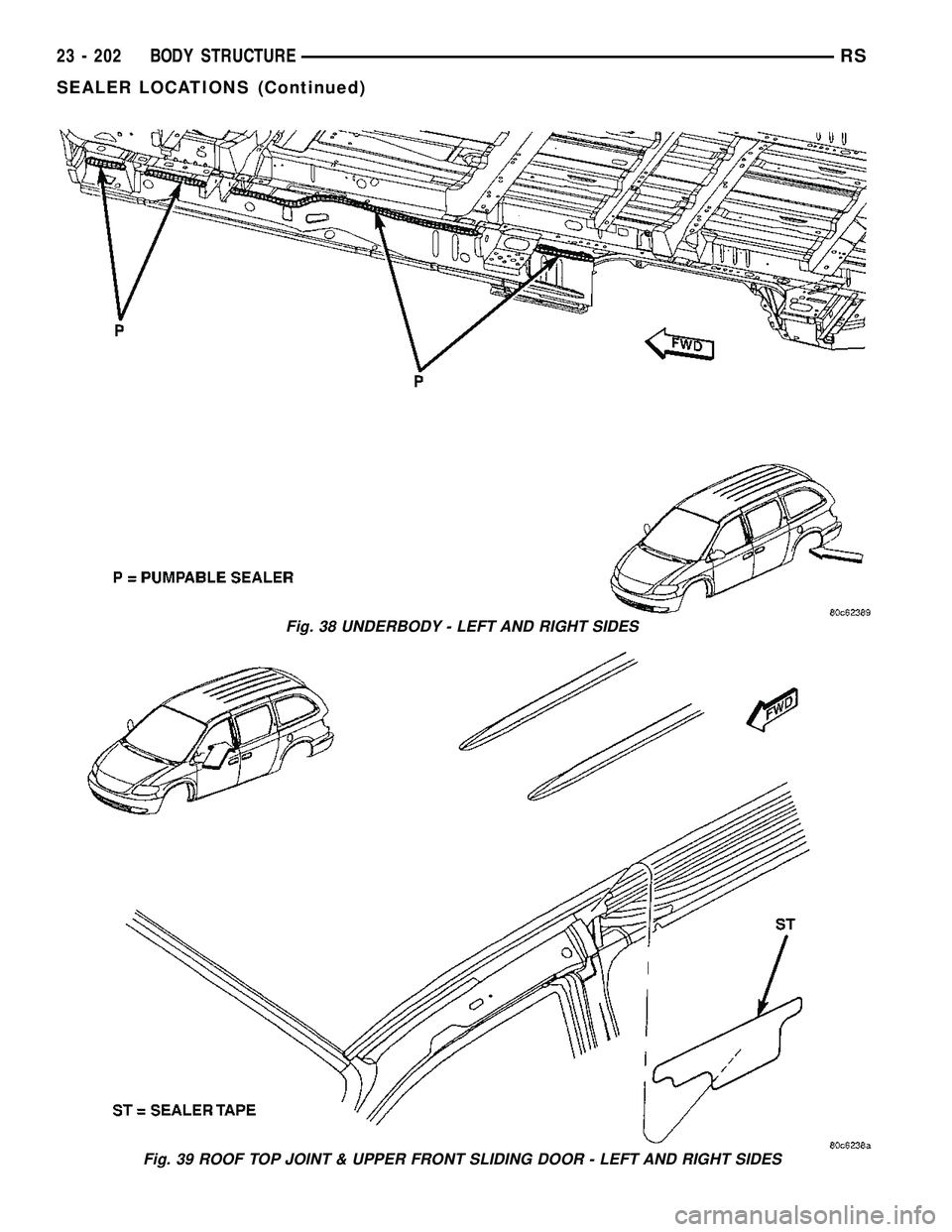

CHRYSLER VOYAGER 2005 Service Manual Fig. 38 UNDERBODY - LEFT AND RIGHT SIDES Fig. 39 ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES 23 - 202 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1982 of 2339

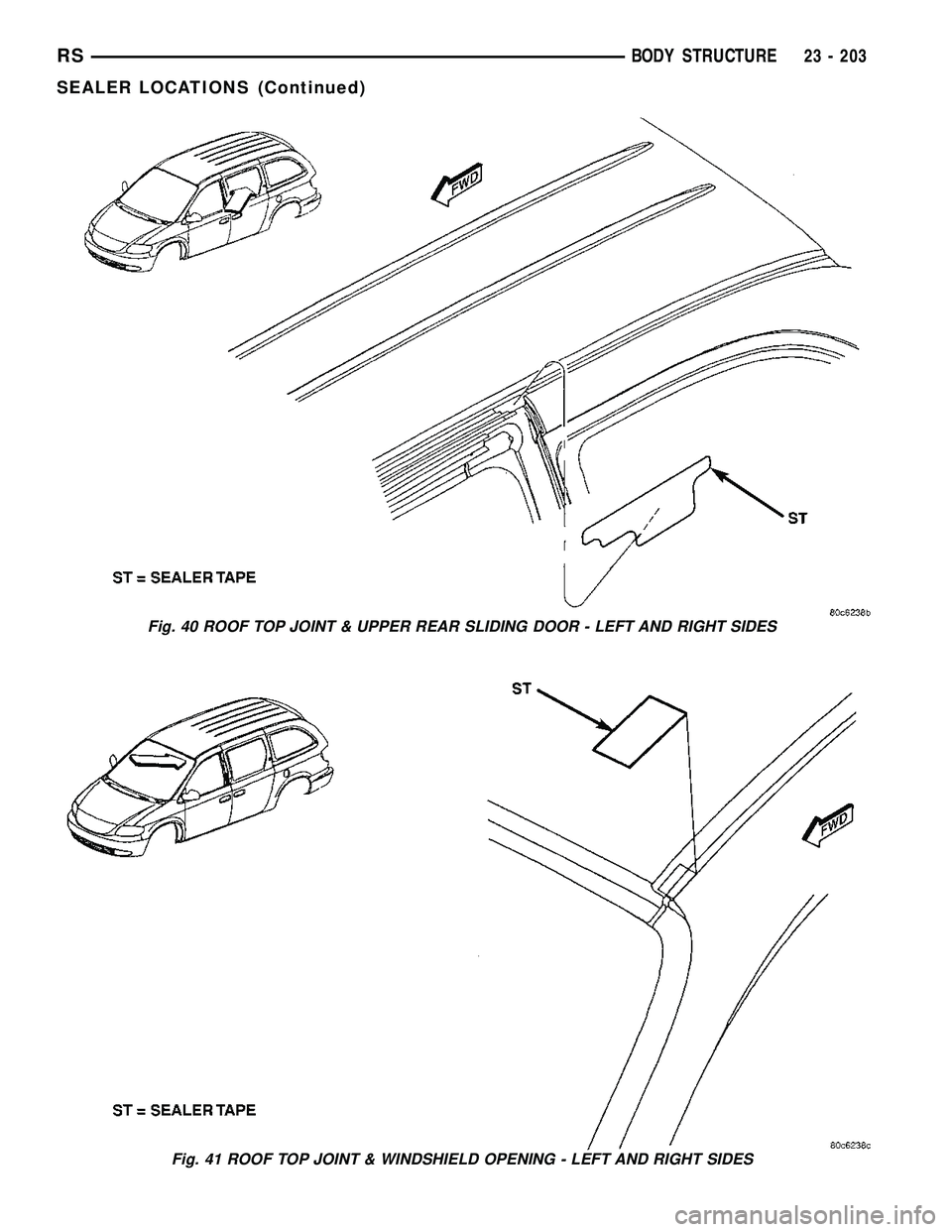

CHRYSLER VOYAGER 2005 Service Manual Fig. 40 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES Fig. 41 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 203 SEALER LOCATIONS (Continued)

Page 1983 of 2339

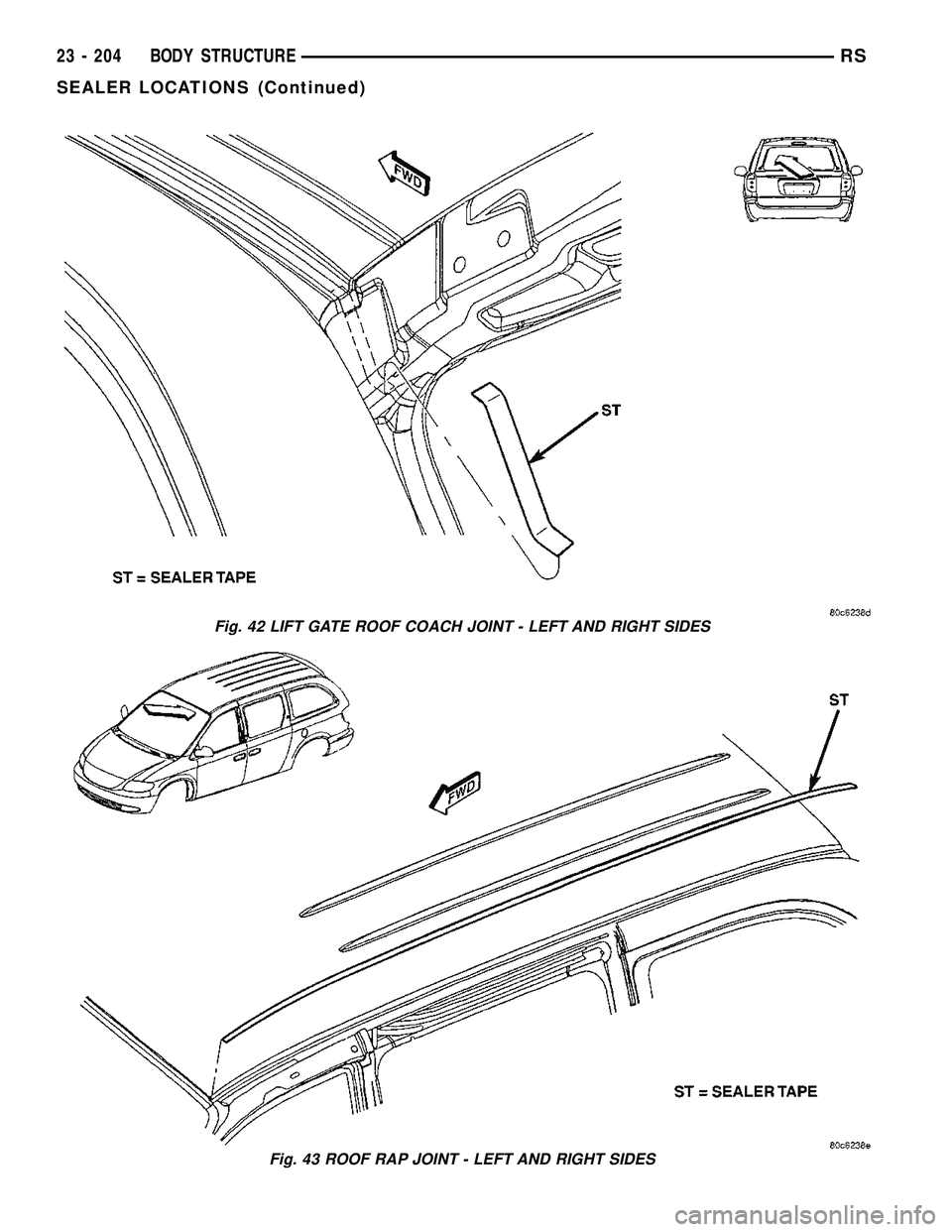

CHRYSLER VOYAGER 2005 Service Manual Fig. 42 LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES Fig. 43 ROOF RAP JOINT - LEFT AND RIGHT SIDES 23 - 204 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1984 of 2339

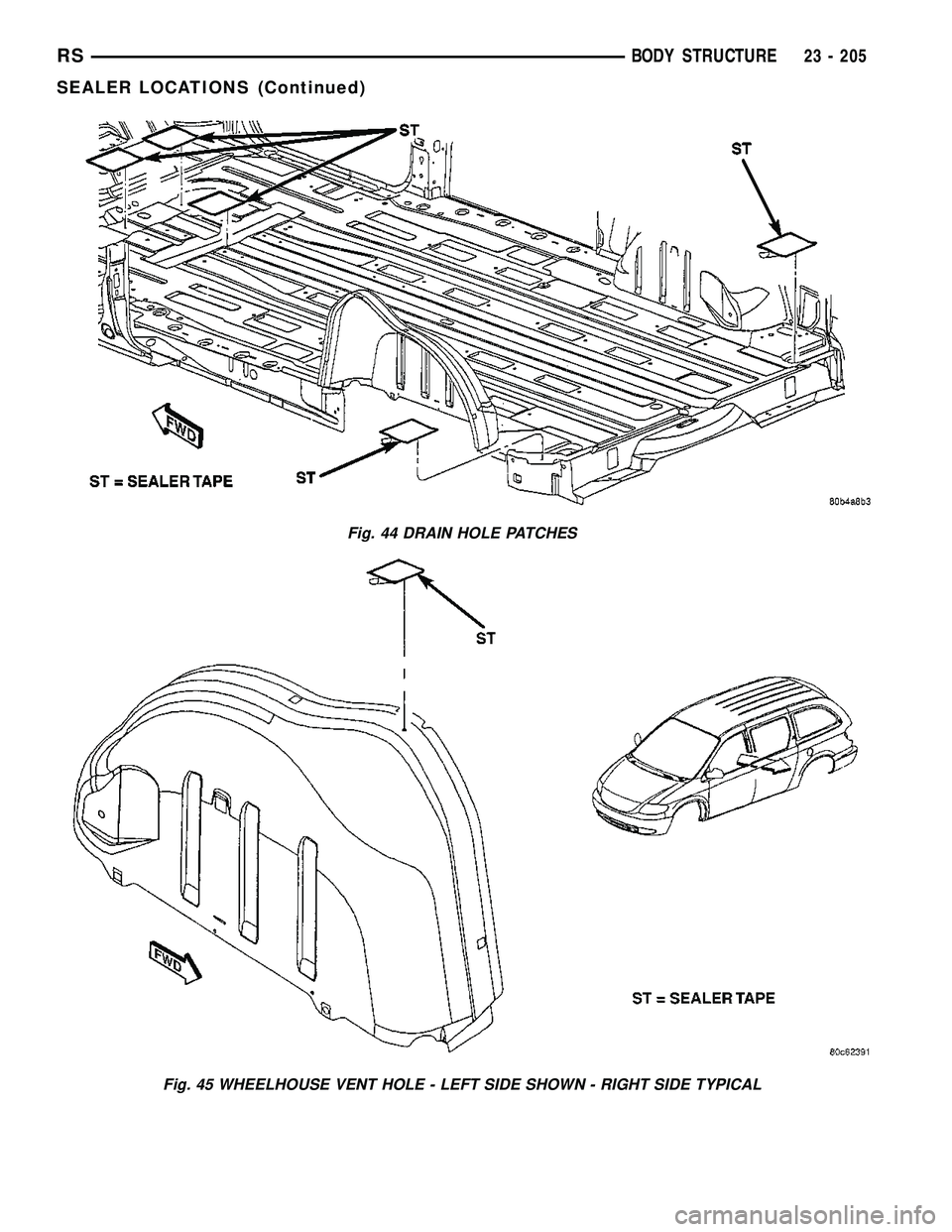

CHRYSLER VOYAGER 2005 Service Manual Fig. 44 DRAIN HOLE PATCHES Fig. 45 WHEELHOUSE VENT HOLE - LEFT SIDE SHOWN - RIGHT SIDE TYPICAL RSBODY STRUCTURE23 - 205 SEALER LOCATIONS (Continued)
