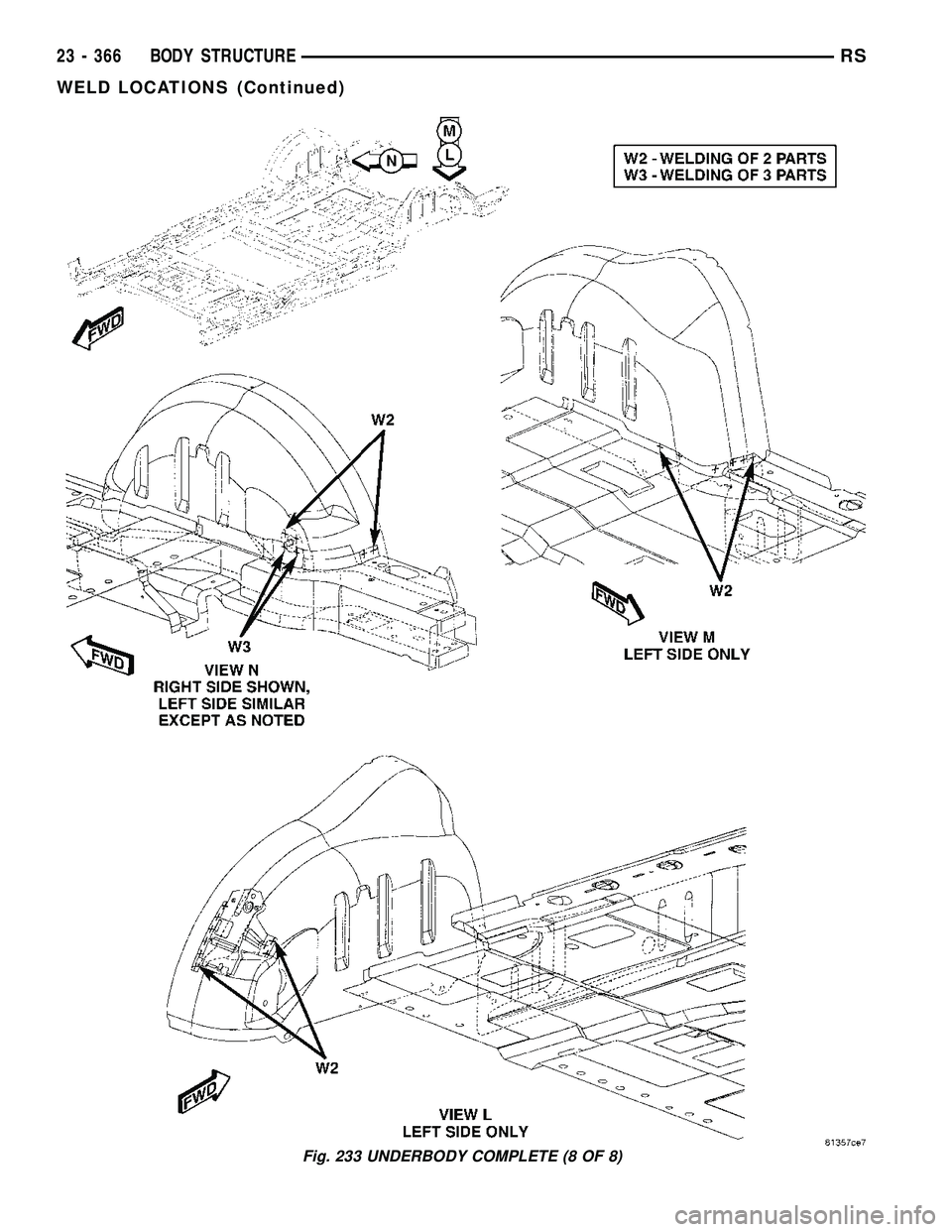

Fig. 233 UNDERBODY COMPLETE (8 OF 8)
23 - 366 BODY STRUCTURERS
WELD LOCATIONS (Continued)
Page 2146 of 2339

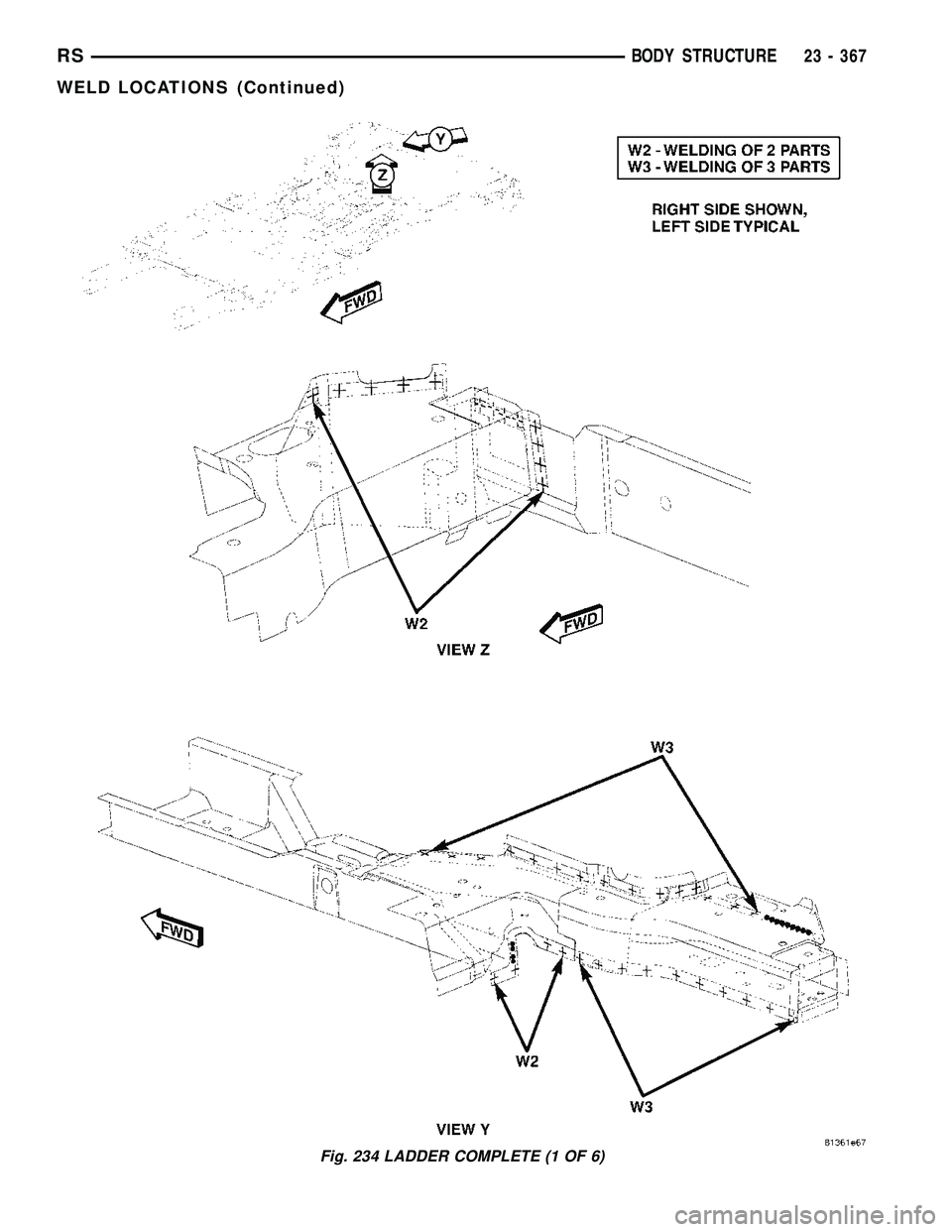

Fig. 234 LADDER COMPLETE (1 OF 6)
RSBODY STRUCTURE23 - 367
WELD LOCATIONS (Continued)
Page 2147 of 2339

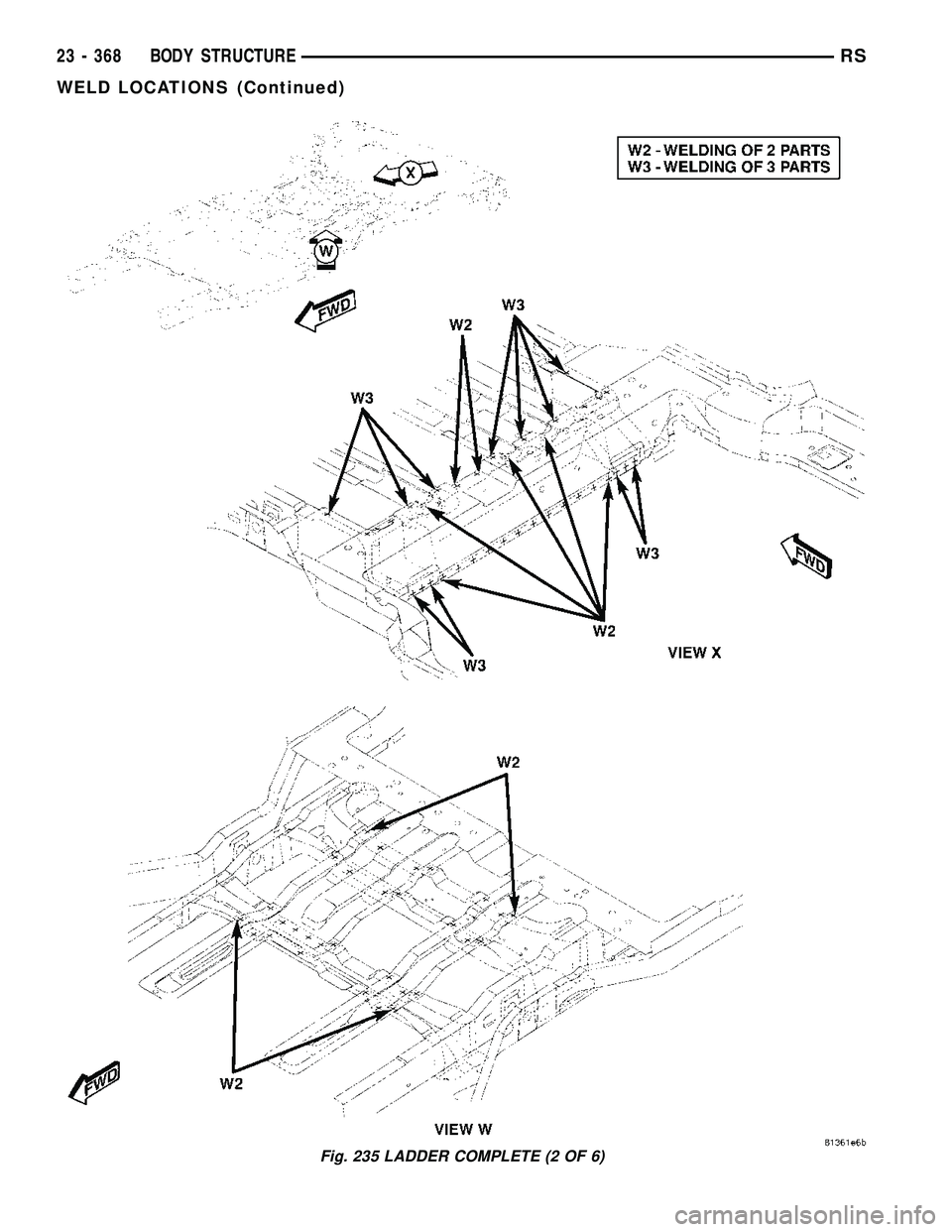

Fig. 235 LADDER COMPLETE (2 OF 6)
23 - 368 BODY STRUCTURERS
WELD LOCATIONS (Continued)
Page 2148 of 2339

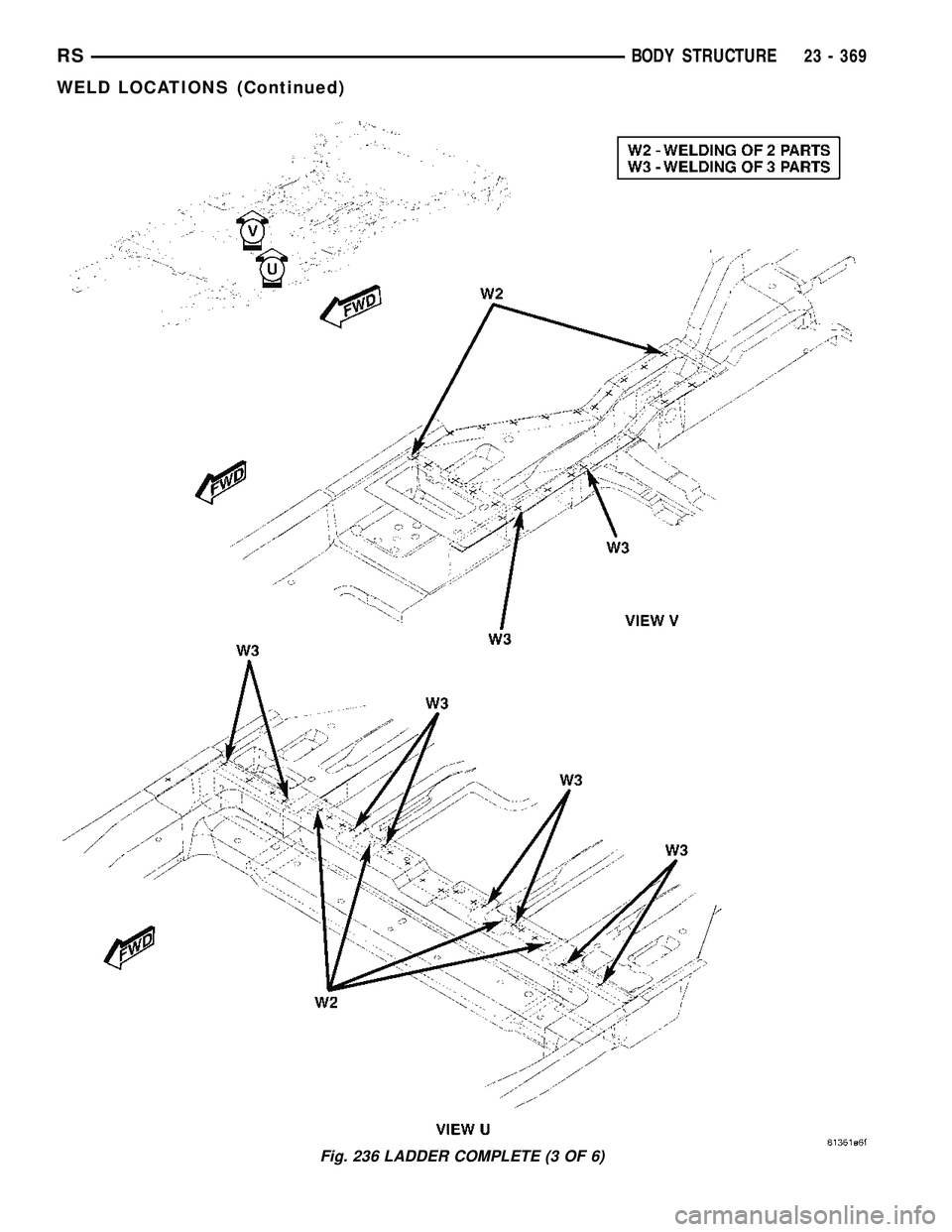

Fig. 236 LADDER COMPLETE (3 OF 6)
RSBODY STRUCTURE23 - 369
WELD LOCATIONS (Continued)
Page 2149 of 2339

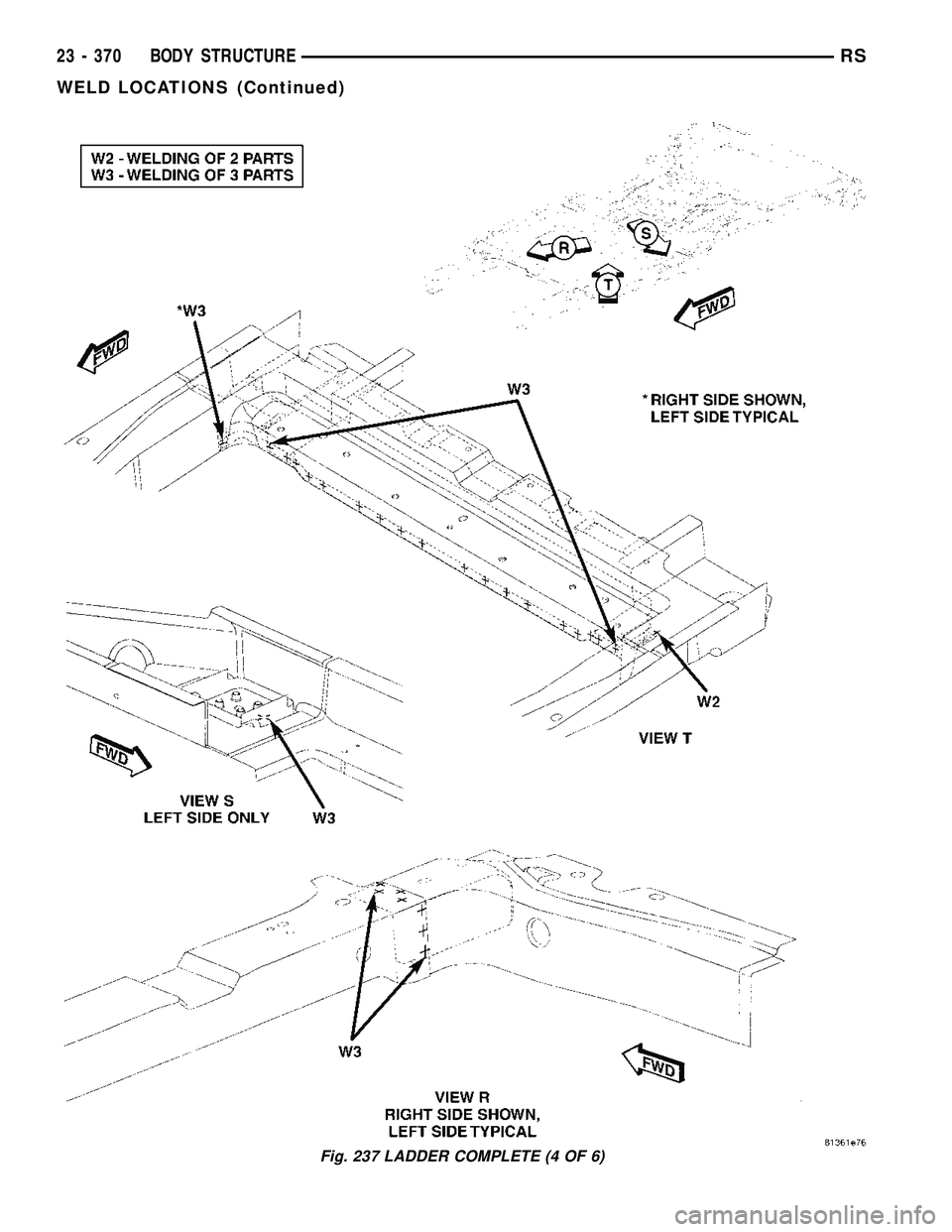

Fig. 237 LADDER COMPLETE (4 OF 6)
23 - 370 BODY STRUCTURERS
WELD LOCATIONS (Continued)
Page 2150 of 2339

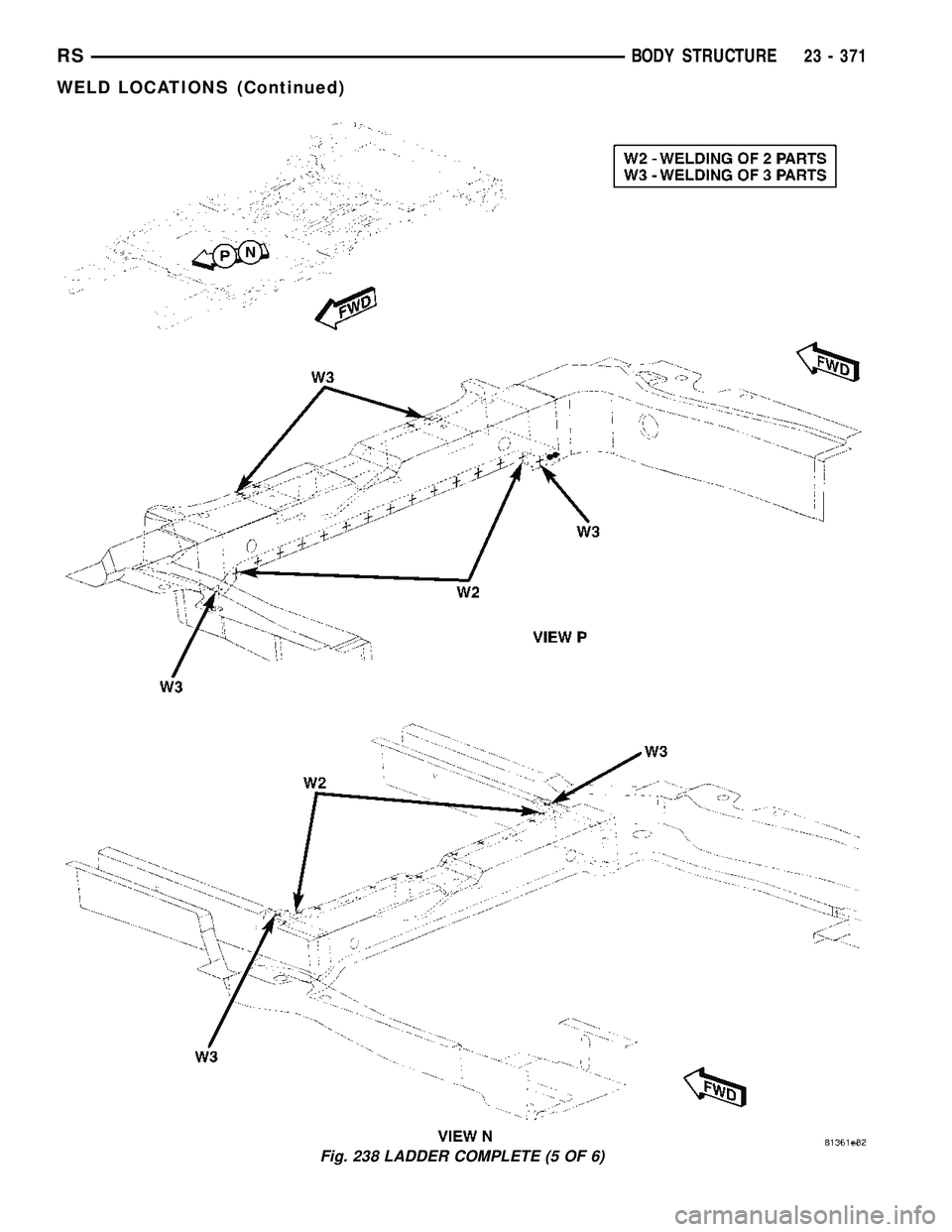

Fig. 238 LADDER COMPLETE (5 OF 6)
RSBODY STRUCTURE23 - 371
WELD LOCATIONS (Continued)
Page 2151 of 2339

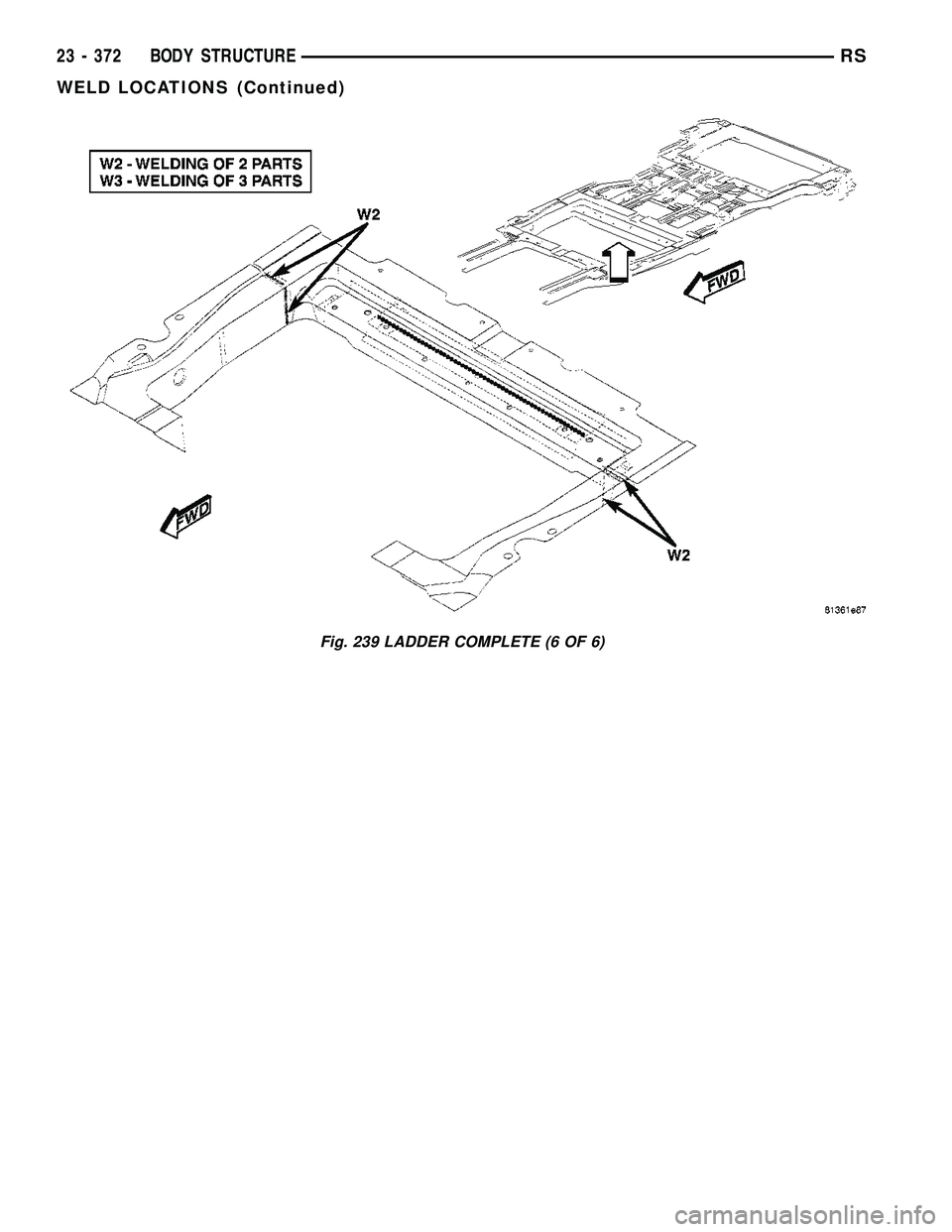

Fig. 239 LADDER COMPLETE (6 OF 6)
23 - 372 BODY STRUCTURERS
WELD LOCATIONS (Continued)
Page 2152 of 2339

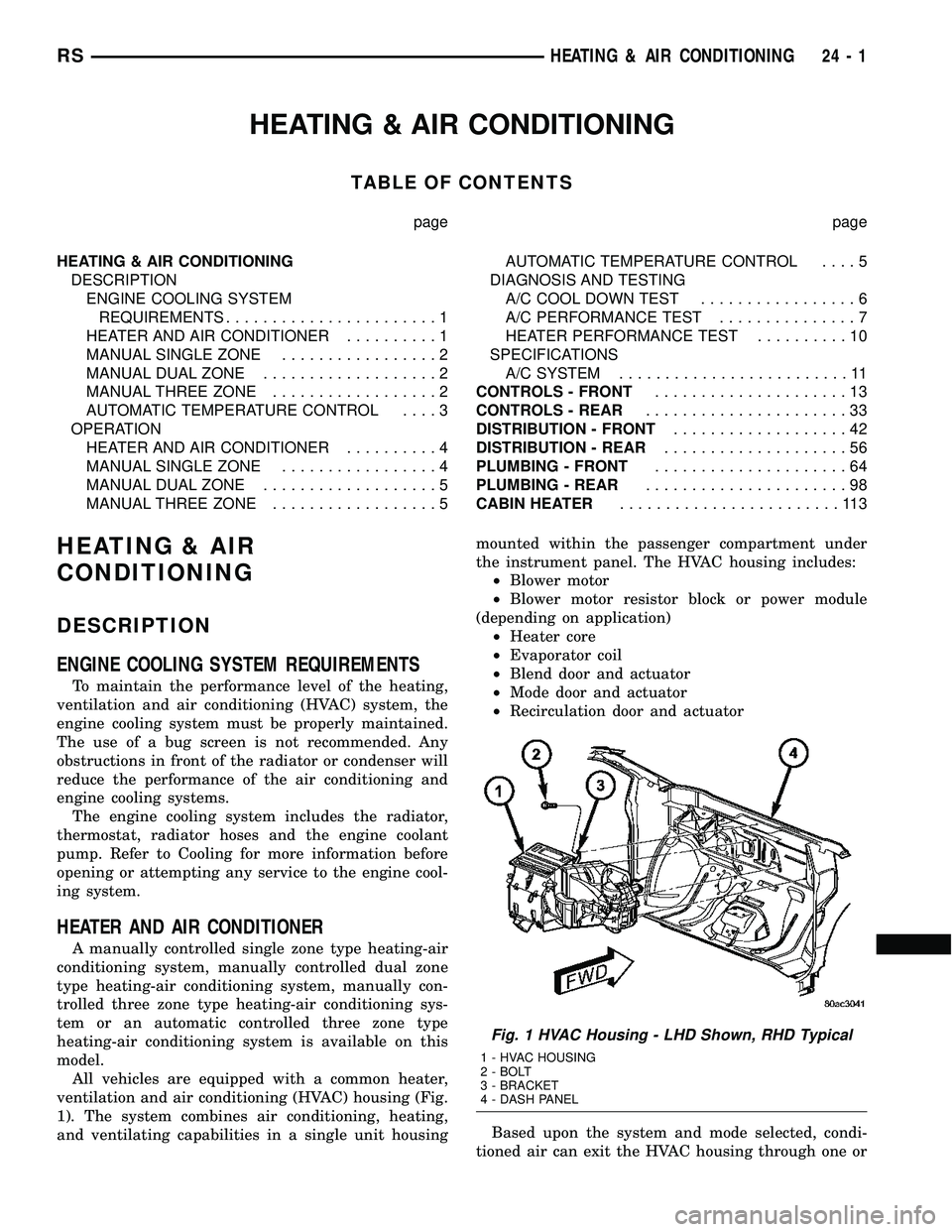

HEATING & AIR CONDITIONING
TABLE OF CONTENTS
page page
HEATING & AIR CONDITIONING
DESCRIPTION
ENGINE COOLING SYSTEM
REQUIREMENTS.......................1
HEATER AND AIR CONDITIONER..........1
MANUAL SINGLE ZONE.................2
MANUAL DUAL ZONE...................2
MANUAL THREE ZONE..................2
AUTOMATIC TEMPERATURE CONTROL....3
OPERATION
HEATER AND AIR CONDITIONER..........4
MANUAL SINGLE ZONE.................4
MANUAL DUAL ZONE...................5
MANUAL THREE ZONE..................5AUTOMATIC TEMPERATURE CONTROL....5
DIAGNOSIS AND TESTING
A/C COOL DOWN TEST.................6
A/C PERFORMANCE TEST...............7
HEATER PERFORMANCE TEST..........10
SPECIFICATIONS
A/C SYSTEM.........................11
CONTROLS - FRONT.....................13
CONTROLS - REAR......................33
DISTRIBUTION - FRONT...................42
DISTRIBUTION - REAR....................56
PLUMBING - FRONT.....................64
PLUMBING - REAR......................98
CABIN HEATER........................113
HEATING & AIR
CONDITIONING
DESCRIPTION
ENGINE COOLING SYSTEM REQUIREMENTS
To maintain the performance level of the heating,
ventilation and air conditioning (HVAC) system, the
engine cooling system must be properly maintained.
The use of a bug screen is not recommended. Any
obstructions in front of the radiator or condenser will
reduce the performance of the air conditioning and
engine cooling systems.
The engine cooling system includes the radiator,
thermostat, radiator hoses and the engine coolant
pump. Refer to Cooling for more information before
opening or attempting any service to the engine cool-
ing system.
HEATER AND AIR CONDITIONER
A manually controlled single zone type heating-air
conditioning system, manually controlled dual zone
type heating-air conditioning system, manually con-
trolled three zone type heating-air conditioning sys-
tem or an automatic controlled three zone type
heating-air conditioning system is available on this
model.
All vehicles are equipped with a common heater,
ventilation and air conditioning (HVAC) housing (Fig.
1). The system combines air conditioning, heating,
and ventilating capabilities in a single unit housingmounted within the passenger compartment under
the instrument panel. The HVAC housing includes:
²Blower motor
²Blower motor resistor block or power module
(depending on application)
²Heater core
²Evaporator coil
²Blend door and actuator
²Mode door and actuator
²Recirculation door and actuator
Based upon the system and mode selected, condi-
tioned air can exit the HVAC housing through one or
Fig. 1 HVAC Housing - LHD Shown, RHD Typical
1 - HVAC HOUSING
2 - BOLT
3 - BRACKET
4 - DASH PANEL
RSHEATING & AIR CONDITIONING24-1
