Page 1193 of 2339

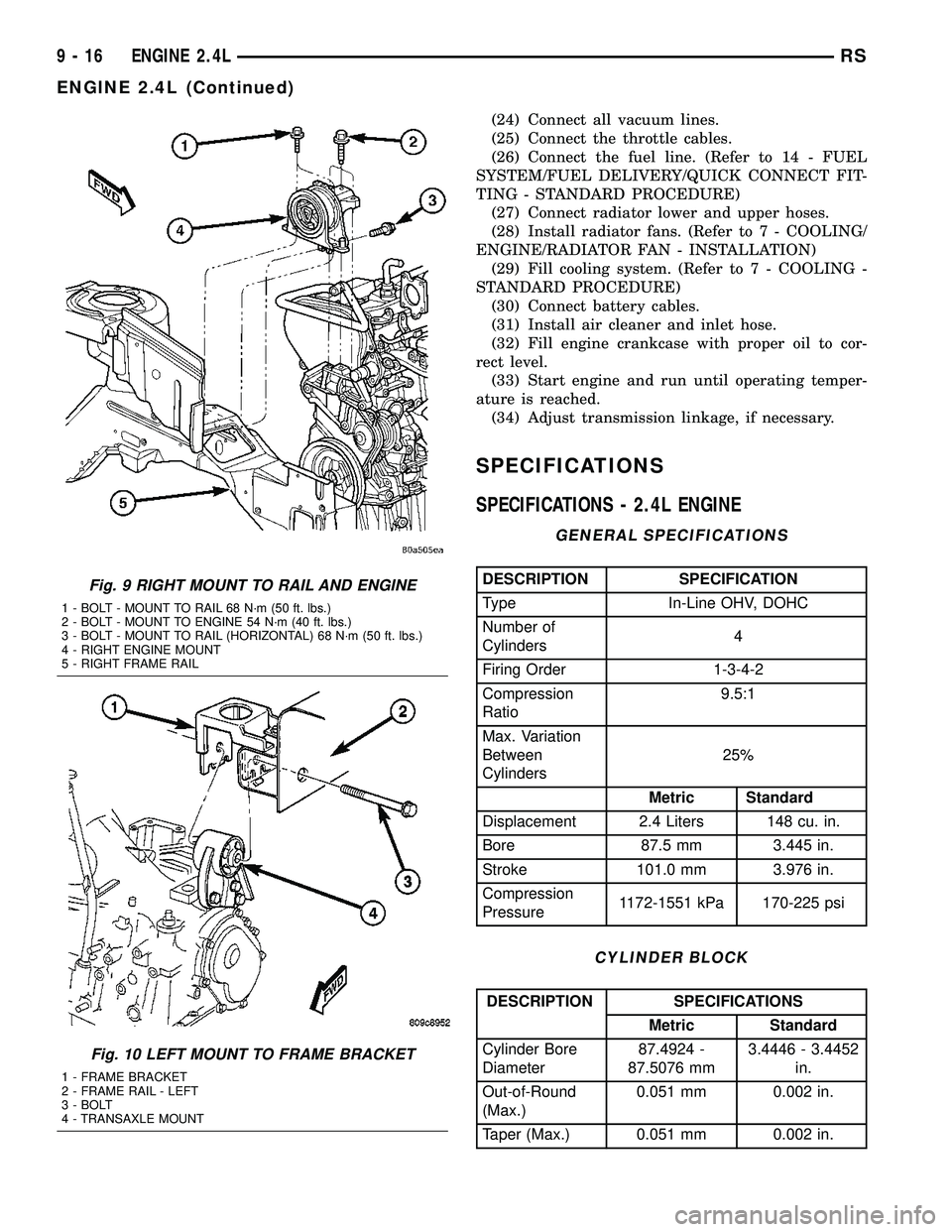

CHRYSLER VOYAGER 2005 Service Manual (24) Connect all vacuum lines. (25) Connect the throttle cables. (26) Connect the fuel line. (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FIT- TING - STANDARD PROCEDURE) (27) Connect radiato

Page 1194 of 2339

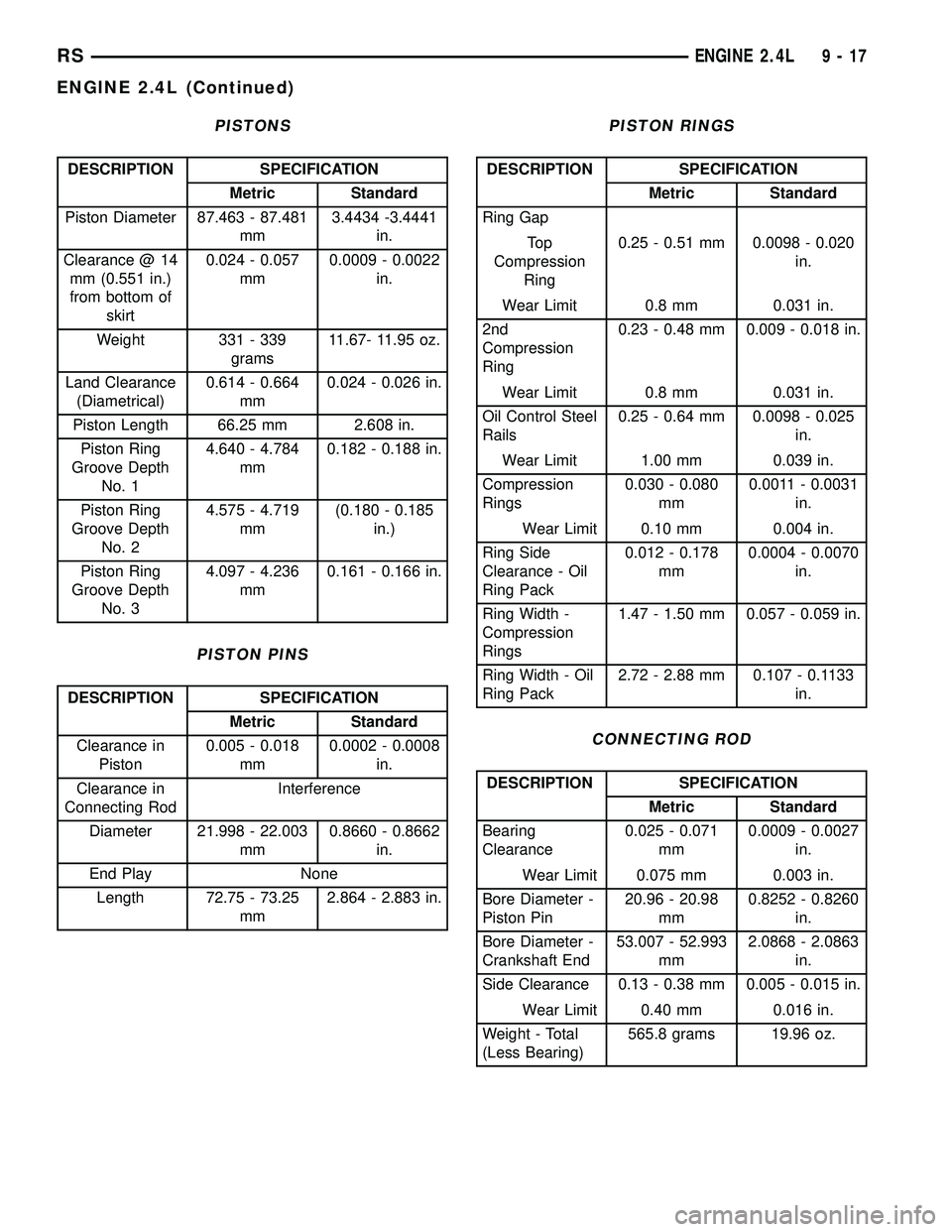

CHRYSLER VOYAGER 2005 Service Manual PISTONS DESCRIPTION SPECIFICATION Metric Standard Piston Diameter 87.463 - 87.481 mm3.4434 -3.4441 in. Clearance @ 14 mm (0.551 in.) from bottom of skirt0.024 - 0.057 mm0.0009 - 0.0022 in. Weight 331

Page 1195 of 2339

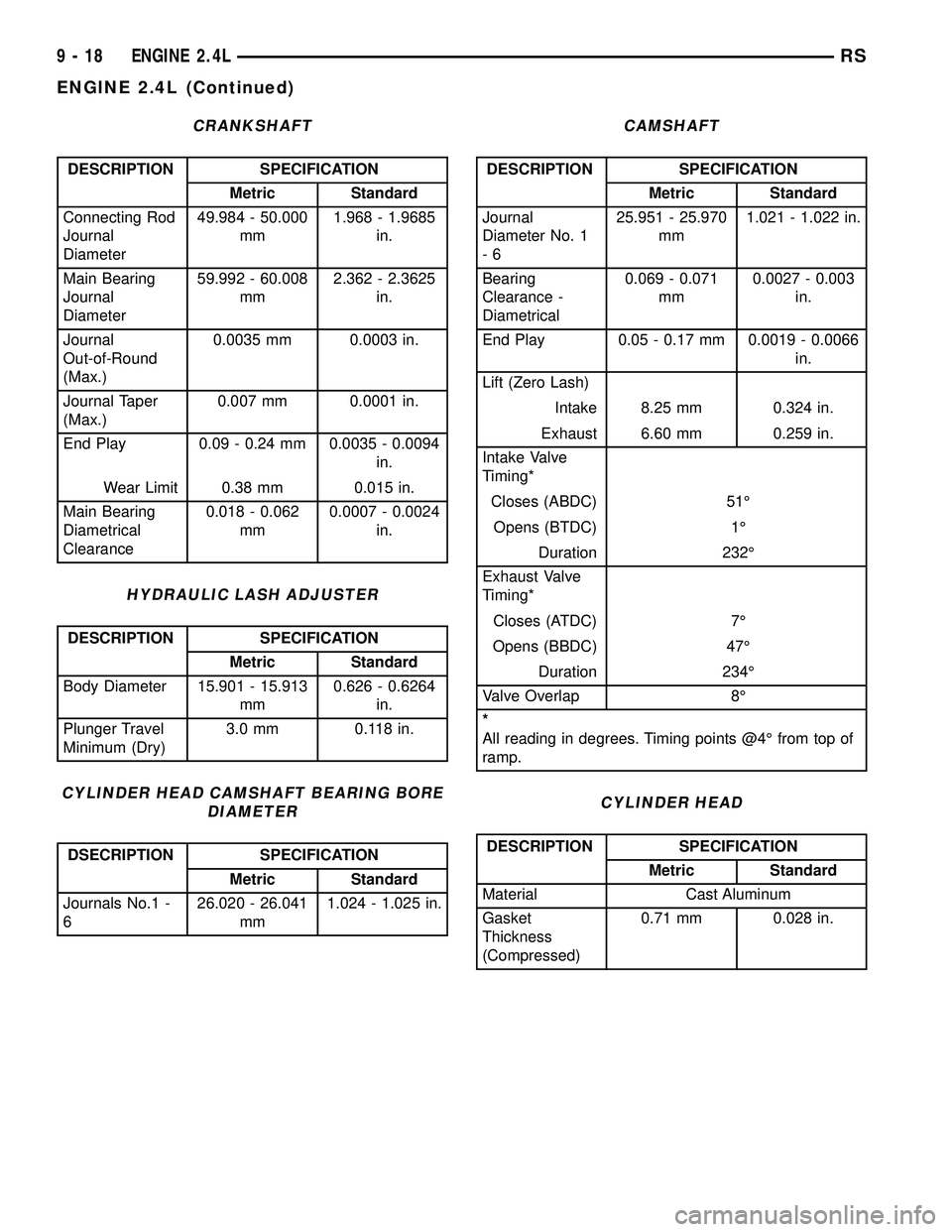

CHRYSLER VOYAGER 2005 Service Manual CRANKSHAFT DESCRIPTION SPECIFICATION Metric Standard Connecting Rod Journal Diameter49.984 - 50.000 mm1.968 - 1.9685 in. Main Bearing Journal Diameter59.992 - 60.008 mm2.362 - 2.3625 in. Journal Out-o

Page 1196 of 2339

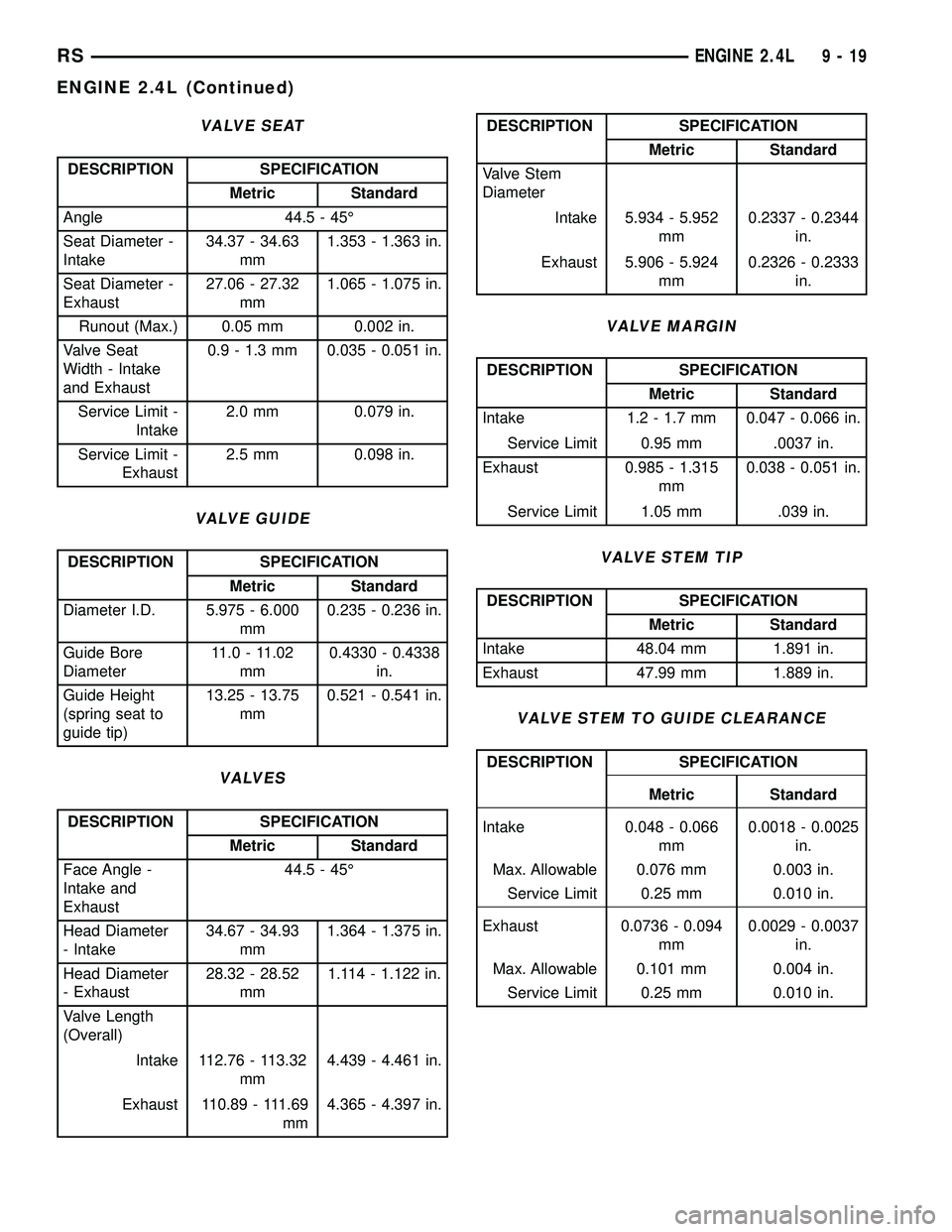

CHRYSLER VOYAGER 2005 Service Manual VALVE SEAT DESCRIPTION SPECIFICATION Metric Standard Angle 44.5 - 45É Seat Diameter - Intake34.37 - 34.63 mm1.353 - 1.363 in. Seat Diameter - Exhaust27.06 - 27.32 mm1.065 - 1.075 in. Runout (Max.) 0.

Page 1197 of 2339

CHRYSLER VOYAGER 2005 Service Manual VALVE SPRINGS DESCRIPTION SPECIFICATION Metric Standard Free Length (Approx.)48.4 mm 1.905 in. Nominal Force (Valve Closed)338 N @ 38.0 mm75.98 lbs. @ 1.496 in. Nominal Force (Valve Open)607 N @ 29.75

Page 1198 of 2339

CHRYSLER VOYAGER 2005 Service Manual DESCRIPTION N´m Ft. Lbs.In. Lbs. Oil Pump to BlockÐBolts 28 20 Ð Oil Pump Cover PlateÐBolts12 Ð 105 Oil Pump Pick-up TubeÐBolt28 20 Ð Oil Pump Relief ValveÐCap41 30 Ð Spark Plugs 18 13 Ð Str

Page 1199 of 2339

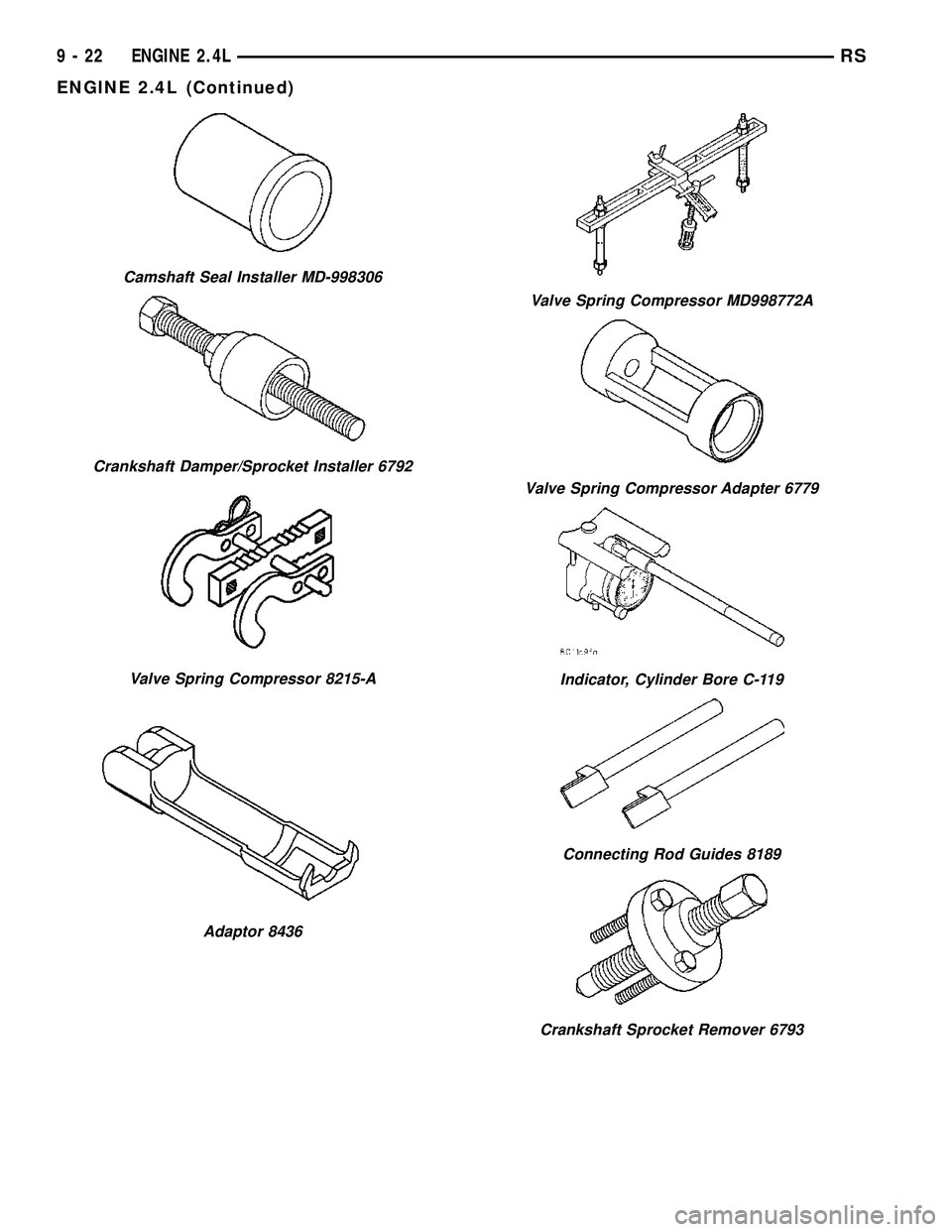

CHRYSLER VOYAGER 2005 Service Manual Camshaft Seal Installer MD-998306 Crankshaft Damper/Sprocket Installer 6792 Valve Spring Compressor 8215-A Adaptor 8436 Valve Spring Compressor MD998772A Valve Spring Compressor Adapter 6779 Indicator

Page 1200 of 2339

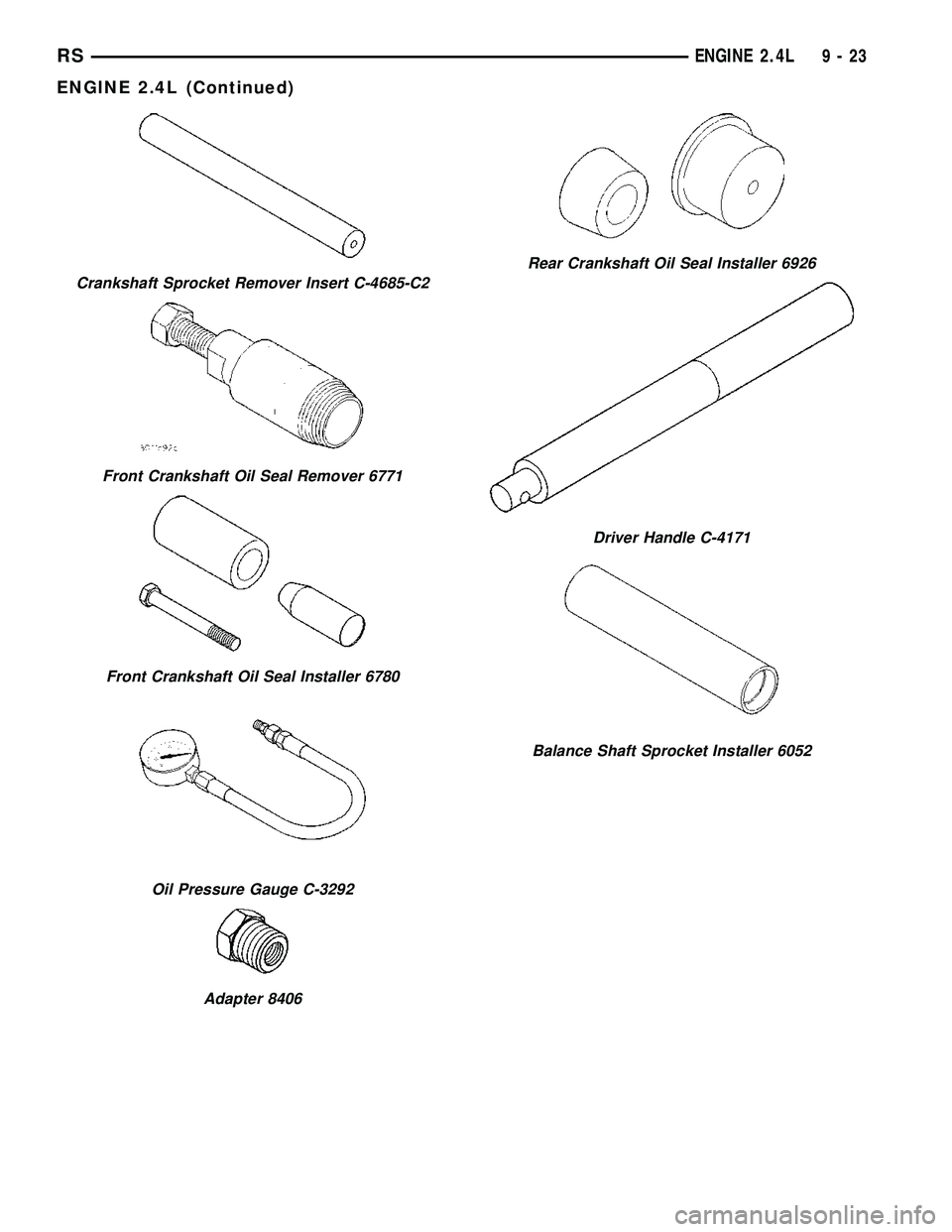

CHRYSLER VOYAGER 2005 Service Manual Crankshaft Sprocket Remover Insert C-4685-C2 Front Crankshaft Oil Seal Remover 6771 Front Crankshaft Oil Seal Installer 6780 Oil Pressure Gauge C-3292 Adapter 8406 Rear Crankshaft Oil Seal Installer 6
