Page 1481 of 2339

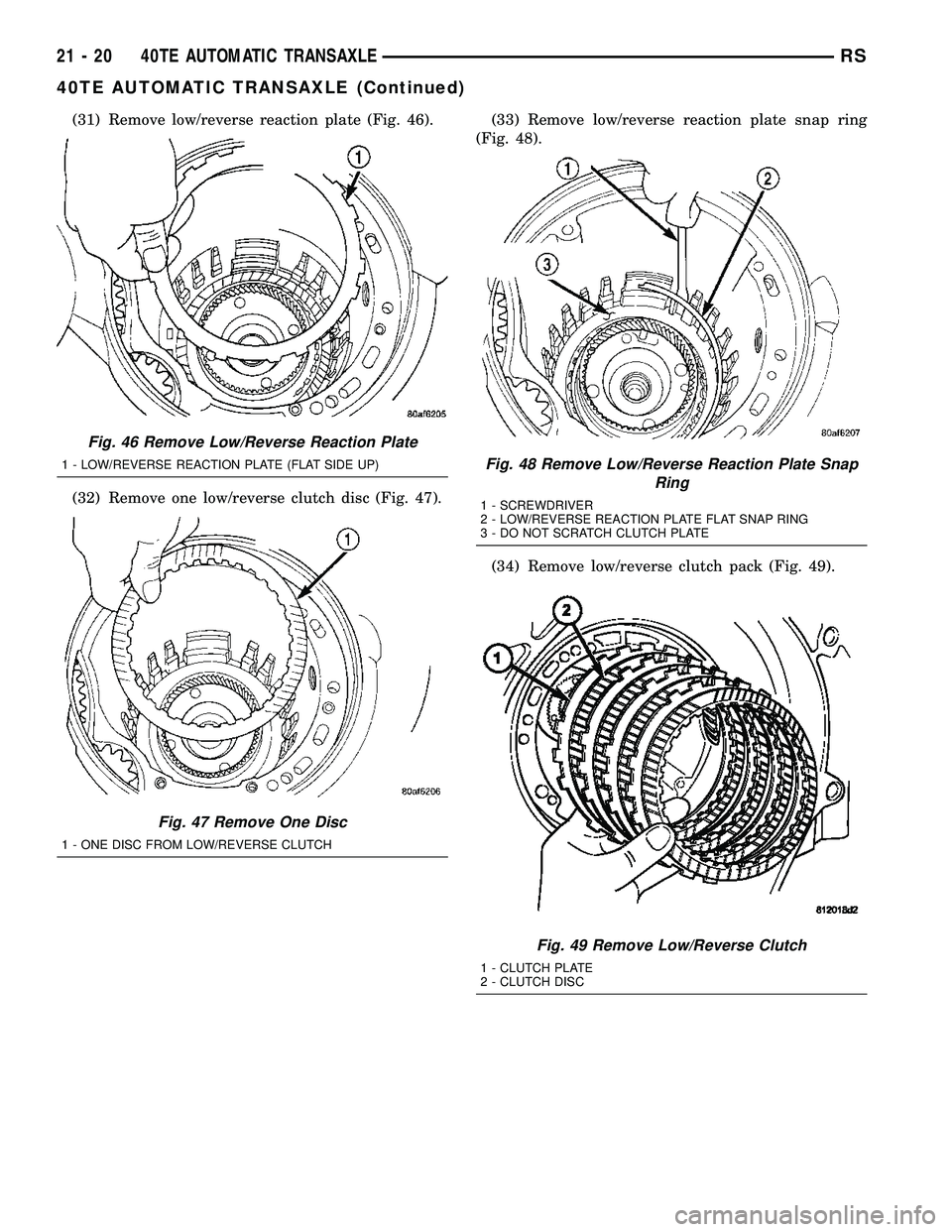

CHRYSLER VOYAGER 2005 Service Manual (31) Remove low/reverse reaction plate (Fig. 46). (32) Remove one low/reverse clutch disc (Fig. 47).(33) Remove low/reverse reaction plate snap ring (Fig. 48). (34) Remove low/reverse clutch pack (Fig

Page 1482 of 2339

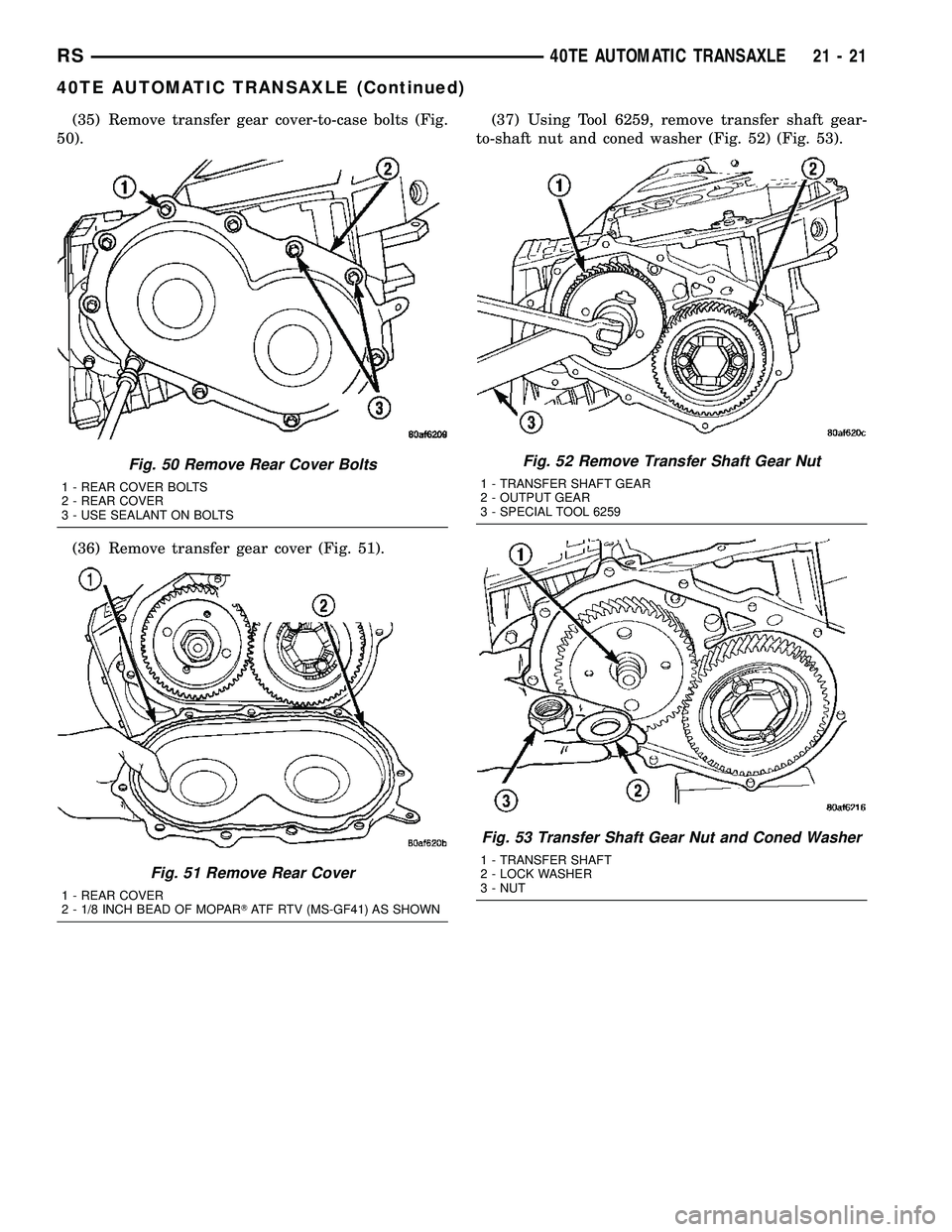

CHRYSLER VOYAGER 2005 Service Manual (35) Remove transfer gear cover-to-case bolts (Fig. 50). (36) Remove transfer gear cover (Fig. 51).(37) Using Tool 6259, remove transfer shaft gear- to-shaft nut and coned washer (Fig. 52) (Fig. 53).

Page 1483 of 2339

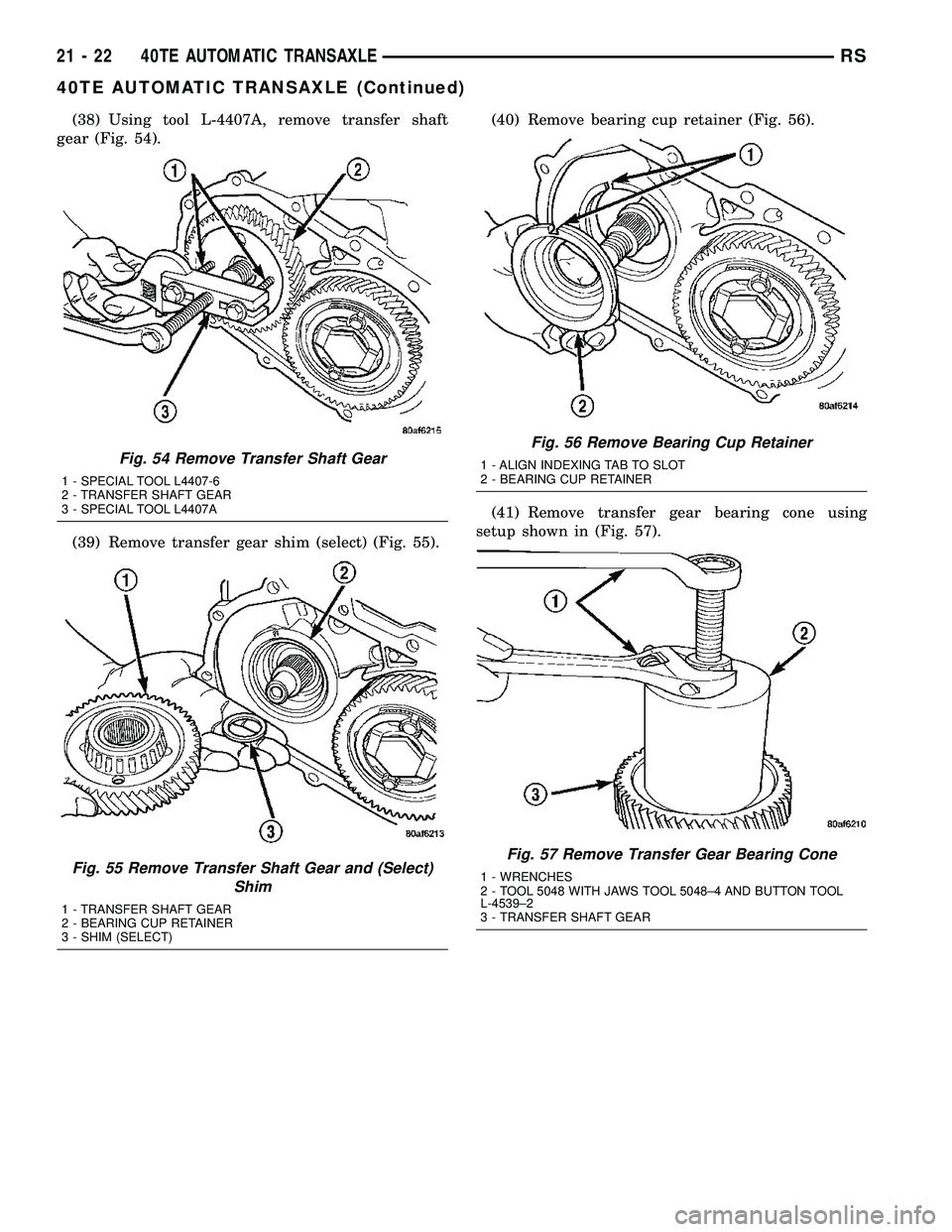

CHRYSLER VOYAGER 2005 Service Manual (38) Using tool L-4407A, remove transfer shaft gear (Fig. 54). (39) Remove transfer gear shim (select) (Fig. 55).(40) Remove bearing cup retainer (Fig. 56). (41) Remove transfer gear bearing cone usin

Page 1484 of 2339

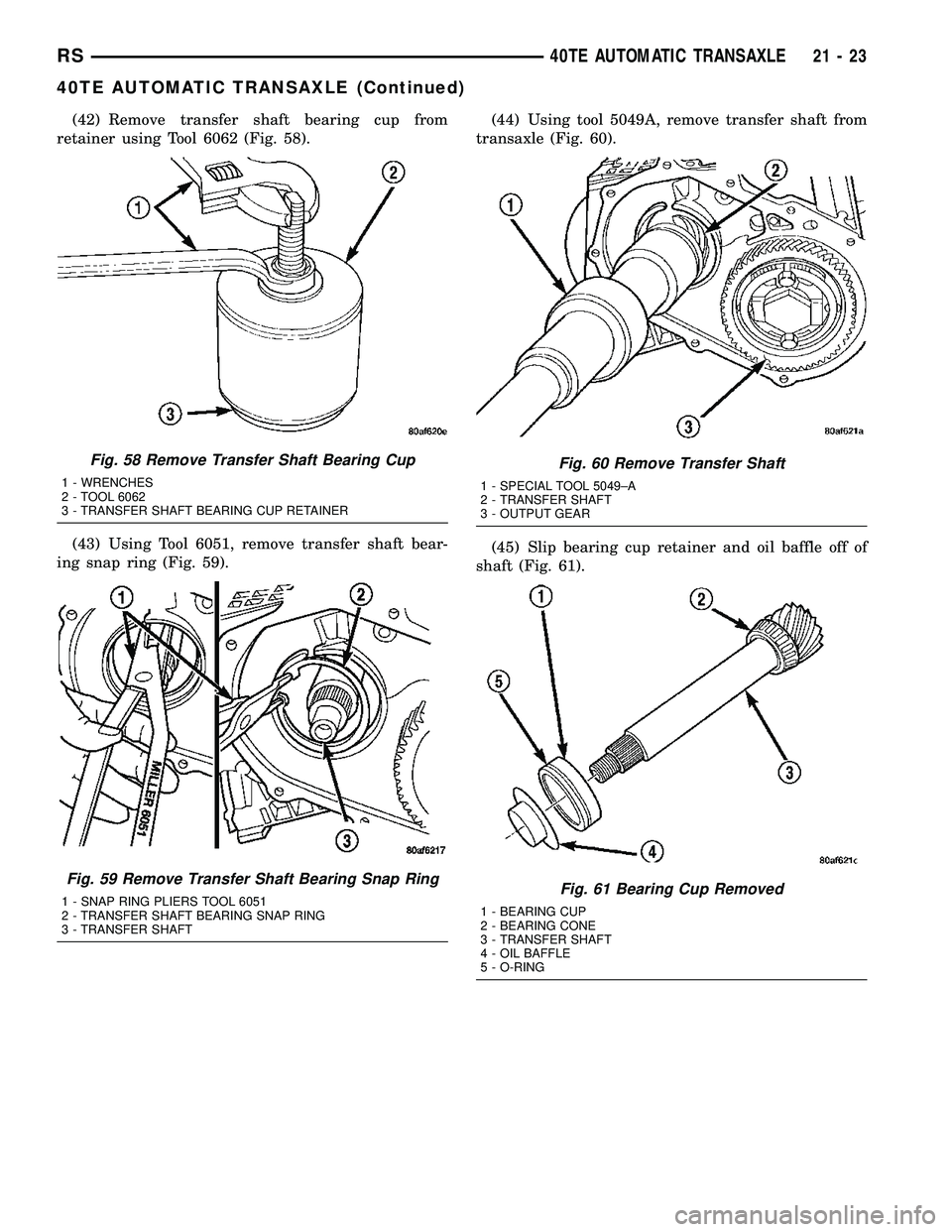

CHRYSLER VOYAGER 2005 Service Manual (42) Remove transfer shaft bearing cup from retainer using Tool 6062 (Fig. 58). (43) Using Tool 6051, remove transfer shaft bear- ing snap ring (Fig. 59).(44) Using tool 5049A, remove transfer shaft f

Page 1485 of 2339

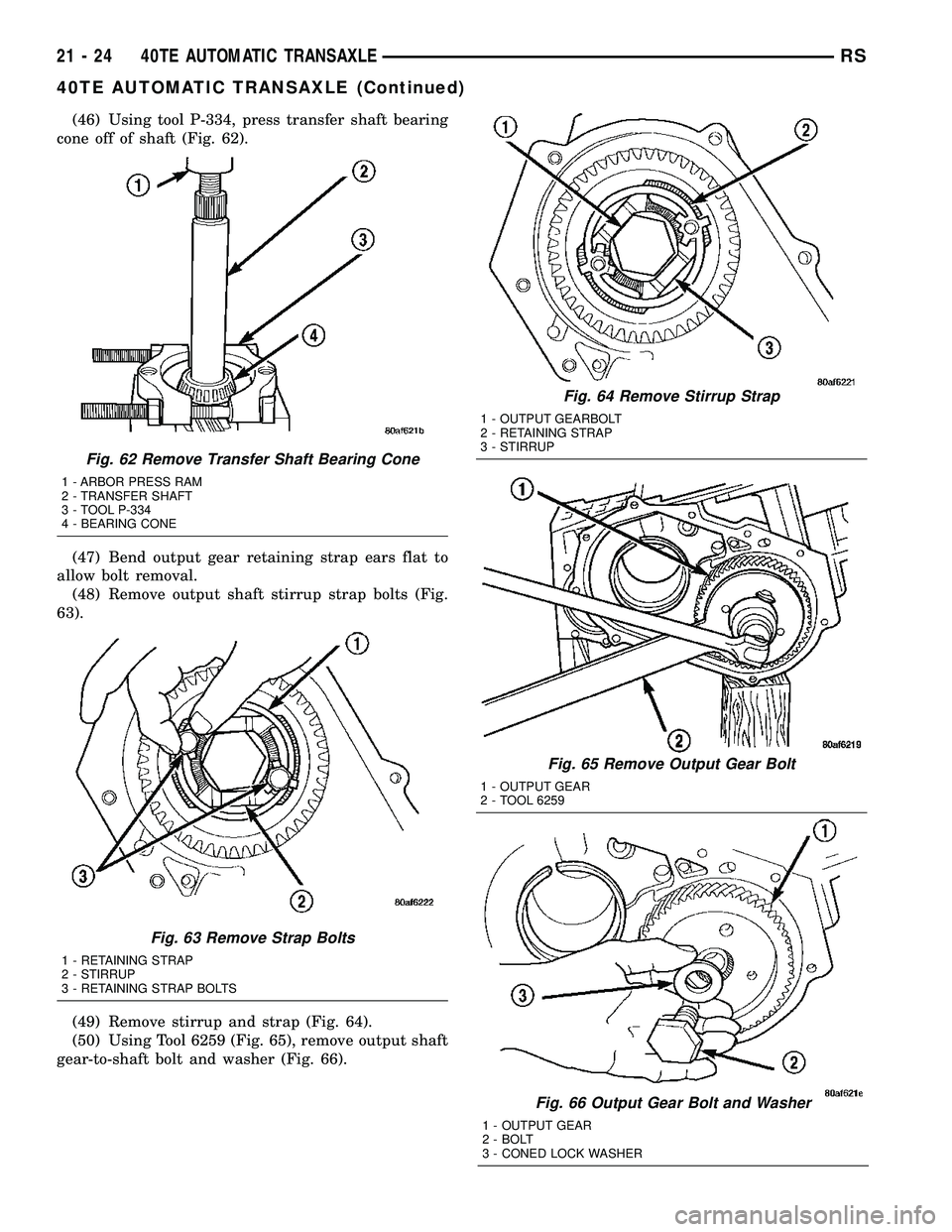

CHRYSLER VOYAGER 2005 Service Manual (46) Using tool P-334, press transfer shaft bearing cone off of shaft (Fig. 62). (47) Bend output gear retaining strap ears flat to allow bolt removal. (48) Remove output shaft stirrup strap bolts (Fi

Page 1486 of 2339

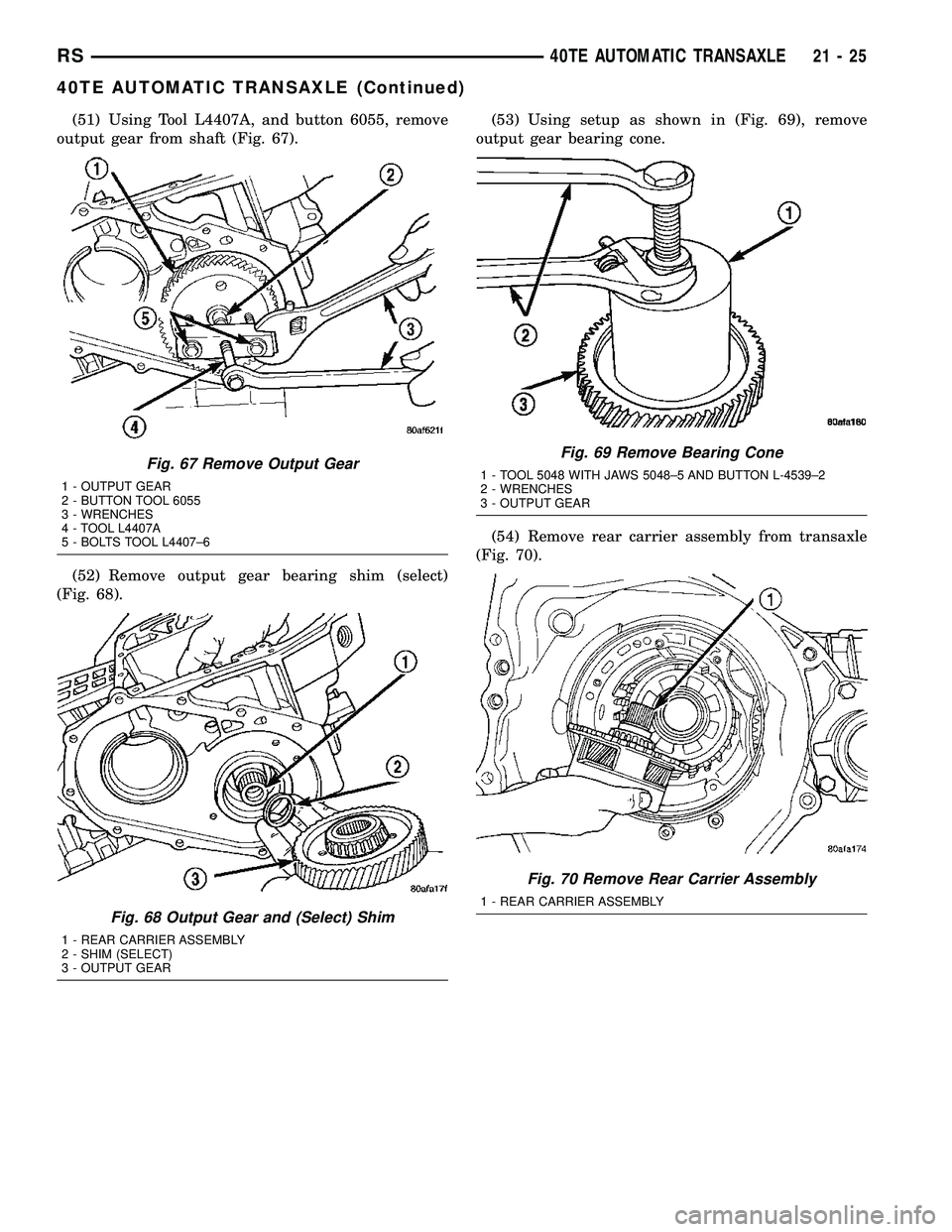

CHRYSLER VOYAGER 2005 Service Manual (51) Using Tool L4407A, and button 6055, remove output gear from shaft (Fig. 67). (52) Remove output gear bearing shim (select) (Fig. 68).(53) Using setup as shown in (Fig. 69), remove output gear bea

Page 1487 of 2339

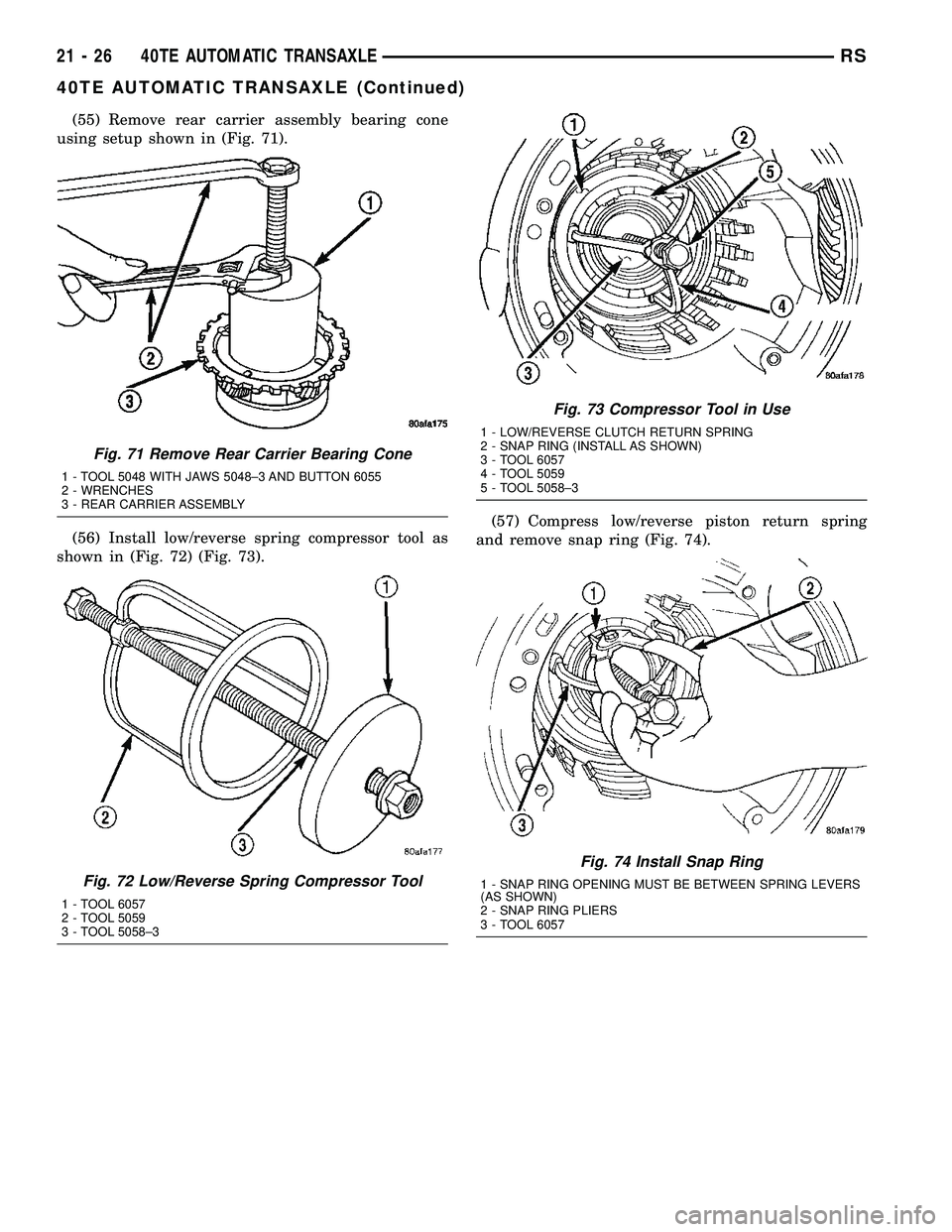

CHRYSLER VOYAGER 2005 Service Manual (55) Remove rear carrier assembly bearing cone using setup shown in (Fig. 71). (56) Install low/reverse spring compressor tool as shown in (Fig. 72) (Fig. 73).(57) Compress low/reverse piston return s

Page 1488 of 2339

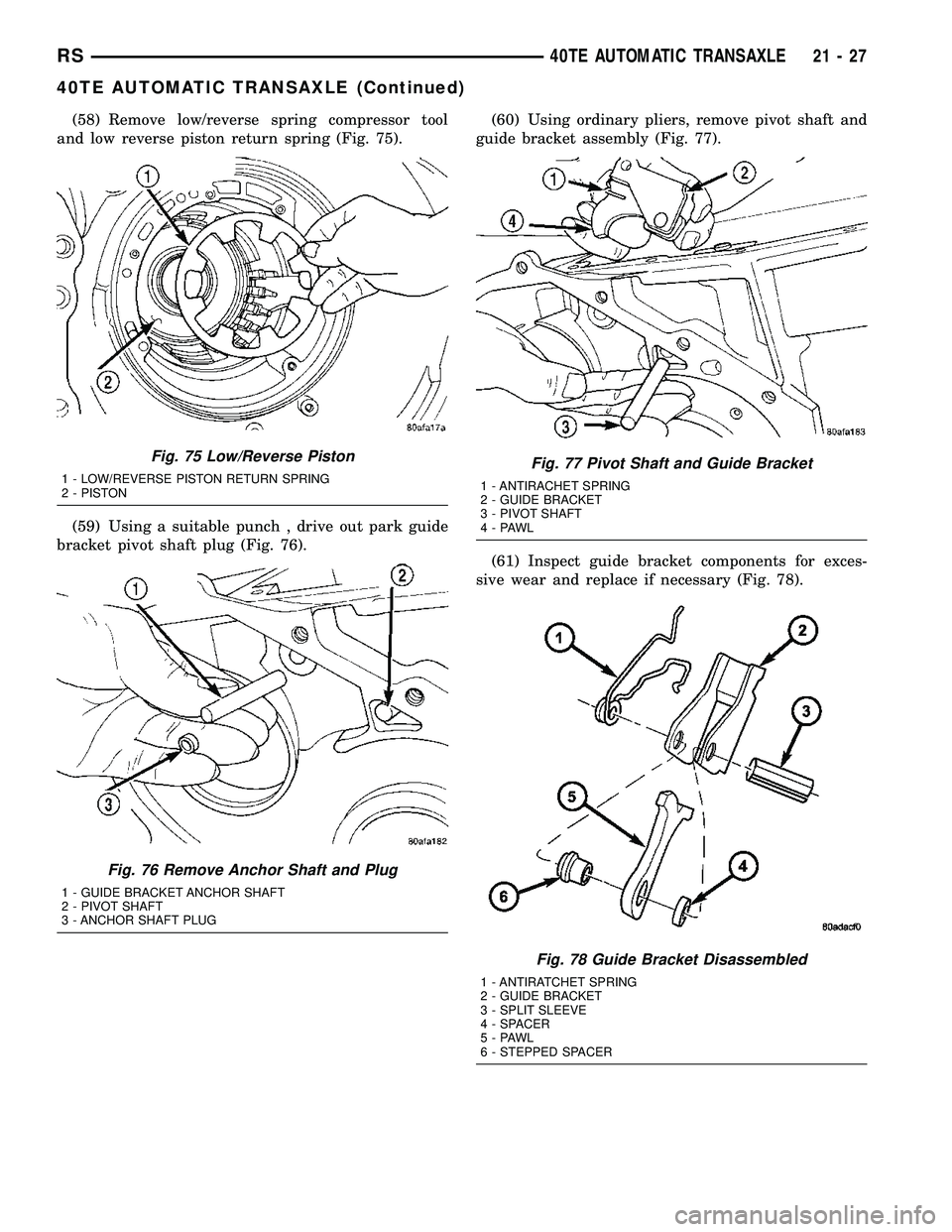

CHRYSLER VOYAGER 2005 Service Manual (58) Remove low/reverse spring compressor tool and low reverse piston return spring (Fig. 75). (59) Using a suitable punch , drive out park guide bracket pivot shaft plug (Fig. 76).(60) Using ordinary
