Page 1961 of 2339

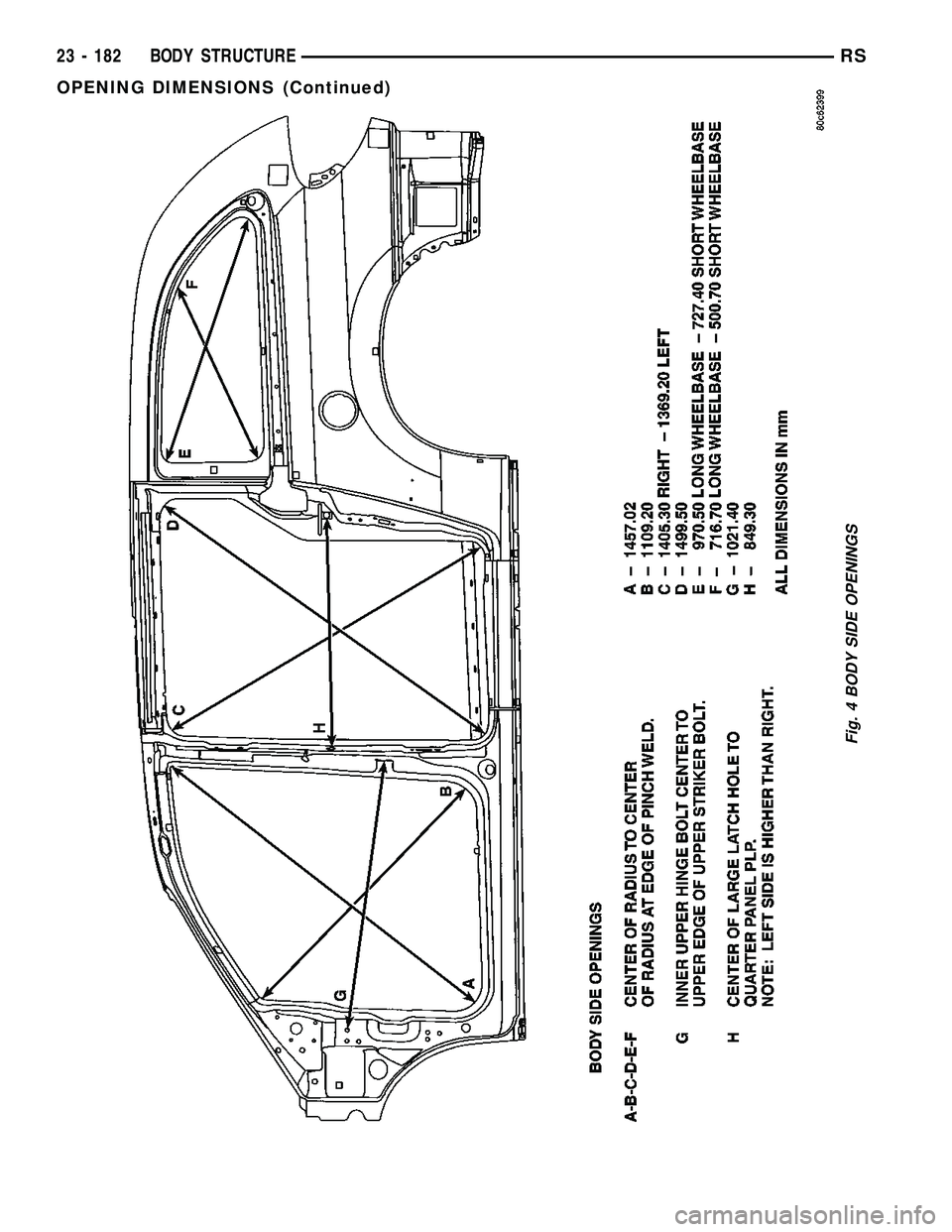

CHRYSLER VOYAGER 2005 Service Manual Fig. 4 BODY SIDE OPENINGS 23 - 182 BODY STRUCTURERS OPENING DIMENSIONS (Continued)

Page 1962 of 2339

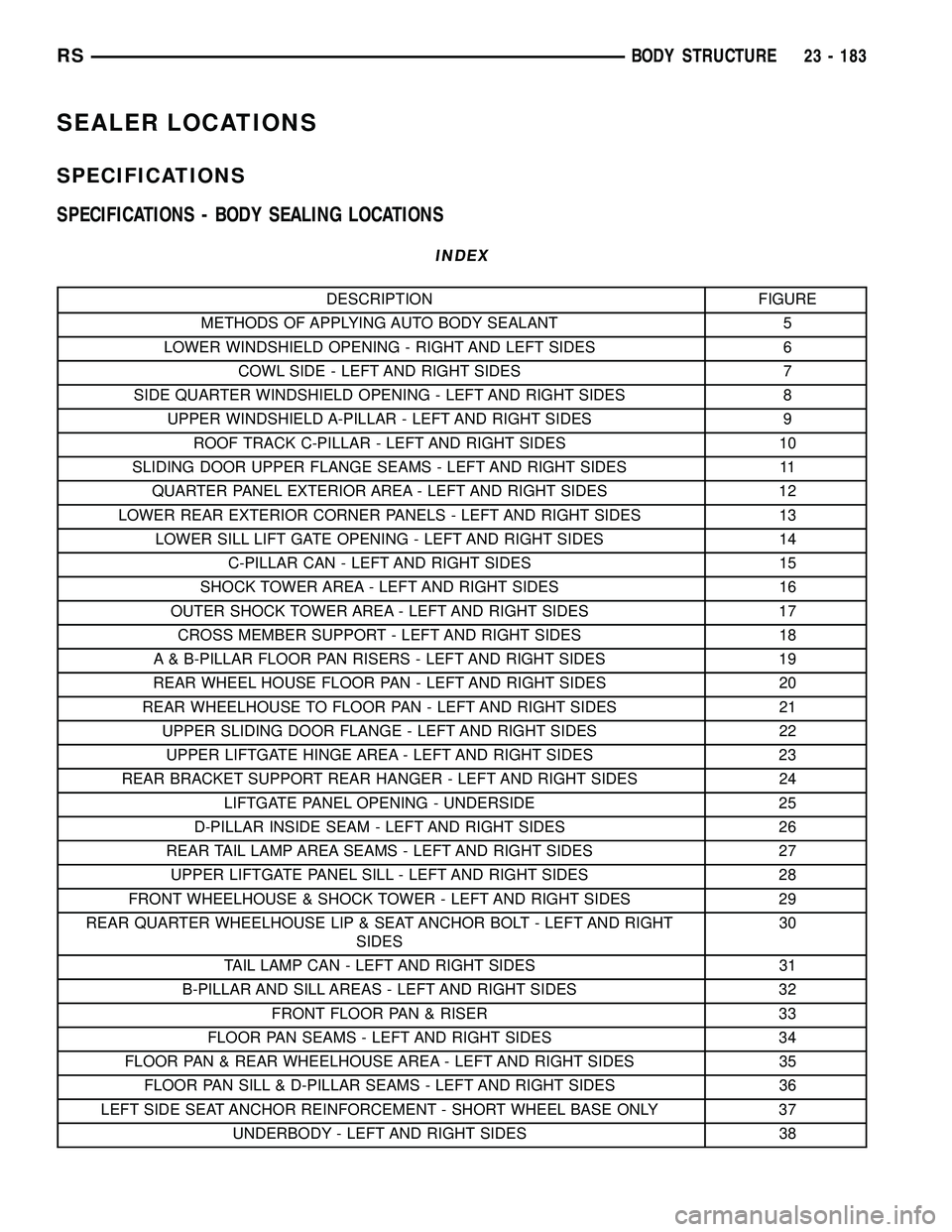

CHRYSLER VOYAGER 2005 Service Manual SEALER LOCATIONS SPECIFICATIONS SPECIFICATIONS - BODY SEALING LOCATIONS INDEX DESCRIPTION FIGURE METHODS OF APPLYING AUTO BODY SEALANT 5 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES 6 COWL SIDE - L

Page 1963 of 2339

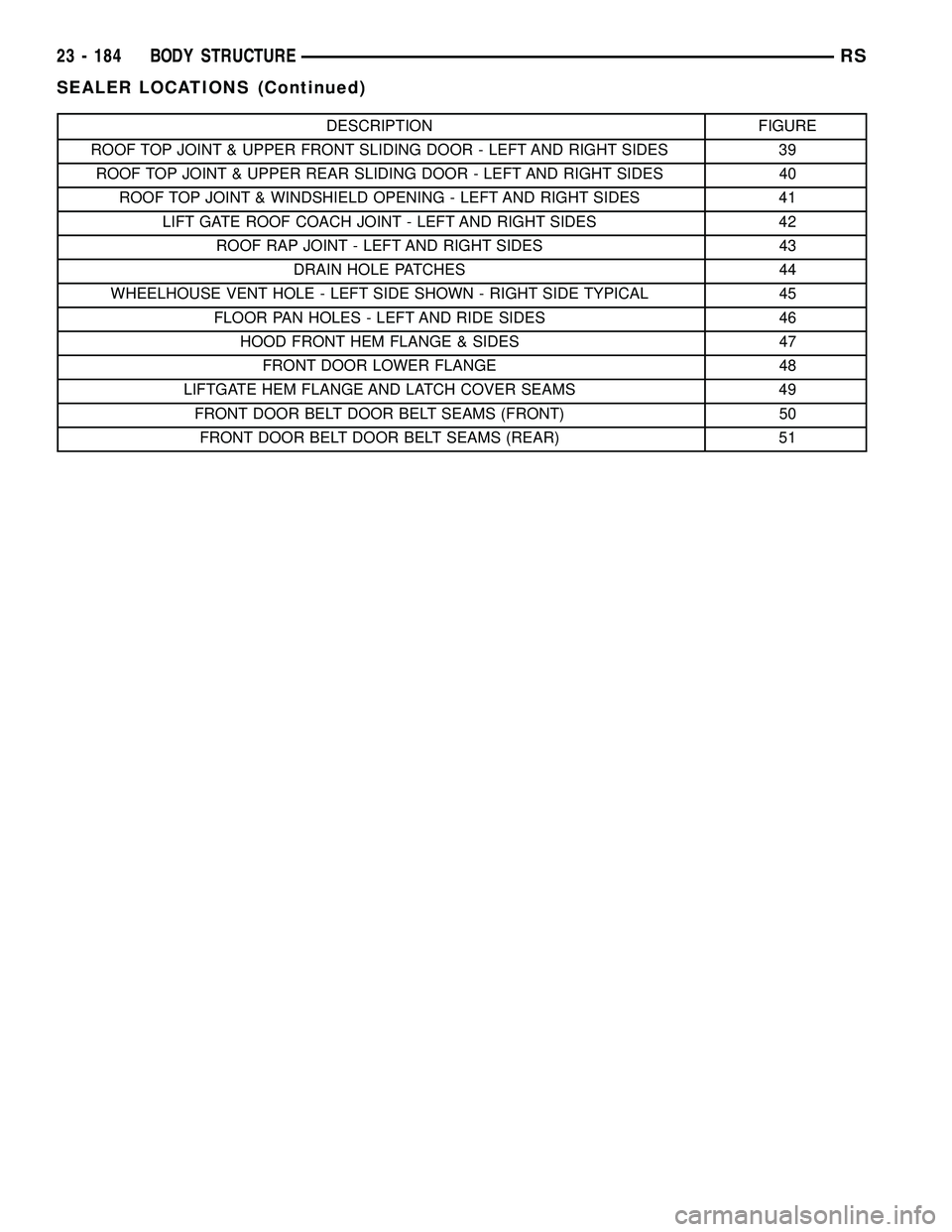

CHRYSLER VOYAGER 2005 Service Manual DESCRIPTION FIGURE ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES 39 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES 40 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND

Page 1964 of 2339

CHRYSLER VOYAGER 2005 Service Manual Fig. 5 METHODS OF APPLYING AUTO BODY SEALANT RSBODY STRUCTURE23 - 185 SEALER LOCATIONS (Continued)

Page 1965 of 2339

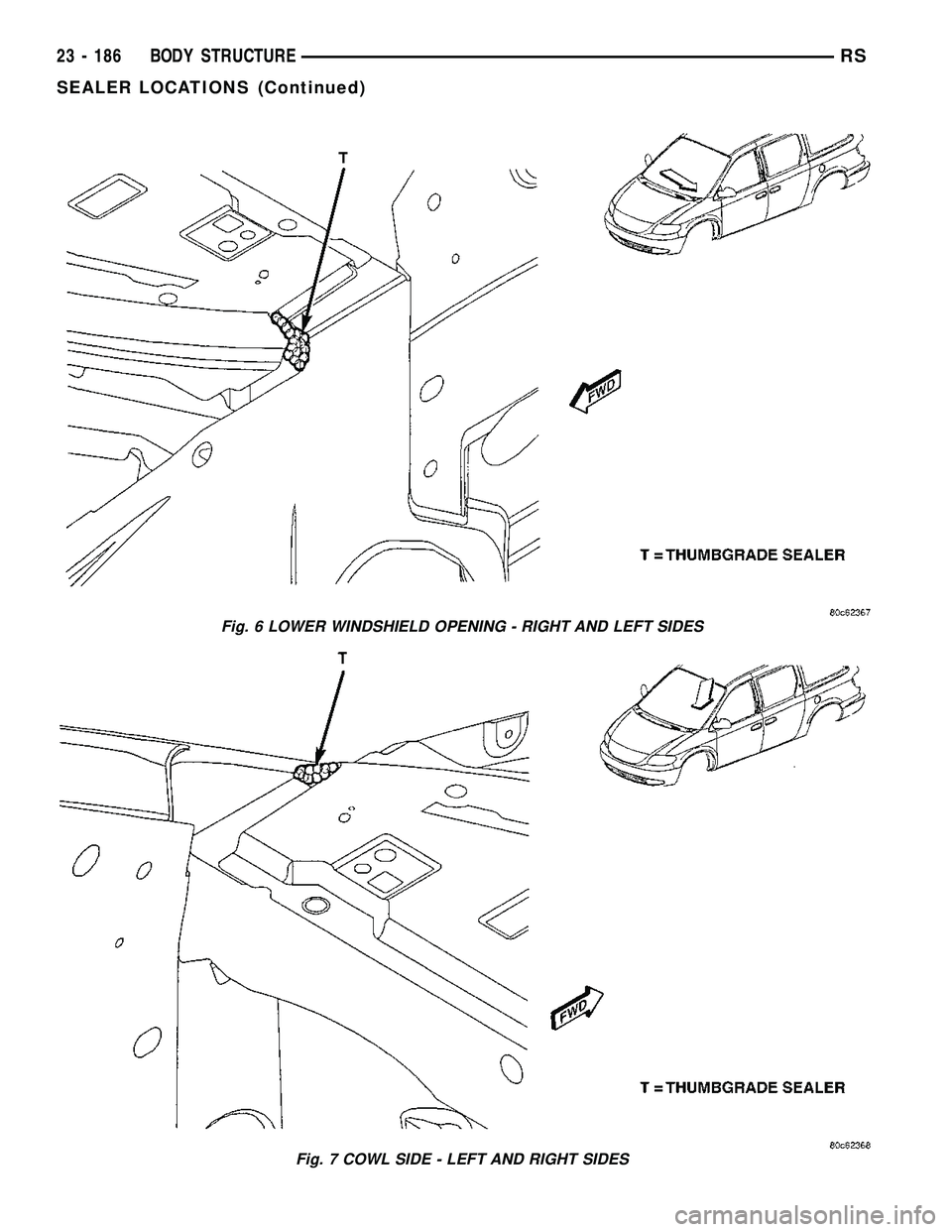

CHRYSLER VOYAGER 2005 Service Manual Fig. 6 LOWER WINDSHIELD OPENING - RIGHT AND LEFT SIDES Fig. 7 COWL SIDE - LEFT AND RIGHT SIDES 23 - 186 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1966 of 2339

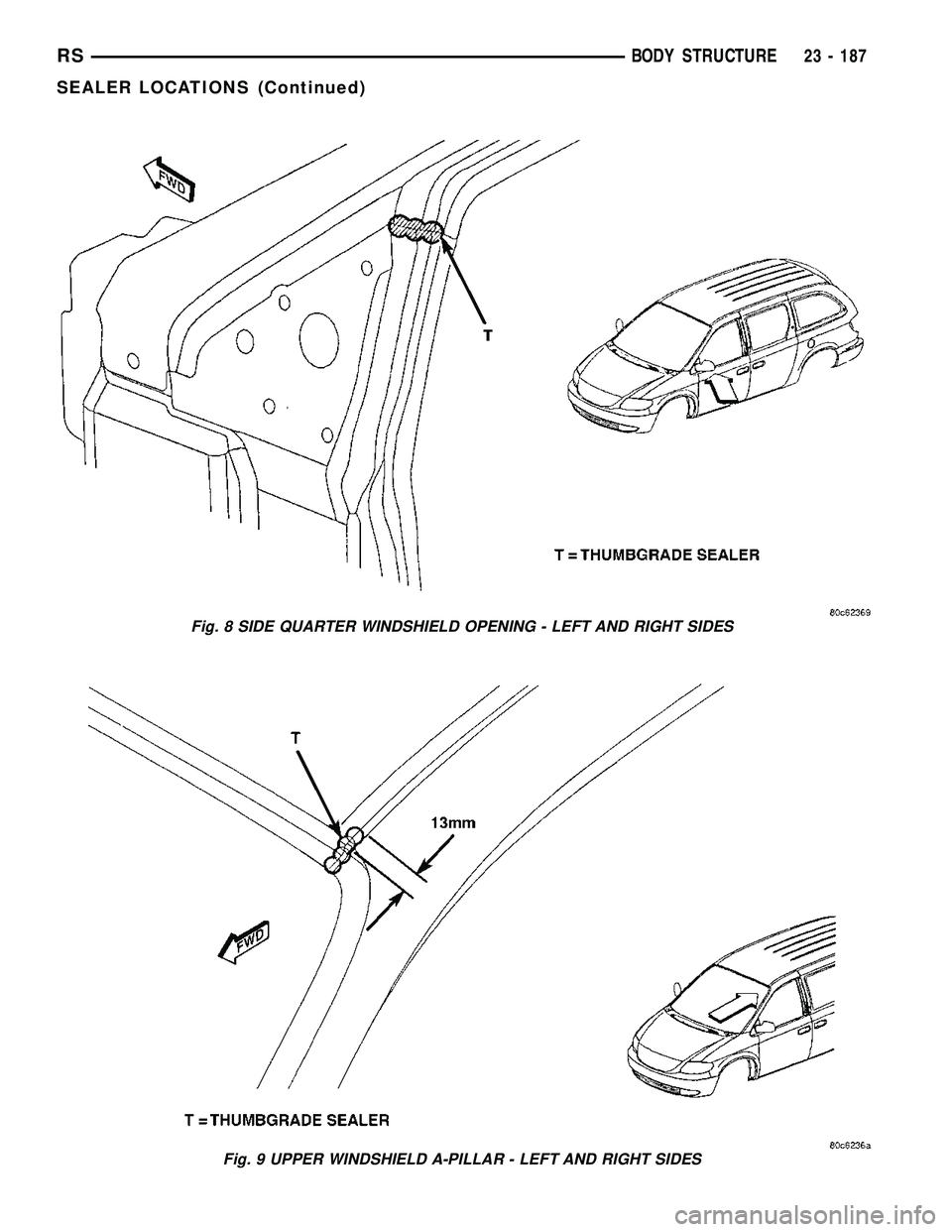

CHRYSLER VOYAGER 2005 Service Manual Fig. 8 SIDE QUARTER WINDSHIELD OPENING - LEFT AND RIGHT SIDES Fig. 9 UPPER WINDSHIELD A-PILLAR - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 187 SEALER LOCATIONS (Continued)

Page 1967 of 2339

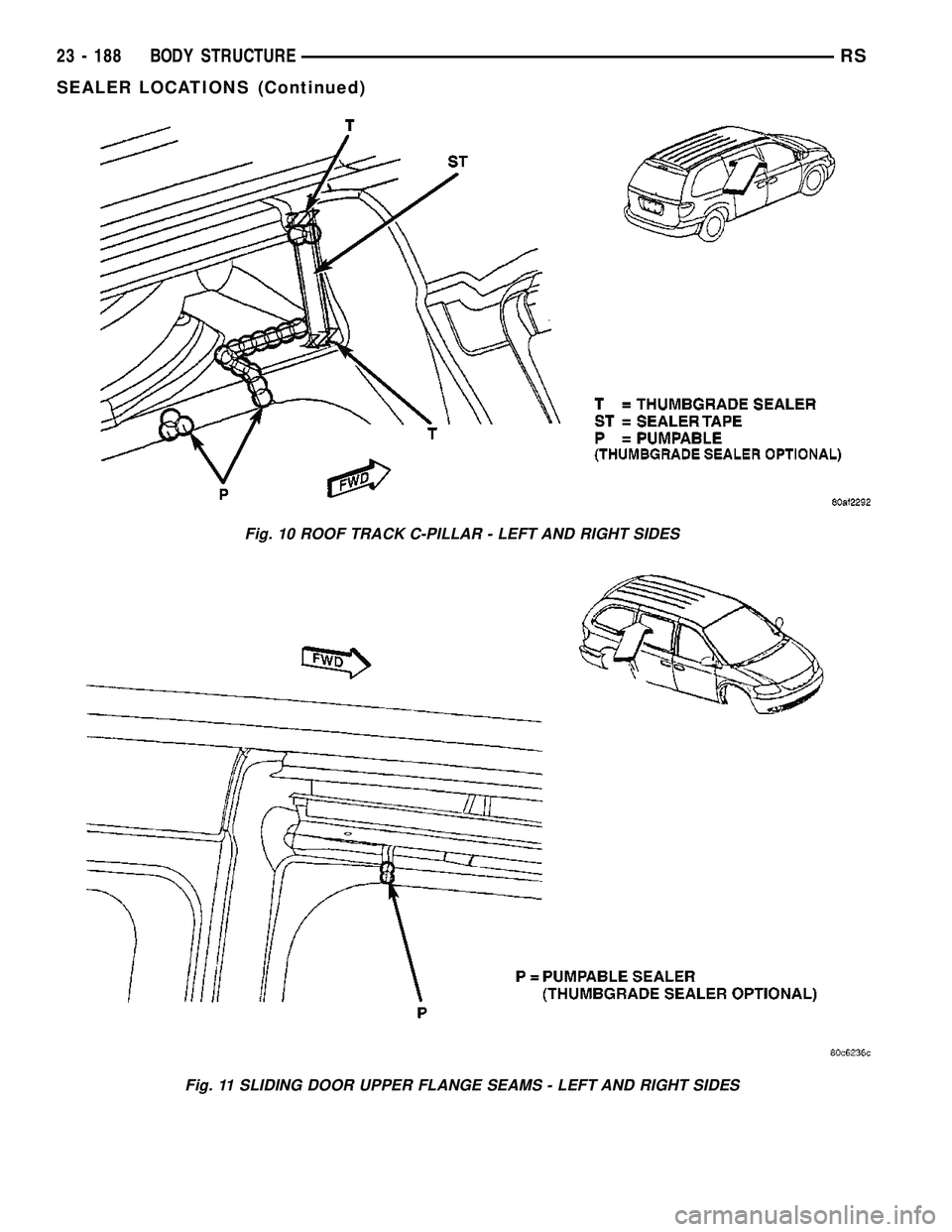

CHRYSLER VOYAGER 2005 Service Manual Fig. 10 ROOF TRACK C-PILLAR - LEFT AND RIGHT SIDES Fig. 11 SLIDING DOOR UPPER FLANGE SEAMS - LEFT AND RIGHT SIDES 23 - 188 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1968 of 2339

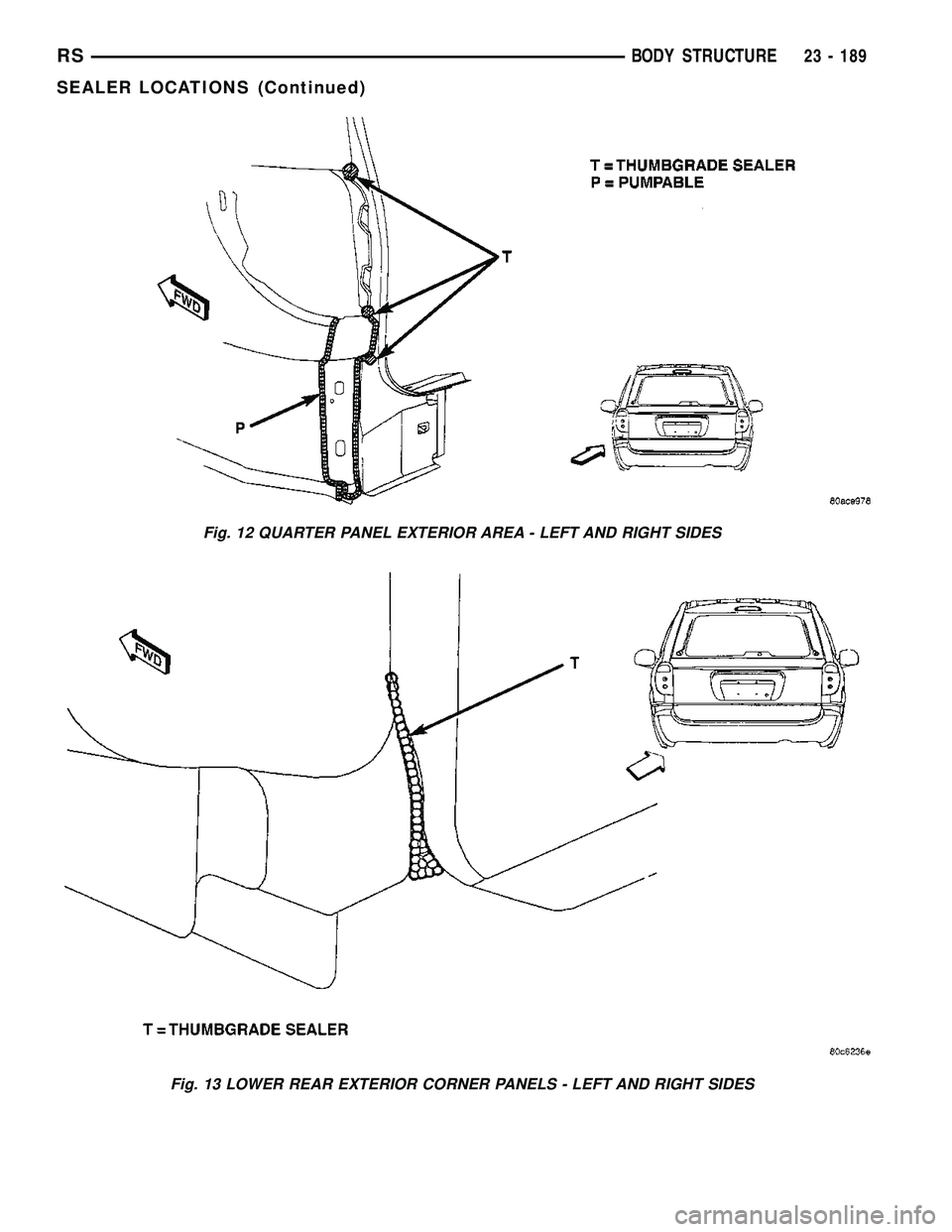

CHRYSLER VOYAGER 2005 Service Manual Fig. 12 QUARTER PANEL EXTERIOR AREA - LEFT AND RIGHT SIDES Fig. 13 LOWER REAR EXTERIOR CORNER PANELS - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 189 SEALER LOCATIONS (Continued)
