2005 CHRYSLER VOYAGER Service Manual

auxiliary battery locationOBD portsteering wheel adjustmentlumbar supportwarning lightsremote start
Popular search:
fuel capoctanebolt patterntractionfour digithood openspare tire
Previous
Next
Load previous 8 pages

Page 993 of 2339

CHRYSLER VOYAGER 2005 Service Manual C200 - GRAY (BODY SIDE) CAV CIRCUIT 39 D96 18WT/LB (RHD) 40 R80 20VT/LB (LHD) 40 Z109 18BK/GY (RHD) 41 R81 20LB/WT (LHD) 41 A645 20RD/VT (RHD) 42 R82 20WT/LB (LHD) 42 G945 20VT/DG (RHD) 43 A128 18RD/O

Page 994 of 2339

CHRYSLER VOYAGER 2005 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 1 C151 18LB/DG (3 ZONE MTC EXCEPT EXPORT) 1 B25 20DG/WT (EXPORT) 2 A106 20LB/RD 3 A108 20LG/RD (POWER MIRROR) 4 C59 22DB/LB (3 ZONE ATC) 4 C152 16LB/LG

Page 995 of 2339

CHRYSLER VOYAGER 2005 Service Manual C200 - GRAY (INSTRUMENT PANEL SIDE) CAV CIRCUIT 40 Z109 20BK/GY (RHD) 41 R81 20LB/WT (LHD) 41 A645 20RD/VT (RHD) 42 R82 20WT/LB (LHD) 42 G945 20VT/DG (RHD) 43 A128 18RD/OR (EXCEPT EXPORT/EXCEPT MEMORY

Page 996 of 2339

CHRYSLER VOYAGER 2005 Service Manual C202 - GRAY (COMPONENT SIDE) CAV CIRCUIT 1 Z134 12BK/OR (ATC) 2 C56 20DB/LB (ATC) 2 C34 20DB/LB (MTC) 3 C32 20DB/TN 4 C33 20LB/BR 5 C61 20DB/LG (ATC) 5 C61 20LB/WT (MTC) 6 C35 20LB/OR 7 C7 12DB (ATC)

Page 997 of 2339

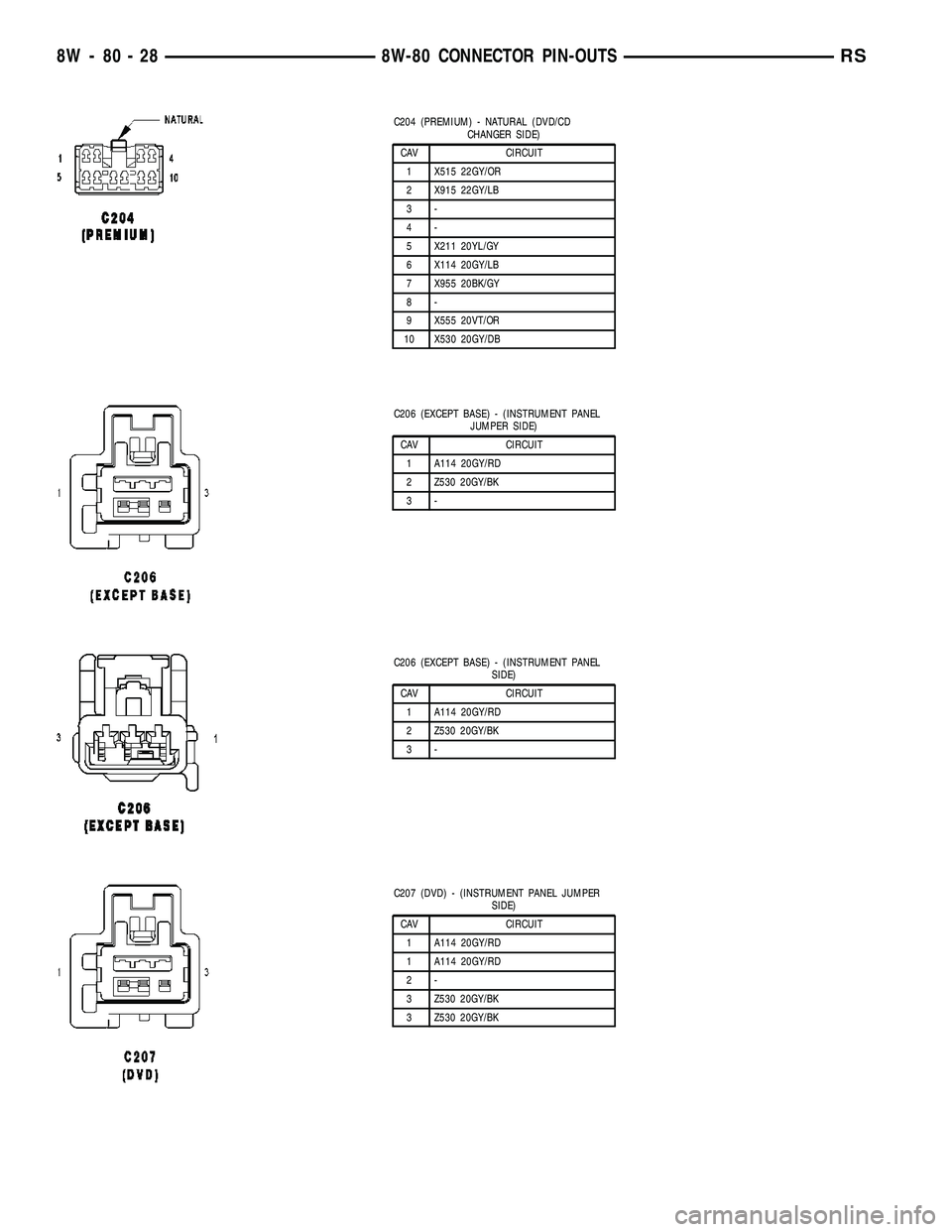

CHRYSLER VOYAGER 2005 Service Manual C204 (PREMIUM) - NATURAL (DVD/CD CHANGER SIDE) CAV CIRCUIT 1 X515 22GY/OR 2 X915 22GY/LB 3- 4- 5 X211 20YL/GY 6 X114 20GY/LB 7 X955 20BK/GY 8- 9 X555 20VT/OR 10 X530 20GY/DB C206 (EXCEPT BASE) - (INST

Page 998 of 2339

CHRYSLER VOYAGER 2005 Service Manual C207 (HANDS FREE) - (HANDS FREE MODULE SIDE) CAV CIRCUIT 1 A114 20GY/RD 2- 3 Z530 20GY/BK C300 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G75 20VT 2 Z821 12BK/BR 3 X201 18DG (HIGHLINE AUDIO EXCEPT EXPORT

Page 999 of 2339

CHRYSLER VOYAGER 2005 Service Manual C300 (RHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G75 20VT 2 Z822 20BK/BR 3 X53 20DG 4 X55 20DG/BR 5 G161 20VT/DG 6 P1 20TN/LG 7 P3 20TN/WT 8 F304 12WT/PK 9 Q16 12OR/TN (POWER WINDOWS) 10 Q26 14OR/GY (POWE

Page 1000 of 2339

CHRYSLER VOYAGER 2005 Service Manual C302 (EXPORT) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 M21 20YL/BR 2- 3 G200 22VT/BR (MEMORY) 4 G920 22VT/YL (MEMORY) 5- 6 G162 20VT/WT C302 (EXPORT) - LT. GRAY (RIGHT DOOR SIDE) CAV CIRCUIT 1 M21 20YL/BR
