Page 1073 of 2339

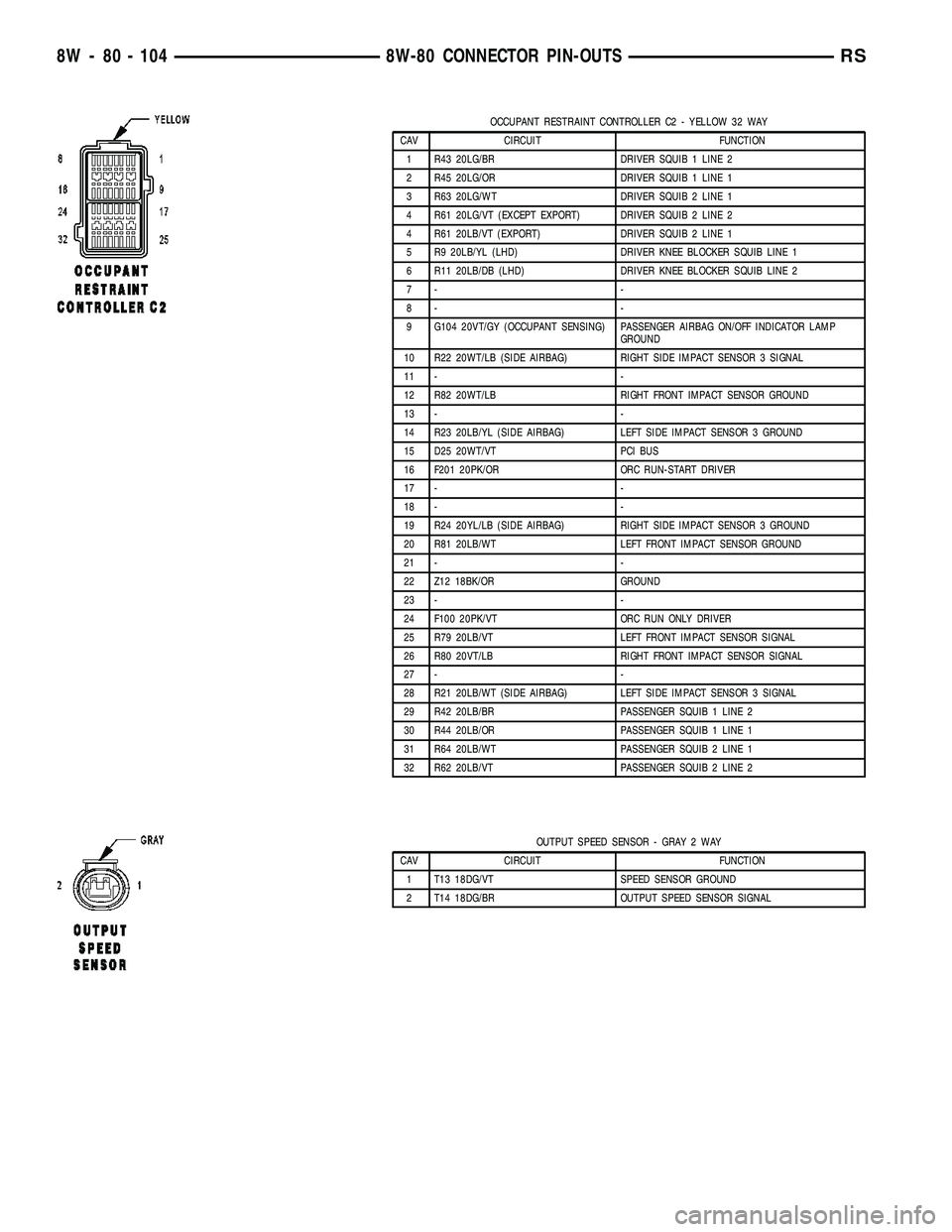

CHRYSLER VOYAGER 2005 Service Manual OCCUPANT RESTRAINT CONTROLLER C2 - YELLOW 32 WAY CAV CIRCUIT FUNCTION 1 R43 20LG/BR DRIVER SQUIB 1 LINE 2 2 R45 20LG/OR DRIVER SQUIB 1 LINE 1 3 R63 20LG/WT DRIVER SQUIB 2 LINE 1 4 R61 20LG/VT (EXCEPT

Page 1074 of 2339

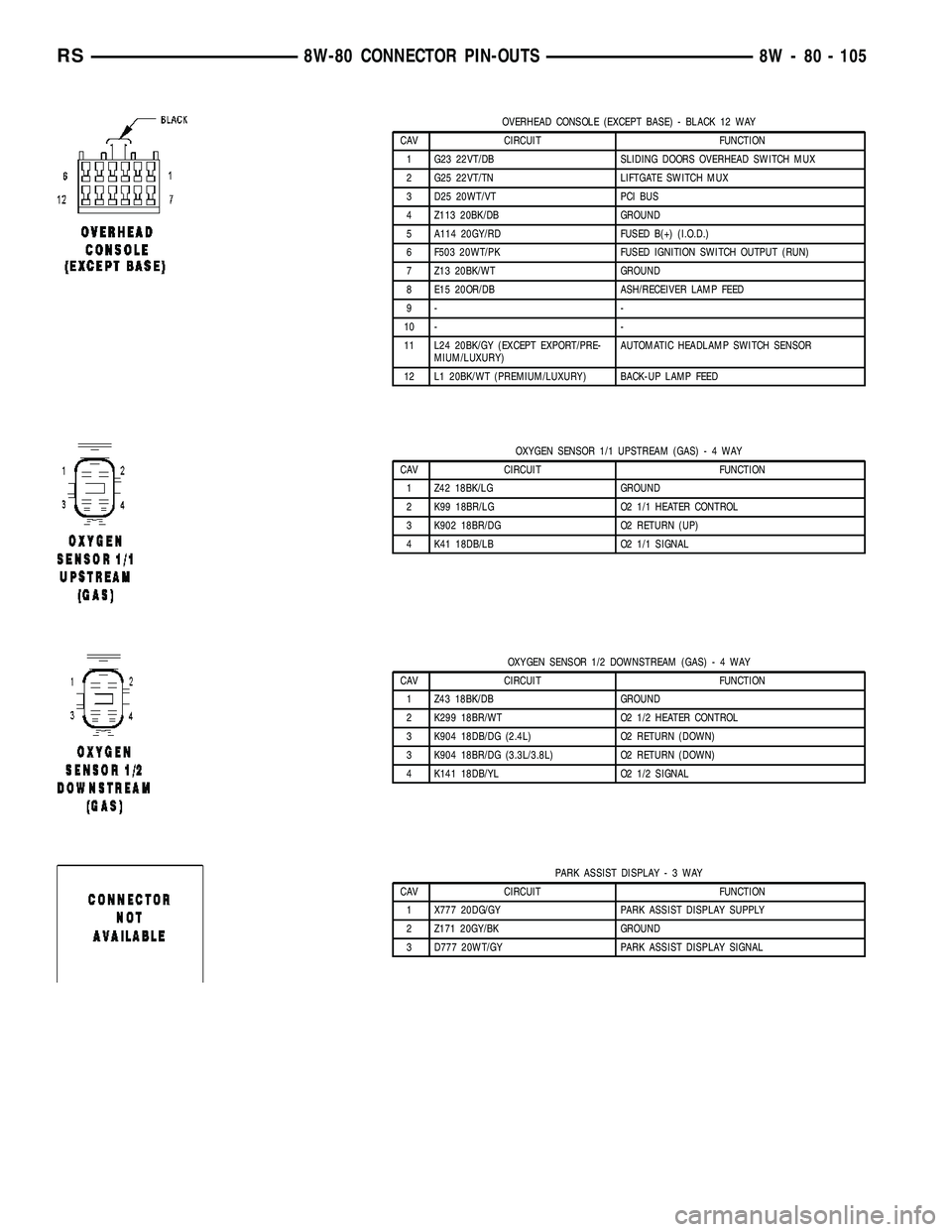

CHRYSLER VOYAGER 2005 Service Manual OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 G23 22VT/DB SLIDING DOORS OVERHEAD SWITCH MUX 2 G25 22VT/TN LIFTGATE SWITCH MUX 3 D25 20WT/VT PCI BUS 4 Z113 20BK/DB GROUND 5 A114

Page 1075 of 2339

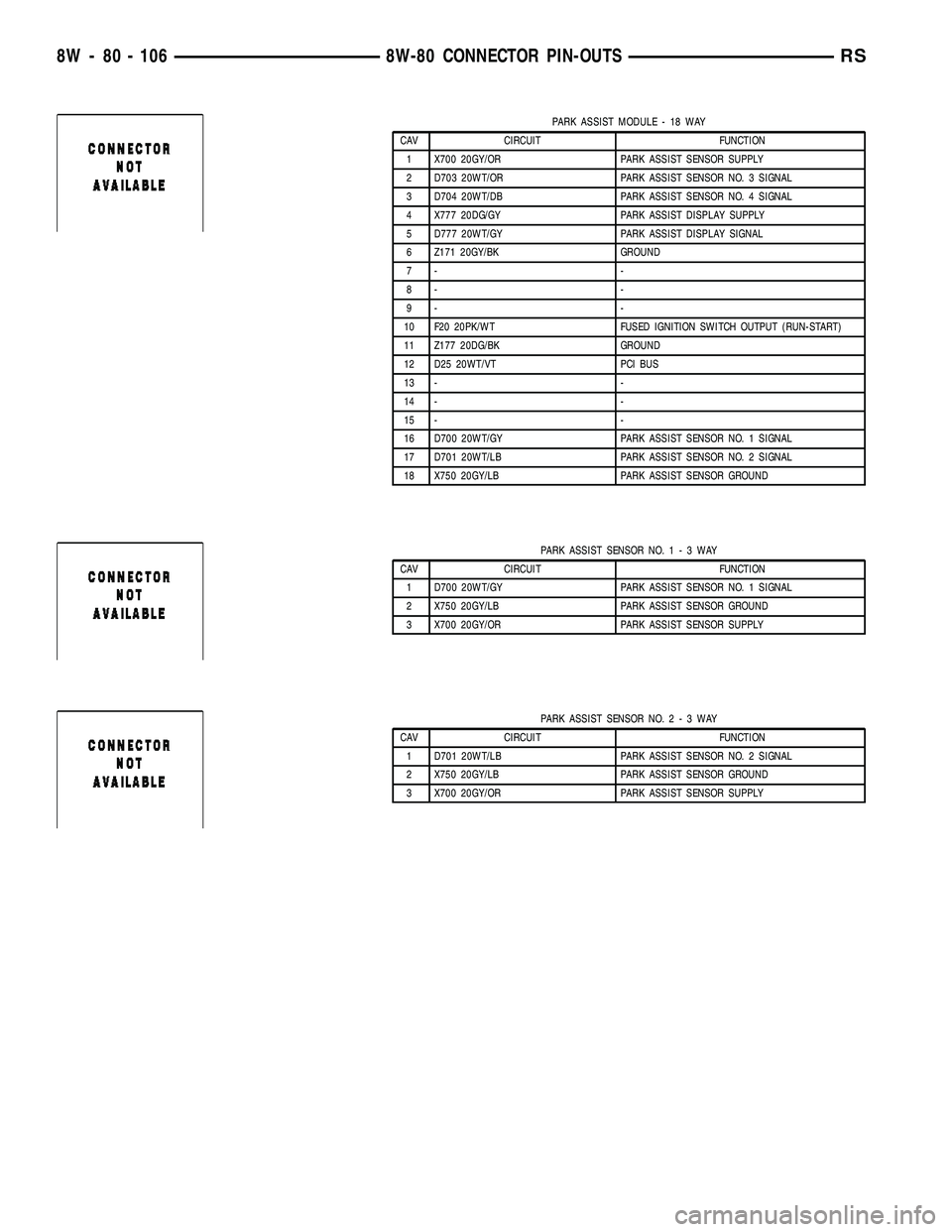

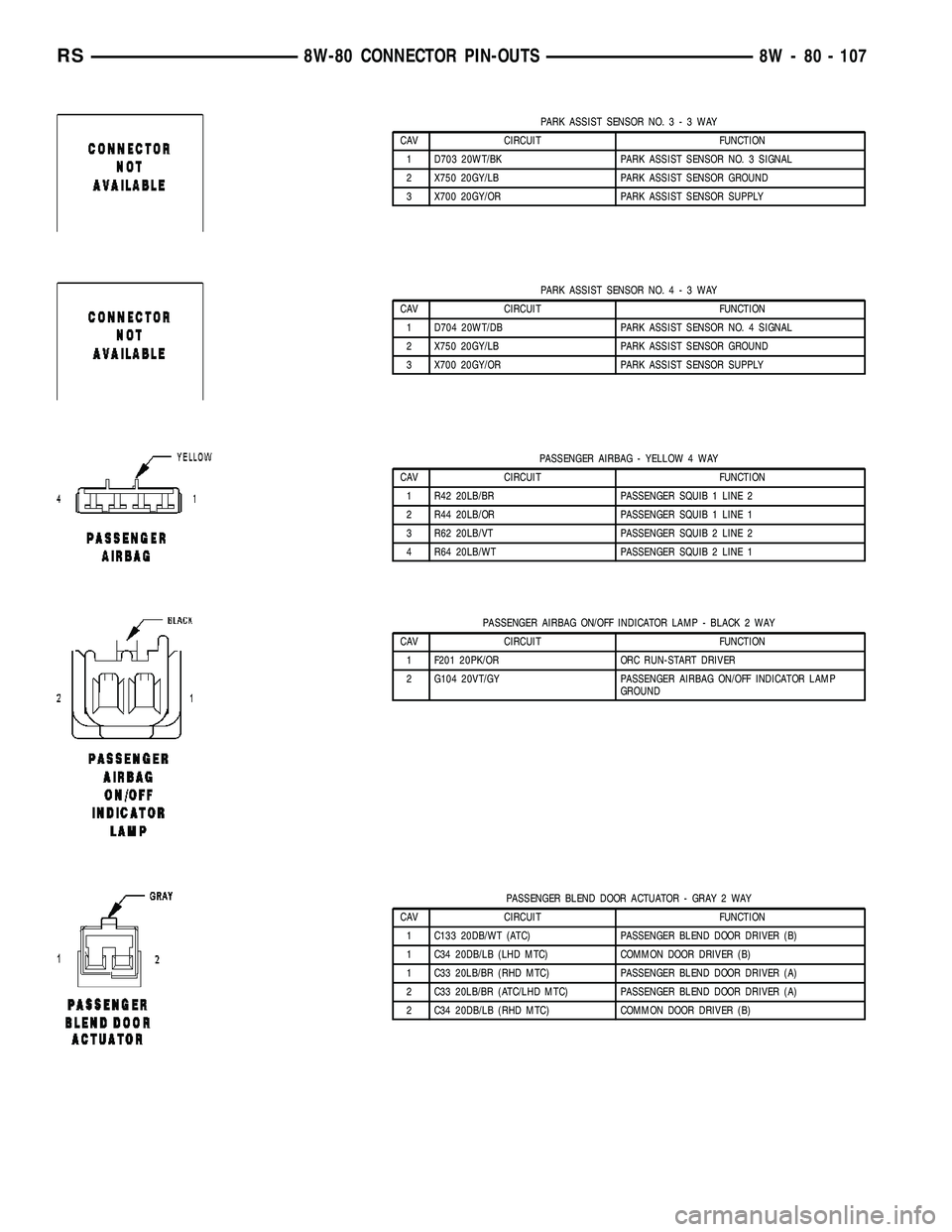

CHRYSLER VOYAGER 2005 Service Manual PARK ASSIST MODULE - 18 WAY CAV CIRCUIT FUNCTION 1 X700 20GY/OR PARK ASSIST SENSOR SUPPLY 2 D703 20WT/OR PARK ASSIST SENSOR NO. 3 SIGNAL 3 D704 20WT/DB PARK ASSIST SENSOR NO. 4 SIGNAL 4 X777 20DG/GY P

Page 1076 of 2339

CHRYSLER VOYAGER 2005 Service Manual PARK ASSIST SENSOR NO.3-3WAY CAV CIRCUIT FUNCTION 1 D703 20WT/BK PARK ASSIST SENSOR NO. 3 SIGNAL 2 X750 20GY/LB PARK ASSIST SENSOR GROUND 3 X700 20GY/OR PARK ASSIST SENSOR SUPPLY PARK ASSIST SENSOR NO

Page 1077 of 2339

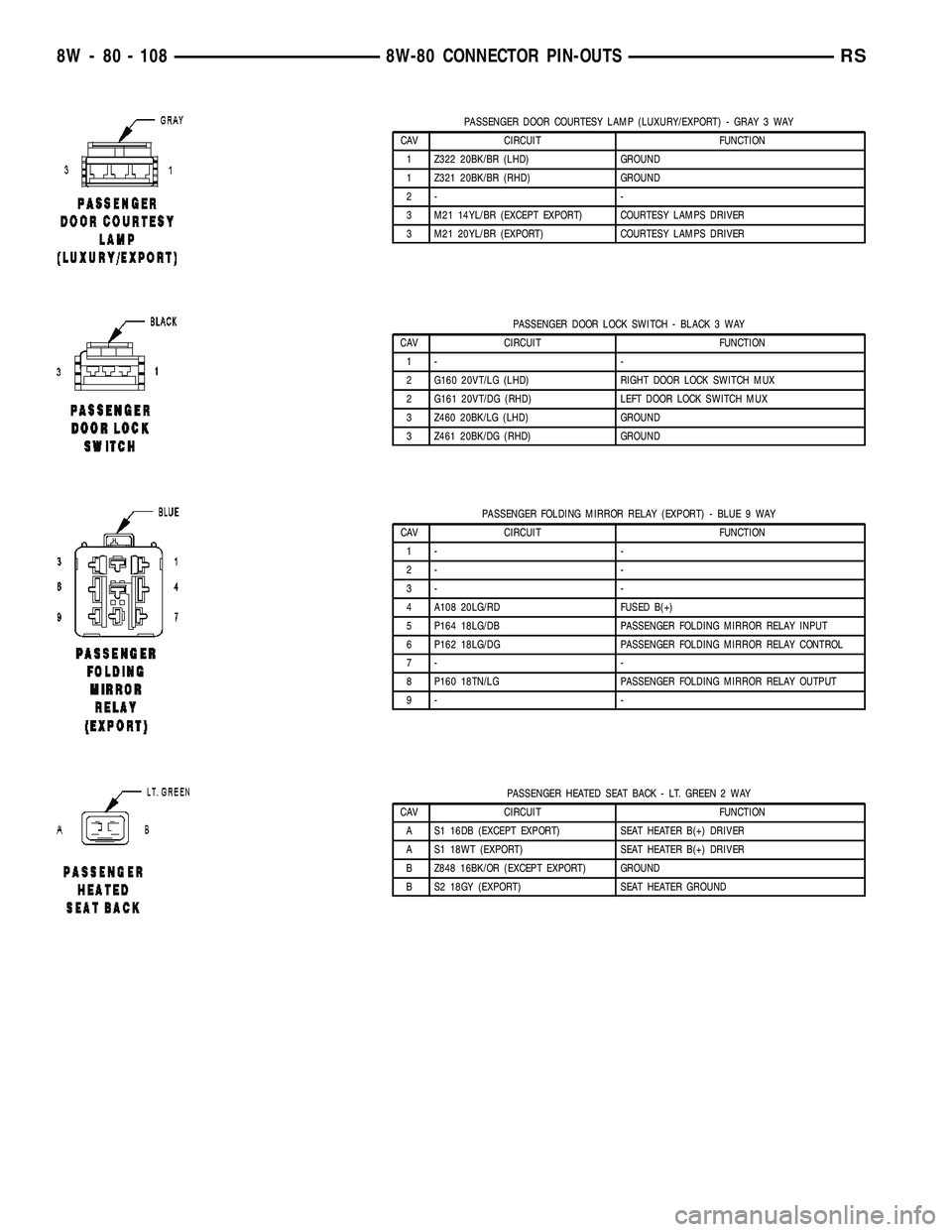

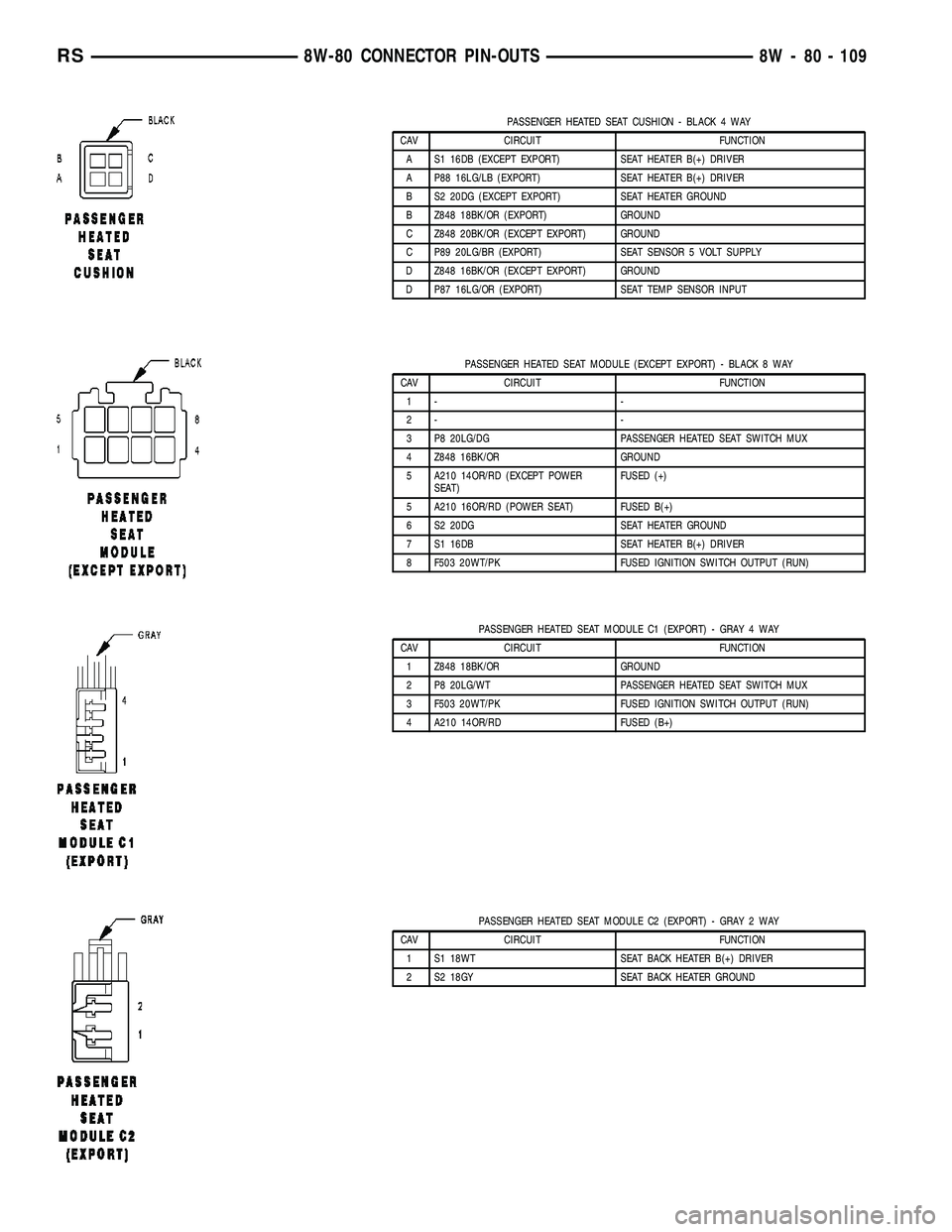

CHRYSLER VOYAGER 2005 Service Manual PASSENGER DOOR COURTESY LAMP (LUXURY/EXPORT) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 Z322 20BK/BR (LHD) GROUND 1 Z321 20BK/BR (RHD) GROUND 2- - 3 M21 14YL/BR (EXCEPT EXPORT) COURTESY LAMPS DRIVER 3 M21 20

Page 1078 of 2339

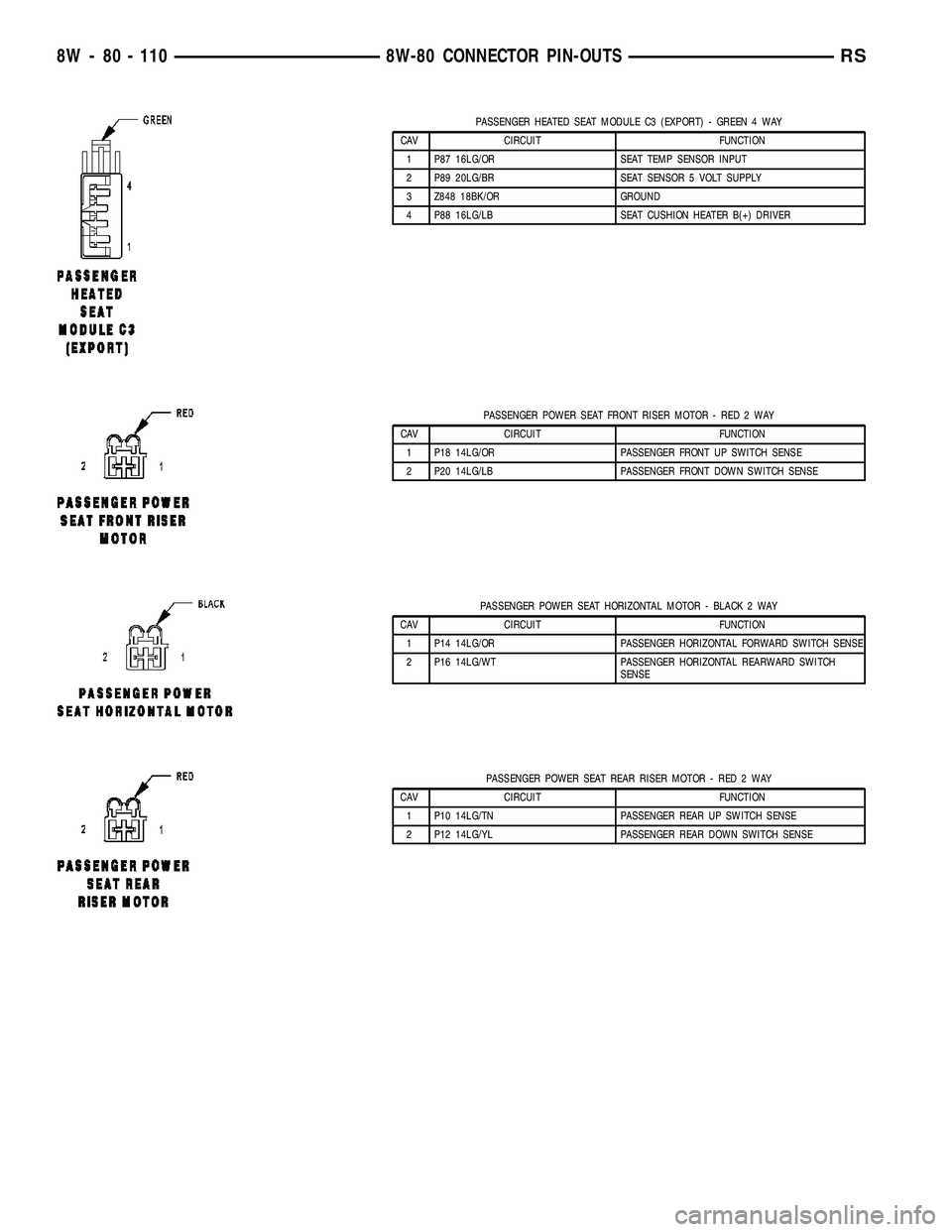

CHRYSLER VOYAGER 2005 Service Manual PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY CAV CIRCUIT FUNCTION A S1 16DB (EXCEPT EXPORT) SEAT HEATER B(+) DRIVER A P88 16LG/LB (EXPORT) SEAT HEATER B(+) DRIVER B S2 20DG (EXCEPT EXPORT) SEAT HEATER

Page 1079 of 2339

CHRYSLER VOYAGER 2005 Service Manual PASSENGER HEATED SEAT MODULE C3 (EXPORT) - GREEN 4 WAY CAV CIRCUIT FUNCTION 1 P87 16LG/OR SEAT TEMP SENSOR INPUT 2 P89 20LG/BR SEAT SENSOR 5 VOLT SUPPLY 3 Z848 18BK/OR GROUND 4 P88 16LG/LB SEAT CUSHIO

Page 1080 of 2339

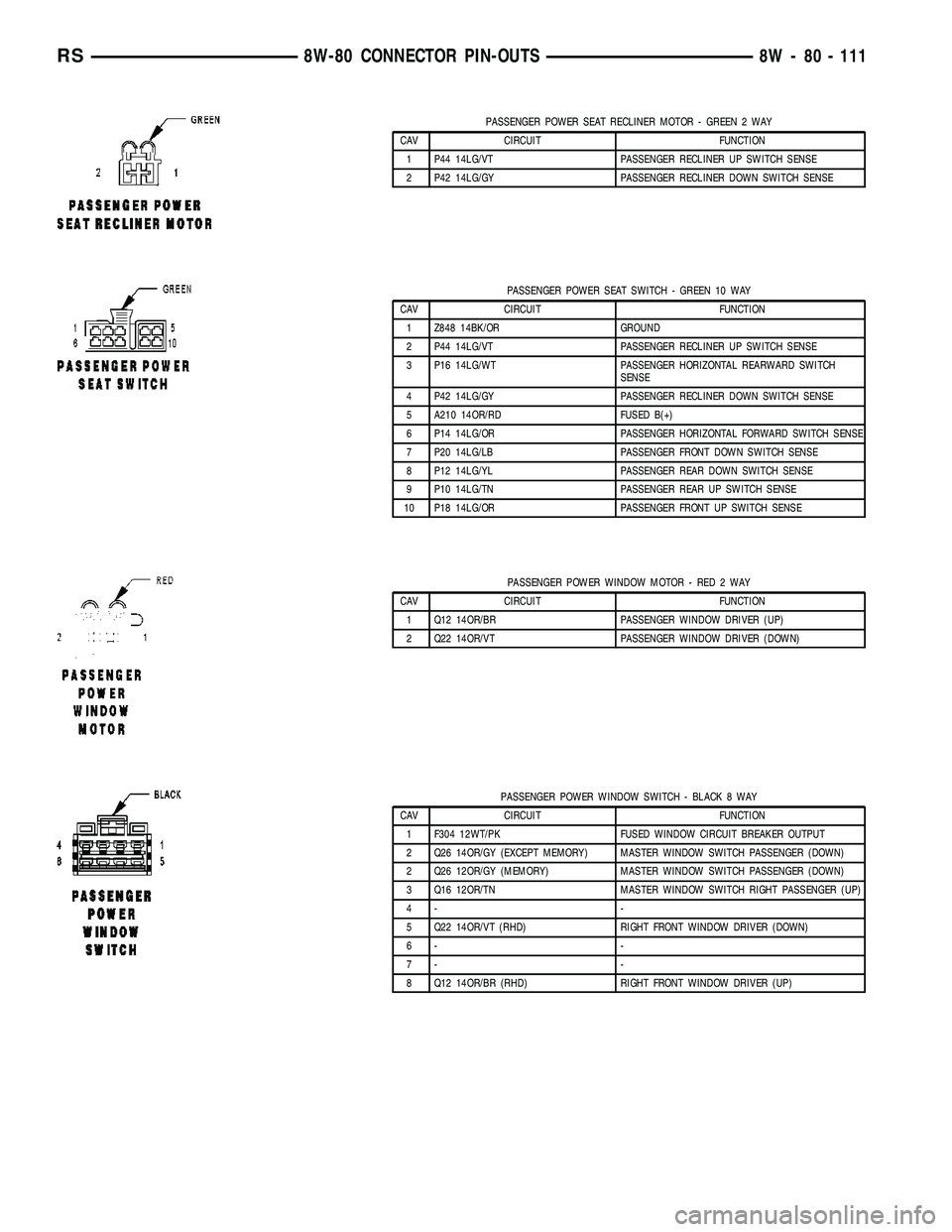

CHRYSLER VOYAGER 2005 Service Manual PASSENGER POWER SEAT RECLINER MOTOR - GREEN 2 WAY CAV CIRCUIT FUNCTION 1 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE 2 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE PASSENGER POWER SEAT SWITCH -
