Page 2041 of 2339

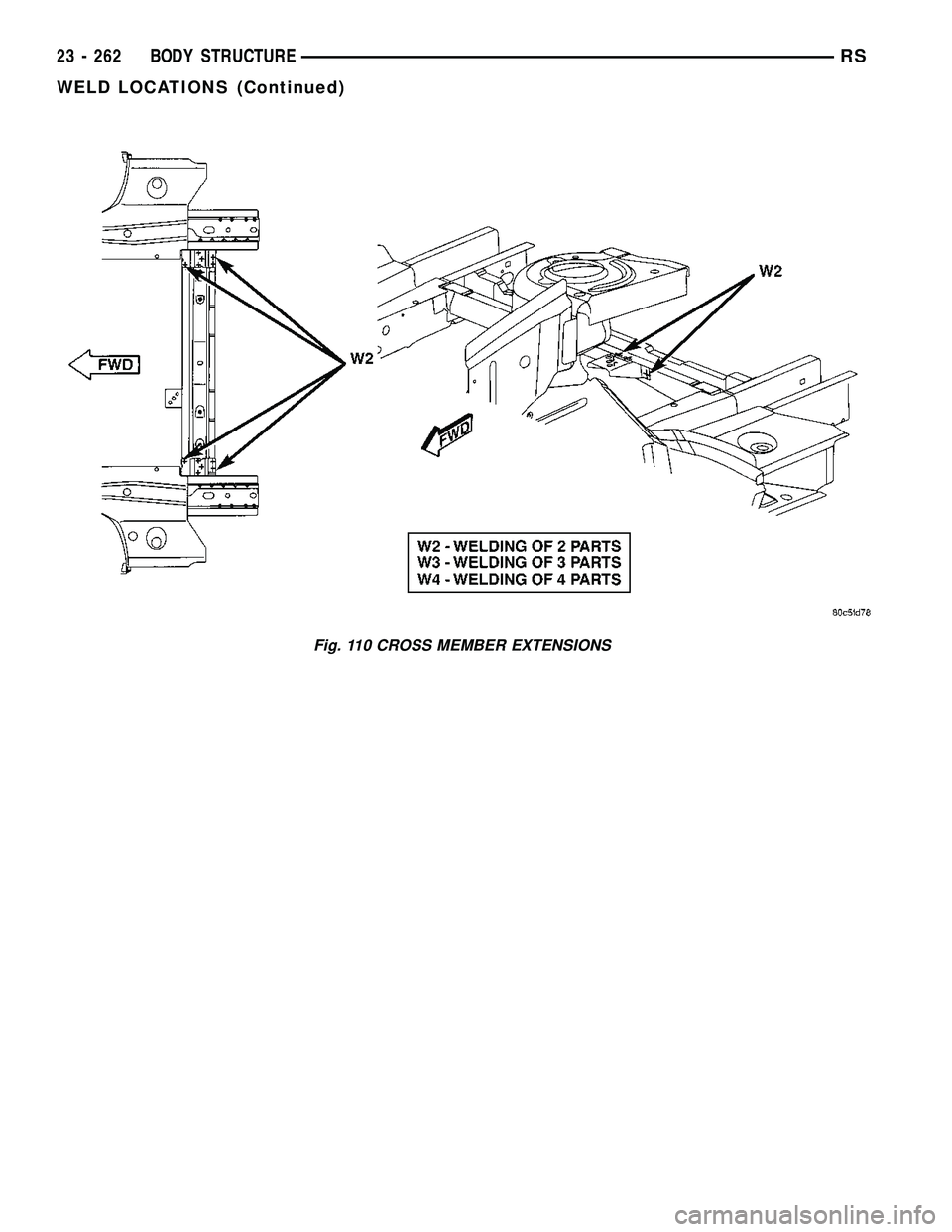

CHRYSLER VOYAGER 2005 Service Manual Fig. 110 CROSS MEMBER EXTENSIONS 23 - 262 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2042 of 2339

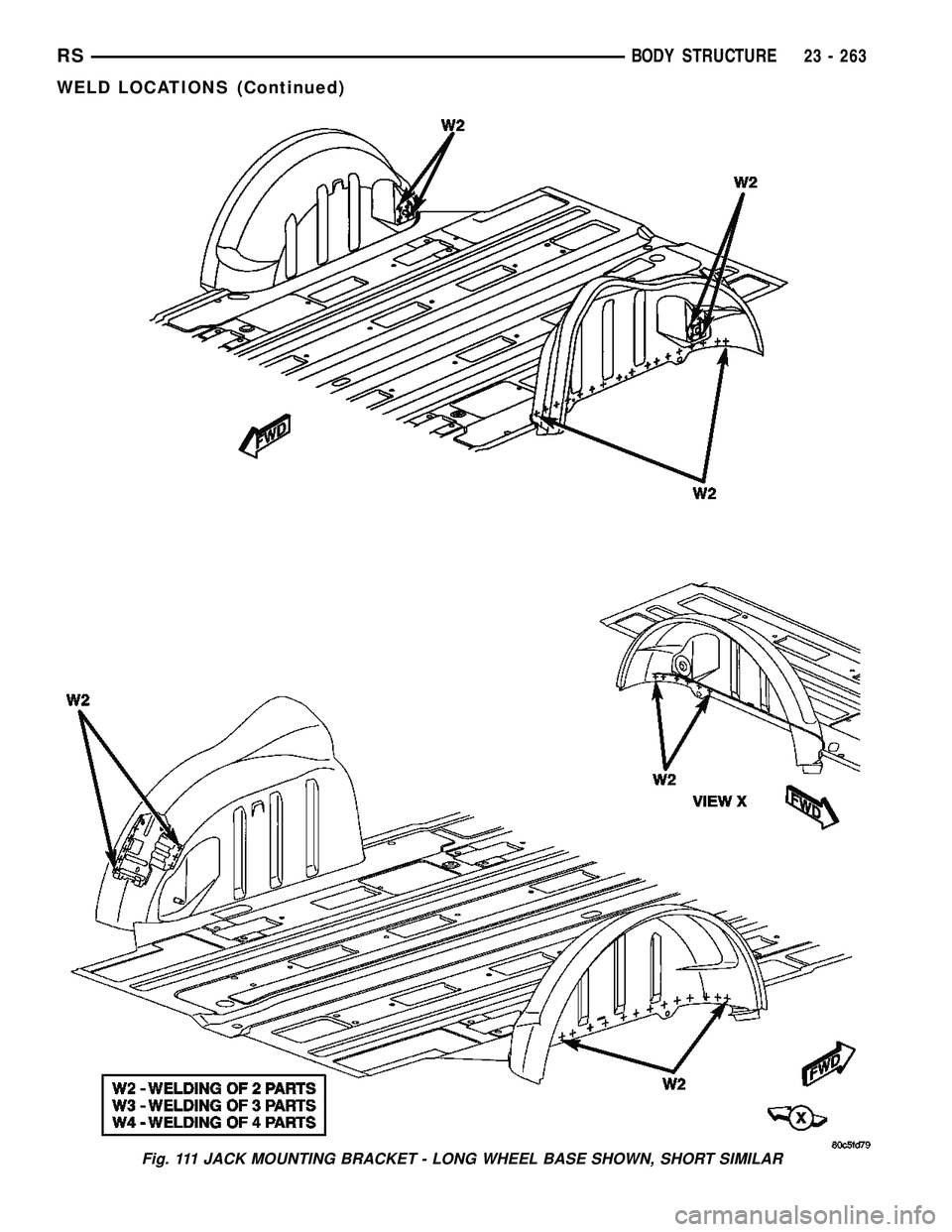

CHRYSLER VOYAGER 2005 Service Manual Fig. 111 JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR RSBODY STRUCTURE23 - 263 WELD LOCATIONS (Continued)

Page 2043 of 2339

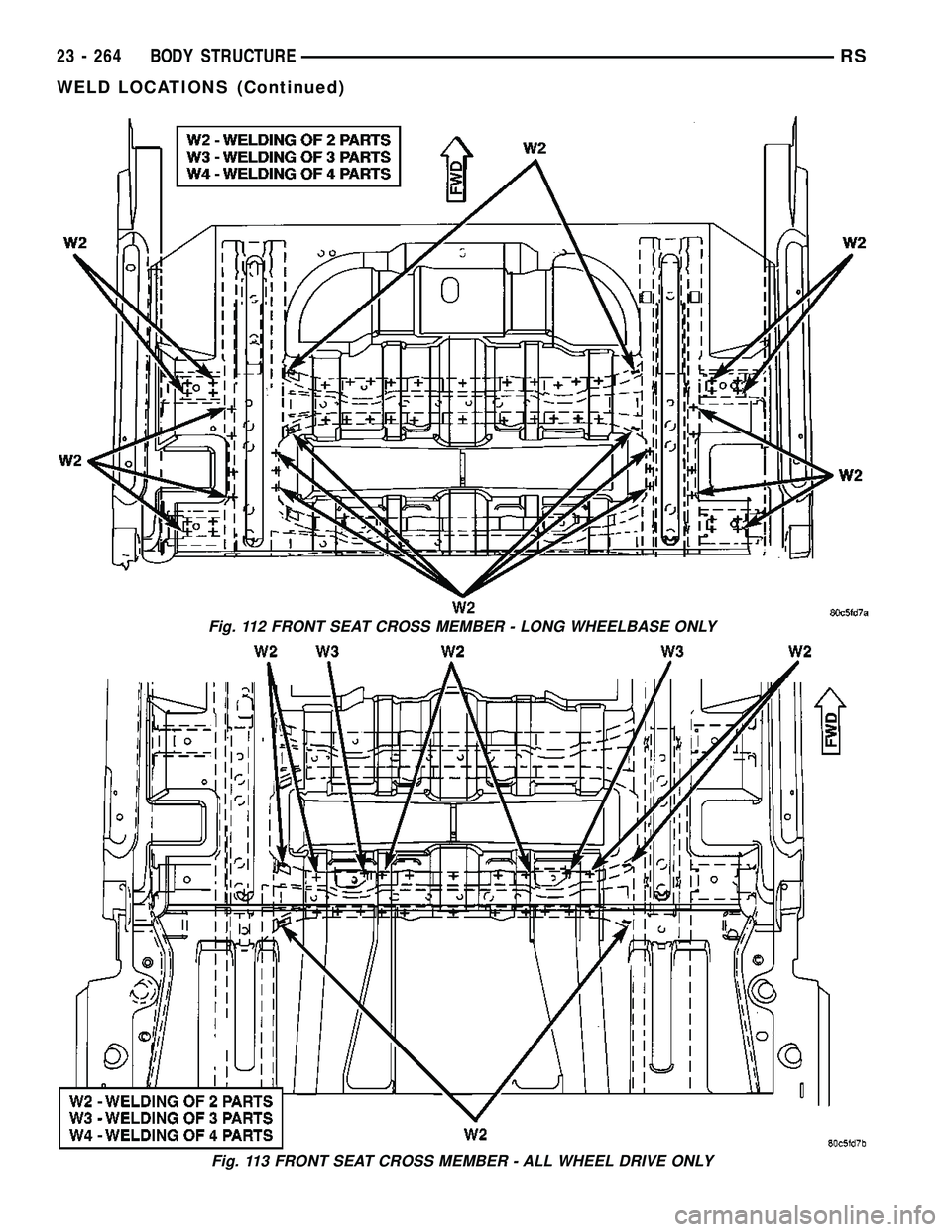

CHRYSLER VOYAGER 2005 Service Manual Fig. 112 FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY Fig. 113 FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY 23 - 264 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2044 of 2339

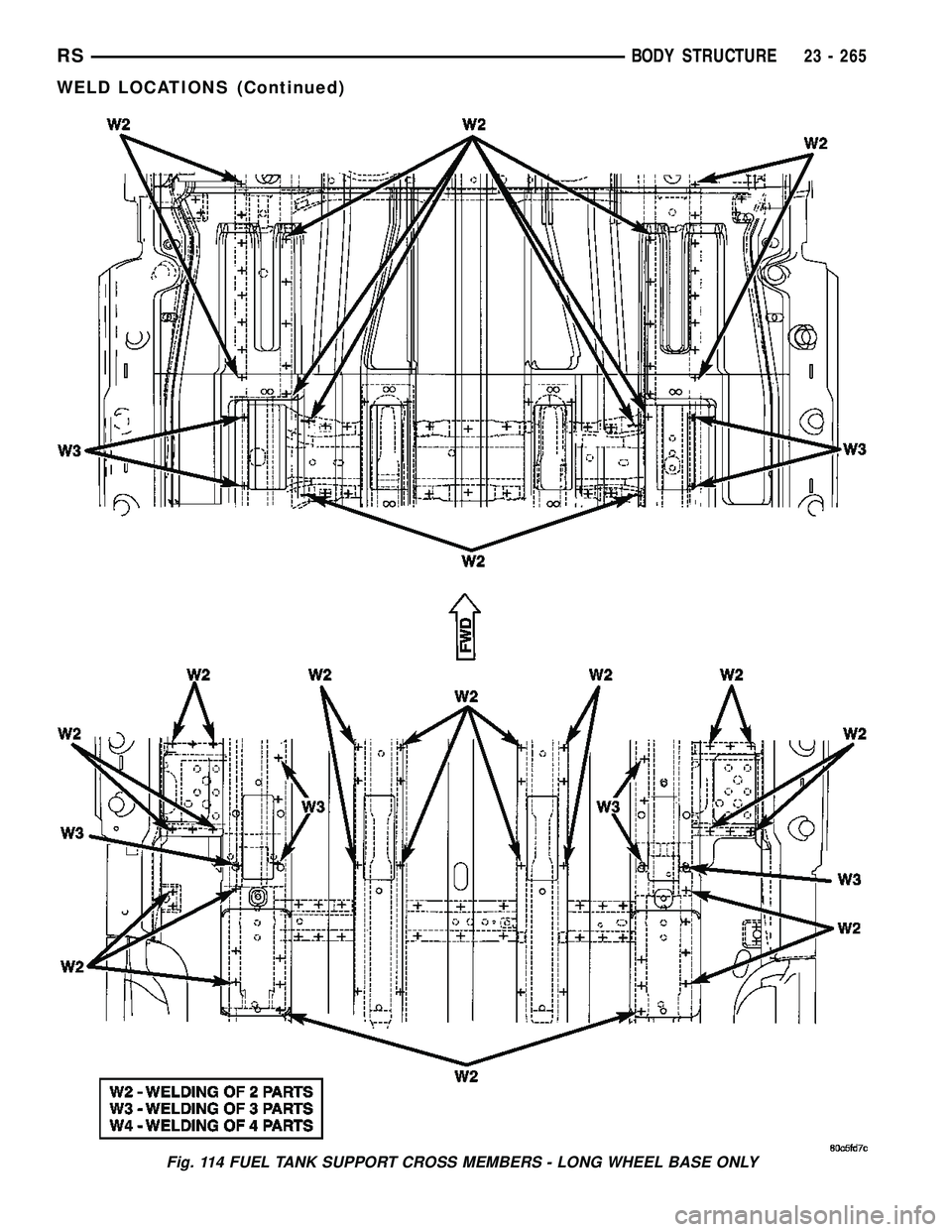

CHRYSLER VOYAGER 2005 Service Manual Fig. 114 FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 265 WELD LOCATIONS (Continued)

Page 2045 of 2339

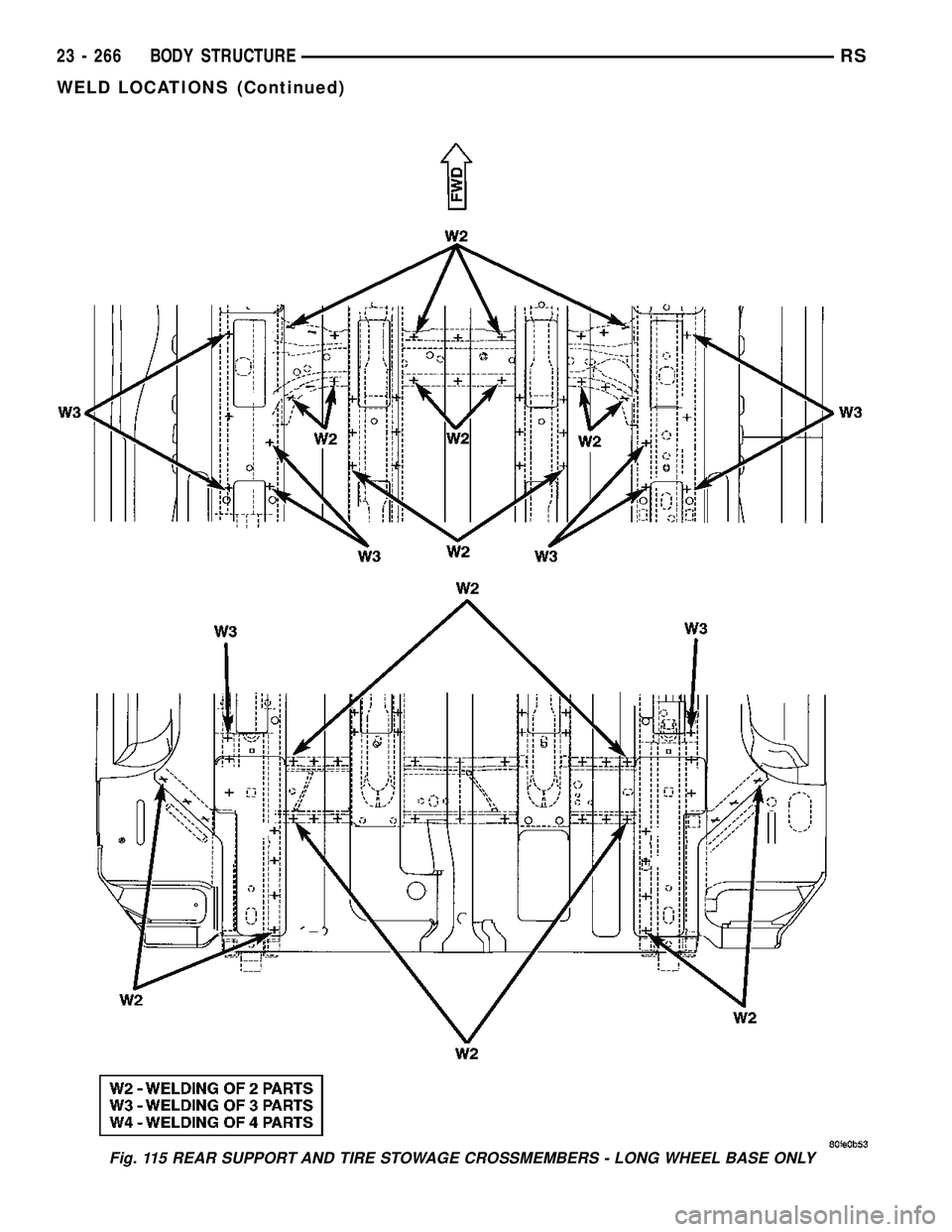

CHRYSLER VOYAGER 2005 Service Manual Fig. 115 REAR SUPPORT AND TIRE STOWAGE CROSSMEMBERS - LONG WHEEL BASE ONLY 23 - 266 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2046 of 2339

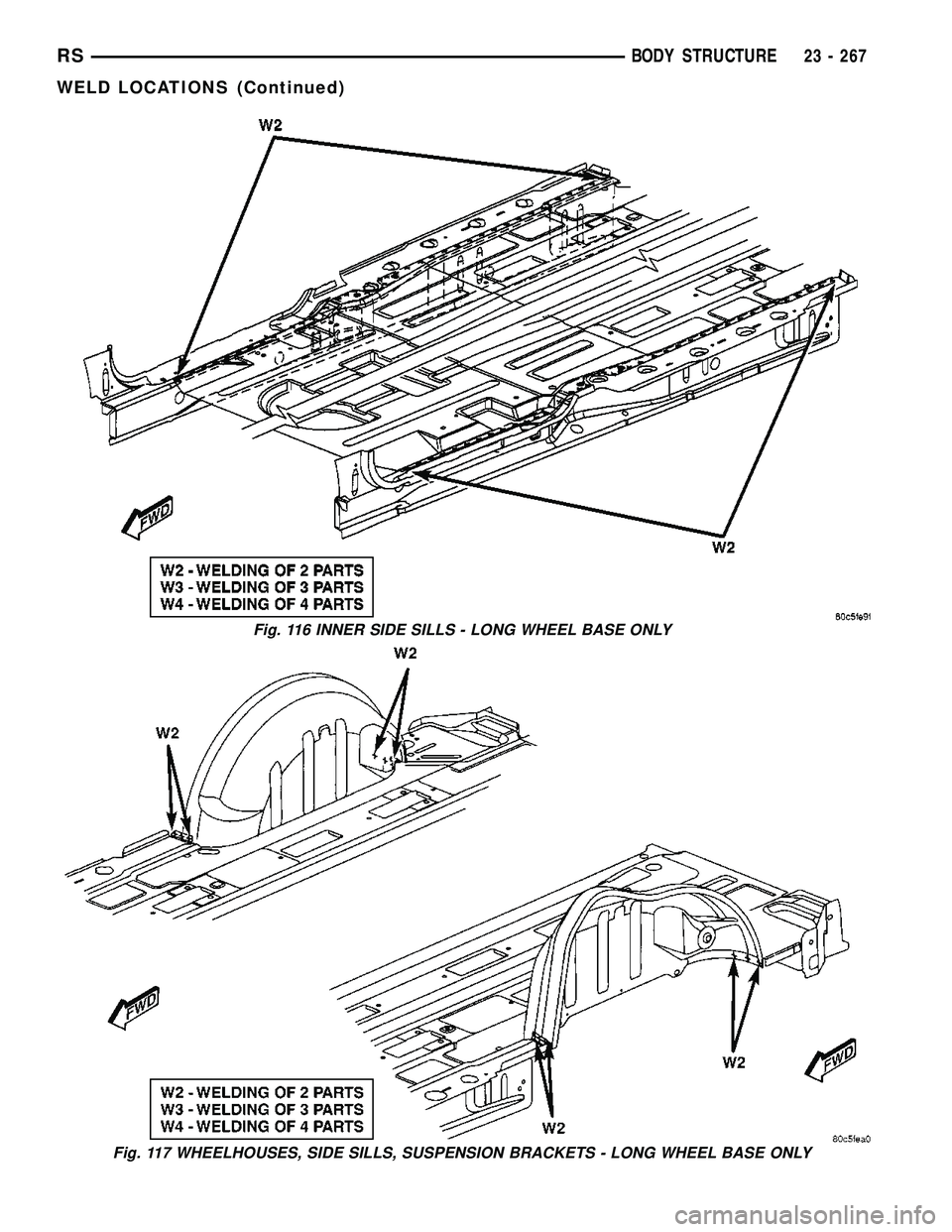

CHRYSLER VOYAGER 2005 Service Manual Fig. 116 INNER SIDE SILLS - LONG WHEEL BASE ONLY Fig. 117 WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 267 WELD LOCATIONS (Continued)

Page 2047 of 2339

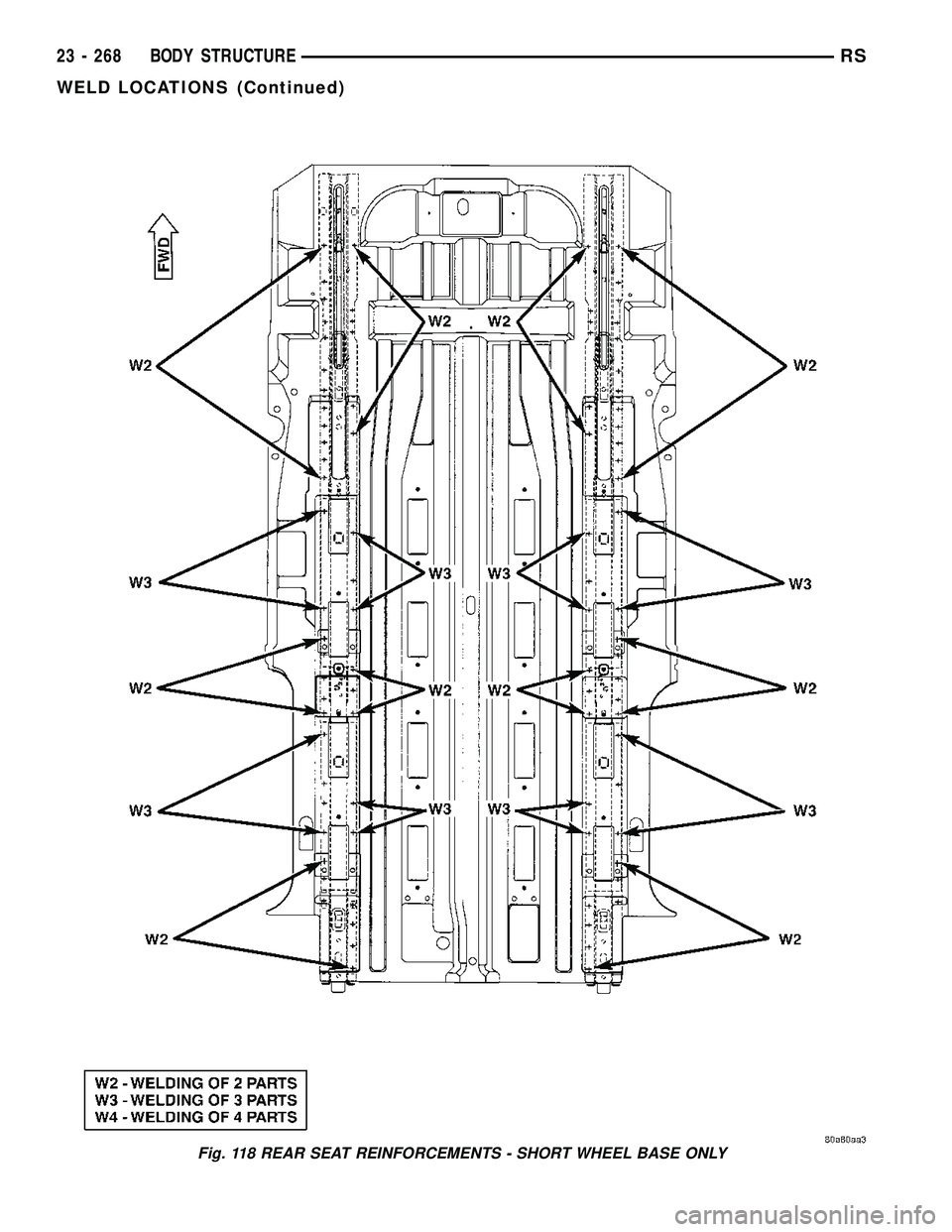

CHRYSLER VOYAGER 2005 Service Manual Fig. 118 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 23 - 268 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2048 of 2339

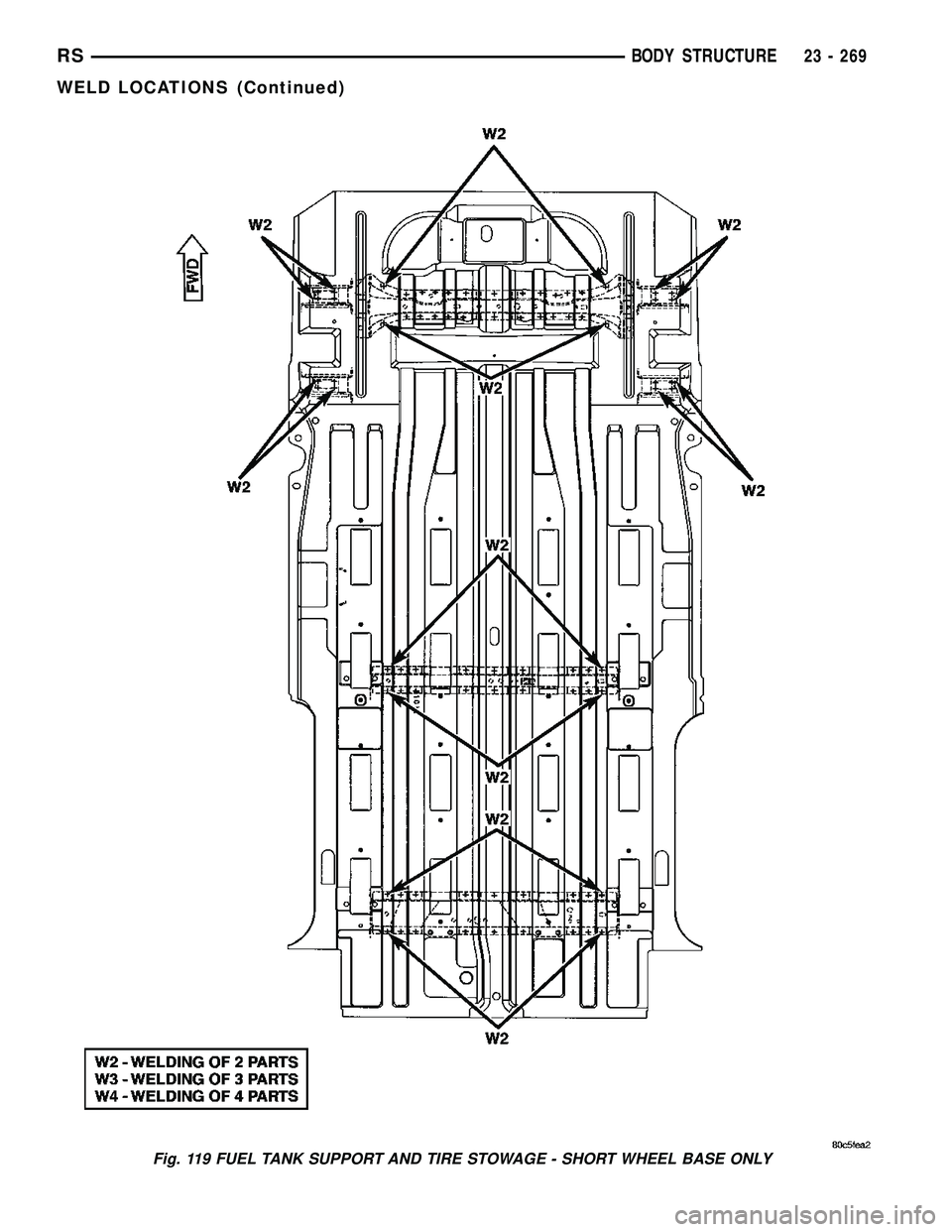

CHRYSLER VOYAGER 2005 Service Manual Fig. 119 FUEL TANK SUPPORT AND TIRE STOWAGE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 269 WELD LOCATIONS (Continued)
