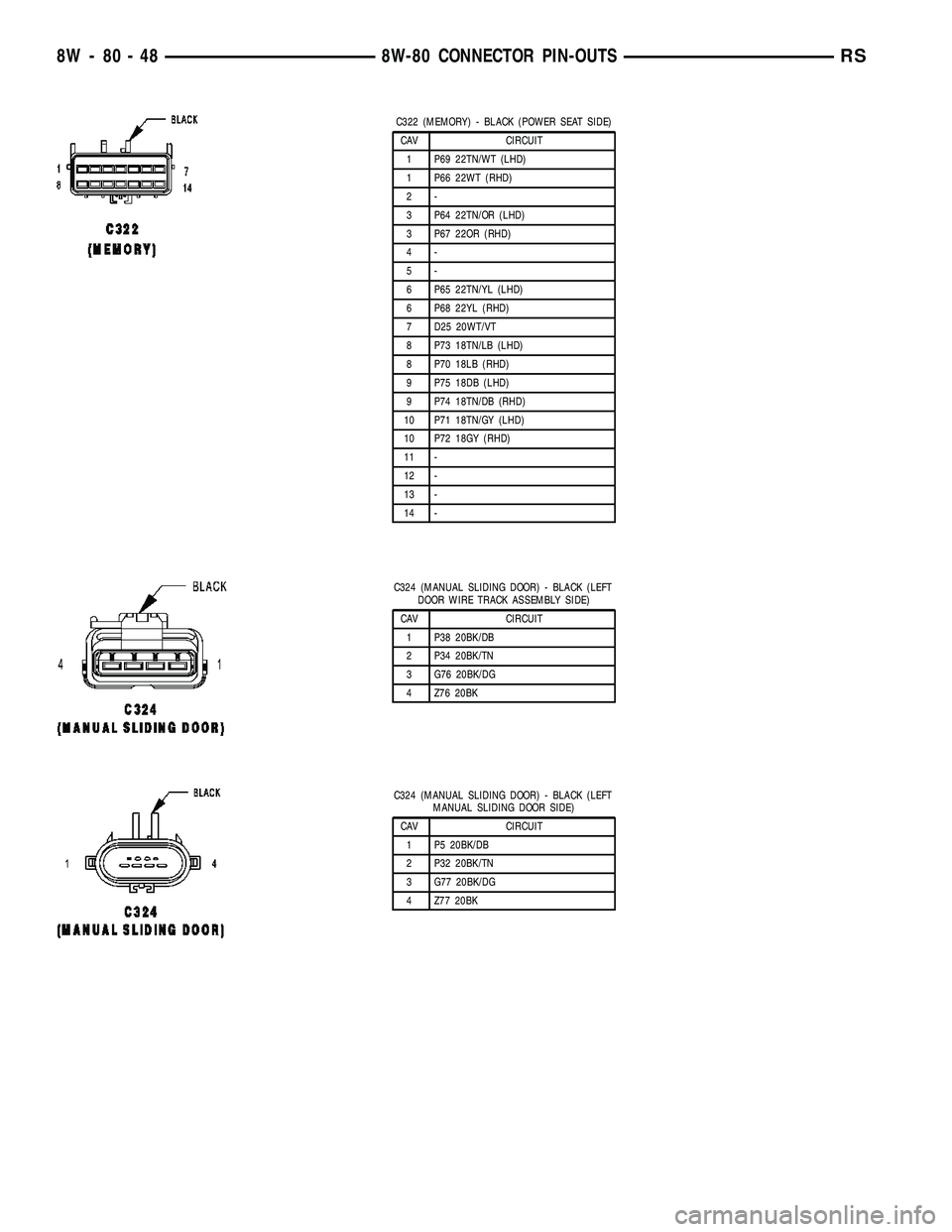

CHRYSLER VOYAGER 2005 Service Manual C322 (MEMORY) - BLACK (POWER SEAT SIDE) CAV CIRCUIT 1 P69 22TN/WT (LHD) 1 P66 22WT (RHD) 2- 3 P64 22TN/OR (LHD) 3 P67 22OR (RHD) 4- 5- 6 P65 22TN/YL (LHD) 6 P68 22YL (RHD) 7 D25 20WT/VT 8 P73 18TN/LB

Page 1018 of 2339

CHRYSLER VOYAGER 2005 Service Manual C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT DOOR WIRE TRACK ASSEMBLY SIDE) CAV CIRCUIT 1 P38 20BK/DB 2 P34 20BK/TN 3 G76 20BK/DG 4 Z76 20BK C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT MANUAL SLIDING DOOR

Page 1019 of 2339

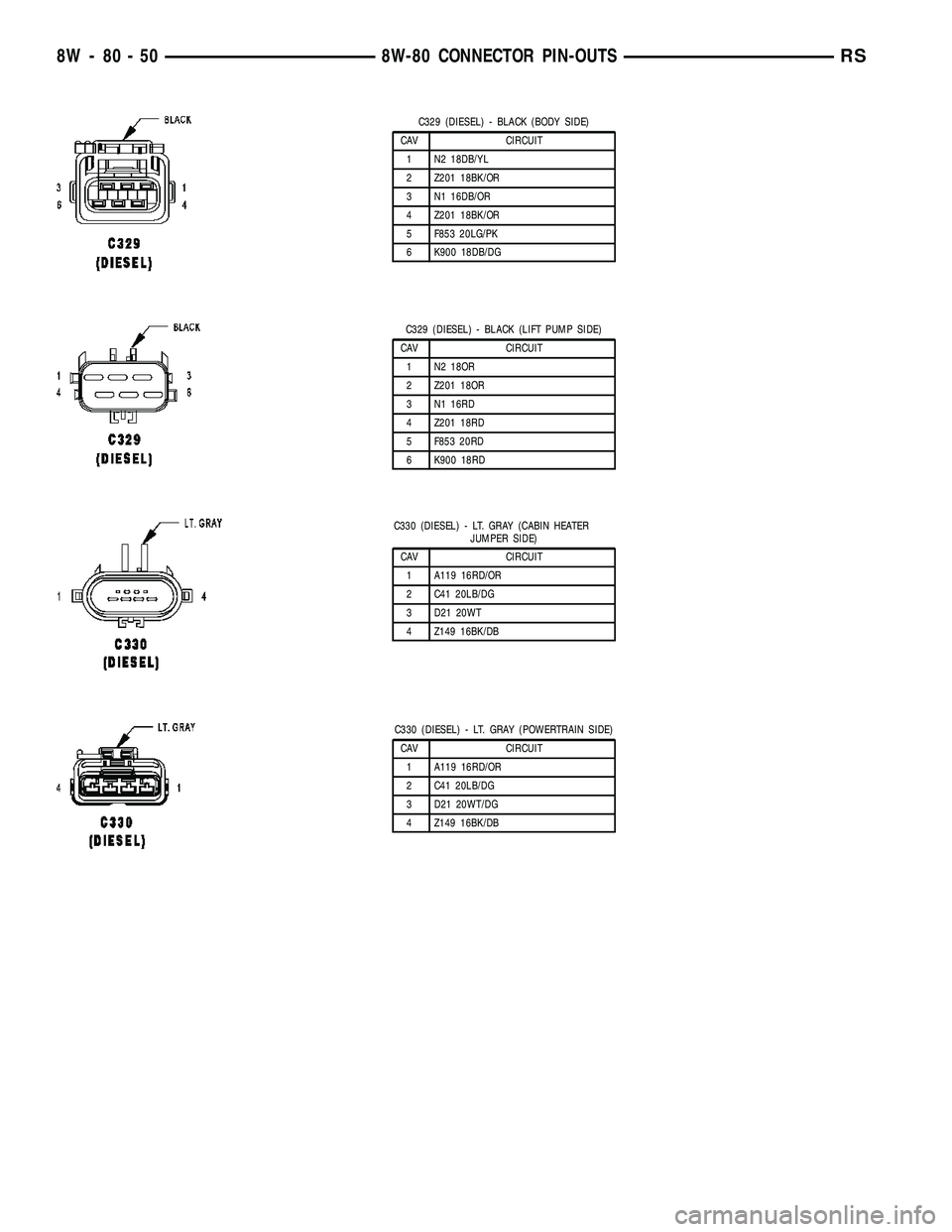

CHRYSLER VOYAGER 2005 Service Manual C329 (DIESEL) - BLACK (BODY SIDE) CAV CIRCUIT 1 N2 18DB/YL 2 Z201 18BK/OR 3 N1 16DB/OR 4 Z201 18BK/OR 5 F853 20LG/PK 6 K900 18DB/DG C329 (DIESEL) - BLACK (LIFT PUMP SIDE) CAV CIRCUIT 1 N2 18OR 2 Z201

Page 1020 of 2339

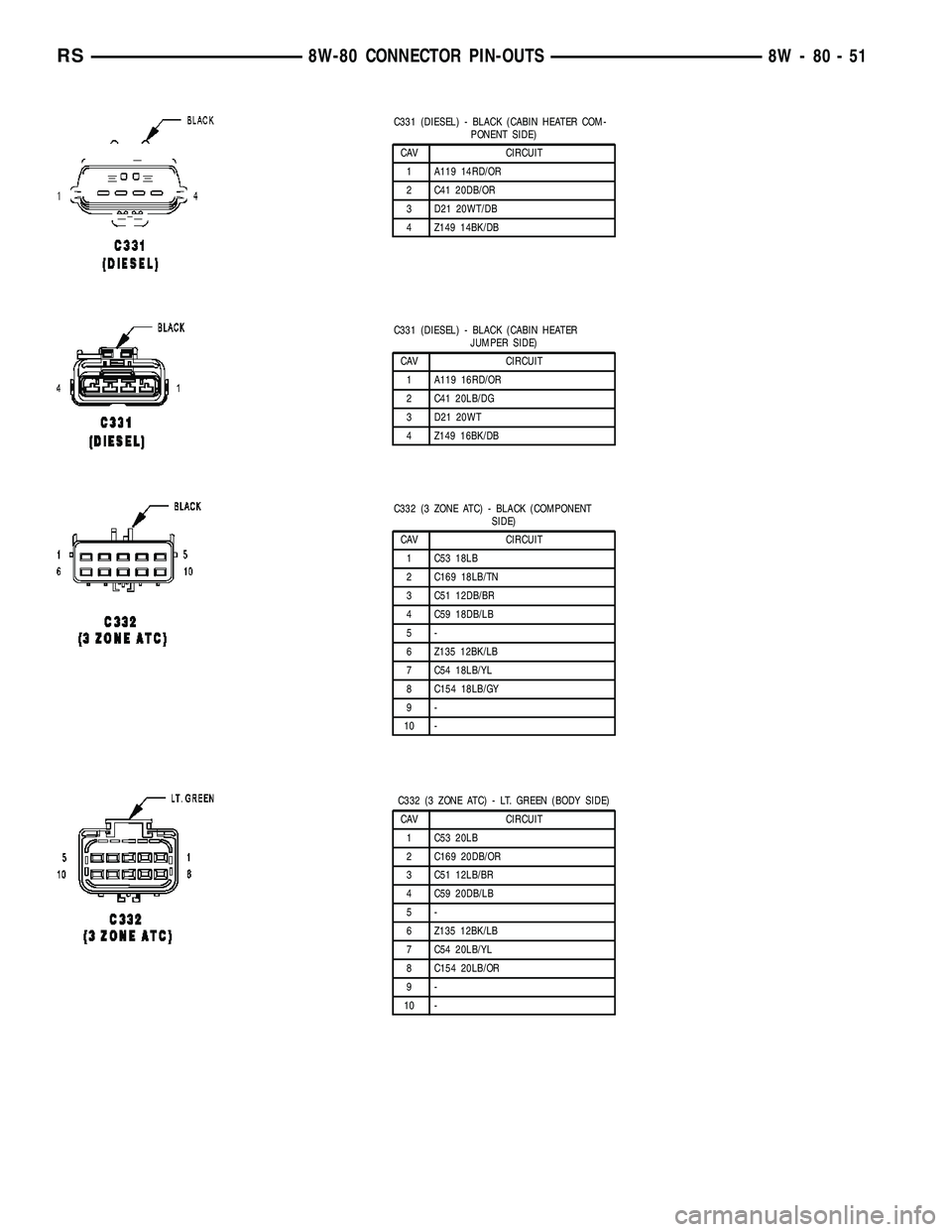

CHRYSLER VOYAGER 2005 Service Manual C331 (DIESEL) - BLACK (CABIN HEATER COM- PONENT SIDE) CAV CIRCUIT 1 A119 14RD/OR 2 C41 20DB/OR 3 D21 20WT/DB 4 Z149 14BK/DB C331 (DIESEL) - BLACK (CABIN HEATER JUMPER SIDE) CAV CIRCUIT 1 A119 16RD/OR

Page 1021 of 2339

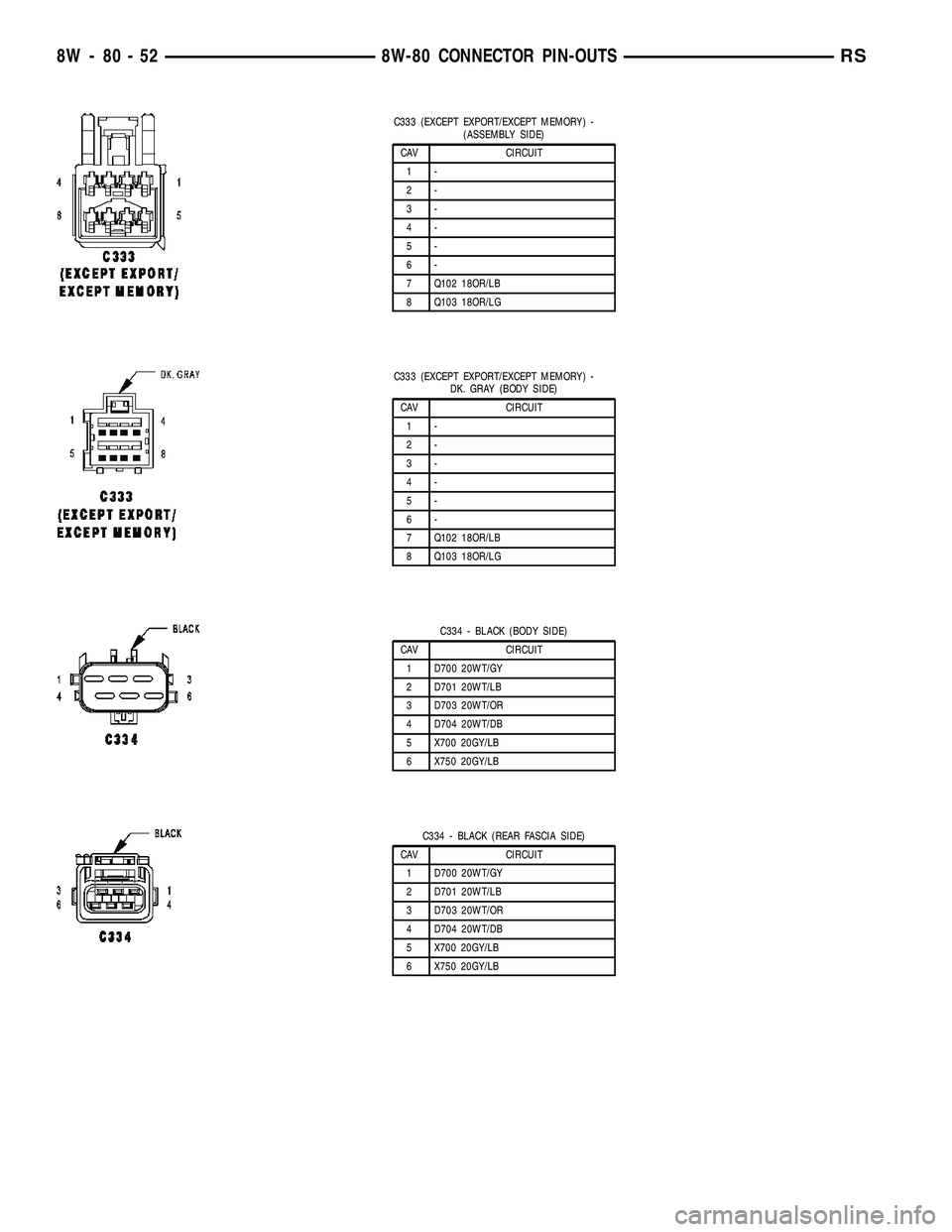

CHRYSLER VOYAGER 2005 Service Manual C333 (EXCEPT EXPORT/EXCEPT MEMORY) - (ASSEMBLY SIDE) CAV CIRCUIT 1- 2- 3- 4- 5- 6- 7 Q102 18OR/LB 8 Q103 18OR/LG C333 (EXCEPT EXPORT/EXCEPT MEMORY) - DK. GRAY (BODY SIDE) CAV CIRCUIT 1- 2- 3- 4- 5- 6-

Page 1022 of 2339

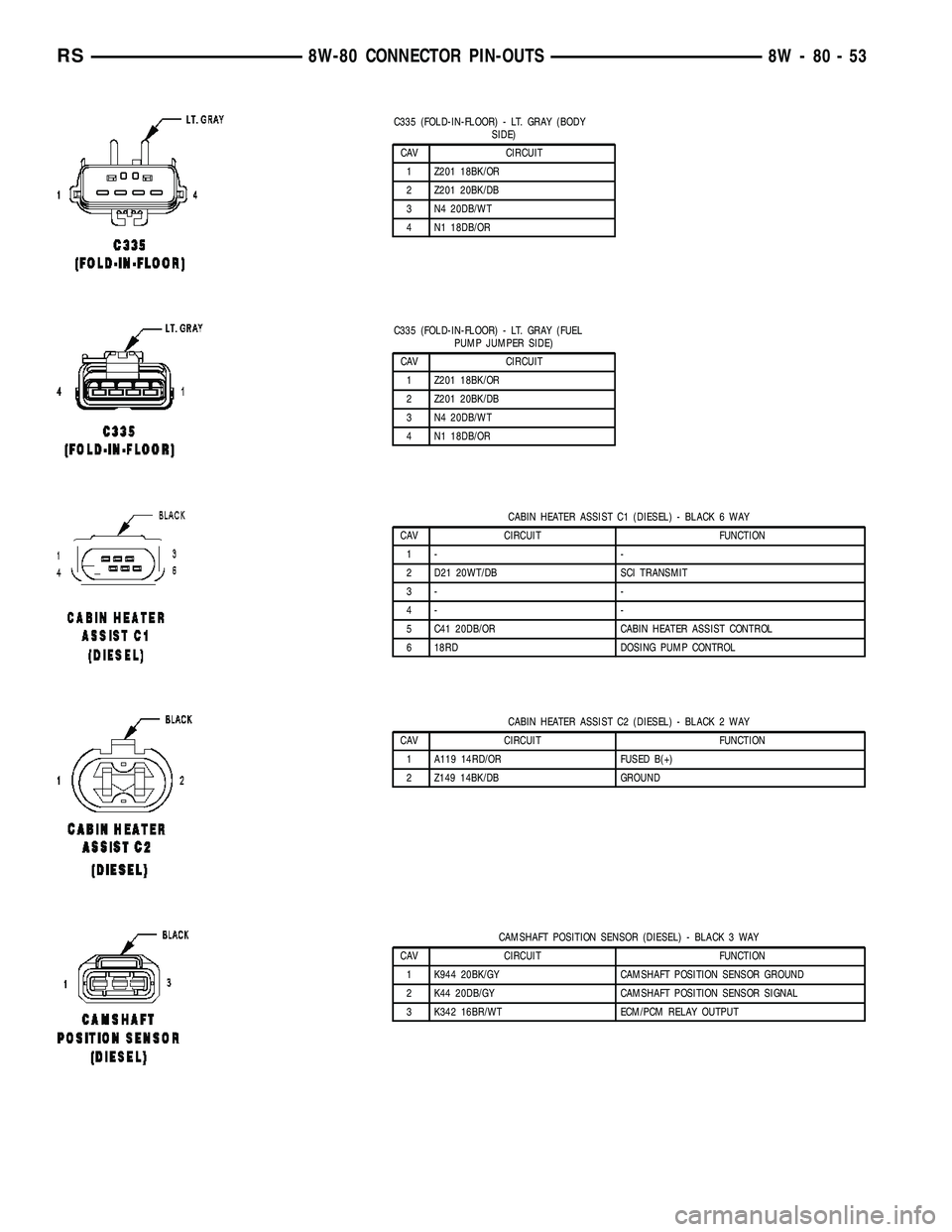

CHRYSLER VOYAGER 2005 Service Manual C335 (FOLD-IN-FLOOR) - LT. GRAY (BODY SIDE) CAV CIRCUIT 1 Z201 18BK/OR 2 Z201 20BK/DB 3 N4 20DB/WT 4 N1 18DB/OR C335 (FOLD-IN-FLOOR) - LT. GRAY (FUEL PUMP JUMPER SIDE) CAV CIRCUIT 1 Z201 18BK/OR 2 Z20

Page 1023 of 2339

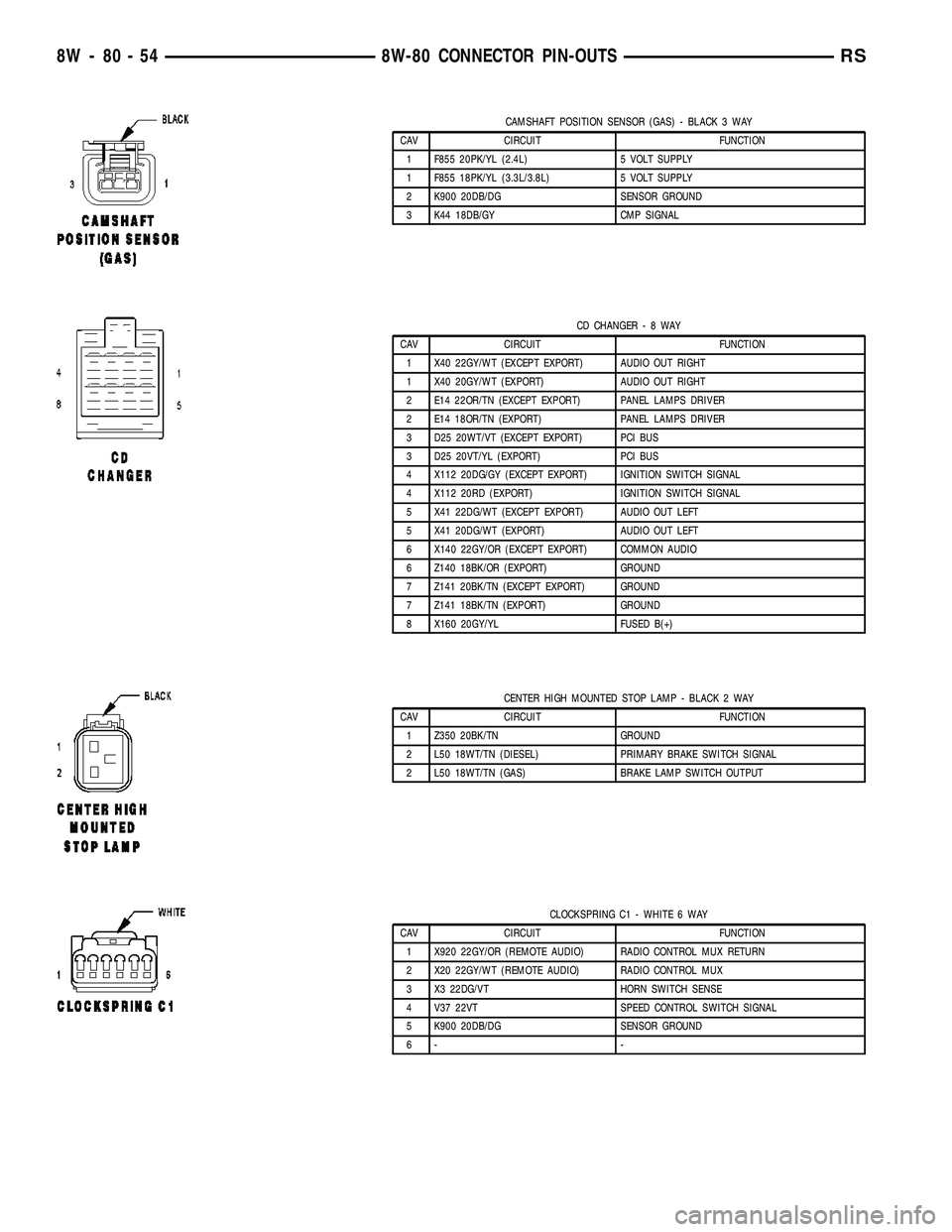

CHRYSLER VOYAGER 2005 Service Manual CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 F855 20PK/YL (2.4L) 5 VOLT SUPPLY 1 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY 2 K900 20DB/DG SENSOR GROUND 3 K44 18DB/GY CMP SIGNAL CD

Page 1024 of 2339

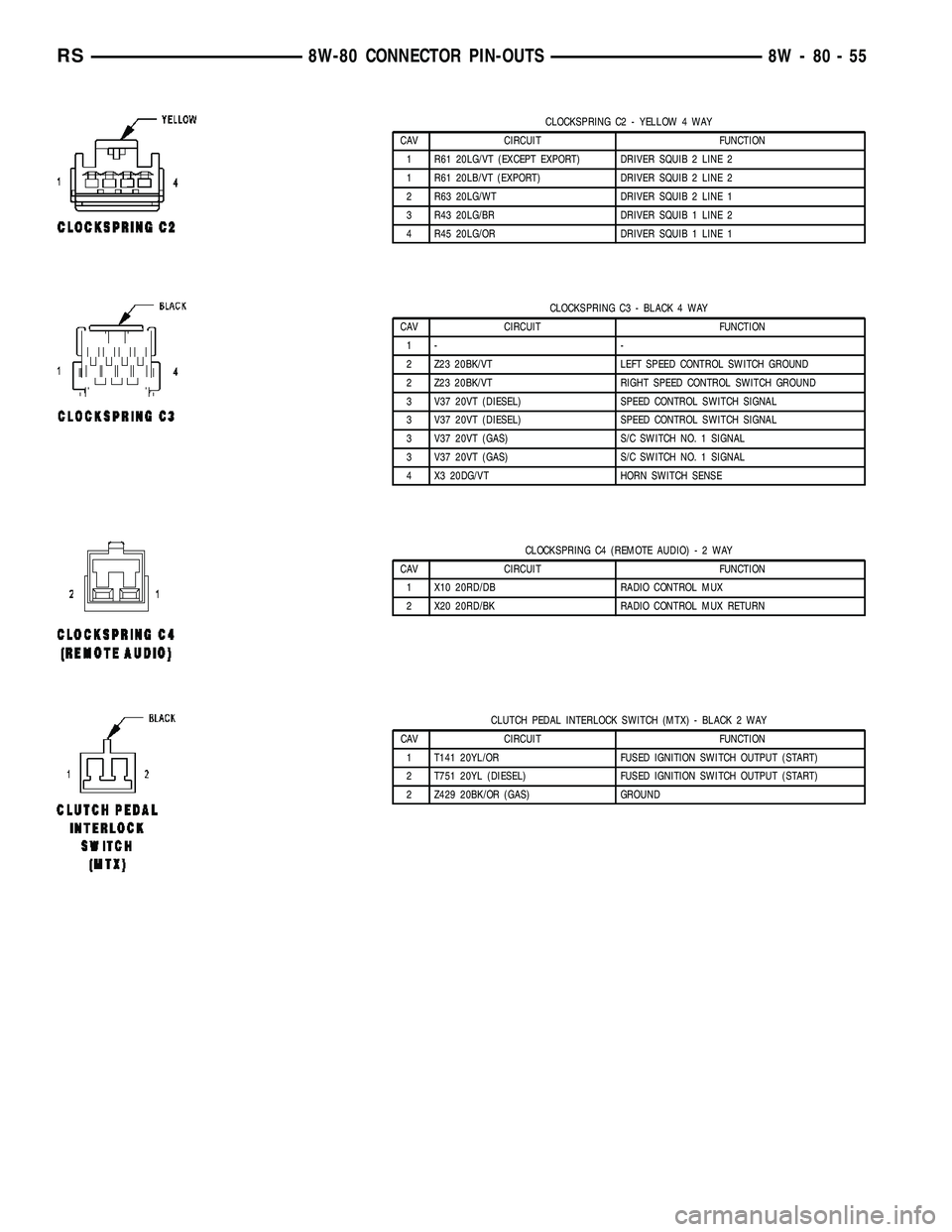

CHRYSLER VOYAGER 2005 Service Manual CLOCKSPRING C2 - YELLOW 4 WAY CAV CIRCUIT FUNCTION 1 R61 20LG/VT (EXCEPT EXPORT) DRIVER SQUIB 2 LINE 2 1 R61 20LB/VT (EXPORT) DRIVER SQUIB 2 LINE 2 2 R63 20LG/WT DRIVER SQUIB 2 LINE 1 3 R43 20LG/BR DR
