Page 2121 of 2339

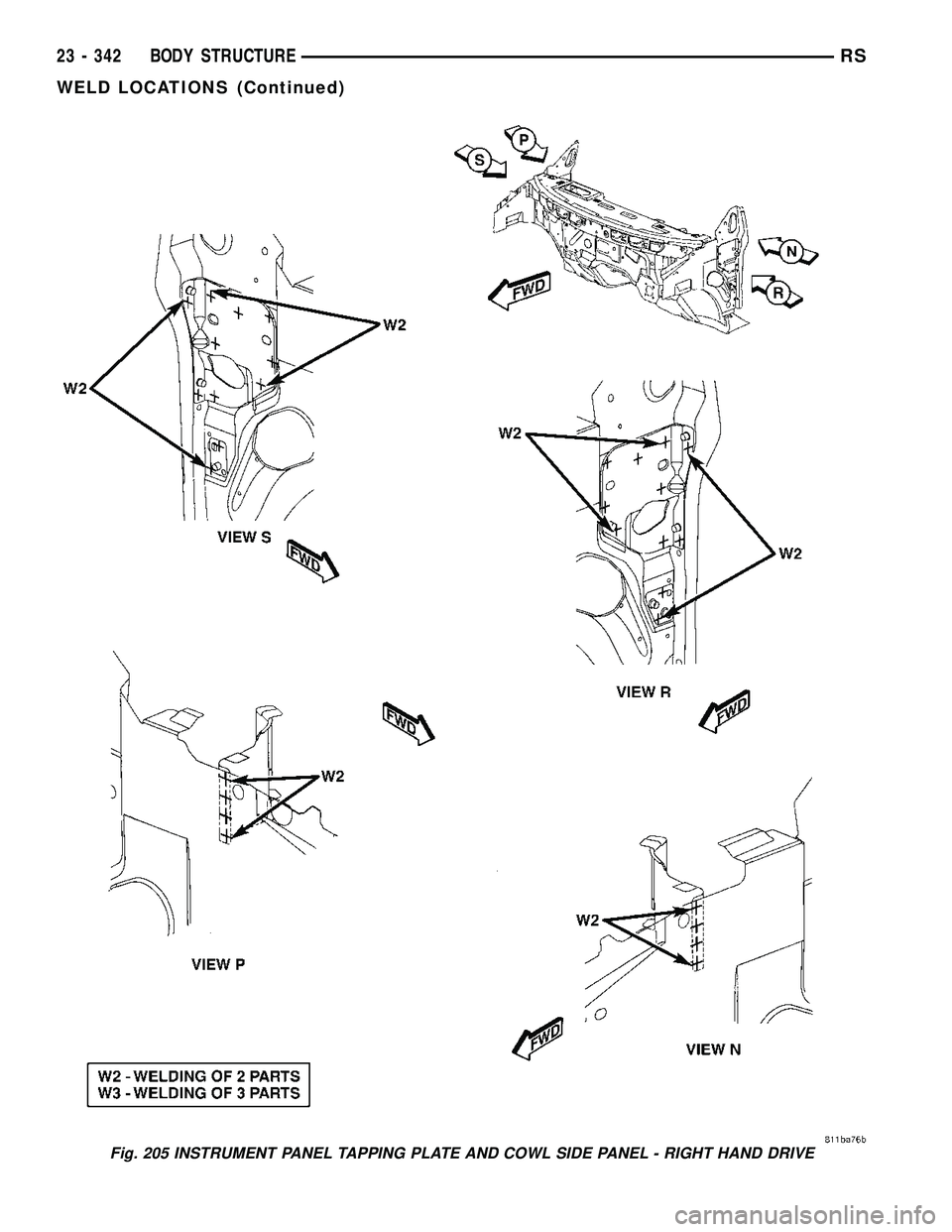

CHRYSLER VOYAGER 2005 Service Manual Fig. 205 INSTRUMENT PANEL TAPPING PLATE AND COWL SIDE PANEL - RIGHT HAND DRIVE 23 - 342 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2122 of 2339

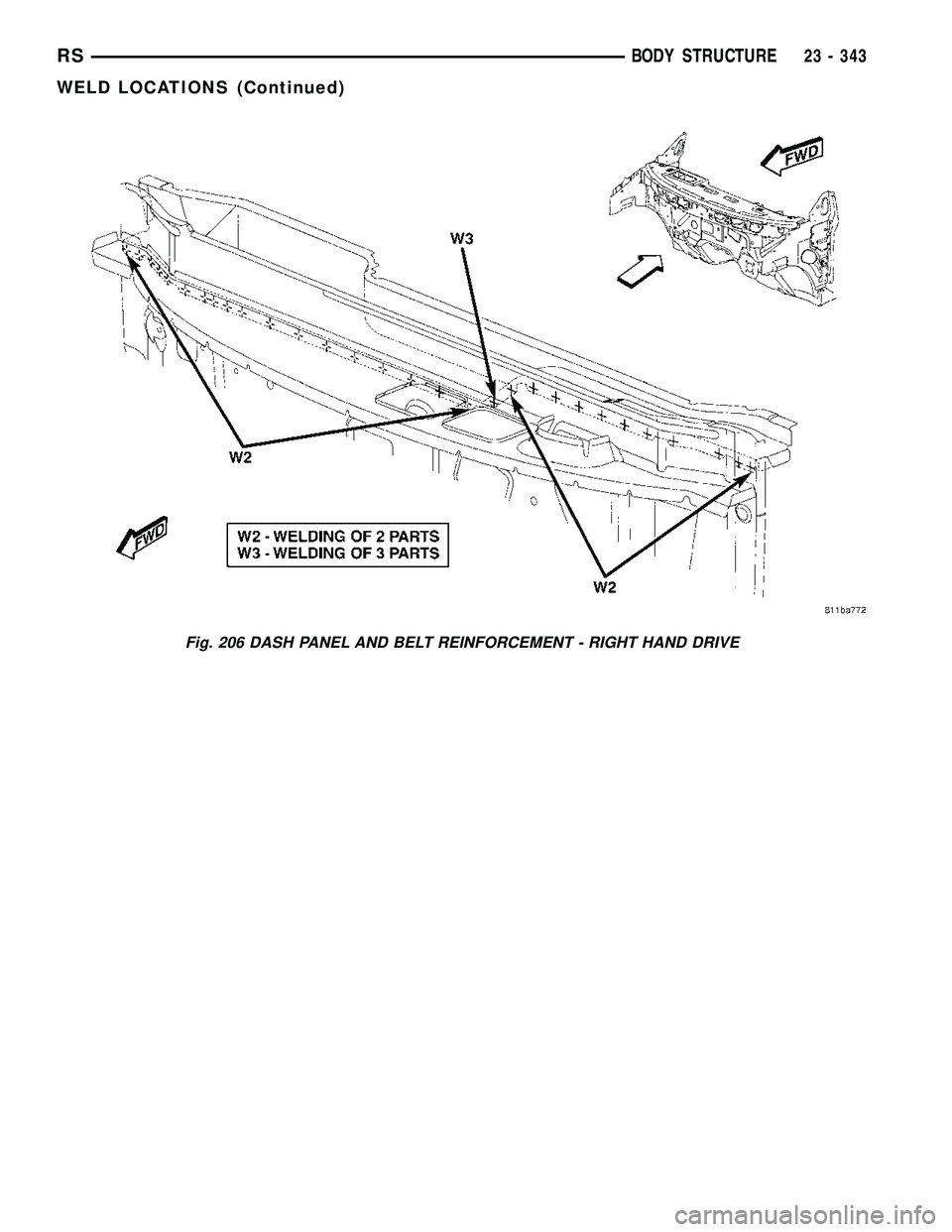

CHRYSLER VOYAGER 2005 Service Manual Fig. 206 DASH PANEL AND BELT REINFORCEMENT - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 343 WELD LOCATIONS (Continued)

Page 2123 of 2339

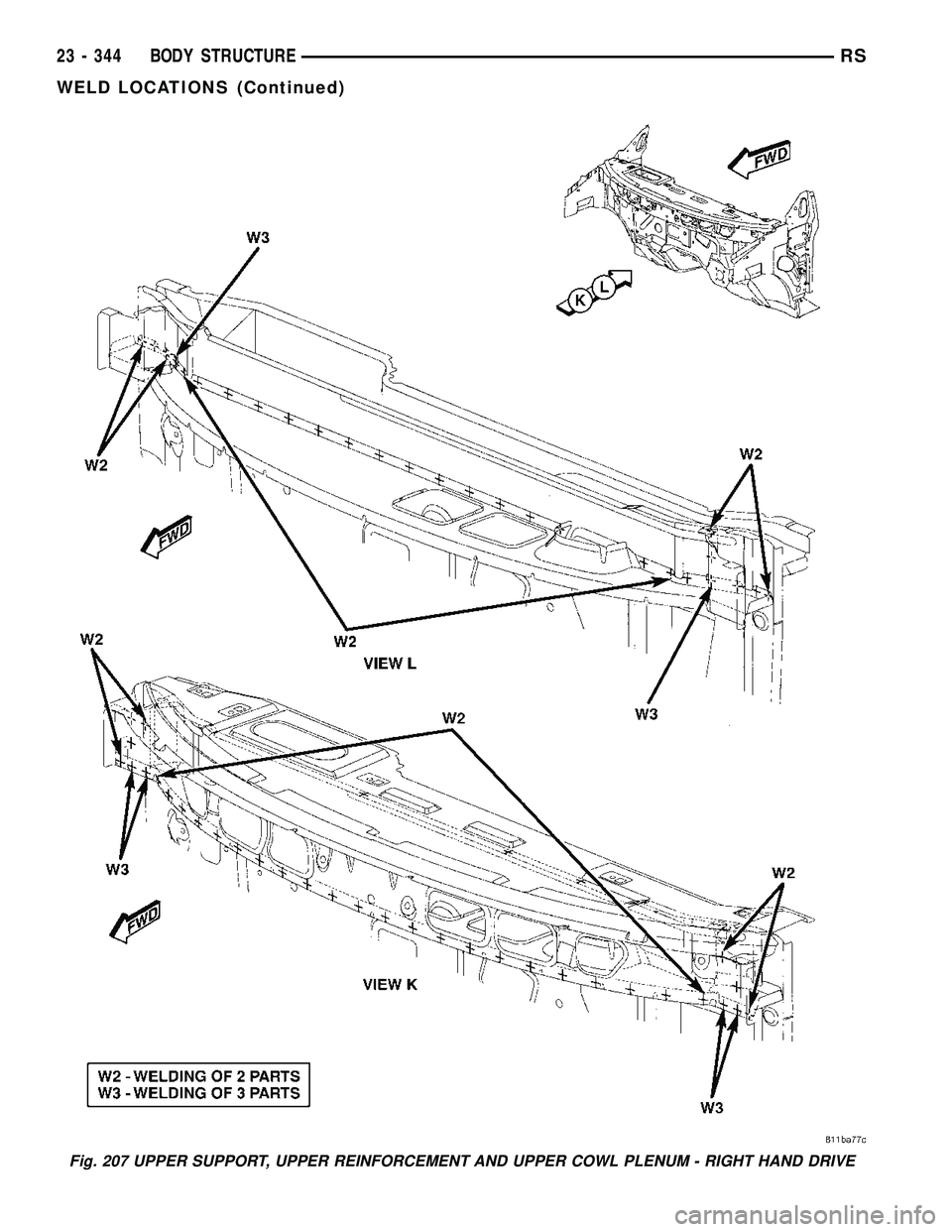

CHRYSLER VOYAGER 2005 Service Manual Fig. 207 UPPER SUPPORT, UPPER REINFORCEMENT AND UPPER COWL PLENUM - RIGHT HAND DRIVE 23 - 344 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2124 of 2339

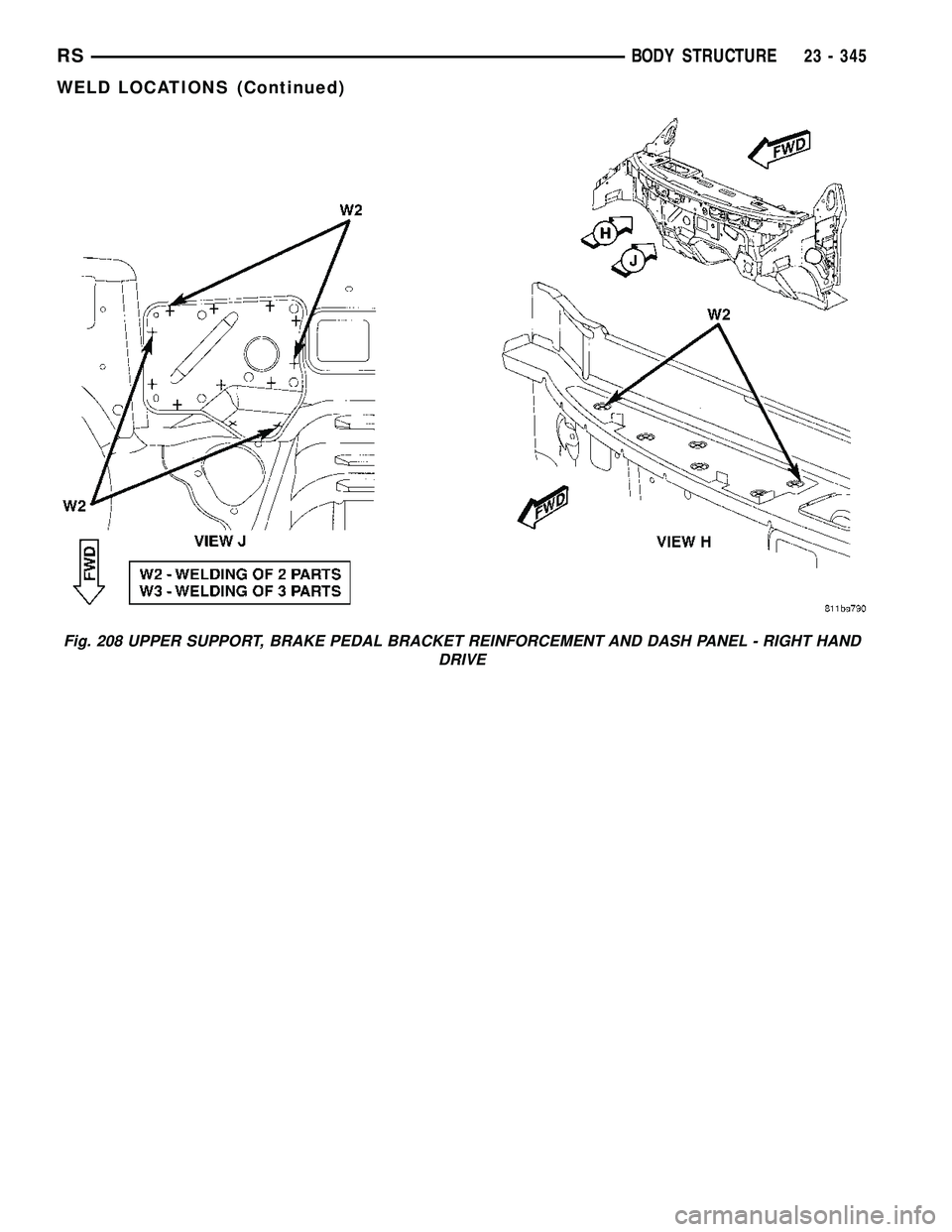

CHRYSLER VOYAGER 2005 Service Manual Fig. 208 UPPER SUPPORT, BRAKE PEDAL BRACKET REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 345 WELD LOCATIONS (Continued)

Page 2125 of 2339

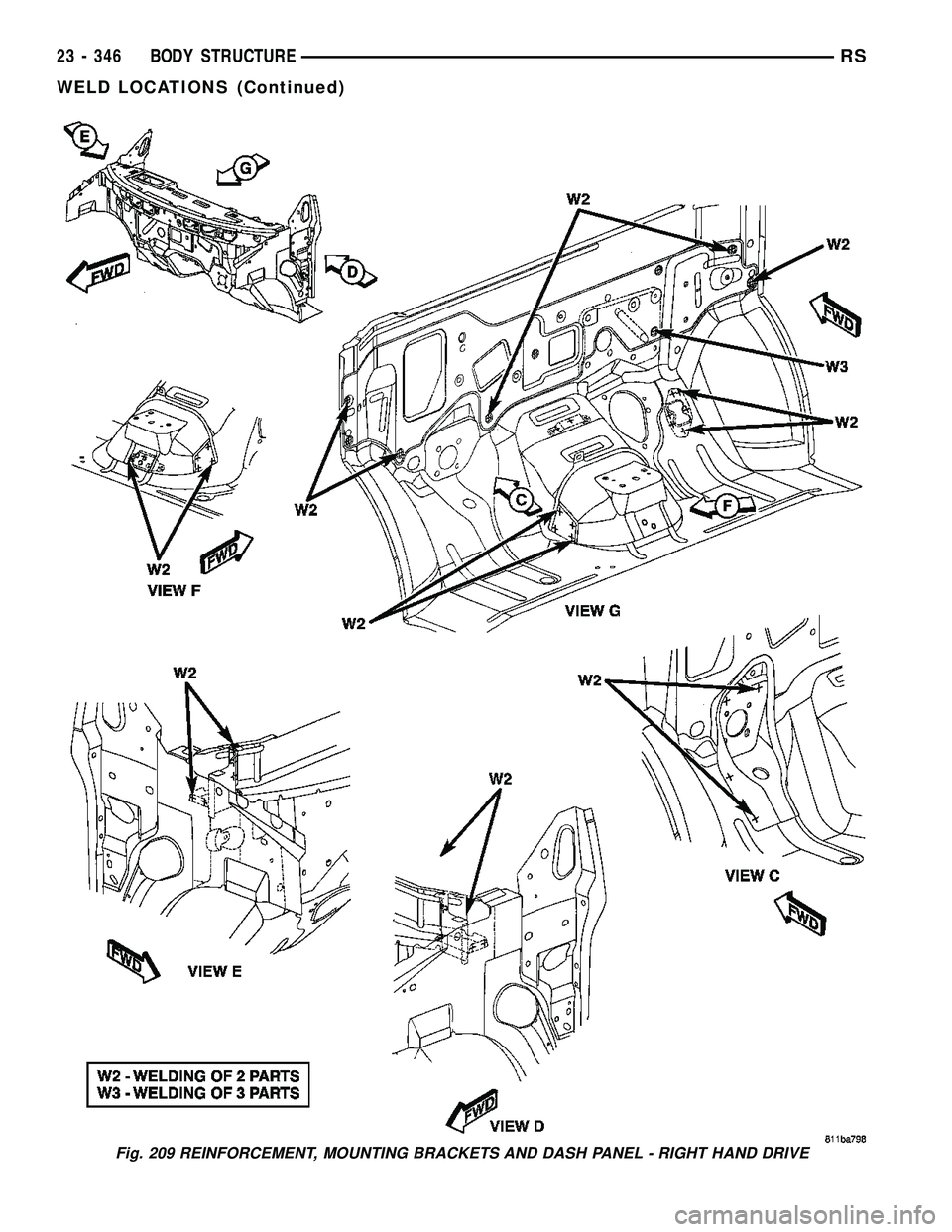

CHRYSLER VOYAGER 2005 Service Manual Fig. 209 REINFORCEMENT, MOUNTING BRACKETS AND DASH PANEL - RIGHT HAND DRIVE 23 - 346 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2126 of 2339

CHRYSLER VOYAGER 2005 Service Manual Fig. 210 STRUT TOWER, COWL SIDE PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 347 WELD LOCATIONS (Continued)

Page 2127 of 2339

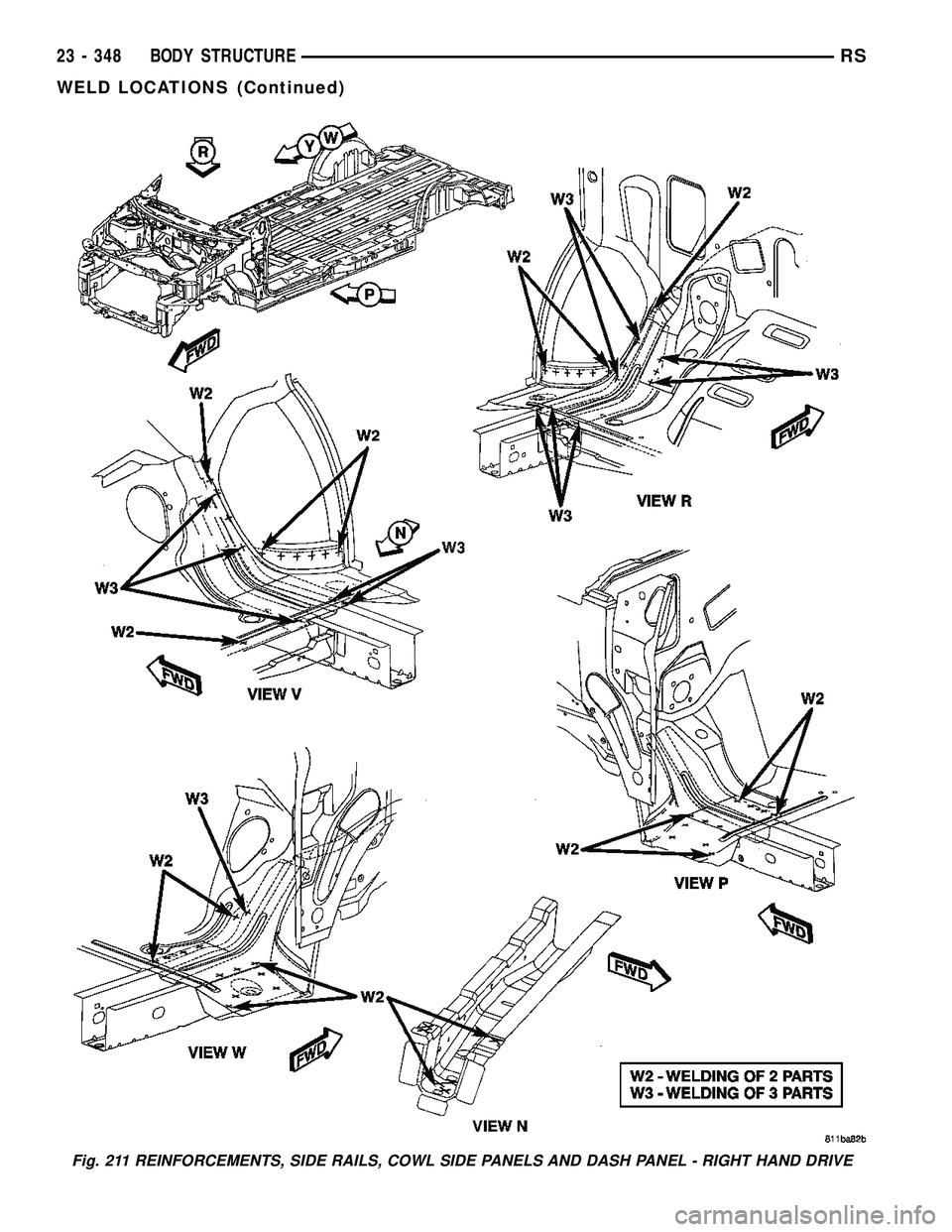

CHRYSLER VOYAGER 2005 Service Manual Fig. 211 REINFORCEMENTS, SIDE RAILS, COWL SIDE PANELS AND DASH PANEL - RIGHT HAND DRIVE 23 - 348 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2128 of 2339

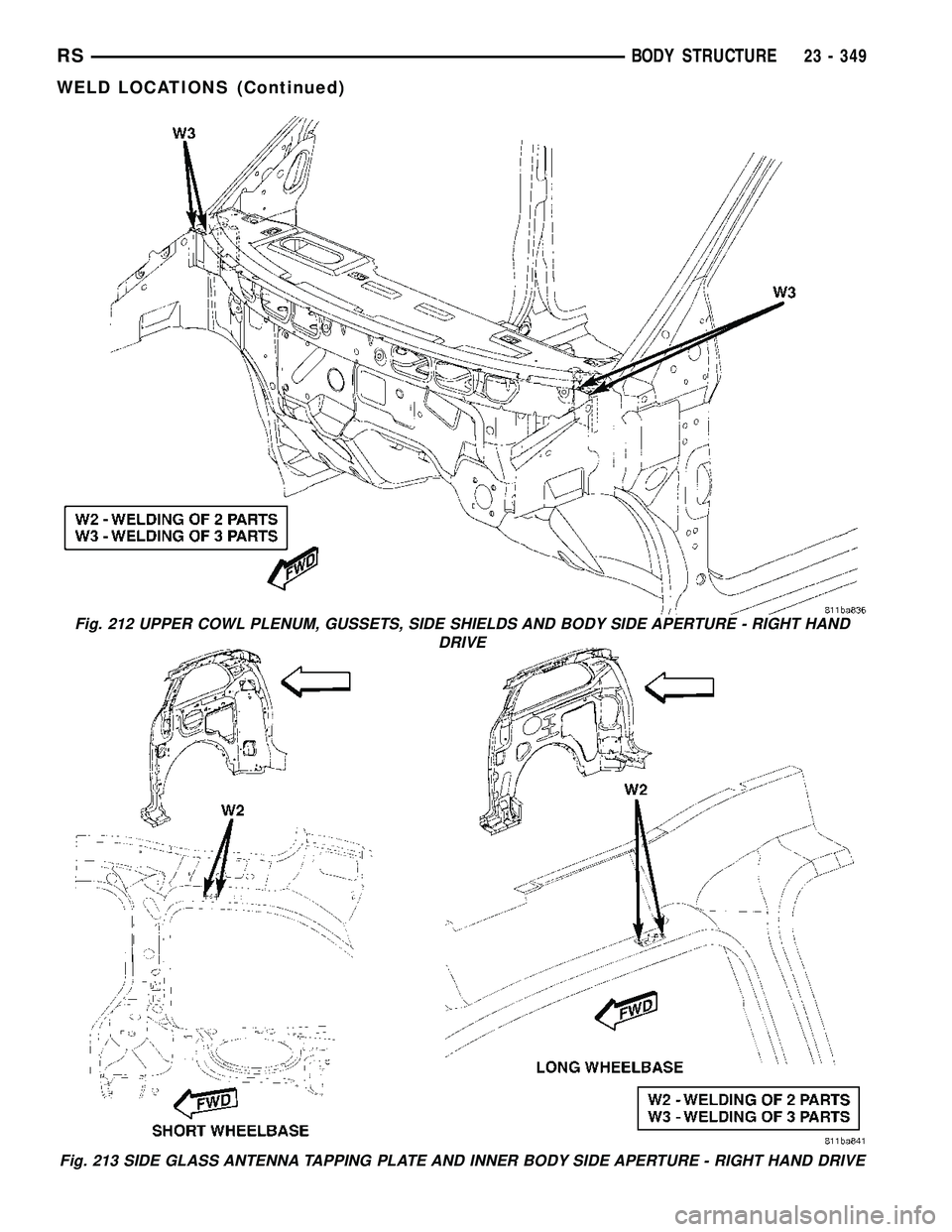

CHRYSLER VOYAGER 2005 Service Manual Fig. 212 UPPER COWL PLENUM, GUSSETS, SIDE SHIELDS AND BODY SIDE APERTURE - RIGHT HAND DRIVE Fig. 213 SIDE GLASS ANTENNA TAPPING PLATE AND INNER BODY SIDE APERTURE - RIGHT HAND DRIVE RSBODY STRUCTURE23
