Page 2033 of 2339

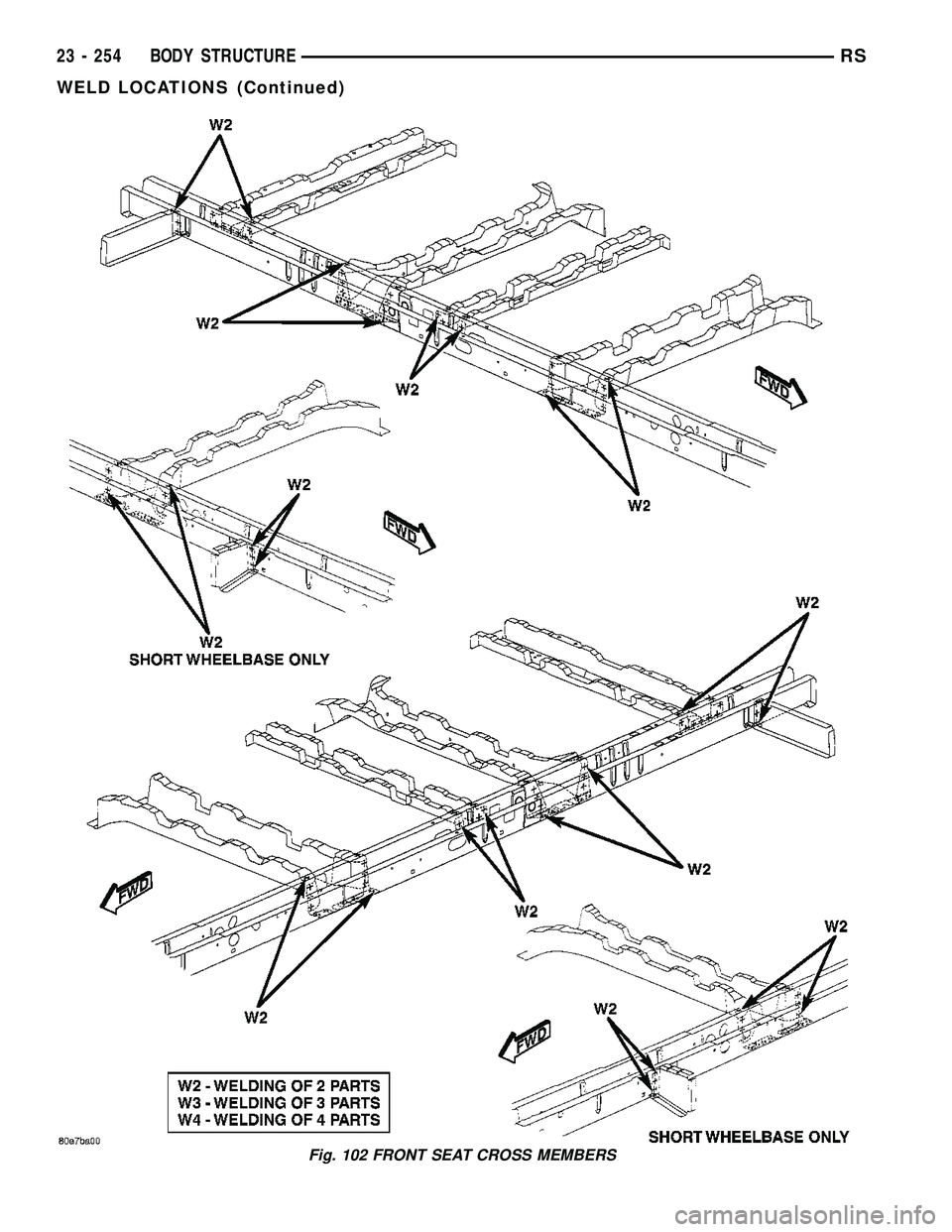

CHRYSLER VOYAGER 2005 Service Manual Fig. 102 FRONT SEAT CROSS MEMBERS 23 - 254 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2034 of 2339

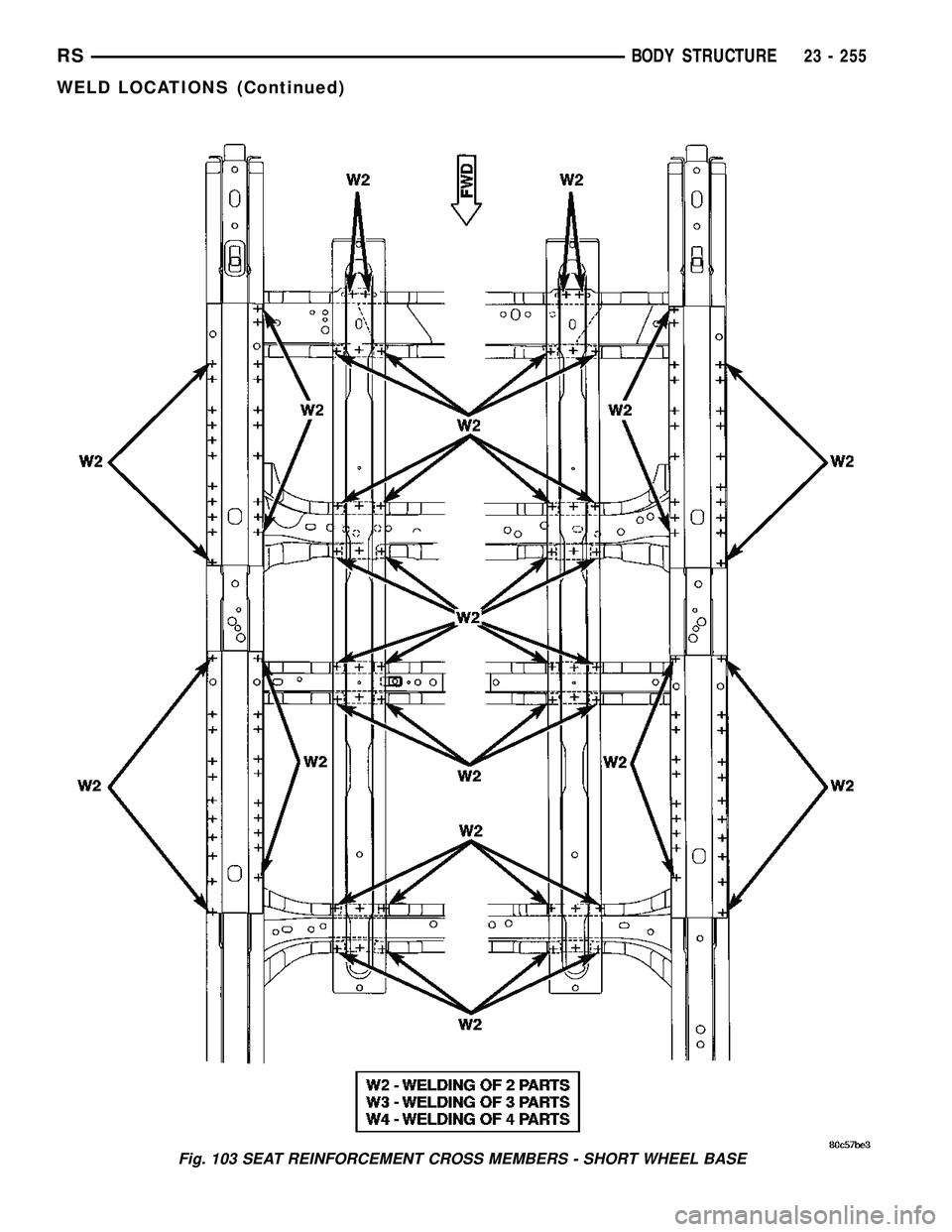

CHRYSLER VOYAGER 2005 Service Manual Fig. 103 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE RSBODY STRUCTURE23 - 255 WELD LOCATIONS (Continued)

Page 2035 of 2339

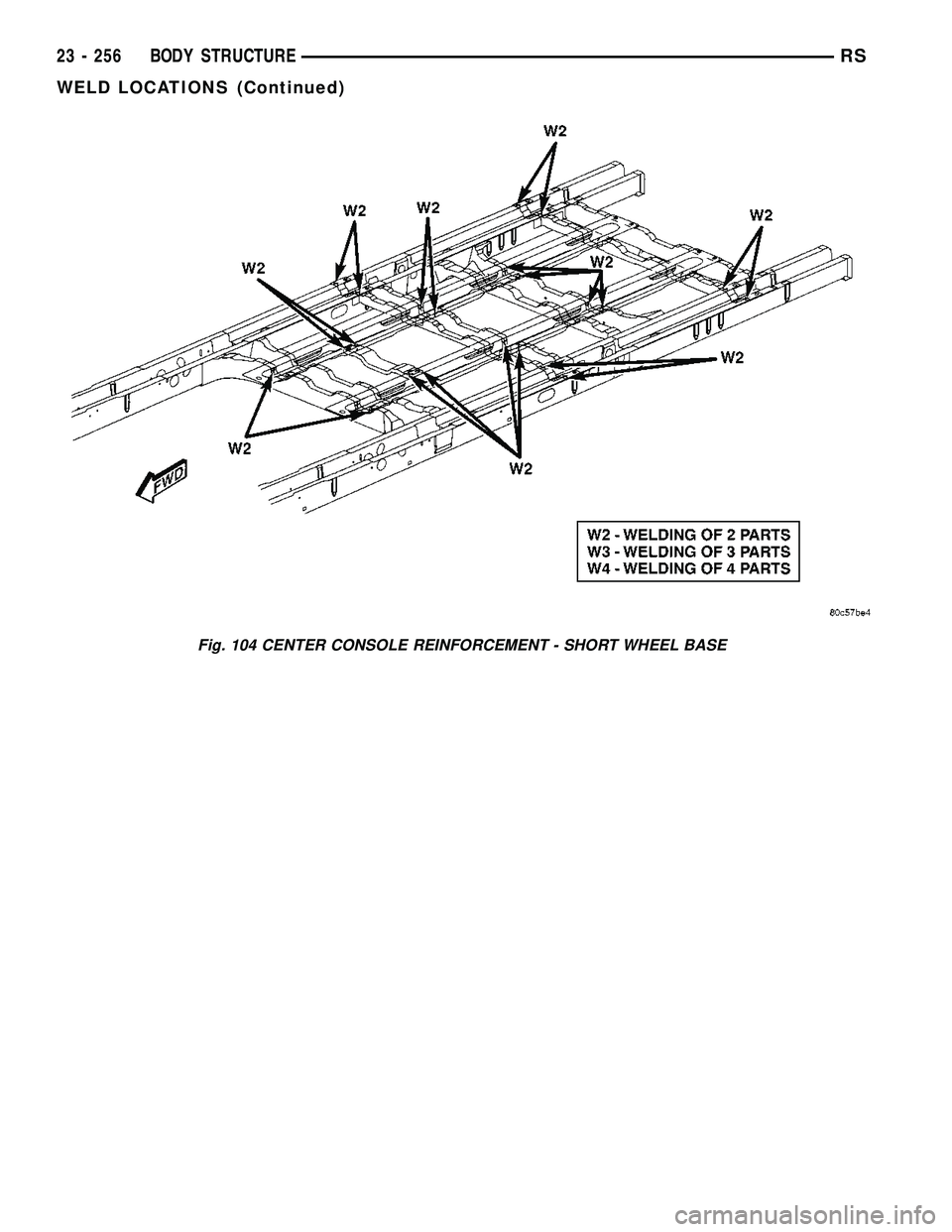

CHRYSLER VOYAGER 2005 Service Manual Fig. 104 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE 23 - 256 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2036 of 2339

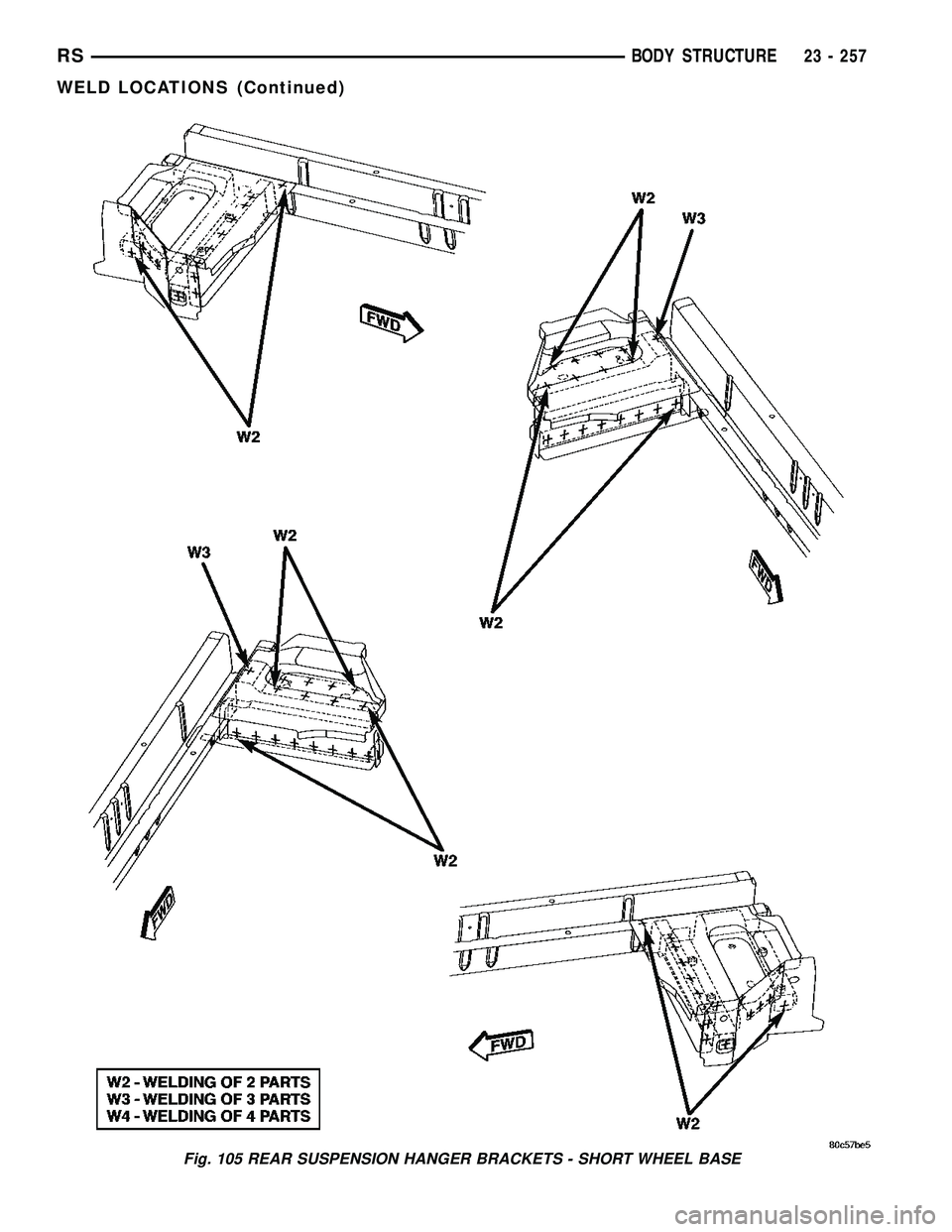

CHRYSLER VOYAGER 2005 Service Manual Fig. 105 REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE RSBODY STRUCTURE23 - 257 WELD LOCATIONS (Continued)

Page 2037 of 2339

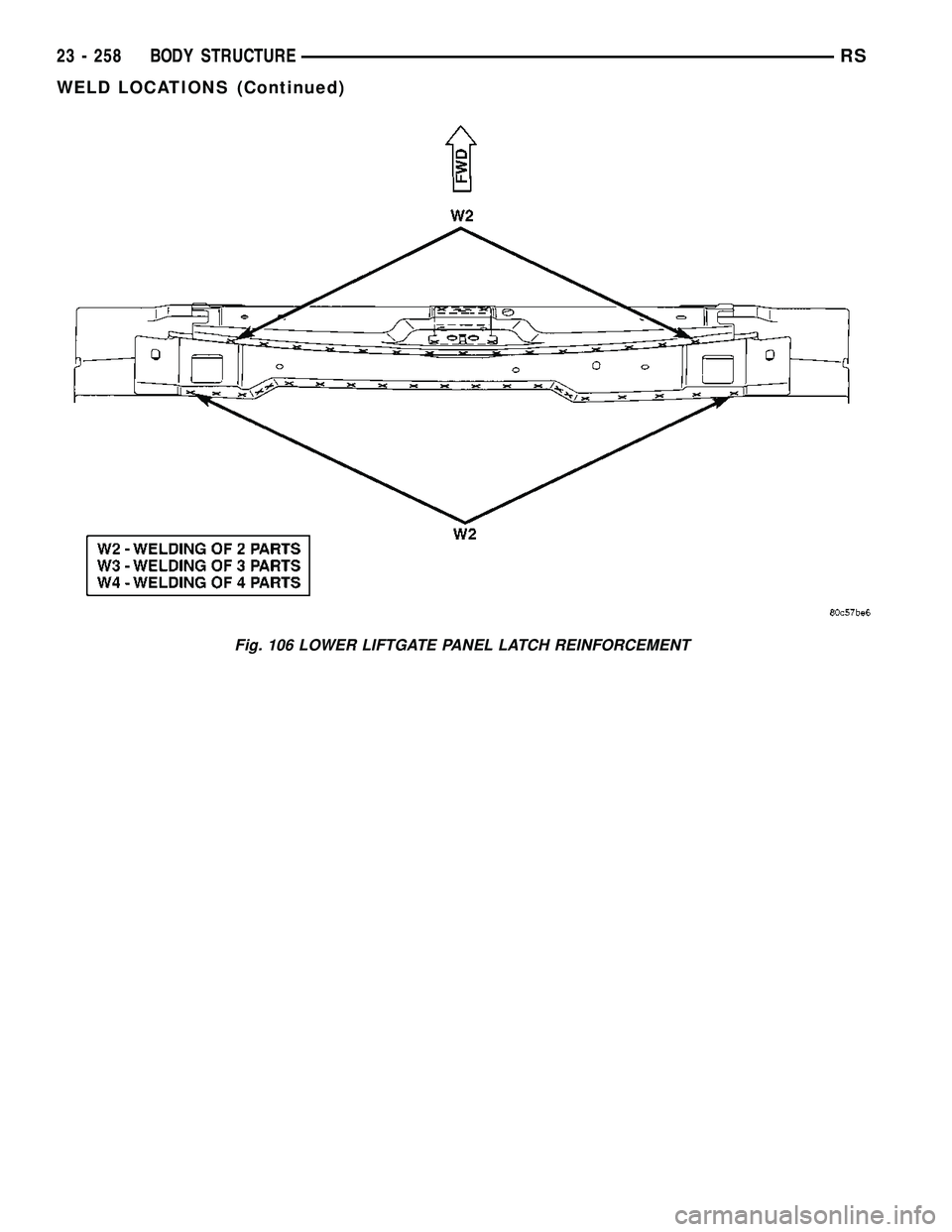

CHRYSLER VOYAGER 2005 Service Manual Fig. 106 LOWER LIFTGATE PANEL LATCH REINFORCEMENT 23 - 258 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2038 of 2339

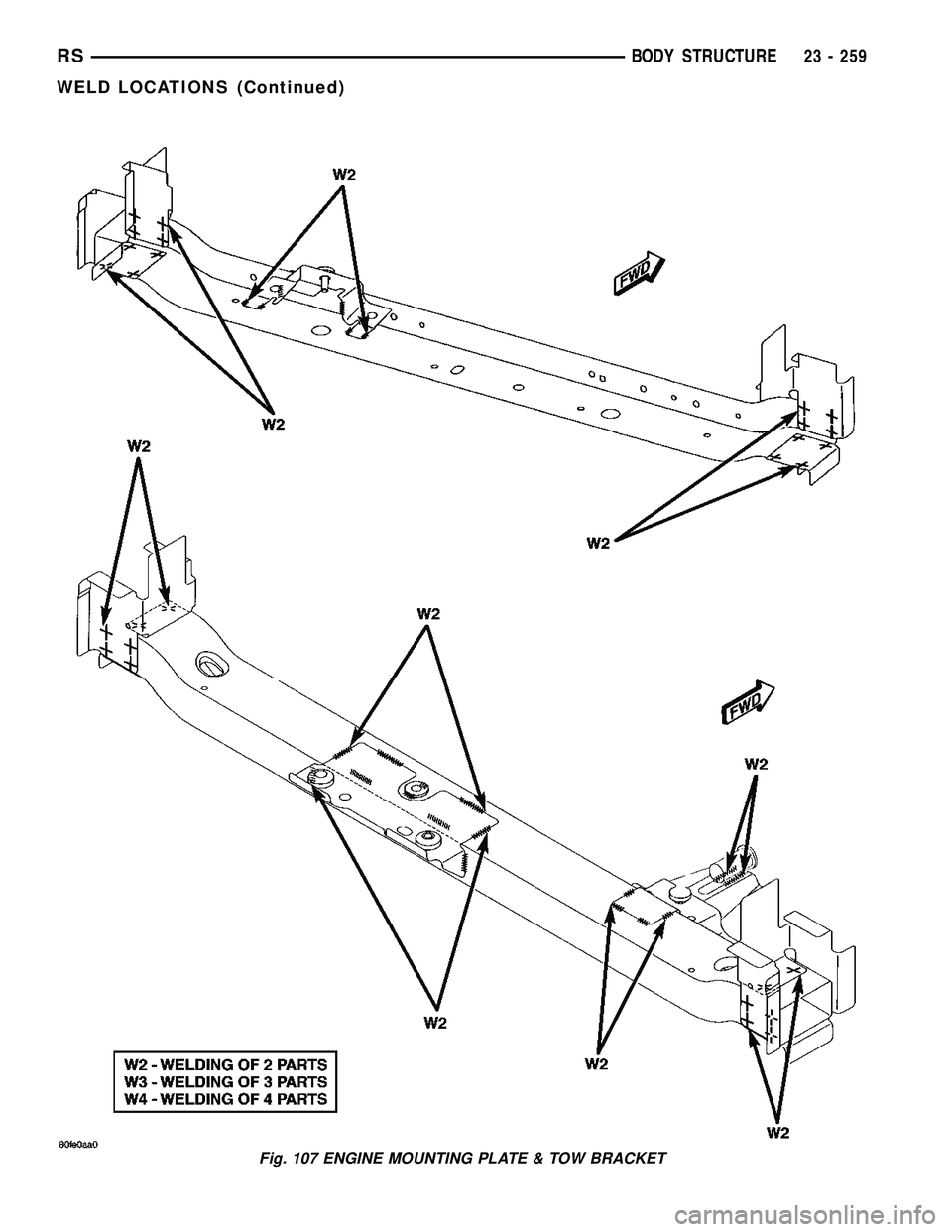

CHRYSLER VOYAGER 2005 Service Manual Fig. 107 ENGINE MOUNTING PLATE & TOW BRACKET RSBODY STRUCTURE23 - 259 WELD LOCATIONS (Continued)

Page 2039 of 2339

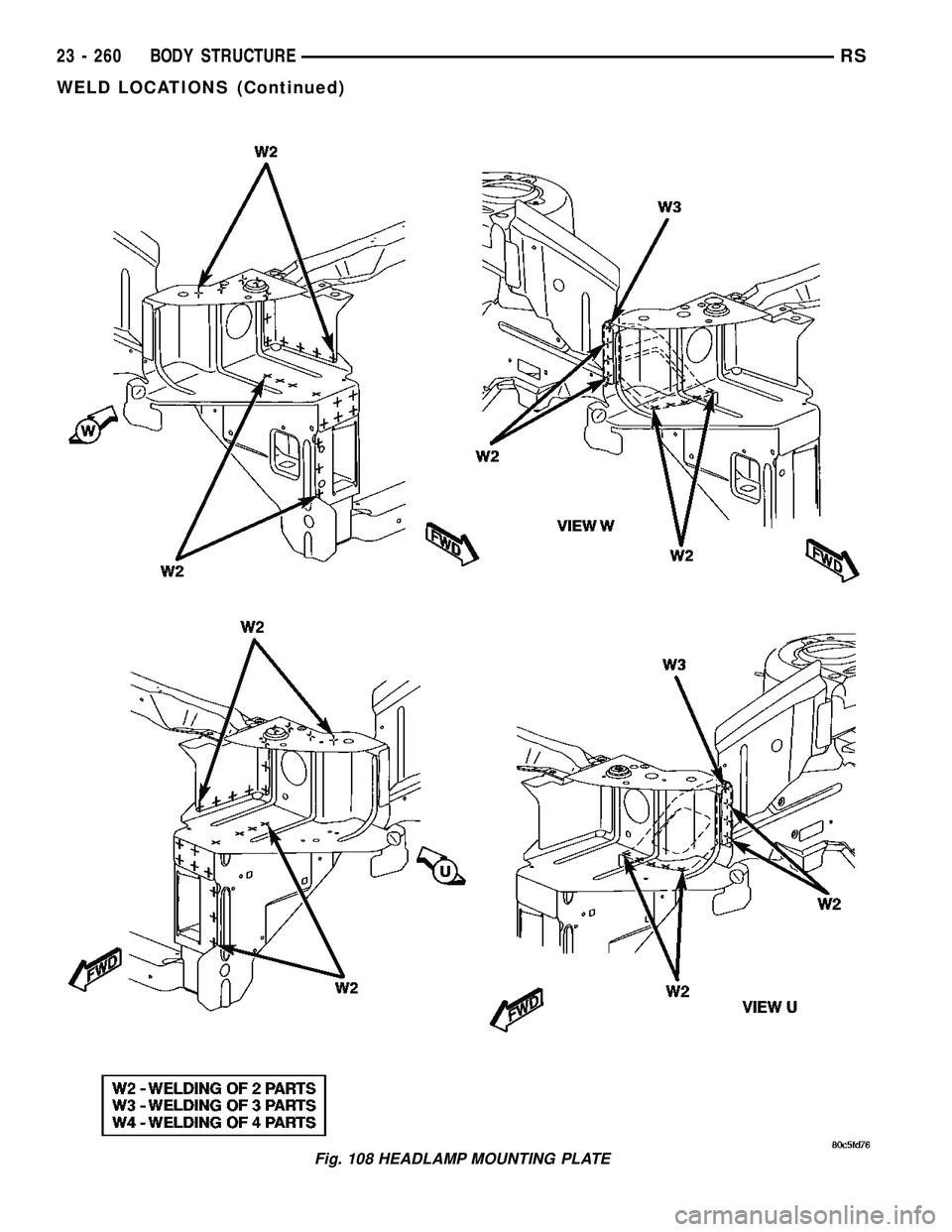

CHRYSLER VOYAGER 2005 Service Manual Fig. 108 HEADLAMP MOUNTING PLATE 23 - 260 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2040 of 2339

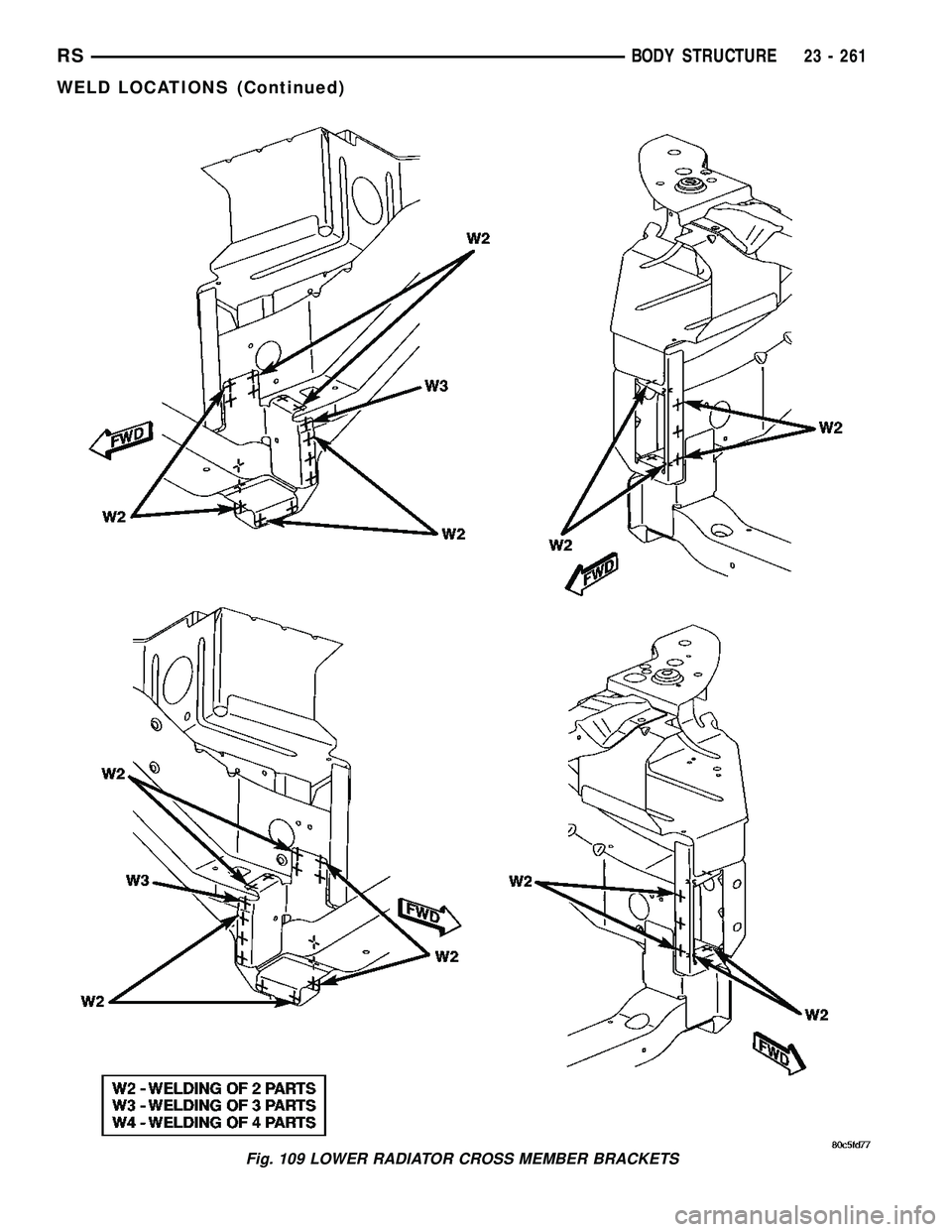

CHRYSLER VOYAGER 2005 Service Manual Fig. 109 LOWER RADIATOR CROSS MEMBER BRACKETS RSBODY STRUCTURE23 - 261 WELD LOCATIONS (Continued)
