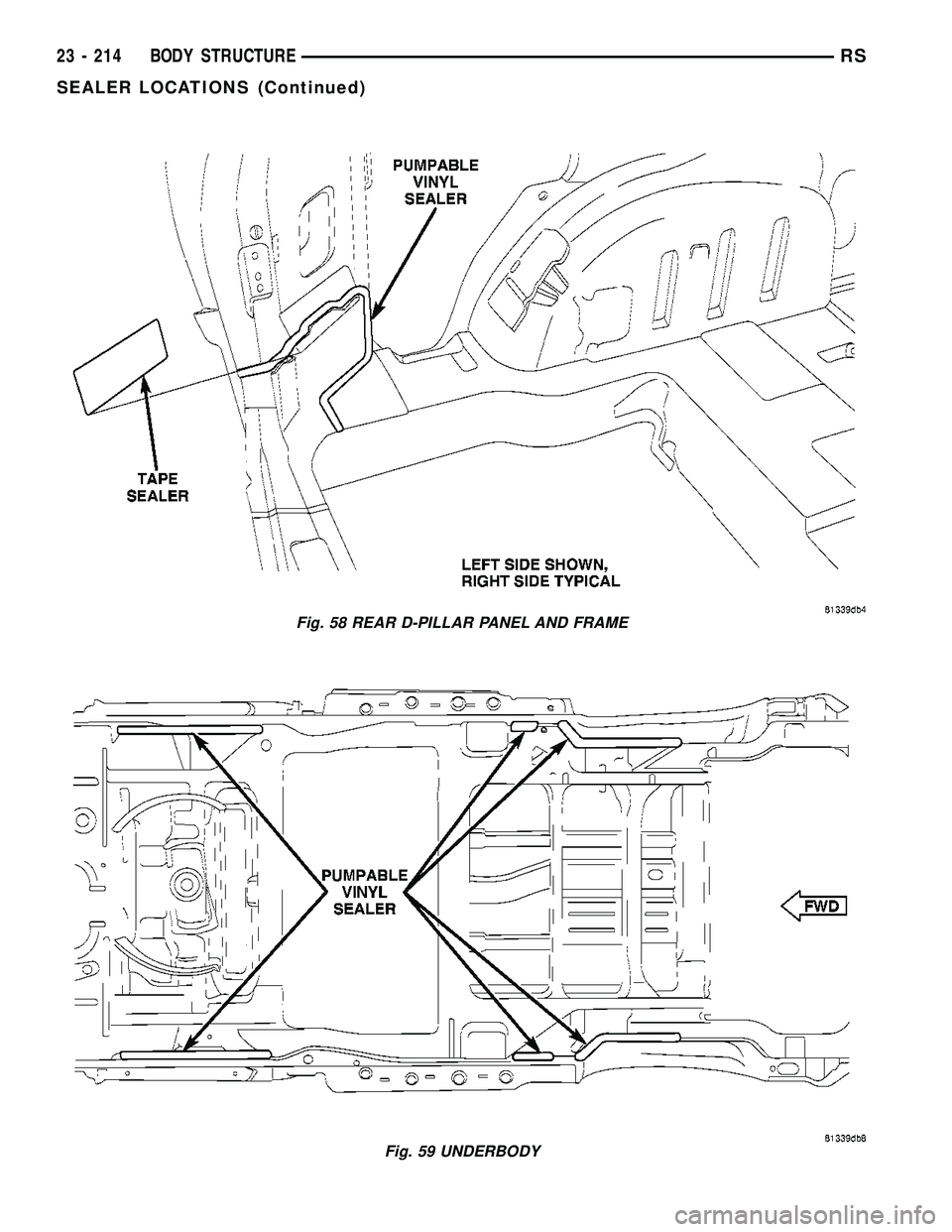

CHRYSLER VOYAGER 2005 Service Manual Fig. 58 REAR D-PILLAR PANEL AND FRAME Fig. 59 UNDERBODY 23 - 214 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1994 of 2339

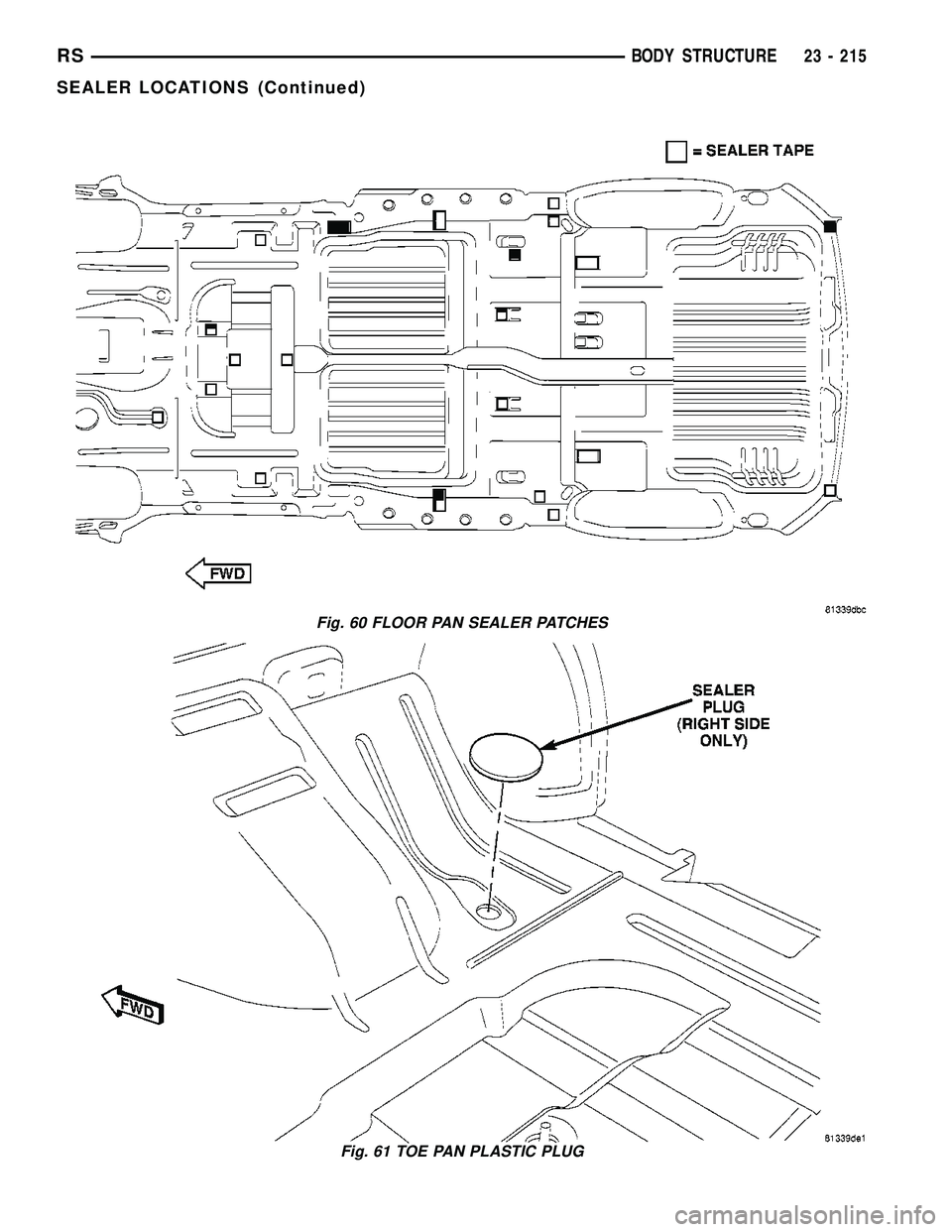

CHRYSLER VOYAGER 2005 Service Manual Fig. 60 FLOOR PAN SEALER PATCHES Fig. 61 TOE PAN PLASTIC PLUG RSBODY STRUCTURE23 - 215 SEALER LOCATIONS (Continued)

Page 1995 of 2339

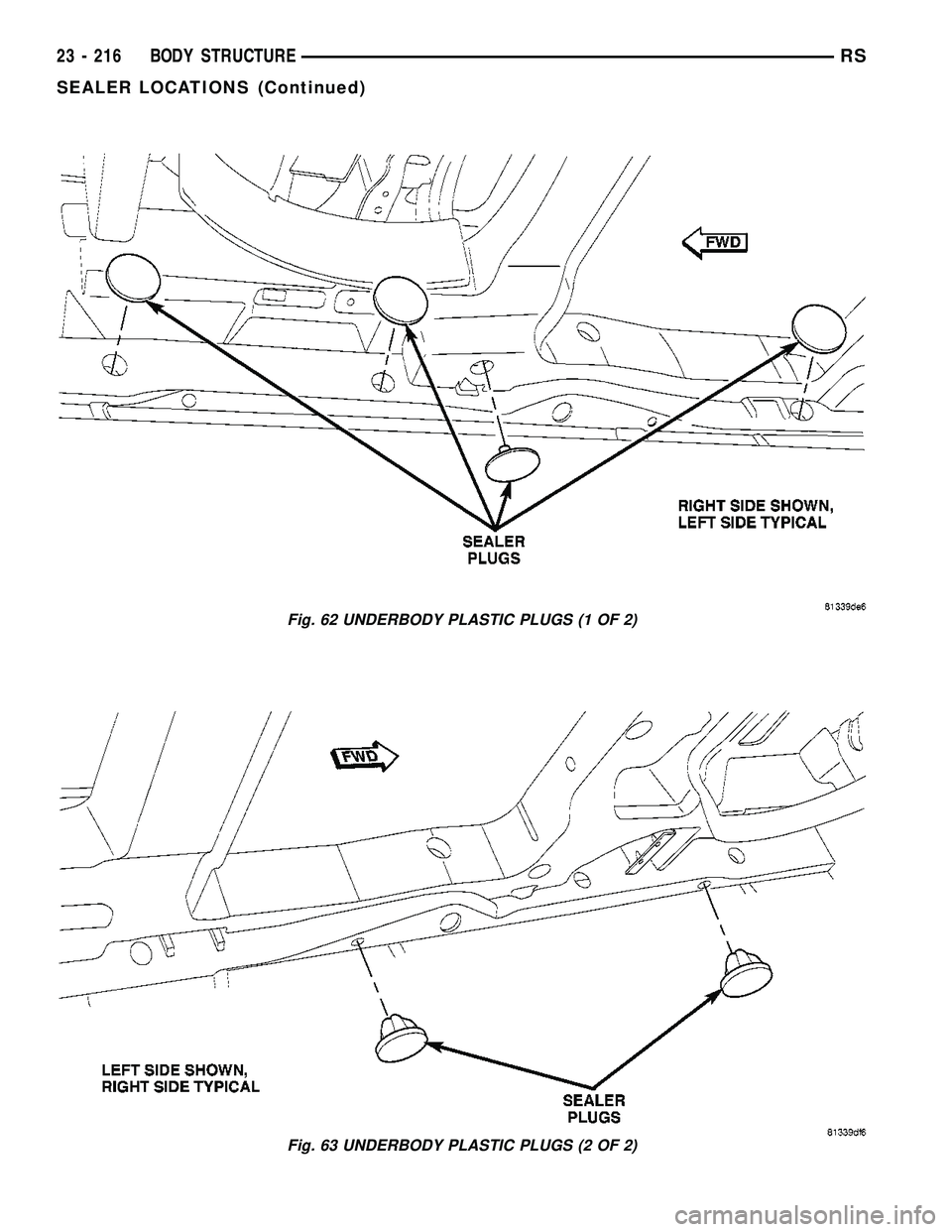

CHRYSLER VOYAGER 2005 Service Manual Fig. 62 UNDERBODY PLASTIC PLUGS (1 OF 2) Fig. 63 UNDERBODY PLASTIC PLUGS (2 OF 2) 23 - 216 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1996 of 2339

CHRYSLER VOYAGER 2005 Service Manual Fig. 64 REAR WHEELHOUSE PLASTIC PLUG RSBODY STRUCTURE23 - 217 SEALER LOCATIONS (Continued)

Page 1997 of 2339

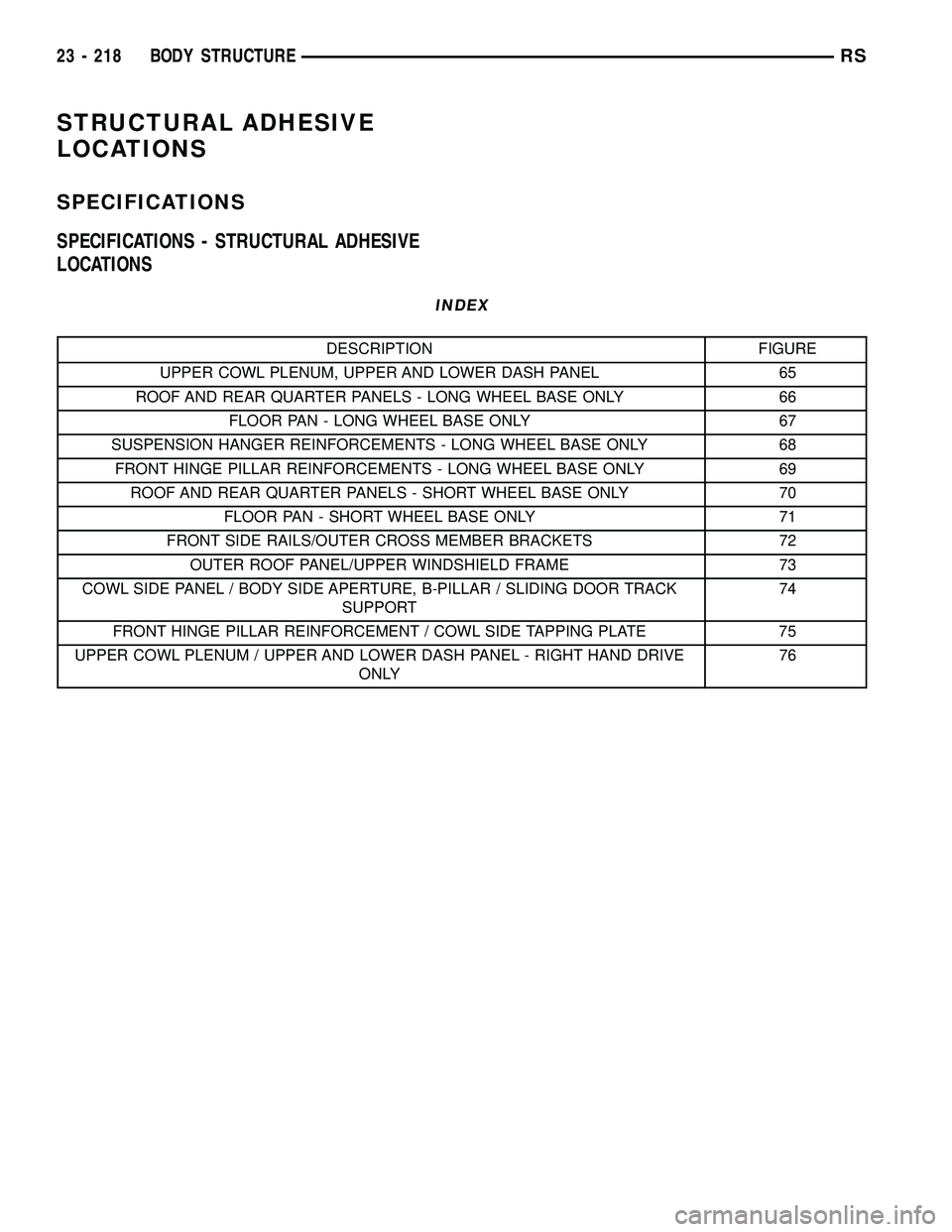

CHRYSLER VOYAGER 2005 Service Manual STRUCTURAL ADHESIVE LOCATIONS SPECIFICATIONS SPECIFICATIONS - STRUCTURAL ADHESIVE LOCATIONS INDEX DESCRIPTION FIGURE UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL 65 ROOF AND REAR QUARTER PANELS - LON

Page 1998 of 2339

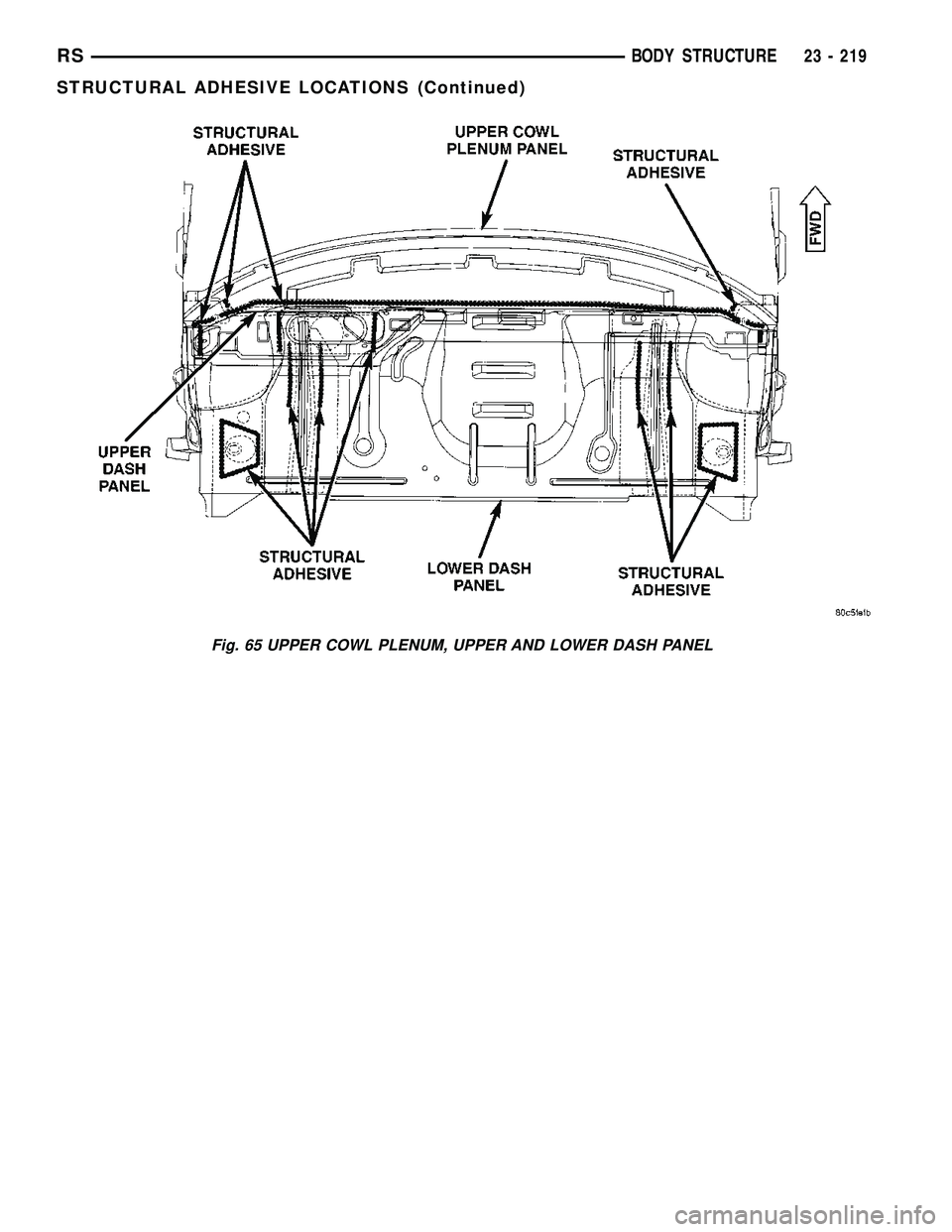

CHRYSLER VOYAGER 2005 Service Manual Fig. 65 UPPER COWL PLENUM, UPPER AND LOWER DASH PANEL RSBODY STRUCTURE23 - 219 STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 1999 of 2339

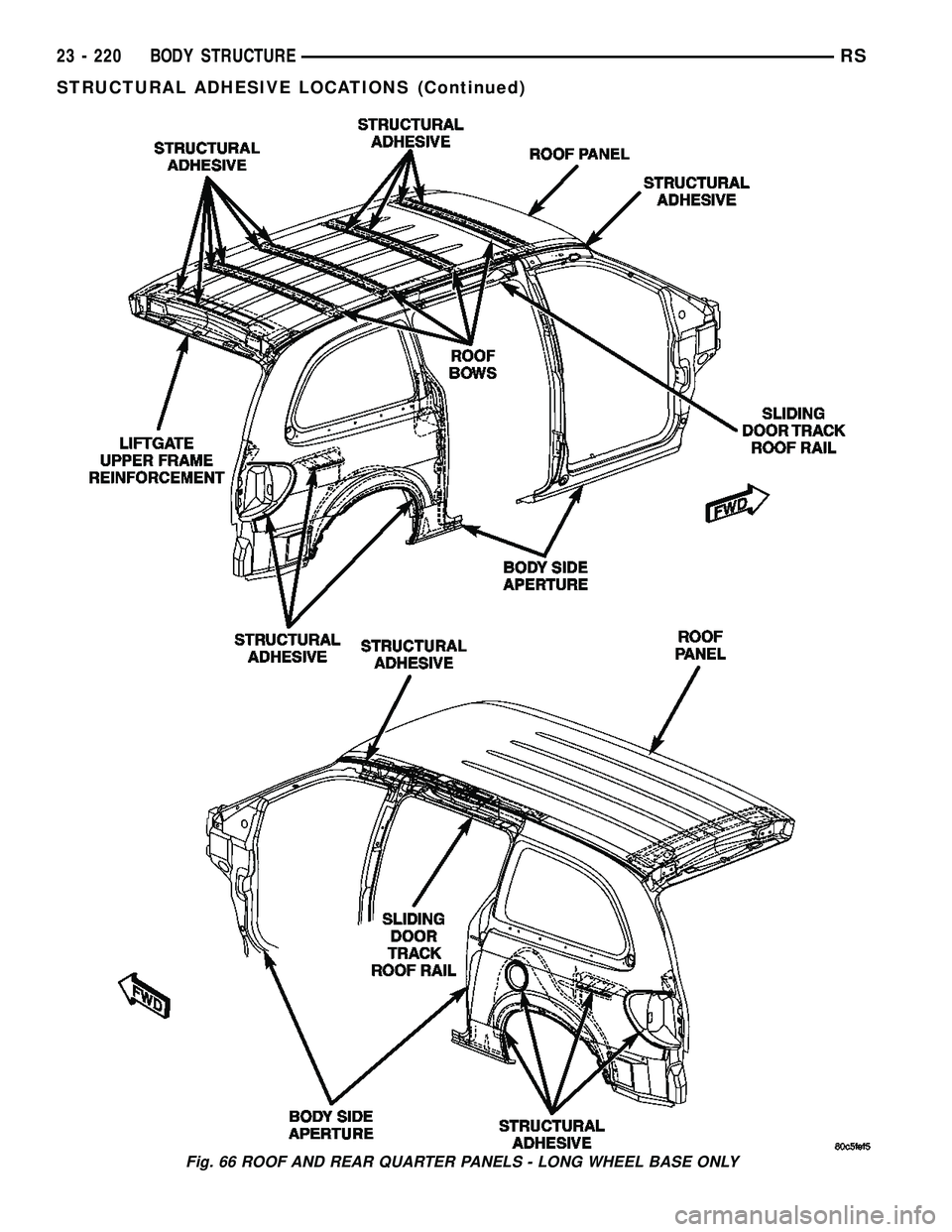

CHRYSLER VOYAGER 2005 Service Manual Fig. 66 ROOF AND REAR QUARTER PANELS - LONG WHEEL BASE ONLY 23 - 220 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2000 of 2339

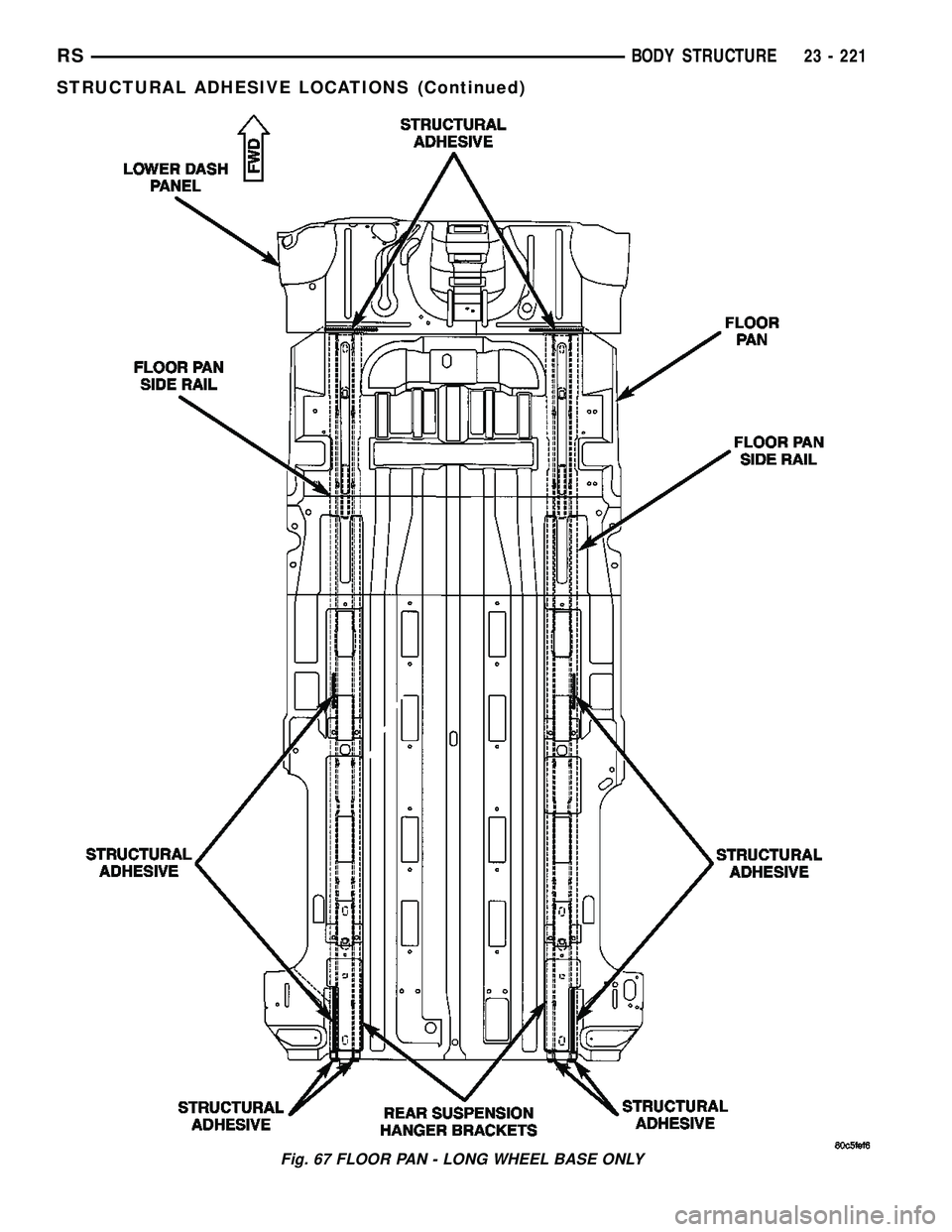

CHRYSLER VOYAGER 2005 Service Manual Fig. 67 FLOOR PAN - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 221 STRUCTURAL ADHESIVE LOCATIONS (Continued)
