Page 1969 of 2339

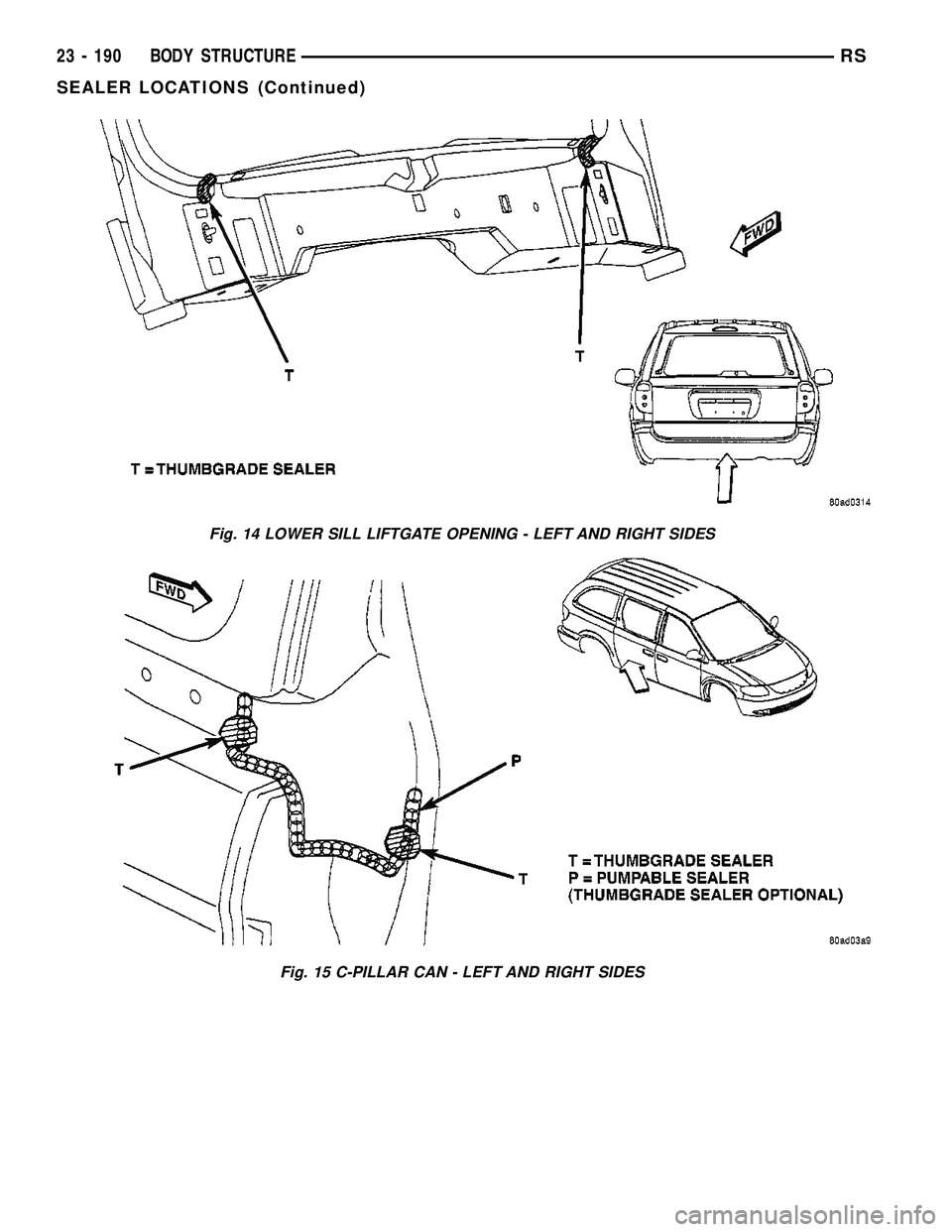

CHRYSLER VOYAGER 2005 Service Manual Fig. 14 LOWER SILL LIFTGATE OPENING - LEFT AND RIGHT SIDES Fig. 15 C-PILLAR CAN - LEFT AND RIGHT SIDES 23 - 190 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1970 of 2339

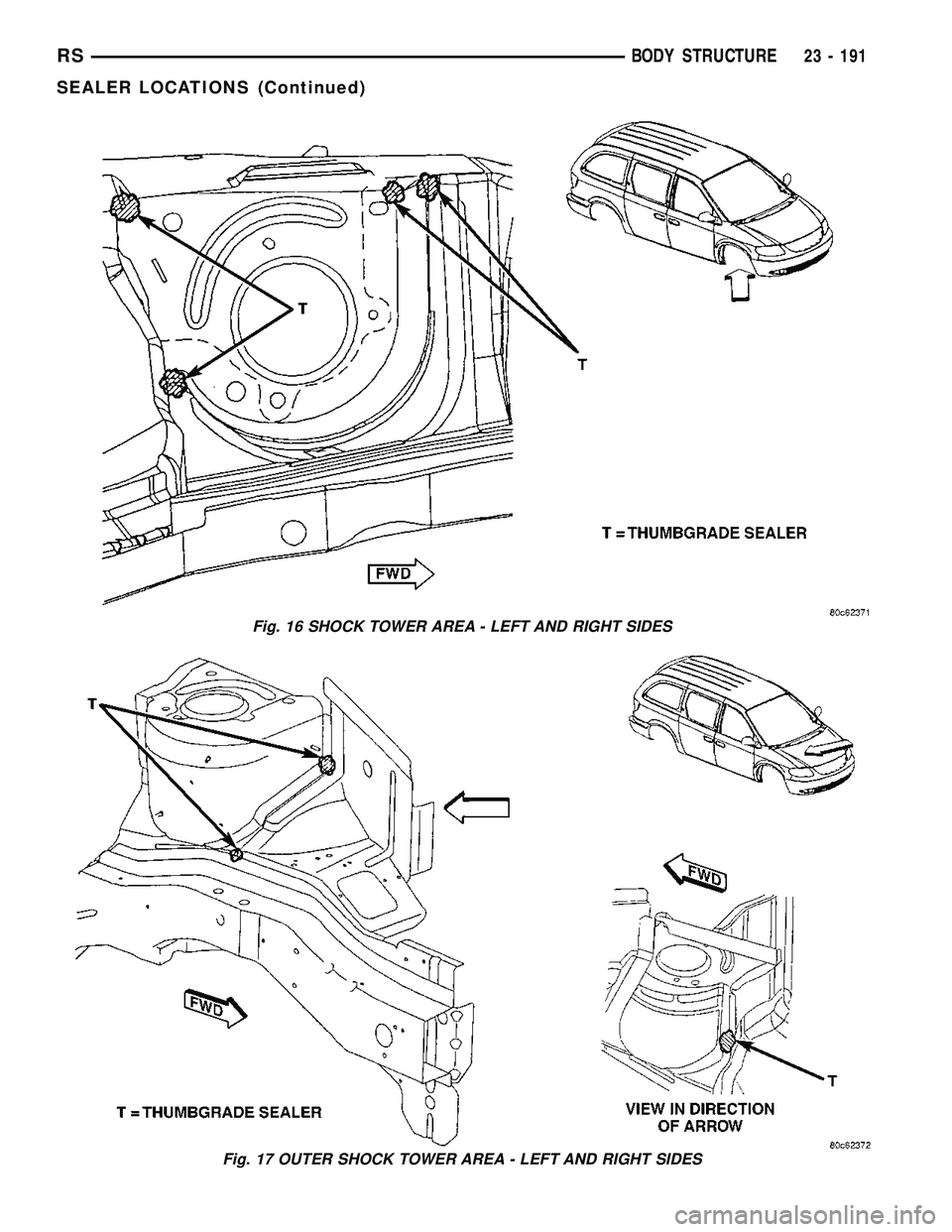

CHRYSLER VOYAGER 2005 Service Manual Fig. 16 SHOCK TOWER AREA - LEFT AND RIGHT SIDES Fig. 17 OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 191 SEALER LOCATIONS (Continued)

Page 1971 of 2339

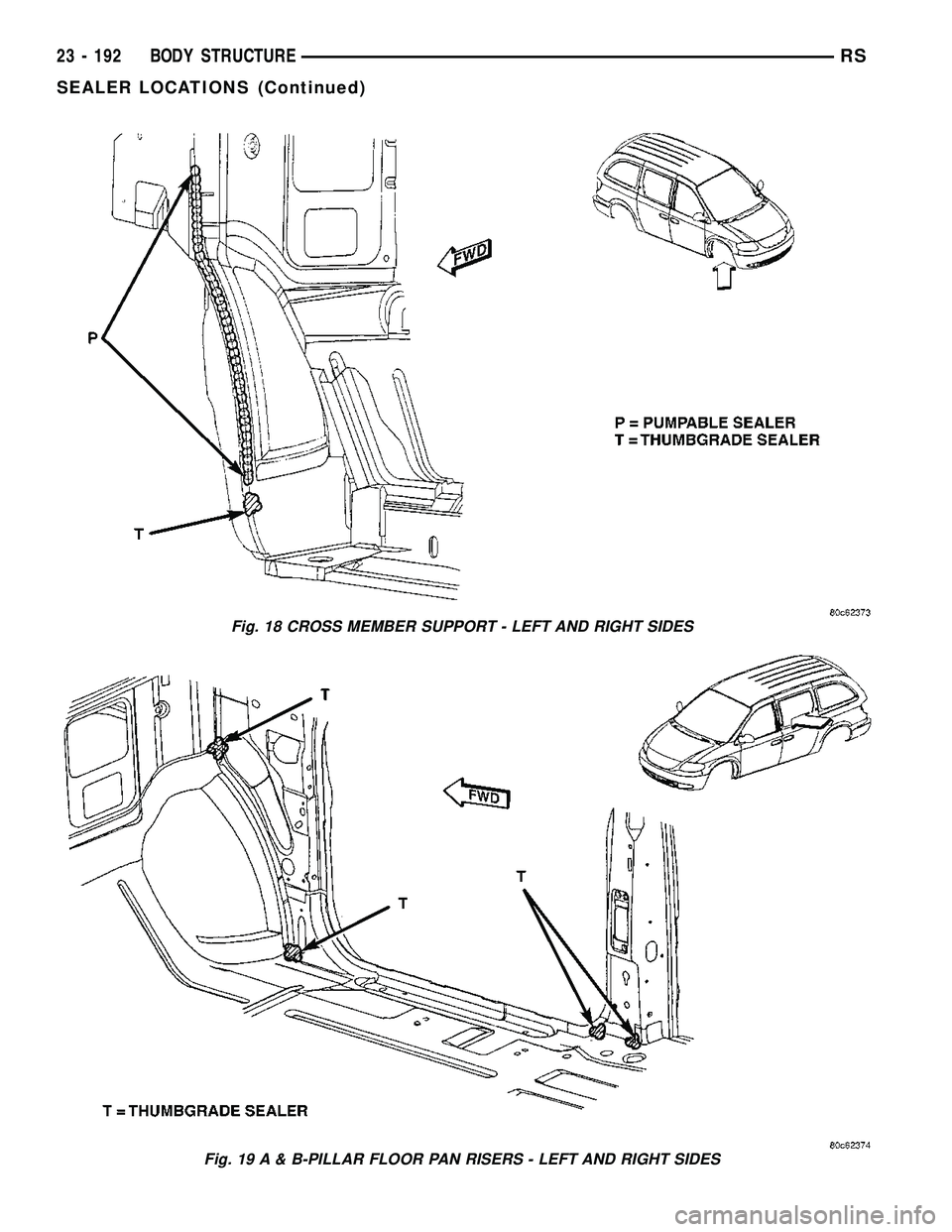

CHRYSLER VOYAGER 2005 Service Manual Fig. 18 CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES Fig. 19 A & B-PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES 23 - 192 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1972 of 2339

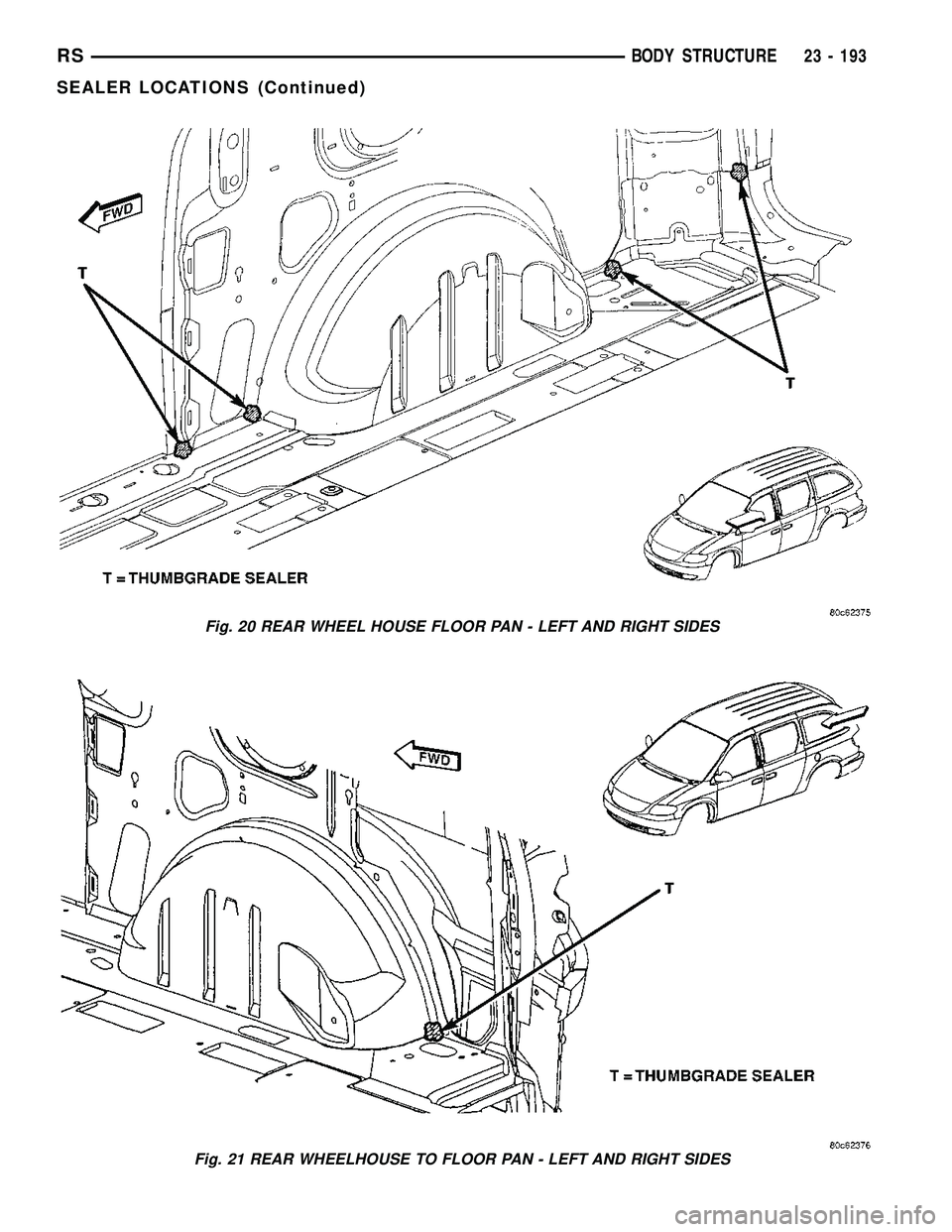

CHRYSLER VOYAGER 2005 Service Manual Fig. 20 REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES Fig. 21 REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 193 SEALER LOCATIONS (Continued)

Page 1973 of 2339

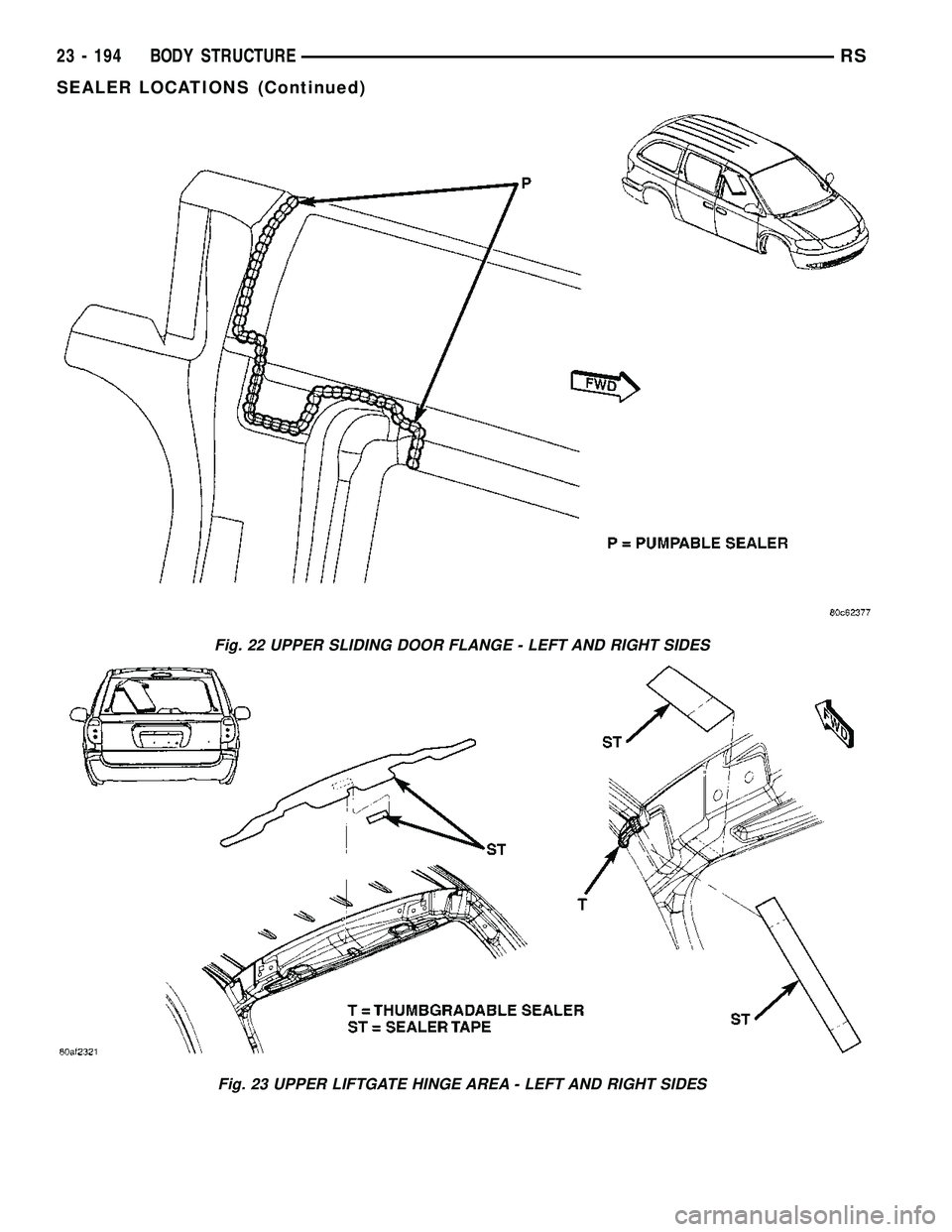

CHRYSLER VOYAGER 2005 Service Manual Fig. 22 UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES Fig. 23 UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES 23 - 194 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1974 of 2339

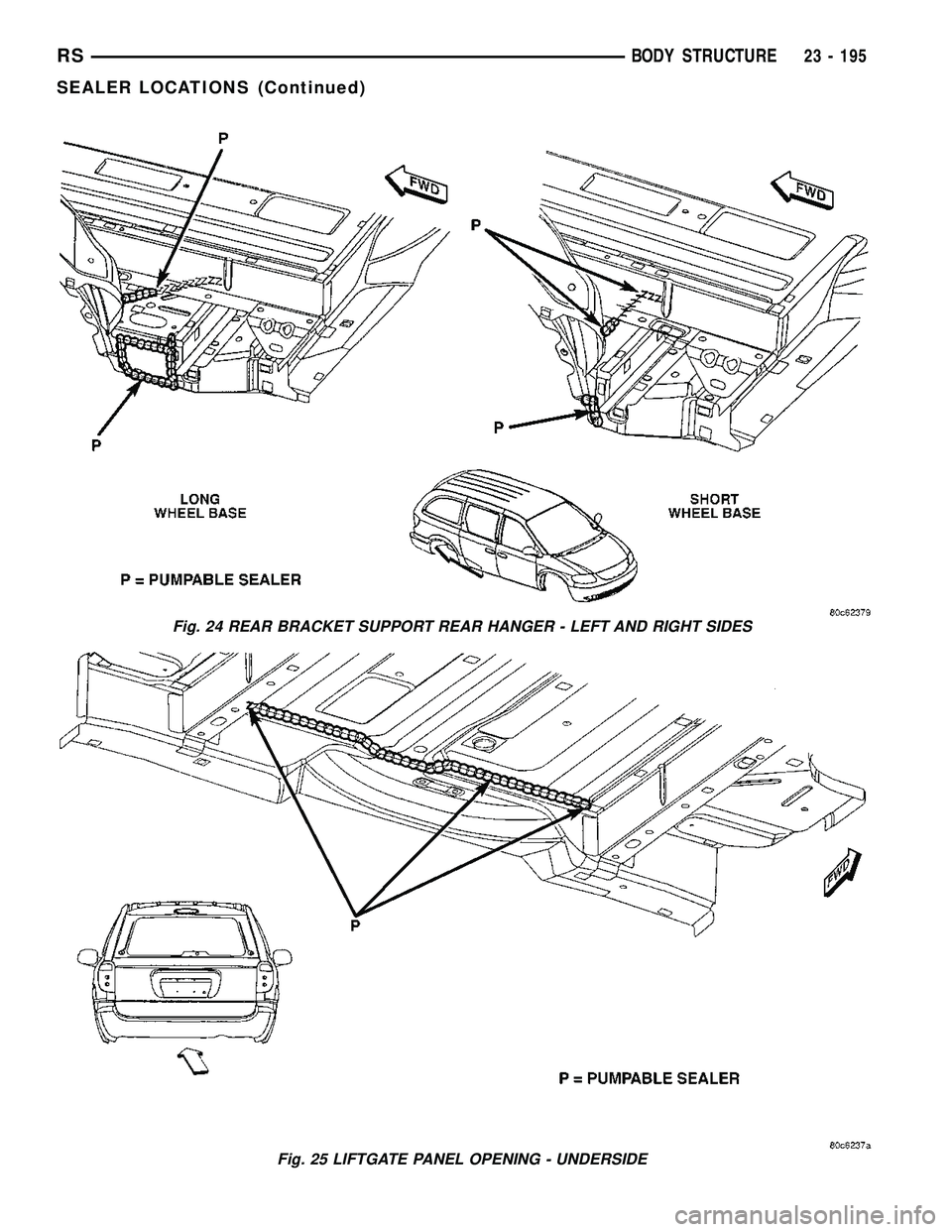

CHRYSLER VOYAGER 2005 Service Manual Fig. 24 REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES Fig. 25 LIFTGATE PANEL OPENING - UNDERSIDE RSBODY STRUCTURE23 - 195 SEALER LOCATIONS (Continued)

Page 1975 of 2339

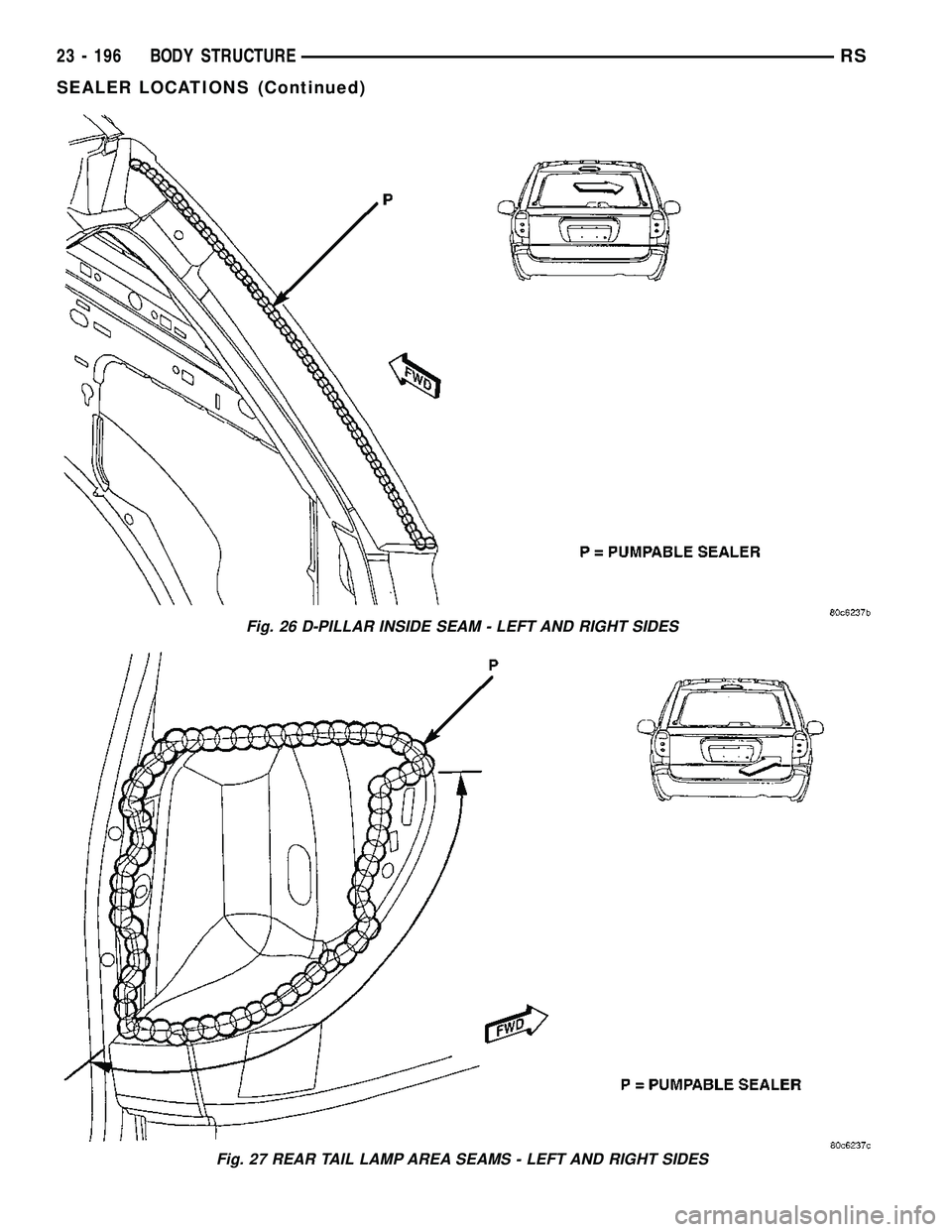

CHRYSLER VOYAGER 2005 Service Manual Fig. 26 D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES Fig. 27 REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES 23 - 196 BODY STRUCTURERS SEALER LOCATIONS (Continued)

Page 1976 of 2339

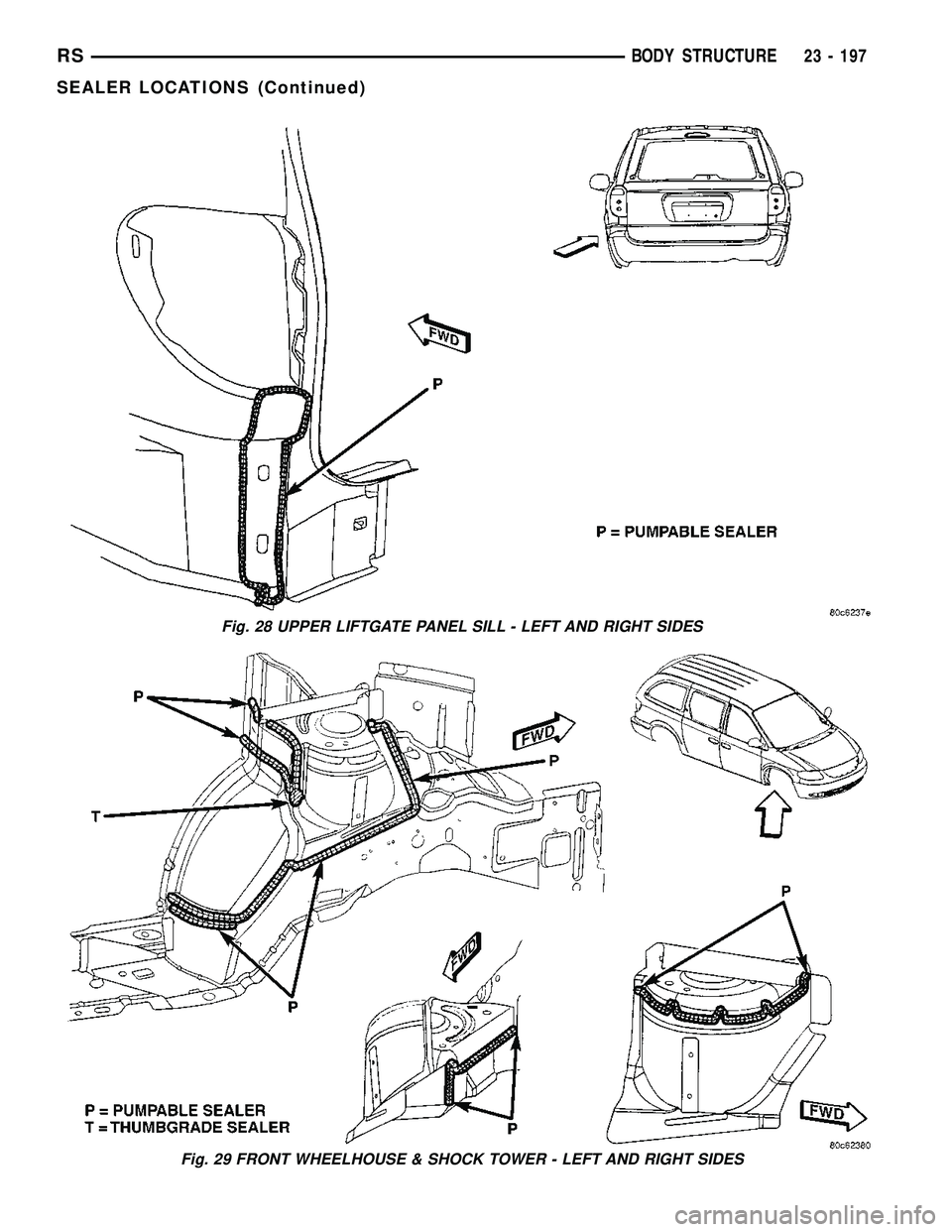

CHRYSLER VOYAGER 2005 Service Manual Fig. 28 UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES Fig. 29 FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 197 SEALER LOCATIONS (Continued)
