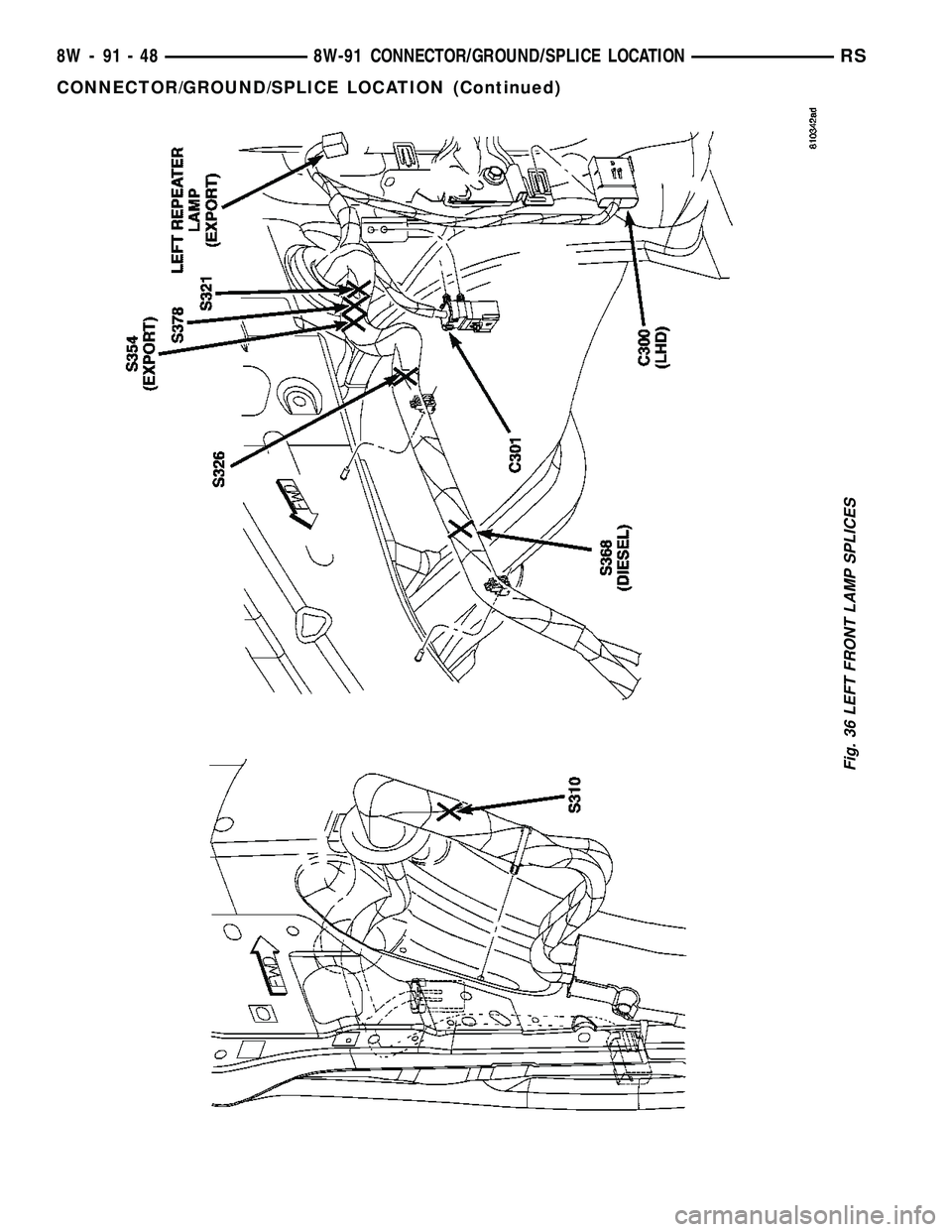

CHRYSLER VOYAGER 2005 Service Manual Fig. 36 LEFT FRONT LAMP SPLICES 8W - 91 - 48 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1162 of 2339

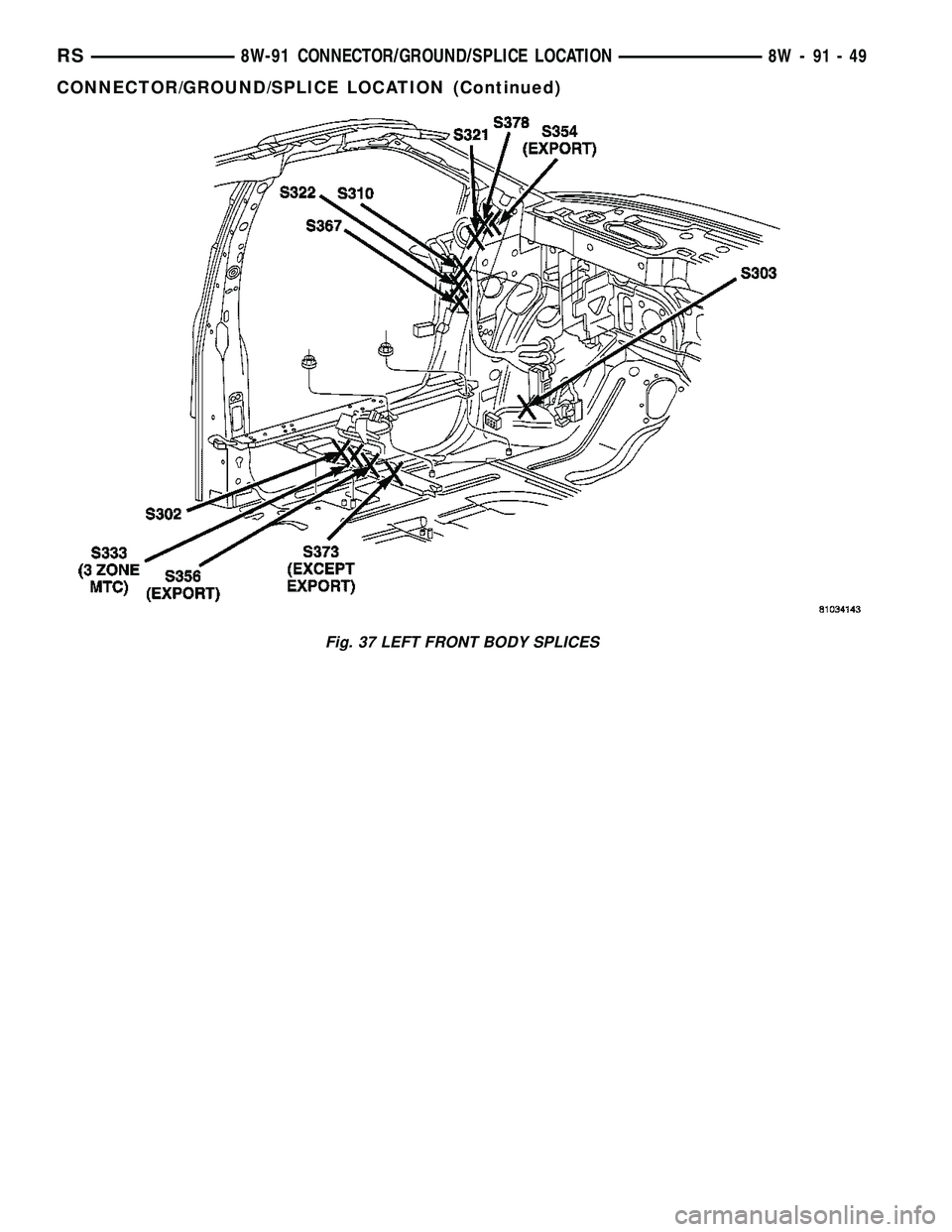

CHRYSLER VOYAGER 2005 Service Manual Fig. 37 LEFT FRONT BODY SPLICES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-49 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1163 of 2339

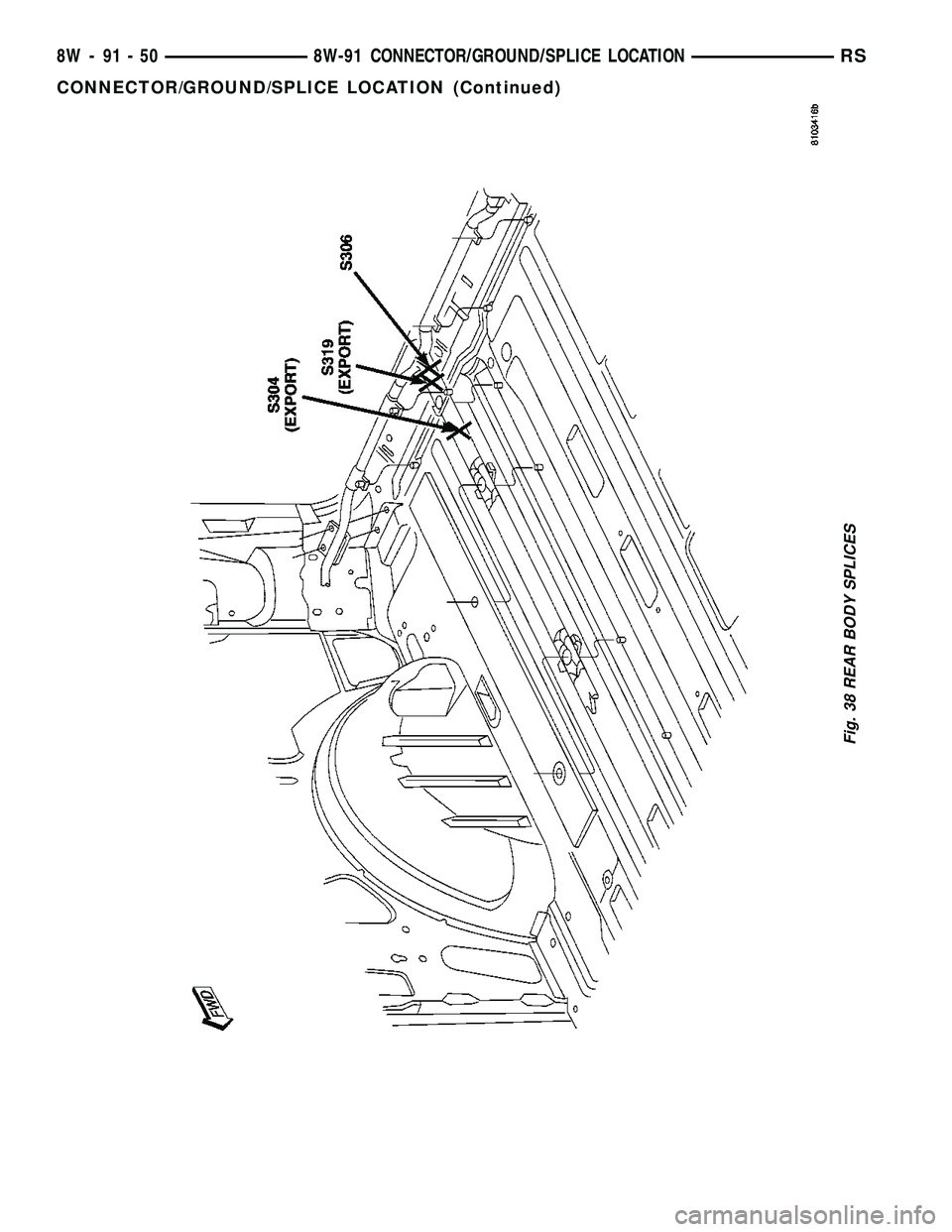

CHRYSLER VOYAGER 2005 Service Manual Fig. 38 REAR BODY SPLICES 8W - 91 - 50 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1164 of 2339

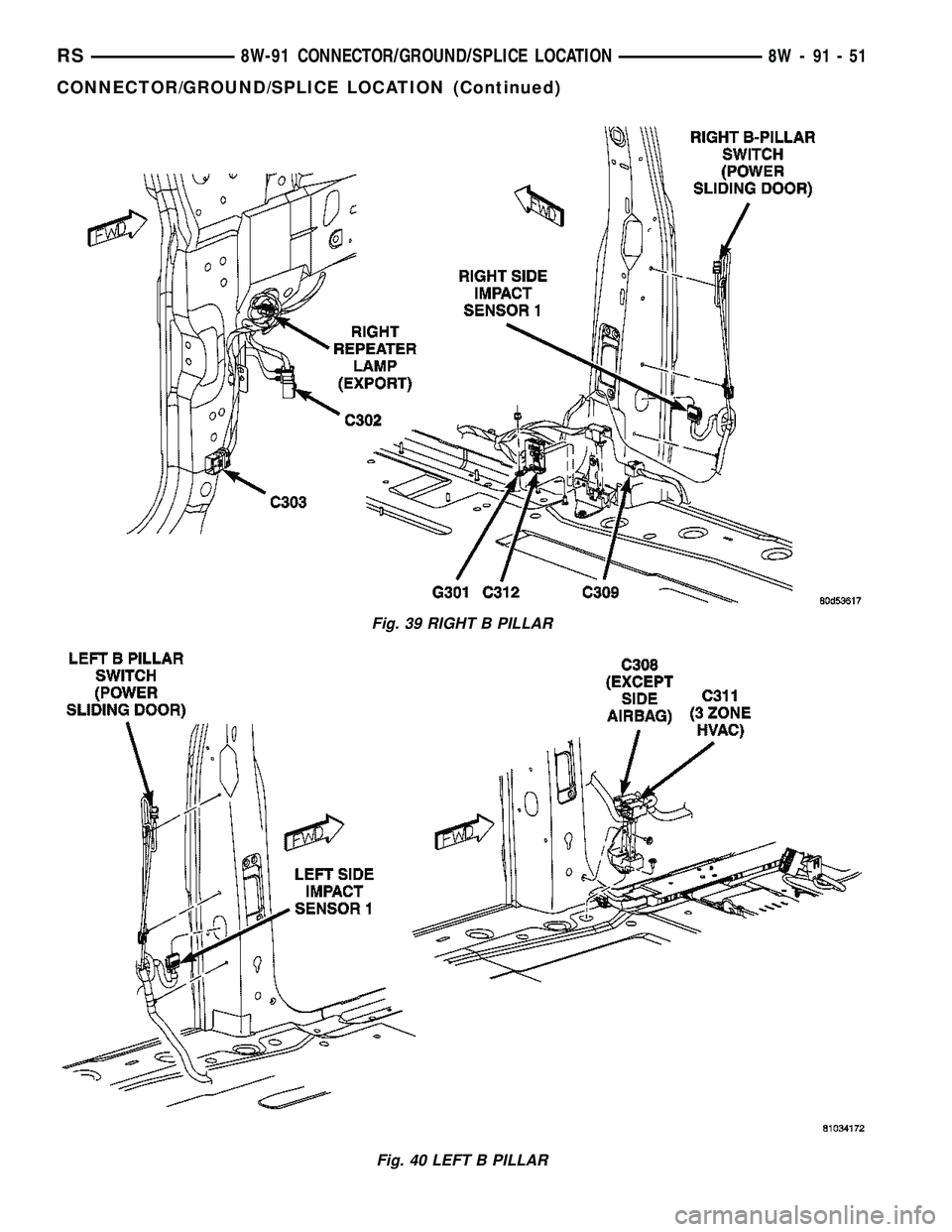

CHRYSLER VOYAGER 2005 Service Manual Fig. 39 RIGHT B PILLAR Fig. 40 LEFT B PILLAR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-51 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1165 of 2339

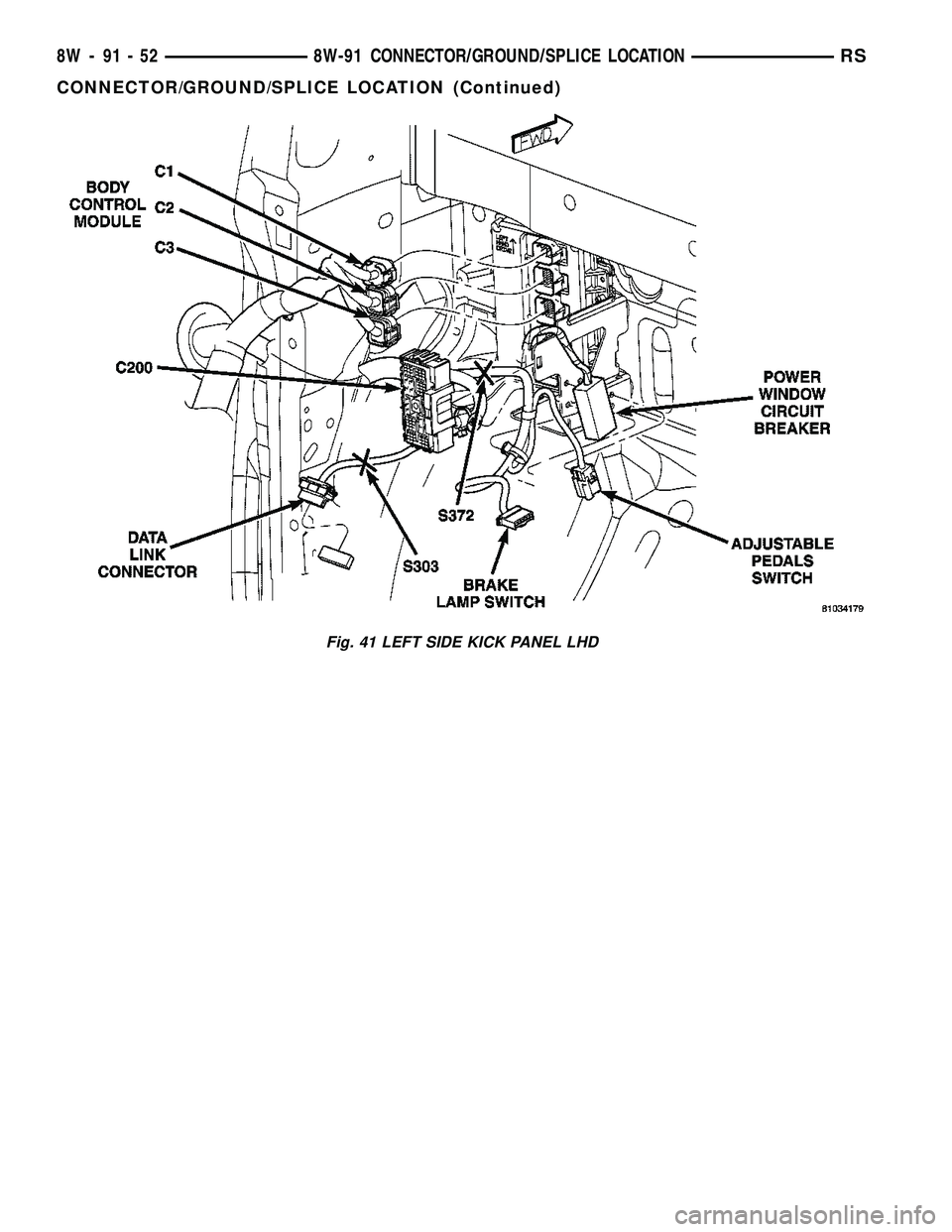

CHRYSLER VOYAGER 2005 Service Manual Fig. 41 LEFT SIDE KICK PANEL LHD 8W - 91 - 52 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1166 of 2339

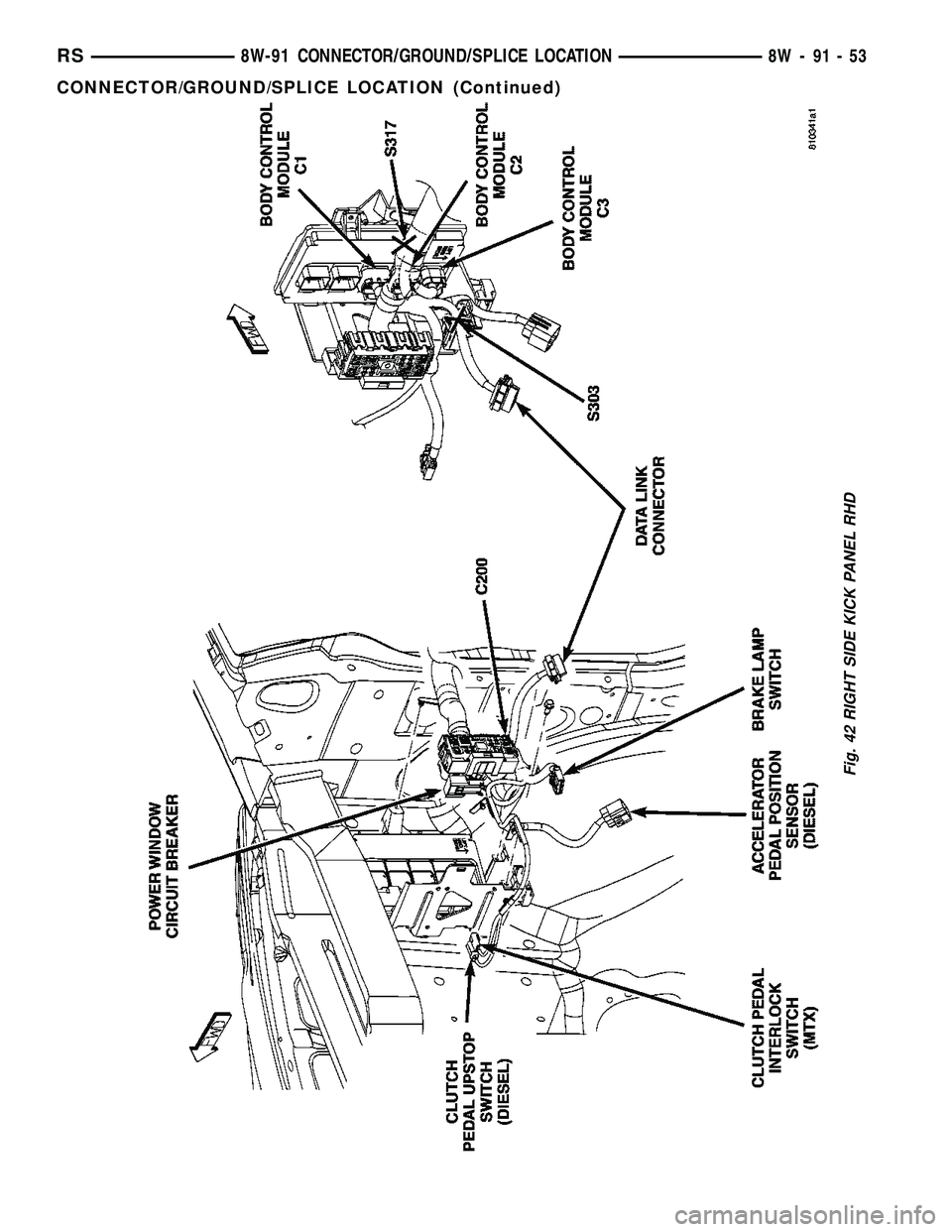

CHRYSLER VOYAGER 2005 Service Manual Fig. 42 RIGHT SIDE KICK PANEL RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-53 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1167 of 2339

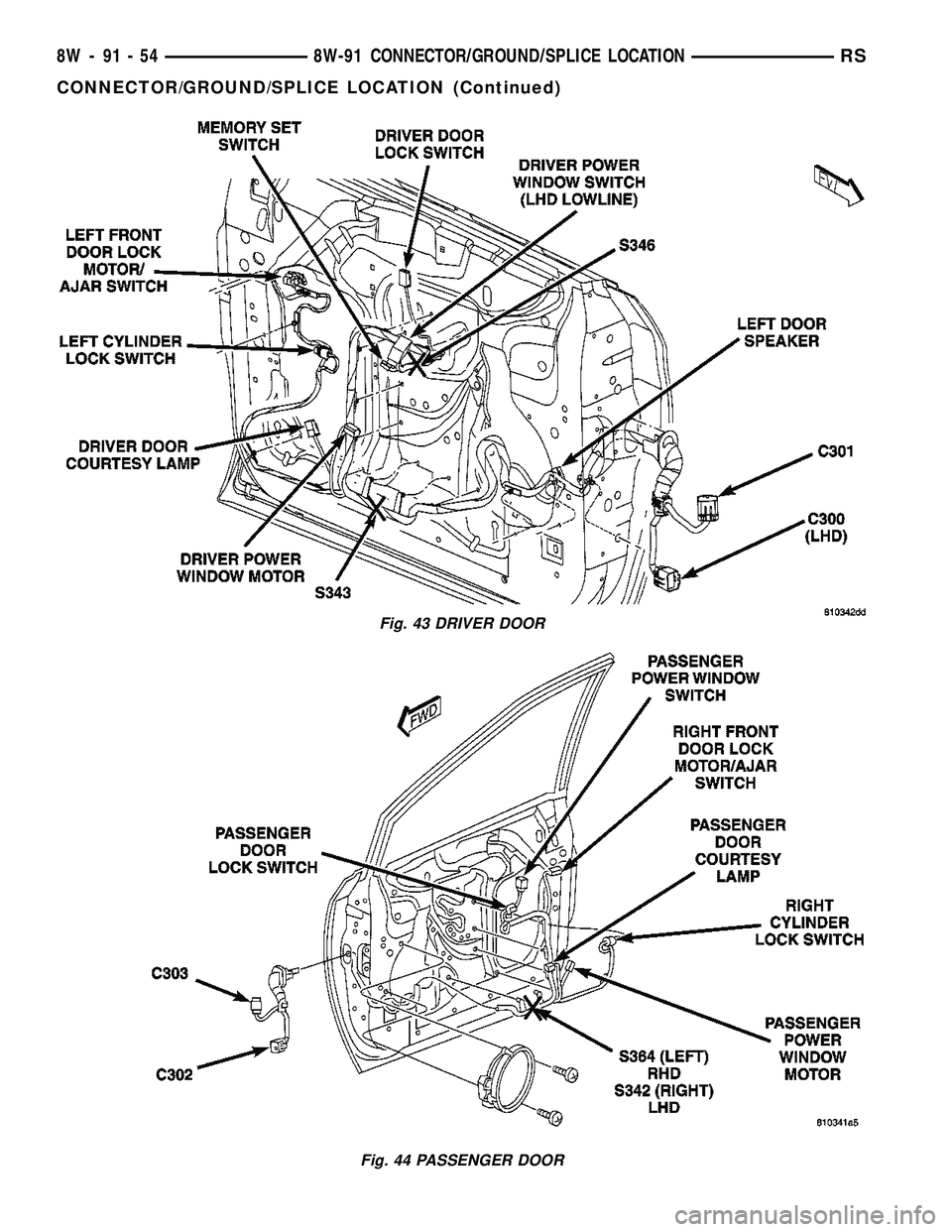

CHRYSLER VOYAGER 2005 Service Manual Fig. 43 DRIVER DOOR Fig. 44 PASSENGER DOOR 8W - 91 - 54 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1168 of 2339

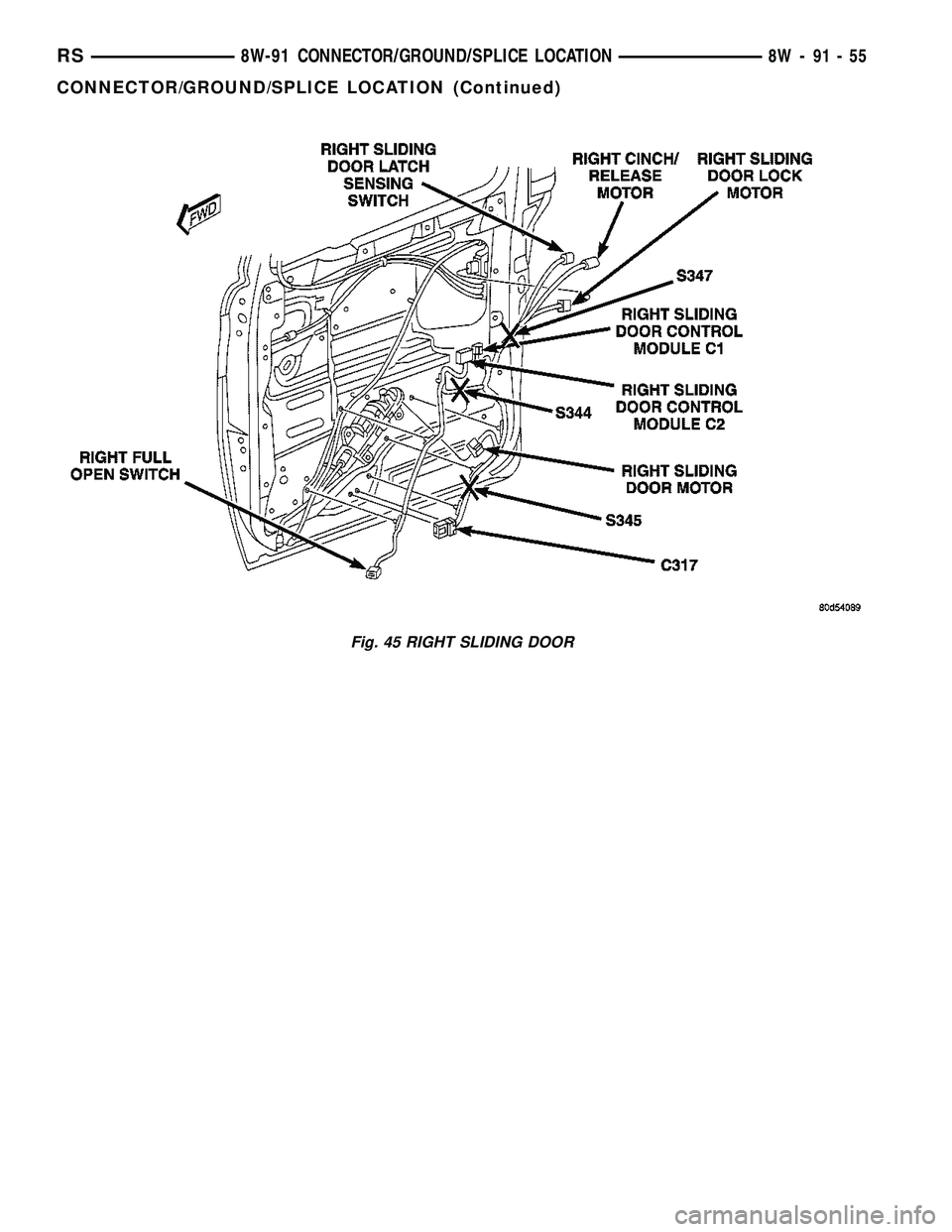

CHRYSLER VOYAGER 2005 Service Manual Fig. 45 RIGHT SLIDING DOOR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-55 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
