Page 1521 of 2339

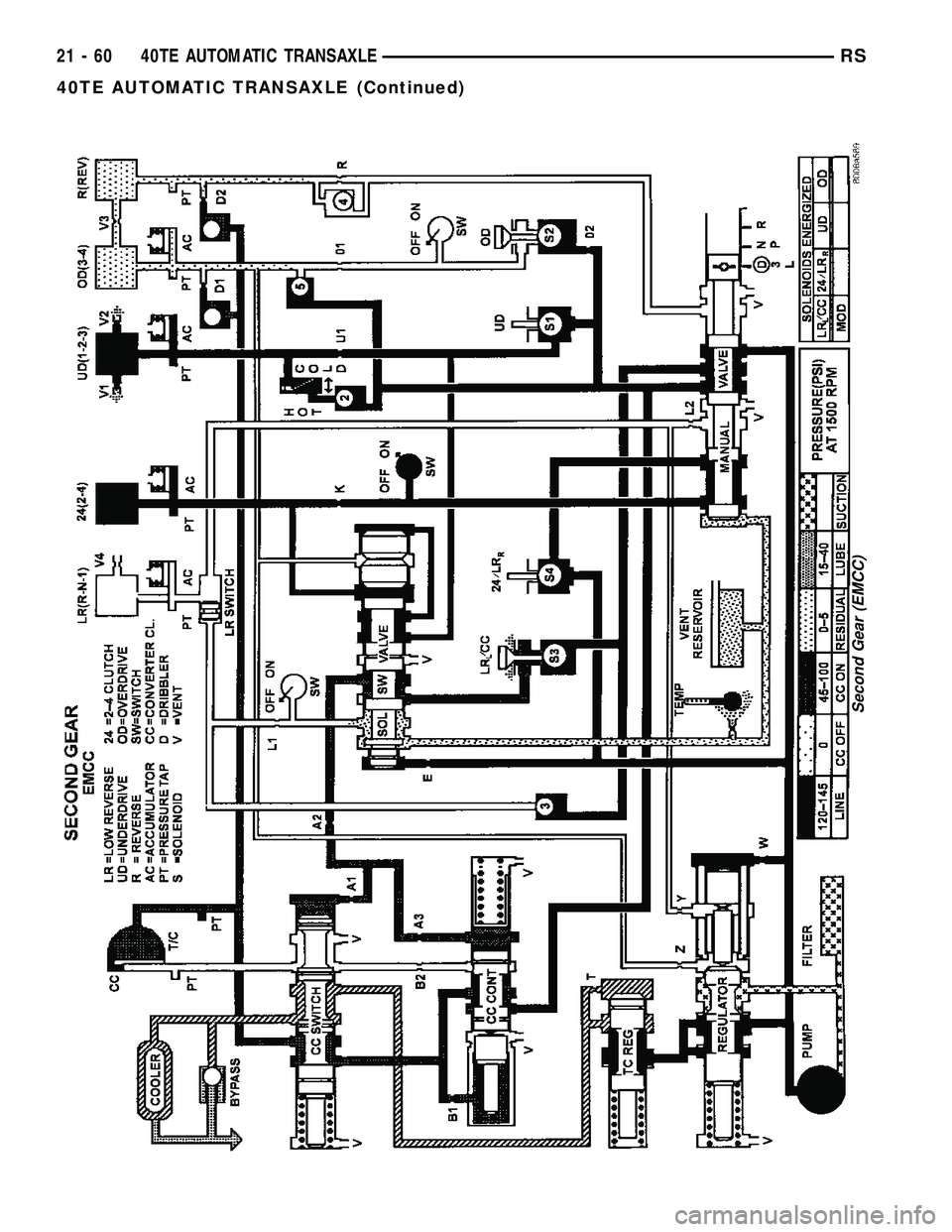

CHRYSLER VOYAGER 2005 Service Manual Second Gear (EMCC) 21 - 60 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1522 of 2339

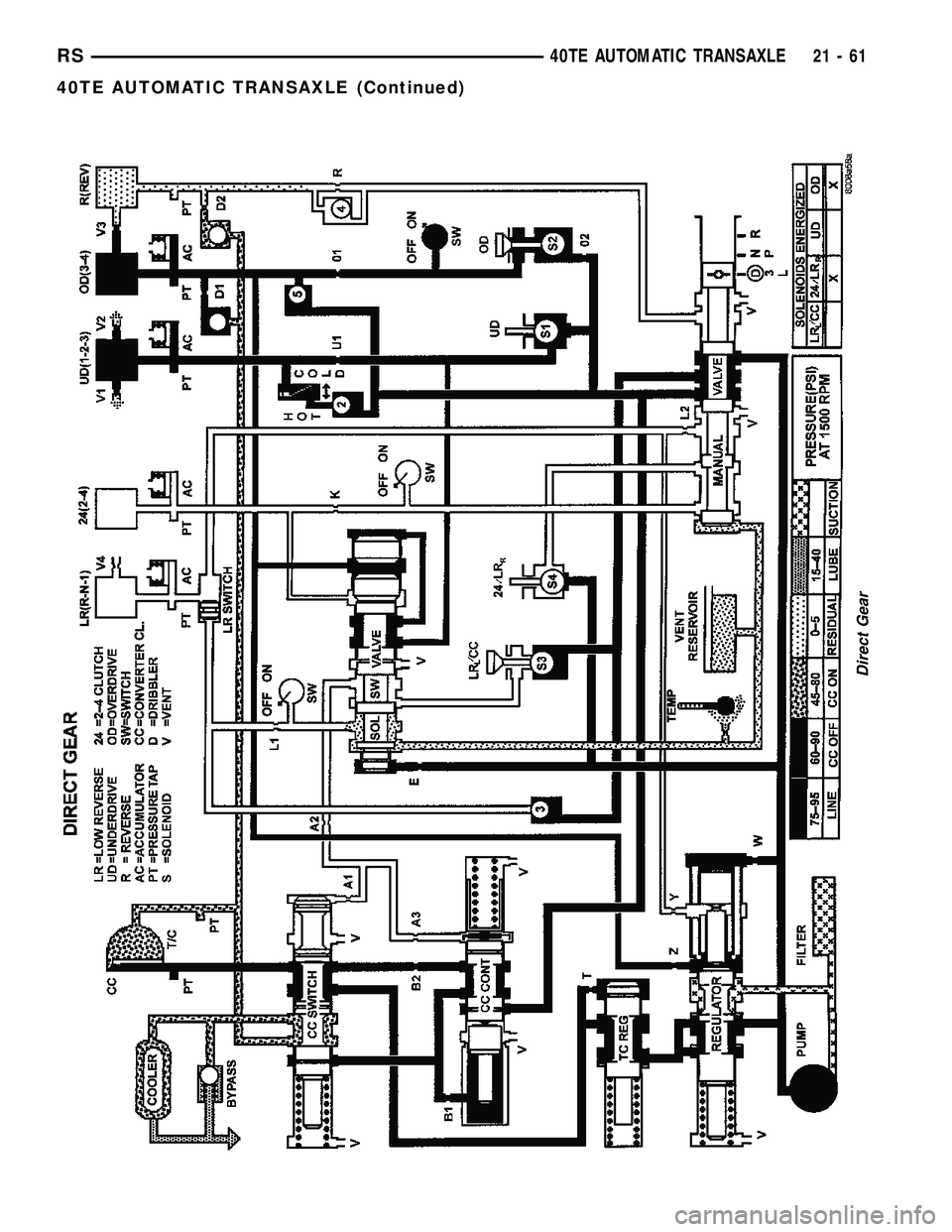

CHRYSLER VOYAGER 2005 Service Manual Direct Gear RS40TE AUTOMATIC TRANSAXLE21-61 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1523 of 2339

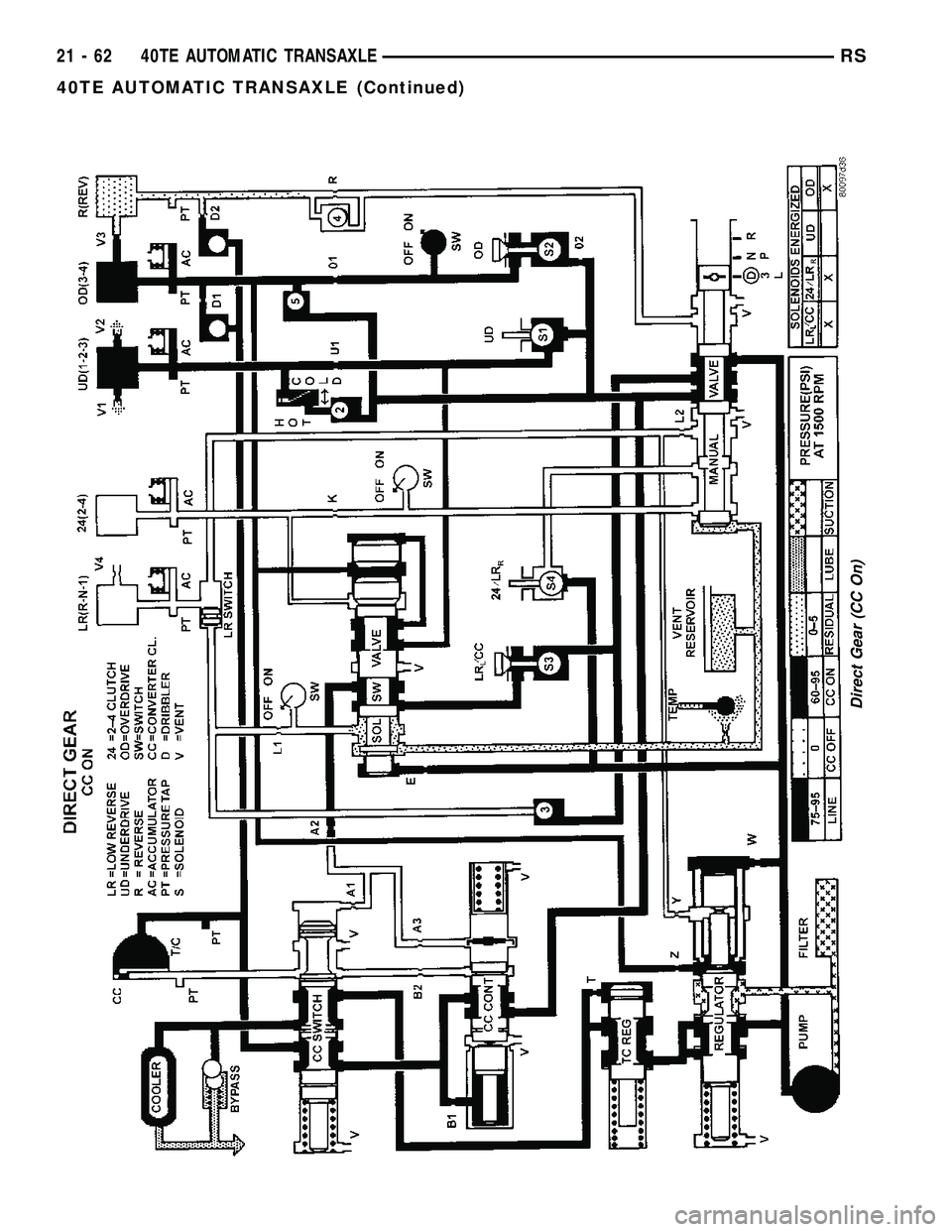

CHRYSLER VOYAGER 2005 Service Manual Direct Gear (CC On) 21 - 62 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1524 of 2339

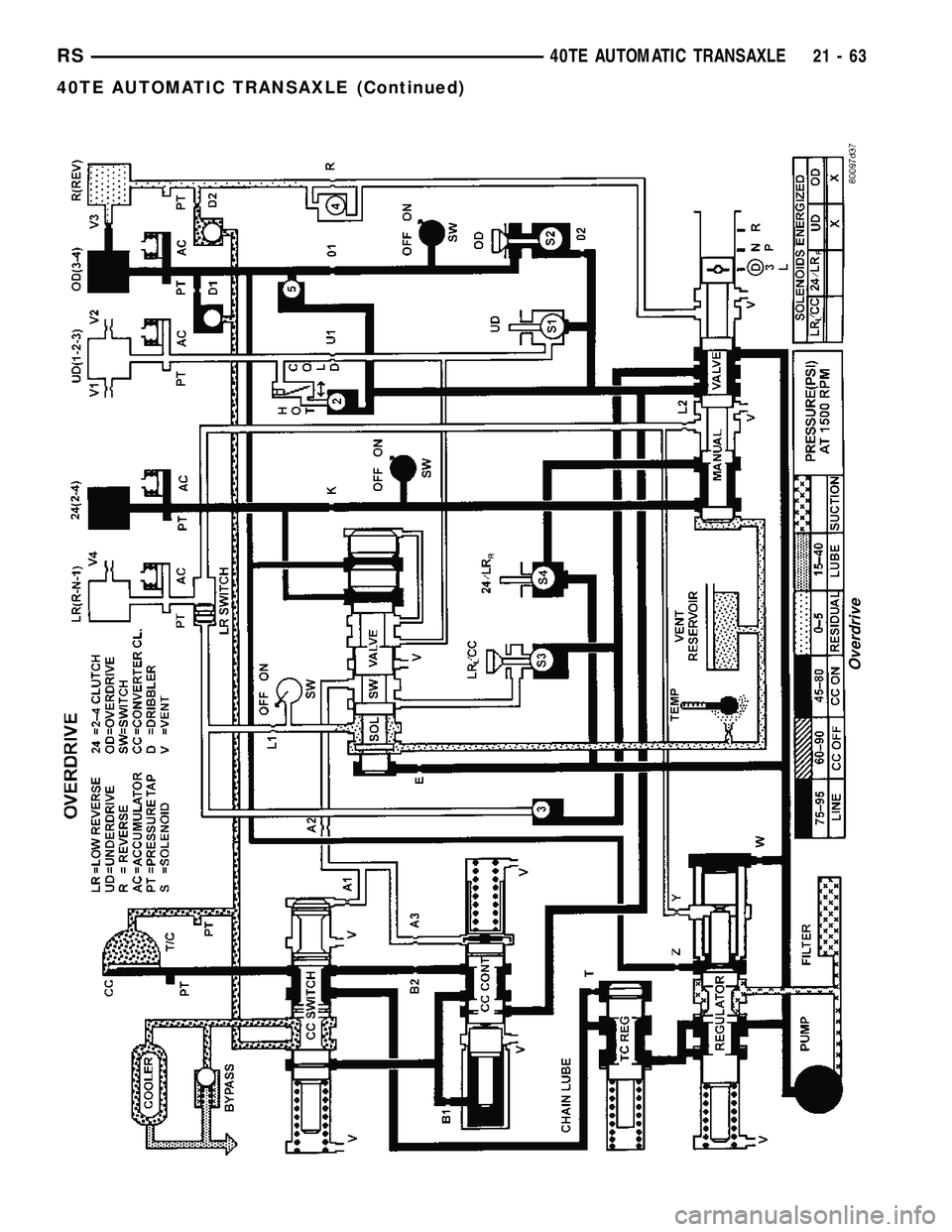

CHRYSLER VOYAGER 2005 Service Manual Overdrive RS40TE AUTOMATIC TRANSAXLE21-63 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1525 of 2339

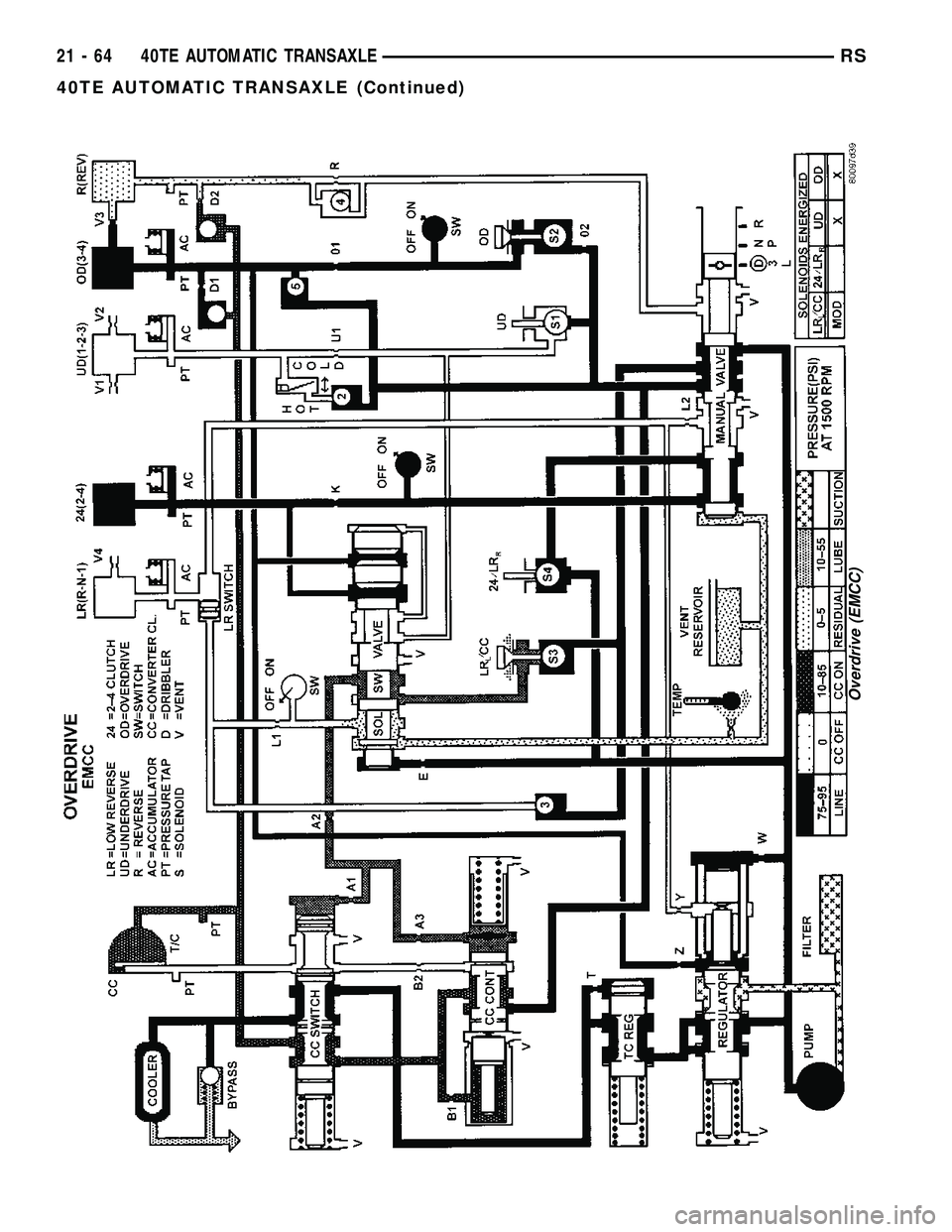

CHRYSLER VOYAGER 2005 Service Manual Overdrive (EMCC) 21 - 64 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1526 of 2339

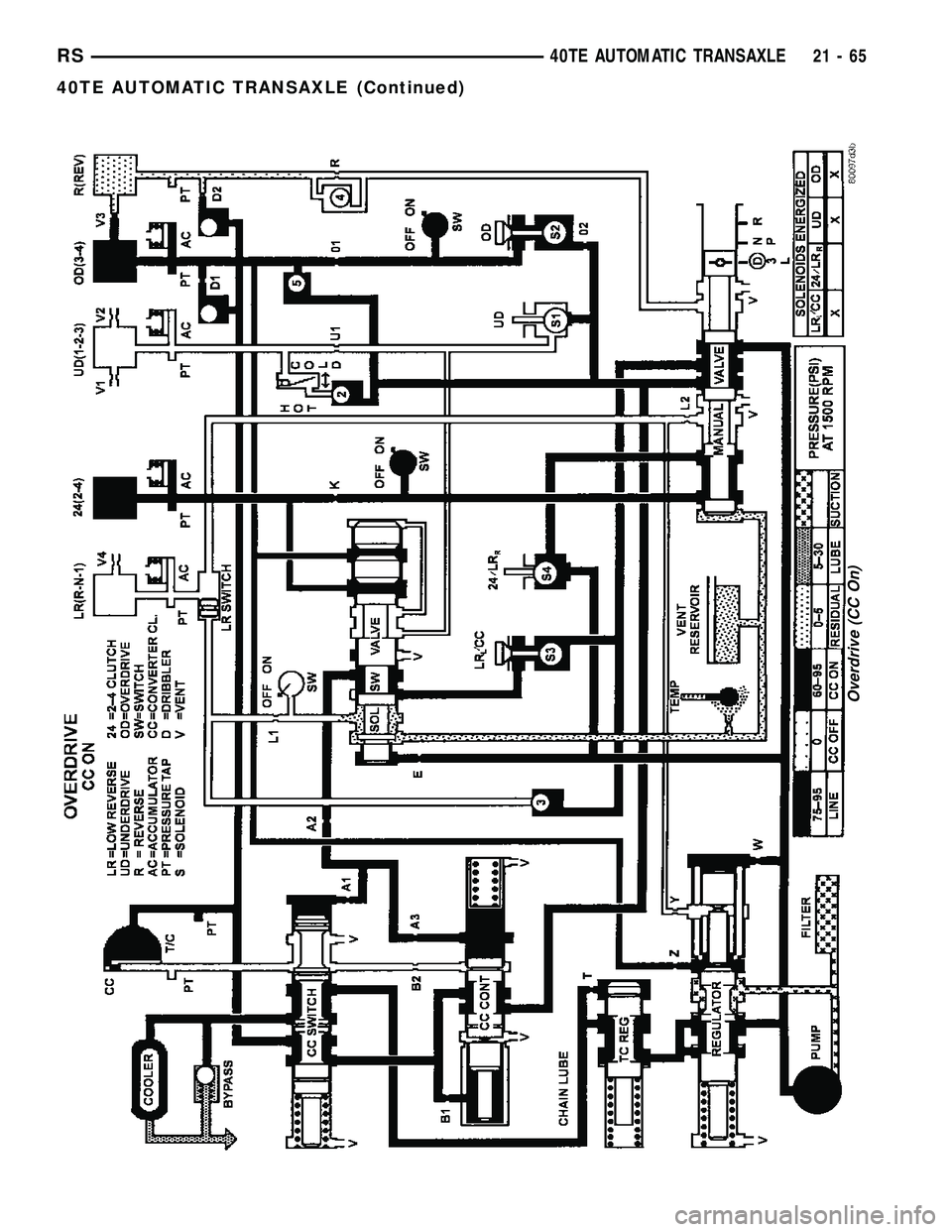

CHRYSLER VOYAGER 2005 Service Manual Overdrive (CC On) RS40TE AUTOMATIC TRANSAXLE21-65 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1527 of 2339

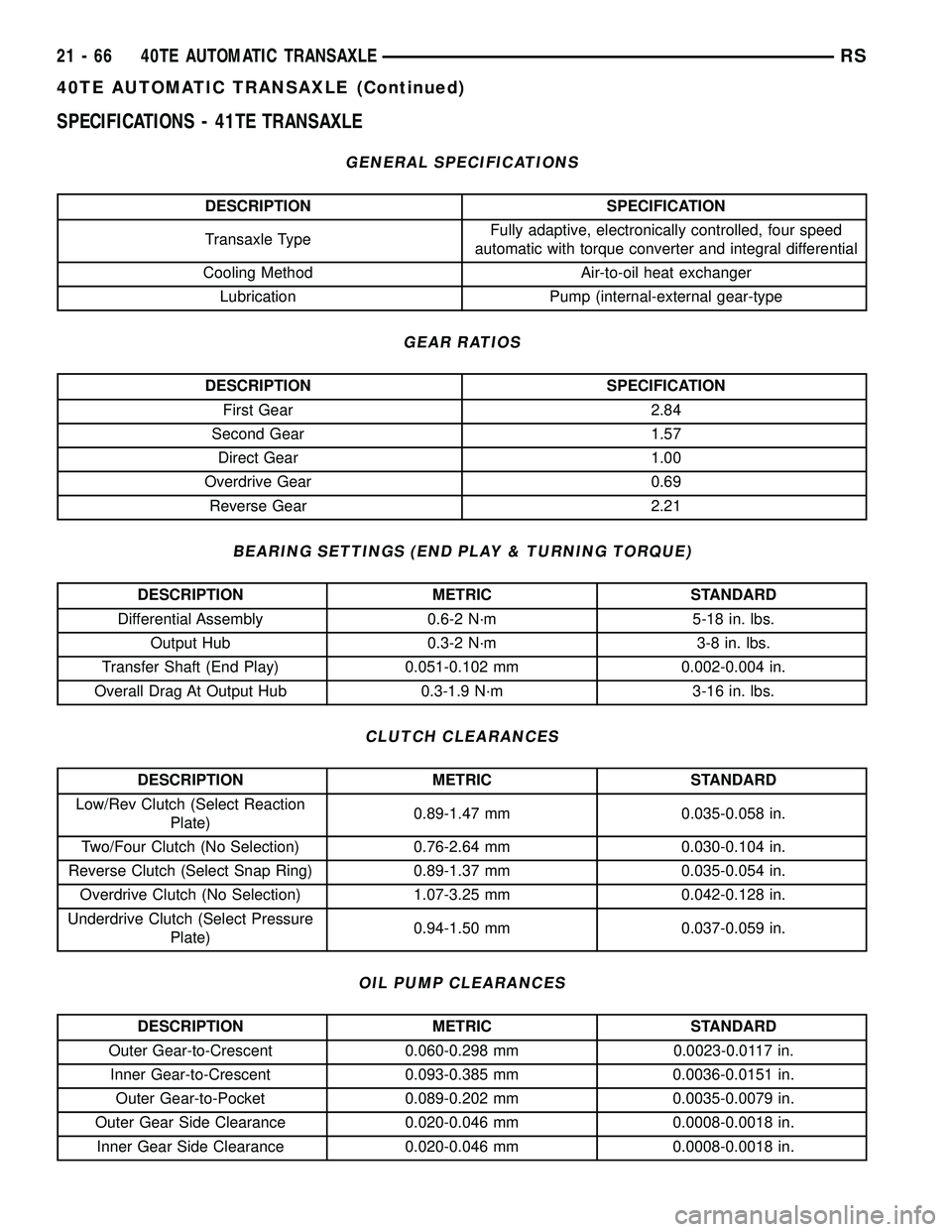

CHRYSLER VOYAGER 2005 Service Manual SPECIFICATIONS - 41TE TRANSAXLE GENERAL SPECIFICATIONS DESCRIPTION SPECIFICATION Transaxle TypeFully adaptive, electronically controlled, four speed automatic with torque converter and integral differ

Page 1528 of 2339

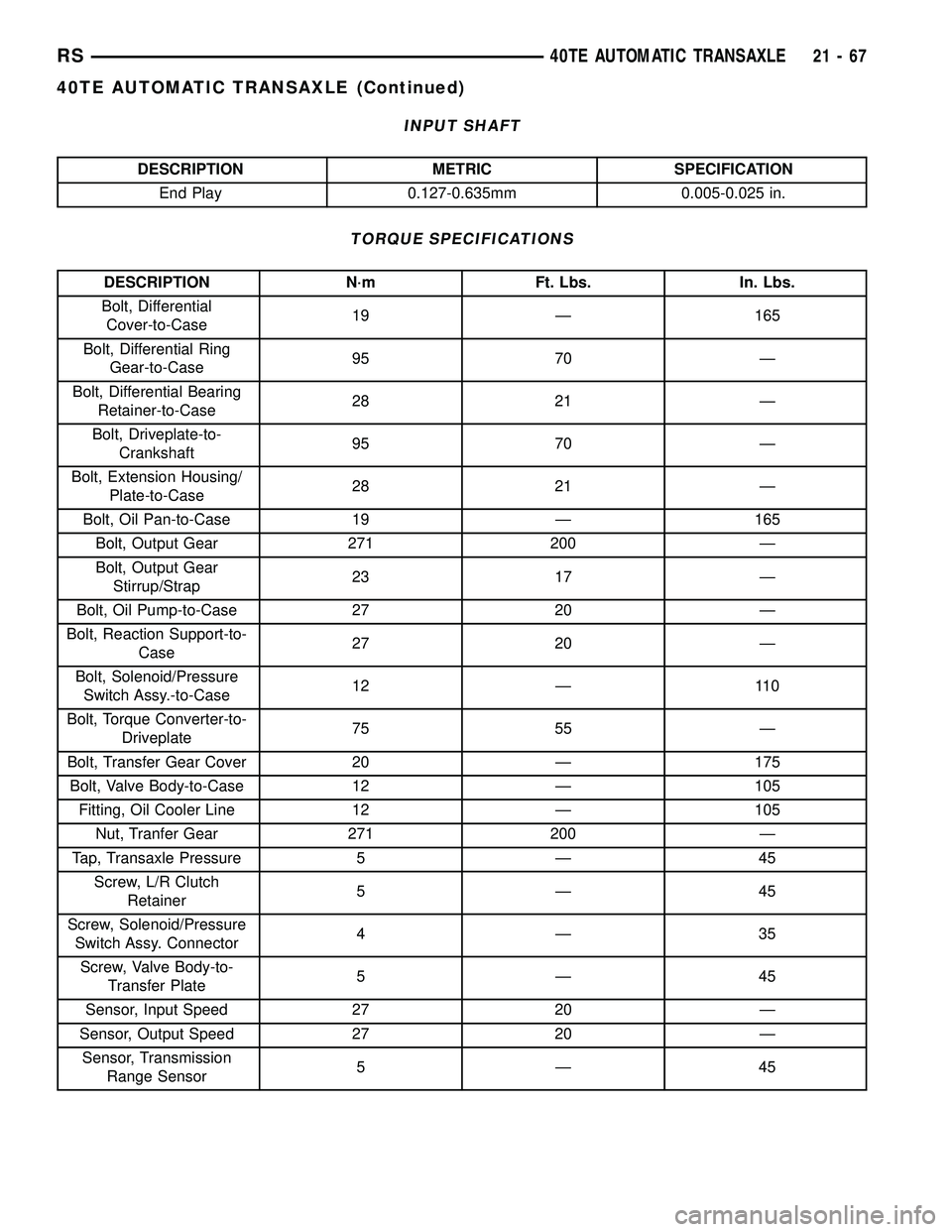

CHRYSLER VOYAGER 2005 Service Manual INPUT SHAFT DESCRIPTION METRIC SPECIFICATION End Play 0.127-0.635mm 0.005-0.025 in. TORQUE SPECIFICATIONS DESCRIPTION N´m Ft. Lbs. In. Lbs. Bolt, Differential Cover-to-Case19 Ð 165 Bolt, Differentia
