Page 1049 of 2339

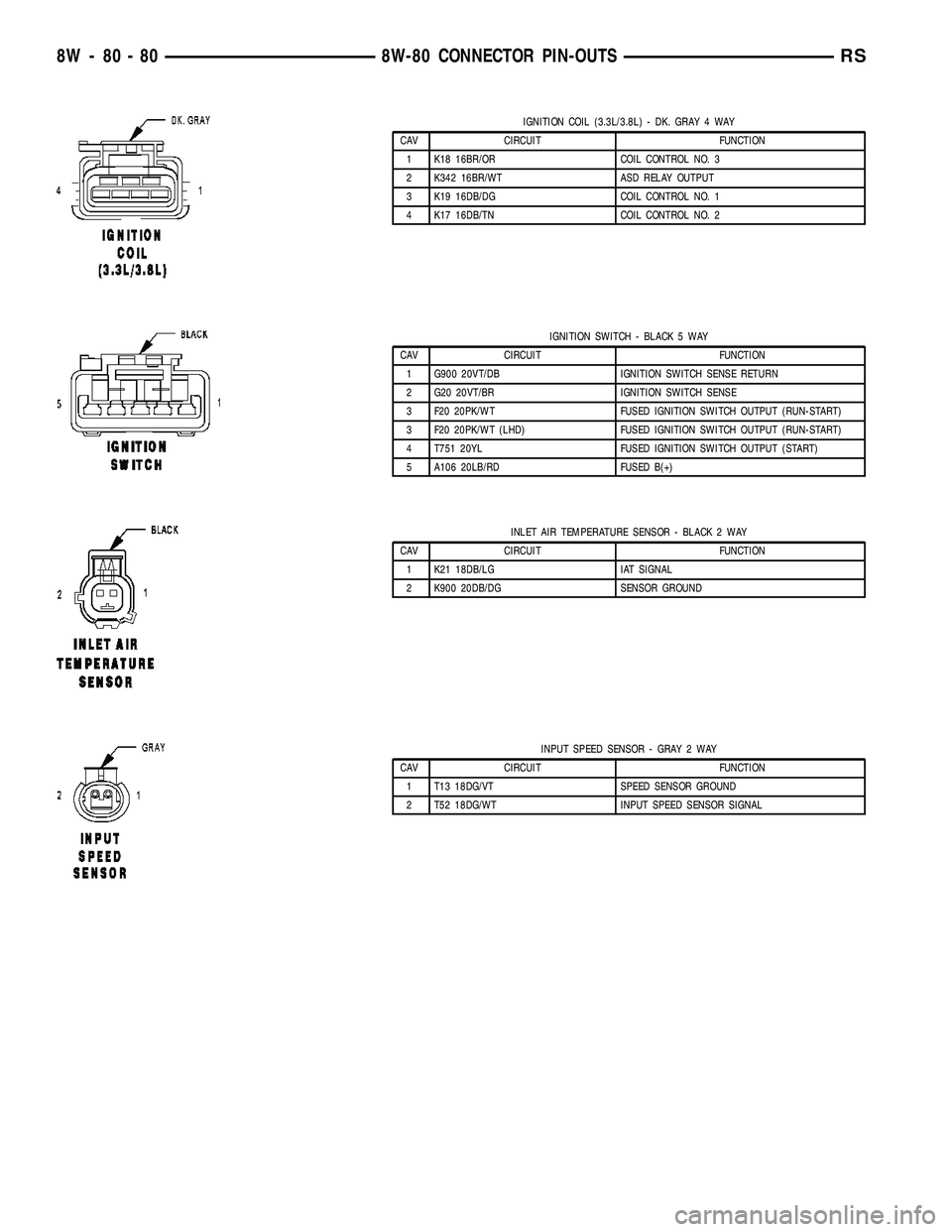

CHRYSLER VOYAGER 2005 Service Manual IGNITION COIL (3.3L/3.8L) - DK. GRAY 4 WAY CAV CIRCUIT FUNCTION 1 K18 16BR/OR COIL CONTROL NO. 3 2 K342 16BR/WT ASD RELAY OUTPUT 3 K19 16DB/DG COIL CONTROL NO. 1 4 K17 16DB/TN COIL CONTROL NO. 2 IGNIT

Page 1050 of 2339

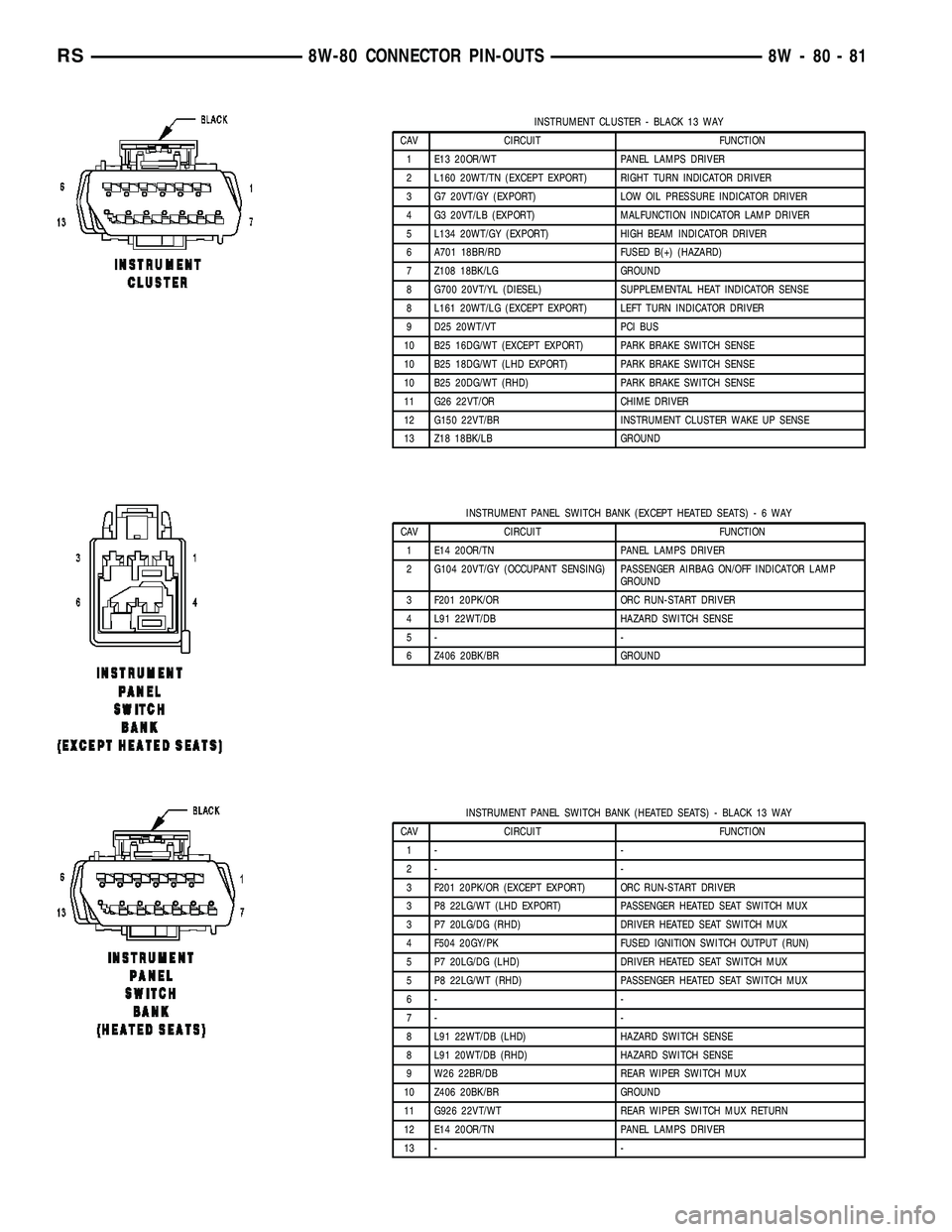

CHRYSLER VOYAGER 2005 Service Manual INSTRUMENT CLUSTER - BLACK 13 WAY CAV CIRCUIT FUNCTION 1 E13 20OR/WT PANEL LAMPS DRIVER 2 L160 20WT/TN (EXCEPT EXPORT) RIGHT TURN INDICATOR DRIVER 3 G7 20VT/GY (EXPORT) LOW OIL PRESSURE INDICATOR DRIV

Page 1051 of 2339

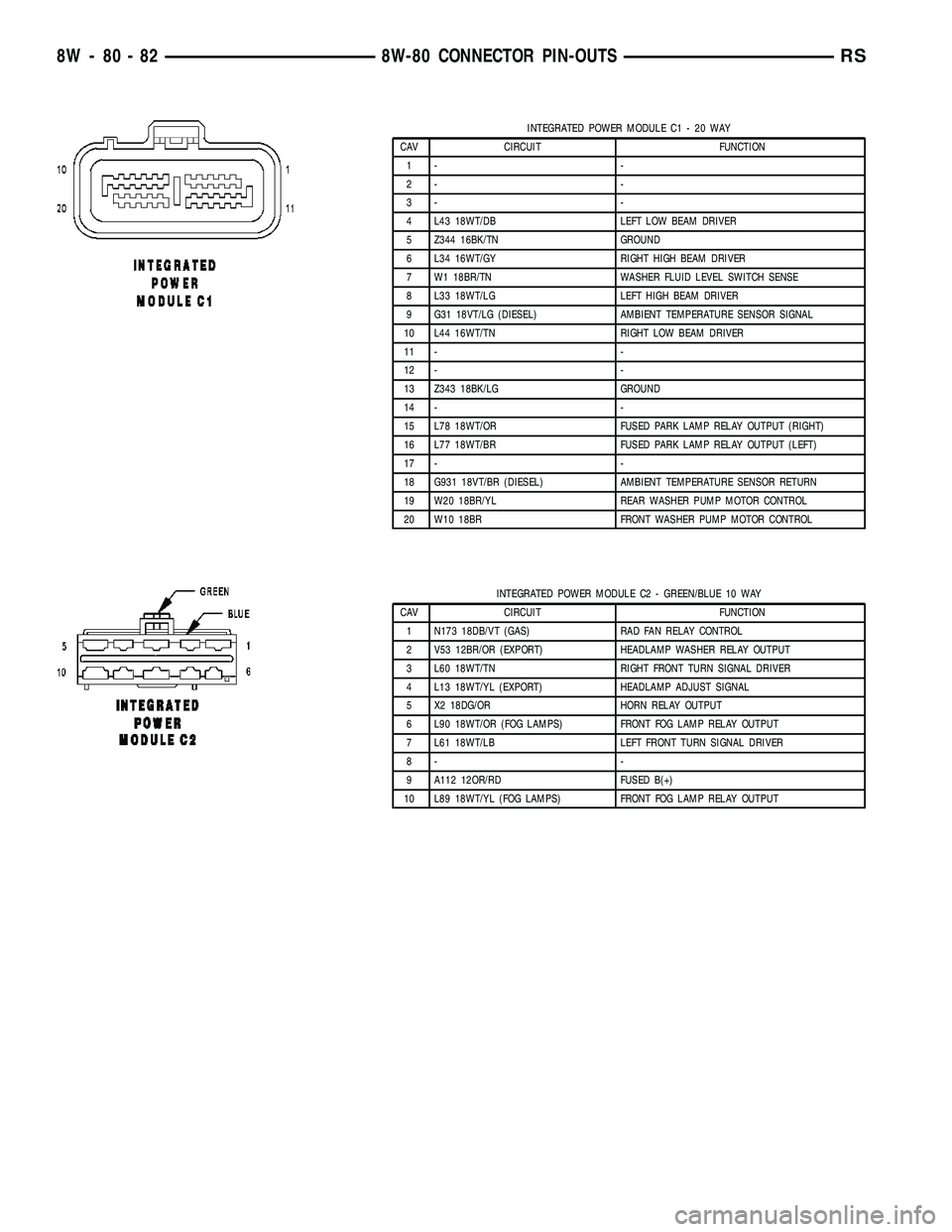

CHRYSLER VOYAGER 2005 Service Manual INTEGRATED POWER MODULE C1 - 20 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3- - 4 L43 18WT/DB LEFT LOW BEAM DRIVER 5 Z344 16BK/TN GROUND 6 L34 16WT/GY RIGHT HIGH BEAM DRIVER 7 W1 18BR/TN WASHER FLUID LEVEL SW

Page 1052 of 2339

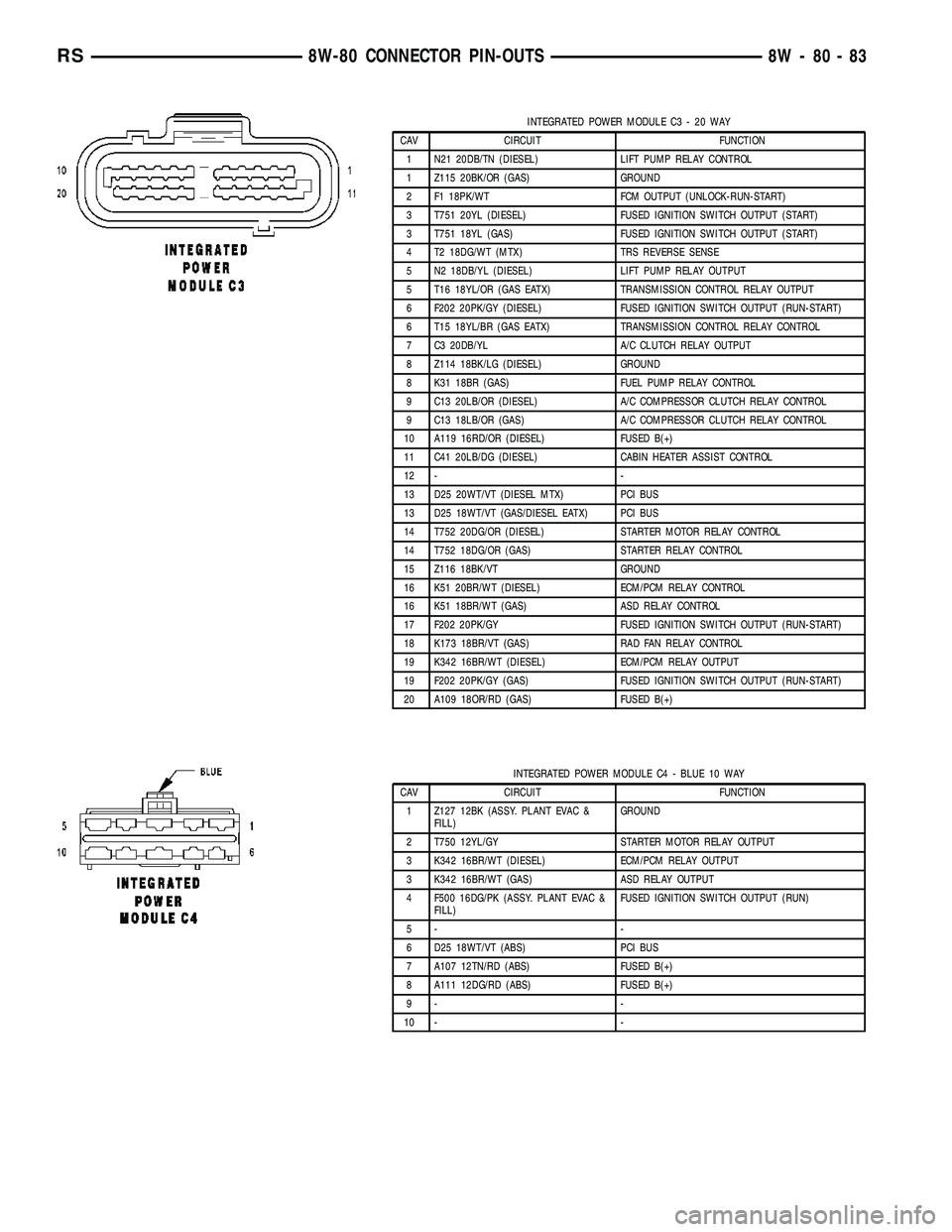

CHRYSLER VOYAGER 2005 Service Manual INTEGRATED POWER MODULE C3 - 20 WAY CAV CIRCUIT FUNCTION 1 N21 20DB/TN (DIESEL) LIFT PUMP RELAY CONTROL 1 Z115 20BK/OR (GAS) GROUND 2 F1 18PK/WT FCM OUTPUT (UNLOCK-RUN-START) 3 T751 20YL (DIESEL) FUSE

Page 1053 of 2339

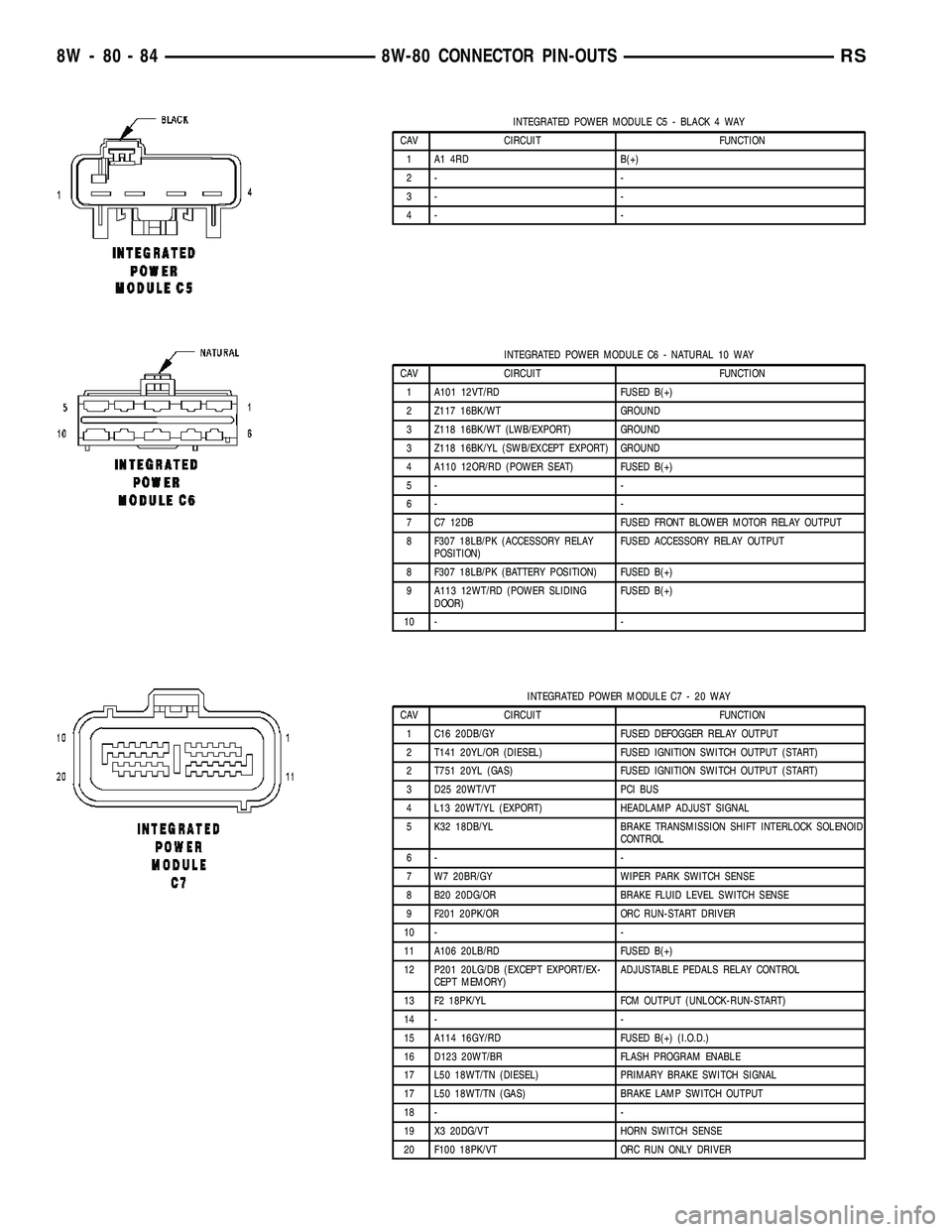

CHRYSLER VOYAGER 2005 Service Manual INTEGRATED POWER MODULE C5 - BLACK 4 WAY CAV CIRCUIT FUNCTION 1 A1 4RD B(+) 2- - 3- - 4- - INTEGRATED POWER MODULE C6 - NATURAL 10 WAY CAV CIRCUIT FUNCTION 1 A101 12VT/RD FUSED B(+) 2 Z117 16BK/WT GRO

Page 1054 of 2339

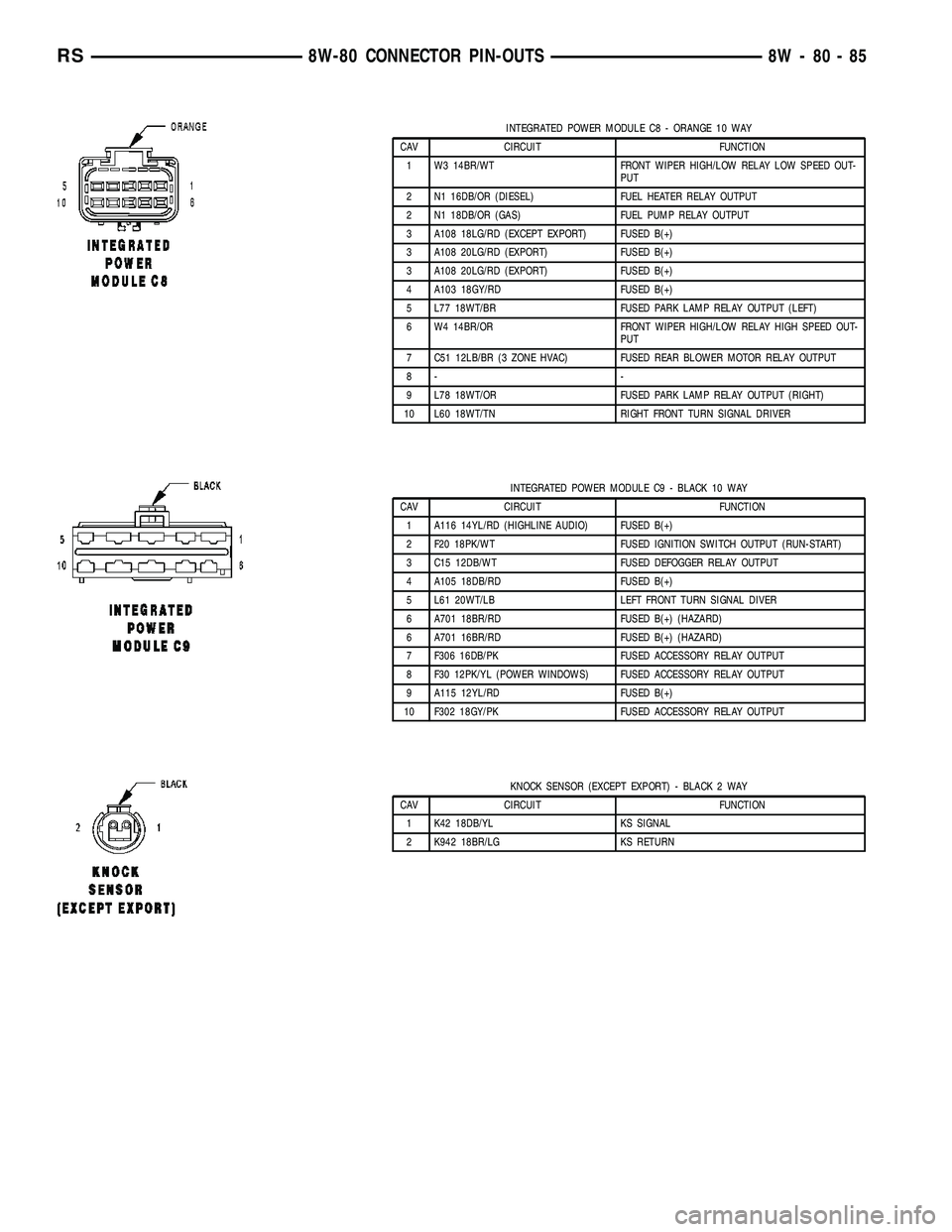

CHRYSLER VOYAGER 2005 Service Manual INTEGRATED POWER MODULE C8 - ORANGE 10 WAY CAV CIRCUIT FUNCTION 1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT- PUT 2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT 2 N1 18DB/OR (GAS) FUEL PUMP R

Page 1055 of 2339

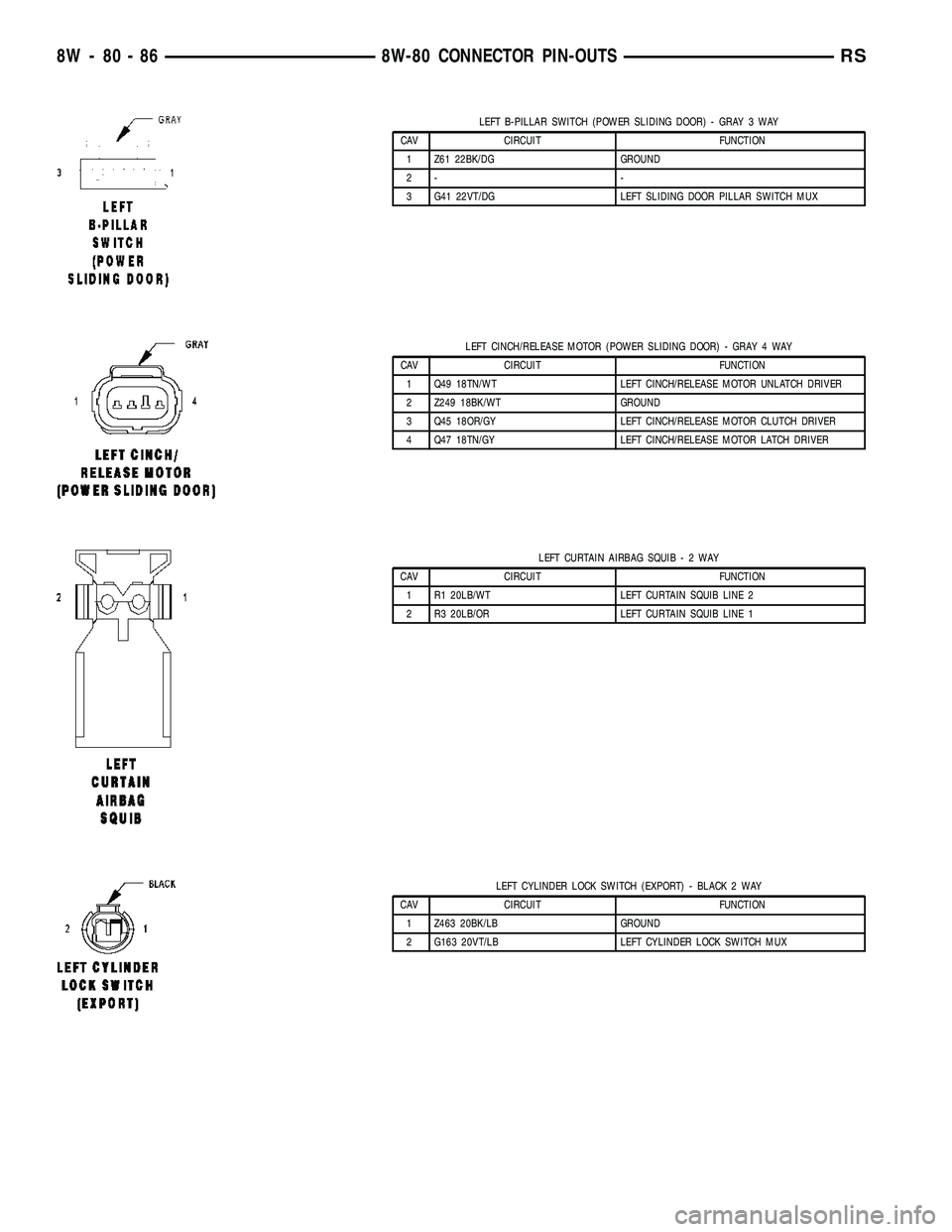

CHRYSLER VOYAGER 2005 Service Manual LEFT B-PILLAR SWITCH (POWER SLIDING DOOR) - GRAY 3 WAY CAV CIRCUIT FUNCTION 1 Z61 22BK/DG GROUND 2- - 3 G41 22VT/DG LEFT SLIDING DOOR PILLAR SWITCH MUX LEFT CINCH/RELEASE MOTOR (POWER SLIDING DOOR) -

Page 1056 of 2339

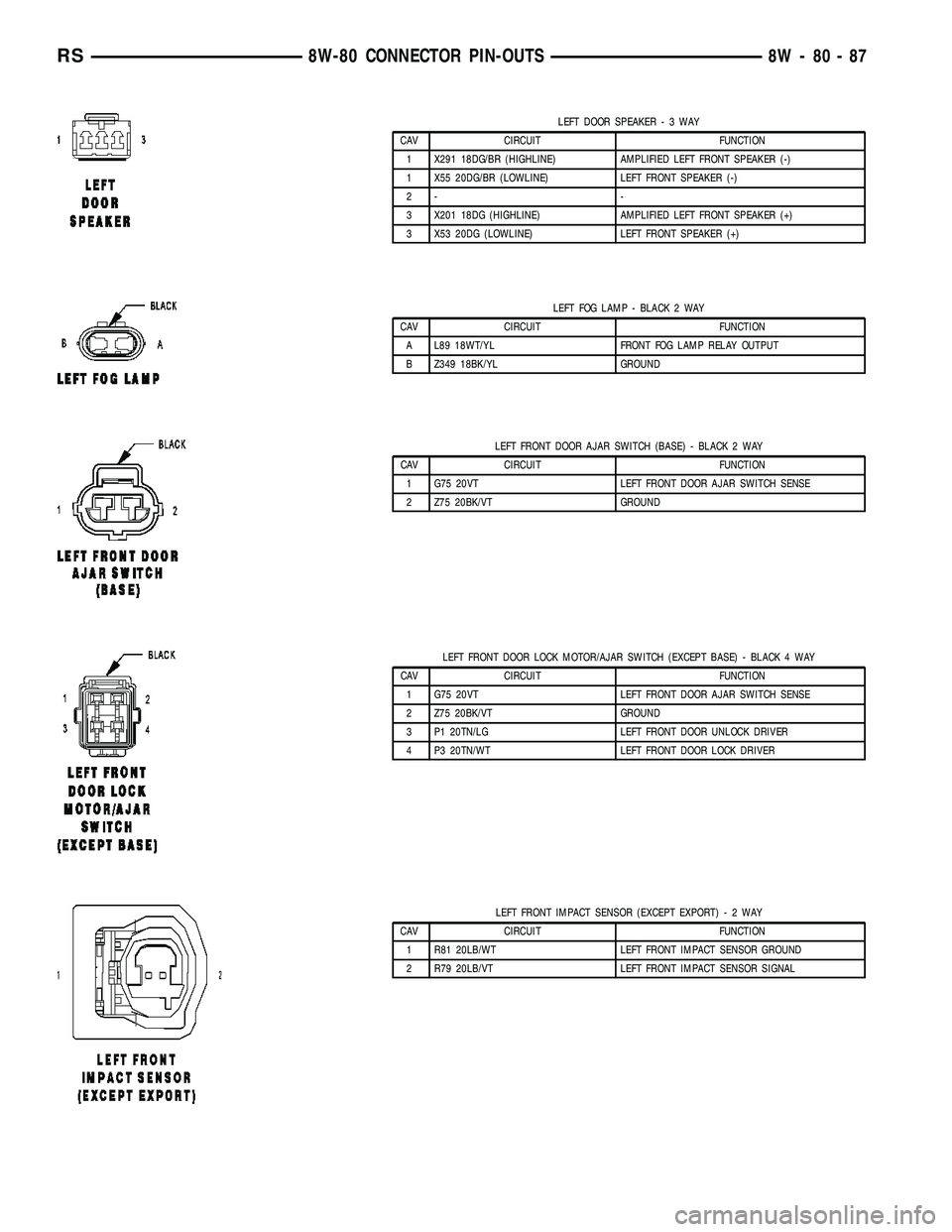

CHRYSLER VOYAGER 2005 Service Manual LEFT DOOR SPEAKER-3WAY CAV CIRCUIT FUNCTION 1 X291 18DG/BR (HIGHLINE) AMPLIFIED LEFT FRONT SPEAKER (-) 1 X55 20DG/BR (LOWLINE) LEFT FRONT SPEAKER (-) 2- - 3 X201 18DG (HIGHLINE) AMPLIFIED LEFT FRONT S
