Page 1057 of 2339

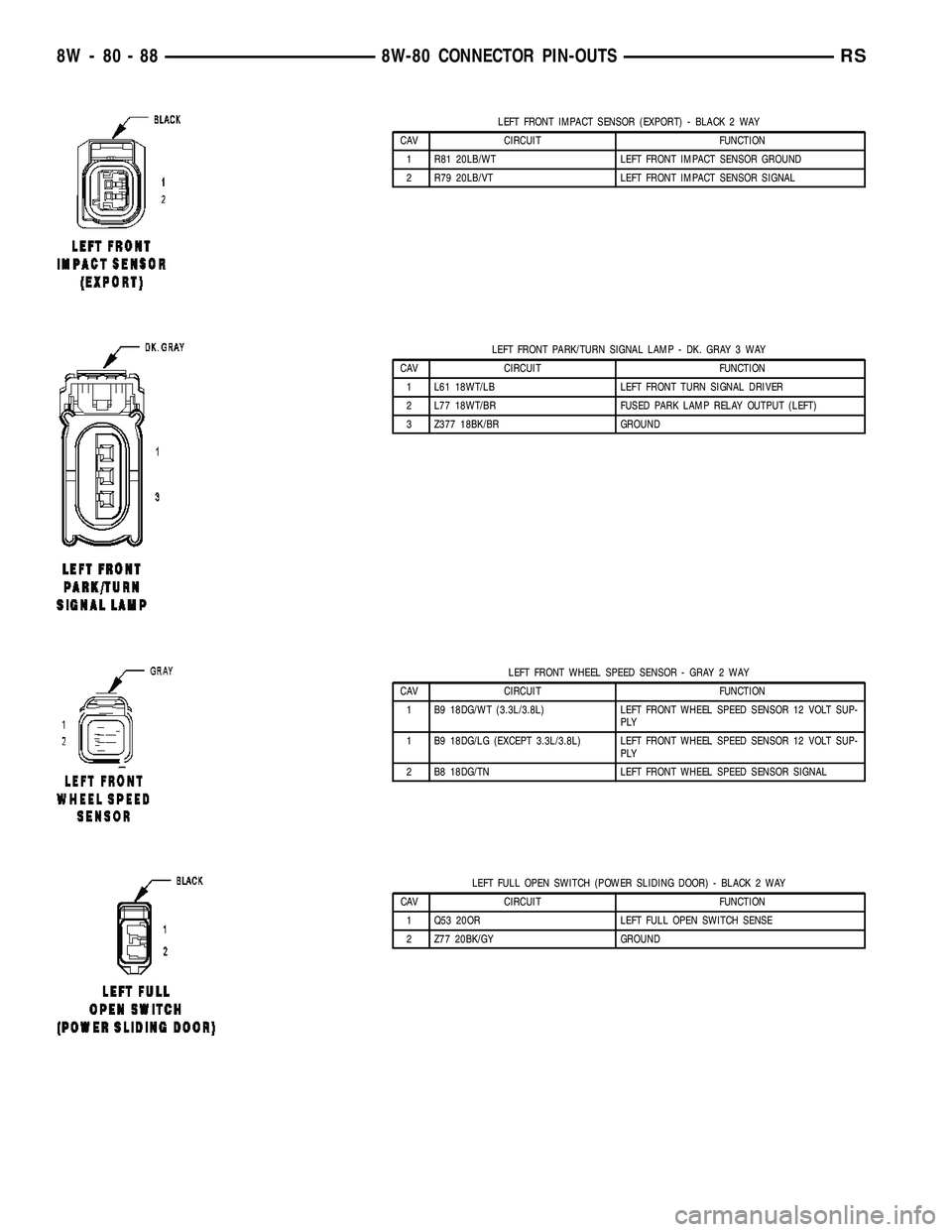

CHRYSLER VOYAGER 2005 Service Manual LEFT FRONT IMPACT SENSOR (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND 2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL LEFT FRONT PARK/TURN SIGNAL LAMP - DK.

Page 1058 of 2339

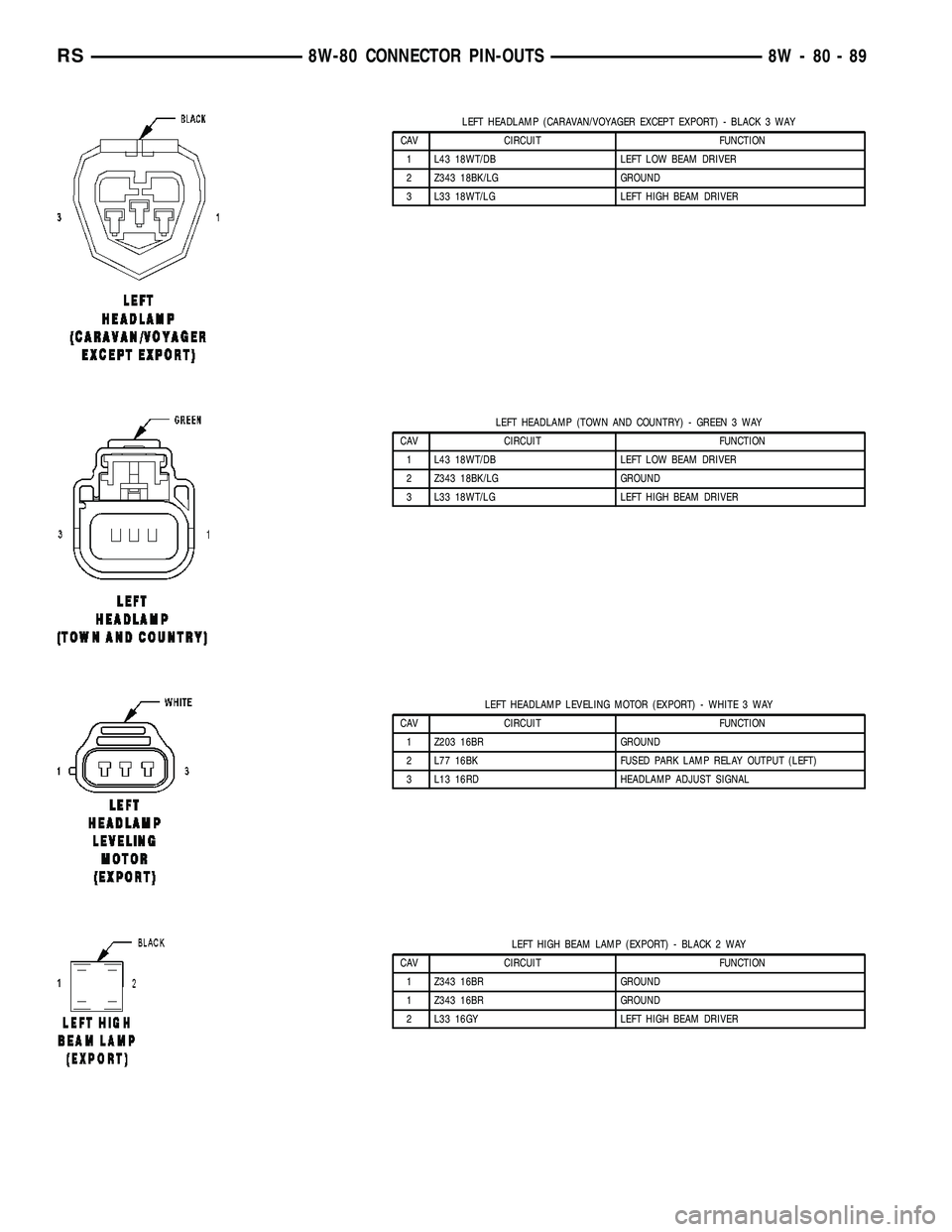

CHRYSLER VOYAGER 2005 Service Manual LEFT HEADLAMP (CARAVAN/VOYAGER EXCEPT EXPORT) - BLACK 3 WAY CAV CIRCUIT FUNCTION 1 L43 18WT/DB LEFT LOW BEAM DRIVER 2 Z343 18BK/LG GROUND 3 L33 18WT/LG LEFT HIGH BEAM DRIVER LEFT HEADLAMP (TOWN AND CO

Page 1059 of 2339

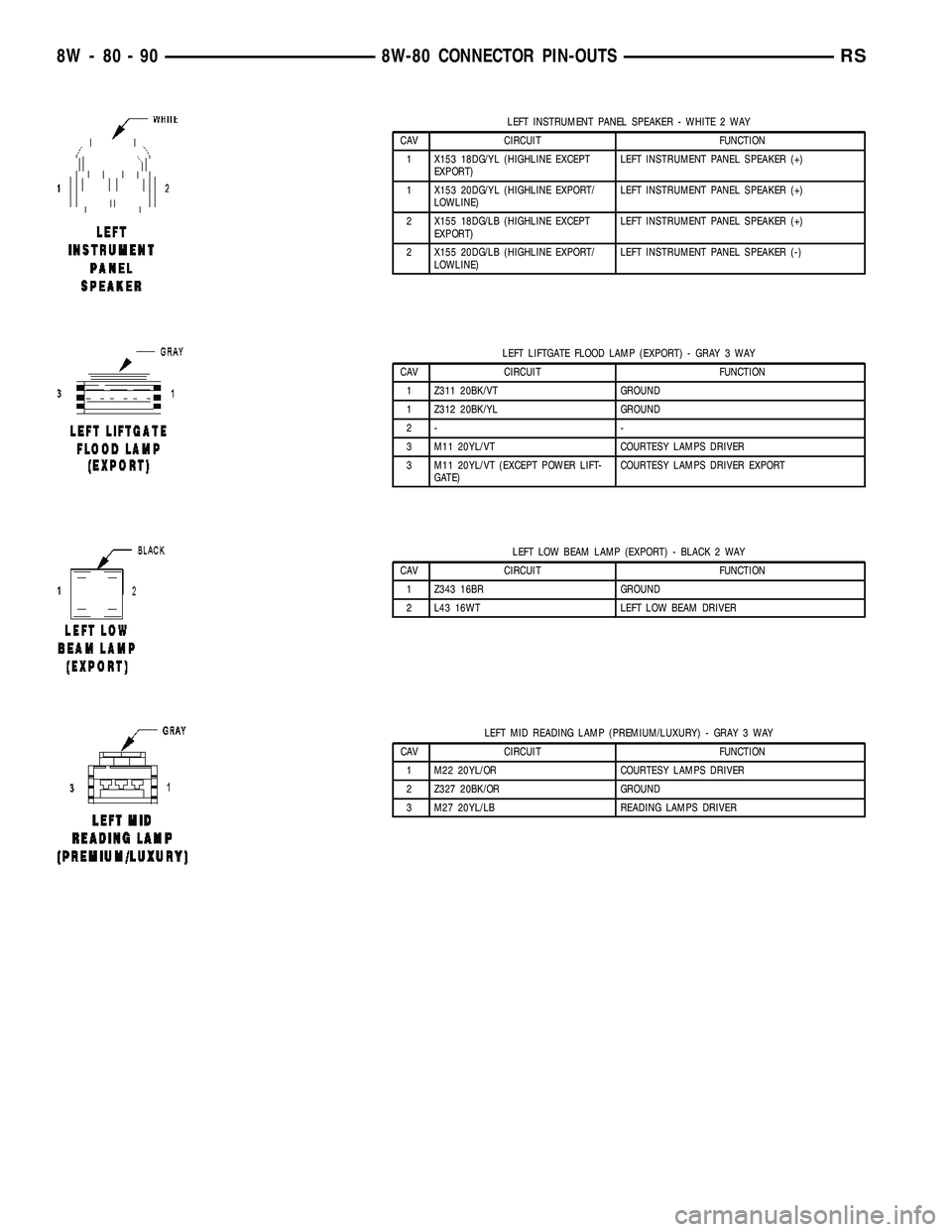

CHRYSLER VOYAGER 2005 Service Manual LEFT INSTRUMENT PANEL SPEAKER - WHITE 2 WAY CAV CIRCUIT FUNCTION 1 X153 18DG/YL (HIGHLINE EXCEPT EXPORT)LEFT INSTRUMENT PANEL SPEAKER (+) 1 X153 20DG/YL (HIGHLINE EXPORT/ LOWLINE)LEFT INSTRUMENT PANEL

Page 1060 of 2339

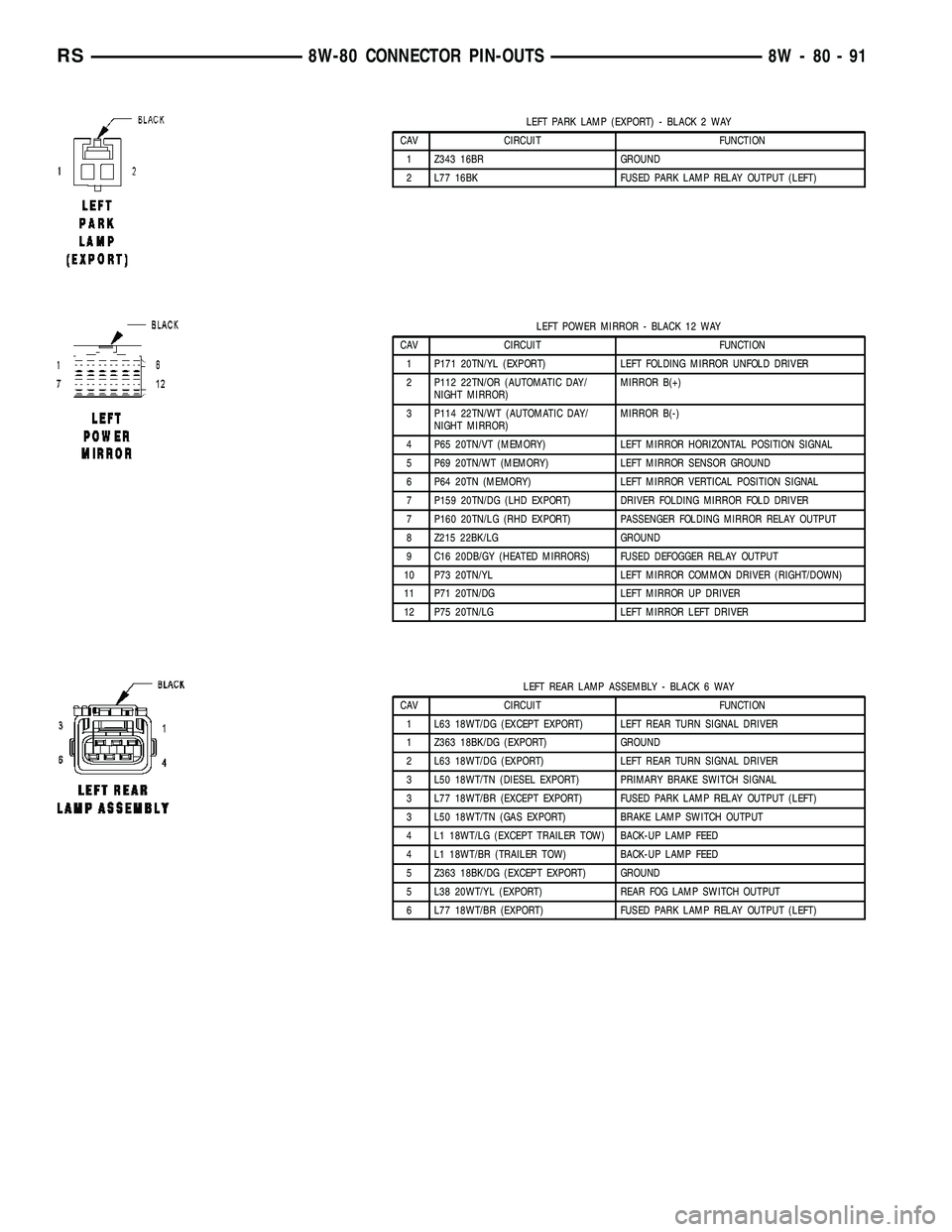

CHRYSLER VOYAGER 2005 Service Manual LEFT PARK LAMP (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 Z343 16BR GROUND 2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT) LEFT POWER MIRROR - BLACK 12 WAY CAV CIRCUIT FUNCTION 1 P171 20TN/YL (EXPOR

Page 1061 of 2339

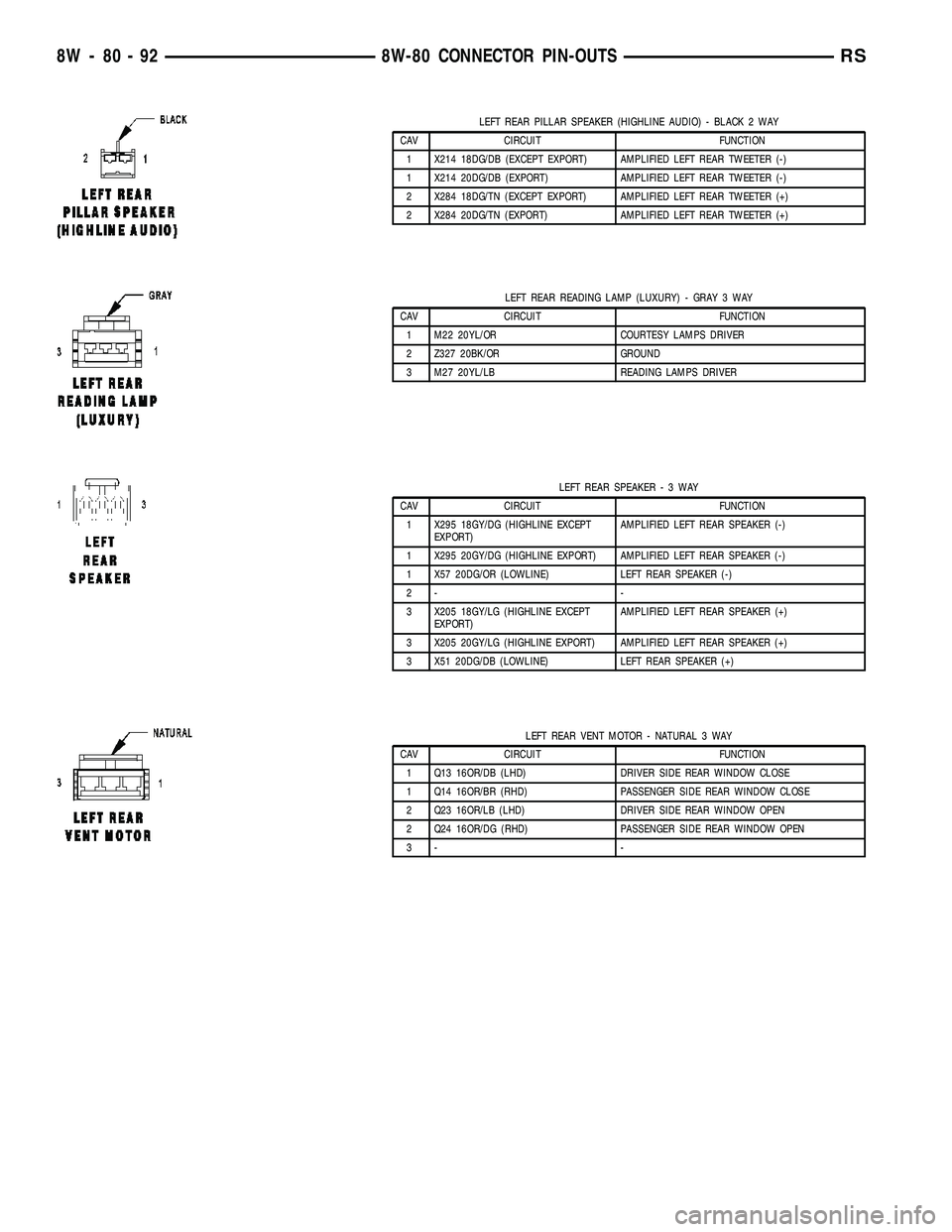

CHRYSLER VOYAGER 2005 Service Manual LEFT REAR PILLAR SPEAKER (HIGHLINE AUDIO) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 X214 18DG/DB (EXCEPT EXPORT) AMPLIFIED LEFT REAR TWEETER (-) 1 X214 20DG/DB (EXPORT) AMPLIFIED LEFT REAR TWEETER (-) 2 X2

Page 1062 of 2339

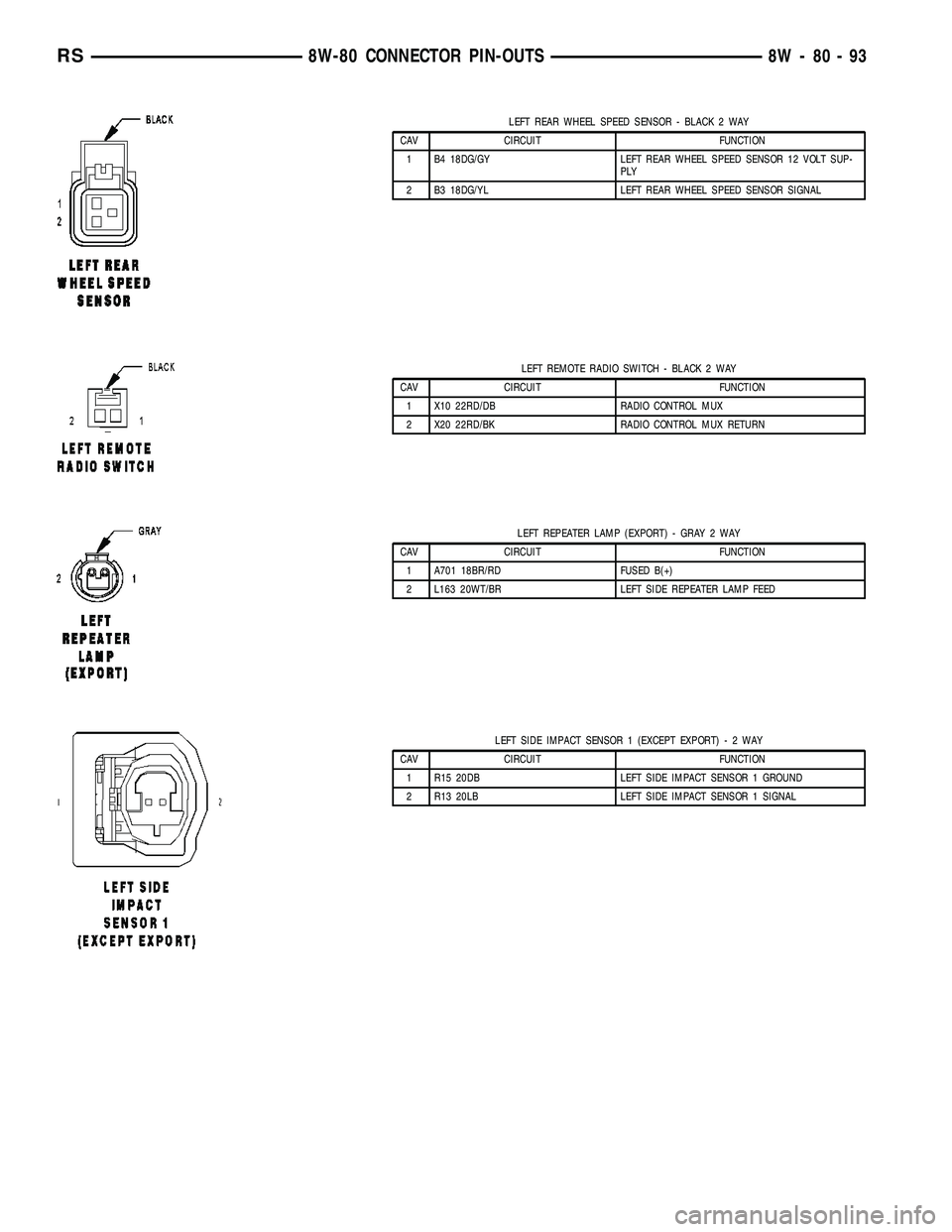

CHRYSLER VOYAGER 2005 Service Manual LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP- PLY 2 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL LEFT REMOTE RADIO SWITCH - B

Page 1063 of 2339

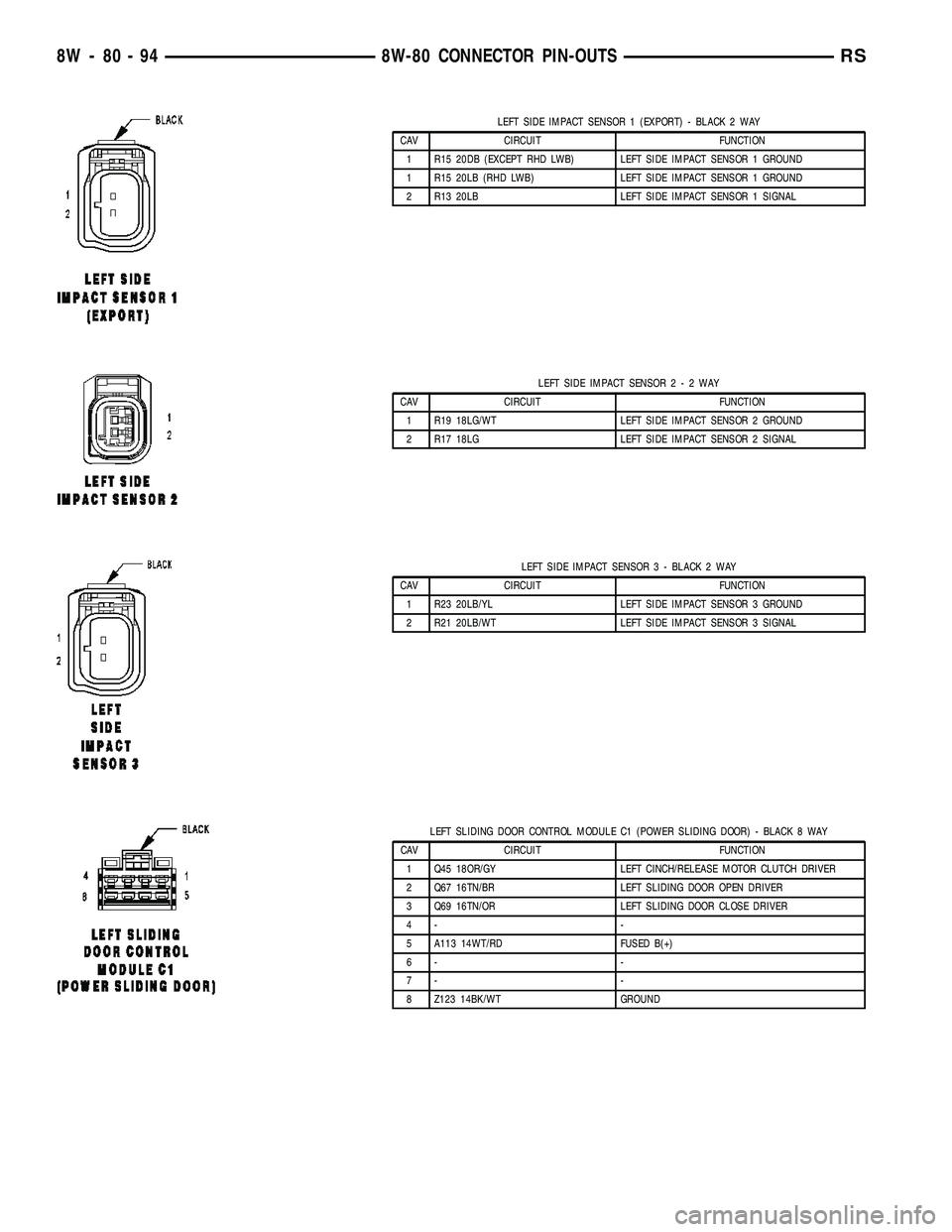

CHRYSLER VOYAGER 2005 Service Manual LEFT SIDE IMPACT SENSOR 1 (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 R15 20DB (EXCEPT RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND 1 R15 20LB (RHD LWB) LEFT SIDE IMPACT SENSOR 1 GROUND 2 R13 20LB LEFT

Page 1064 of 2339

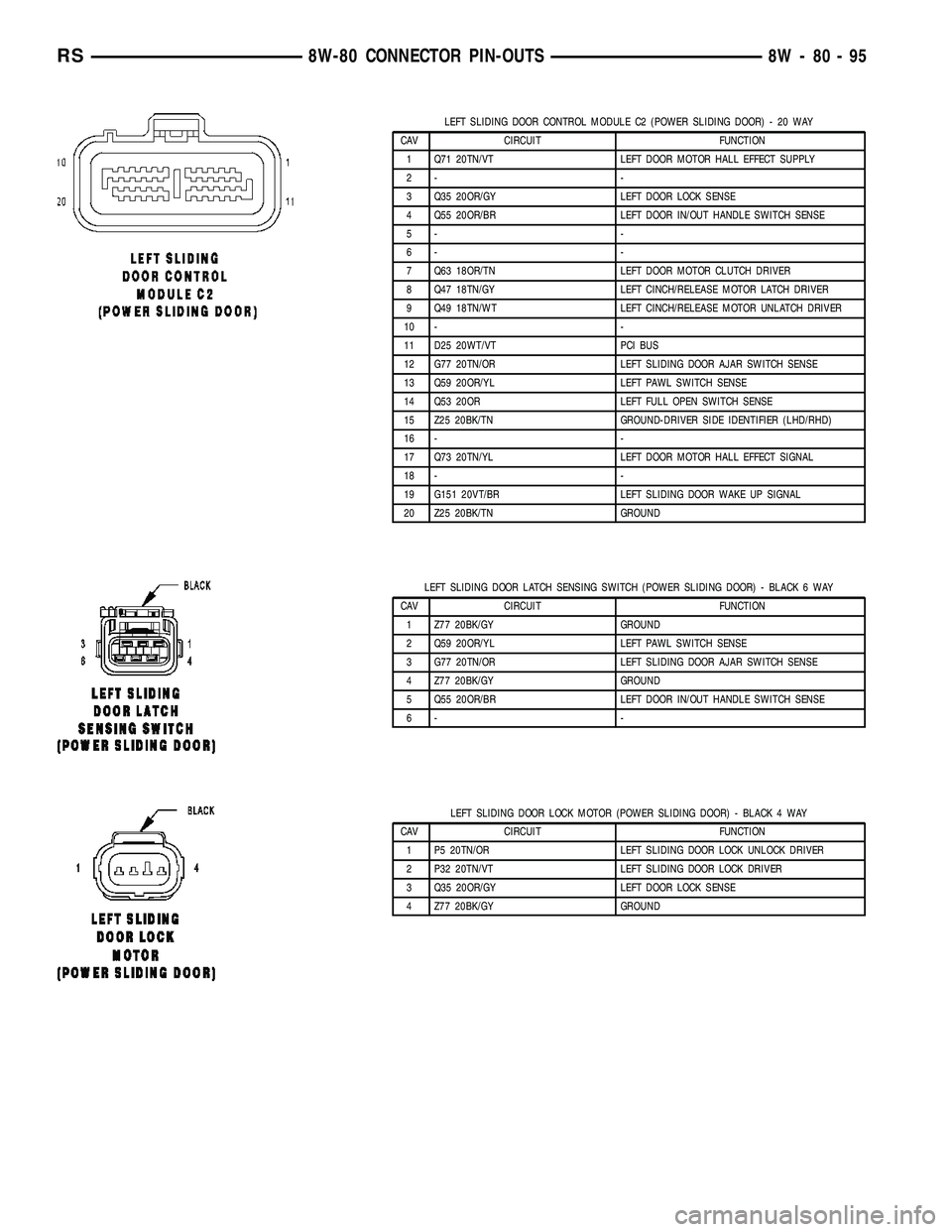

CHRYSLER VOYAGER 2005 Service Manual LEFT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - 20 WAY CAV CIRCUIT FUNCTION 1 Q71 20TN/VT LEFT DOOR MOTOR HALL EFFECT SUPPLY 2- - 3 Q35 20OR/GY LEFT DOOR LOCK SENSE 4 Q55 20OR/BR LEFT DOOR
