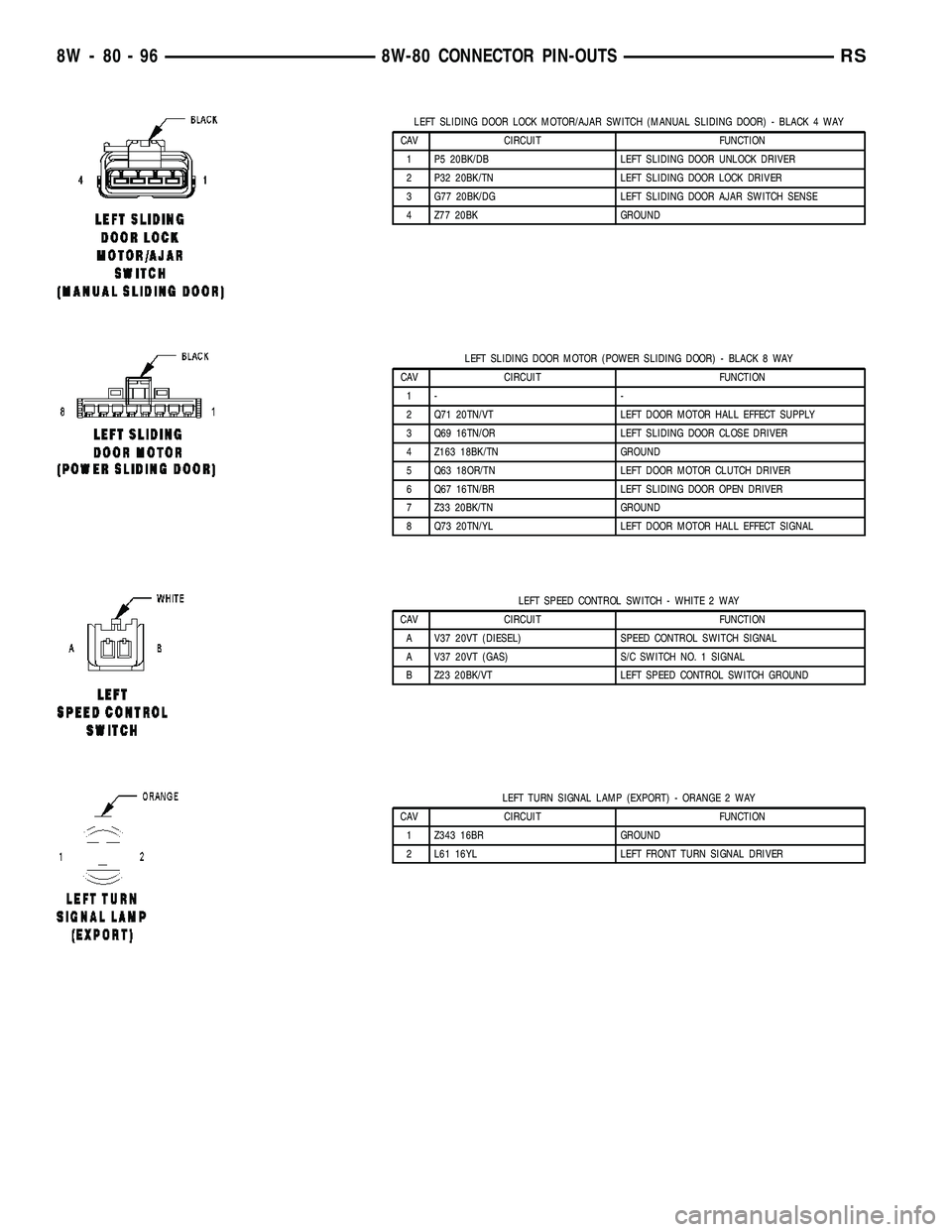

CHRYSLER VOYAGER 2005 Service Manual LEFT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P5 20BK/DB LEFT SLIDING DOOR UNLOCK DRIVER
2 P32 20BK/TN LEFT SLIDING DOOR LOCK DRIVER
3 G77 20BK/DG

Page 1066 of 2339

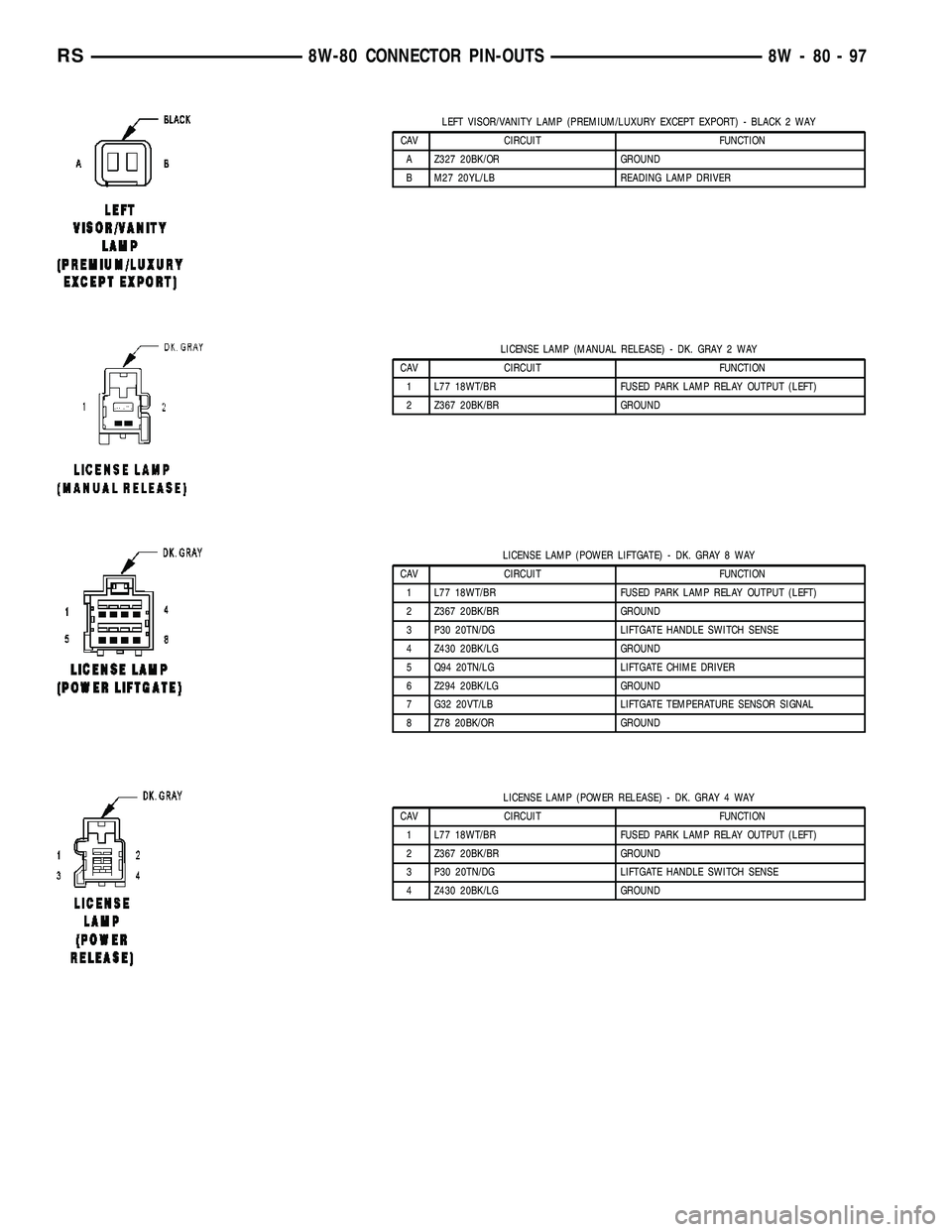

CHRYSLER VOYAGER 2005 Service Manual LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRC

Page 1067 of 2339

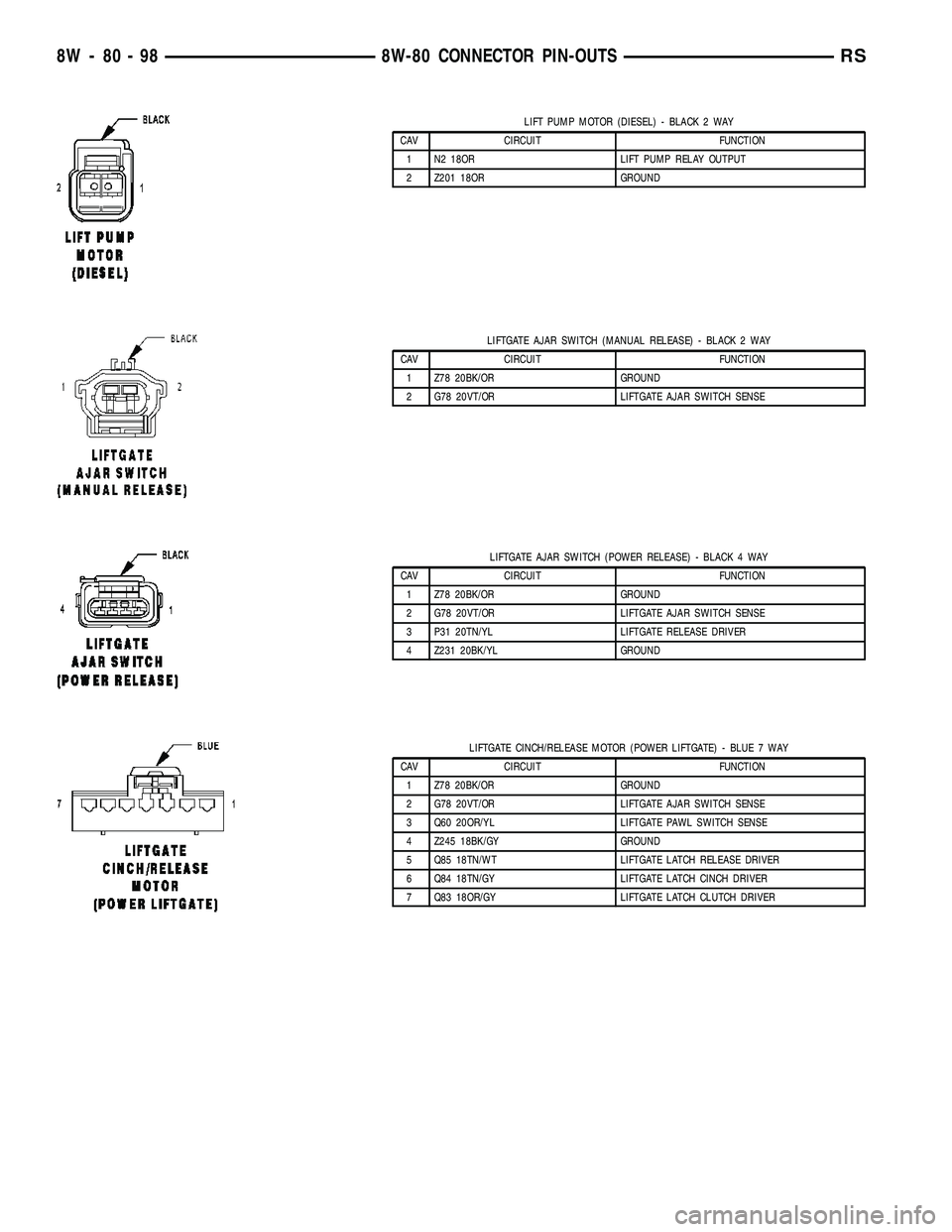

CHRYSLER VOYAGER 2005 Service Manual LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR G

Page 1068 of 2339

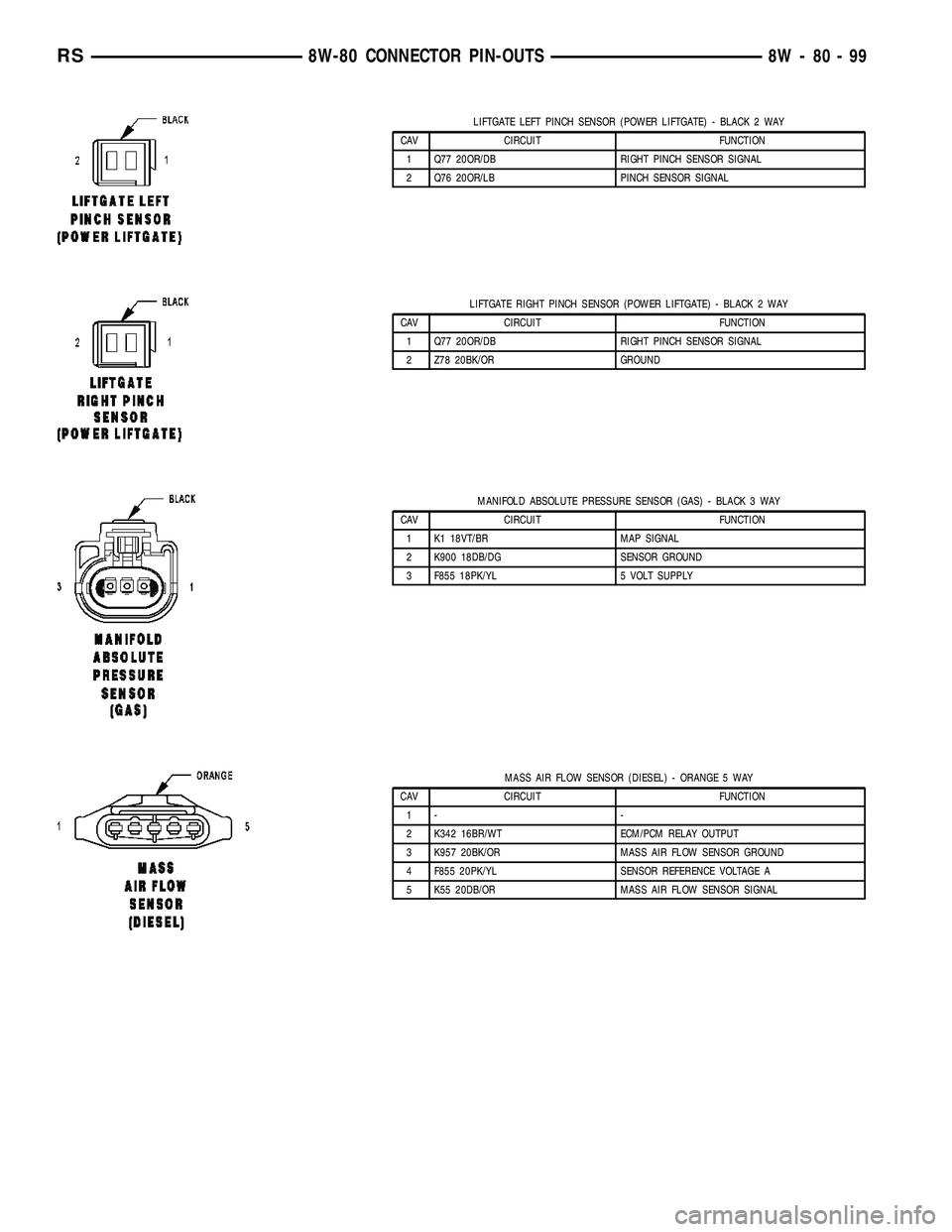

CHRYSLER VOYAGER 2005 Service Manual LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) -

Page 1069 of 2339

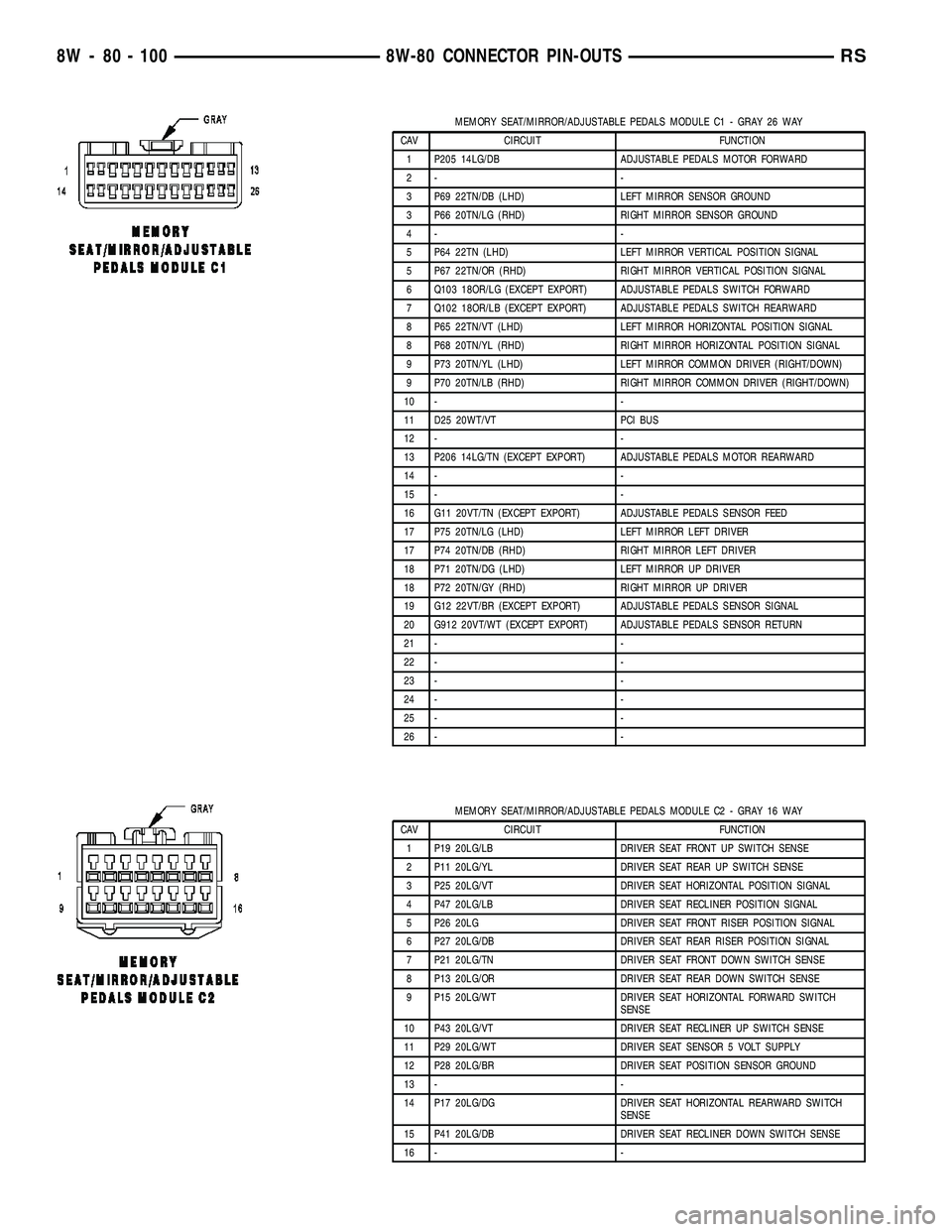

CHRYSLER VOYAGER 2005 Service Manual MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P205 14LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2- -
3 P69 22TN/DB (LHD) LEFT MIRROR SENSOR GROUND
3 P66 20TN/LG (RHD)

MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P205 14LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2- -
3 P69 22TN/DB (LHD) LEFT MIRROR SENSOR GROUND
3 P66 20TN/LG (RHD) RIGHT MIRROR SENSOR GROUND
4- -
5 P64 22TN (LHD) LEFT MIRROR VERTICAL POSITION SIGNAL
5 P67 22TN/OR (RHD) RIGHT MIRROR VERTICAL POSITION SIGNAL
6 Q103 18OR/LG (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH FORWARD
7 Q102 18OR/LB (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH REARWARD
8 P65 22TN/VT (LHD) LEFT MIRROR HORIZONTAL POSITION SIGNAL
8 P68 20TN/YL (RHD) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
9 P73 20TN/YL (LHD) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
9 P70 20TN/LB (RHD) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
10 - -
11 D25 20WT/VT PCI BUS
12 - -
13 P206 14LG/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS MOTOR REARWARD
14 - -
15 - -
16 G11 20VT/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR FEED
17 P75 20TN/LG (LHD) LEFT MIRROR LEFT DRIVER
17 P74 20TN/DB (RHD) RIGHT MIRROR LEFT DRIVER
18 P71 20TN/DG (LHD) LEFT MIRROR UP DRIVER
18 P72 20TN/GY (RHD) RIGHT MIRROR UP DRIVER
19 G12 22VT/BR (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR SIGNAL
20 G912 20VT/WT (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR RETURN
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
2 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
3 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
4 P47 20LG/LB DRIVER SEAT RECLINER POSITION SIGNAL
5 P26 20LG DRIVER SEAT FRONT RISER POSITION SIGNAL
6 P27 20LG/DB DRIVER SEAT REAR RISER POSITION SIGNAL
7 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
8 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
9 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
10 P43 20LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
11 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
12 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
13 - -
14 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
15 P41 20LG/DB DRIVER SEAT RECLINER DOWN SWITCH SENSE
16 - -
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS

Page 1070 of 2339

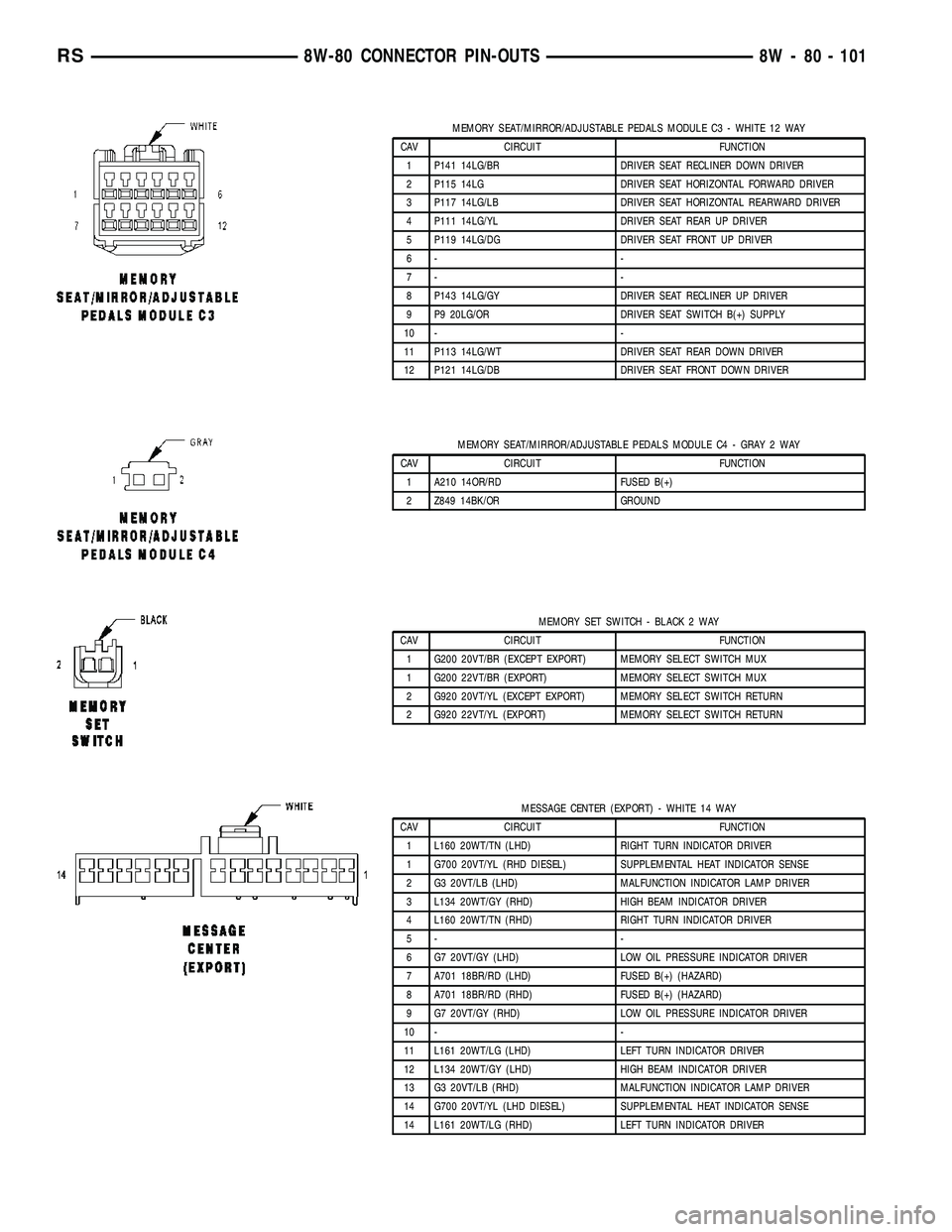

CHRYSLER VOYAGER 2005 Service Manual MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C3 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER DOWN DRIVER
2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER
3 P117 14LG/LB DRIV

Page 1071 of 2339

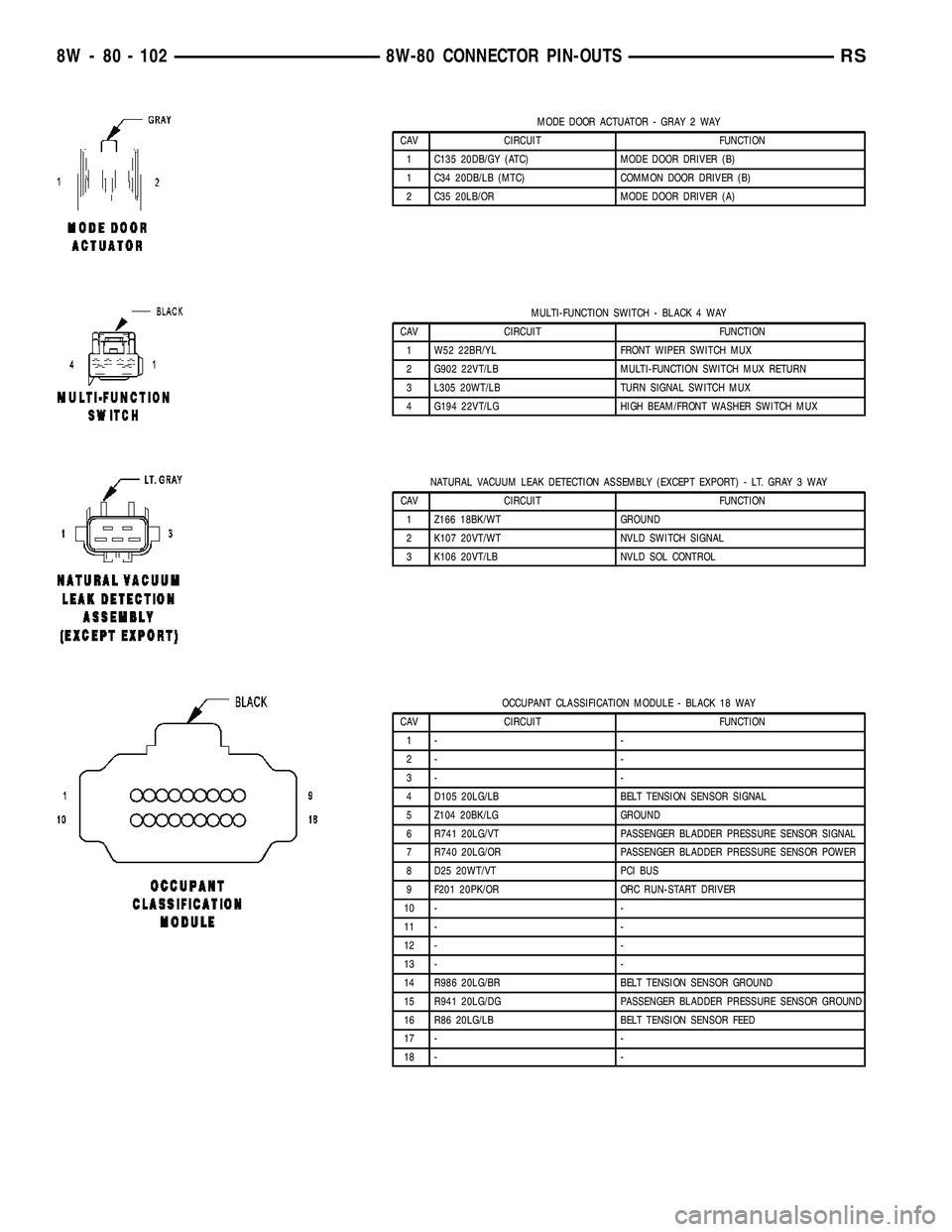

CHRYSLER VOYAGER 2005 Service Manual MODE DOOR ACTUATOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C135 20DB/GY (ATC) MODE DOOR DRIVER (B)
1 C34 20DB/LB (MTC) COMMON DOOR DRIVER (B)
2 C35 20LB/OR MODE DOOR DRIVER (A)
MULTI-FUNCTION SWITCH - BLA

Page 1072 of 2339

CHRYSLER VOYAGER 2005 Service Manual OCCUPANT RESTRAINT CONTROLLER C1 - YELLOW 32 WAY
CAV CIRCUIT FUNCTION
1 R53 20LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 20LG/DG DRIVER SEAT BELT TENSIONER LINE 1
3 R56 20LB/DG (EXCEPT OCCUPANT
SEN
