Page 2001 of 2339

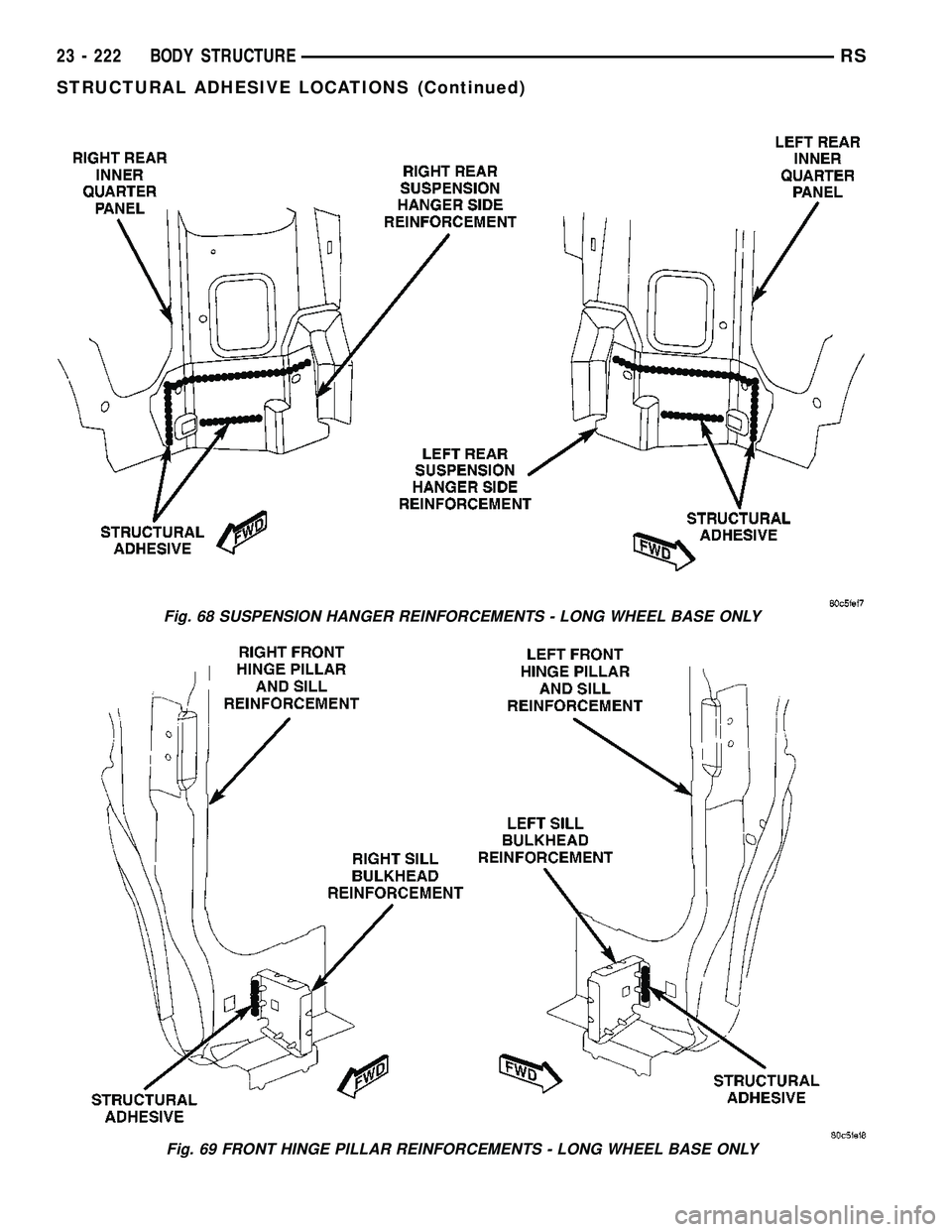

CHRYSLER VOYAGER 2005 Service Manual Fig. 68 SUSPENSION HANGER REINFORCEMENTS - LONG WHEEL BASE ONLY Fig. 69 FRONT HINGE PILLAR REINFORCEMENTS - LONG WHEEL BASE ONLY 23 - 222 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2002 of 2339

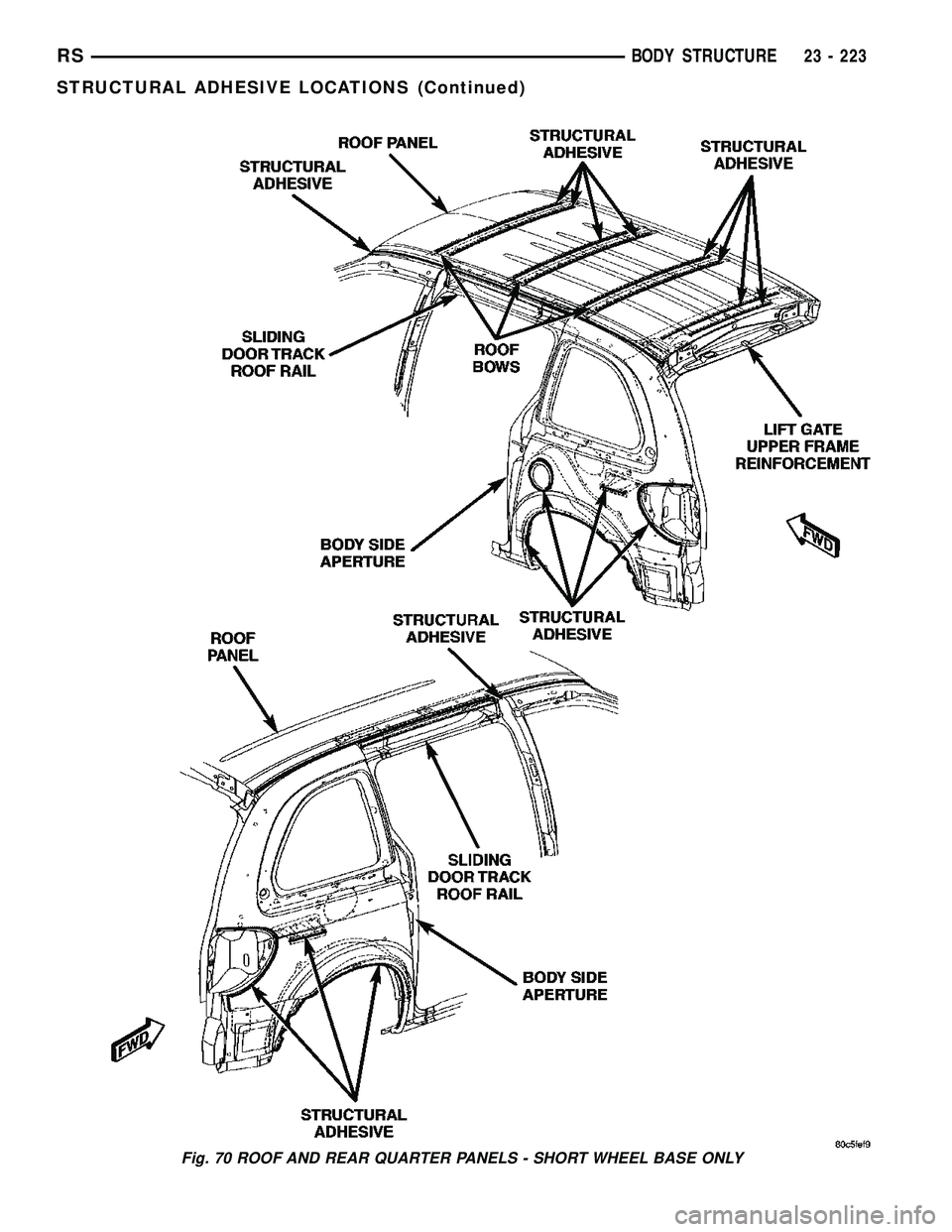

CHRYSLER VOYAGER 2005 Service Manual Fig. 70 ROOF AND REAR QUARTER PANELS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 223 STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2003 of 2339

CHRYSLER VOYAGER 2005 Service Manual Fig. 71 FLOOR PAN - SHORT WHEEL BASE ONLY 23 - 224 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2004 of 2339

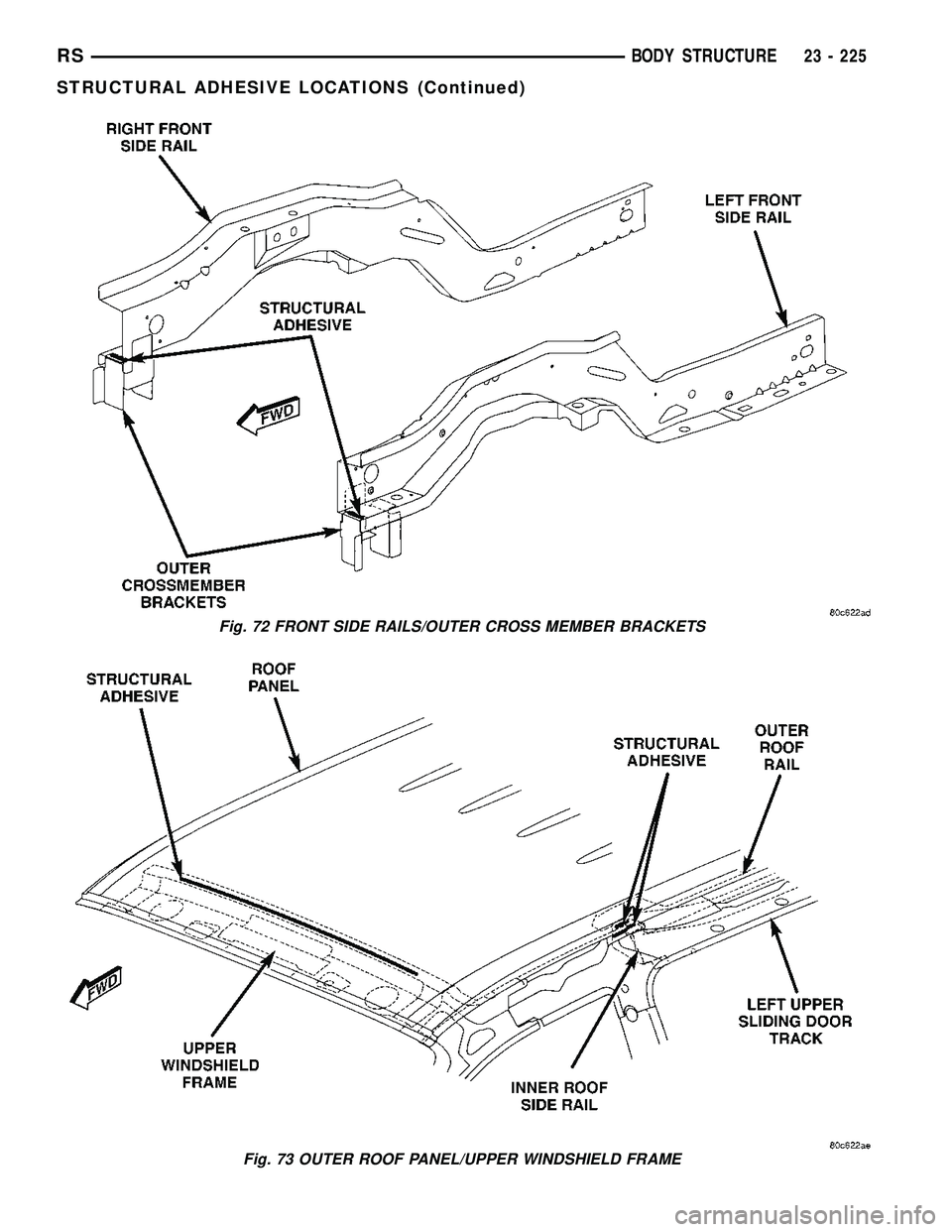

CHRYSLER VOYAGER 2005 Service Manual Fig. 72 FRONT SIDE RAILS/OUTER CROSS MEMBER BRACKETS Fig. 73 OUTER ROOF PANEL/UPPER WINDSHIELD FRAME RSBODY STRUCTURE23 - 225 STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2005 of 2339

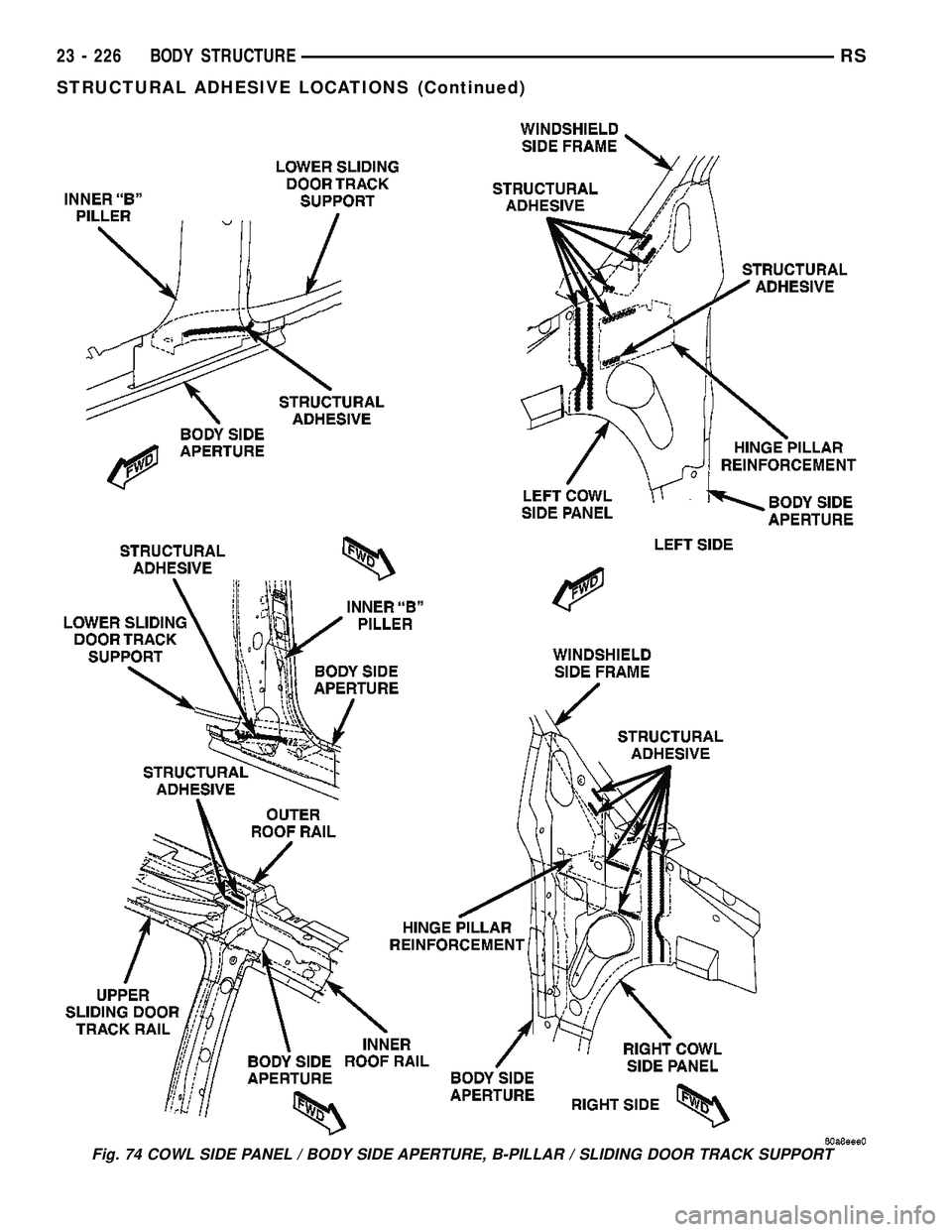

CHRYSLER VOYAGER 2005 Service Manual Fig. 74 COWL SIDE PANEL / BODY SIDE APERTURE, B-PILLAR / SLIDING DOOR TRACK SUPPORT 23 - 226 BODY STRUCTURERS STRUCTURAL ADHESIVE LOCATIONS (Continued)

Page 2006 of 2339

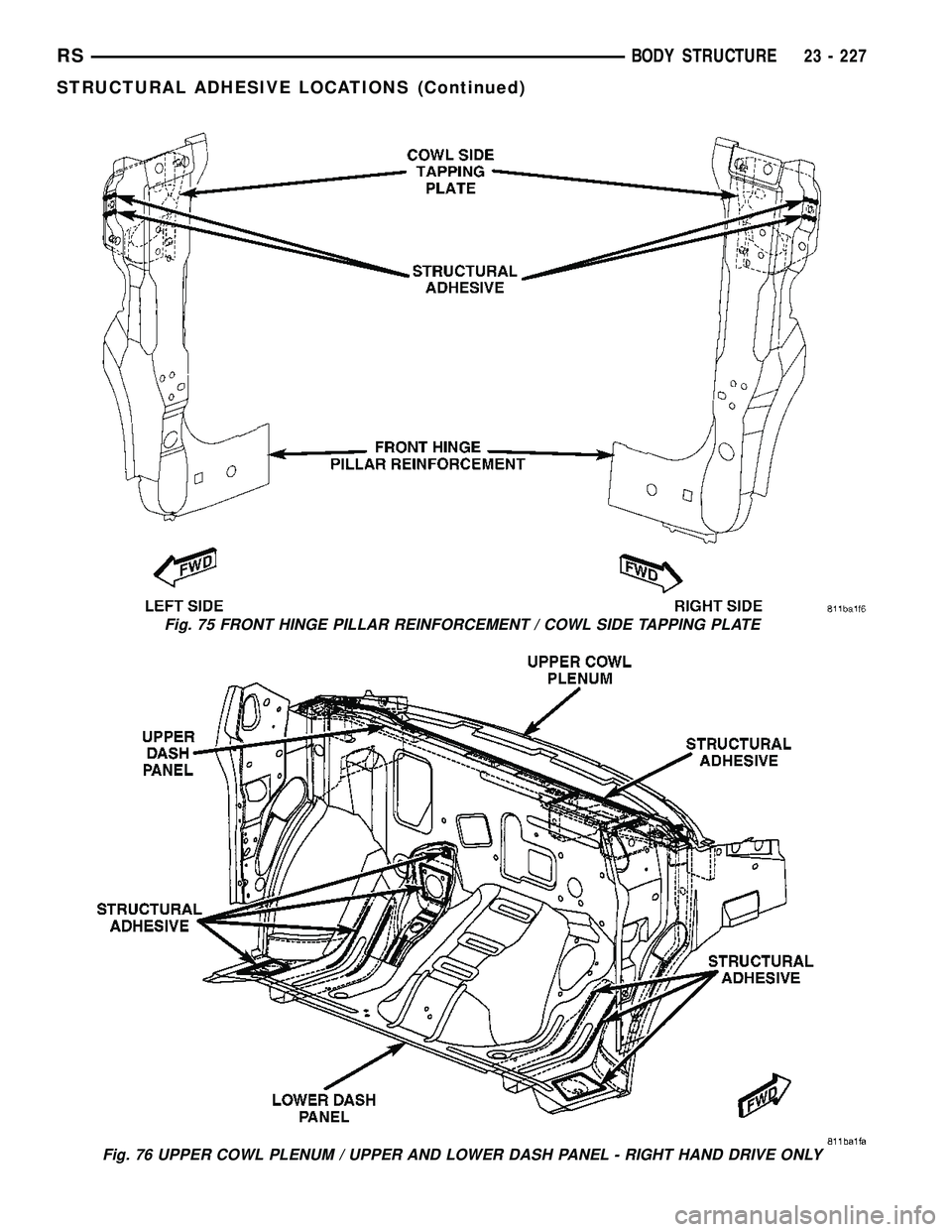

CHRYSLER VOYAGER 2005 Service Manual Fig. 75 FRONT HINGE PILLAR REINFORCEMENT / COWL SIDE TAPPING PLATE Fig. 76 UPPER COWL PLENUM / UPPER AND LOWER DASH PANEL - RIGHT HAND DRIVE ONLY RSBODY STRUCTURE23 - 227 STRUCTURAL ADHESIVE LOCATIONS

Page 2007 of 2339

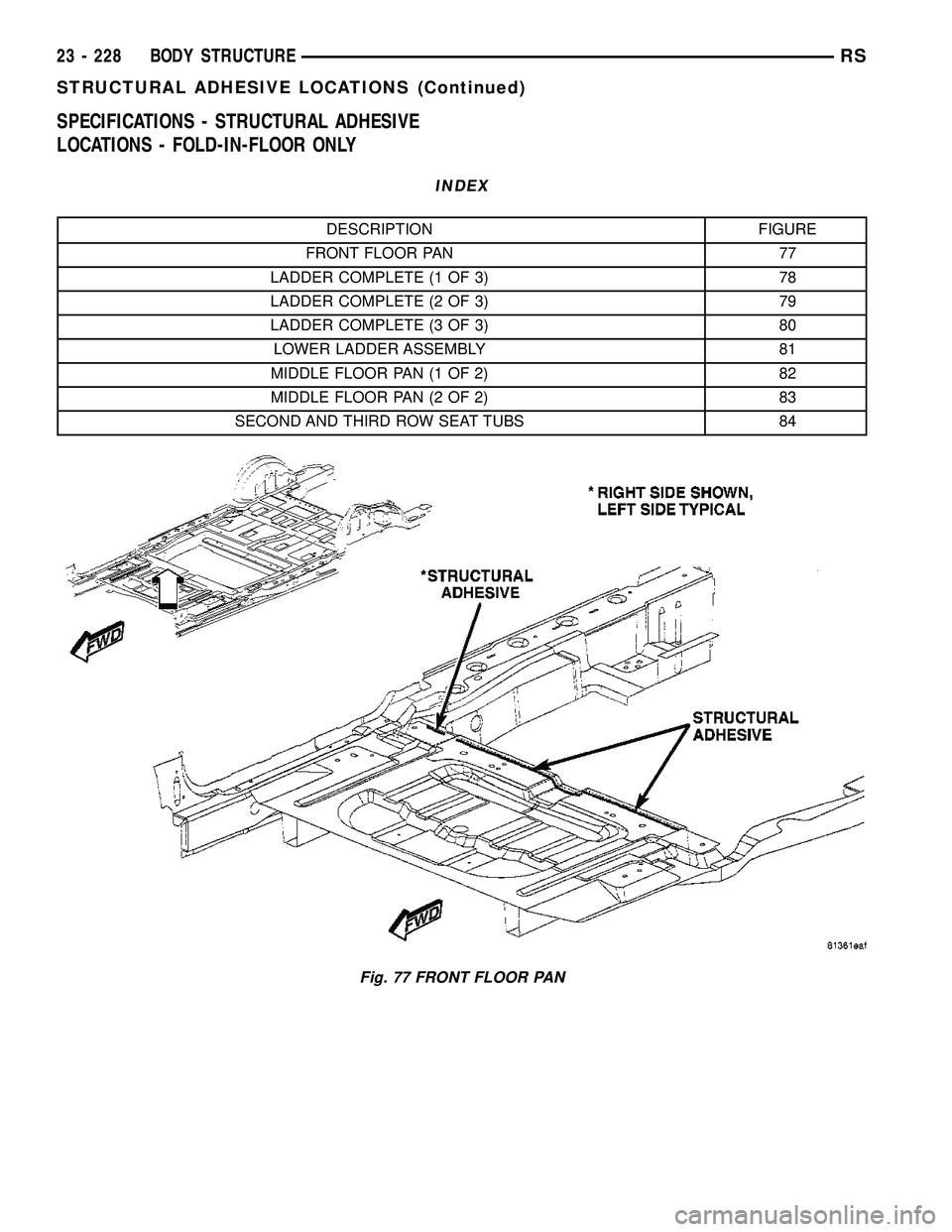

CHRYSLER VOYAGER 2005 Service Manual SPECIFICATIONS - STRUCTURAL ADHESIVE LOCATIONS - FOLD-IN-FLOOR ONLY INDEX DESCRIPTION FIGURE FRONT FLOOR PAN 77 LADDER COMPLETE (1 OF 3) 78 LADDER COMPLETE (2 OF 3) 79 LADDER COMPLETE (3 OF 3) 80 LOWE

Page 2008 of 2339

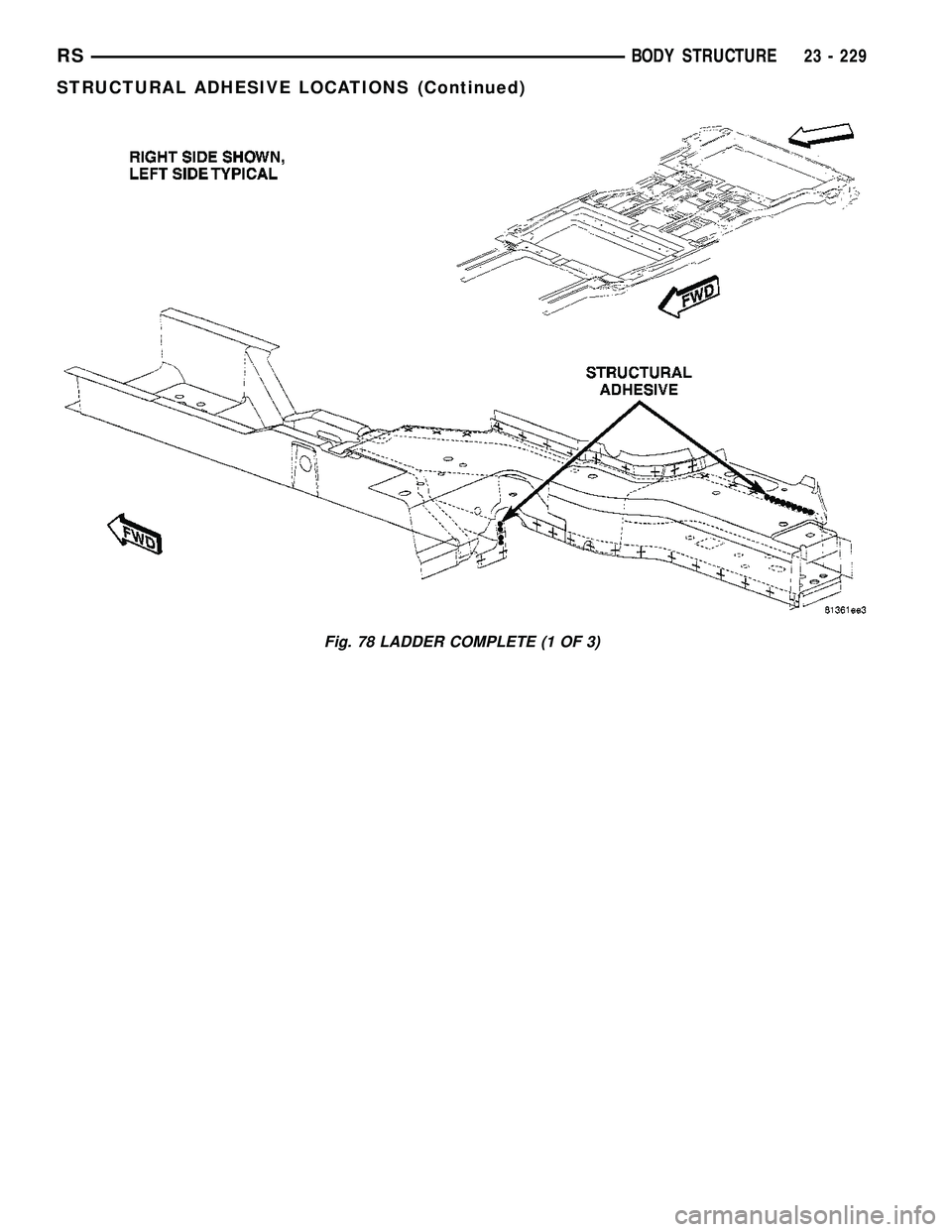

CHRYSLER VOYAGER 2005 Service Manual Fig. 78 LADDER COMPLETE (1 OF 3) RSBODY STRUCTURE23 - 229 STRUCTURAL ADHESIVE LOCATIONS (Continued)
