Page 1129 of 2339

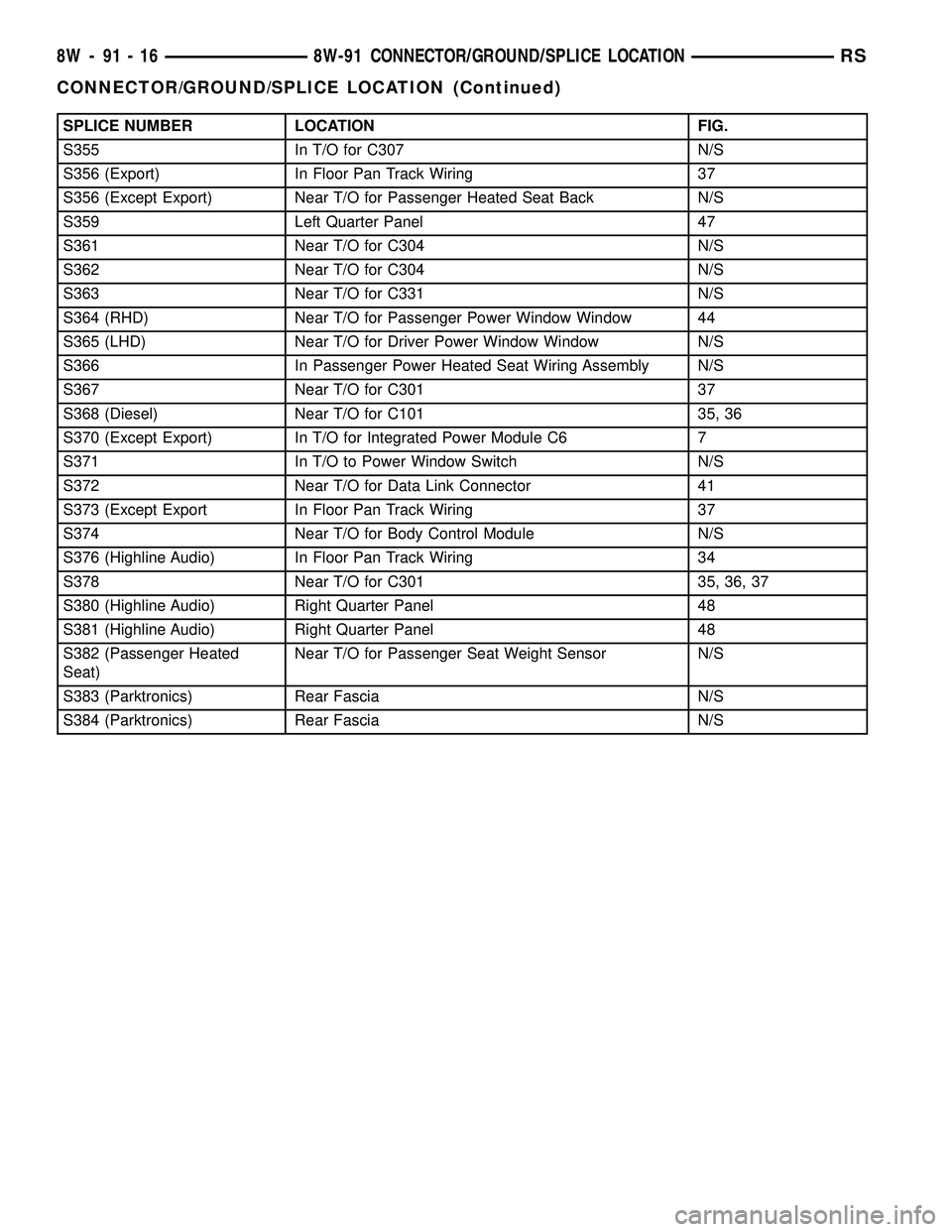

CHRYSLER VOYAGER 2005 Service Manual SPLICE NUMBER LOCATION FIG. S355 In T/O for C307 N/S S356 (Export) In Floor Pan Track Wiring 37 S356 (Except Export) Near T/O for Passenger Heated Seat Back N/S S359 Left Quarter Panel 47 S361 Near T/

Page 1130 of 2339

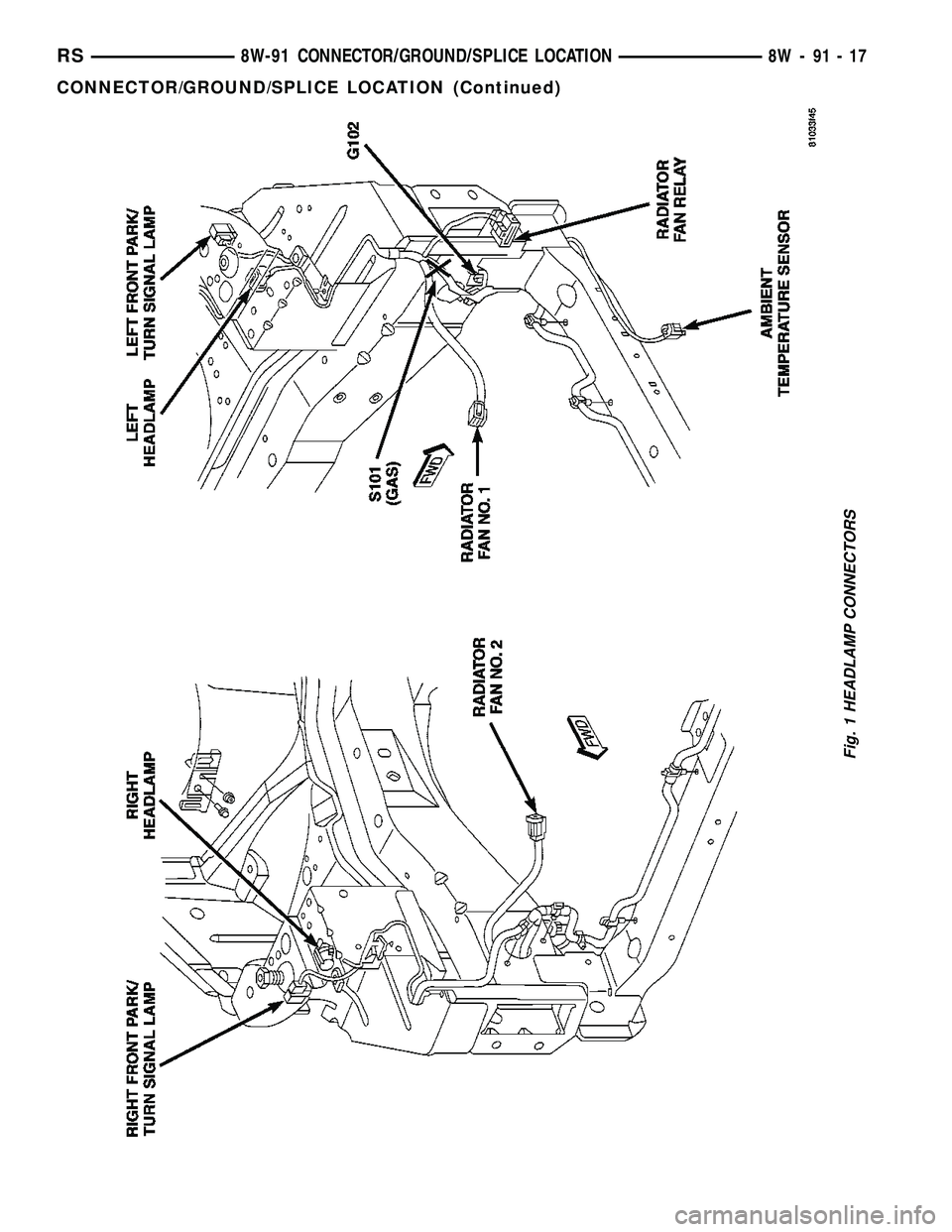

CHRYSLER VOYAGER 2005 Service Manual Fig. 1 HEADLAMP CONNECTORS RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-17 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1131 of 2339

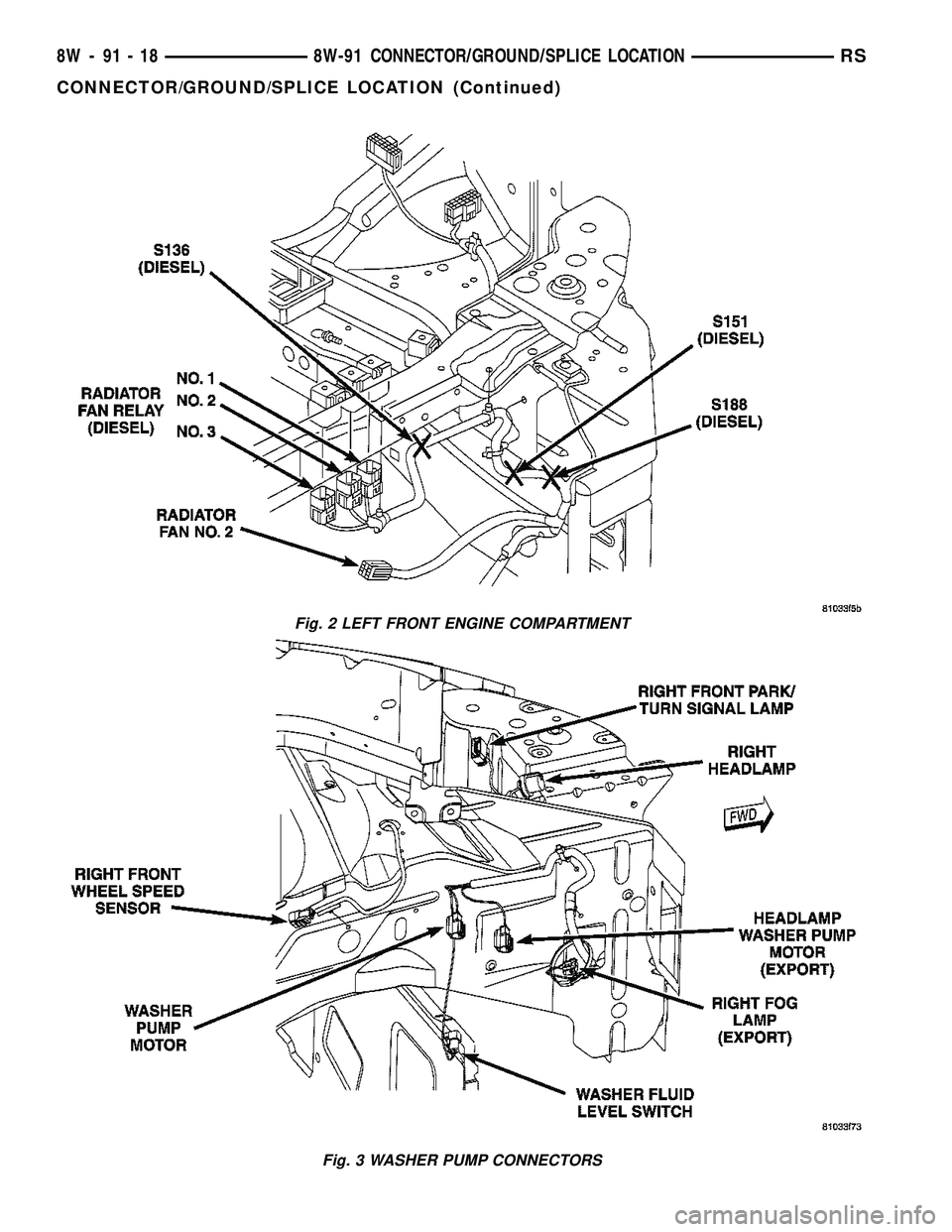

CHRYSLER VOYAGER 2005 Service Manual Fig. 2 LEFT FRONT ENGINE COMPARTMENT Fig. 3 WASHER PUMP CONNECTORS 8W - 91 - 18 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1132 of 2339

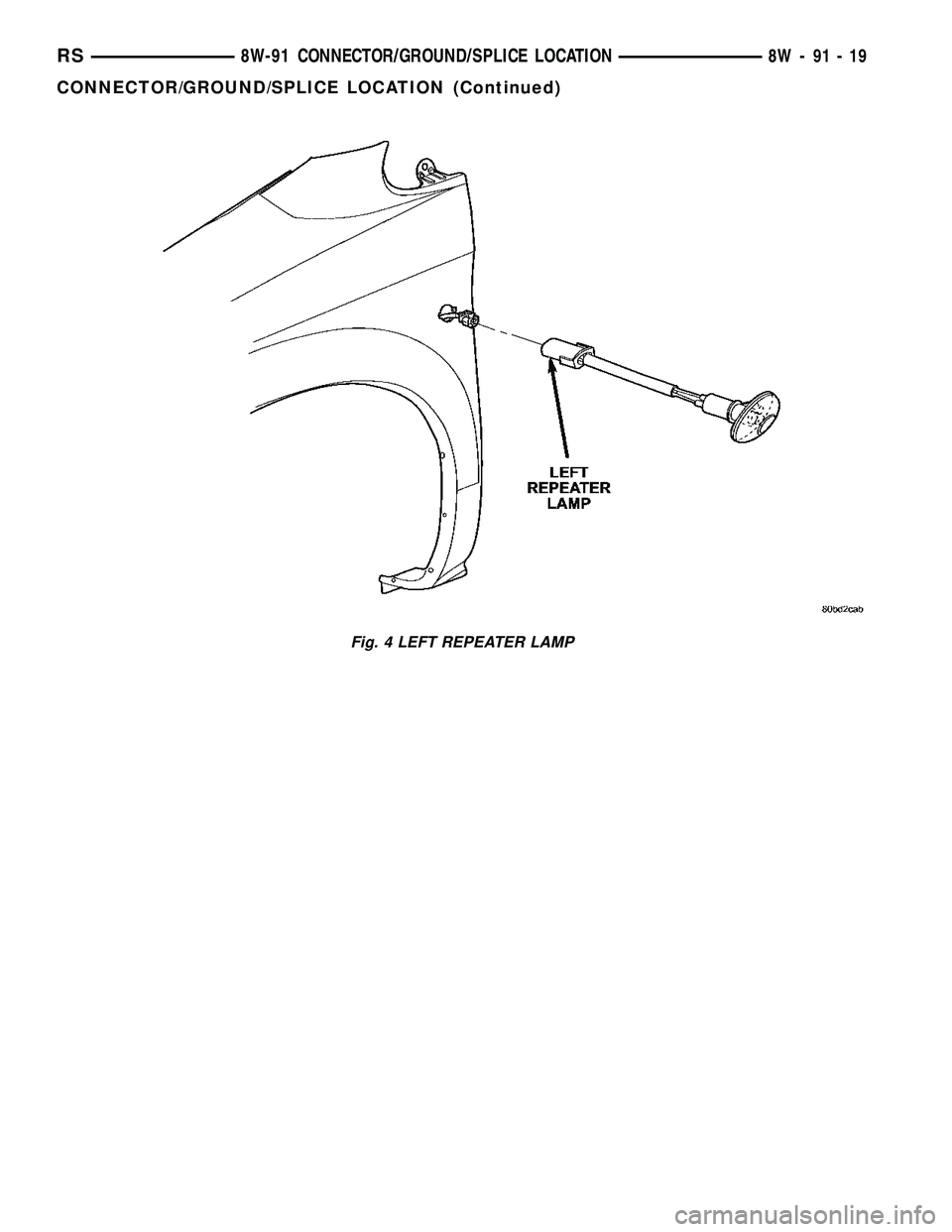

CHRYSLER VOYAGER 2005 Service Manual Fig. 4 LEFT REPEATER LAMP RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-19 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1133 of 2339

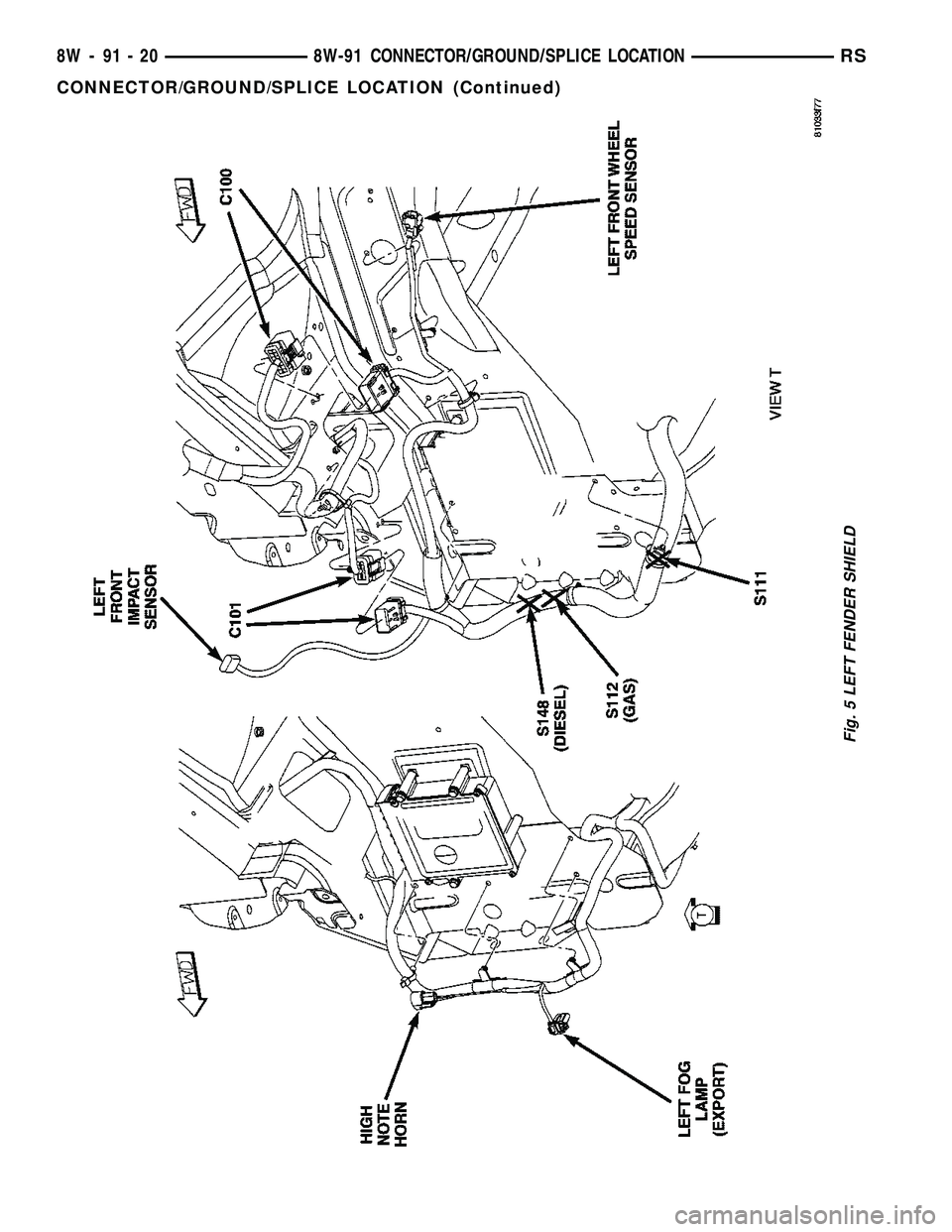

CHRYSLER VOYAGER 2005 Service Manual Fig. 5 LEFT FENDER SHIELD 8W - 91 - 20 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1134 of 2339

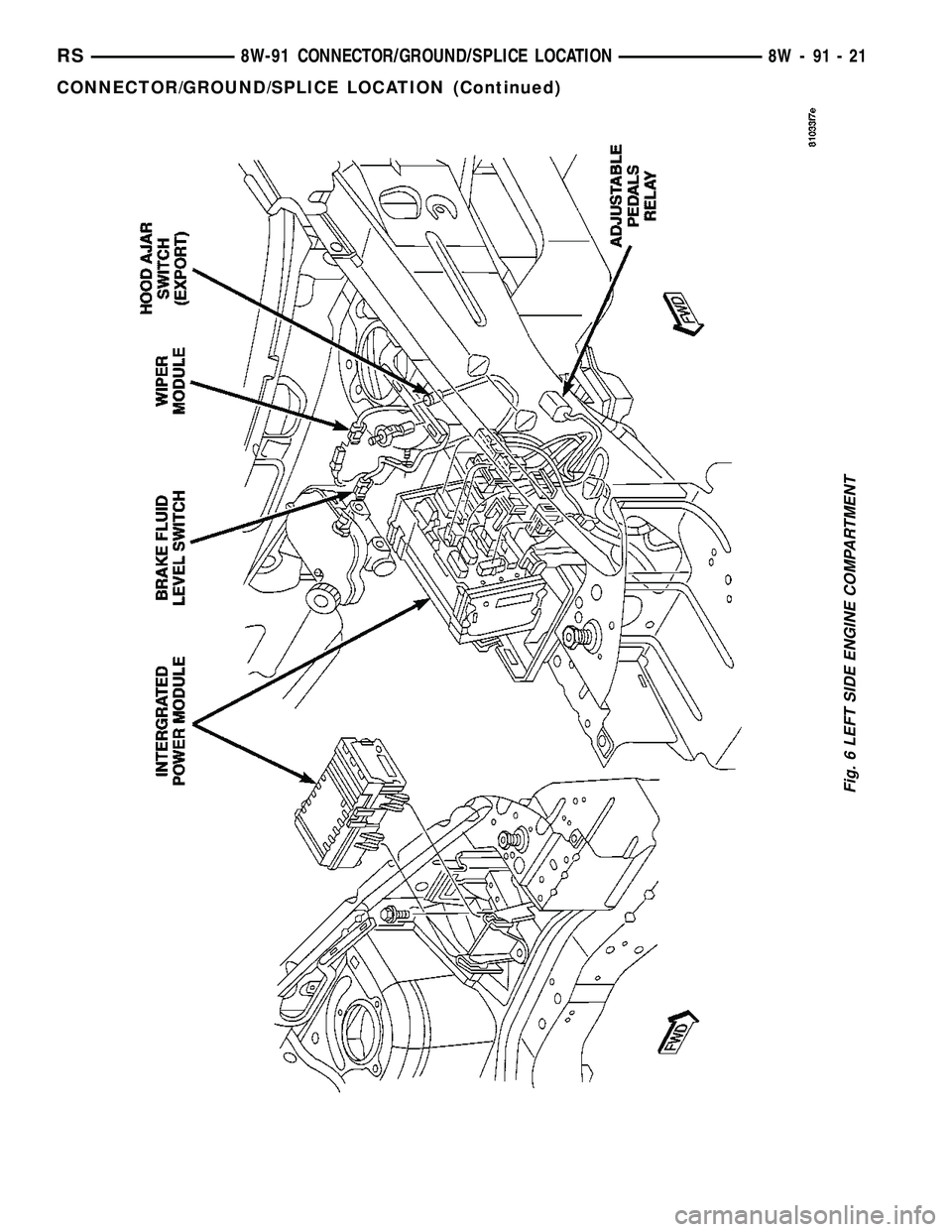

CHRYSLER VOYAGER 2005 Service Manual Fig. 6 LEFT SIDE ENGINE COMPARTMENT RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-21 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1135 of 2339

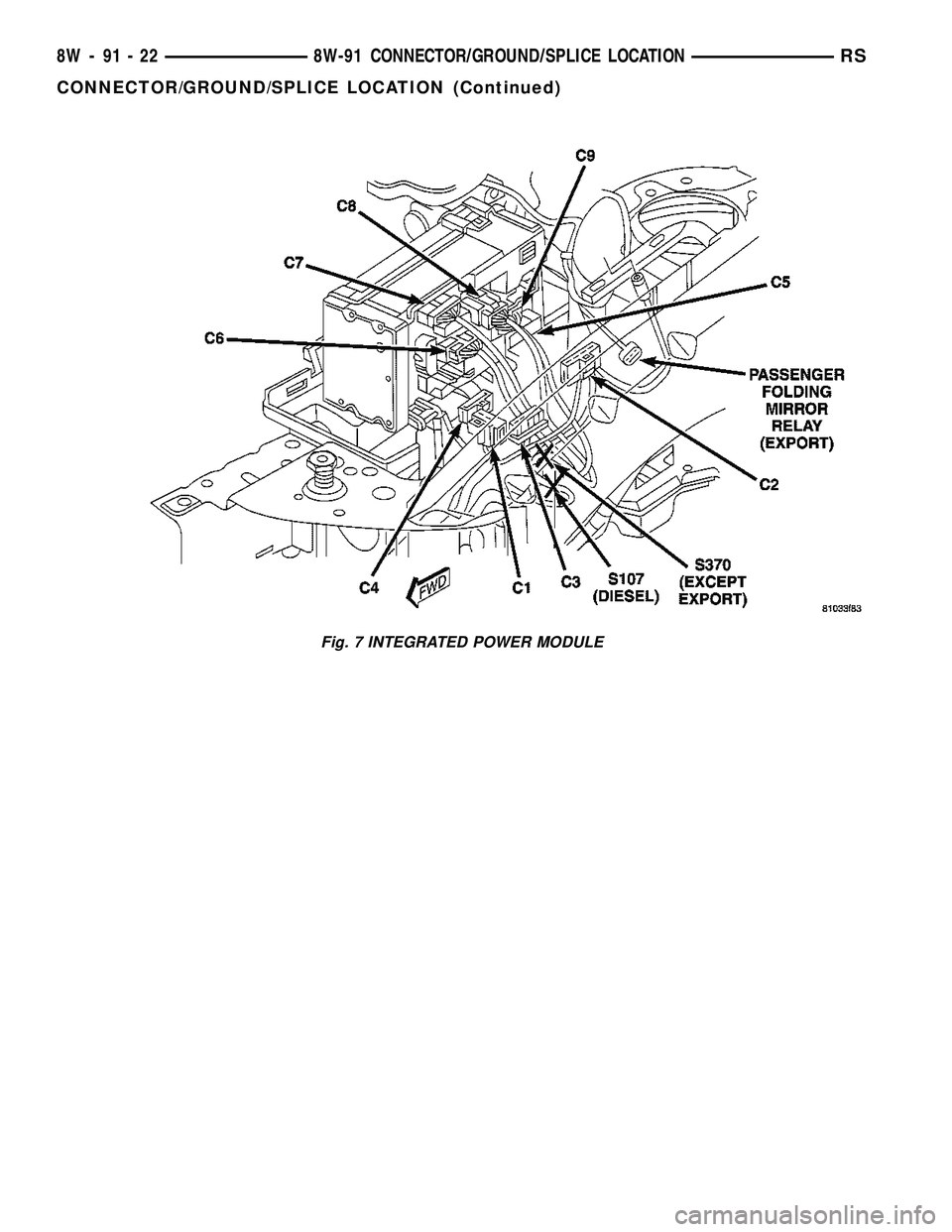

CHRYSLER VOYAGER 2005 Service Manual Fig. 7 INTEGRATED POWER MODULE 8W - 91 - 22 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1136 of 2339

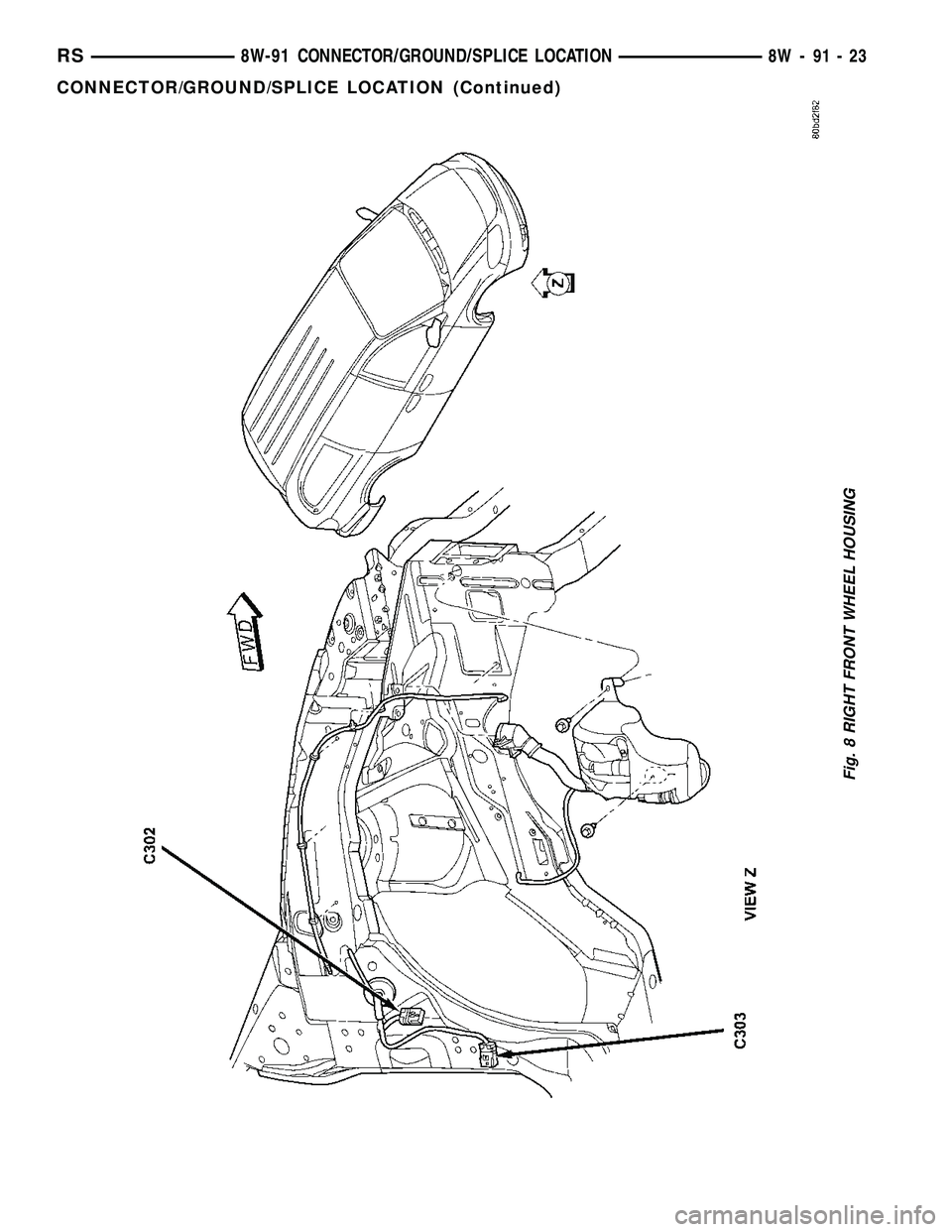

CHRYSLER VOYAGER 2005 Service Manual Fig. 8 RIGHT FRONT WHEEL HOUSING RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-23 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
