Page 1081 of 2339

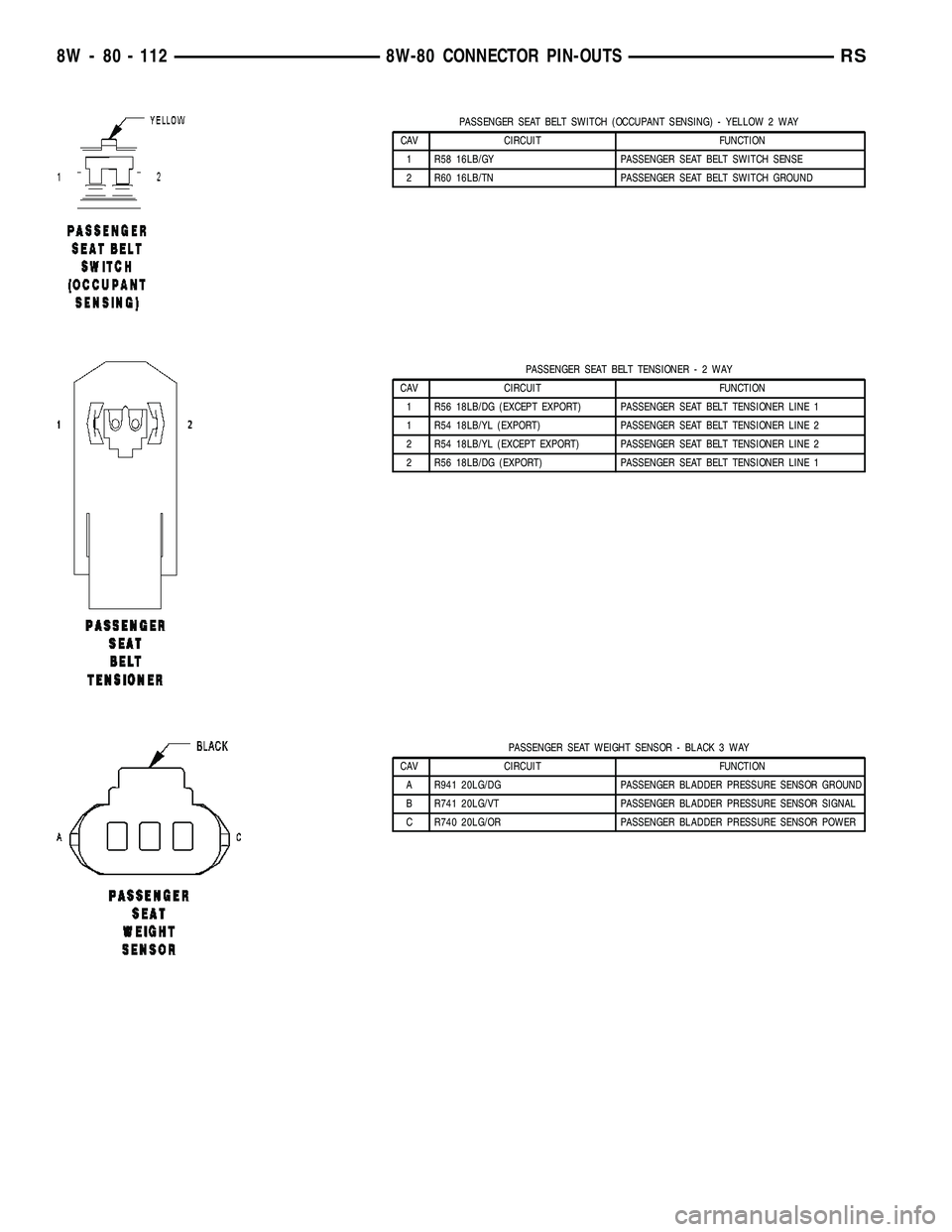

CHRYSLER VOYAGER 2005 Service Manual PASSENGER SEAT BELT SWITCH (OCCUPANT SENSING) - YELLOW 2 WAY CAV CIRCUIT FUNCTION 1 R58 16LB/GY PASSENGER SEAT BELT SWITCH SENSE 2 R60 16LB/TN PASSENGER SEAT BELT SWITCH GROUND PASSENGER SEAT BELT TEN

Page 1082 of 2339

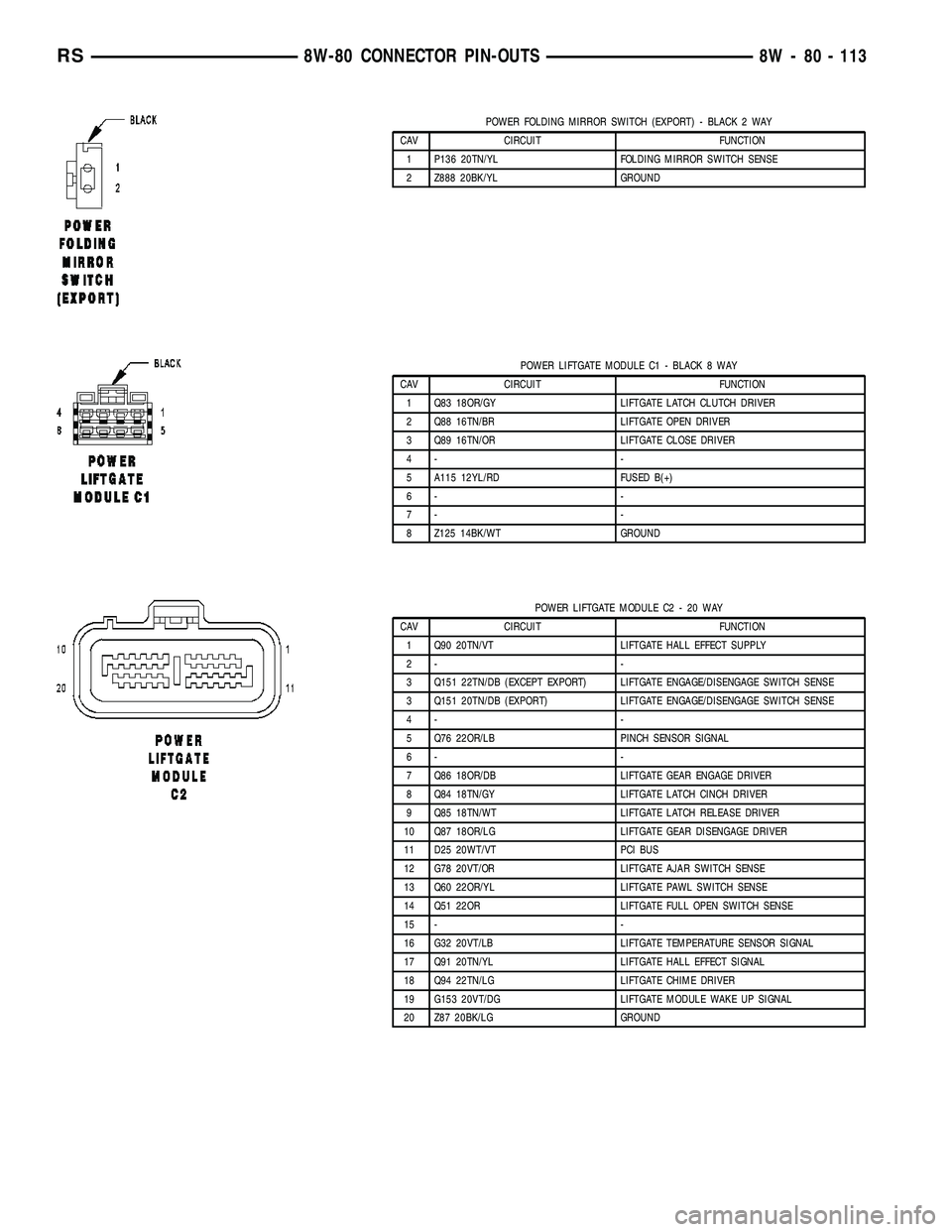

CHRYSLER VOYAGER 2005 Service Manual POWER FOLDING MIRROR SWITCH (EXPORT) - BLACK 2 WAY CAV CIRCUIT FUNCTION 1 P136 20TN/YL FOLDING MIRROR SWITCH SENSE 2 Z888 20BK/YL GROUND POWER LIFTGATE MODULE C1 - BLACK 8 WAY CAV CIRCUIT FUNCTION 1 Q

Page 1083 of 2339

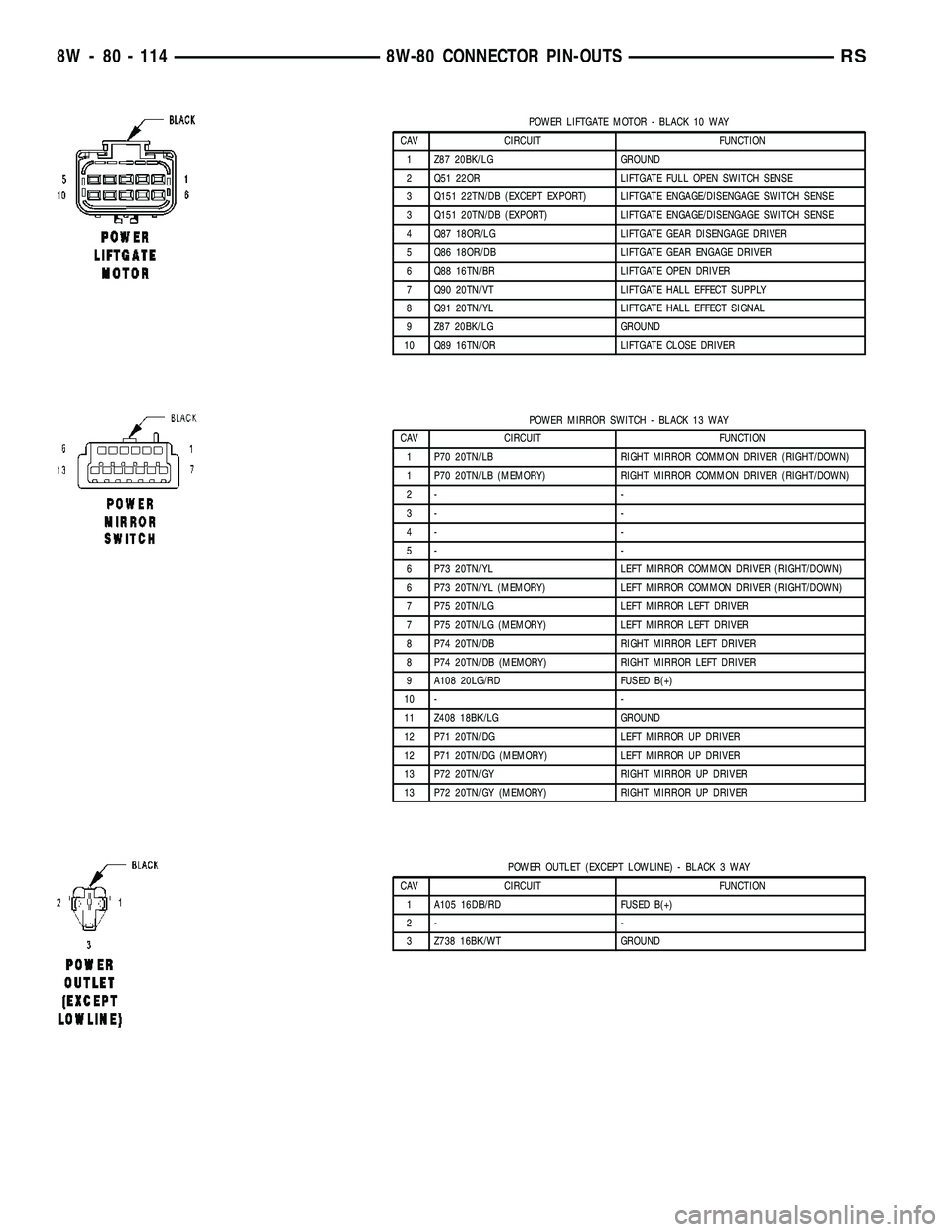

CHRYSLER VOYAGER 2005 Service Manual POWER LIFTGATE MOTOR - BLACK 10 WAY CAV CIRCUIT FUNCTION 1 Z87 20BK/LG GROUND 2 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE 3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE 3 Q151 20

Page 1084 of 2339

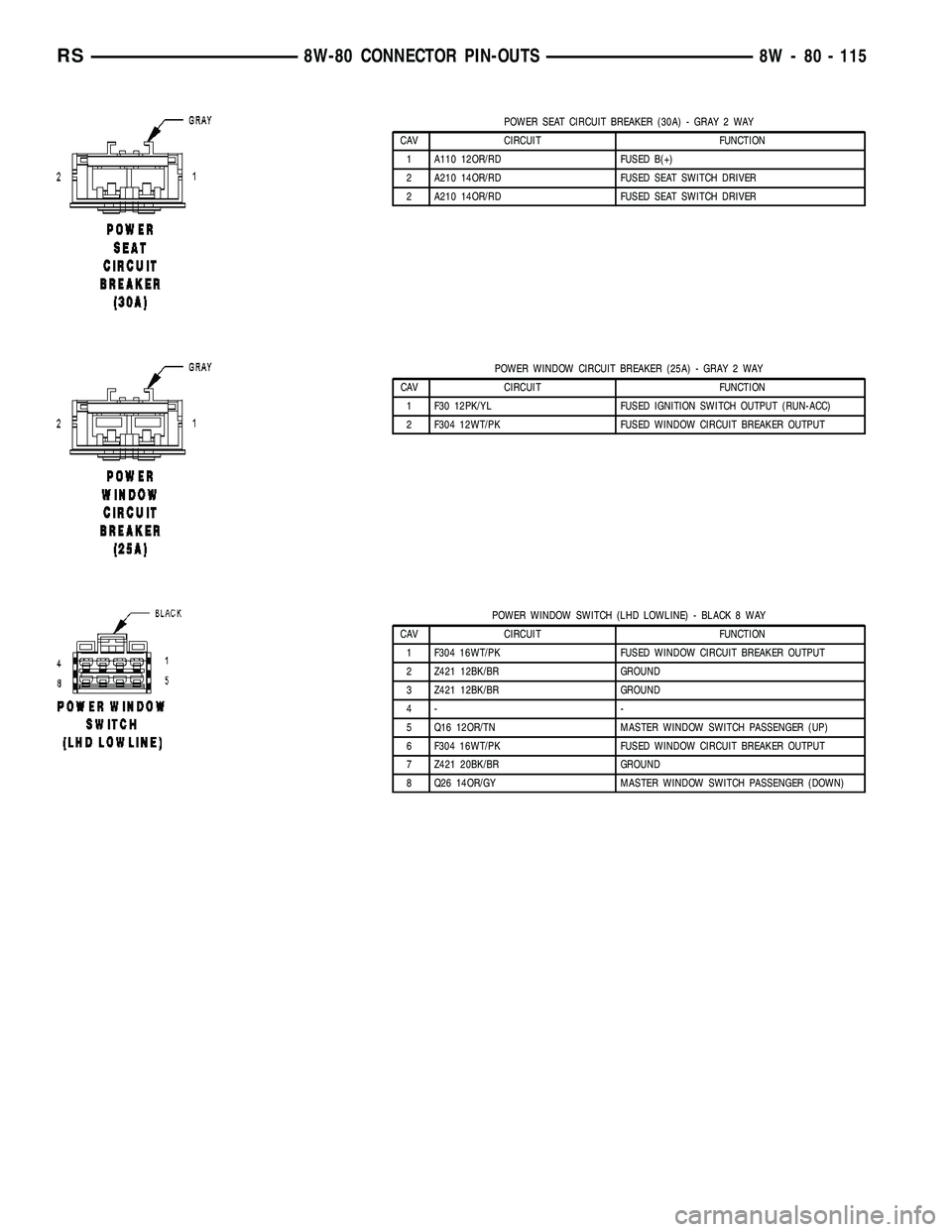

CHRYSLER VOYAGER 2005 Service Manual POWER SEAT CIRCUIT BREAKER (30A) - GRAY 2 WAY CAV CIRCUIT FUNCTION 1 A110 12OR/RD FUSED B(+) 2 A210 14OR/RD FUSED SEAT SWITCH DRIVER 2 A210 14OR/RD FUSED SEAT SWITCH DRIVER POWER WINDOW CIRCUIT BREAKE

Page 1085 of 2339

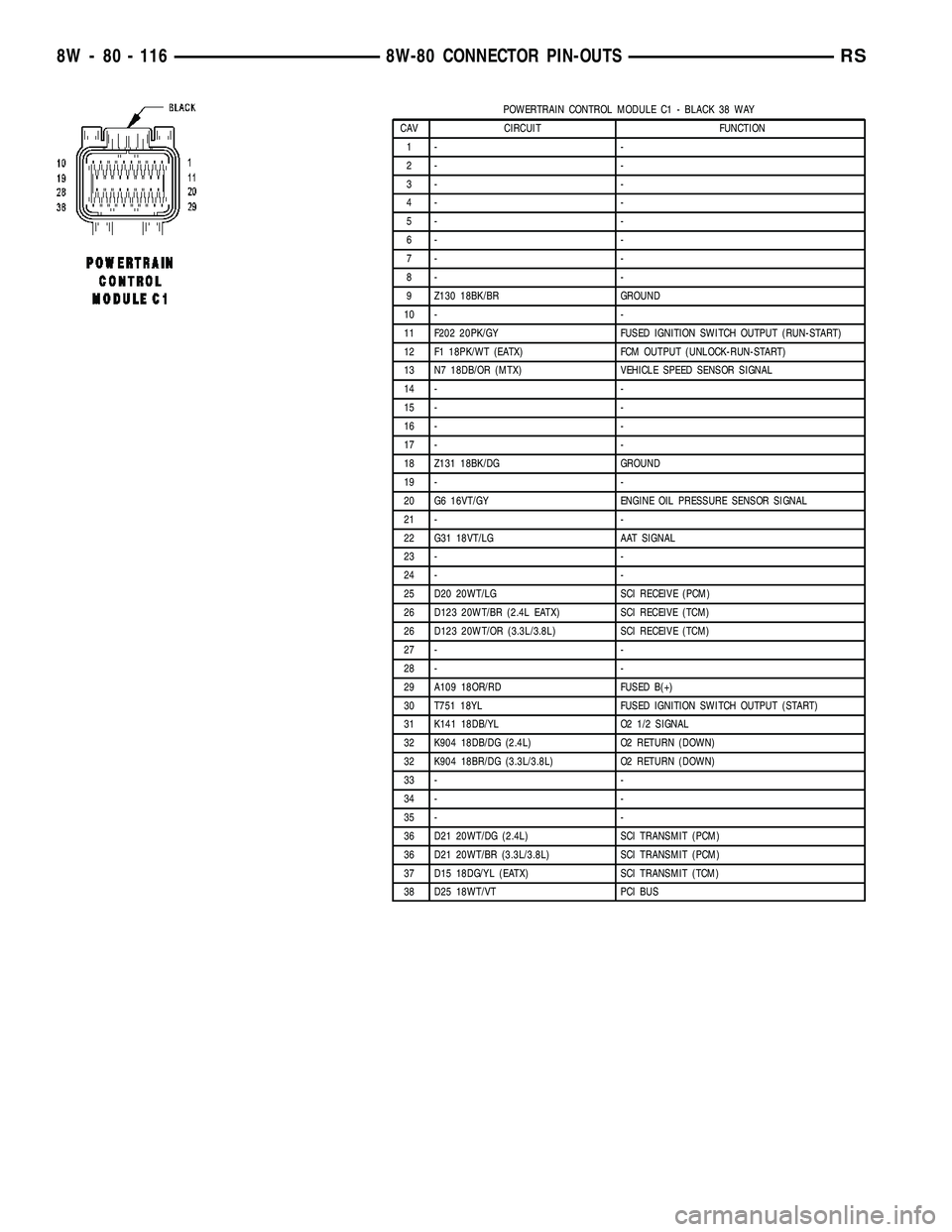

CHRYSLER VOYAGER 2005 Service Manual POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3- - 4- - 5- - 6- - 7- - 8- - 9 Z130 18BK/BR GROUND 10 - - 11 F202 20PK/GY FUSED IGNITION SWITCH OUTPUT (RUN-START) 12 F1 18P

Page 1086 of 2339

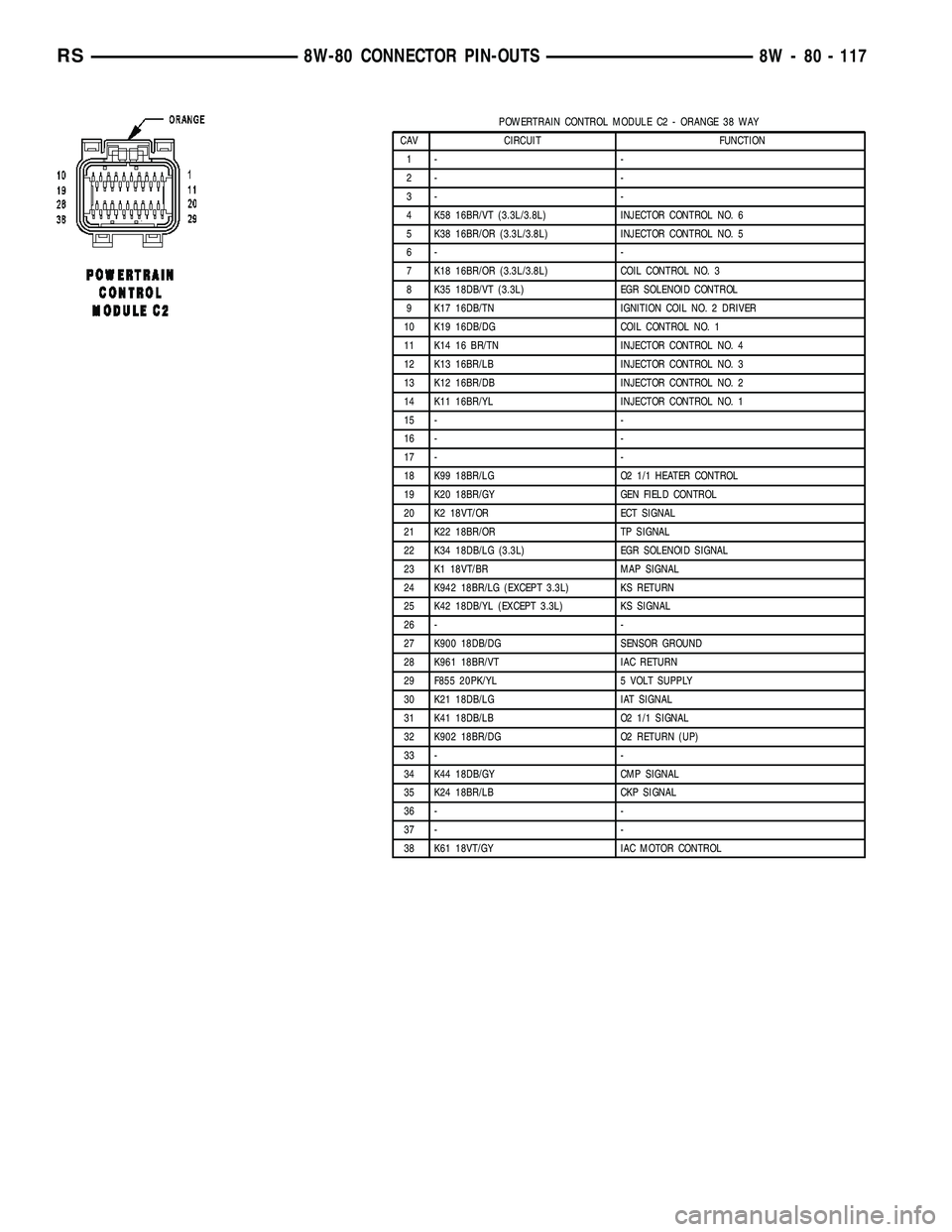

CHRYSLER VOYAGER 2005 Service Manual POWERTRAIN CONTROL MODULE C2 - ORANGE 38 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3- - 4 K58 16BR/VT (3.3L/3.8L) INJECTOR CONTROL NO. 6 5 K38 16BR/OR (3.3L/3.8L) INJECTOR CONTROL NO. 5 6- - 7 K18 16BR/OR (3

Page 1087 of 2339

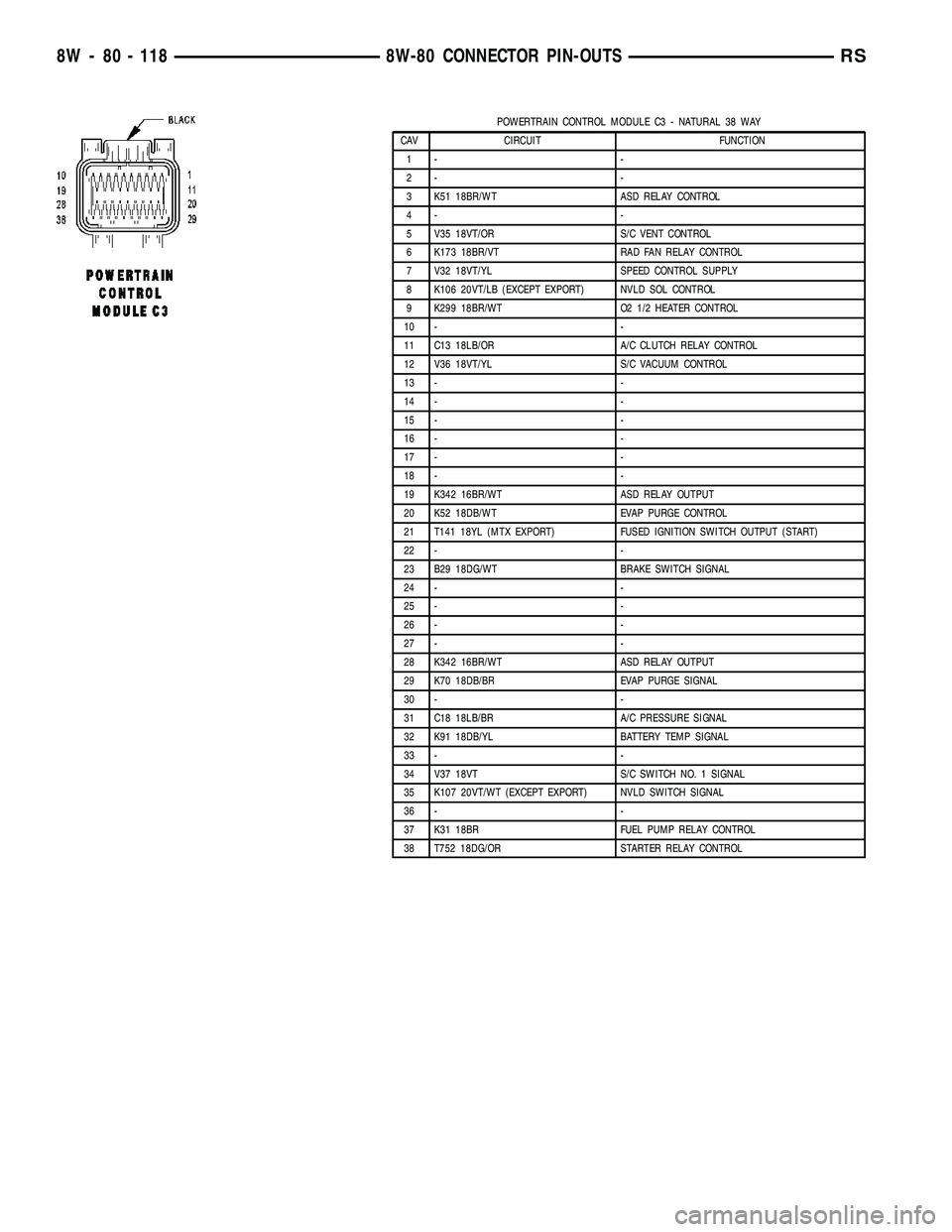

CHRYSLER VOYAGER 2005 Service Manual POWERTRAIN CONTROL MODULE C3 - NATURAL 38 WAY CAV CIRCUIT FUNCTION 1- - 2- - 3 K51 18BR/WT ASD RELAY CONTROL 4- - 5 V35 18VT/OR S/C VENT CONTROL 6 K173 18BR/VT RAD FAN RELAY CONTROL 7 V32 18VT/YL SPEE

Page 1088 of 2339

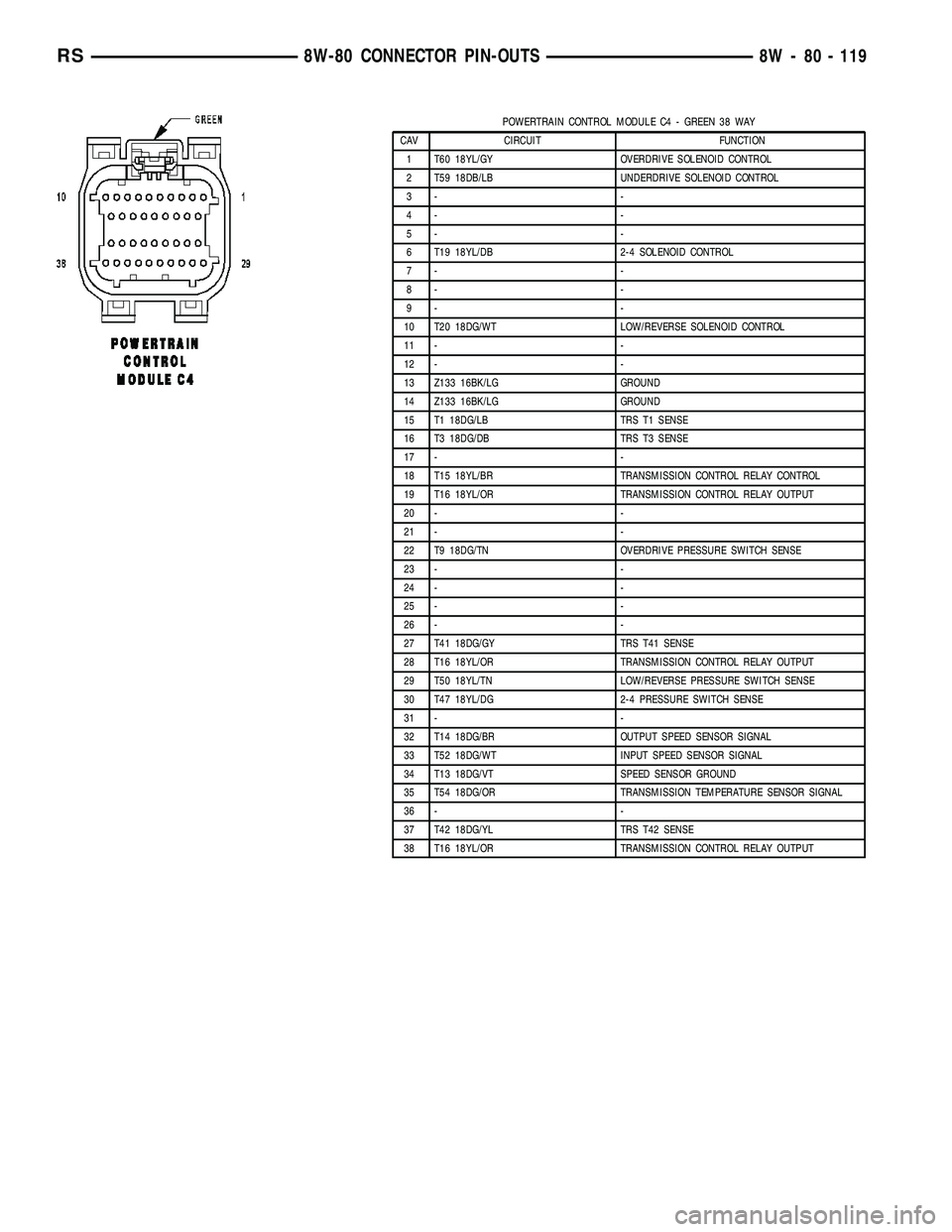

CHRYSLER VOYAGER 2005 Service Manual POWERTRAIN CONTROL MODULE C4 - GREEN 38 WAY CAV CIRCUIT FUNCTION 1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL 2 T59 18DB/LB UNDERDRIVE SOLENOID CONTROL 3- - 4- - 5- - 6 T19 18YL/DB 2-4 SOLENOID CONTROL 7-
