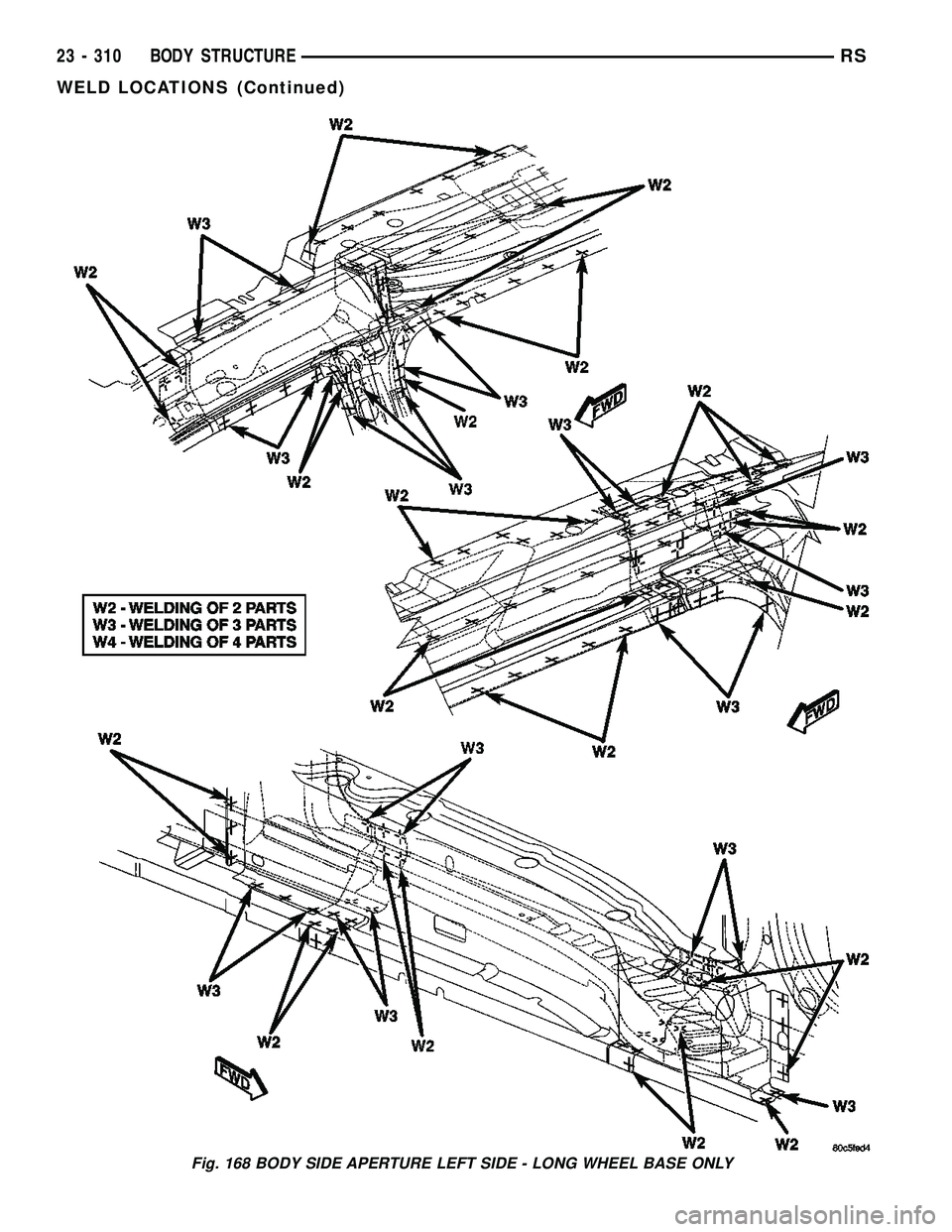

CHRYSLER VOYAGER 2005 Service Manual Fig. 168 BODY SIDE APERTURE LEFT SIDE - LONG WHEEL BASE ONLY 23 - 310 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2090 of 2339

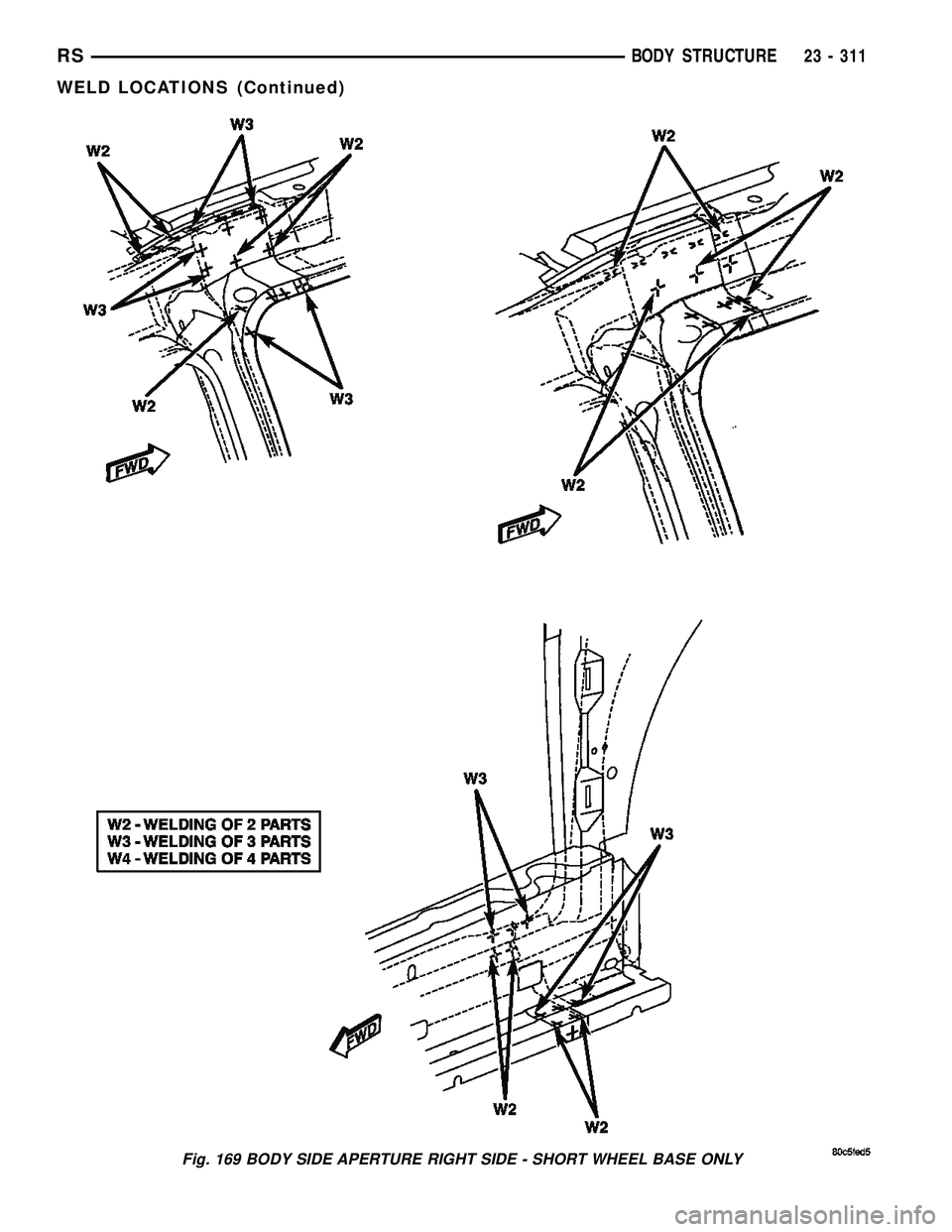

CHRYSLER VOYAGER 2005 Service Manual Fig. 169 BODY SIDE APERTURE RIGHT SIDE - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 311 WELD LOCATIONS (Continued)

Page 2091 of 2339

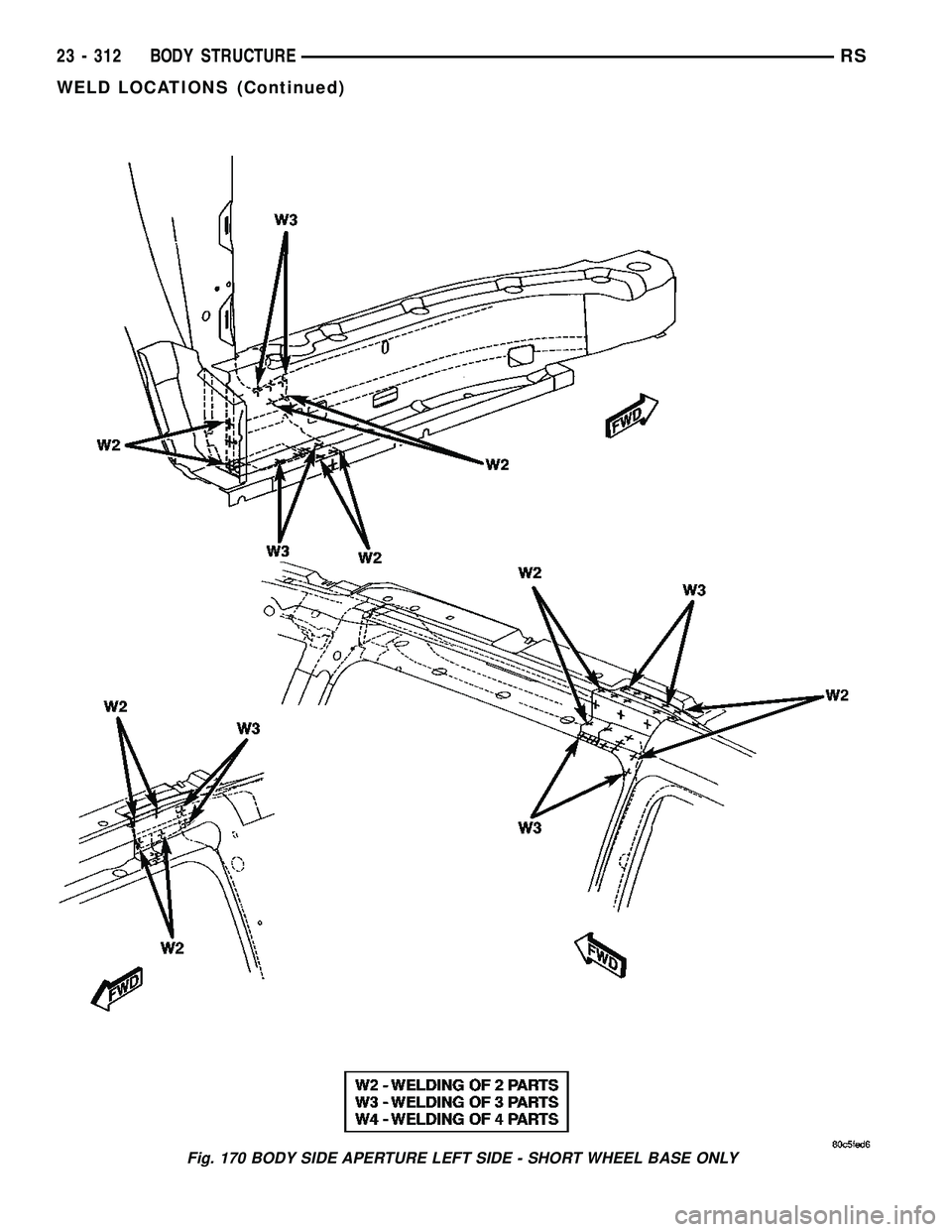

CHRYSLER VOYAGER 2005 Service Manual Fig. 170 BODY SIDE APERTURE LEFT SIDE - SHORT WHEEL BASE ONLY 23 - 312 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2092 of 2339

CHRYSLER VOYAGER 2005 Service Manual Fig. 171 LOWER SLIDING DOOR TRACK RSBODY STRUCTURE23 - 313 WELD LOCATIONS (Continued)

Page 2093 of 2339

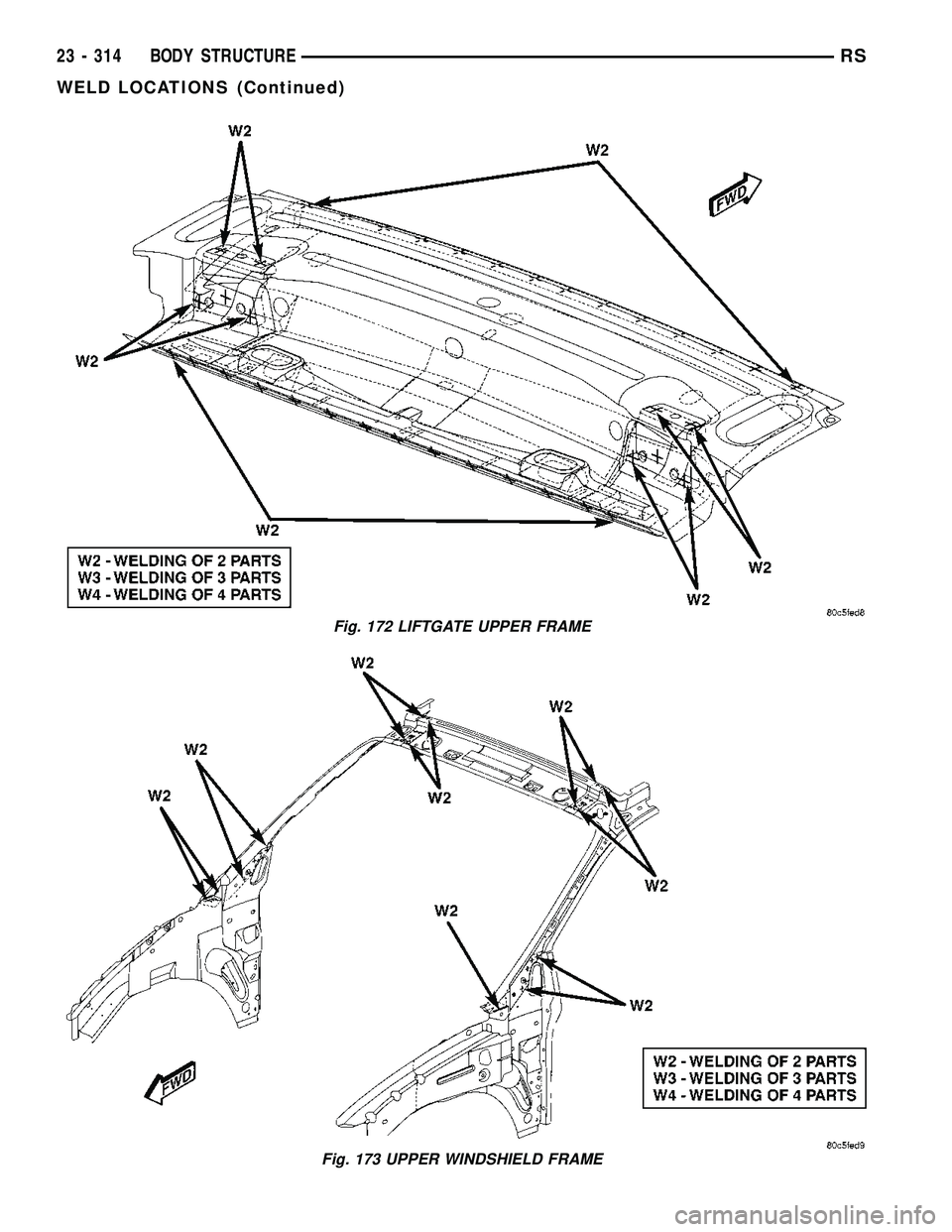

CHRYSLER VOYAGER 2005 Service Manual Fig. 172 LIFTGATE UPPER FRAME Fig. 173 UPPER WINDSHIELD FRAME 23 - 314 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2094 of 2339

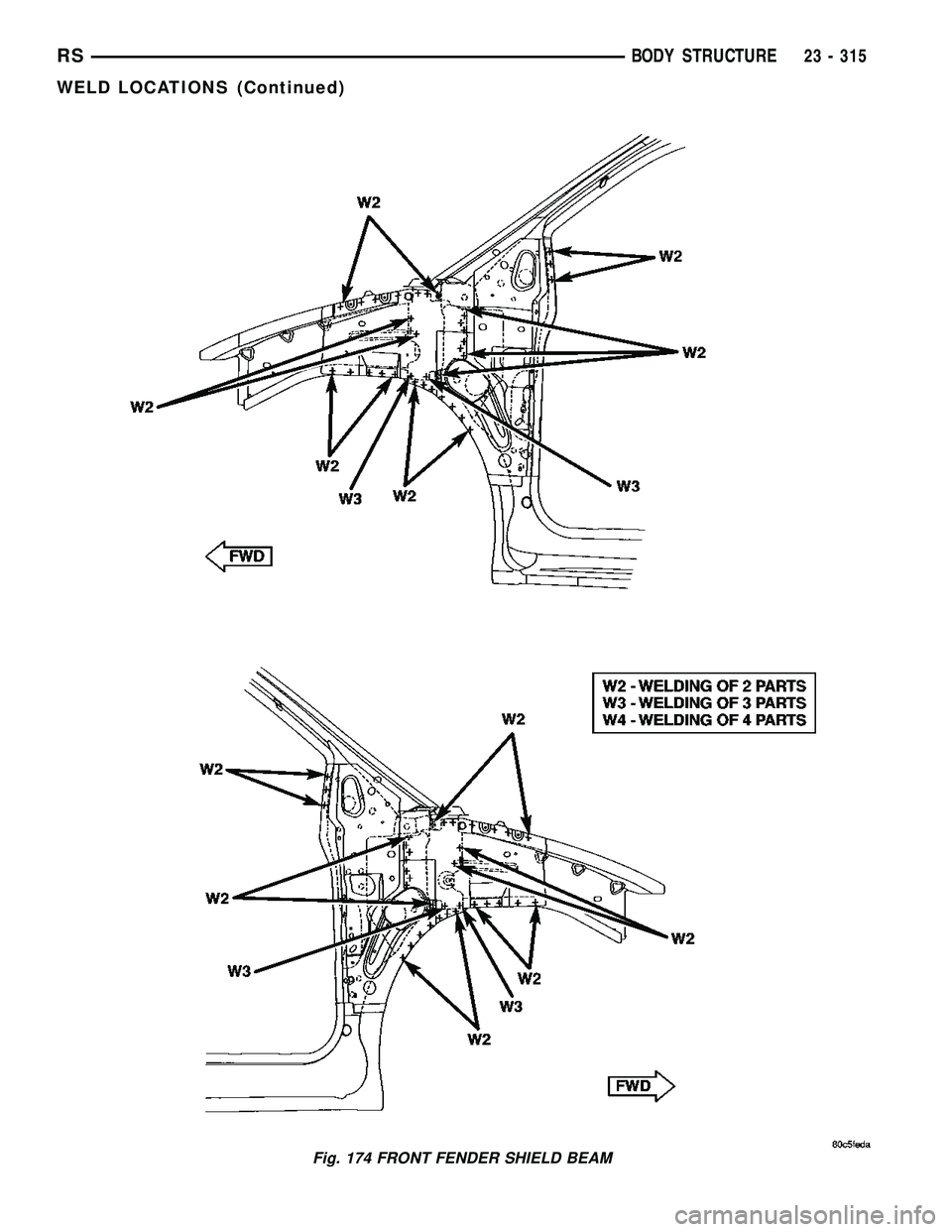

CHRYSLER VOYAGER 2005 Service Manual Fig. 174 FRONT FENDER SHIELD BEAM RSBODY STRUCTURE23 - 315 WELD LOCATIONS (Continued)

Page 2095 of 2339

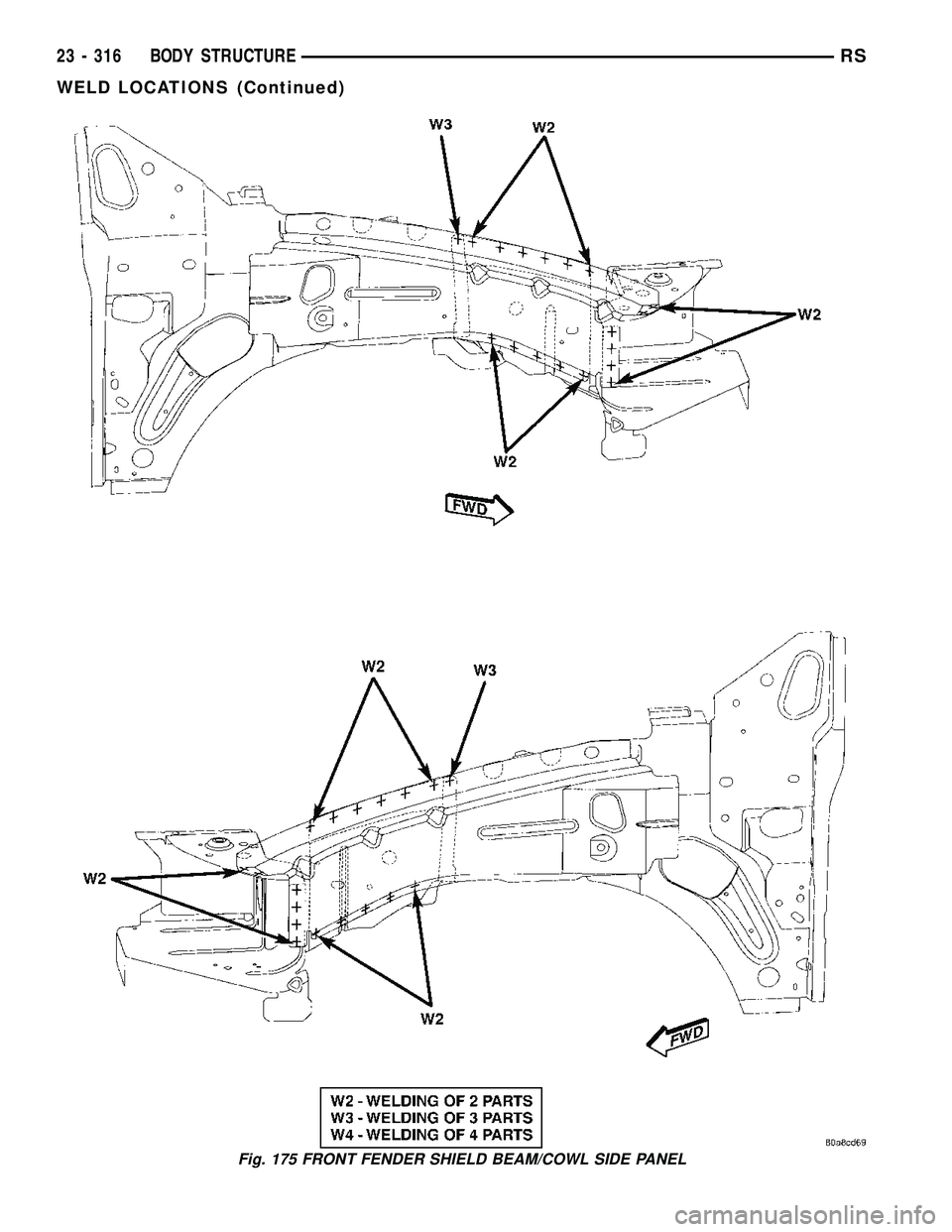

CHRYSLER VOYAGER 2005 Service Manual Fig. 175 FRONT FENDER SHIELD BEAM/COWL SIDE PANEL 23 - 316 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2096 of 2339

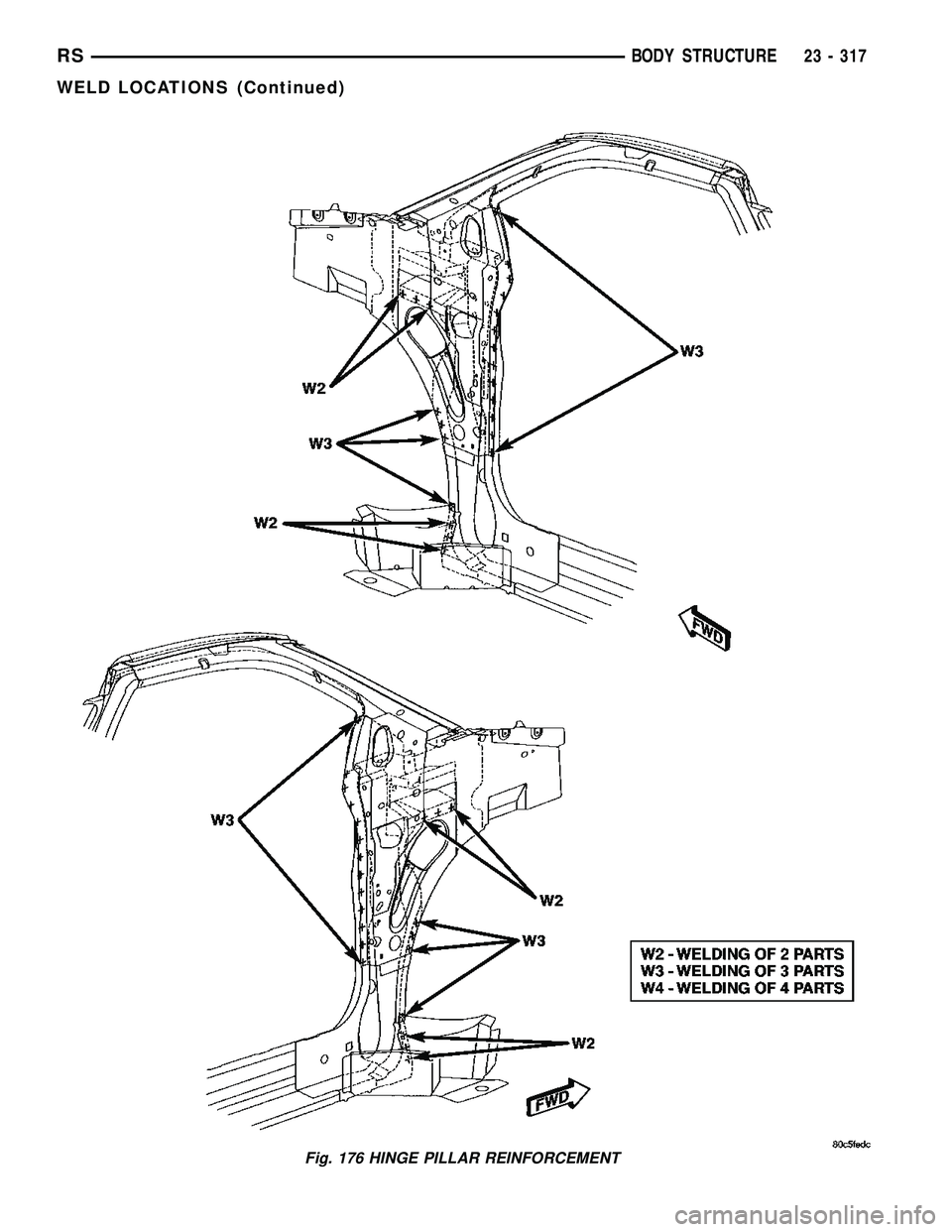

CHRYSLER VOYAGER 2005 Service Manual Fig. 176 HINGE PILLAR REINFORCEMENT RSBODY STRUCTURE23 - 317 WELD LOCATIONS (Continued)
