Page 1665 of 2339

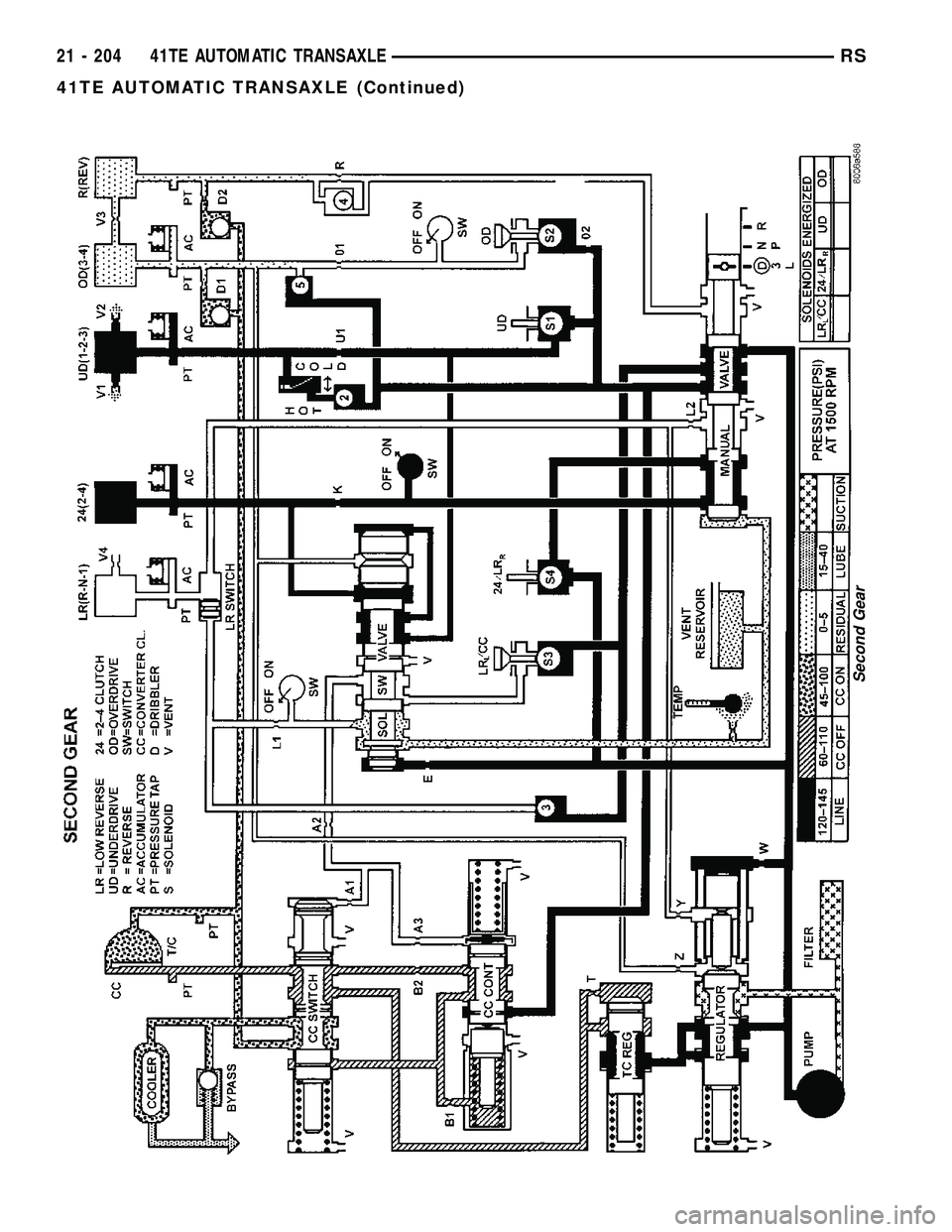

CHRYSLER VOYAGER 2005 Service Manual Second Gear 21 - 204 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1666 of 2339

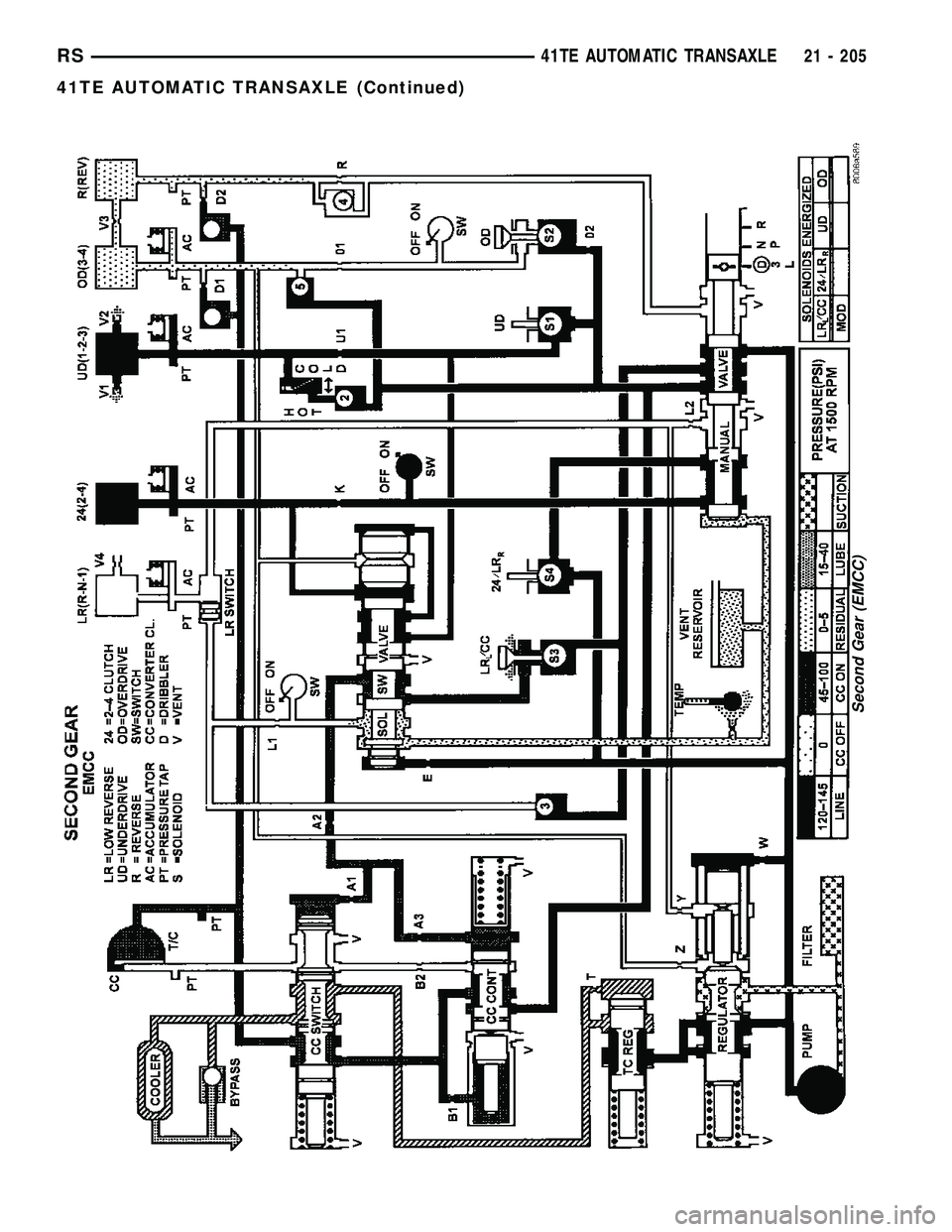

CHRYSLER VOYAGER 2005 Service Manual Second Gear (EMCC) RS41TE AUTOMATIC TRANSAXLE21 - 205 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1667 of 2339

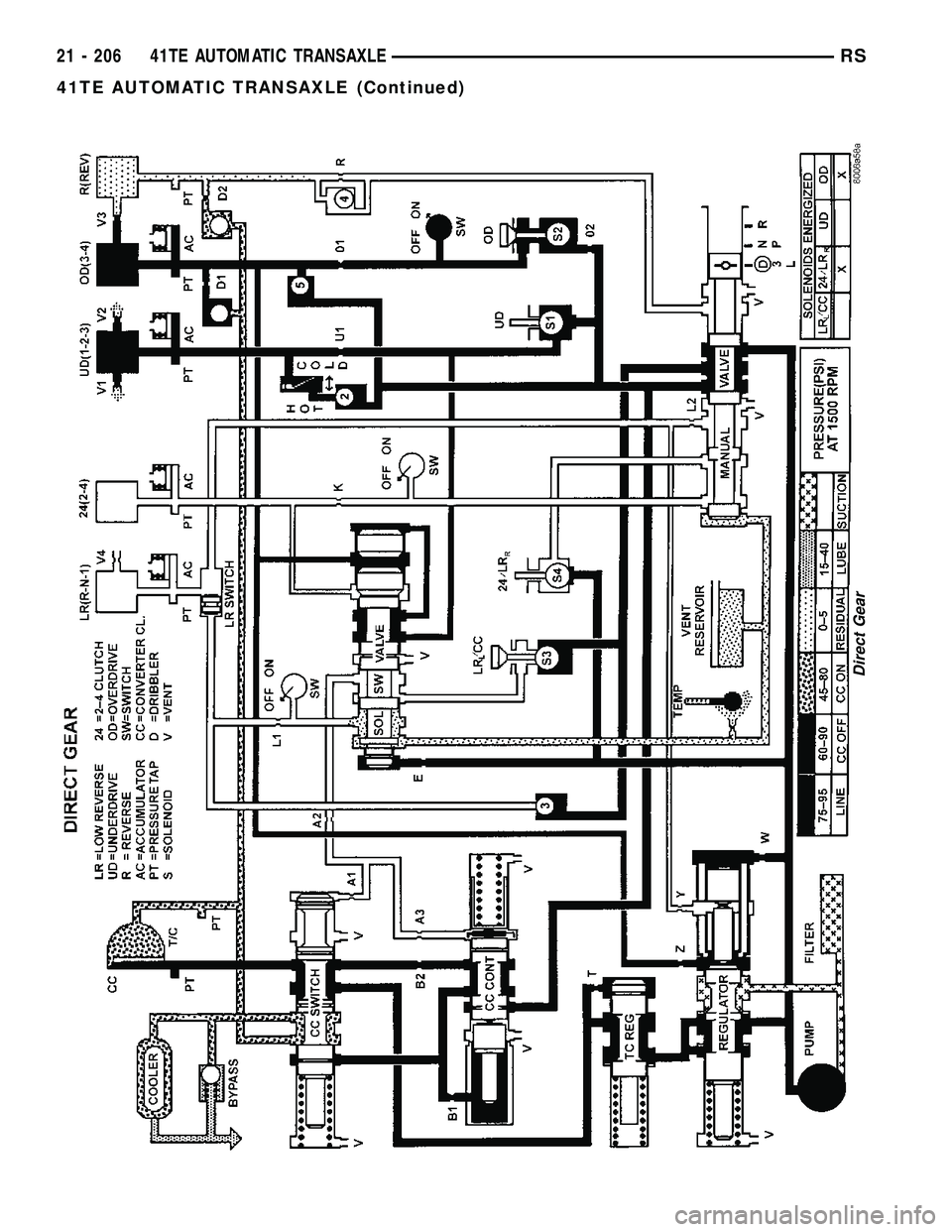

CHRYSLER VOYAGER 2005 Service Manual Direct Gear 21 - 206 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1668 of 2339

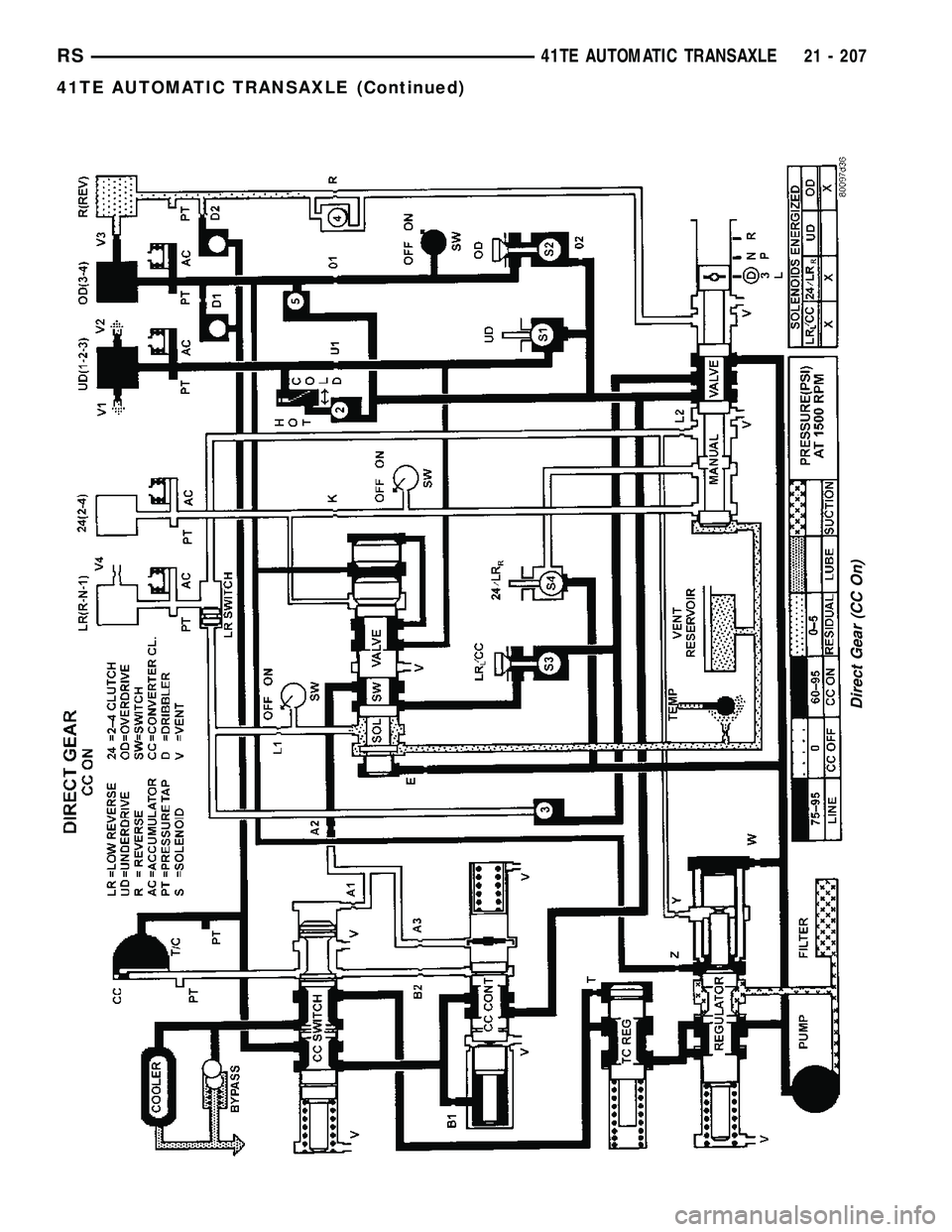

CHRYSLER VOYAGER 2005 Service Manual Direct Gear (CC On) RS41TE AUTOMATIC TRANSAXLE21 - 207 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1669 of 2339

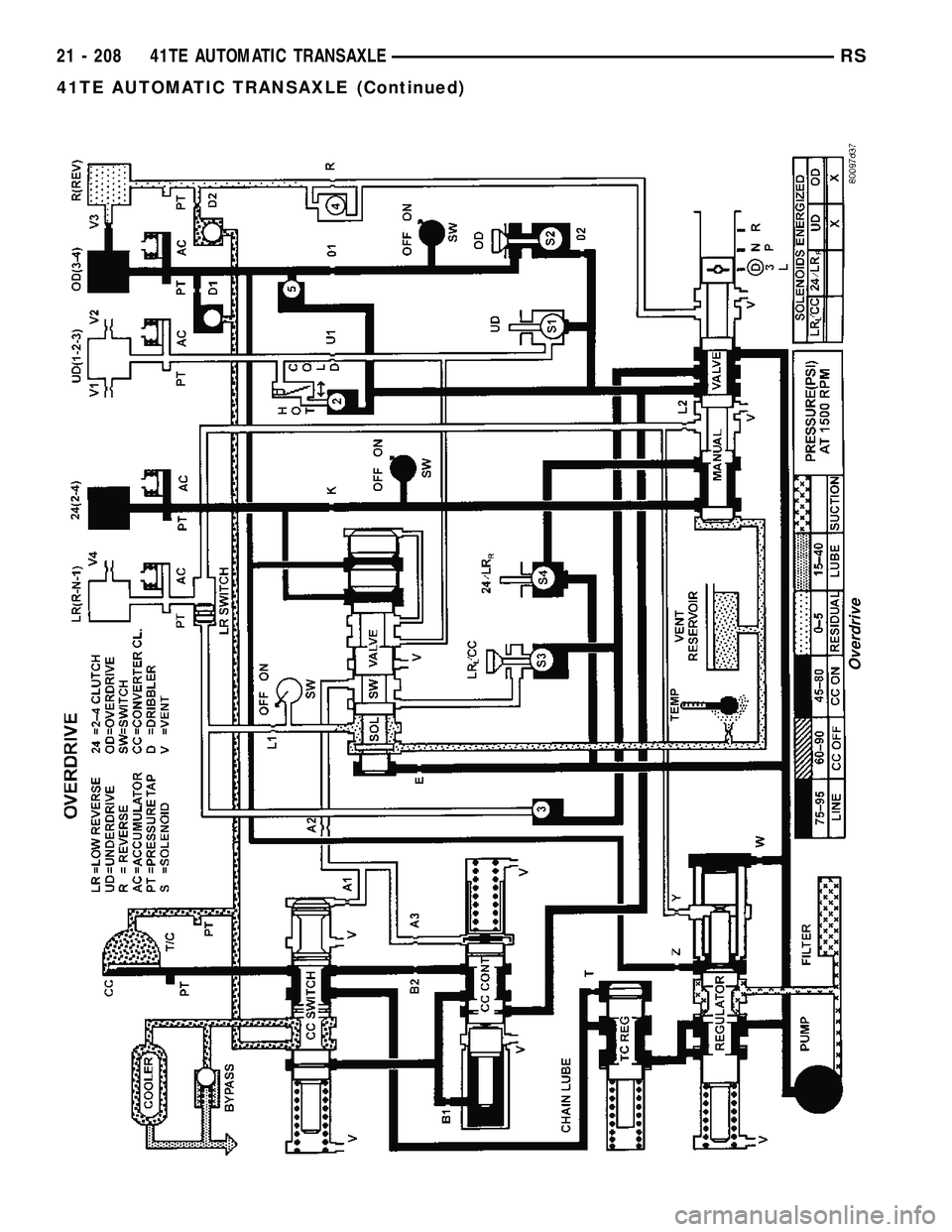

CHRYSLER VOYAGER 2005 Service Manual Overdrive 21 - 208 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1670 of 2339

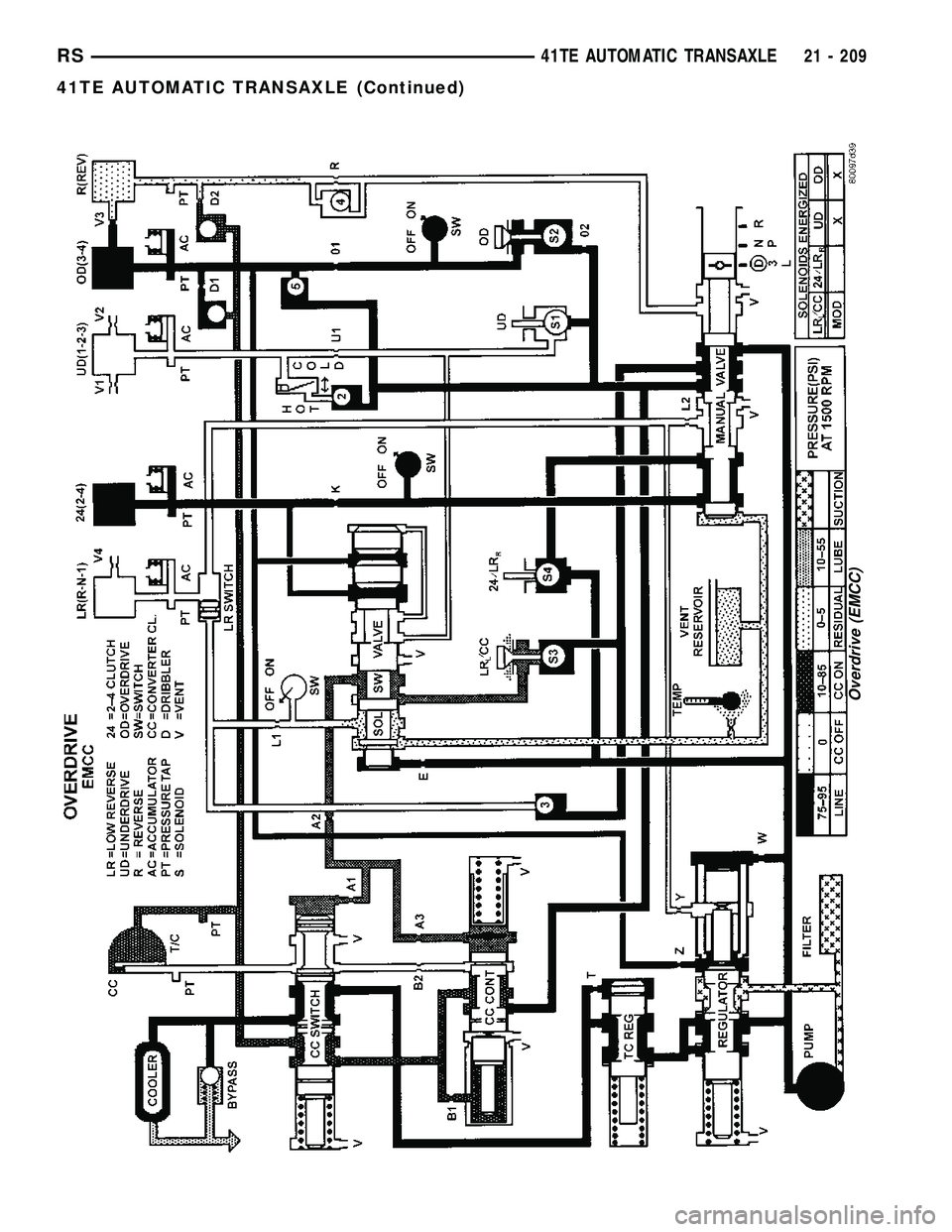

CHRYSLER VOYAGER 2005 Service Manual Overdrive (EMCC) RS41TE AUTOMATIC TRANSAXLE21 - 209 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1671 of 2339

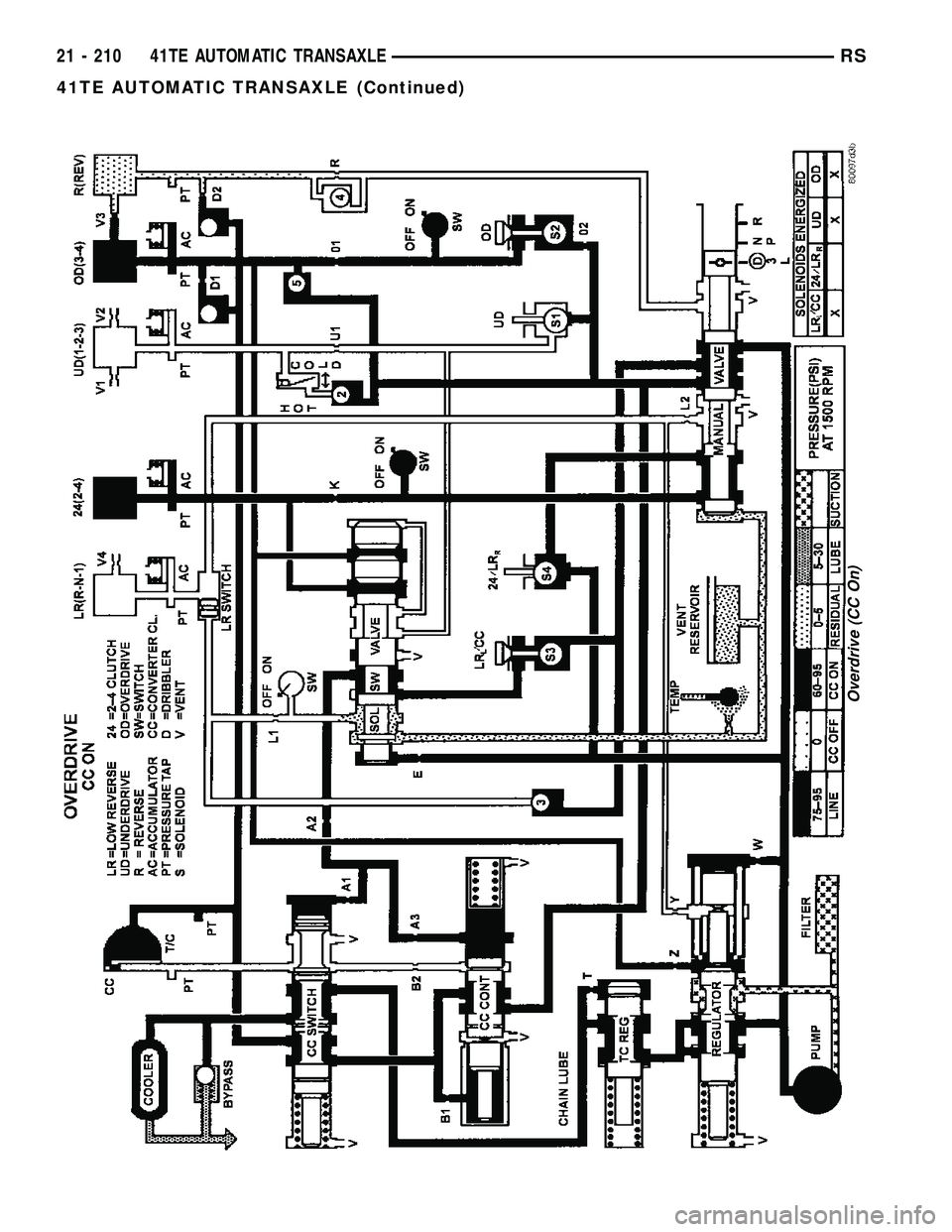

CHRYSLER VOYAGER 2005 Service Manual Overdrive (CC On) 21 - 210 41TE AUTOMATIC TRANSAXLERS 41TE AUTOMATIC TRANSAXLE (Continued)

Page 1672 of 2339

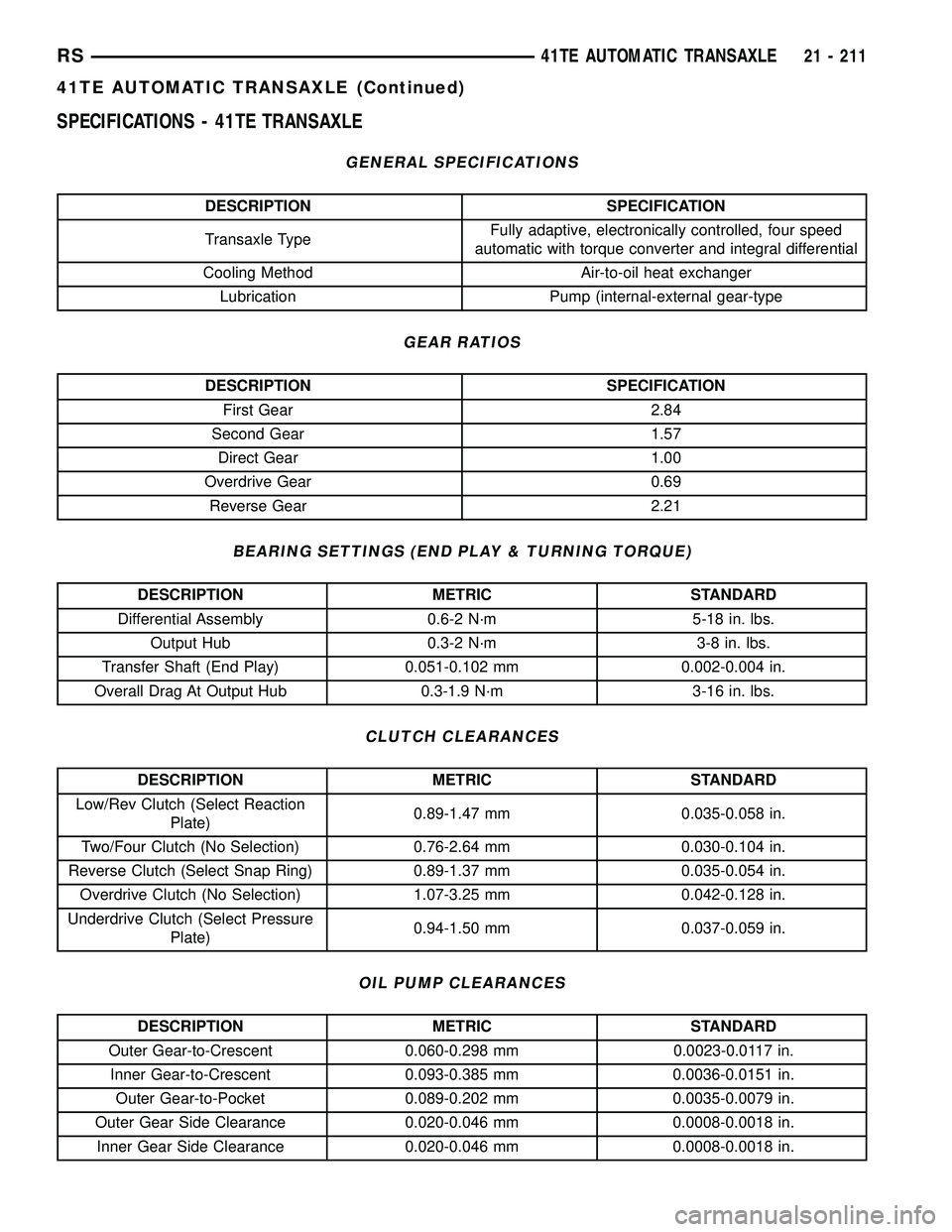

CHRYSLER VOYAGER 2005 Service Manual SPECIFICATIONS - 41TE TRANSAXLE GENERAL SPECIFICATIONS DESCRIPTION SPECIFICATION Transaxle TypeFully adaptive, electronically controlled, four speed automatic with torque converter and integral differ
