Page 2137 of 2339

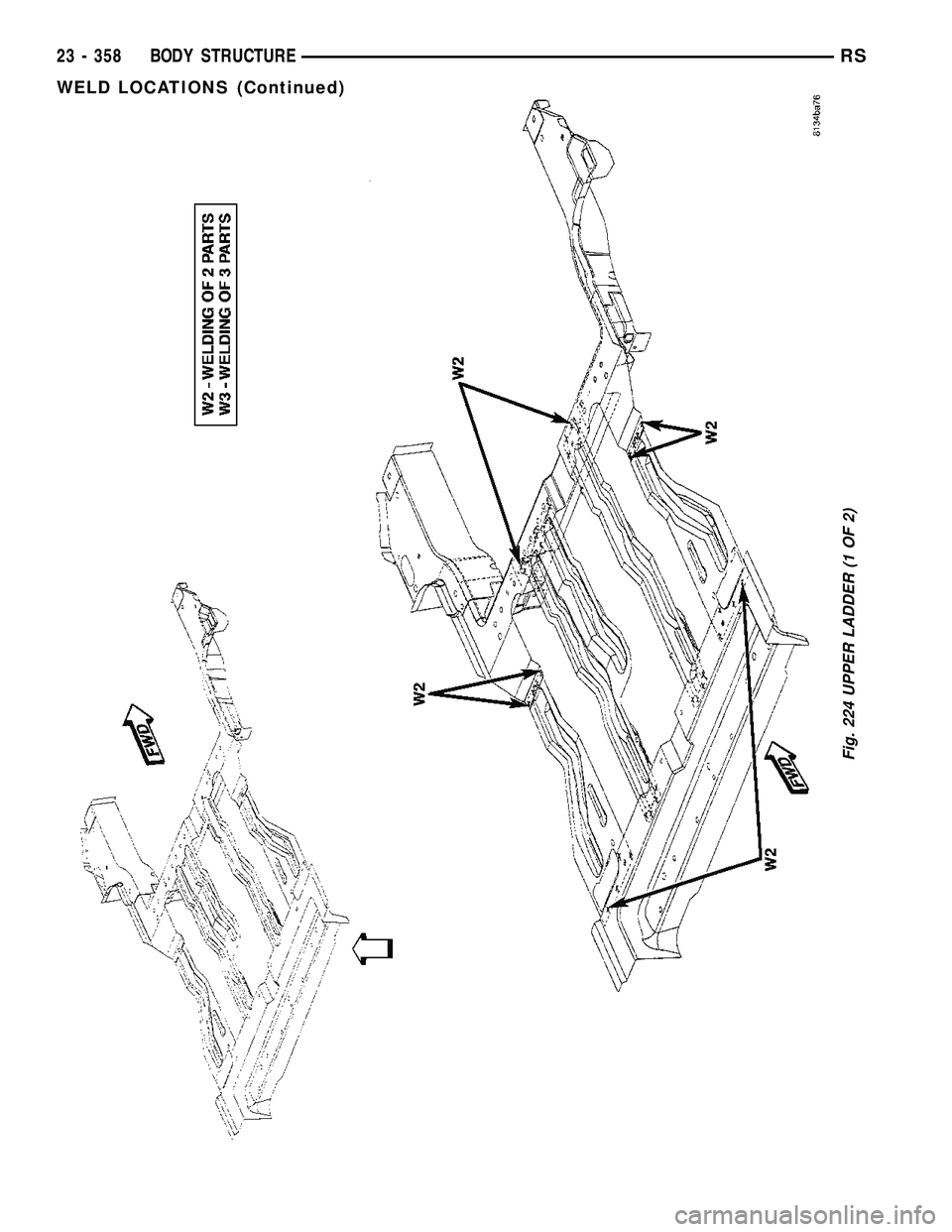

CHRYSLER VOYAGER 2005 Service Manual Fig. 224 UPPER LADDER (1 OF 2) 23 - 358 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2138 of 2339

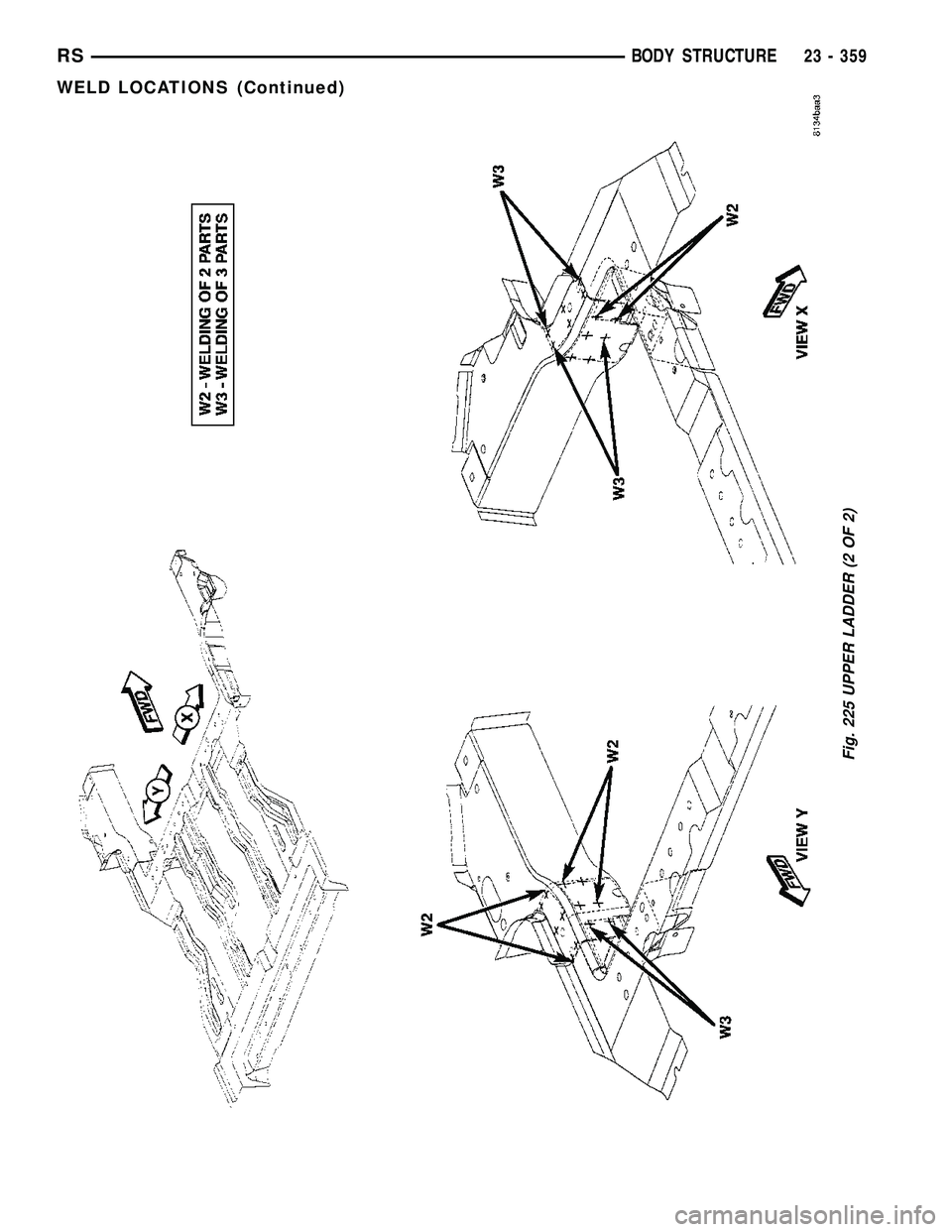

CHRYSLER VOYAGER 2005 Service Manual Fig. 225 UPPER LADDER (2 OF 2) RSBODY STRUCTURE23 - 359 WELD LOCATIONS (Continued)

Page 2139 of 2339

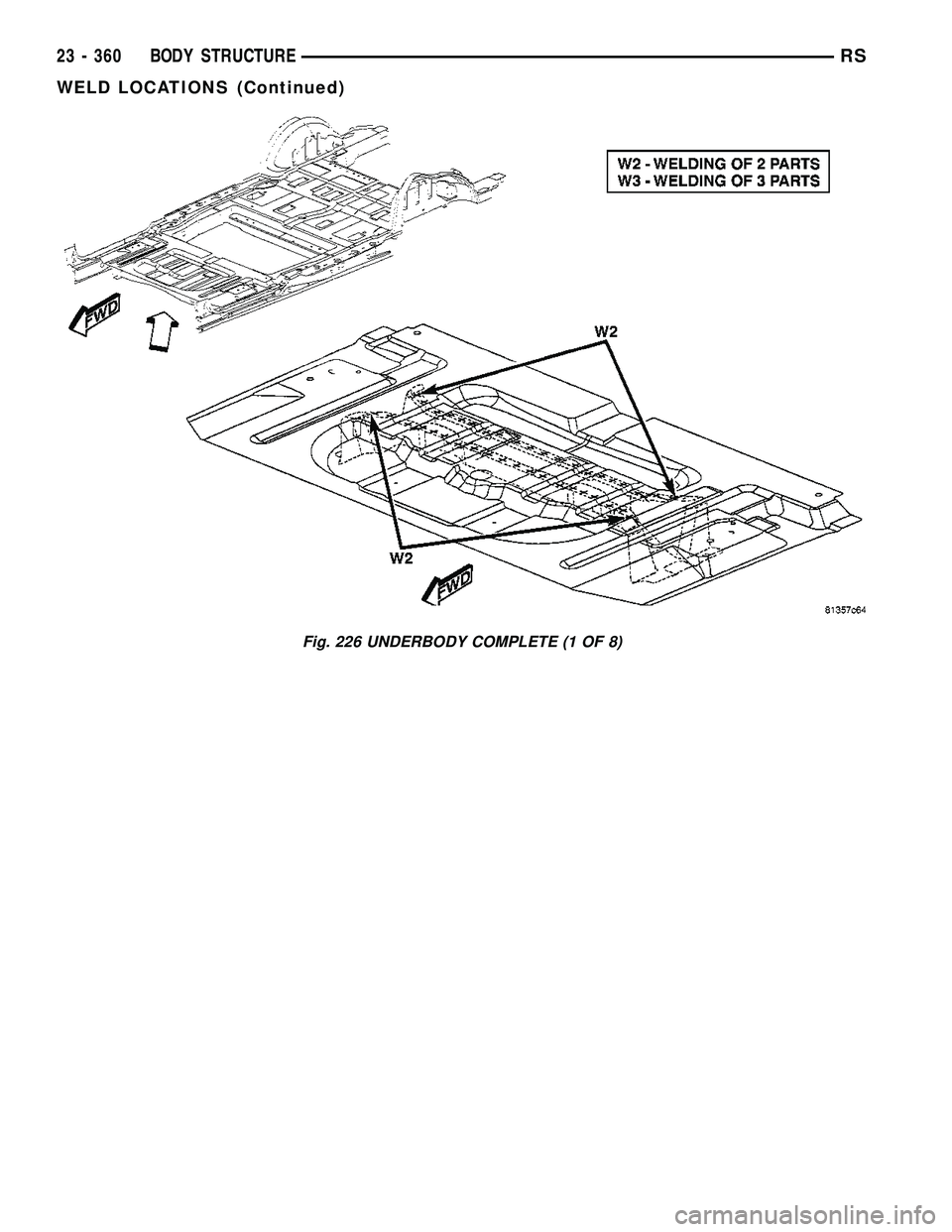

CHRYSLER VOYAGER 2005 Service Manual Fig. 226 UNDERBODY COMPLETE (1 OF 8) 23 - 360 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2140 of 2339

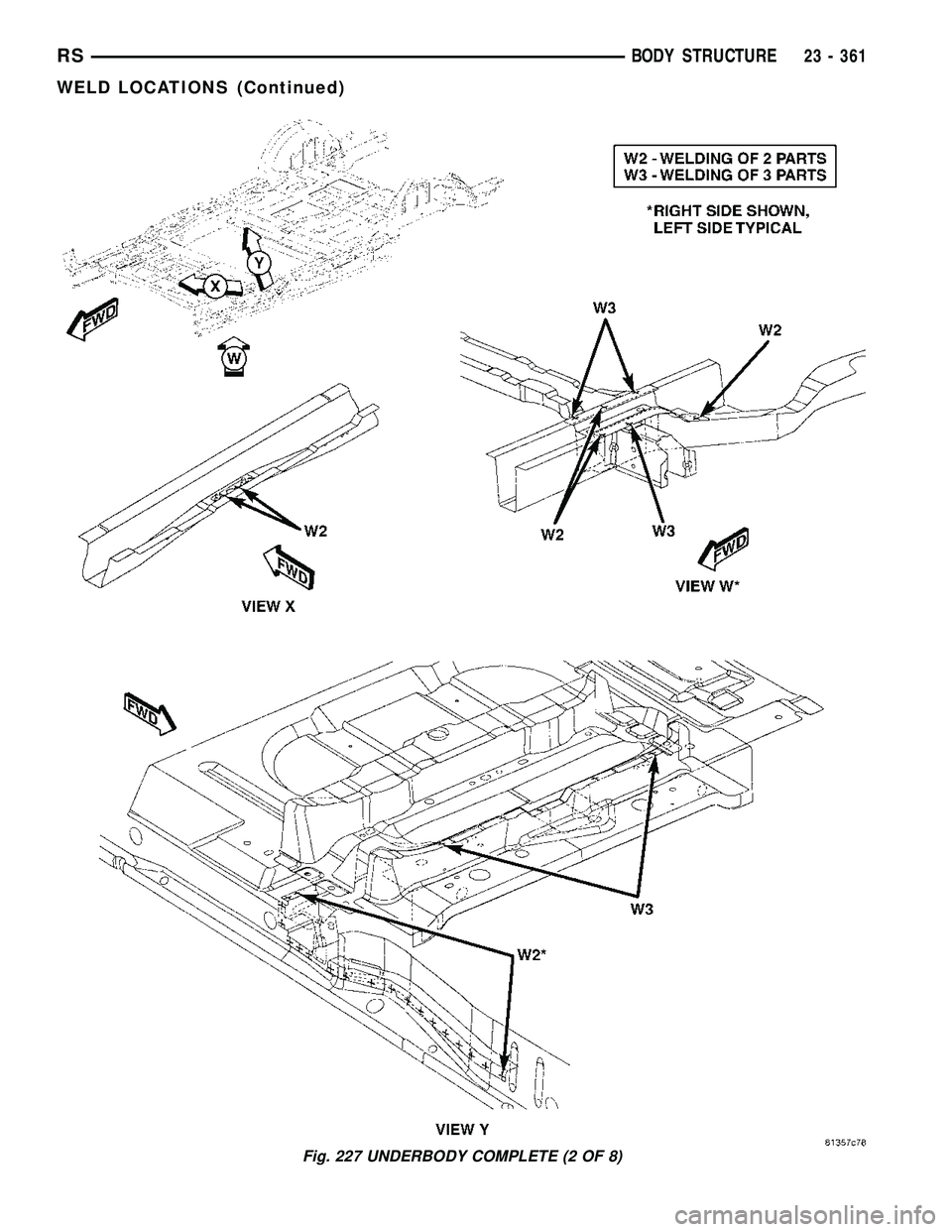

CHRYSLER VOYAGER 2005 Service Manual Fig. 227 UNDERBODY COMPLETE (2 OF 8) RSBODY STRUCTURE23 - 361 WELD LOCATIONS (Continued)

Page 2141 of 2339

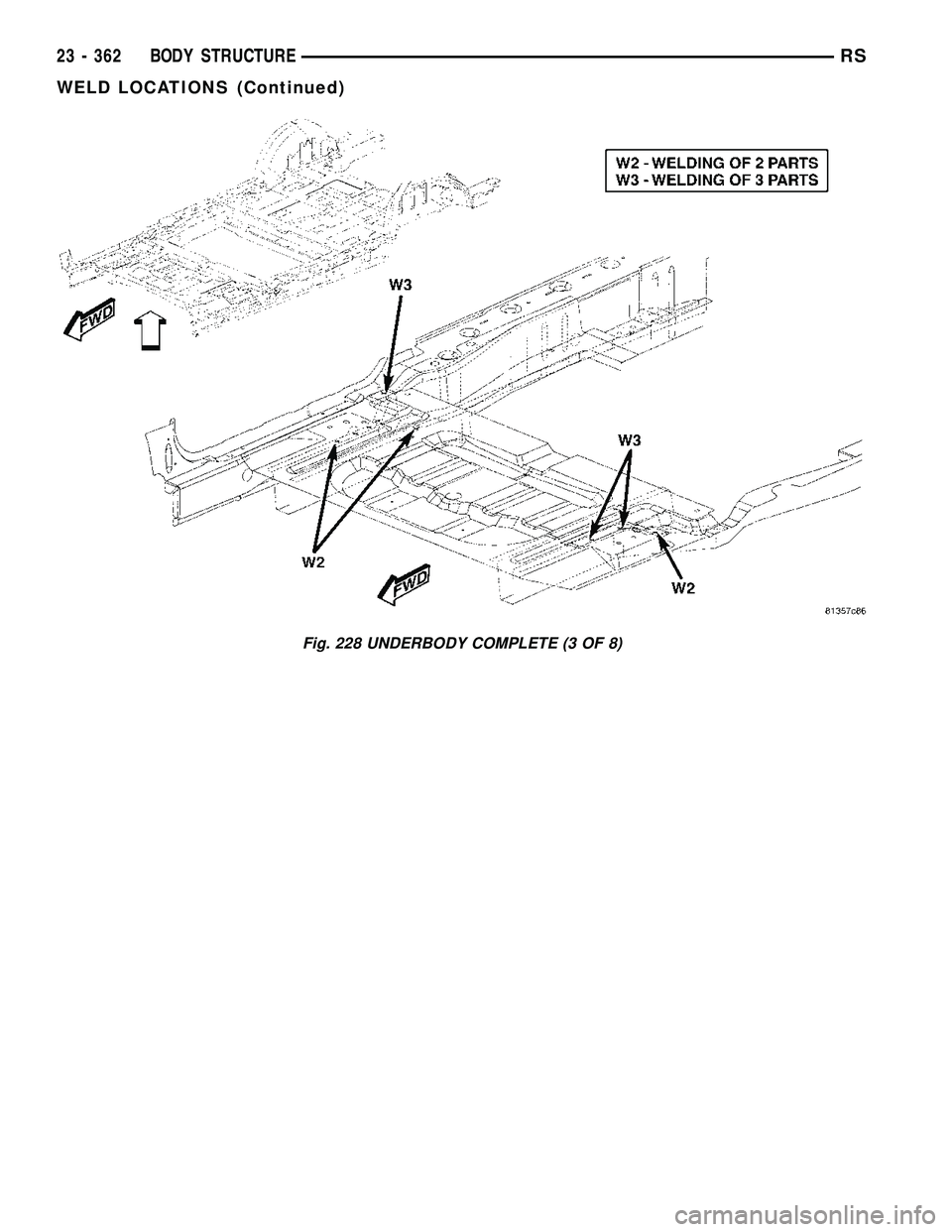

CHRYSLER VOYAGER 2005 Service Manual Fig. 228 UNDERBODY COMPLETE (3 OF 8) 23 - 362 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2142 of 2339

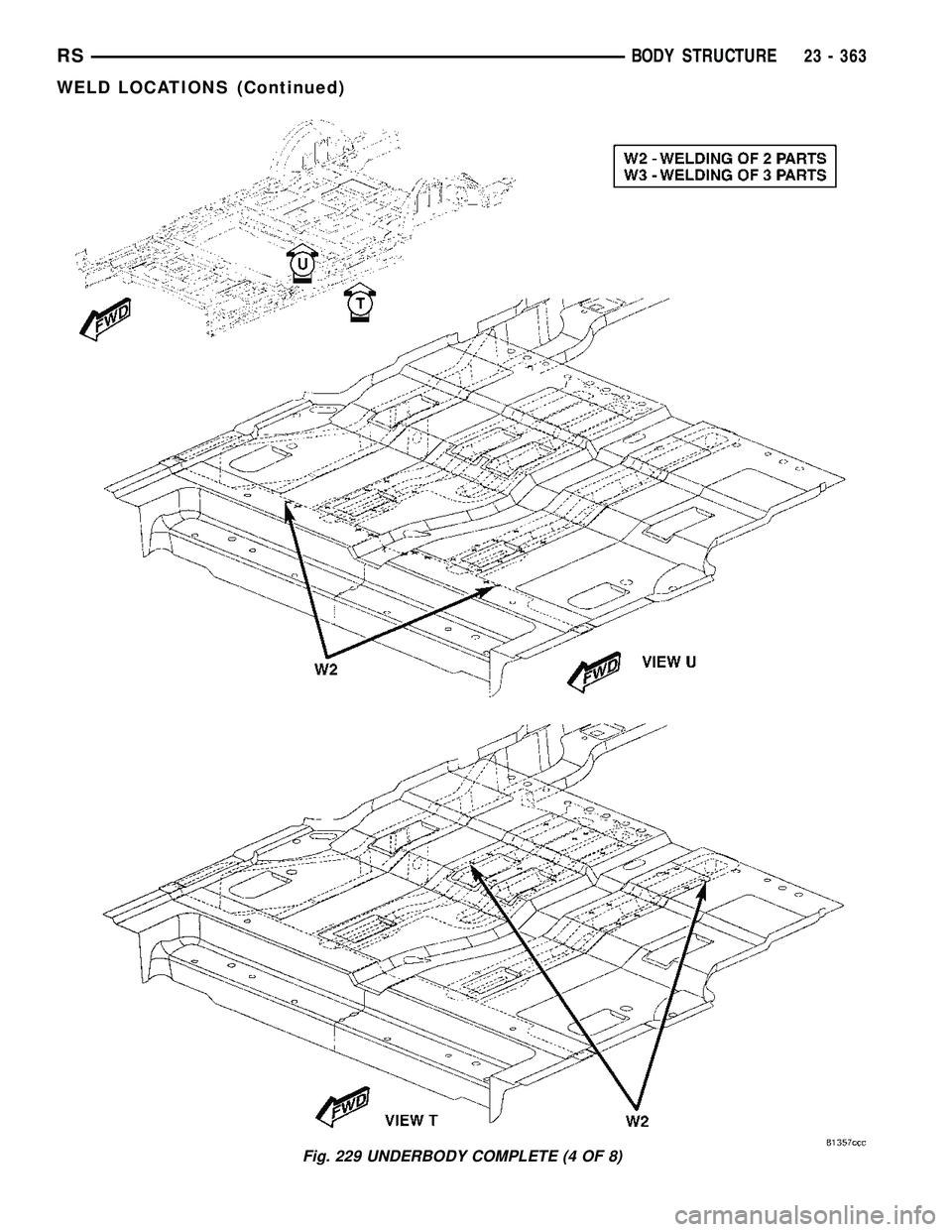

CHRYSLER VOYAGER 2005 Service Manual Fig. 229 UNDERBODY COMPLETE (4 OF 8) RSBODY STRUCTURE23 - 363 WELD LOCATIONS (Continued)

Page 2143 of 2339

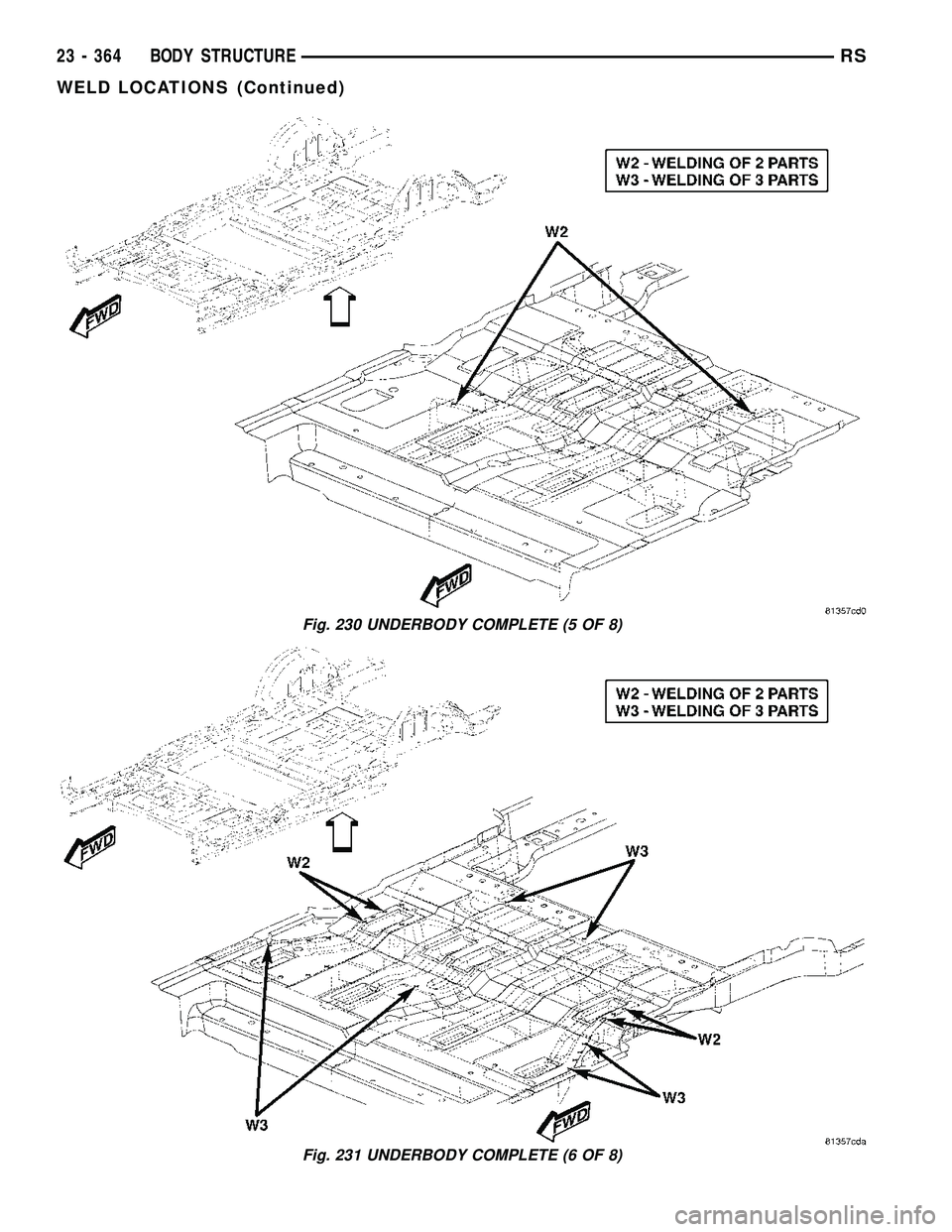

CHRYSLER VOYAGER 2005 Service Manual Fig. 230 UNDERBODY COMPLETE (5 OF 8) Fig. 231 UNDERBODY COMPLETE (6 OF 8) 23 - 364 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2144 of 2339

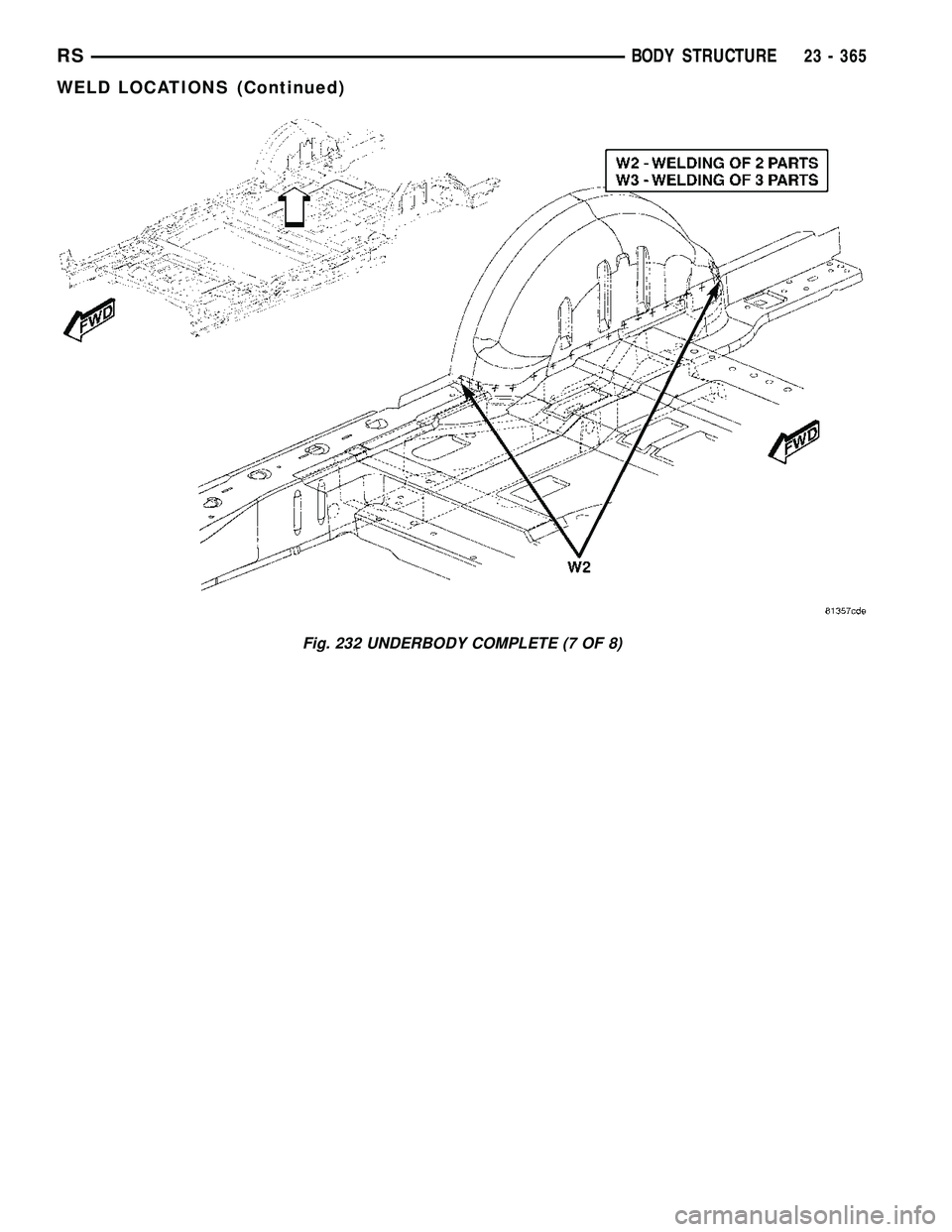

CHRYSLER VOYAGER 2005 Service Manual Fig. 232 UNDERBODY COMPLETE (7 OF 8) RSBODY STRUCTURE23 - 365 WELD LOCATIONS (Continued)
