2005 CHRYSLER VOYAGER navigation system

GROUP TAB LOCATOR
Introduction
0Lubrication & Maintenance
2Suspension
3Differential & Driveline
5Brakes
7Cooling
8AAudio
8BChime/Buzzer
8EElectronic Control Modules
8FEngine Systems
8GHeated Systems
8HHorn
8IIgnition Control
8JInstrument Cluster
8LLamps
8MMessage Systems
8NPower Systems
8ORestraints
8PSpeed Control
8QVehicle Theft Security
8RWipers/Washers
8TNavigation/Telecommunication
8WWiring
9Engine
11Exhaust System
13Frame & Bumpers
14Fuel System
19Steering
21Transmission/Transaxle
22Tires/Wheels
23Body
24Heating & Air Conditioning
25Emissions Control

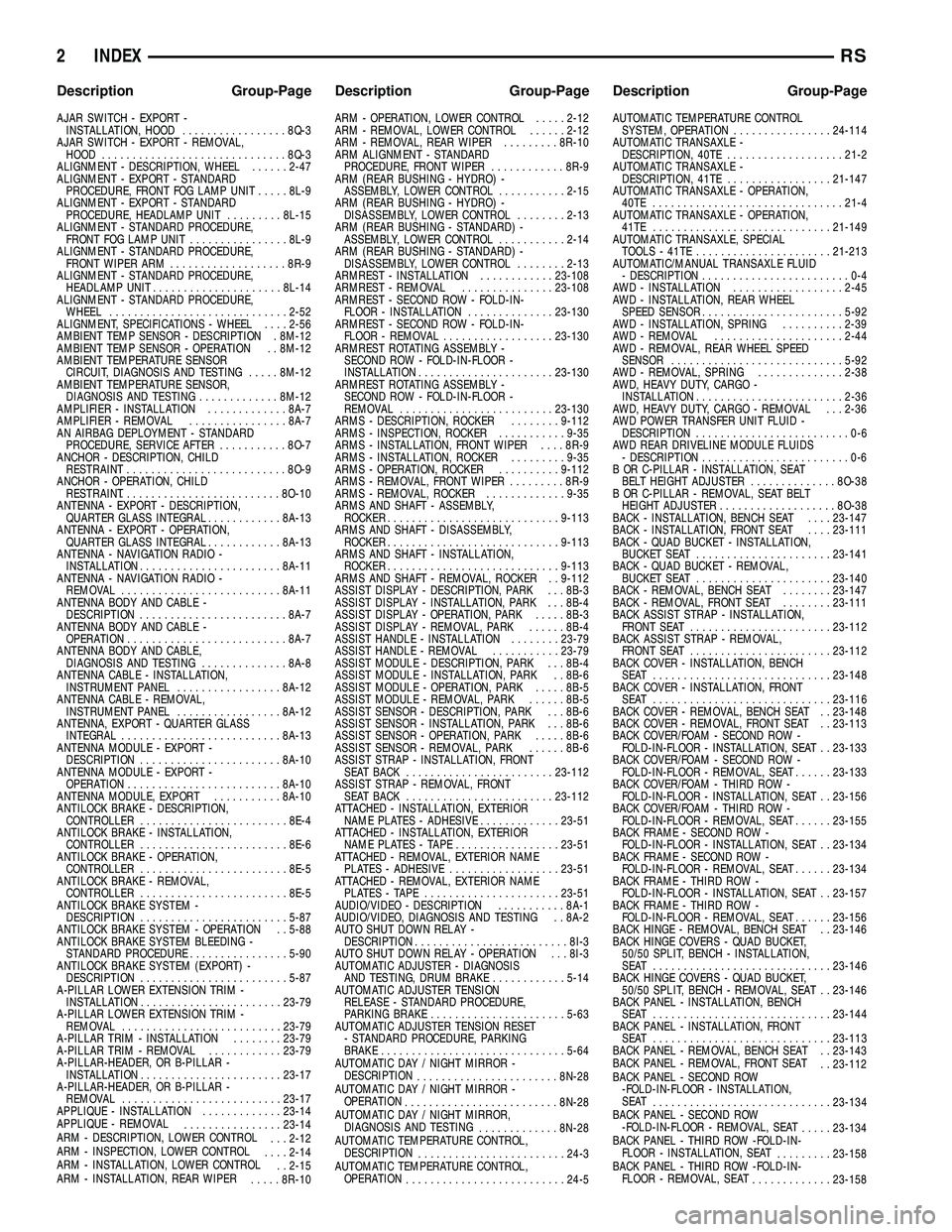

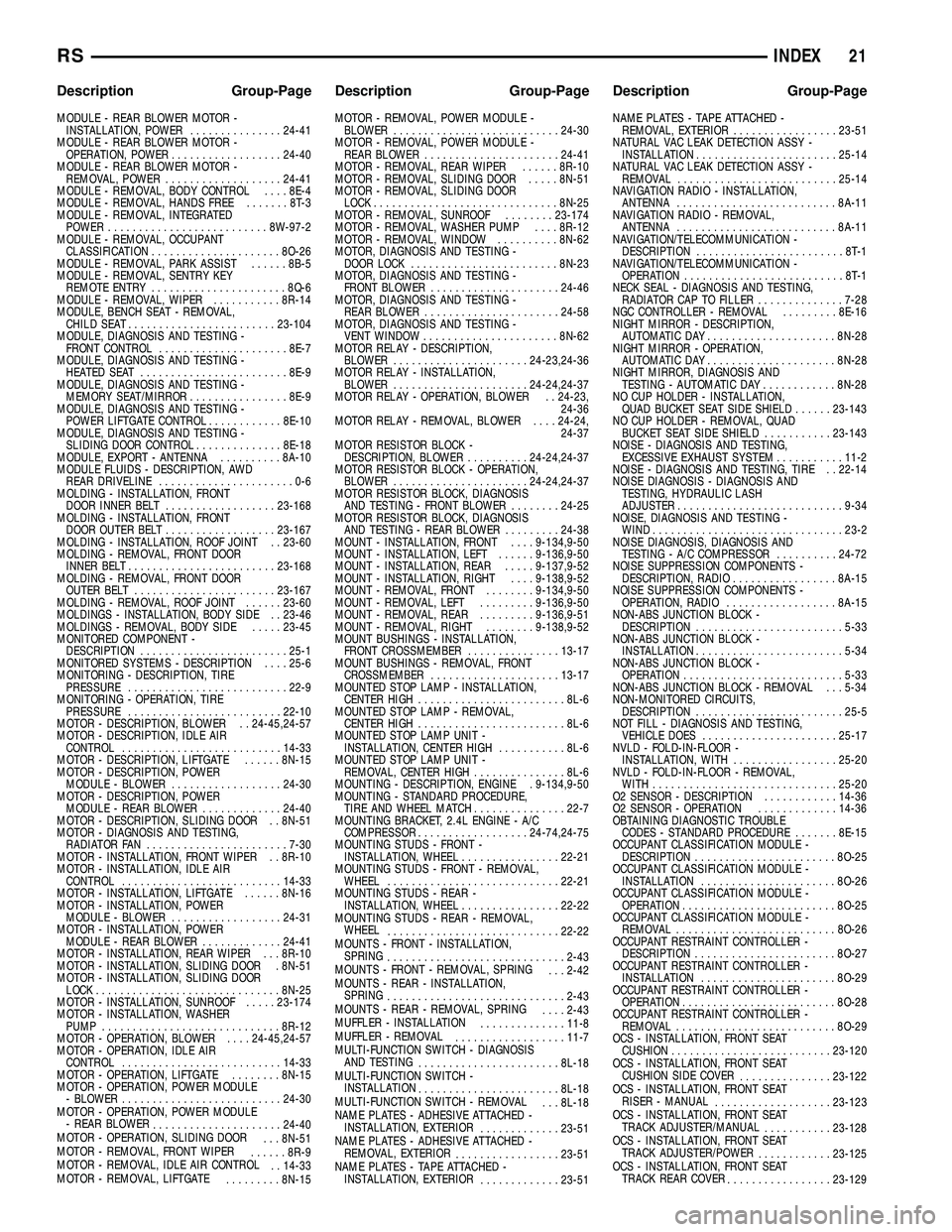

Component and System Index
Service Manual Comment Forms (Rear of Manual)

AUDIO/VIDEO
TABLE OF CONTENTS
page page
AUDIO/VIDEO
DESCRIPTION..........................1
DIAGNOSIS AND TESTING
AUDIO/VIDEO.........................2
AMPLIFIER
REMOVAL.............................7
INSTALLATION..........................7
ANTENNA BODY AND CABLE
DESCRIPTION..........................7
OPERATION............................7
DIAGNOSIS AND TESTING
ANTENNA BODY AND CABLE.............8
REMOVAL.............................8
INSTALLATION..........................8
ANTENNA MODULE - EXPORT
DESCRIPTION.........................10
OPERATION...........................10
DIAGNOSIS AND TESTING
ANTENNA MODULE - EXPORT...........10
REMOVAL.............................10
INSTALLATION.........................10
ANTENNA - NAVIGATION RADIO
REMOVAL.............................11
INSTALLATION.........................11
CD CHANGER
DESCRIPTION.........................11
OPERATION...........................11
REMOVAL.............................11
INSTALLATION.........................11
DVD PLAYER
DESCRIPTION.........................12
REMOVAL.............................12
INSTALLATION.........................12
INSTRUMENT PANEL ANTENNA CABLE
REMOVAL.............................12INSTALLATION.........................12
QUARTER GLASS INTEGRAL ANTENNA -
EXPORT
DESCRIPTION.........................13
OPERATION...........................13
DIAGNOSIS AND TESTING
QUARTER GLASS INTEGRAL ANTENNA -
EXPORT............................13
RADIO
DESCRIPTION.........................13
OPERATION...........................14
DIAGNOSIS AND TESTING
RADIO..............................14
REMOVAL.............................14
INSTALLATION.........................15
RADIO NOISE SUPPRESSION COMPONENTS
DESCRIPTION.........................15
OPERATION...........................15
REMOTE SWITCHES
DESCRIPTION.........................16
OPERATION...........................16
DIAGNOSIS AND TESTING
REMOTE SWITCHES..................16
REMOVAL.............................17
INSTALLATION.........................17
SPEAKER
DIAGNOSIS AND TESTING
SPEAKER...........................18
REMOVAL.............................18
INSTALLATION.........................19
VIDEO SCREEN
DESCRIPTION.........................20
OPERATION...........................20
REMOVAL.............................20
INSTALLATION.........................20
AUDIO/VIDEO
DESCRIPTION
An audio system is standard on this model. A rear
seat video system is an available option. Several com-
binations of radio receivers are offered on this model.
The audio/video system uses an ignition switched
source of battery current so that the system will only
operate when the ignition switch is in the RUN or
ACCESSORY/ACCESSORY DELAY positions.
The audio system includes the following compo-
nents:²Amplifier
²Antenna
²CD changer (if equipped)
²DVD player (if equipped)
²Radio noise suppression components
²Radio receiver
²Speakers
²Video screen (if equipped)
Certain functions and features of the audio/video
system rely upon resources shared with other elec-
tronic modules in the vehicle over the Programmable
Communication Interface (PCI) bus network. The
data bus network allows the sharing of sensor infor-
RSAUDIO/VIDEO8A-1

NAVIGATION/TELECOMMUNICATION
TABLE OF CONTENTS
page page
NAVIGATION/TELECOMMUNICATION
DESCRIPTION..........................1
OPERATION............................1
DIAGNOSIS AND TESTING
TELECOMMUNICATION.................1HANDS FREE MODULE
REMOVAL.............................3
INSTALLATION..........................3
NAVIGATION/
TELECOMMUNICATION
DESCRIPTION
TELECOMMUNICATIONS
A hands-free cellular system is an available option
on this vehicle. It uses BluetoothŸ technology to pro-
vide wireless communication between the operator's
compatible cellular telephone and the vehicle's
on-board receiver.
The system uses voice recognition technology to
control operation. The incoming voice is broadcast
through the vehicle's radio speakers, automatically
overriding any other audio signals on the speakers
when the hands-free system is in use. A microphone
in the rearview mirror picks up vehicle occupant's
voices. If a call is in progress when the ignition is
switched off, the hands-free system will continue to
operate for up to 45 seconds as part of the Accessory
Relay Delay function. Thereafter, the call can con-
tinue on the hand-held telephone.
The center console front storage compartment
includes a cellular telephone holder, but the system
will communicate with a telephone that is anywhere
within the vehicle. However, covering the hand held
phone or the hands-free phone module with a metal
object may block the signal. The system will recog-
nize up to seven telephones, each of which is given a
spoken identification by the user during the setup
process. The system includes Spanish voice recogni-
tion in addition to English.
Two buttons on the rearview mirror, identified with
ISO icons, control the system: A9phone9button turns
the system on and off; a9voice recognition9(or voice
command) button prompts the hands-free system to
listen for a voice command.
OPERATION
TELECOMMUNICATION
Two buttons on the rearview mirror, identified with
ISO icons, control the system: A9phone9button turns
the system on and off; a9voice recognition9(or voice
command) button prompts the hands-free system to
listen for a voice command. The system includes the
following features:
²Phonebook - Stores telephone numbers for later
recall by name or other verbal identification, called a
voice tag, and memory location.
²Four memory locations - Home, Work, Mobile
and Pager. A maximum of 32 unique names or voice
tags may be stored at the same time, with a different
number in each of the four memory locations.
²Voice tag dialing - Dials the number associated
with a voice tag and memory location.
²Digit dialing - Dials the telephone number by
recognizing the names of the digits as they are spo-
ken.
²Receiving calls - A voice prompt notifies the user
of an incoming call. Pressing the ªphoneº button
answers the call.
²Privacy Mode - Switches the call to the hand-
held telephone and the hands-free system and back
again using the ªvoice recognitionº (or ªvoice com-
mandº) button and a voice command, if desired.
DIAGNOSIS AND TESTING
TELECOMMUNICATION
Any diagnosis of the Telecommunication sys-
tem should begin with the use of the DRB IIIt
diagnostic tool. For information on the use of
the DRB IIIt, refer to the appropriate Diagnos-
tic Service Information.
For complete circuit diagrams, refer to the appro-
priate wiring information.
RSNAVIGATION/TELECOMMUNICATION8T-1

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, REFER TO ELECTRICAL, RESTRAINTS
BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING COLUMN, OR INSTRUMENT PANELCOMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.
TELECOMMUNICATION SYSTEM DIAGNOSIS
CONDITION POSSIBLE CAUSE CORRECTION
Phone Not
Available1. Bluetooth phone not
paired to the system.1. Ensure that phone(s) are paired to the system.
2. Bluetooth phone not
present or turned OFF.2. Make sure paired phone is present, turned ON and that the
Bluetooth option is enabled on the phone.
3. Bluetooth phone has
low battery.3. At low battery levels, some phones will turn off Bluetooth
functionality. Ensure cellular phone is charged to an adequate
level.
Phone Pairing
Failed1. Phone does not
support Hands Free
Profile1. The Telecommunication system requires the cellular phone to
be BluetoothŸ enabled, as well as supporting the Hands Free
Profile. The customer will have to upgrade their phone to one
supporting Hands Free Profile. A list of suggested phones is
available at: http://www.chrysler.com/uconnect.
2. Phone not Bluetooth
enabled.2. The Telecommunication system requires the cellular phone to
be BluetoothŸ enabled. A list of suggested phones is available
at: http://www.chrysler.com/uconnect.
3. PIN entered on the
phone is not the same
as PIN spoken to the
system.3. The PIN spoken to the system must be the same PIN entered
into the phone.
4. Phone has reached
maximum number of
allowed devices paired.4. Remove one of the previously paired devices from it's list.
Poor Voice
Recognition1. Microphone failure 1. Using a scan tool, check for microphone fault codes.
2. Customer not waiting
for the beep before
speaking.2. Ensure customer is waiting for the system9beep9prior to
beginning the speech to be recognized.
3. Customer not
speaking in a smooth
normal manner.3. Verify that the customer is attempting to use the system with a
smooth consistent voice. The system is designed to accept
normal speech spoken at a normal tone, some people tend to
speak to a computer loud and slow, which results in reduced
performance.
4. Rear view mirror not
properly attached to
mounting.4. Mirror must be firmly mounted to the mounting location. Ensure
that mirror is tightened to the specified torque.
5. High levels of noise in
vehicle compartment5. System performance is increased when noise conditions in the
vehicle are lowered. Ideal conditions include windows closed.
6. Object interfering with
microphone input6. Verify that there is no object, hanging from the mirror, that
could be obstructing the microphone.
7. User not saying9send9
after a pager dialing
request7. User must say9send9at the end of a Pager Dialing request.
8T - 2 NAVIGATION/TELECOMMUNICATIONRS
NAVIGATION/TELECOMMUNICATION (Continued)

CONDITION POSSIBLE CAUSE CORRECTION
8. Other passengers
talking while customer is
attempting to use the
system8. Although designed for primary use by the driver, the
microphone will pick up passengers in any seat of the vehicle.
System performance is increased in low noise environments.
Phonebook
names not
recognized
consistently1. Phonebook names
recorded in high noise
conditions1. For increased system performance, it is recommended that the
phone book entries are recorded in a low noise environment. That
is, vehicle in park, with windows up.
2. Phonebook name(s)
short2. For increased performance it is recommended that the user
use both first and last name as a phonebook entry. Example9
Daniel James9as opposed to9Dan9.
3. Phonebook names
recorded by another user3. It is recommended that each user of the system record their
own phonebook entries. This will increase the recognition
performance.
4. Similar names in
phonebook4. For increased system performance it is recommended that the
user do not enter similar sounding names in the phonebook.
5. Object interfering with
microphone input5. Object interfering with microphone input.
Poor Phone
audio quality.1. Microphone failure 1. Use a scan tool, and check for Microphone faults.
2. Rear view mirror not
properly fixed to
mounting button2. Mirror must be firmly mounted to the mounting location. Tighten
mirror to the specified torque.
3. System being used in
high noise conditions3. System performance is increased when noise conditions in the
vehicle are lowered. Ideal conditions include windows closed.
No Phone Audio 1. Phone setting cause
phone audio to be routed
to handset.1. Route audio to9Hands free9device.
HANDS FREE MODULE
REMOVAL
(1) Disconnect and isolate the battery negative
cable.
(2) Remove the instrument panel lower console
(Refer to 23 - BODY/INSTRUMENT PANEL/STOR-
AGE BIN - REMOVAL).
(3) Remove the mounting fasteners (Fig. 1).
(4) Disconnect the electrical harness connector and
remove module.
INSTALLATION
(1) Connect electrical harness connector and posi-
tion module.
(2) Install mounting fasteners.
(3) Install instrument panel lower console (Refer to
23 - BODY/INSTRUMENT PANEL/STORAGE BIN -
INSTALLATION).(4) Connect battery negative cable.
Fig. 1 HANDS FREE MODULE
RSNAVIGATION/TELECOMMUNICATION8T-3
NAVIGATION/TELECOMMUNICATION (Continued)

WIRING
TABLE OF CONTENTS
page page
WIRING DIAGRAM INFORMATION....... 8W-01-1
COMPONENT INDEX.................. 8W-02-1
POWER DISTRIBUTION............... 8W-10-1
GROUND DISTRIBUTION.............. 8W-15-1
BUS COMMUNICATIONS.............. 8W-18-1
CHARGING SYSTEM.................. 8W-20-1
STARTING SYSTEM.................. 8W-21-1
FUEL/IGNITION SYSTEM.............. 8W-30-1
TRANSMISSION CONTROL SYSTEM..... 8W-31-1
VEHICLE SPEED CONTROL............ 8W-33-1
ANTILOCK BRAKES................... 8W-35-1
VEHICLE THEFT SECURITY SYSTEM..... 8W-39-1
INSTRUMENT CLUSTER............... 8W-40-1
HORN/CIGAR LIGHTER/POWER OUTLET . . 8W-41-1
AIR CONDITIONING-HEATER........... 8W-42-1
OCCUPANT RESTRAINT SYSTEM........ 8W-43-1
INTERIOR LIGHTING.................. 8W-44-1
BODY CONTROL MODULE............. 8W-45-1
MESSAGE CENTER................... 8W-46-1
AUDIO SYSTEM..................... 8W-47-1REAR WINDOW DEFOGGER............ 8W-48-1
OVERHEAD CONSOLE................. 8W-49-1
FRONT LIGHTING.................... 8W-50-1
REAR LIGHTING..................... 8W-51-1
TURN SIGNALS...................... 8W-52-1
WIPERS............................ 8W-53-1
TRAILER TOW....................... 8W-54-1
NAVIGATION/TELECOMMUNICATIONS.... 8W-55-1
CONVENIENCE SYSTEMS.............. 8W-56-1
POWER WINDOWS................... 8W-60-1
POWER DOOR LOCKS................ 8W-61-1
POWER MIRRORS................... 8W-62-1
POWER SEATS...................... 8W-63-1
POWER SUNROOF................... 8W-64-1
SPLICE INFORMATION................ 8W-70-1
CONNECTOR PIN-OUTS............... 8W-80-1
CONNECTOR/GROUND/SPLICE
LOCATION........................ 8W-91-1
POWER DISTRIBUTION SYSTEM........ 8W-97-1 RSWIRING
8W-1

AJAR SWITCH - EXPORT -INSTALLATION, HOOD .................8Q-3
AJAR SWITCH - EXPORT - REMOVAL, HOOD .............................. 8Q-3
ALIGNMENT - DESCRIPTION, WHEEL ......2-47
ALIGNMENT - EXPORT - STANDARD PROCEDURE, FRONT FOG LAMP UNIT .....8L-9
ALIGNMENT - EXPORT - STANDARD PROCEDURE, HEADLAMP UNIT .........8L-15
ALIGNMENT - STANDARD PROCEDURE, FRONT FOG LAMP UNIT ................8L-9
ALIGNMENT - STANDARD PROCEDURE, FRONT WIPER ARM ................... 8R-9
ALIGNMENT - STANDARD PROCEDURE, HEADLAMP UNIT ..................... 8L-14
ALIGNMENT - STANDARD PROCEDURE, WHEEL ............................. 2-52
ALIGNMENT, SPECIFICATIONS - WHEEL ....2-56
AMBIENT TEMP SENSOR - DESCRIPTION . 8M-12
AMBIENT TEMP SENSOR - OPERATION . . 8M-12
AMBIENT TEMPERATURE SENSOR CIRCUIT, DIAGNOSIS AND TESTING .....8M-12
AMBIENT TEMPERATURE SENSOR, DIAGNOSIS AND TESTING .............8M-12
AMPLIFIER - INSTALLATION .............8A-7
AMPLIFIER - REMOVAL ................8A-7
AN AIRBAG DEPLOYMENT - STANDARD PROCEDURE, SERVICE AFTER ...........8O-7
ANCHOR - DESCRIPTION, CHILD RESTRAINT .......................... 8O-9
ANCHOR - OPERATION, CHILD RESTRAINT .......................... 8O-10
ANTENNA - EXPORT - DESCRIPTION, QUARTER GLASS INTEGRAL ............8A-13
ANTENNA - EXPORT - OPERATION, QUARTER GLASS INTEGRAL ............8A-13
ANTENNA - NAVIGATION RADIO - INSTALLATION ....................... 8A-11
ANTENNA - NAVIGATION RADIO - REMOVAL .......................... 8A-11
ANTENNA BODY AND CABLE - DESCRIPTION ........................ 8A-7
ANTENNA BODY AND CABLE - OPERATION .......................... 8A-7
ANTENNA BODY AND CABLE, DIAGNOSIS AND TESTING ..............8A-8
ANTENNA CABLE - INSTALLATION, INSTRUMENT PANEL .................8A-12
ANTENNA CABLE - REMOVAL, INSTRUMENT PANEL .................8A-12
ANTENNA, EXPORT - QUARTER GLASS INTEGRAL .......................... 8A-13
ANTENNA MODULE - EXPORT - DESCRIPTION ....................... 8A-10
ANTENNA MODULE - EXPORT - OPERATION ......................... 8A-10
ANTENNA MODULE, EXPORT ...........8A-10
ANTILOCK BRAKE - DESCRIPTION, CONTROLLER ........................ 8E-4
ANTILOCK BRAKE - INSTALLATION, CONTROLLER ........................ 8E-6
ANTILOCK BRAKE - OPERATION, CONTROLLER ........................ 8E-5
ANTILOCK BRAKE - REMOVAL, CONTROLLER ........................ 8E-5
ANTILOCK BRAKE SYSTEM - DESCRIPTION ........................ 5-87
ANTILOCK BRAKE SYSTEM - OPERATION . . 5-88
ANTILOCK BRAKE SYSTEM BLEEDING - STANDARD PROCEDURE ................5-90
ANTILOCK BRAKE SYSTEM (EXPORT) - DESCRIPTION ........................ 5-87
A-PILLAR LOWER EXTENSION TRIM - INSTALLATION ....................... 23-79
A-PILLAR LOWER EXTENSION TRIM - REMOVAL .......................... 23-79
A-PILLAR TRIM - INSTALLATION ........23-79
A-PILLAR TRIM - REMOVAL ............23-79
A-PILLAR-HEADER, OR B-PILLAR - INSTALLATION ....................... 23-17
A-PILLAR-HEADER, OR B-PILLAR - REMOVAL .......................... 23-17
APPLIQUE - INSTALLATION .............23-14
APPLIQUE - REMOVAL ................23-14
ARM - DESCRIPTION, LOWER CONTROL . . . 2-12
ARM - INSPECTION, LOWER CONTROL ....2-14
ARM - INSTALLATION, LOWER CONTROL . . 2-15
ARM - INSTALLATION, REAR WIPER .....8R-10 ARM - OPERATION, LOWER CONTROL
.....2-12
ARM - REMOVAL, LOWER CONTROL ......2-12
ARM - REMOVAL, REAR WIPER .........8R-10
ARM ALIGNMENT - STANDARD PROCEDURE, FRONT WIPER ............8R-9
ARM (REAR BUSHING - HYDRO) - ASSEMBLY, LOWER CONTROL ...........2-15
ARM (REAR BUSHING - HYDRO) - DISASSEMBLY, LOWER CONTROL ........2-13
ARM (REAR BUSHING - STANDARD) - ASSEMBLY, LOWER CONTROL ...........2-14
ARM (REAR BUSHING - STANDARD) - DISASSEMBLY, LOWER CONTROL ........2-13
ARMREST - INSTALLATION ............23-108
ARMREST - REMOVAL ...............23-108
ARMREST - SECOND ROW - FOLD-IN- FLOOR - INSTALLATION ..............23-130
ARMREST - SECOND ROW - FOLD-IN- FLOOR - REMOVAL .................. 23-130
ARMREST ROTATING ASSEMBLY - SECOND ROW - FOLD-IN-FLOOR -
INSTALLATION ...................... 23-130
ARMREST ROTATING ASSEMBLY - SECOND ROW - FOLD-IN-FLOOR -
REMOVAL ......................... 23-130
ARMS - DESCRIPTION, ROCKER ........9-112
ARMS - INSPECTION, ROCKER ...........9-35
ARMS - INSTALLATION, FRONT WIPER ....8R-9
ARMS - INSTALLATION, ROCKER .........9-35
ARMS - OPERATION, ROCKER ..........9-112
ARMS - REMOVAL, FRONT WIPER .........8R-9
ARMS - REMOVAL, ROCKER .............9-35
ARMS AND SHAFT - ASSEMBLY, ROCKER ............................ 9-113
ARMS AND SHAFT - DISASSEMBLY, ROCKER ............................ 9-113
ARMS AND SHAFT - INSTALLATION, ROCKER ............................ 9-113
ARMS AND SHAFT - REMOVAL, ROCKER . . 9-112
ASSIST DISPLAY - DESCRIPTION, PARK . . . 8B-3
ASSIST DISPLAY - INSTALLATION, PARK . . . 8B-4
ASSIST DISPLAY - OPERATION, PARK .....8B-3
ASSIST DISPLAY - REMOVAL, PARK ......8B-4
ASSIST HANDLE - INSTALLATION ........23-79
ASSIST HANDLE - REMOVAL ...........23-79
ASSIST MODULE - DESCRIPTION, PARK . . . 8B-4
ASSIST MODULE - INSTALLATION, PARK . . 8B-6
ASSIST MODULE - OPERATION, PARK .....8B-5
ASSIST MODULE - REMOVAL, PARK ......8B-5
ASSIST SENSOR - DESCRIPTION, PARK . . . 8B-6
ASSIST SENSOR - INSTALLATION, PARK . . . 8B-6
ASSIST SENSOR - OPERATION, PARK .....8B-6
ASSIST SENSOR - REMOVAL, PARK ......8B-6
ASSIST STRAP - INSTALLATION, FRONT SEAT BACK ........................ 23-112
ASSIST STRAP - REMOVAL, FRONT SEAT BACK ........................ 23-112
ATTACHED - INSTALLATION, EXTERIOR NAME PLATES - ADHESIVE .............23-51
ATTACHED - INSTALLATION, EXTERIOR NAME PLATES - TAPE .................23-51
ATTACHED - REMOVAL, EXTERIOR NAME PLATES - ADHESIVE .................. 23-51
ATTACHED - REMOVAL, EXTERIOR NAME PLATES - TAPE ...................... 23-51
AUDIO/VIDEO - DESCRIPTION ...........8A-1
AUDIO/VIDEO, DIAGNOSIS AND TESTING . . 8A-2
AUTO SHUT DOWN RELAY - DESCRIPTION ......................... 8I-3
AUTO SHUT DOWN RELAY - OPERATION . . . 8I-3
AUTOMATIC ADJUSTER - DIAGNOSIS AND TESTING, DRUM BRAKE ............5-14
AUTOMATIC ADJUSTER TENSION RELEASE - STANDARD PROCEDURE,
PARKING BRAKE ...................... 5-63
AUTOMATIC ADJUSTER TENSION RESET - STANDARD PROCEDURE, PARKING
BRAKE .............................. 5-64
AUTOMATIC DAY / NIGHT MIRROR - DESCRIPTION ....................... 8N-28
AUTOMATIC DAY / NIGHT MIRROR - OPERATION ......................... 8N-28
AUTOMATIC DAY / NIGHT MIRROR, DIAGNOSIS AND TESTING .............8N-28
AUTOMATIC TEMPERATURE CONTROL, DESCRIPTION ........................ 24-3
AUTOMATIC TEMPERATURE CONTROL, OPERATION .......................... 24-5AUTOMATIC TEMPERATURE CONTROL
SYSTEM, OPERATION ................24-114
AUTOMATIC TRANSAXLE - DESCRIPTION, 40TE ................... 21-2
AUTOMATIC TRANSAXLE - DESCRIPTION, 41TE .................21-147
AUTOMATIC TRANSAXLE - OPERATION, 40TE ............................... 21-4
AUTOMATIC TRANSAXLE - OPERATION, 41TE ............................. 21-149
AUTOMATIC TRANSAXLE, SPECIAL TOOLS - 41TE ...................... 21-213
AUTOMATIC/MANUAL TRANSAXLE FLUID - DESCRIPTION ........................0-4
AWD - INSTALLATION ..................2-45
AWD - INSTALLATION, REAR WHEEL SPEED SENSOR ....................... 5-92
AWD - INSTALLATION, SPRING ..........2-39
AWD - REMOVAL ..................... 2-44
AWD - REMOVAL, REAR WHEEL SPEED SENSOR ............................ 5-92
AWD - REMOVAL, SPRING ..............2-38
AWD, HEAVY DUTY, CARGO - INSTALLATION ........................ 2-36
AWD, HEAVY DUTY, CARGO - REMOVAL . . . 2-36
AWD POWER TRANSFER UNIT FLUID - DESCRIPTION .........................0-6
AWD REAR DRIVELINE MODULE FLUIDS - DESCRIPTION ........................0-6
B OR C-PILLAR - INSTALLATION, SEAT BELT HEIGHT ADJUSTER ..............8O-38
B OR C-PILLAR - REMOVAL, SEAT BELT HEIGHT ADJUSTER ................... 8O-38
BACK - INSTALLATION, BENCH SEAT ....23-147
BACK - INSTALLATION, FRONT SEAT ....23-111
BACK - QUAD BUCKET - INSTALLATION, BUCKET SEAT ...................... 23-141
BACK - QUAD BUCKET - REMOVAL, BUCKET SEAT ...................... 23-140
BACK - REMOVAL, BENCH SEAT ........23-147
BACK - REMOVAL, FRONT SEAT ........23-111
BACK ASSIST STRAP - INSTALLATION, FRONT SEAT ....................... 23-112
BACK ASSIST STRAP - REMOVAL, FRONT SEAT ....................... 23-112
BACK COVER - INSTALLATION, BENCH SEAT ............................. 23-148
BACK COVER - INSTALLATION, FRONT SEAT ............................. 23-116
BACK COVER - REMOVAL, BENCH SEAT . . 23-148
BACK COVER - REMOVAL, FRONT SEAT . . 23-113
BACK COVER/FOAM - SECOND ROW - FOLD-IN-FLOOR - INSTALLATION, SEAT . . 23-133
BACK COVER/FOAM - SECOND ROW - FOLD-IN-FLOOR - REMOVAL, SEAT ......23-133
BACK COVER/FOAM - THIRD ROW - FOLD-IN-FLOOR - INSTALLATION, SEAT . . 23-156
BACK COVER/FOAM - THIRD ROW - FOLD-IN-FLOOR - REMOVAL, SEAT ......23-155
BACK FRAME - SECOND ROW - FOLD-IN-FLOOR - INSTALLATION, SEAT . . 23-134
BACK FRAME - SECOND ROW - FOLD-IN-FLOOR - REMOVAL, SEAT ......23-134
BACK FRAME - THIRD ROW - FOLD-IN-FLOOR - INSTALLATION, SEAT . . 23-157
BACK FRAME - THIRD ROW - FOLD-IN-FLOOR - REMOVAL, SEAT ......23-156
BACK HINGE - REMOVAL, BENCH SEAT . . 23-146
BACK HINGE COVERS - QUAD BUCKET, 50/50 SPLIT, BENCH - INSTALLATION,
SEAT ............................. 23-146
BACK HINGE COVERS - QUAD BUCKET, 50/50 SPLIT, BENCH - REMOVAL, SEAT . . 23-146
BACK PANEL - INSTALLATION, BENCH SEAT ............................. 23-144
BACK PANEL - INSTALLATION, FRONT SEAT ............................. 23-113
BACK PANEL - REMOVAL, BENCH SEAT . . 23-143
BACK PANEL - REMOVAL, FRONT SEAT . . 23-112
BACK PANEL - SECOND ROW -FOLD-IN-FLOOR - INSTALLATION,
SEAT ............................. 23-134
BACK PANEL - SECOND ROW -FOLD-IN-FLOOR - REMOVAL, SEAT .....23-134
BACK PANEL - THIRD ROW -FOLD-IN- FLOOR - INSTALLATION, SEAT .........23-158
BACK PANEL - THIRD ROW -FOLD-IN- FLOOR - REMOVAL, SEAT .............23-158
2 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

MODULE - REAR BLOWER MOTOR -INSTALLATION, POWER ...............24-41
MODULE - REAR BLOWER MOTOR - OPERATION, POWER .................. 24-40
MODULE - REAR BLOWER MOTOR - REMOVAL, POWER ................... 24-41
MODULE - REMOVAL, BODY CONTROL ....8E-4
MODULE - REMOVAL, HANDS FREE .......8T-3
MODULE - REMOVAL, INTEGRATED POWER ..........................8W -97-2
MODULE - REMOVAL, OCCUPANT CLASSIFICATION ..................... 8O-26
MODULE - REMOVAL, PARK ASSIST ......8B-5
MODULE - REMOVAL, SENTRY KEY REMOTE ENTRY ...................... 8Q-6
MODULE - REMOVAL, WIPER ...........8R-14
MODULE, BENCH SEAT - REMOVAL, CHILD SEAT ........................ 23-104
MODULE, DIAGNOSIS AND TESTING - FRONT CONTROL ..................... 8E-7
MODULE, DIAGNOSIS AND TESTING - HEATED SEAT ........................ 8E-9
MODULE, DIAGNOSIS AND TESTING - MEMORY SEAT/MIRROR ................8E-9
MODULE, DIAGNOSIS AND TESTING - POWER LIFTGATE CONTROL ............8E-10
MODULE, DIAGNOSIS AND TESTING - SLIDING DOOR CONTROL ..............8E-18
MODULE, EXPORT - ANTENNA ..........8A-10
MODULE FLUIDS - DESCRIPTION, AWD REAR DRIVELINE ......................0-6
MOLDING - INSTALLATION, FRONT DOOR INNER BELT .................. 23-168
MOLDING - INSTALLATION, FRONT DOOR OUTER BELT .................. 23-167
MOLDING - INSTALLATION, ROOF JOINT . . 23-60
MOLDING - REMOVAL, FRONT DOOR INNER BELT ........................ 23-168
MOLDING - REMOVAL, FRONT DOOR OUTER BELT ....................... 23-167
MOLDING - REMOVAL, ROOF JOINT ......23-60
MOLDINGS - INSTALLATION, BODY SIDE . . 23-46
MOLDINGS - REMOVAL, BODY SIDE .....23-45
MONITORED COMPONENT - DESCRIPTION ........................ 25-1
MONITORED SYSTEMS - DESCRIPTION ....25-6
MONITORING - DESCRIPTION, TIRE PRESSURE .......................... 22-9
MONITORING - OPERATION, TIRE PRESSURE ......................... 22-10
MOTOR - DESCRIPTION, BLOWER . . 24-45,24-57
MOTOR - DESCRIPTION, IDLE AIR CONTROL .......................... 14-33
MOTOR - DESCRIPTION, LIFTGATE ......8N-15
MOTOR - DESCRIPTION, POWER MODULE - BLOWER .................. 24-30
MOTOR - DESCRIPTION, POWER MODULE - REAR BLOWER .............24-40
MOTOR - DESCRIPTION, SLIDING DOOR . . 8N-51
MOTOR - DIAGNOSIS AND TESTING, RADIATOR FAN ....................... 7-30
MOTOR - INSTALLATION, FRONT WIPER . . 8R-10
MOTOR - INSTALLATION, IDLE AIR CONTROL .......................... 14-33
MOTOR - INSTALLATION, LIFTGATE ......8N-16
MOTOR - INSTALLATION, POWER MODULE - BLOWER .................. 24-31
MOTOR - INSTALLATION, POWER MODULE - REAR BLOWER .............24-41
MOTOR - INSTALLATION, REAR WIPER . . . 8R-10
MOTOR - INSTALLATION, SLIDING DOOR . 8N-51
MOTOR - INSTALLATION, SLIDING DOOR LOCK .............................. 8N-25
MOTOR - INSTALLATION, SUNROOF .....23-174
MOTOR - INSTALLATION, WASHER PUMP ............................. 8R-12
MOTOR - OPERATION, BLOWER ....24-45,24-57
MOTOR - OPERATION, IDLE AIR CONTROL .......................... 14-33
MOTOR - OPERATION, LIFTGATE ........8N-15
MOTOR - OPERATION, POWER MODULE - BLOWER .......................... 24-30
MOTOR - OPERATION, POWER MODULE - REAR BLOWER ..................... 24-40
MOTOR - OPERATION, SLIDING DOOR . . . 8N-51
MOTOR - REMOVAL, FRONT WIPER ......8R-9
MOTOR - REMOVAL, IDLE AIR CONTROL . . 14-33
MOTOR - REMOVAL, LIFTGATE .........8N-15MOTOR - REMOVAL, POWER MODULE -
BLOWER ........................... 24-30
MOTOR - REMOVAL, POWER MODULE - REAR BLOWER ...................... 24-41
MOTOR - REMOVAL, REAR WIPER ......8R-10
MOTOR - REMOVAL, SLIDING DOOR .....8N-51
MOTOR - REMOVAL, SLIDING DOOR LOCK .............................. 8N-25
MOTOR - REMOVAL, SUNROOF ........23-174
MOTOR - REMOVAL, WASHER PUMP ....8R-12
MOTOR - REMOVAL, WINDOW ..........8N-62
MOTOR, DIAGNOSIS AND TESTING - DOOR LOCK ........................ 8N-23
MOTOR, DIAGNOSIS AND TESTING - FRONT BLOWER ..................... 24-46
MOTOR, DIAGNOSIS AND TESTING - REAR BLOWER ...................... 24-58
MOTOR, DIAGNOSIS AND TESTING - VENT WINDOW ...................... 8N-62
MOTOR RELAY - DESCRIPTION, BLOWER ...................... 24-23,24-36
MOTOR RELAY - INSTALLATION, BLOWER ...................... 24-24,24-37
MOTOR RELAY - OPERATION, BLOWER . . 24-23, 24-36
MOTOR RELAY - REMOVAL, BLOWER ....24-24,
24-37
MOTOR RESISTOR BLOCK - DESCRIPTION, BLOWER ..........24-24,24-37
MOTOR RESISTOR BLOCK - OPERATION, BLOWER ...................... 24-24,24-37
MOTOR RESISTOR BLOCK, DIAGNOSIS AND TESTING - FRONT BLOWER ........24-25
MOTOR RESISTOR BLOCK, DIAGNOSIS AND TESTING - REAR BLOWER .........24-38
MOUNT - INSTALLATION, FRONT ....9-134,9-50
MOUNT - INSTALLATION, LEFT ......9-136,9-50
MOUNT - INSTALLATION, REAR .....9-137,9-52
MOUNT - INSTALLATION, RIGHT ....9-138,9-52
MOUNT - REMOVAL, FRONT ........9-134,9-50
MOUNT - REMOVAL, LEFT .........9-136,9-50
MOUNT - REMOVAL, REAR .........9-136,9-51
MOUNT - REMOVAL, RIGHT ........9-138,9-52
MOUNT BUSHINGS - INSTALLATION, FRONT CROSSMEMBER ...............13-17
MOUNT BUSHINGS - REMOVAL, FRONT CROSSMEMBER ..................... 13-17
MOUNTED STOP LAMP - INSTALLATION, CENTER HIGH ........................ 8L-6
MOUNTED STOP LAMP - REMOVAL, CENTER HIGH ........................ 8L-6
MOUNTED STOP LAMP UNIT - INSTALLATION, CENTER HIGH ...........8L-6
MOUNTED STOP LAMP UNIT - REMOVAL, CENTER HIGH ...............8L-6
MOUNTING - DESCRIPTION, ENGINE . 9-134,9-50
MOUNTING - STANDARD PROCEDURE, TIRE AND WHEEL MATCH ...............22-7
MOUNTING BRACKET, 2.4L ENGINE - A/C COMPRESSOR .................. 24-74,24-75
MOUNTING STUDS - FRONT - INSTALLATION, WHEEL ................22-21
MOUNTING STUDS - FRONT - REMOVAL, WHEEL ............................ 22-21
MOUNTING STUDS - REAR - INSTALLATION, WHEEL ................22-22
MOUNTING STUDS - REAR - REMOVAL, WHEEL ............................ 22-22
MOUNTS - FRONT - INSTALLATION, SPRING ............................. 2-43
MOUNTS - FRONT - REMOVAL, SPRING . . . 2-42
MOUNTS - REAR - INSTALLATION, SPRING ............................. 2-43
MOUNTS - REAR - REMOVAL, SPRING ....2-43
MUFFLER - INSTALLATION ..............11-8
MUFFLER - REMOVAL ..................11-7
MULTI-FUNCTION SWITCH - DIAGNOSIS AND TESTING ....................... 8L-18
MULTI-FUNCTION SWITCH - INSTALLATION ....................... 8L-18
MULTI-FUNCTION SWITCH - REMOVAL . . . 8L-18
NAME PLATES - ADHESIVE ATTACHED - INSTALLATION, EXTERIOR .............23-51
NAME PLATES - ADHESIVE ATTACHED - REMOVAL, EXTERIOR .................23-51
NAME PLATES - TAPE ATTACHED - INSTALLATION, EXTERIOR .............23-51NAME PLATES - TAPE ATTACHED -
REMOVAL, EXTERIOR .................23-51
NATURAL VAC LEAK DETECTION ASSY - INSTALLATION ....................... 25-14
NATURAL VAC LEAK DETECTION ASSY - REMOVAL .......................... 25-14
NAVIGATION RADIO - INSTALLATION, ANTENNA .......................... 8A-11
NAVIGATION RADIO - REMOVAL, ANTENNA .......................... 8A-11
NAVIGATION/TELECOMMUNICATION - DESCRIPTION ........................8T-1
NAVIGATION/TELECOMMUNICATION - OPERATION ..........................8T-1
NECK SEAL - DIAGNOSIS AND TESTING, RADIATOR CAP TO FILLER ..............7-28
NGC CONTROLLER - REMOVAL .........8E-16
NIGHT MIRROR - DESCRIPTION, AUTOMATIC DAY ..................... 8N-28
NIGHT MIRROR - OPERATION, AUTOMATIC DAY ..................... 8N-28
NIGHT MIRROR, DIAGNOSIS AND TESTING - AUTOMATIC DAY ............8N-28
NO CUP HOLDER - INSTALLATION, QUAD BUCKET SEAT SIDE SHIELD ......23-143
NO CUP HOLDER - REMOVAL, QUAD BUCKET SEAT SIDE SHIELD ...........23-143
NOISE - DIAGNOSIS AND TESTING, EXCESSIVE EXHAUST SYSTEM ...........11-2
NOISE - DIAGNOSIS AND TESTING, TIRE . . 22-14
NOISE DIAGNOSIS - DIAGNOSIS AND TESTING, HYDRAULIC LASH
ADJUSTER ........................... 9-34
NOISE, DIAGNOSIS AND TESTING - WIND ............................... 23-2
NOISE DIAGNOSIS, DIAGNOSIS AND TESTING - A/C COMPRESSOR ..........24-72
NOISE SUPPRESSION COMPONENTS - DESCRIPTION, RADIO .................8A-15
NOISE SUPPRESSION COMPONENTS - OPERATION, RADIO .................. 8A-15
NON-ABS JUNCTION BLOCK - DESCRIPTION ........................ 5-33
NON-ABS JUNCTION BLOCK - INSTALLATION ........................ 5-34
NON-ABS JUNCTION BLOCK - OPERATION .......................... 5-33
NON-ABS JUNCTION BLOCK - REMOVAL . . . 5-34
NON-MONITORED CIRCUITS, DESCRIPTION ........................ 25-5
NOT FILL - DIAGNOSIS AND TESTING, VEHICLE DOES ...................... 25-17
NVLD - FOLD-IN-FLOOR - INSTALLATION, WITH .................25-20
NVLD - FOLD-IN-FLOOR - REMOVAL, WITH .............................. 25-20
O2 SENSOR - DESCRIPTION ............14-36
O2 SENSOR - OPERATION .............14-36
OBTAINING DIAGNOSTIC TROUBLE CODES - STANDARD PROCEDURE .......8E-15
OCCUPANT CLASSIFICATION MODULE - DESCRIPTION ....................... 8O-25
OCCUPANT CLASSIFICATION MODULE - INSTALLATION ...................... 8O-26
OCCUPANT CLASSIFICATION MODULE - OPERATION ......................... 8O-25
OCCUPANT CLASSIFICATION MODULE - REMOVAL .......................... 8O-26
OCCUPANT RESTRAINT CONTROLLER - DESCRIPTION ....................... 8O-27
OCCUPANT RESTRAINT CONTROLLER - INSTALLATION ...................... 8O-29
OCCUPANT RESTRAINT CONTROLLER - OPERATION ......................... 8O-28
OCCUPANT RESTRAINT CONTROLLER - REMOVAL .......................... 8O-29
OCS - INSTALLATION, FRONT SEAT CUSHION .......................... 23-120
OCS - INSTALLATION, FRONT SEAT CUSHION SIDE COVER ...............23-122
OCS - INSTALLATION, FRONT SEAT RISER - MANUAL ................... 23-123
OCS - INSTALLATION, FRONT SEAT TRACK ADJUSTER/MANUAL ...........23-128
OCS - INSTALLATION, FRONT SEAT TRACK ADJUSTER/POWER ............23-125
OCS - INSTALLATION, FRONT SEAT TRACK REAR COVER .................23-129
RS INDEX21
Description Group-Page Description Group-Page Description Group-Page
