Page 2065 of 2339

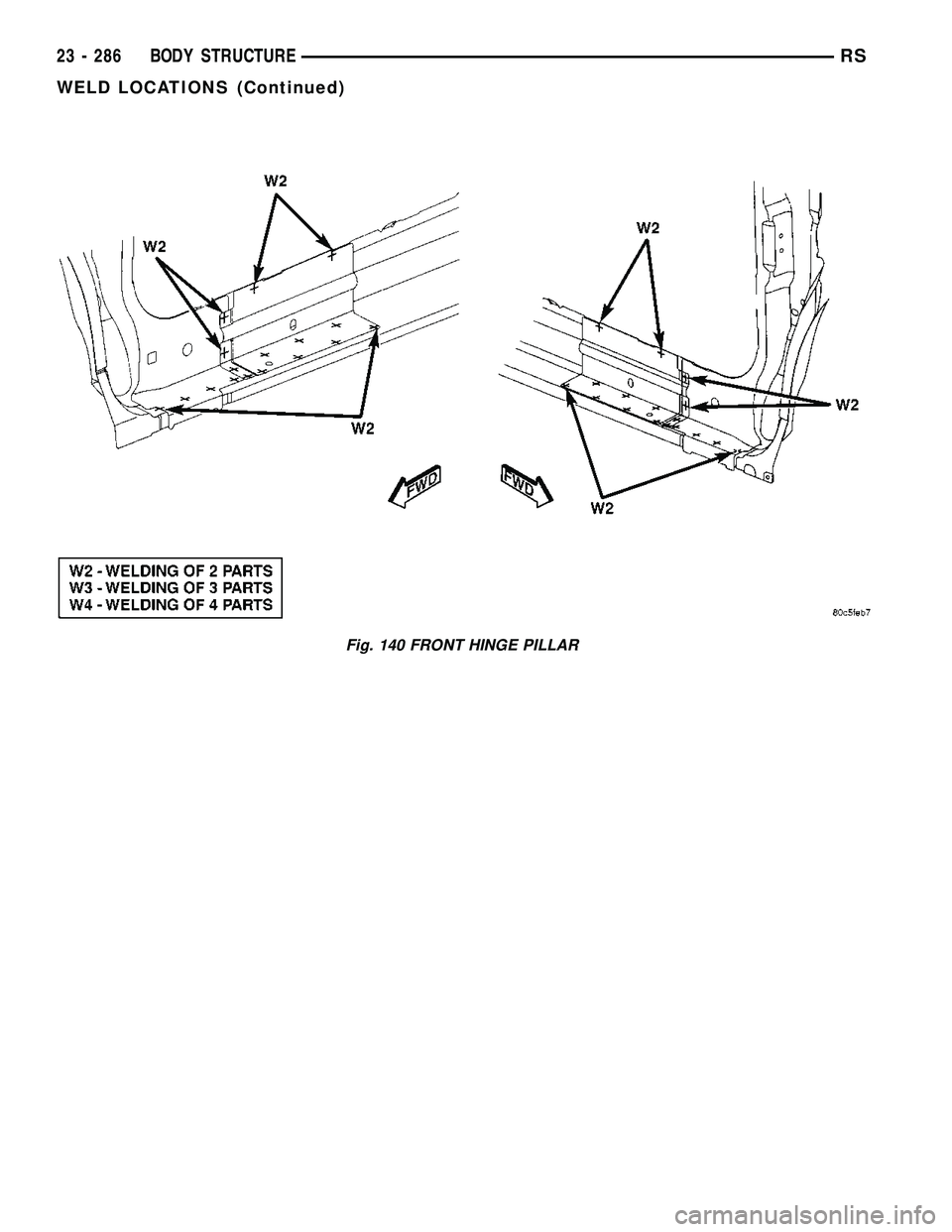

CHRYSLER CARAVAN 2005 Service Manual Fig. 140 FRONT HINGE PILLAR 23 - 286 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2066 of 2339

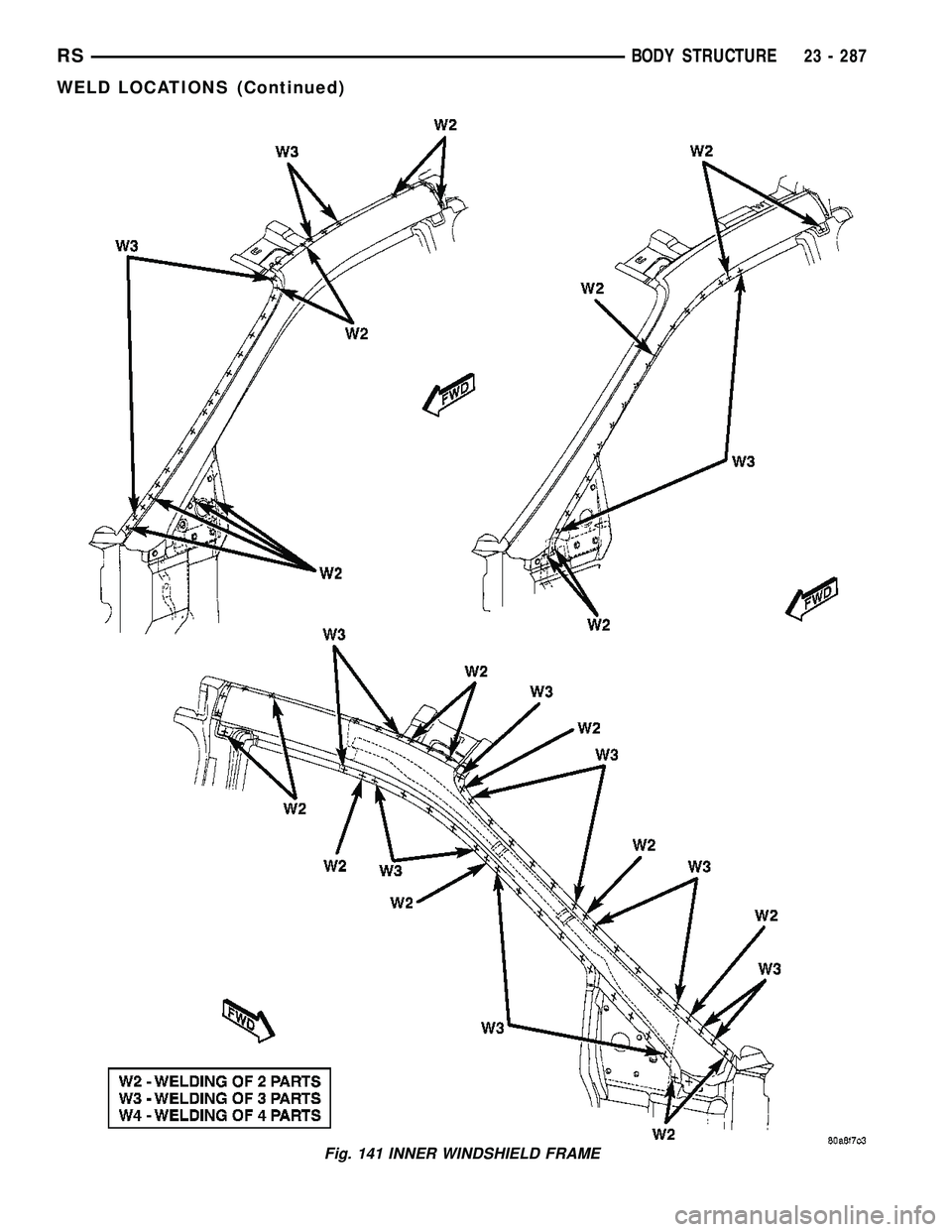

CHRYSLER CARAVAN 2005 Service Manual Fig. 141 INNER WINDSHIELD FRAME RSBODY STRUCTURE23 - 287 WELD LOCATIONS (Continued)

Page 2067 of 2339

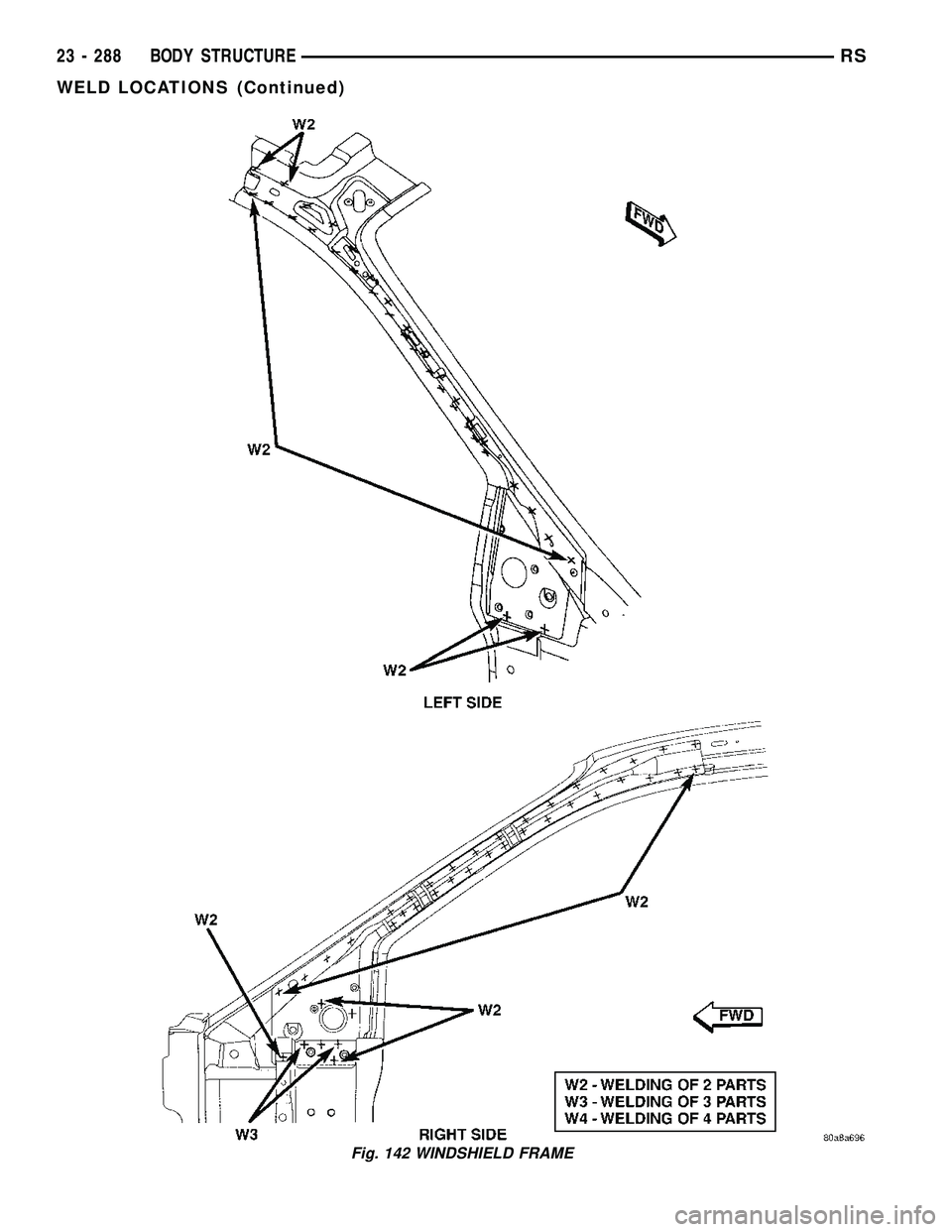

CHRYSLER CARAVAN 2005 Service Manual Fig. 142 WINDSHIELD FRAME 23 - 288 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2068 of 2339

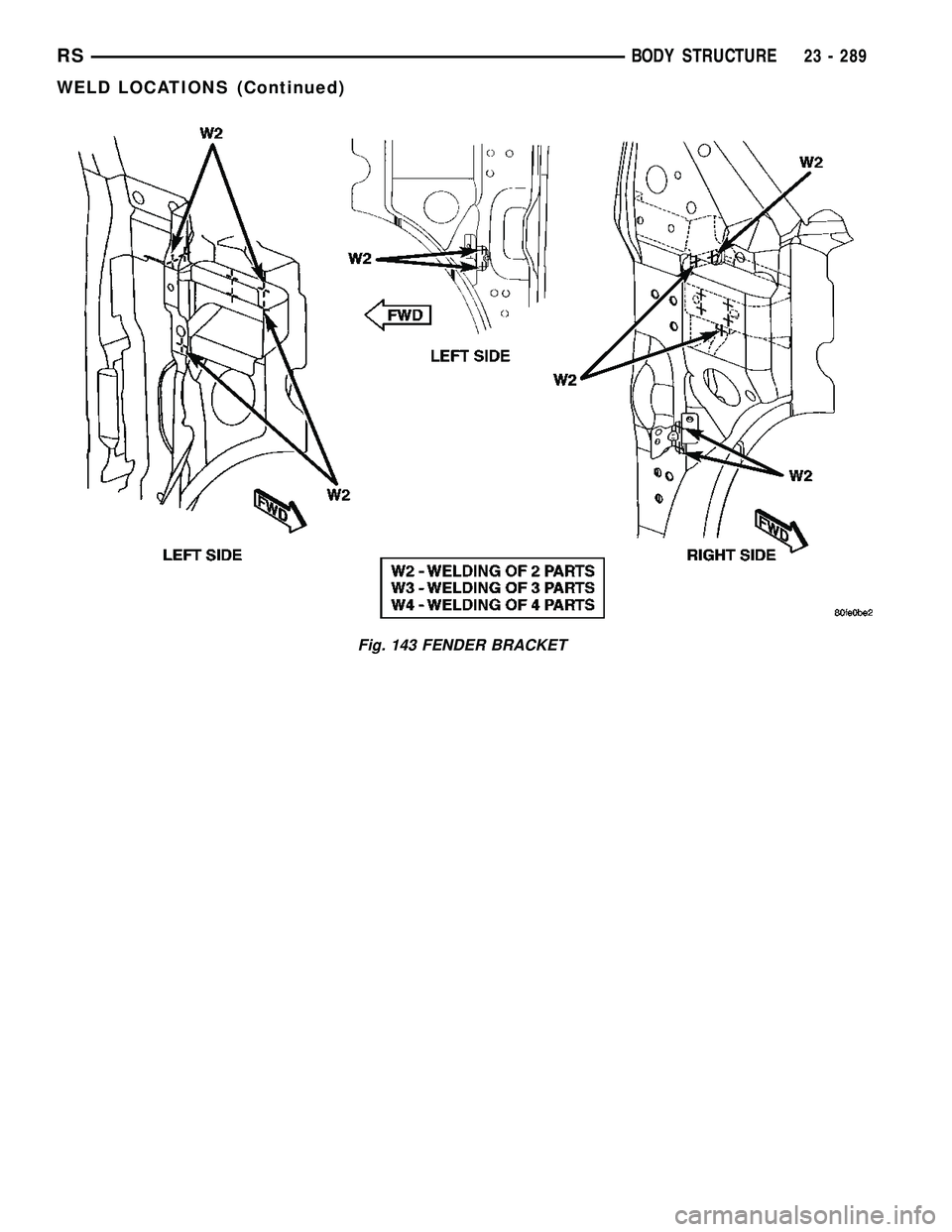

CHRYSLER CARAVAN 2005 Service Manual Fig. 143 FENDER BRACKET RSBODY STRUCTURE23 - 289 WELD LOCATIONS (Continued)

Page 2069 of 2339

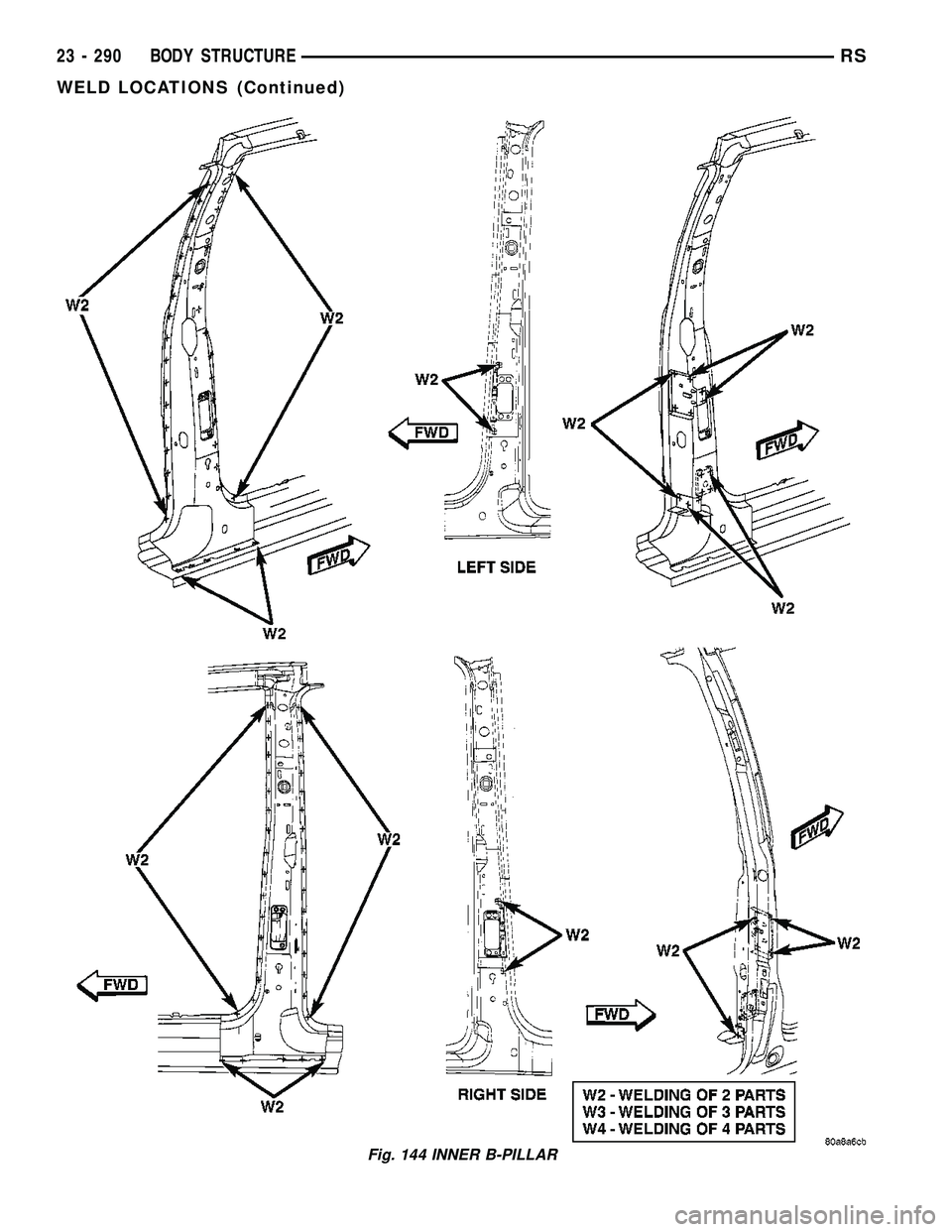

CHRYSLER CARAVAN 2005 Service Manual Fig. 144 INNER B-PILLAR 23 - 290 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2070 of 2339

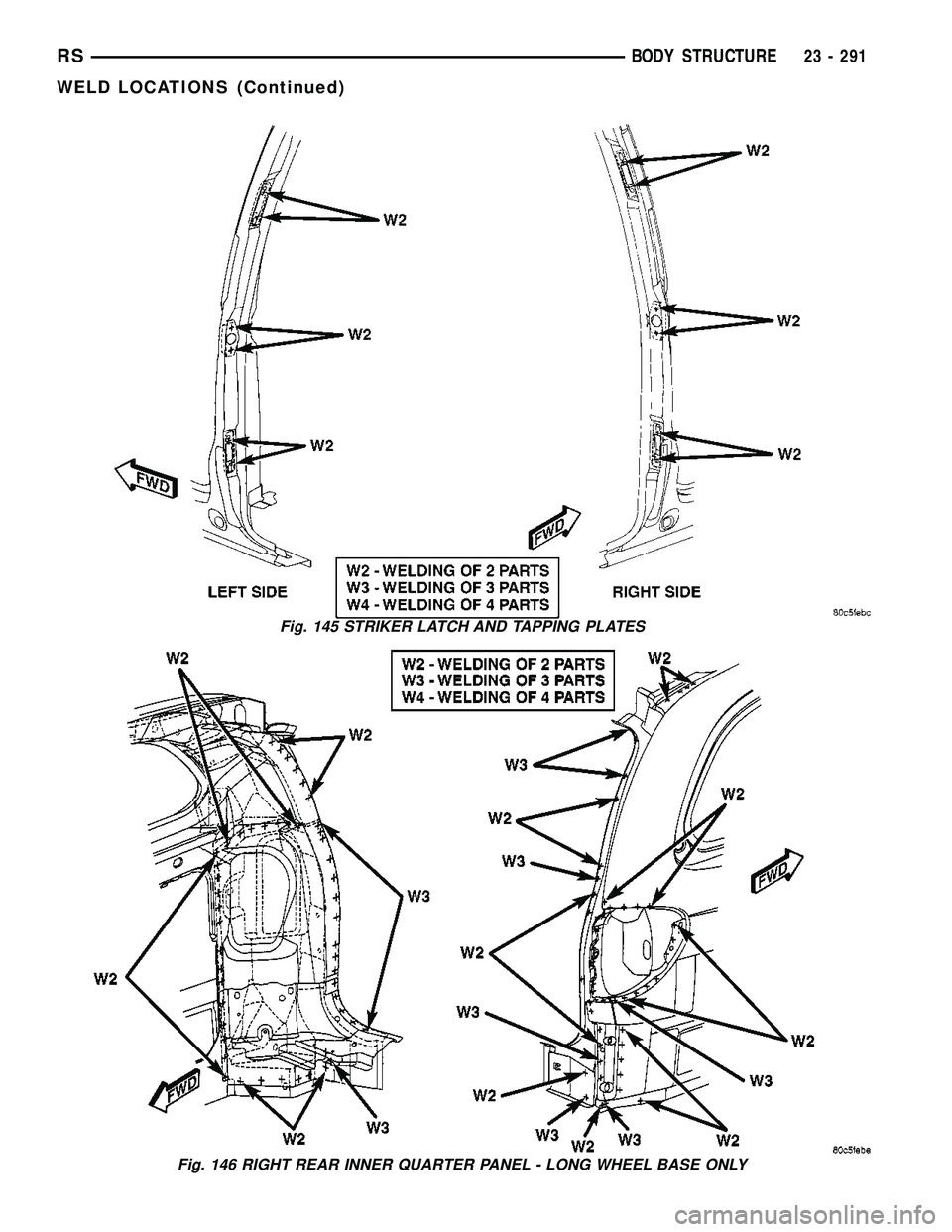

CHRYSLER CARAVAN 2005 Service Manual Fig. 145 STRIKER LATCH AND TAPPING PLATES Fig. 146 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 291 WELD LOCATIONS (Continued)

Page 2071 of 2339

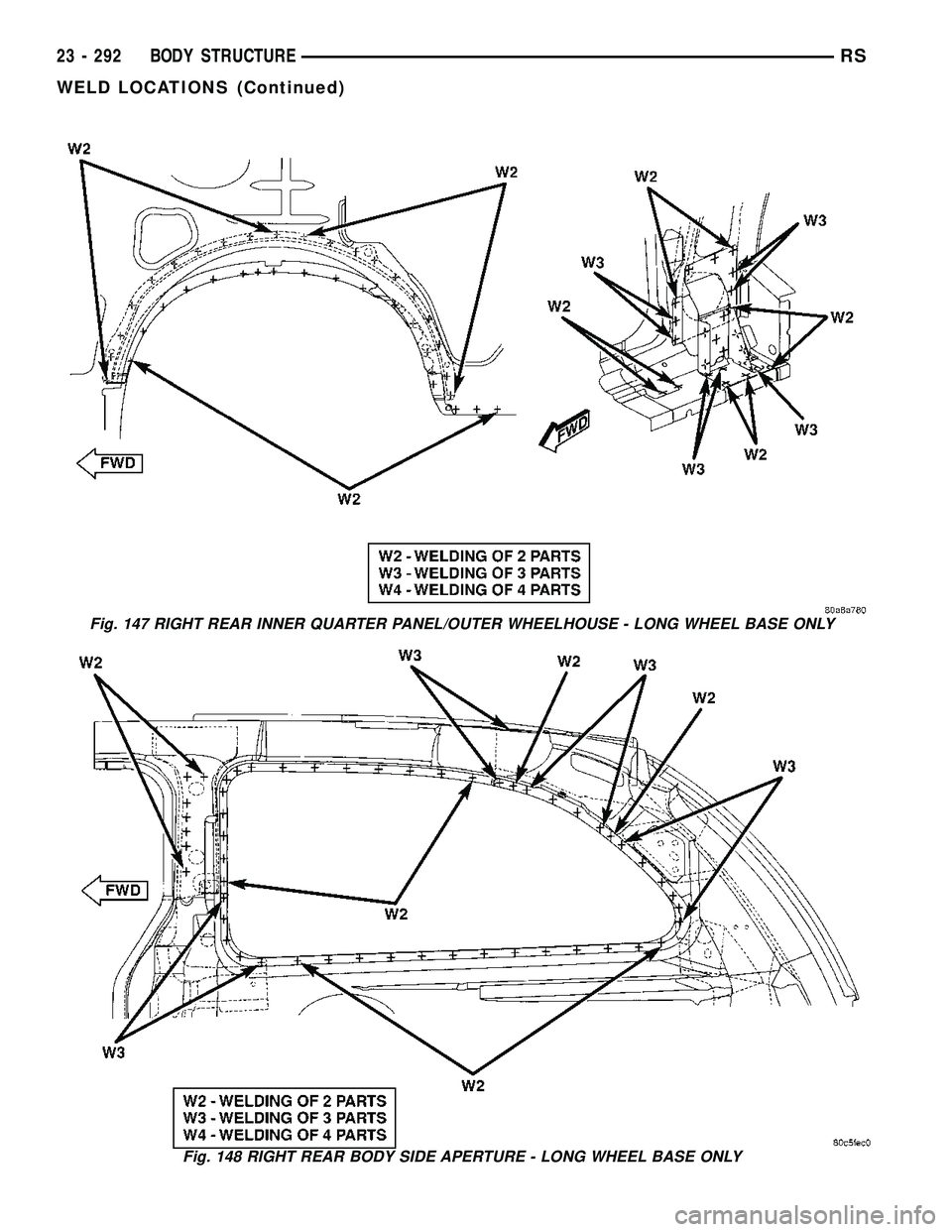

CHRYSLER CARAVAN 2005 Service Manual Fig. 147 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY Fig. 148 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY 23 - 292 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2072 of 2339

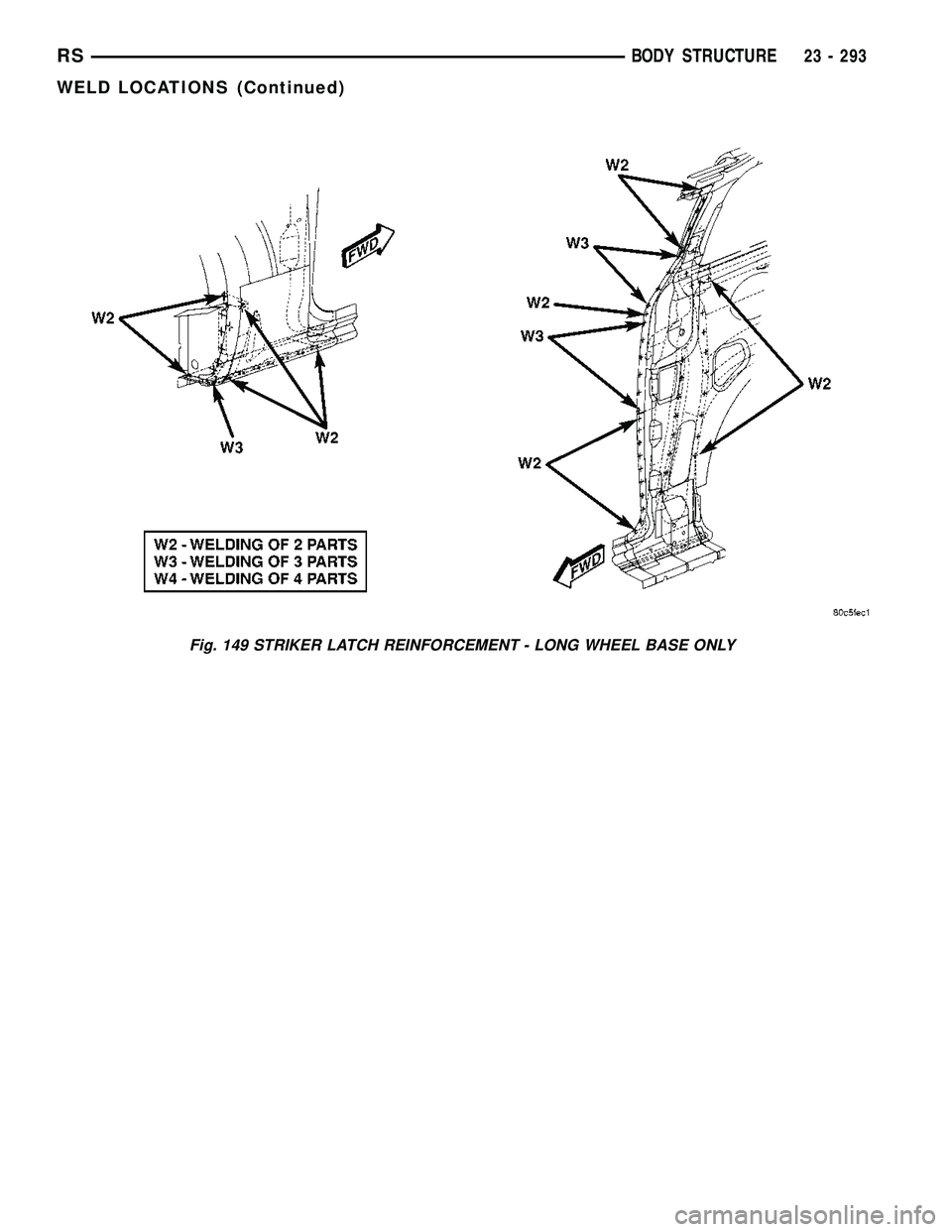

CHRYSLER CARAVAN 2005 Service Manual Fig. 149 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 293 WELD LOCATIONS (Continued)
