Page 2105 of 2339

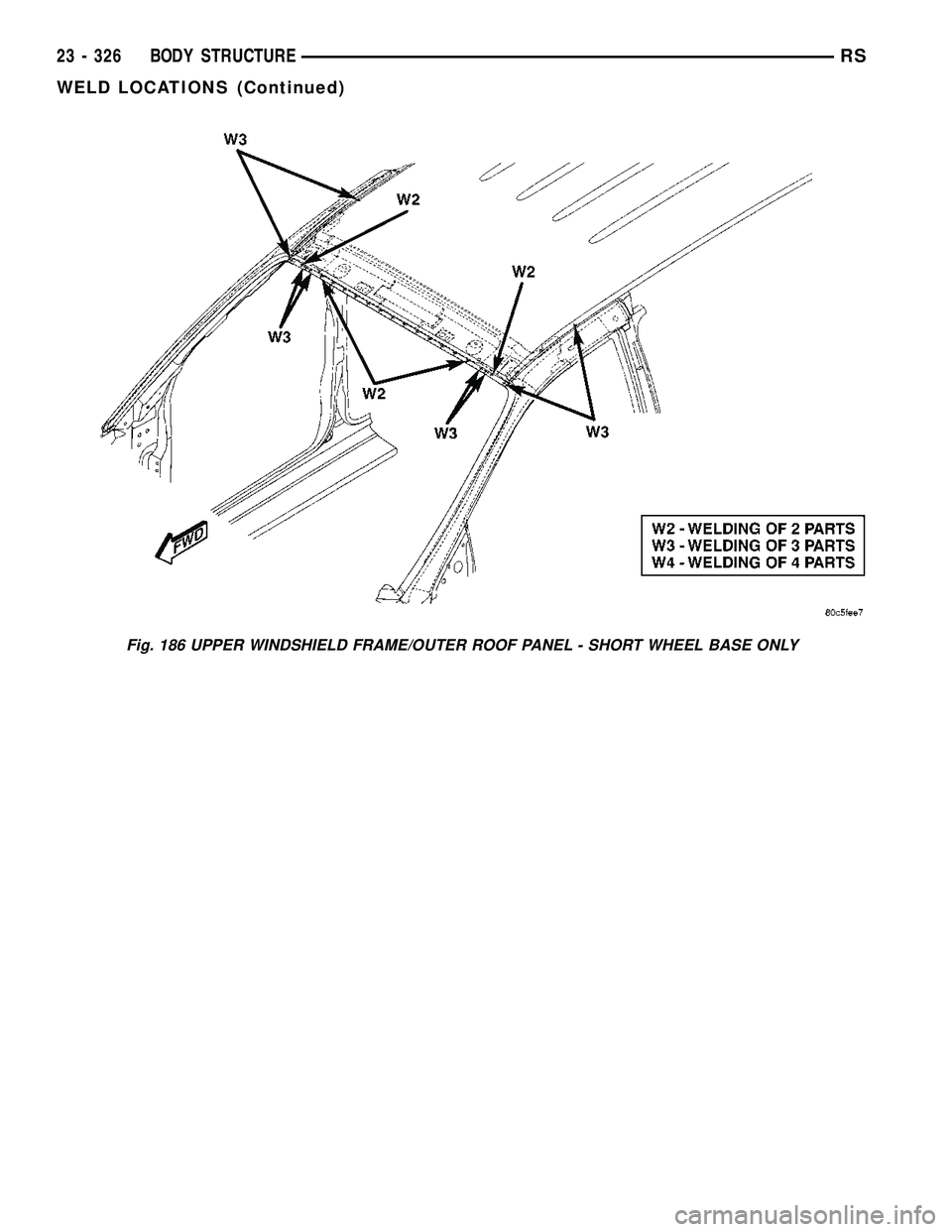

CHRYSLER CARAVAN 2005 Service Manual Fig. 186 UPPER WINDSHIELD FRAME/OUTER ROOF PANEL - SHORT WHEEL BASE ONLY 23 - 326 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2106 of 2339

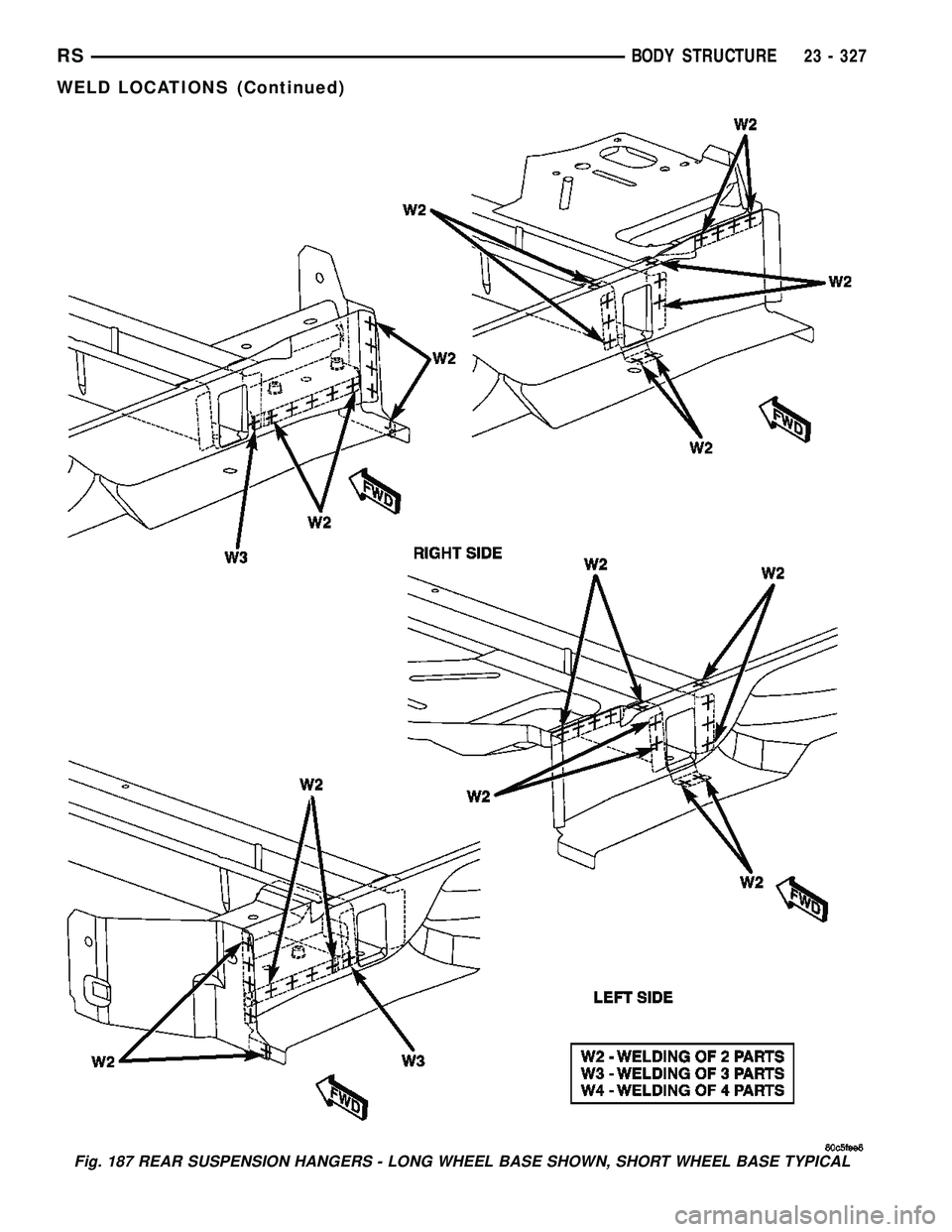

CHRYSLER CARAVAN 2005 Service Manual Fig. 187 REAR SUSPENSION HANGERS - LONG WHEEL BASE SHOWN, SHORT WHEEL BASE TYPICAL RSBODY STRUCTURE23 - 327 WELD LOCATIONS (Continued)

Page 2107 of 2339

CHRYSLER CARAVAN 2005 Service Manual Fig. 188 FRONT LOWER LIFTGATE OPENING Fig. 189 REAR JACKING REINFORCEMENT - LONG WHEEL BASE ONLY 23 - 328 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2108 of 2339

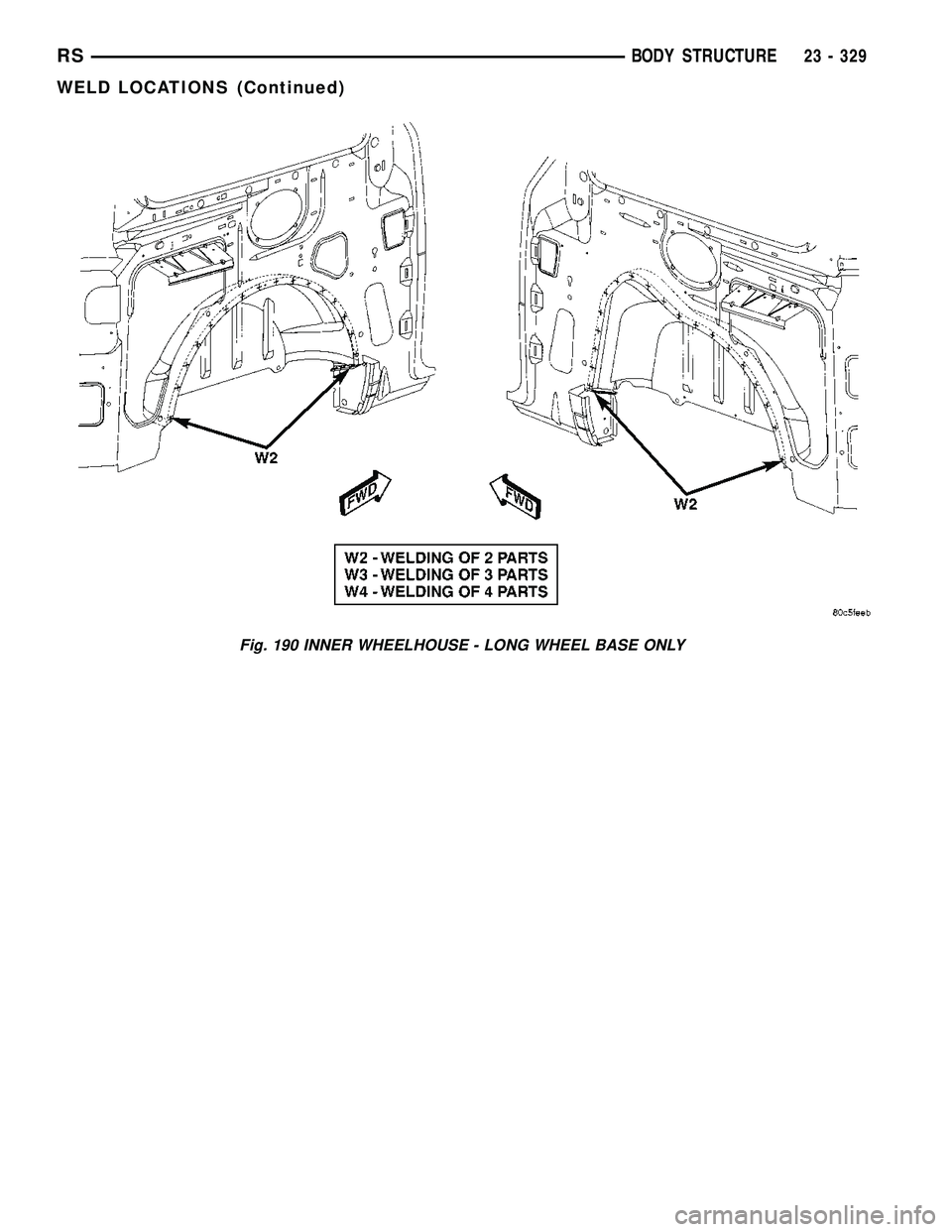

CHRYSLER CARAVAN 2005 Service Manual Fig. 190 INNER WHEELHOUSE - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 329 WELD LOCATIONS (Continued)

Page 2109 of 2339

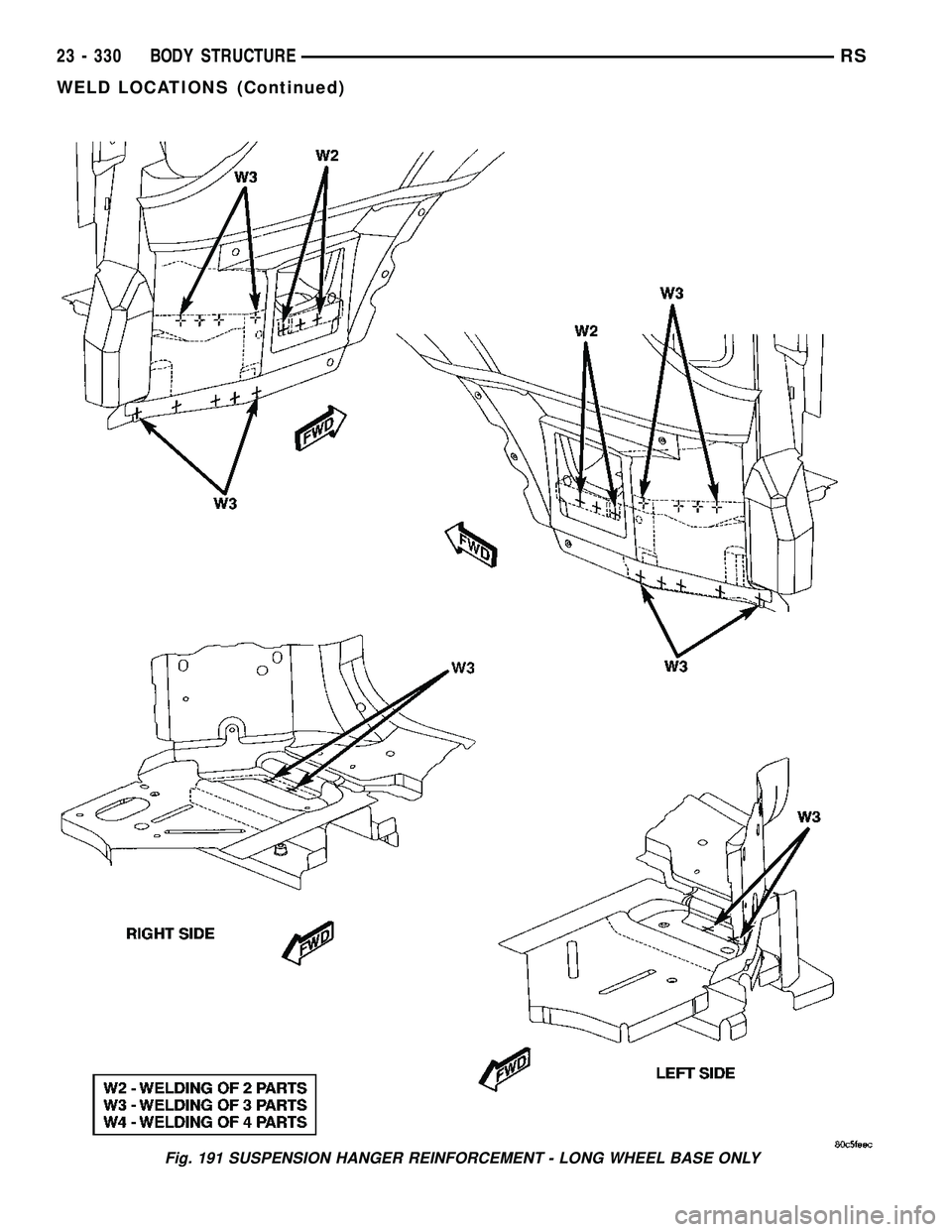

CHRYSLER CARAVAN 2005 Service Manual Fig. 191 SUSPENSION HANGER REINFORCEMENT - LONG WHEEL BASE ONLY 23 - 330 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2110 of 2339

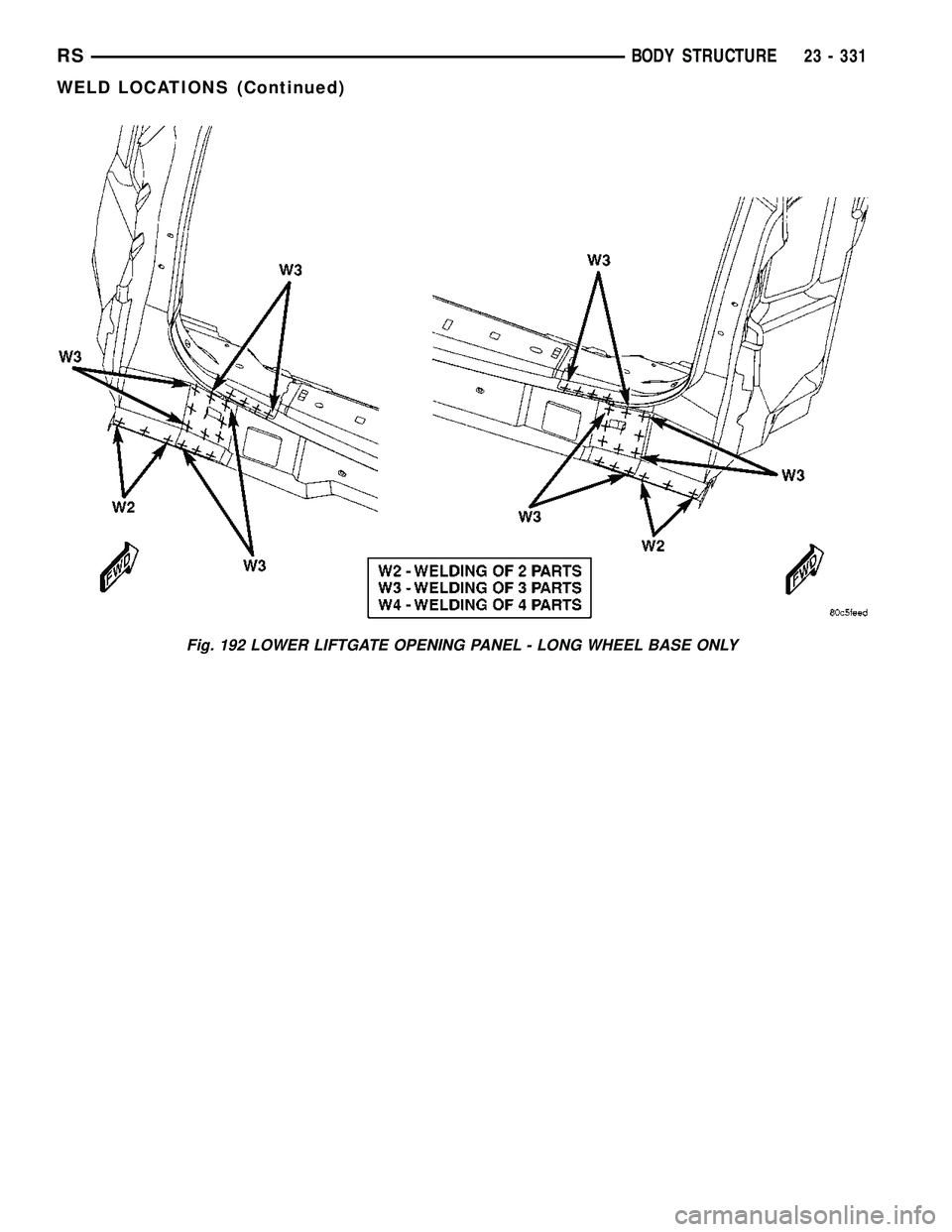

CHRYSLER CARAVAN 2005 Service Manual Fig. 192 LOWER LIFTGATE OPENING PANEL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 331 WELD LOCATIONS (Continued)

Page 2111 of 2339

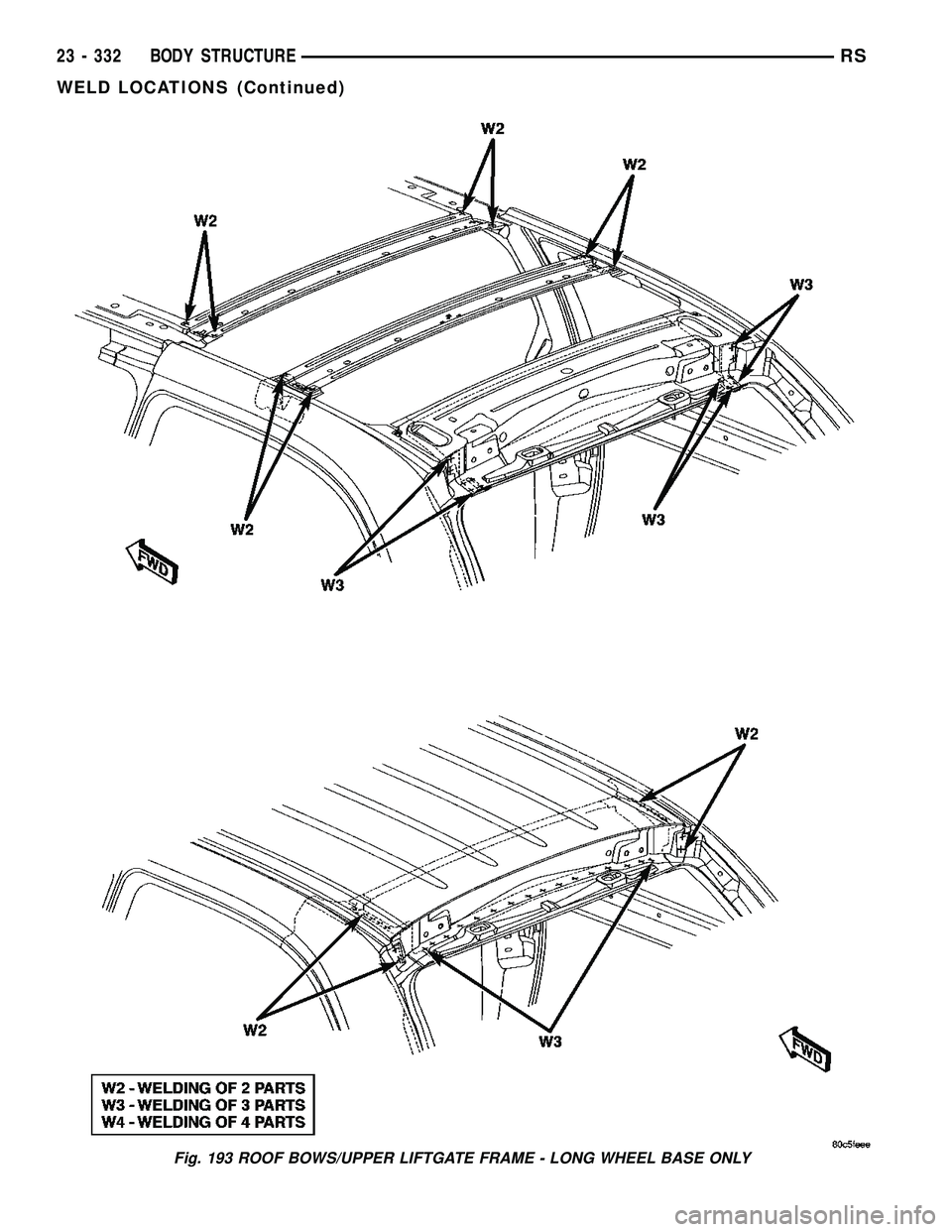

CHRYSLER CARAVAN 2005 Service Manual Fig. 193 ROOF BOWS/UPPER LIFTGATE FRAME - LONG WHEEL BASE ONLY 23 - 332 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2112 of 2339

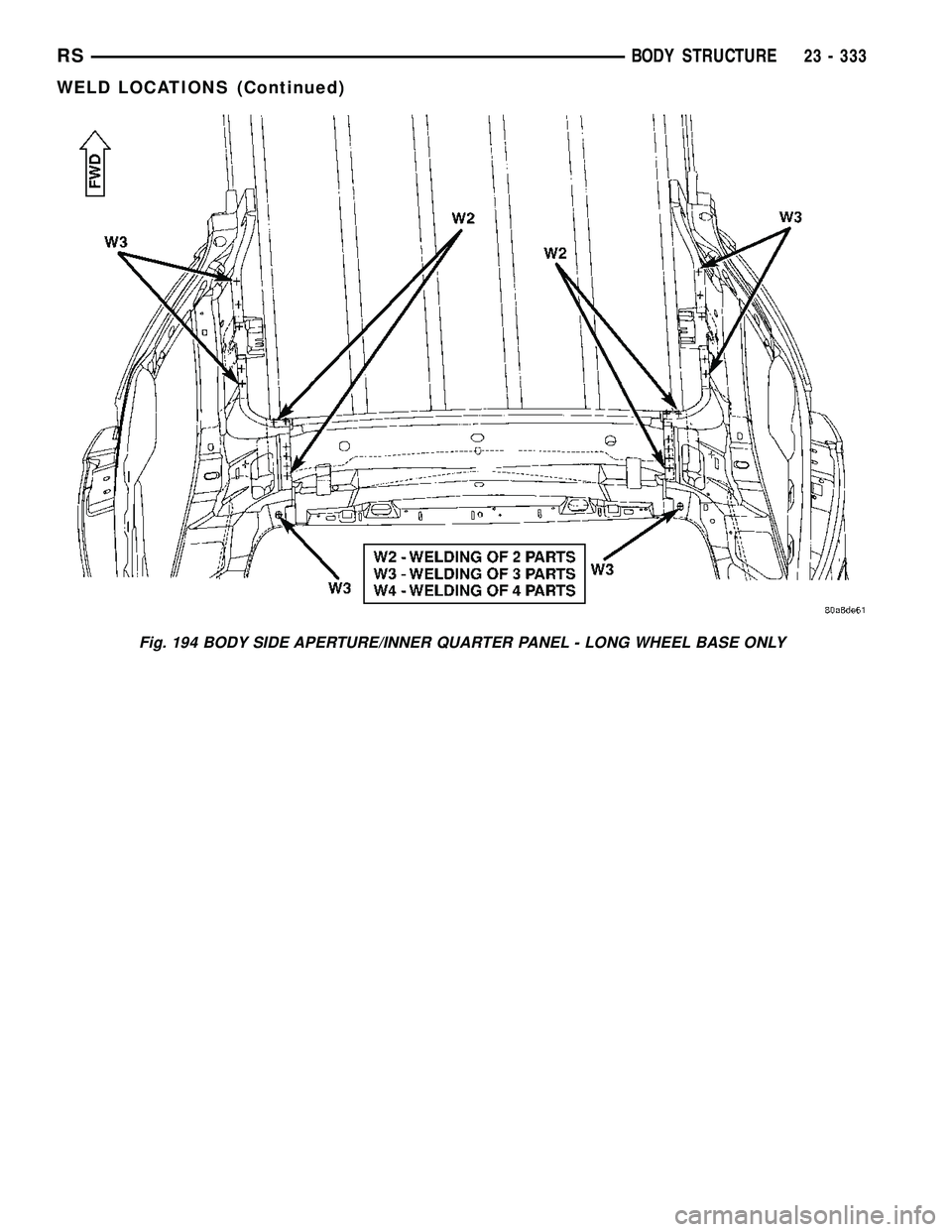

CHRYSLER CARAVAN 2005 Service Manual Fig. 194 BODY SIDE APERTURE/INNER QUARTER PANEL - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 333 WELD LOCATIONS (Continued)
