Page 1145 of 2339

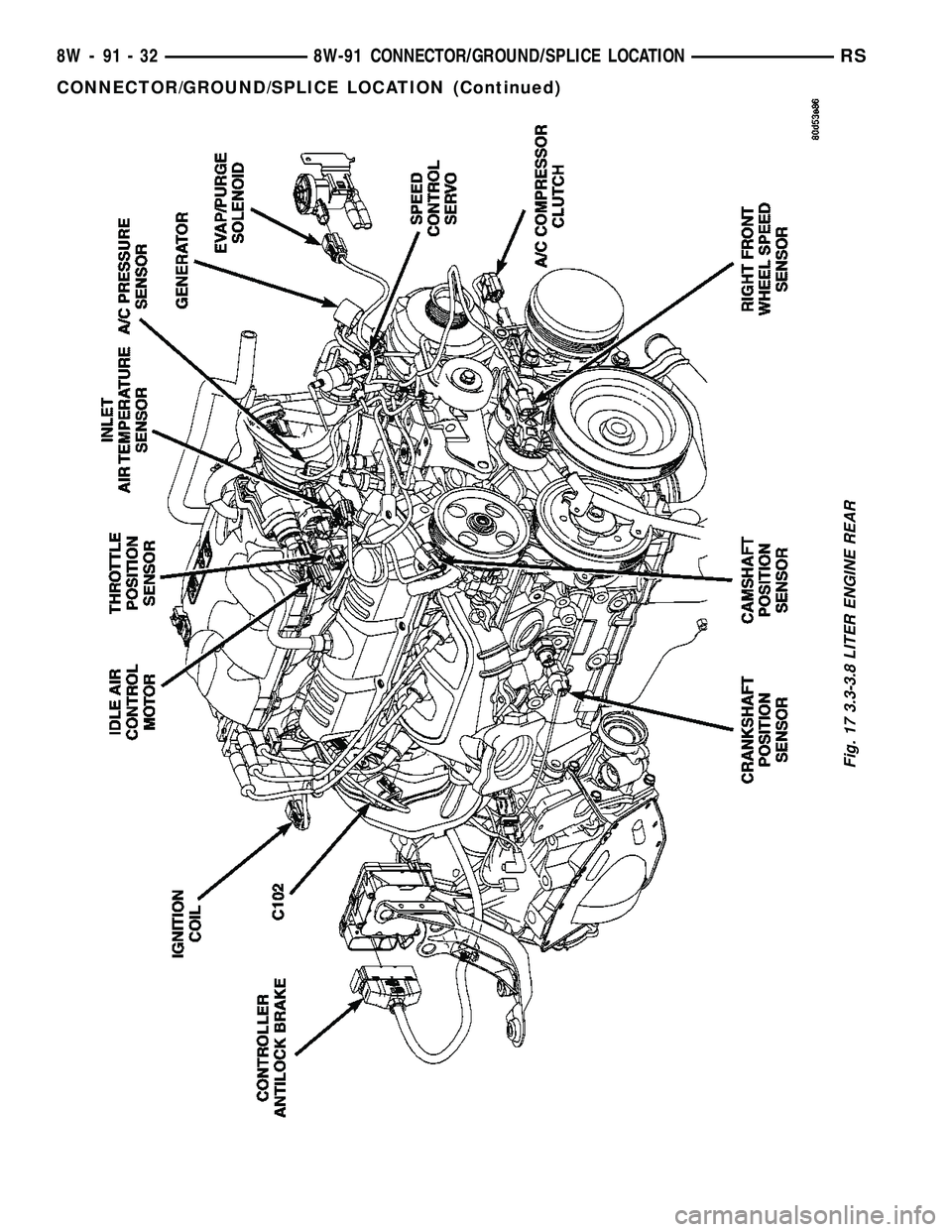

CHRYSLER CARAVAN 2005 Service Manual Fig. 17 3.3-3.8 LITER ENGINE REAR 8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1146 of 2339

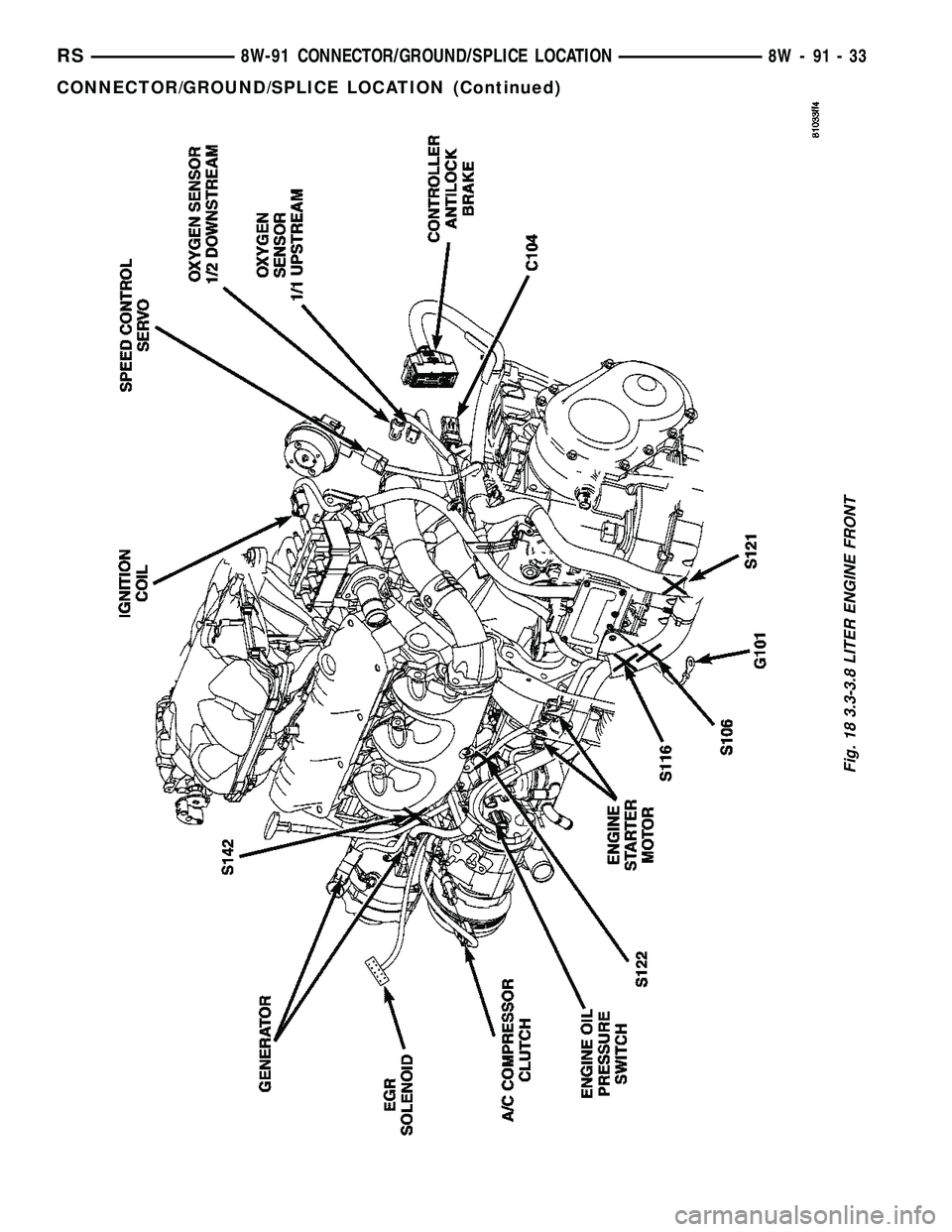

CHRYSLER CARAVAN 2005 Service Manual Fig. 18 3.3-3.8 LITER ENGINE FRONT RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1147 of 2339

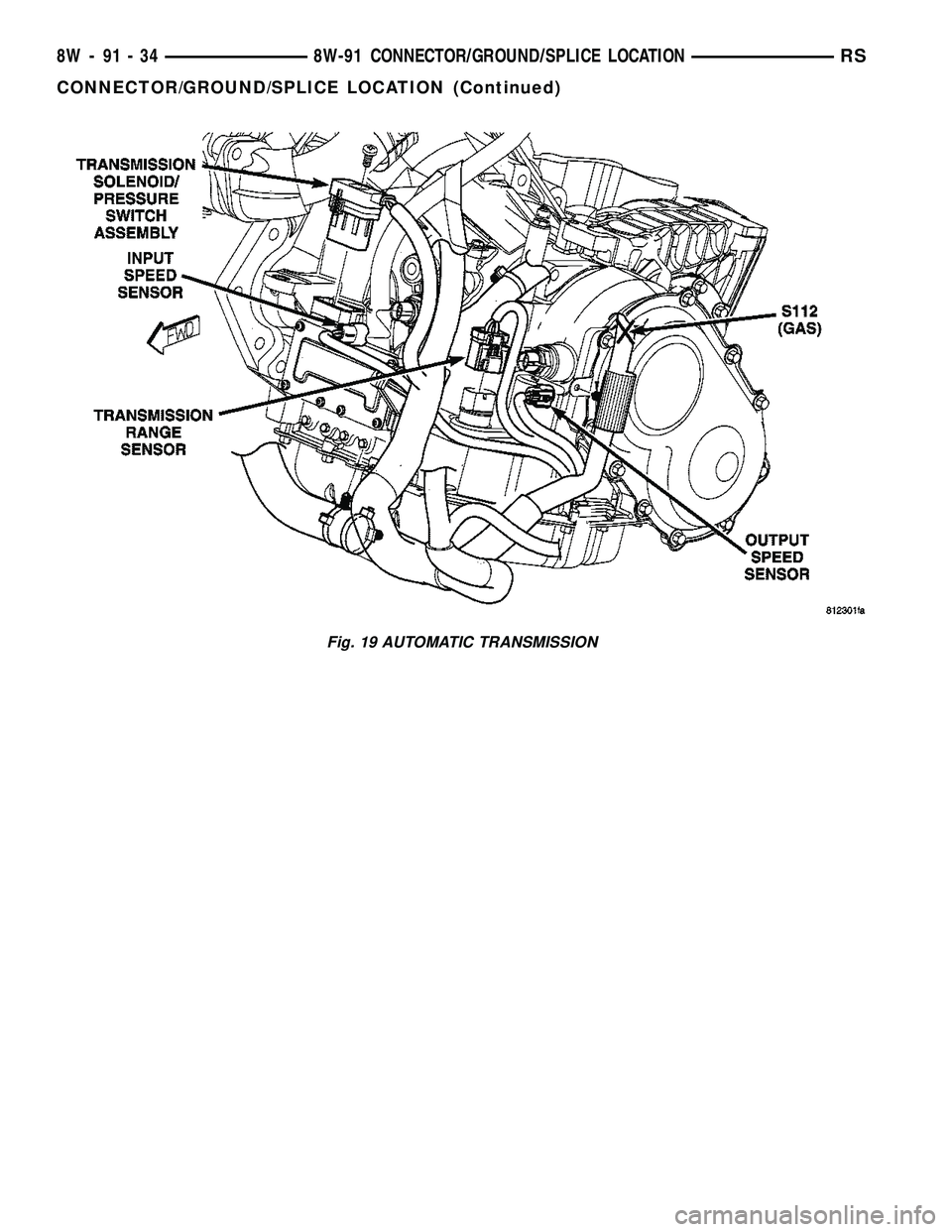

CHRYSLER CARAVAN 2005 Service Manual Fig. 19 AUTOMATIC TRANSMISSION 8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1148 of 2339

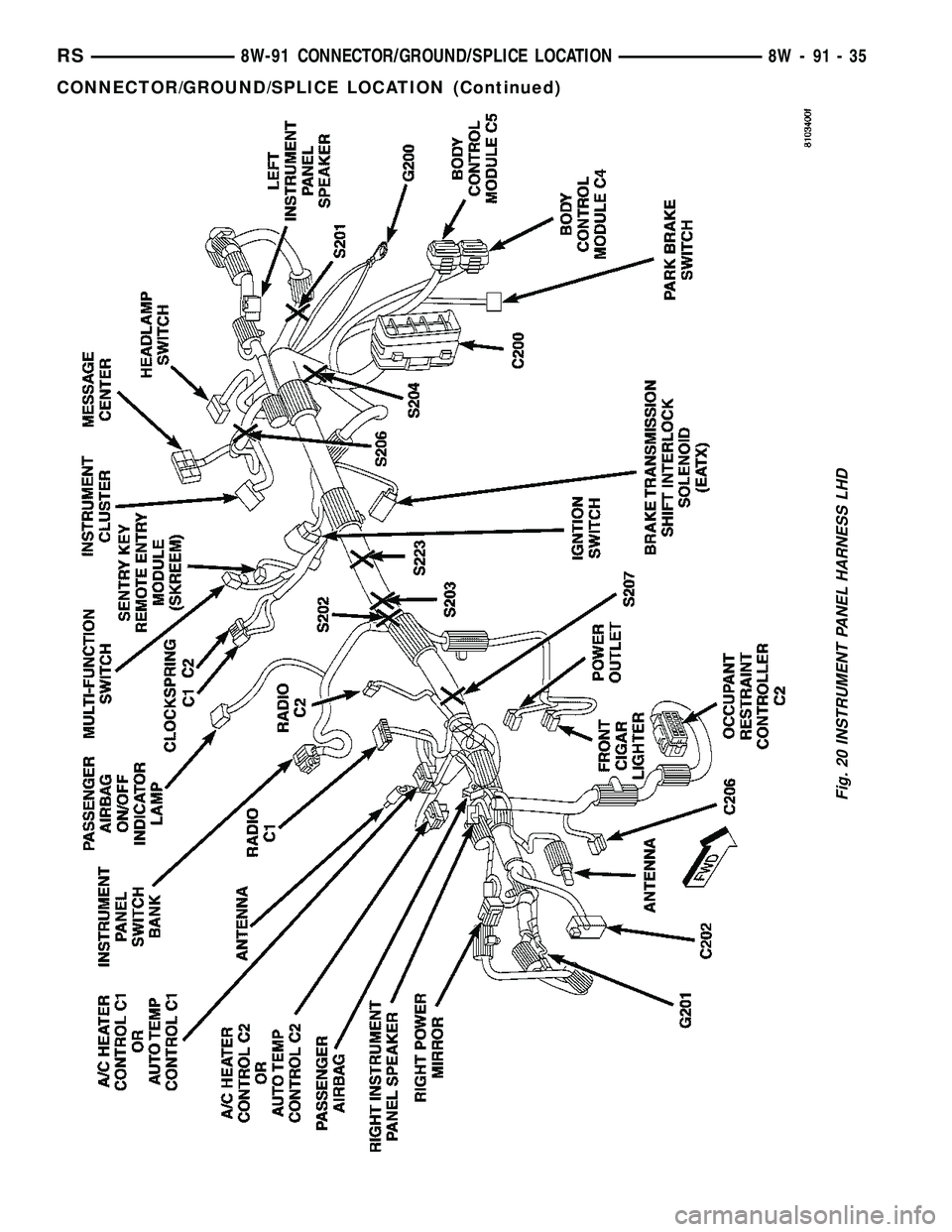

CHRYSLER CARAVAN 2005 Service Manual Fig. 20 INSTRUMENT PANEL HARNESS LHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1149 of 2339

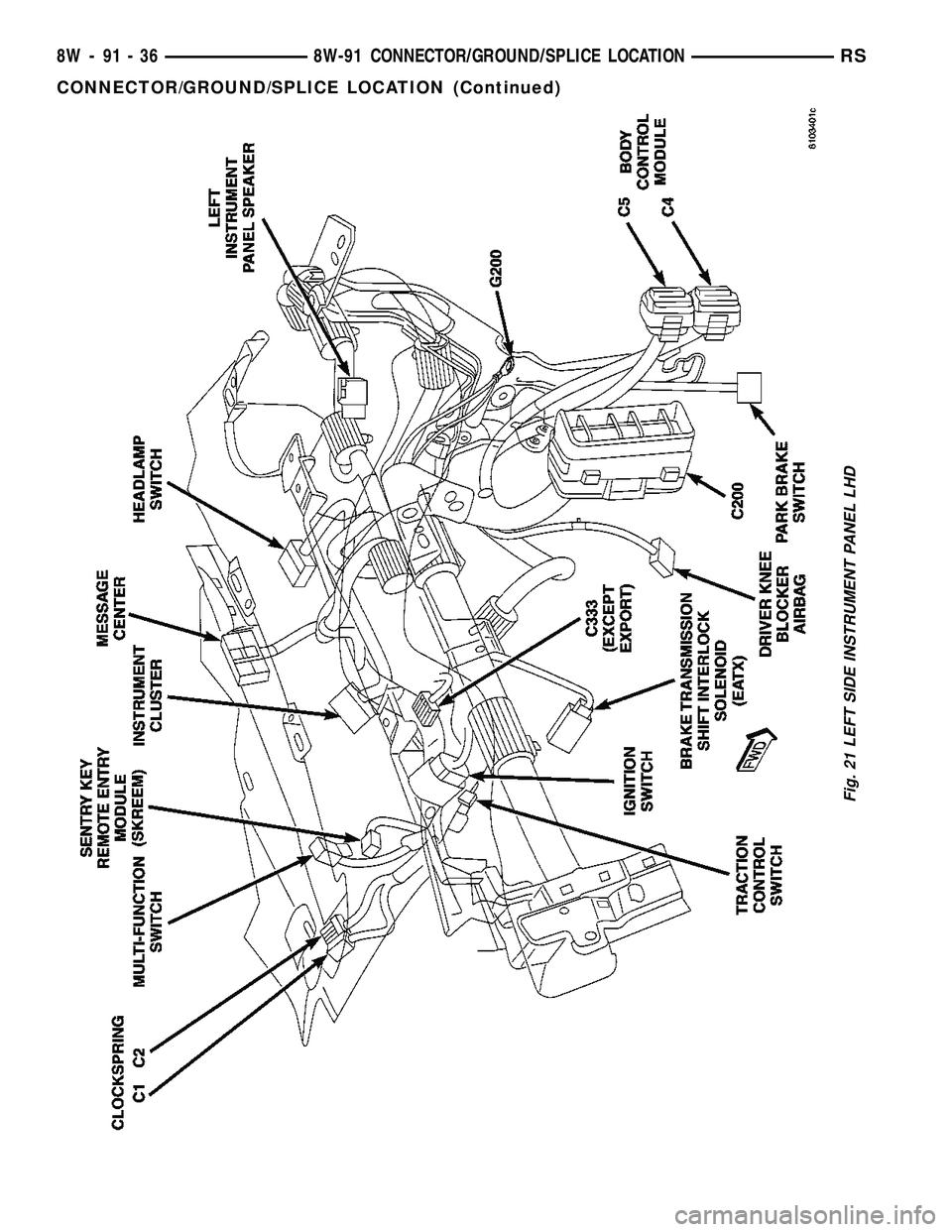

CHRYSLER CARAVAN 2005 Service Manual Fig. 21 LEFT SIDE INSTRUMENT PANEL LHD 8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1150 of 2339

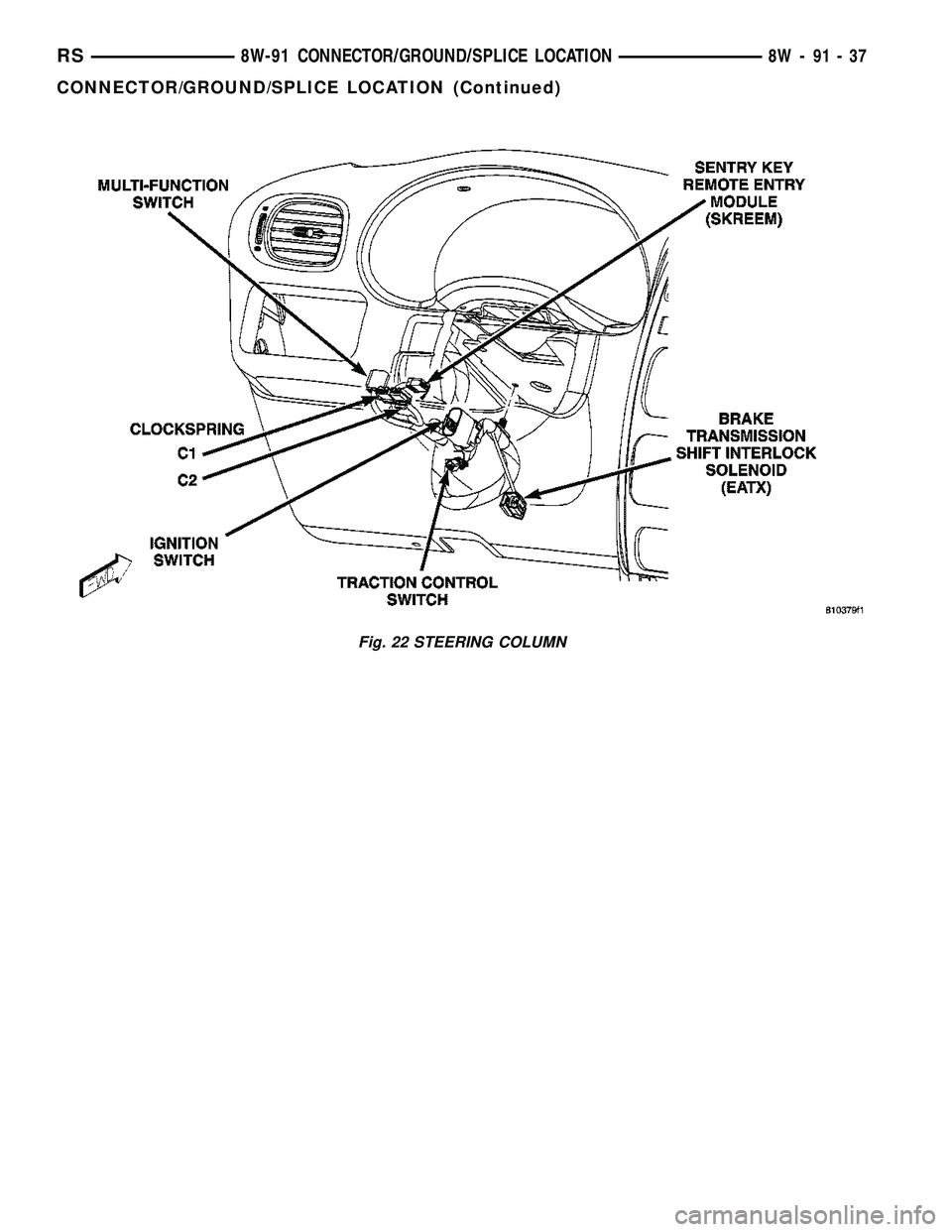

CHRYSLER CARAVAN 2005 Service Manual Fig. 22 STEERING COLUMN RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1151 of 2339

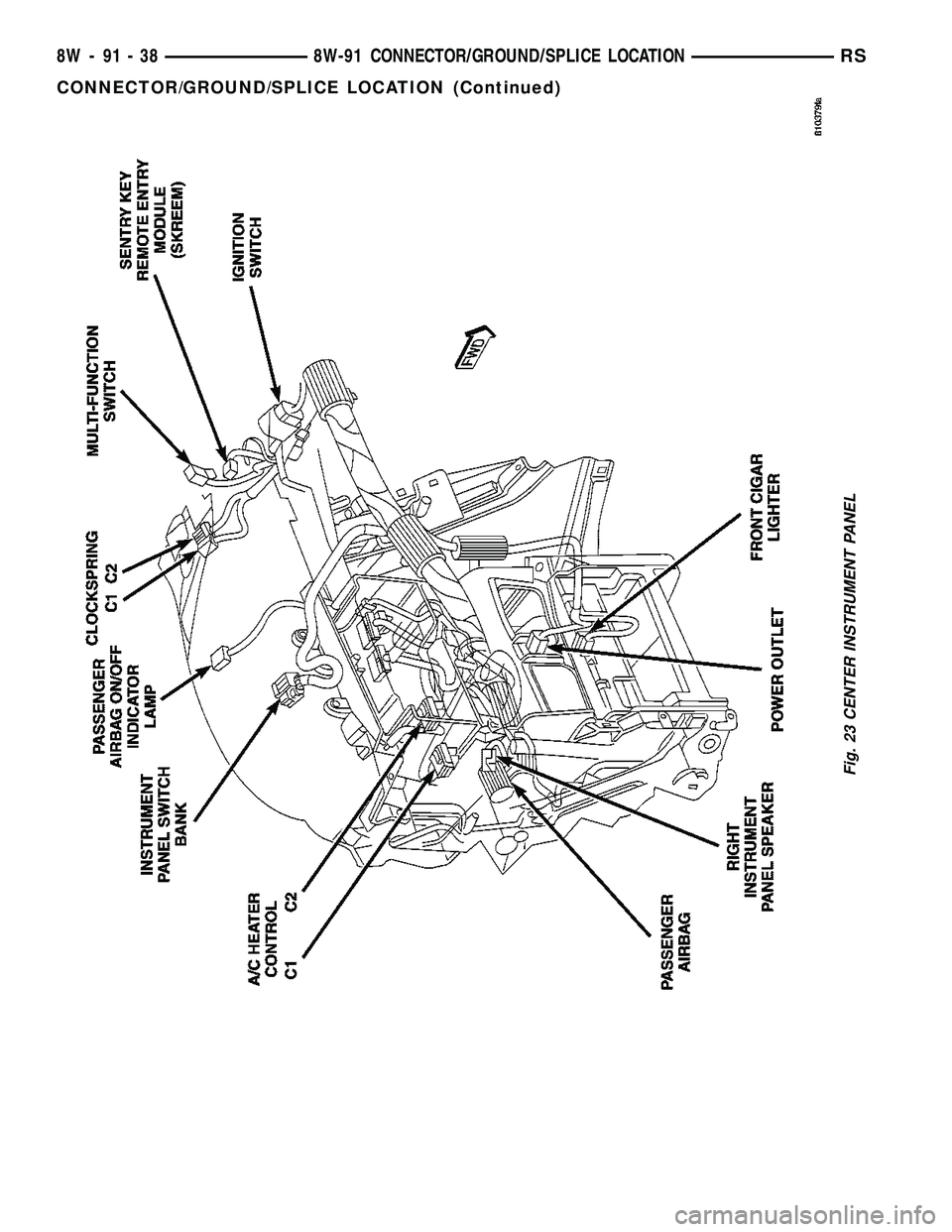

CHRYSLER CARAVAN 2005 Service Manual Fig. 23 CENTER INSTRUMENT PANEL 8W - 91 - 38 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1152 of 2339

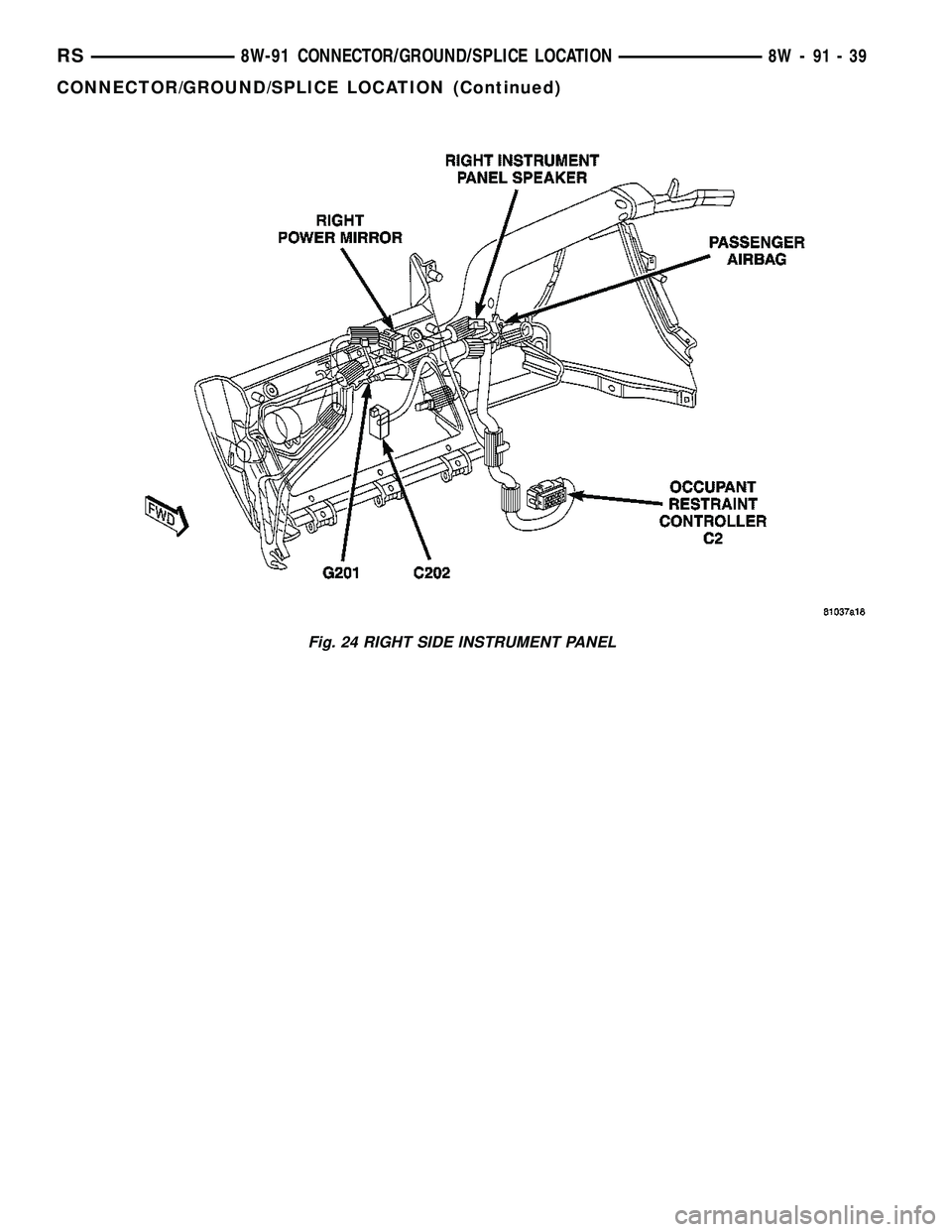

CHRYSLER CARAVAN 2005 Service Manual Fig. 24 RIGHT SIDE INSTRUMENT PANEL RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-39 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
