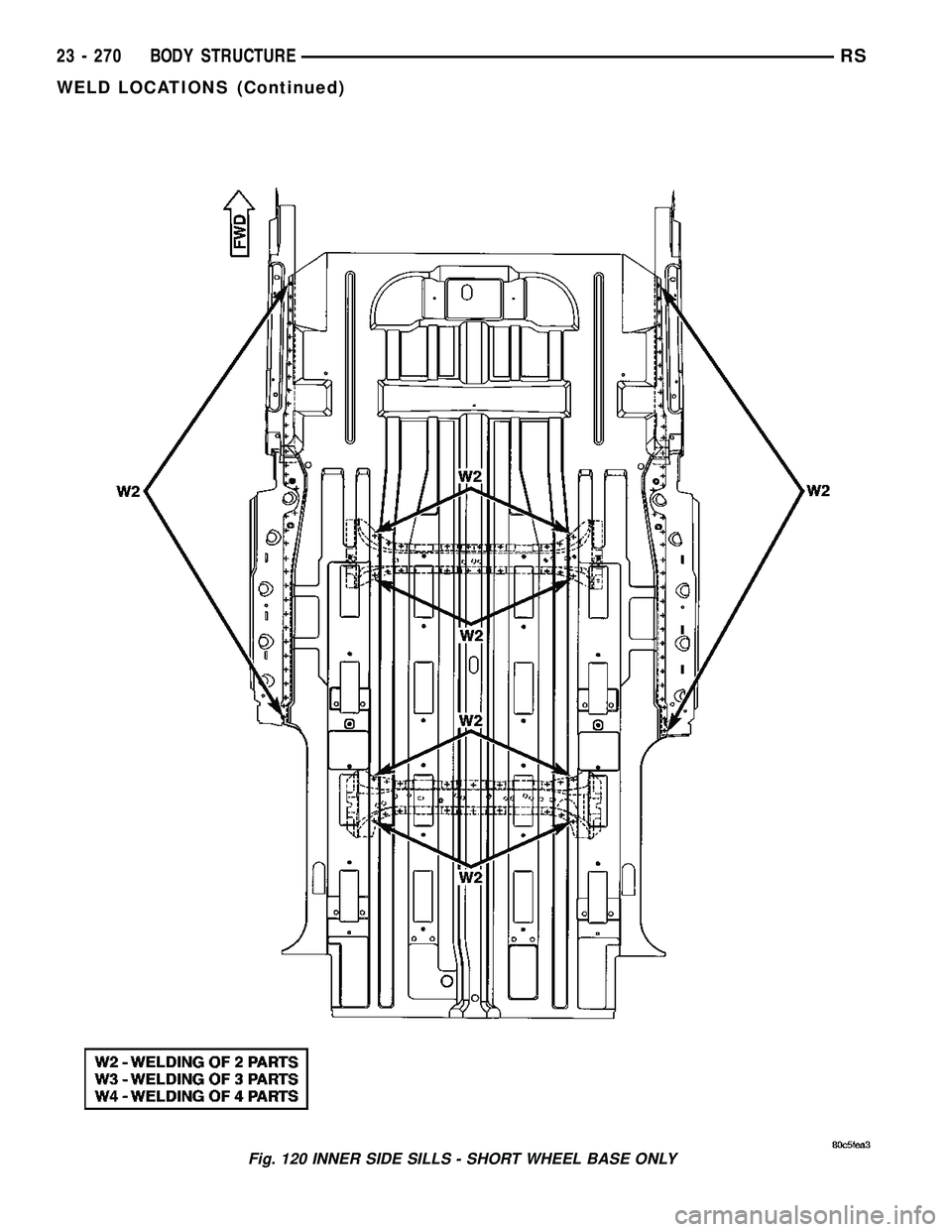

CHRYSLER CARAVAN 2005 Service Manual Fig. 120 INNER SIDE SILLS - SHORT WHEEL BASE ONLY 23 - 270 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2050 of 2339

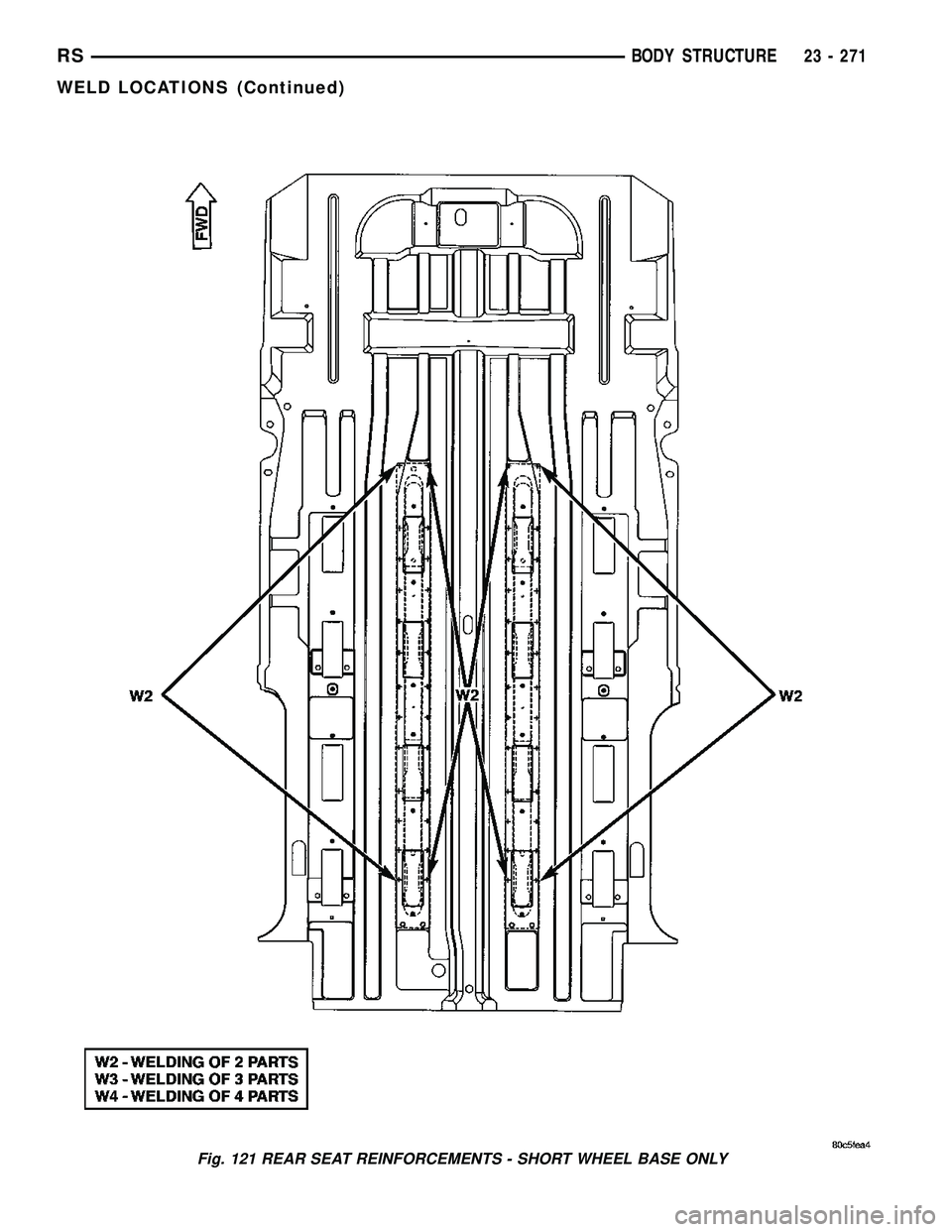

CHRYSLER CARAVAN 2005 Service Manual Fig. 121 REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 271 WELD LOCATIONS (Continued)

Page 2051 of 2339

CHRYSLER CARAVAN 2005 Service Manual Fig. 122 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 272 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2052 of 2339

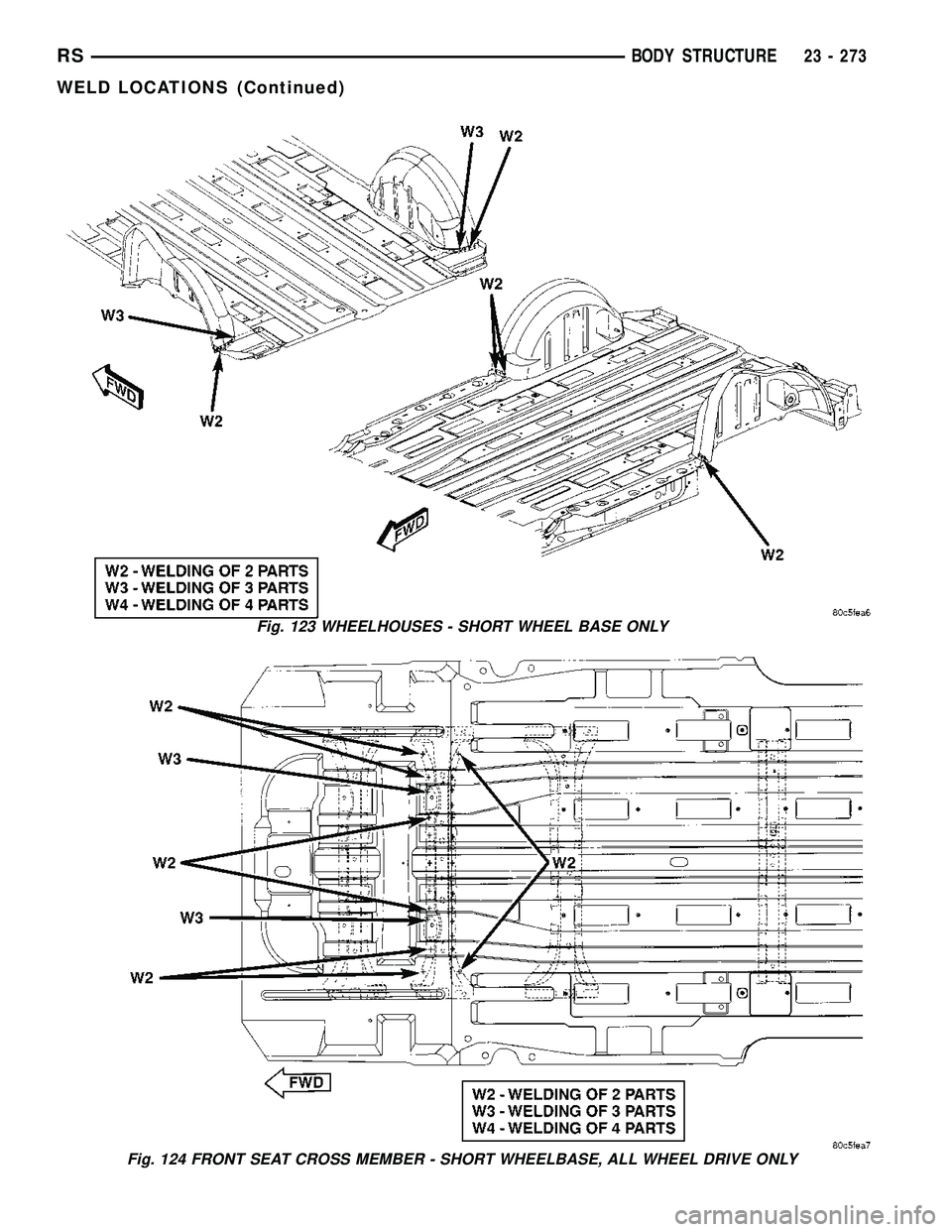

CHRYSLER CARAVAN 2005 Service Manual Fig. 123 WHEELHOUSES - SHORT WHEEL BASE ONLY Fig. 124 FRONT SEAT CROSS MEMBER - SHORT WHEELBASE, ALL WHEEL DRIVE ONLY RSBODY STRUCTURE23 - 273 WELD LOCATIONS (Continued)

Page 2053 of 2339

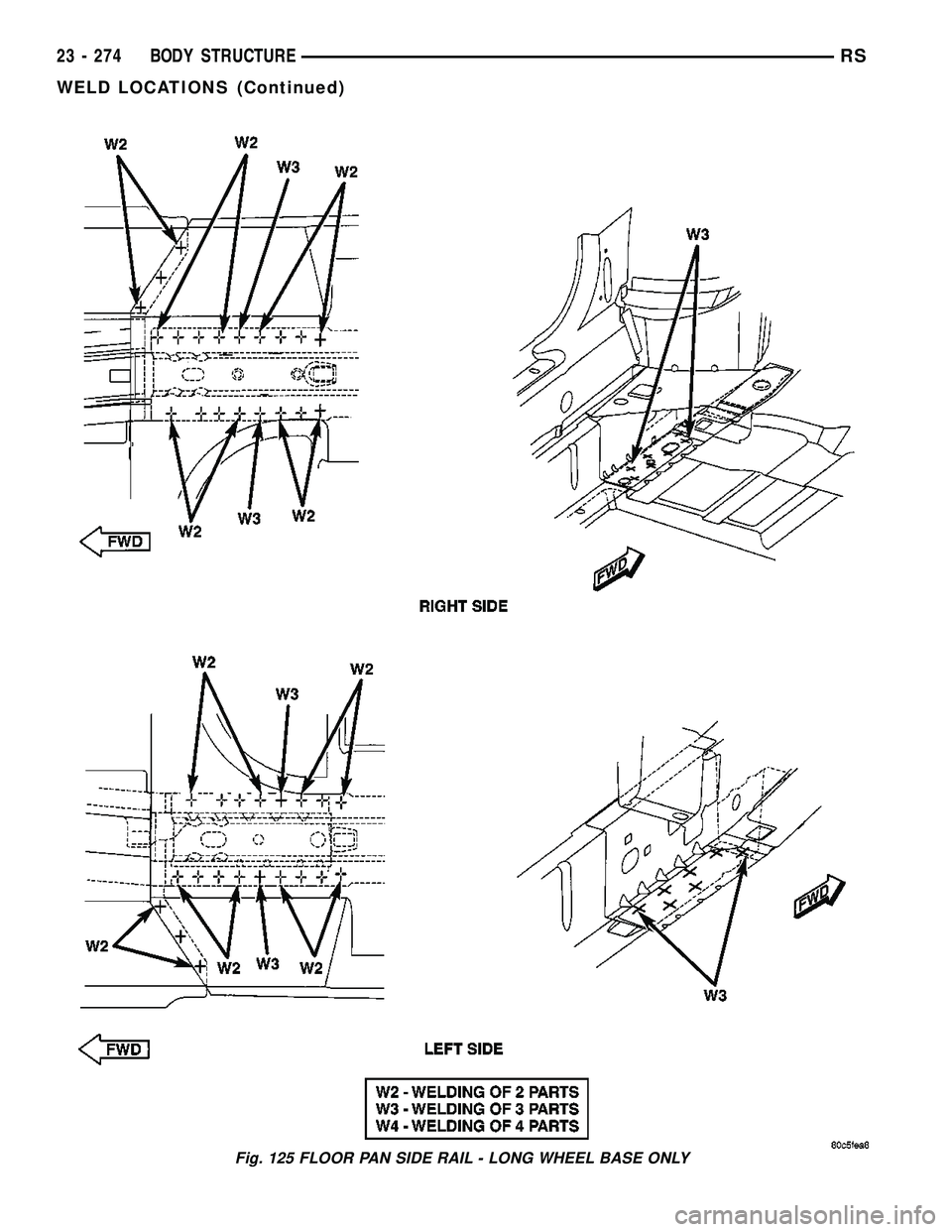

CHRYSLER CARAVAN 2005 Service Manual Fig. 125 FLOOR PAN SIDE RAIL - LONG WHEEL BASE ONLY 23 - 274 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2054 of 2339

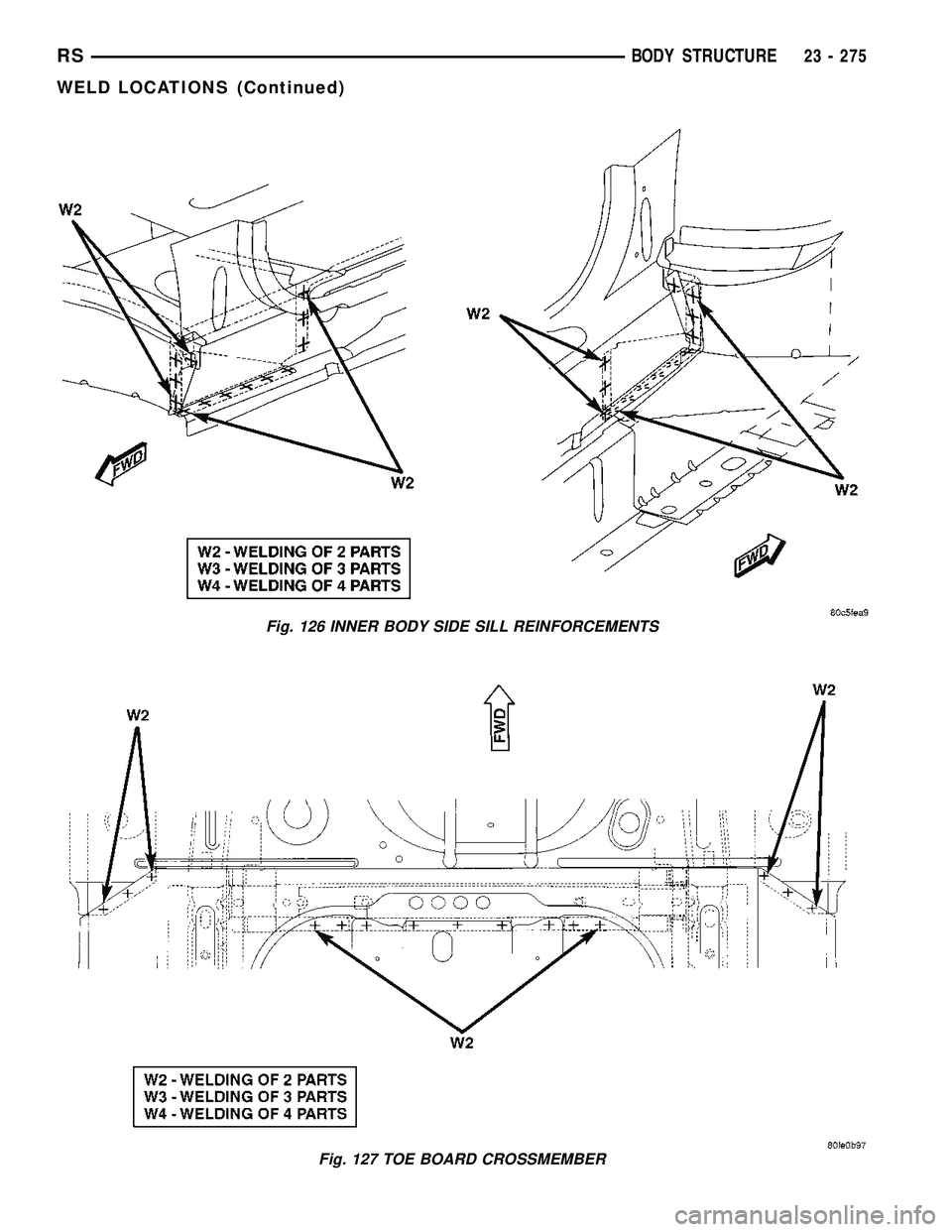

CHRYSLER CARAVAN 2005 Service Manual Fig. 126 INNER BODY SIDE SILL REINFORCEMENTS Fig. 127 TOE BOARD CROSSMEMBER RSBODY STRUCTURE23 - 275 WELD LOCATIONS (Continued)

Page 2055 of 2339

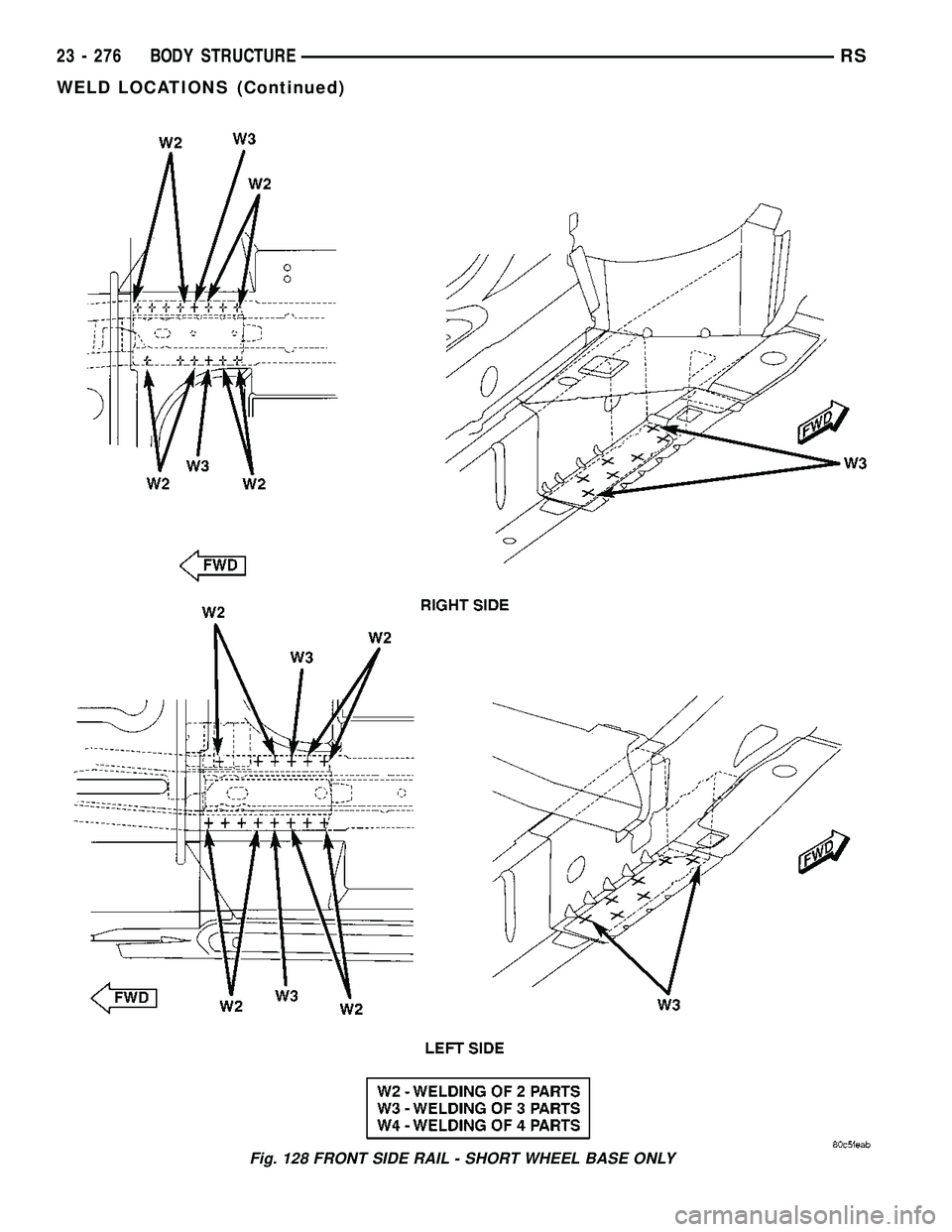

CHRYSLER CARAVAN 2005 Service Manual Fig. 128 FRONT SIDE RAIL - SHORT WHEEL BASE ONLY 23 - 276 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2056 of 2339

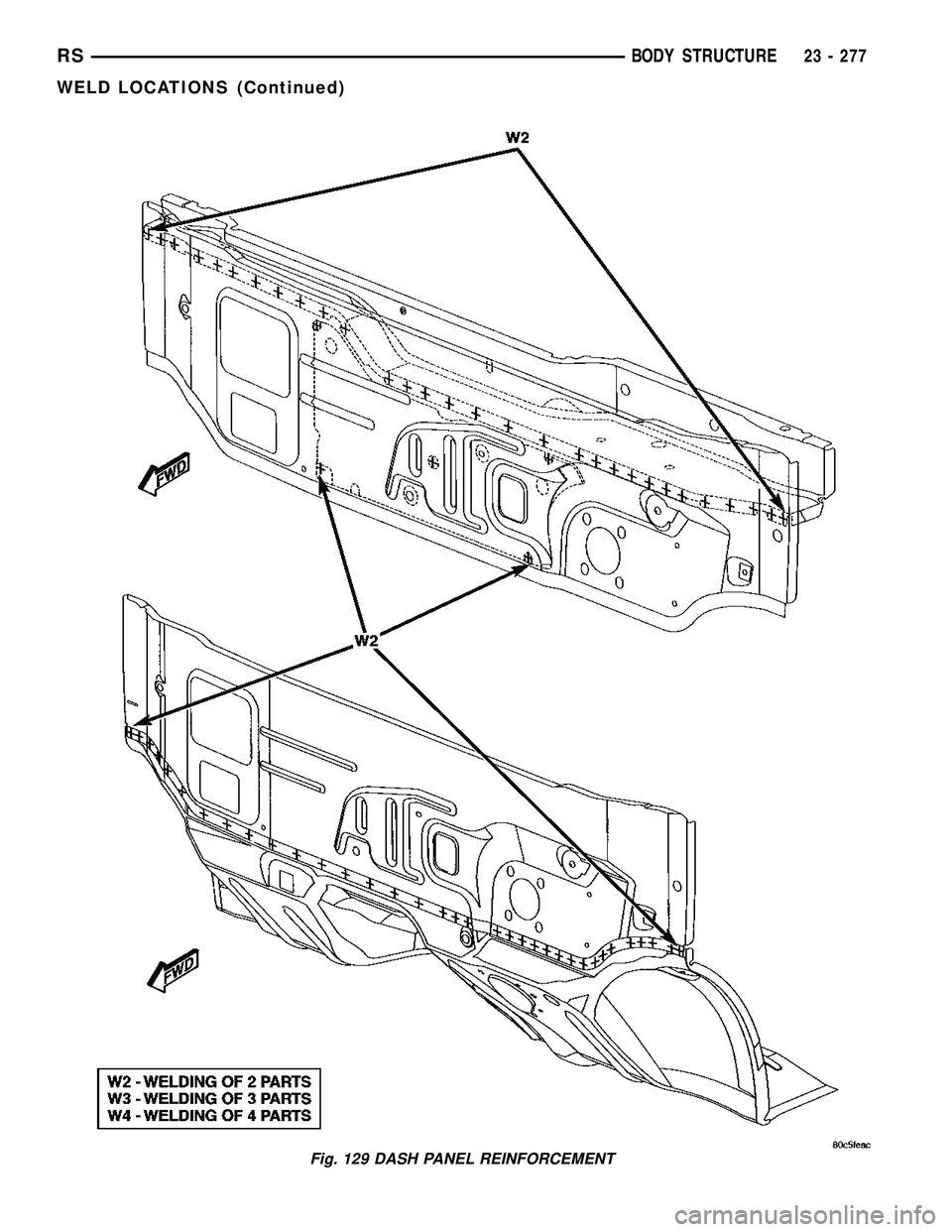

CHRYSLER CARAVAN 2005 Service Manual Fig. 129 DASH PANEL REINFORCEMENT RSBODY STRUCTURE23 - 277 WELD LOCATIONS (Continued)
