Page 2017 of 2339

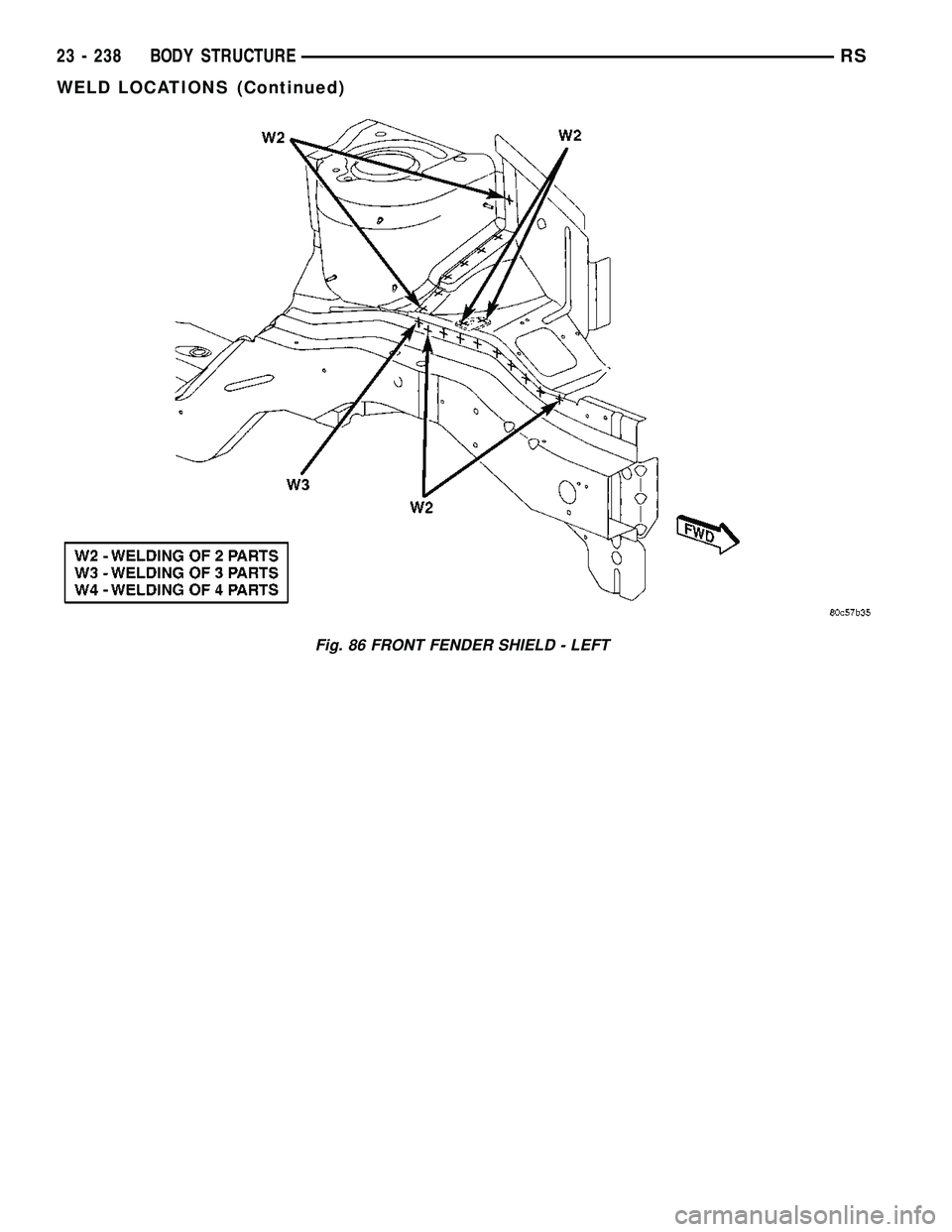

CHRYSLER CARAVAN 2005 Service Manual Fig. 86 FRONT FENDER SHIELD - LEFT 23 - 238 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2018 of 2339

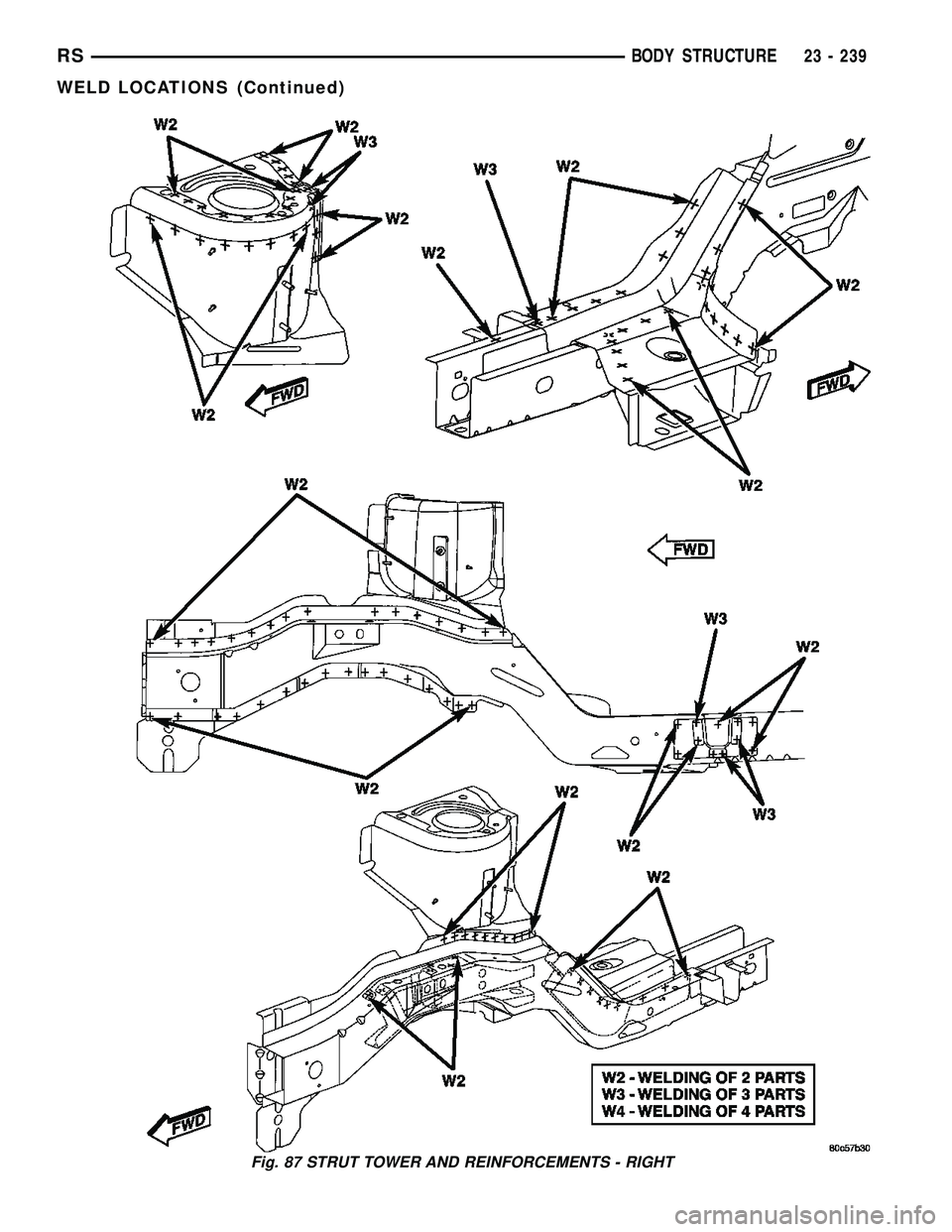

CHRYSLER CARAVAN 2005 Service Manual Fig. 87 STRUT TOWER AND REINFORCEMENTS - RIGHT RSBODY STRUCTURE23 - 239 WELD LOCATIONS (Continued)

Page 2019 of 2339

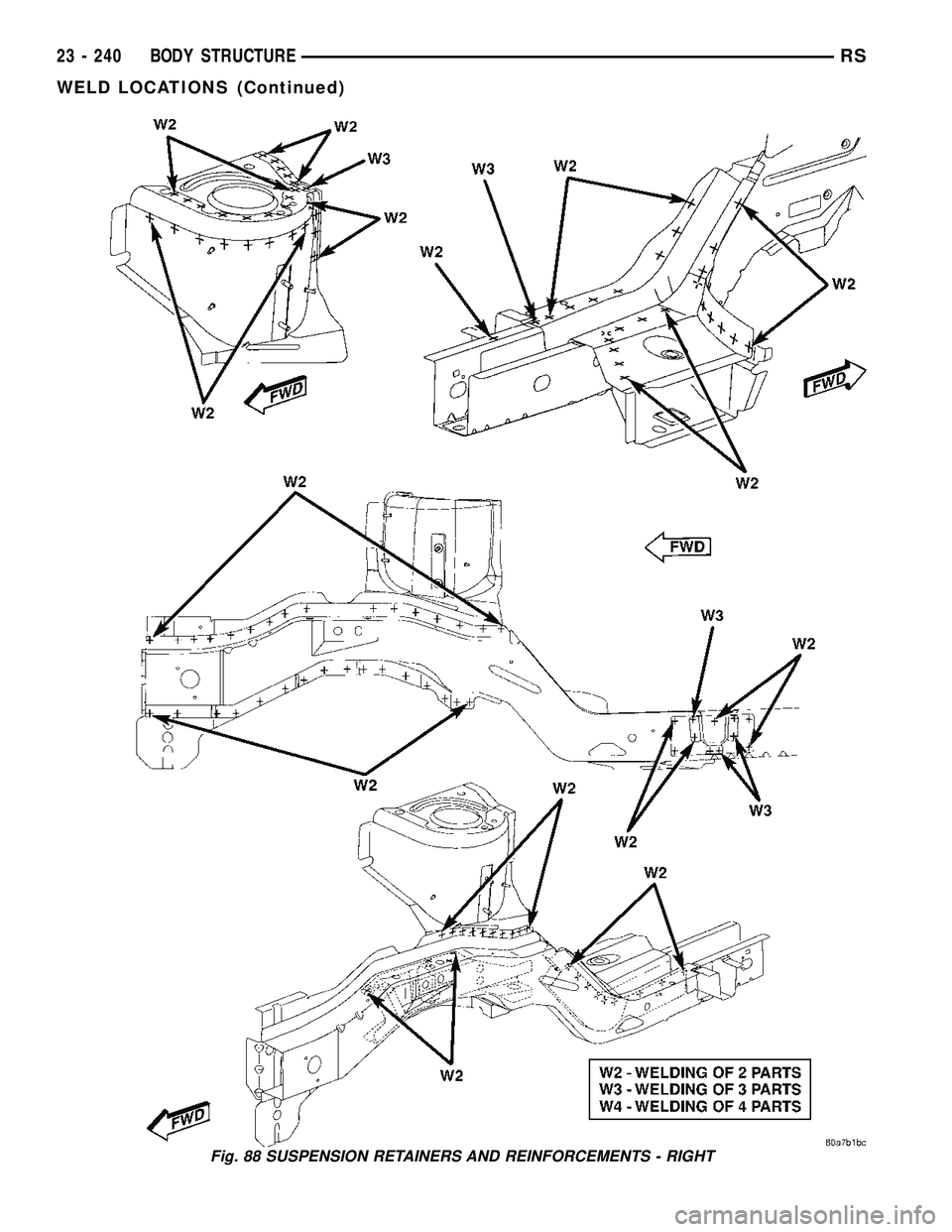

CHRYSLER CARAVAN 2005 Service Manual Fig. 88 SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT 23 - 240 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2020 of 2339

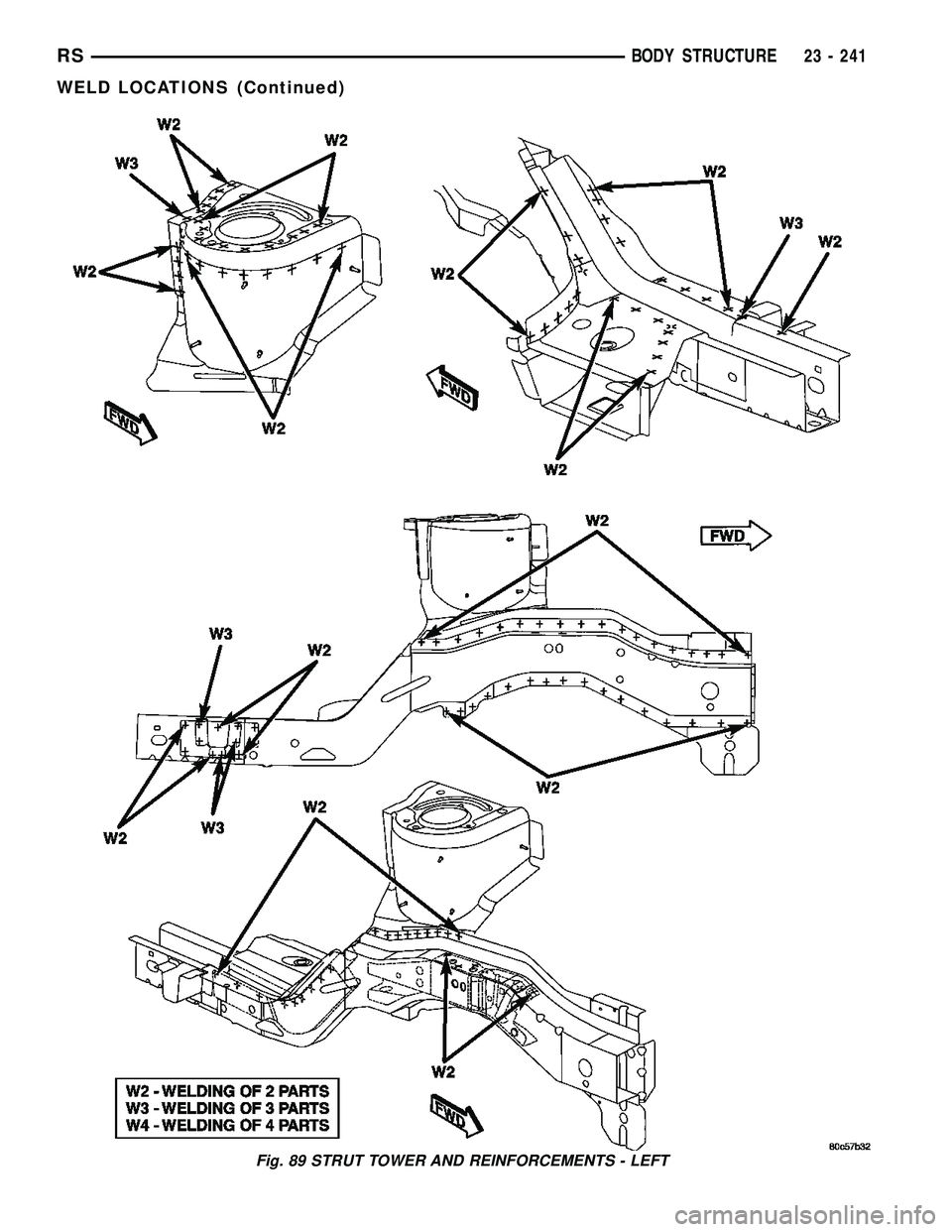

CHRYSLER CARAVAN 2005 Service Manual Fig. 89 STRUT TOWER AND REINFORCEMENTS - LEFT RSBODY STRUCTURE23 - 241 WELD LOCATIONS (Continued)

Page 2021 of 2339

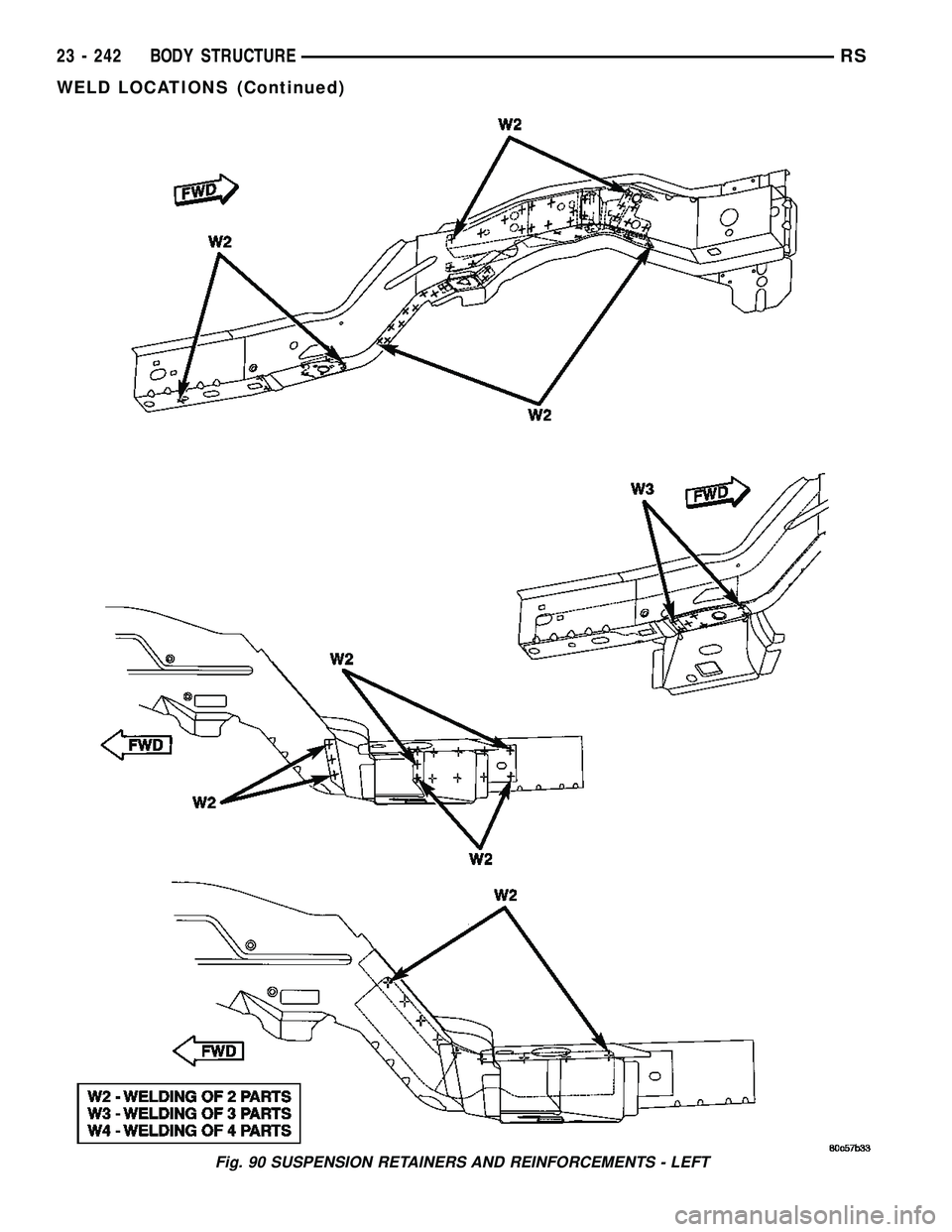

CHRYSLER CARAVAN 2005 Service Manual Fig. 90 SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT 23 - 242 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2022 of 2339

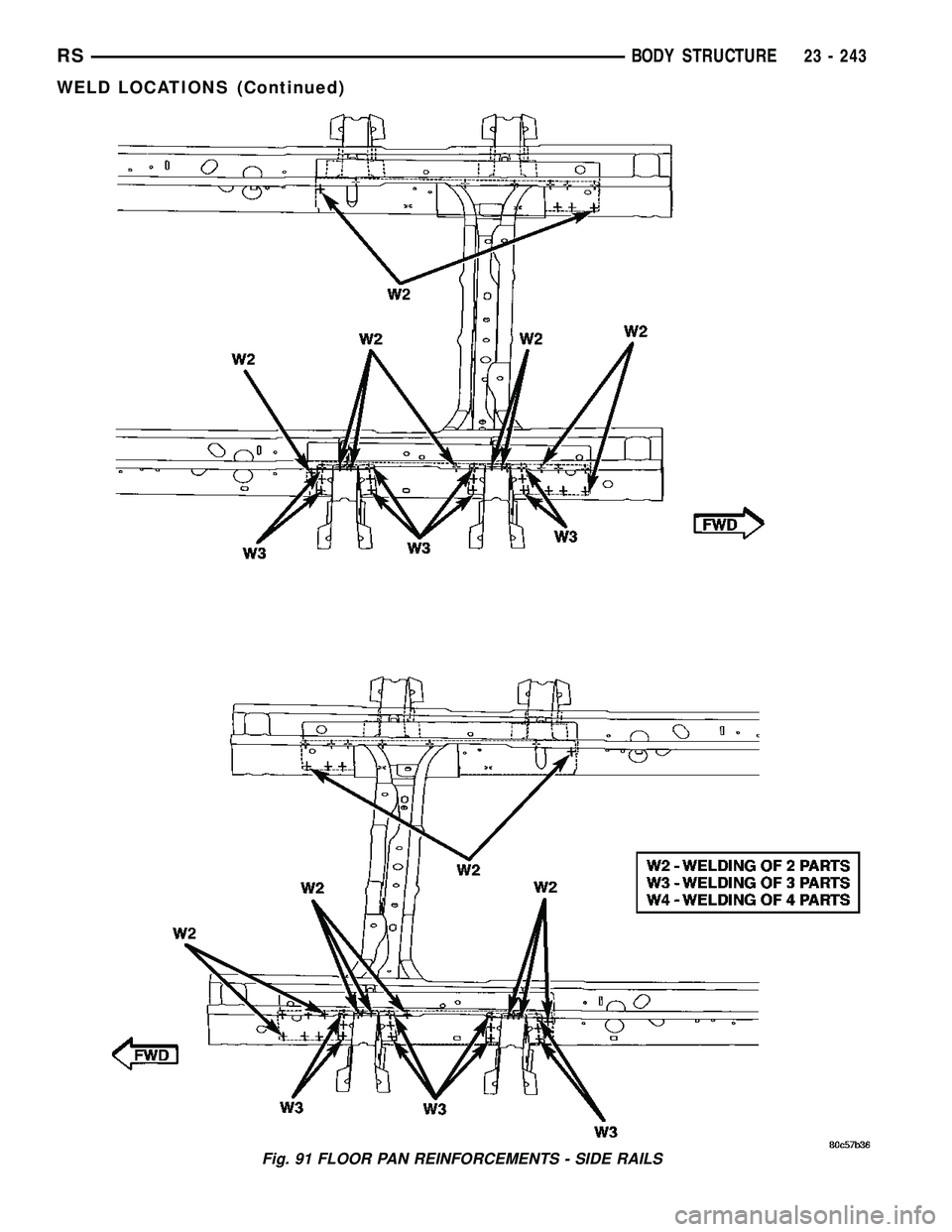

CHRYSLER CARAVAN 2005 Service Manual Fig. 91 FLOOR PAN REINFORCEMENTS - SIDE RAILS RSBODY STRUCTURE23 - 243 WELD LOCATIONS (Continued)

Page 2023 of 2339

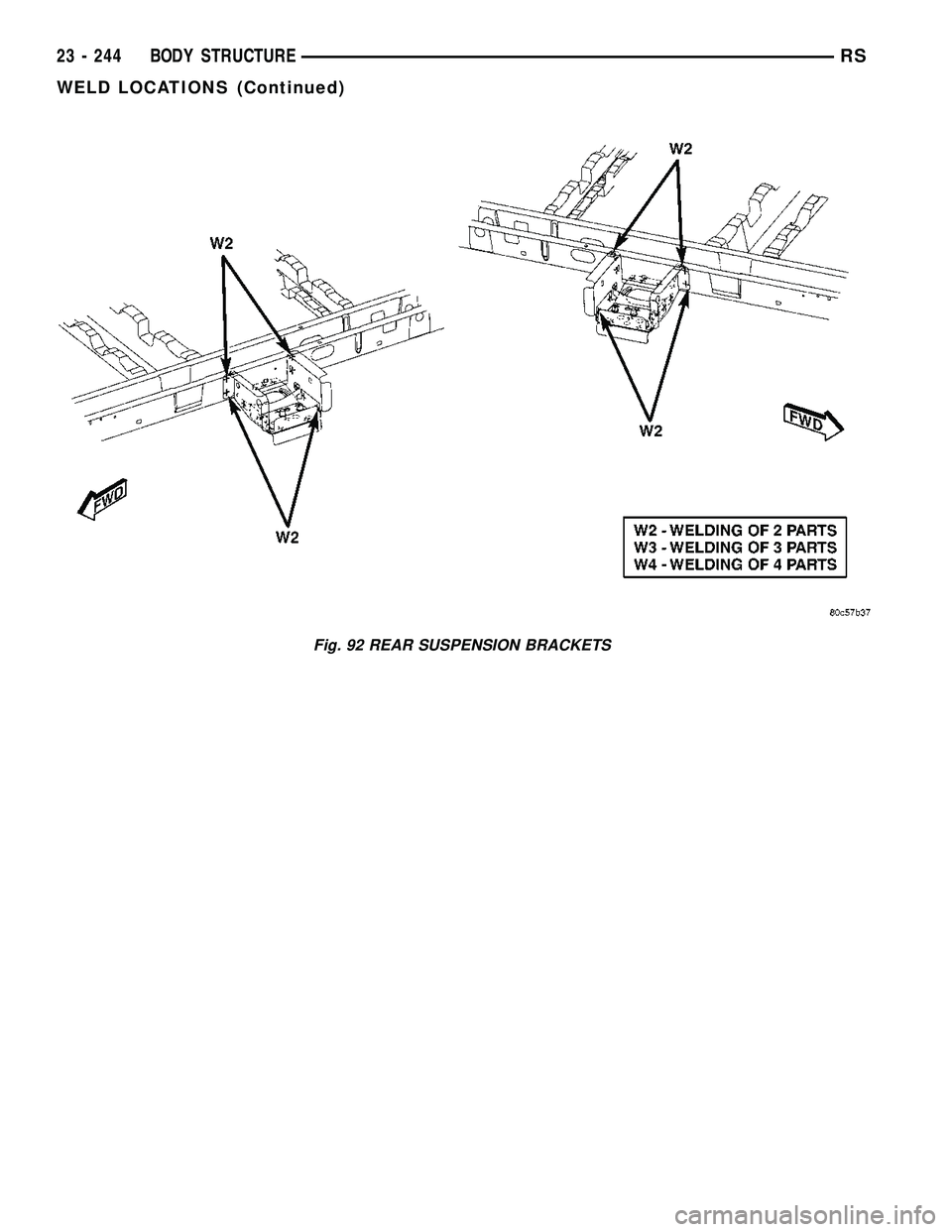

CHRYSLER CARAVAN 2005 Service Manual Fig. 92 REAR SUSPENSION BRACKETS 23 - 244 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2024 of 2339

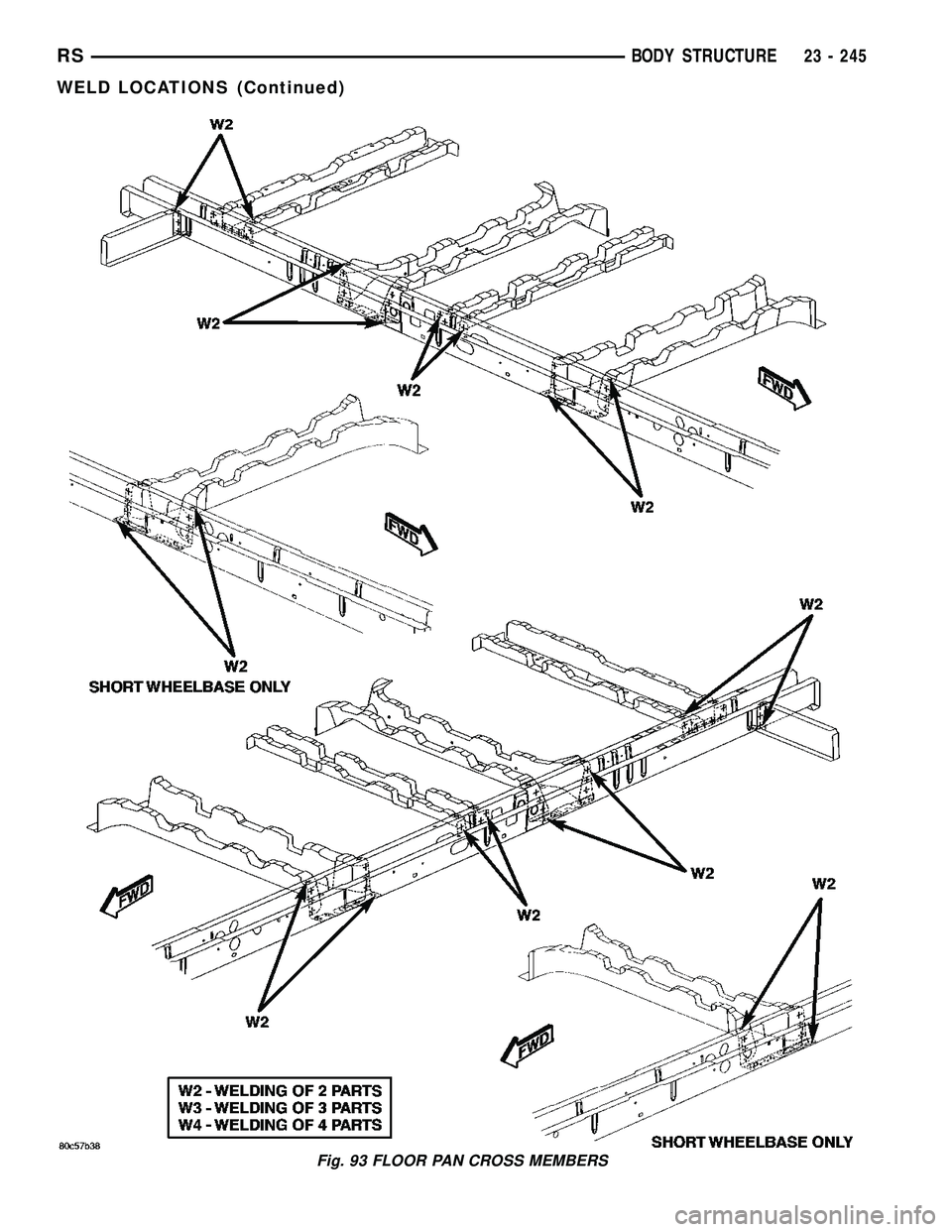

CHRYSLER CARAVAN 2005 Service Manual Fig. 93 FLOOR PAN CROSS MEMBERS RSBODY STRUCTURE23 - 245 WELD LOCATIONS (Continued)
