Page 1513 of 2339

CHRYSLER CARAVAN 2005 Service Manual Fig. 160 Rear Mount Bracket - Typical 1 - BOLT - VERTICAL 102 N´m (75 ft. lbs.) 2 - BRACKET - REAR MOUNT3 - BOLT - HORIZONTAL 102 N´m (75 ft. lbs.) Fig. 161 Gearshift Cable at Transaxle - Typical 1

Page 1514 of 2339

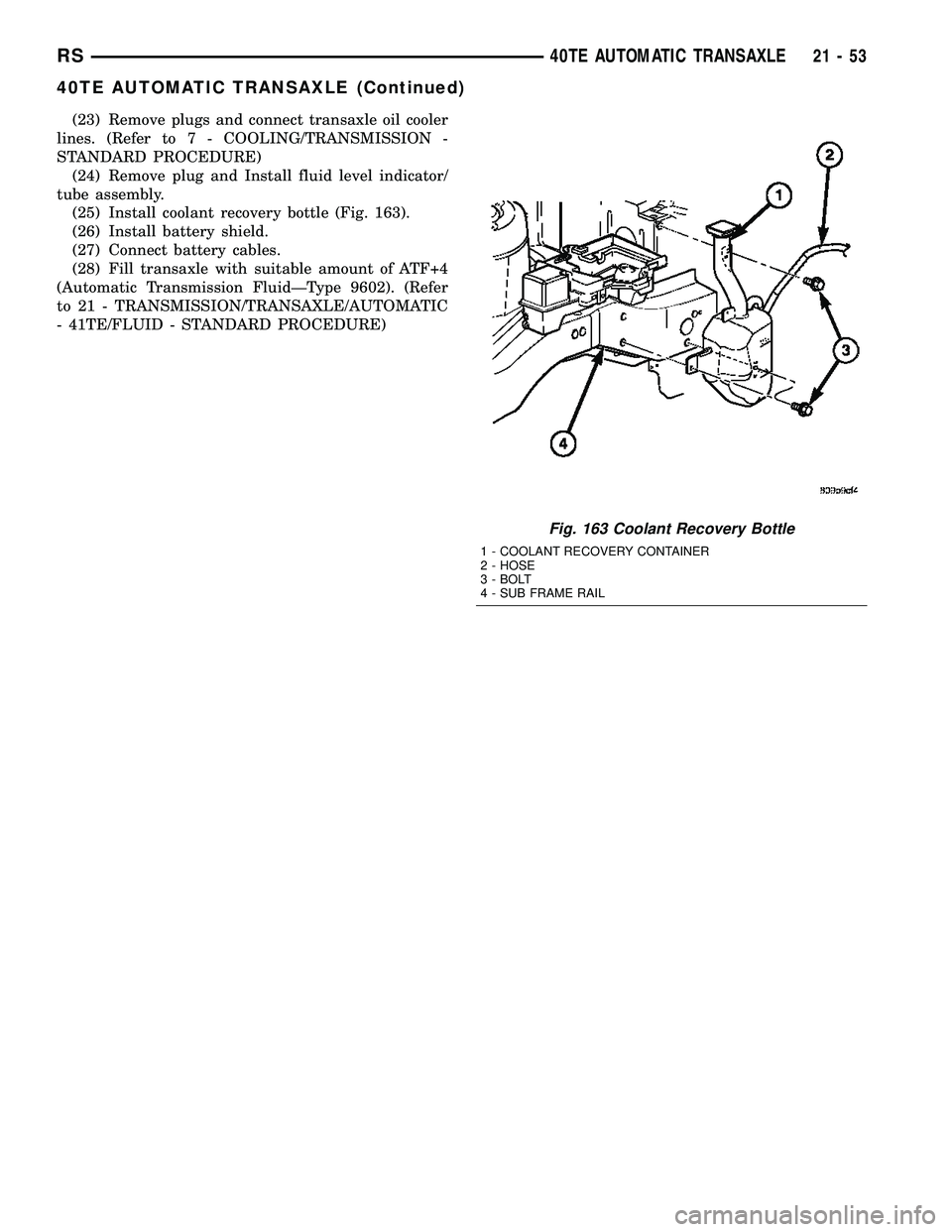

CHRYSLER CARAVAN 2005 Service Manual (23) Remove plugs and connect transaxle oil cooler lines. (Refer to 7 - COOLING/TRANSMISSION - STANDARD PROCEDURE) (24) Remove plug and Install fluid level indicator/ tube assembly. (25) Install coola

Page 1515 of 2339

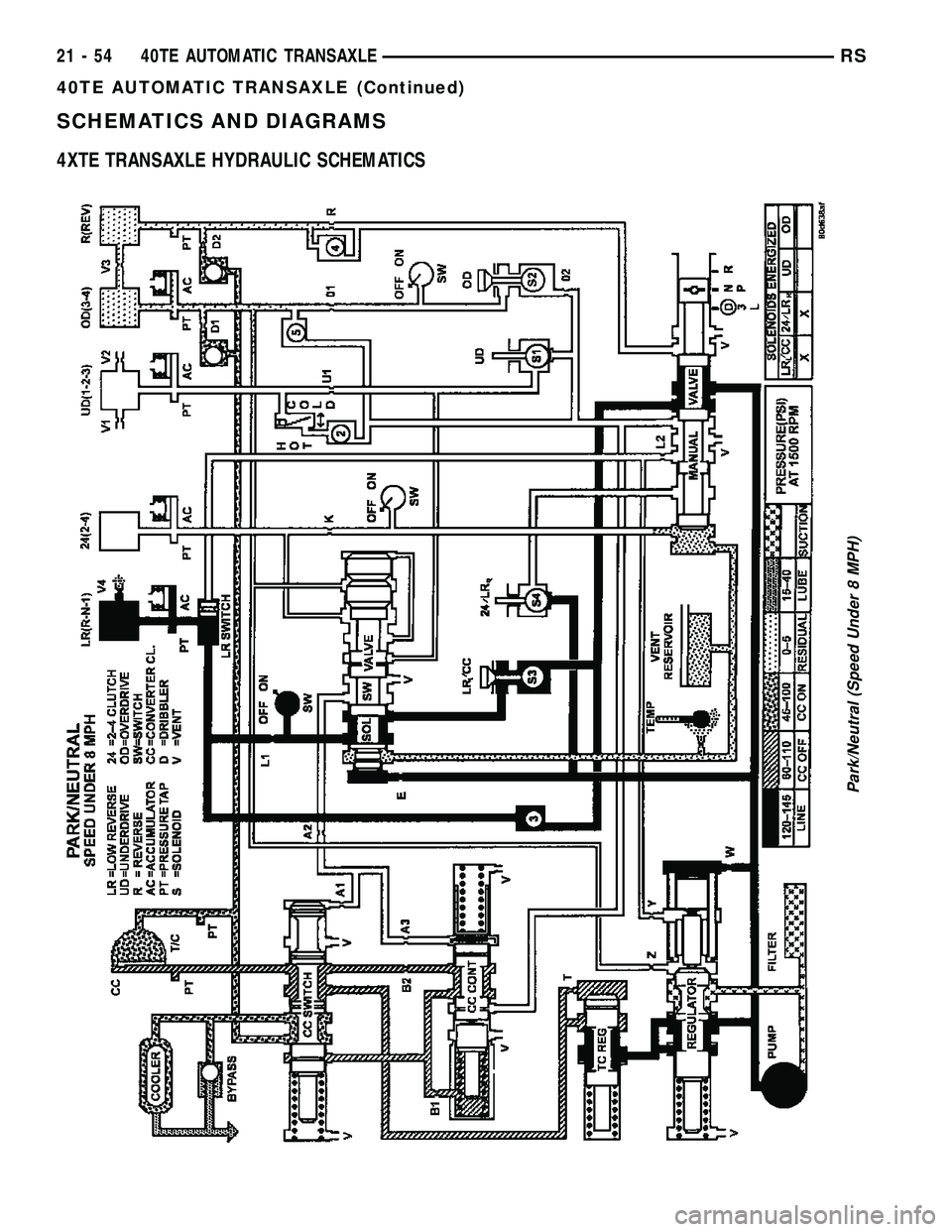

CHRYSLER CARAVAN 2005 Service Manual SCHEMATICS AND DIAGRAMS 4XTE TRANSAXLE HYDRAULIC SCHEMATICS Park/Neutral (Speed Under 8 MPH) 21 - 54 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1516 of 2339

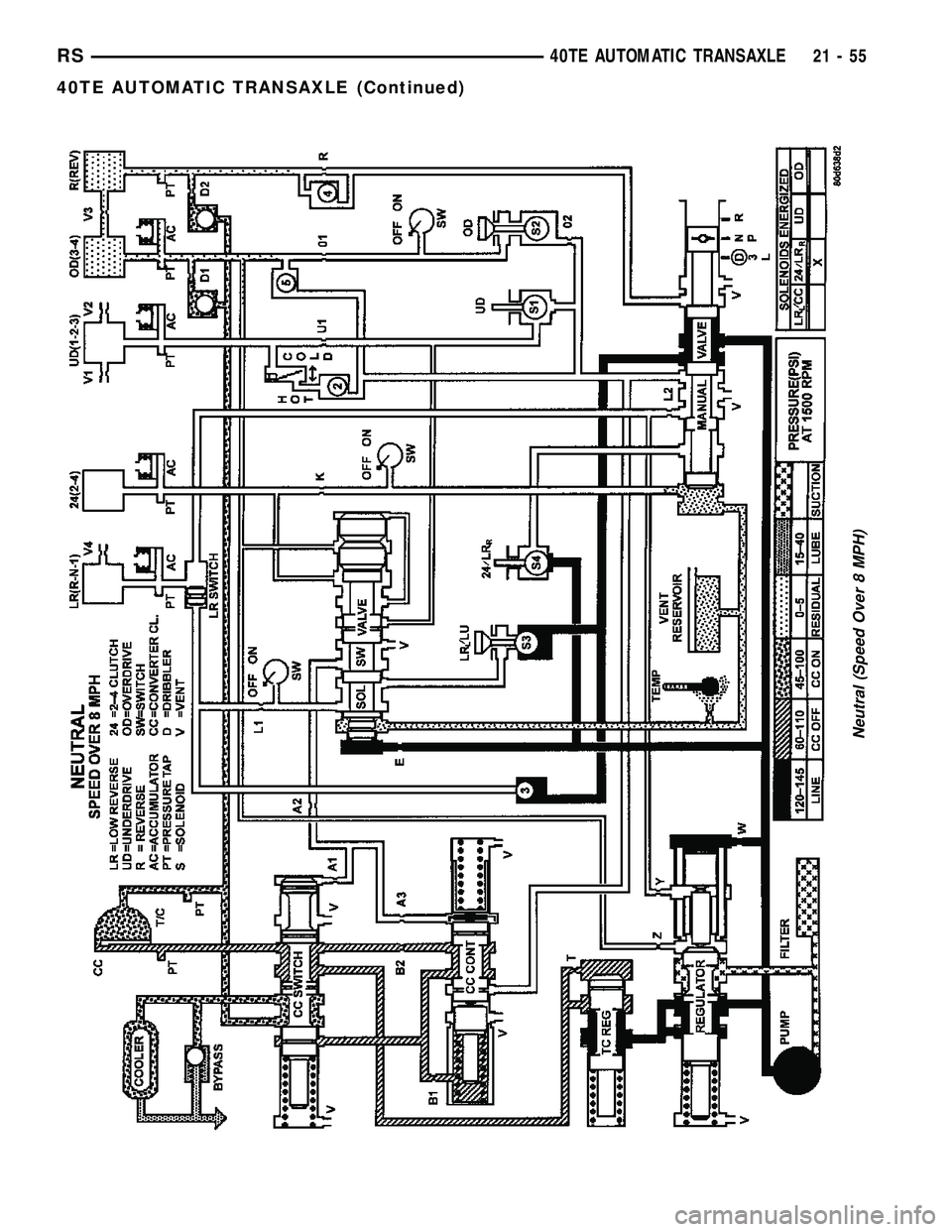

CHRYSLER CARAVAN 2005 Service Manual Neutral (Speed Over 8 MPH) RS40TE AUTOMATIC TRANSAXLE21-55 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1517 of 2339

CHRYSLER CARAVAN 2005 Service Manual Reverse 21 - 56 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1518 of 2339

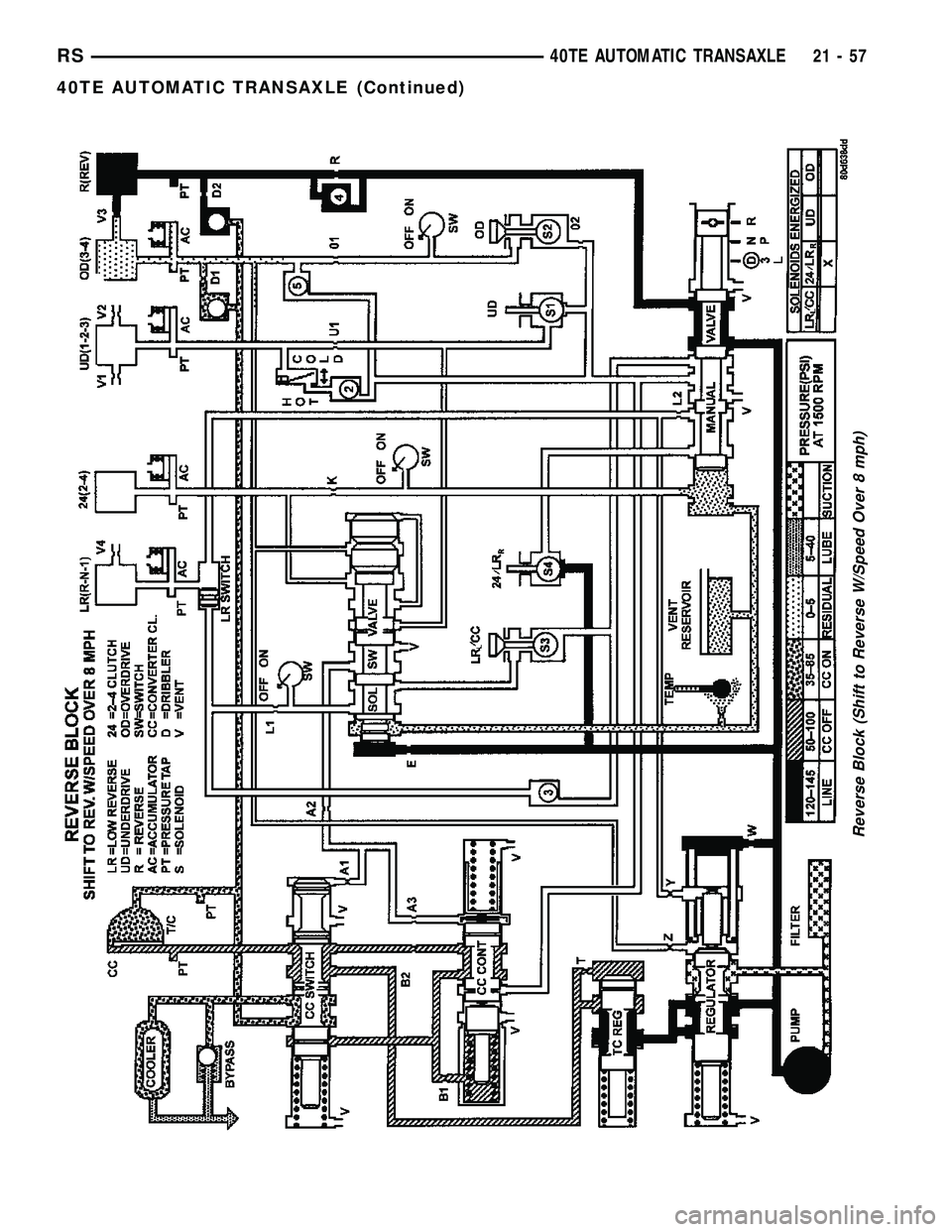

CHRYSLER CARAVAN 2005 Service Manual Reverse Block (Shift to Reverse W/Speed Over 8 mph) RS40TE AUTOMATIC TRANSAXLE21-57 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1519 of 2339

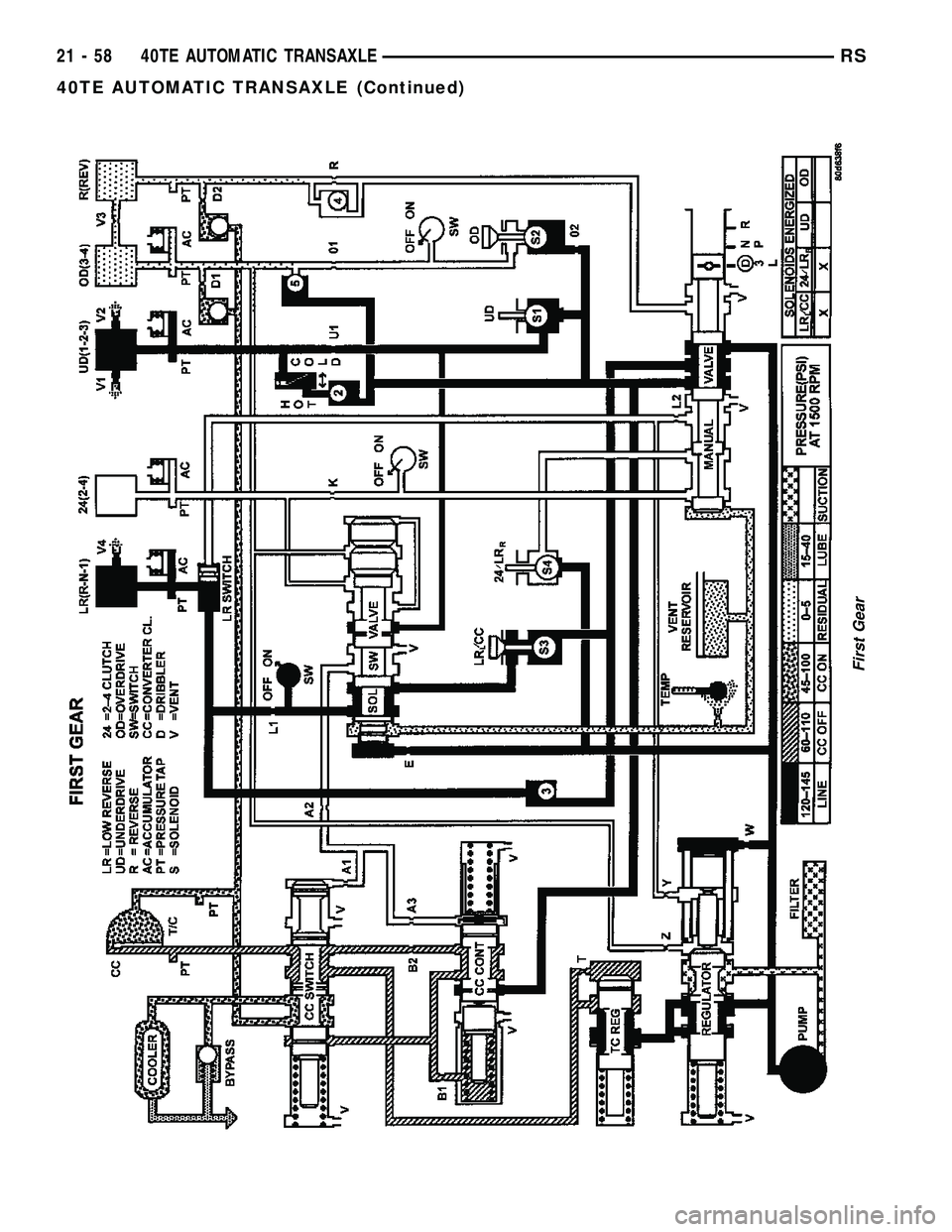

CHRYSLER CARAVAN 2005 Service Manual First Gear 21 - 58 40TE AUTOMATIC TRANSAXLERS 40TE AUTOMATIC TRANSAXLE (Continued)

Page 1520 of 2339

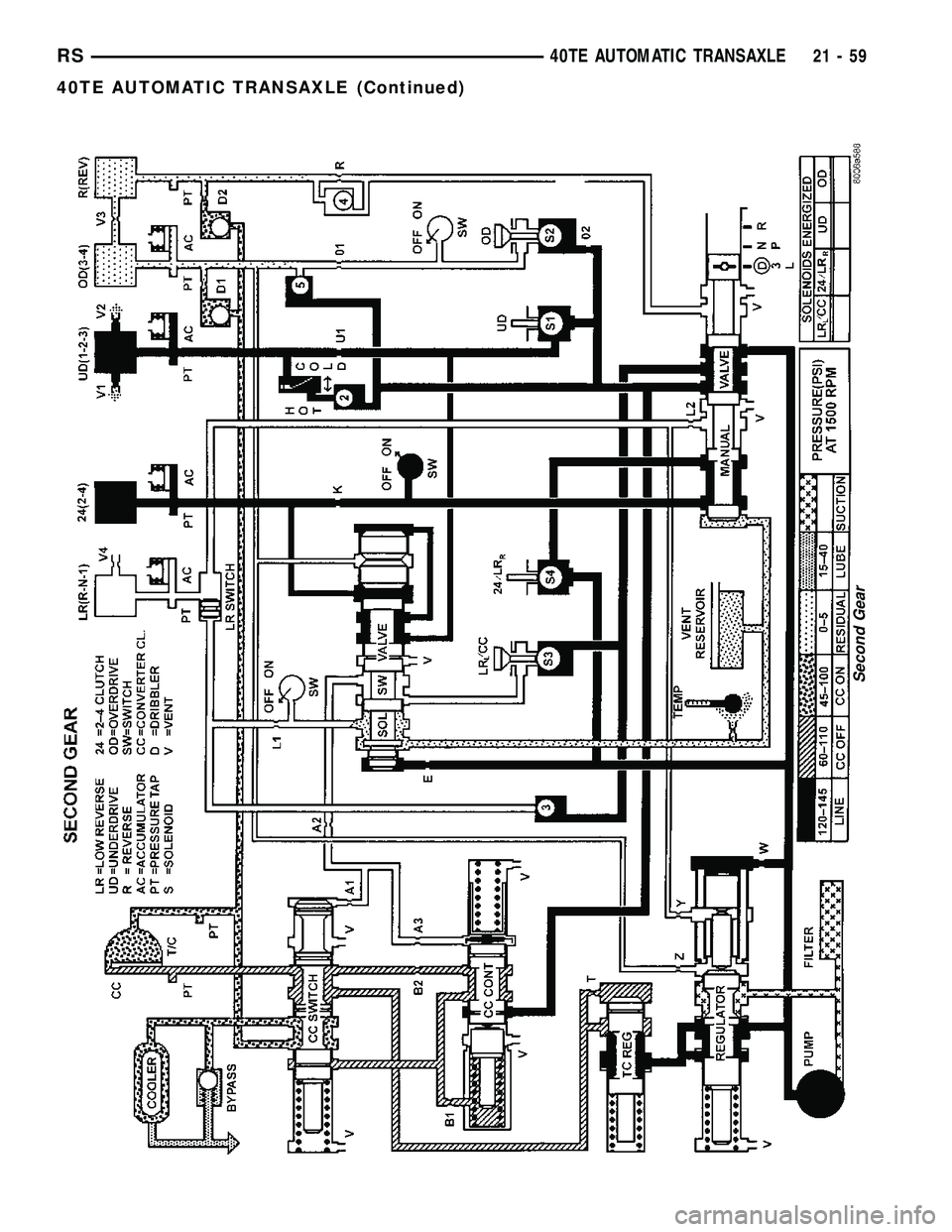

CHRYSLER CARAVAN 2005 Service Manual Second Gear RS40TE AUTOMATIC TRANSAXLE21-59 40TE AUTOMATIC TRANSAXLE (Continued)
