Page 1009 of 2339

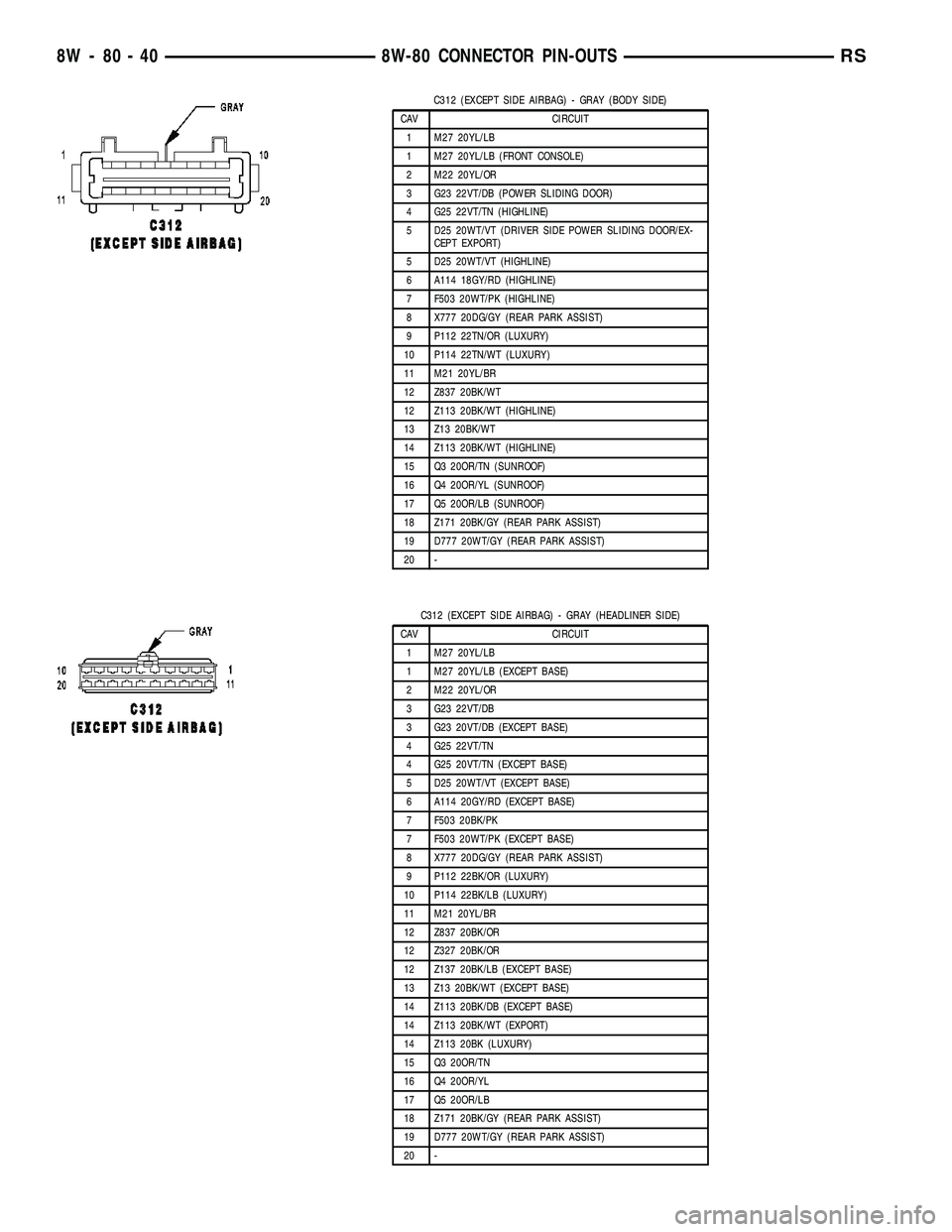

CHRYSLER CARAVAN 2005 Service Manual C312 (EXCEPT SIDE AIRBAG) - GRAY (BODY SIDE) CAV CIRCUIT 1 M27 20YL/LB 1 M27 20YL/LB (FRONT CONSOLE) 2 M22 20YL/OR 3 G23 22VT/DB (POWER SLIDING DOOR) 4 G25 22VT/TN (HIGHLINE) 5 D25 20WT/VT (DRIVER SID

Page 1010 of 2339

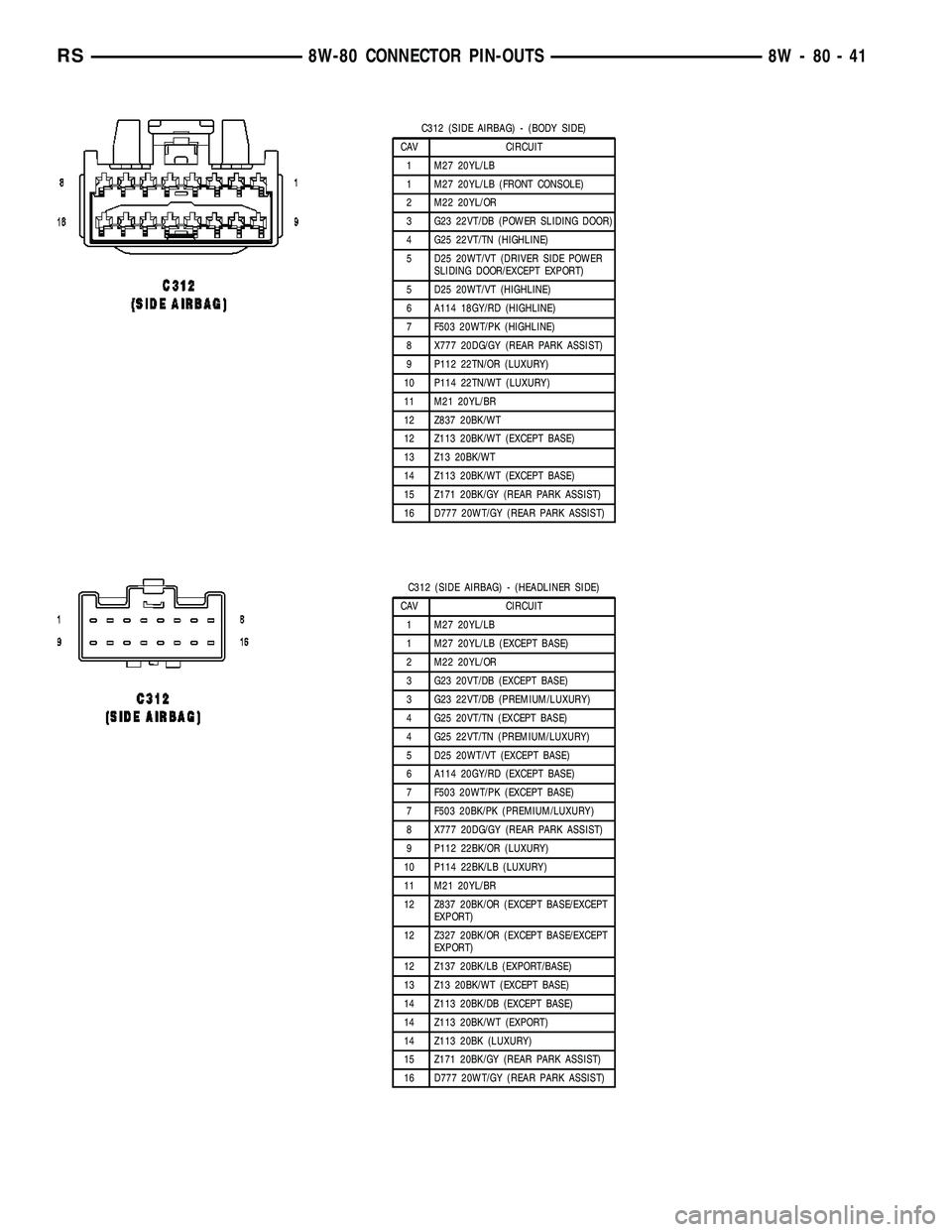

CHRYSLER CARAVAN 2005 Service Manual C312 (SIDE AIRBAG) - (BODY SIDE) CAV CIRCUIT 1 M27 20YL/LB 1 M27 20YL/LB (FRONT CONSOLE) 2 M22 20YL/OR 3 G23 22VT/DB (POWER SLIDING DOOR) 4 G25 22VT/TN (HIGHLINE) 5 D25 20WT/VT (DRIVER SIDE POWER SLID

Page 1011 of 2339

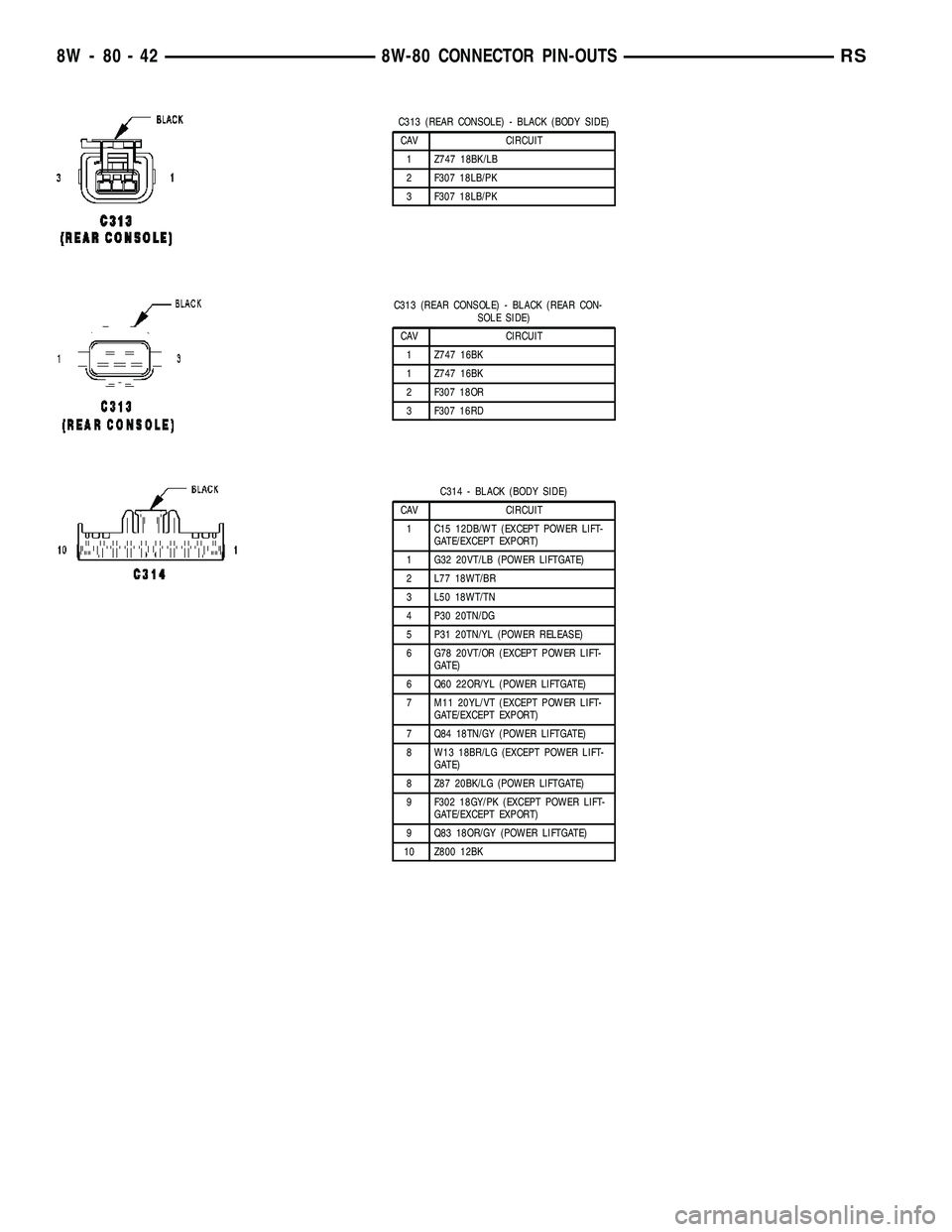

CHRYSLER CARAVAN 2005 Service Manual C313 (REAR CONSOLE) - BLACK (BODY SIDE) CAV CIRCUIT 1 Z747 18BK/LB 2 F307 18LB/PK 3 F307 18LB/PK C313 (REAR CONSOLE) - BLACK (REAR CON- SOLE SIDE) CAV CIRCUIT 1 Z747 16BK 1 Z747 16BK 2 F307 18OR 3 F30

Page 1012 of 2339

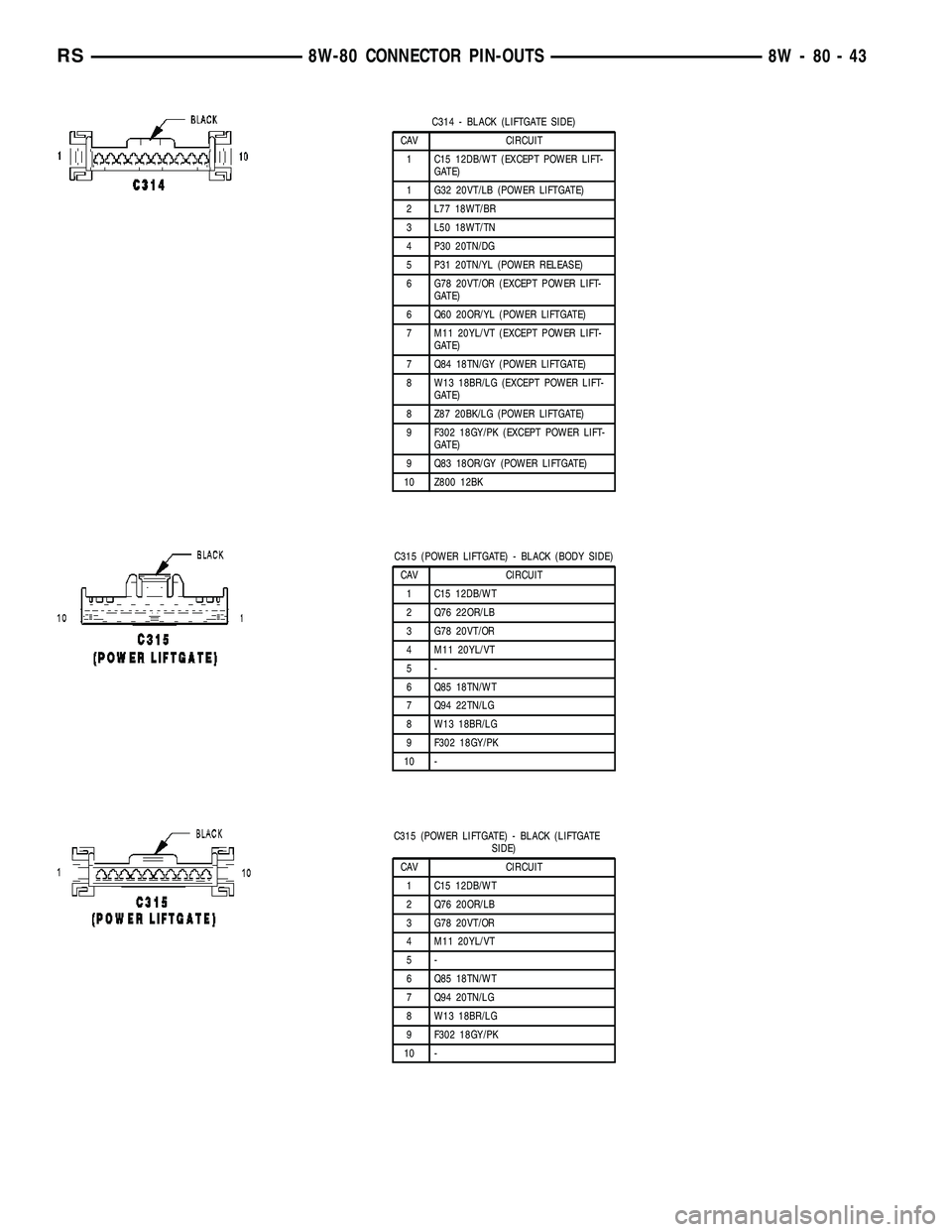

CHRYSLER CARAVAN 2005 Service Manual C314 - BLACK (LIFTGATE SIDE) CAV CIRCUIT 1 C15 12DB/WT (EXCEPT POWER LIFT- GATE) 1 G32 20VT/LB (POWER LIFTGATE) 2 L77 18WT/BR 3 L50 18WT/TN 4 P30 20TN/DG 5 P31 20TN/YL (POWER RELEASE) 6 G78 20VT/OR (E

Page 1013 of 2339

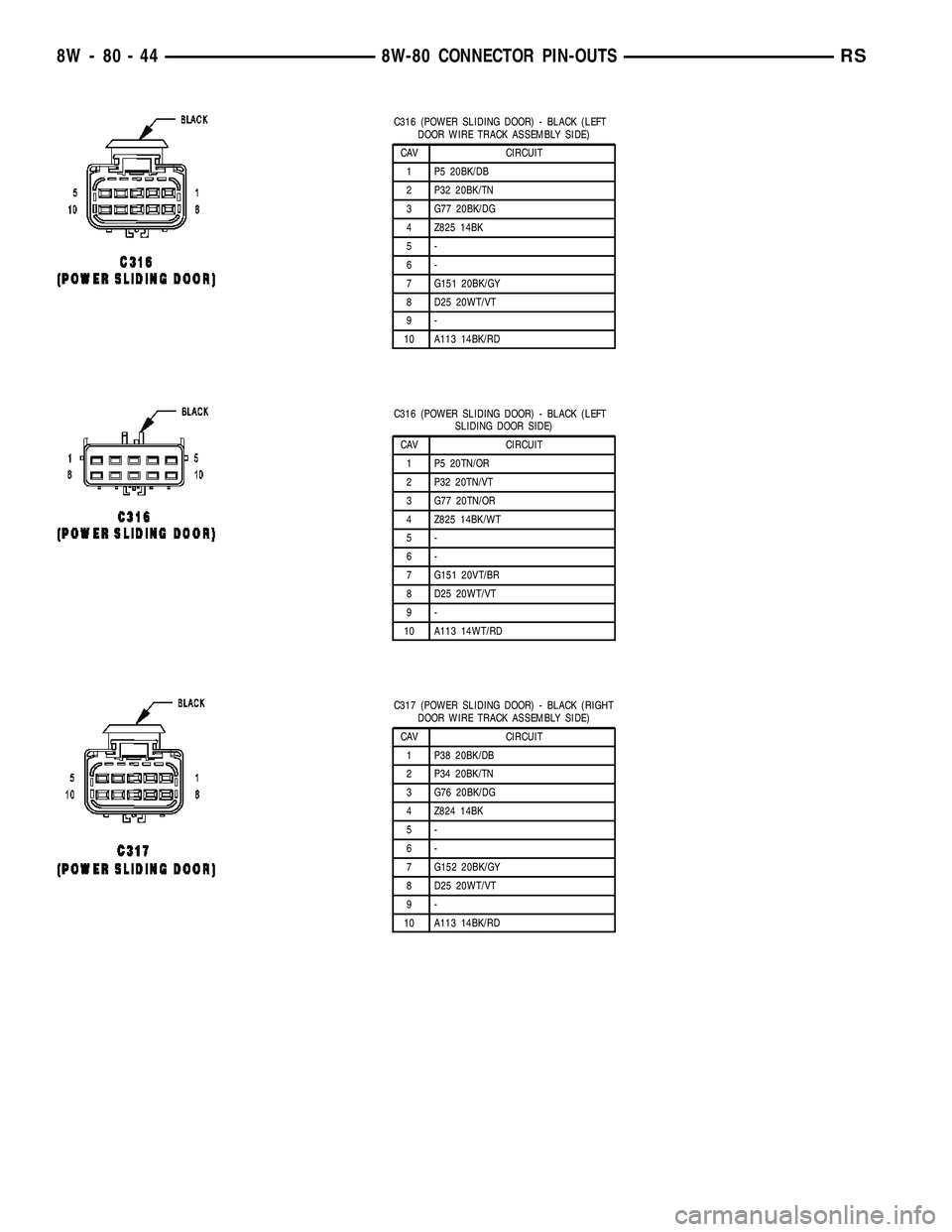

CHRYSLER CARAVAN 2005 Service Manual C316 (POWER SLIDING DOOR) - BLACK (LEFT DOOR WIRE TRACK ASSEMBLY SIDE) CAV CIRCUIT 1 P5 20BK/DB 2 P32 20BK/TN 3 G77 20BK/DG 4 Z825 14BK 5- 6- 7 G151 20BK/GY 8 D25 20WT/VT 9- 10 A113 14BK/RD C316 (POWE

Page 1014 of 2339

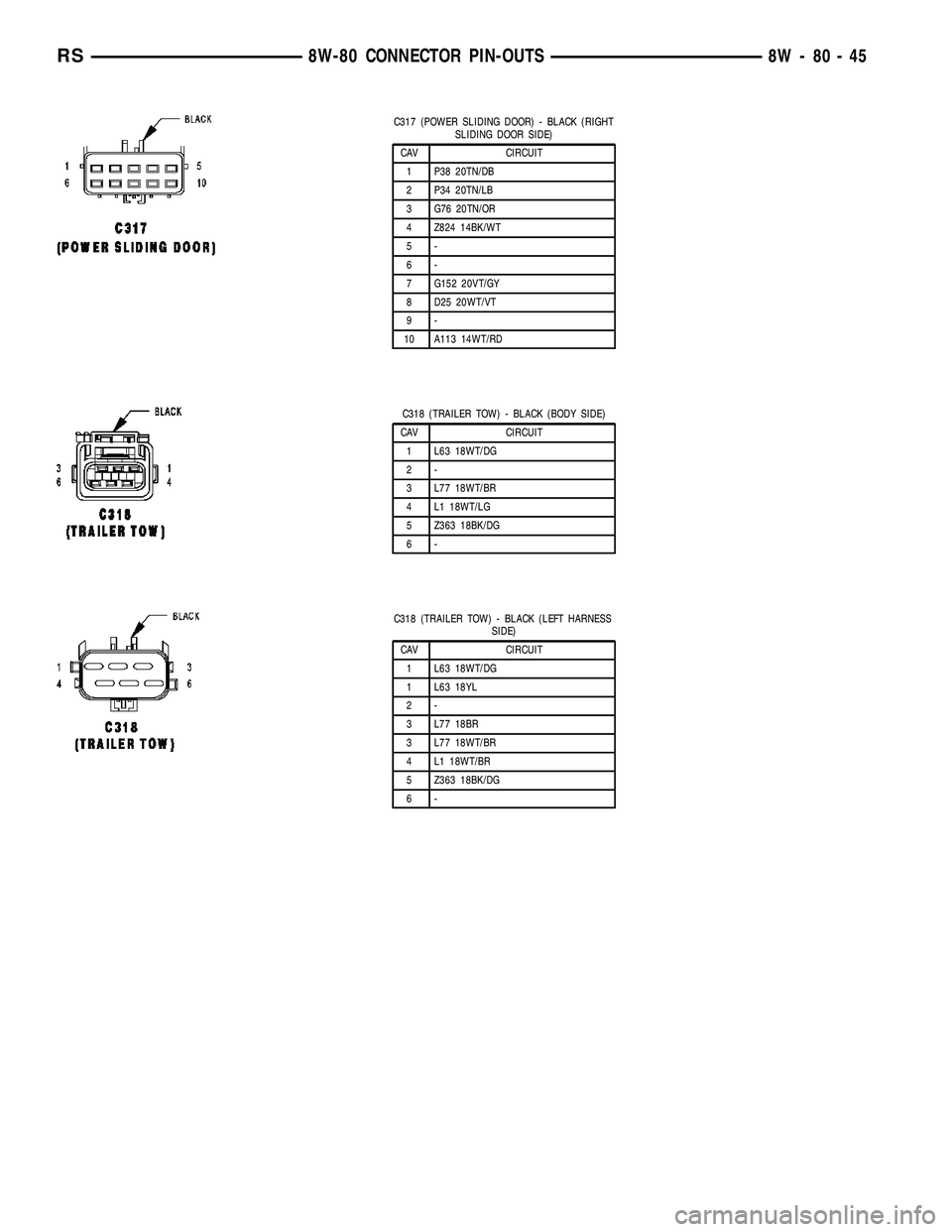

CHRYSLER CARAVAN 2005 Service Manual C317 (POWER SLIDING DOOR) - BLACK (RIGHT SLIDING DOOR SIDE) CAV CIRCUIT 1 P38 20TN/DB 2 P34 20TN/LB 3 G76 20TN/OR 4 Z824 14BK/WT 5- 6- 7 G152 20VT/GY 8 D25 20WT/VT 9- 10 A113 14WT/RD C318 (TRAILER TOW

Page 1015 of 2339

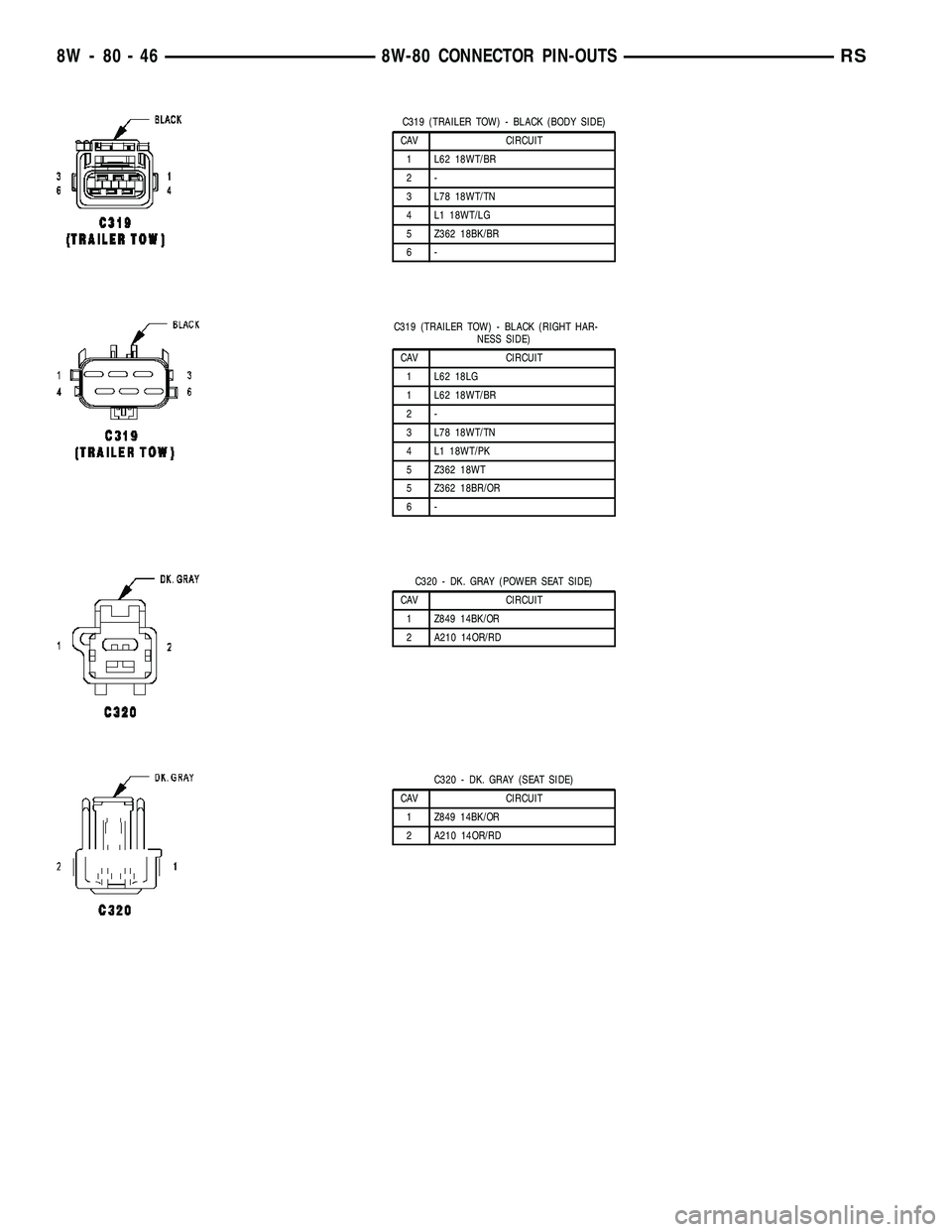

CHRYSLER CARAVAN 2005 Service Manual C319 (TRAILER TOW) - BLACK (BODY SIDE) CAV CIRCUIT 1 L62 18WT/BR 2- 3 L78 18WT/TN 4 L1 18WT/LG 5 Z362 18BK/BR 6- C319 (TRAILER TOW) - BLACK (RIGHT HAR- NESS SIDE) CAV CIRCUIT 1 L62 18LG 1 L62 18WT/BR

Page 1016 of 2339

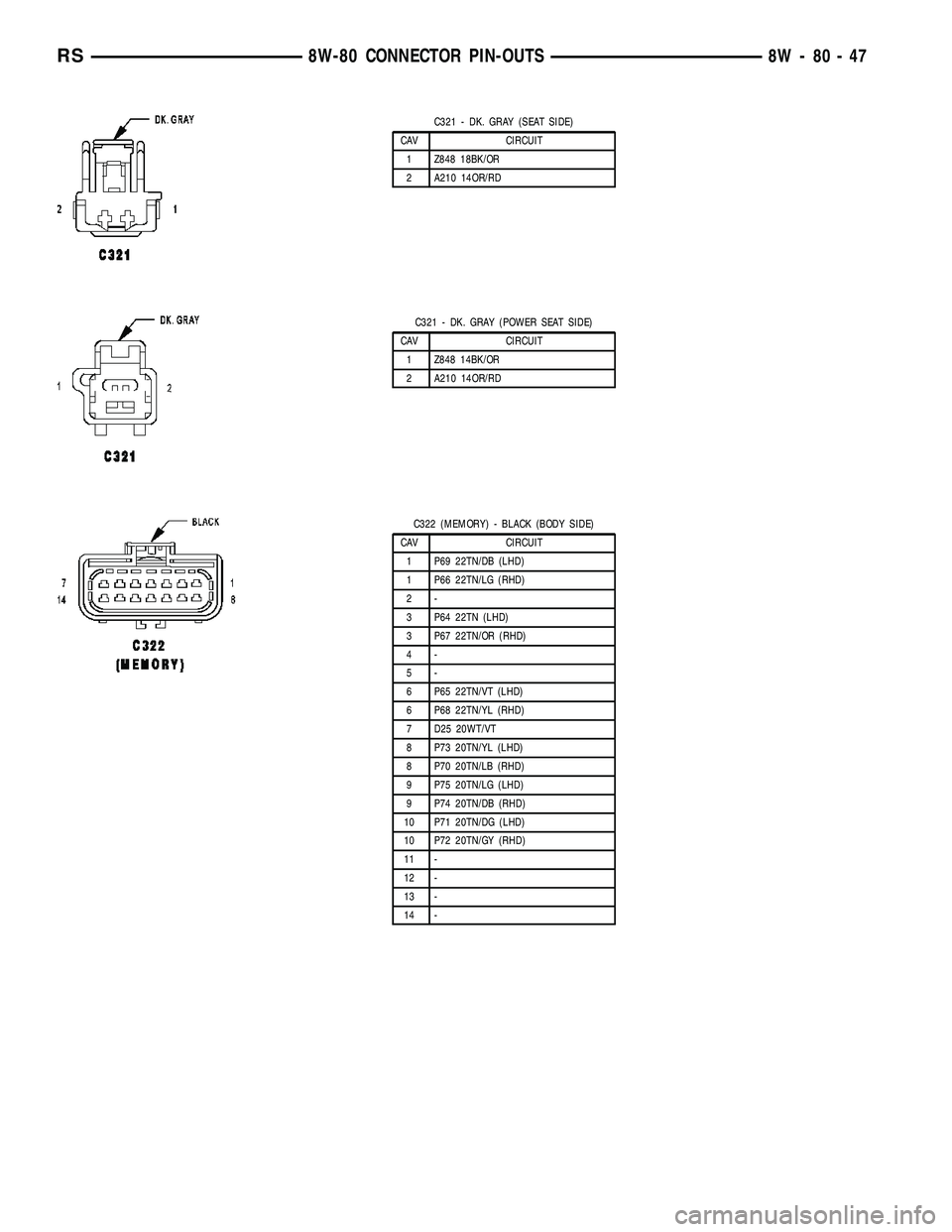

CHRYSLER CARAVAN 2005 Service Manual C321 - DK. GRAY (SEAT SIDE) CAV CIRCUIT 1 Z848 18BK/OR 2 A210 14OR/RD C321 - DK. GRAY (POWER SEAT SIDE) CAV CIRCUIT 1 Z848 14BK/OR 2 A210 14OR/RD C322 (MEMORY) - BLACK (BODY SIDE) CAV CIRCUIT 1 P69 22
