Page 1001 of 2339

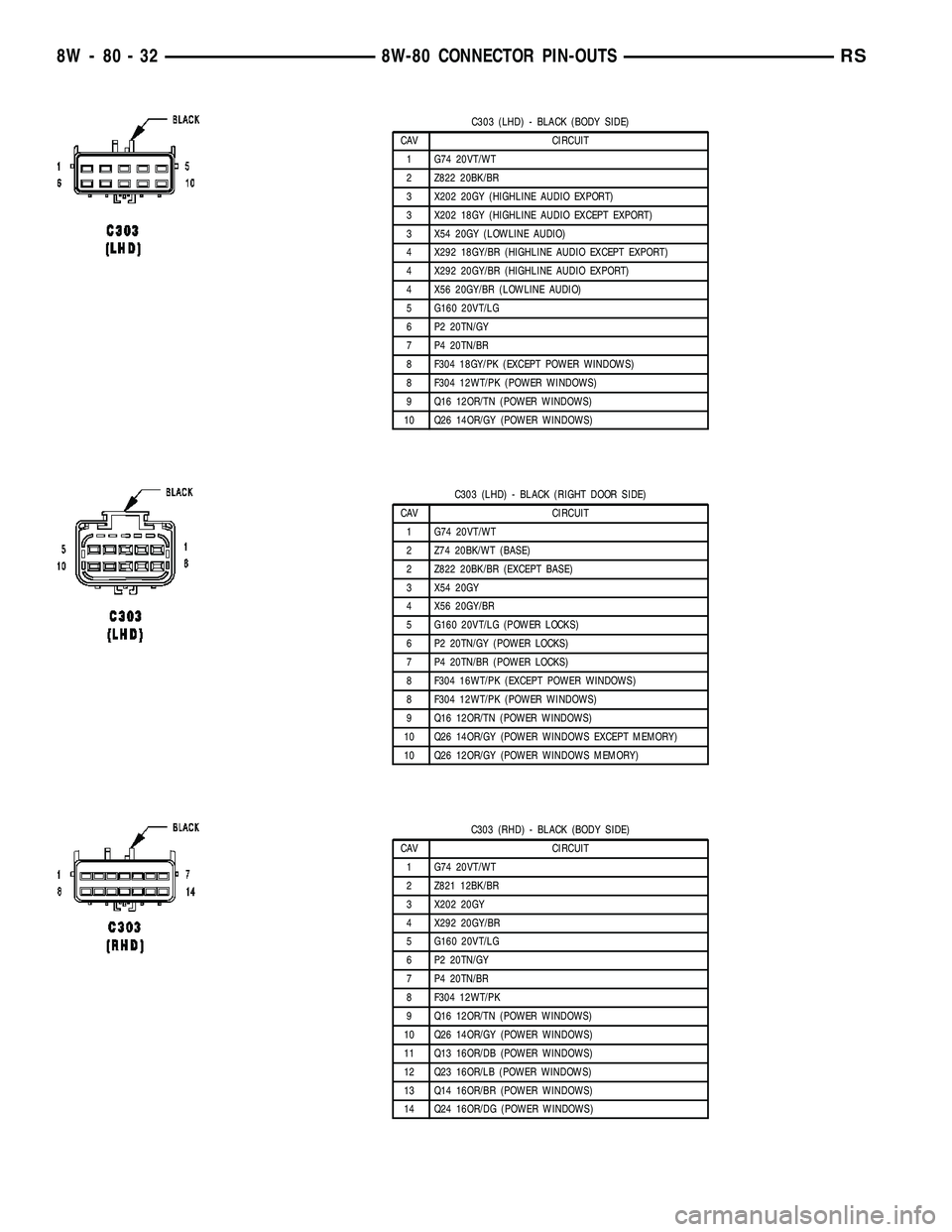

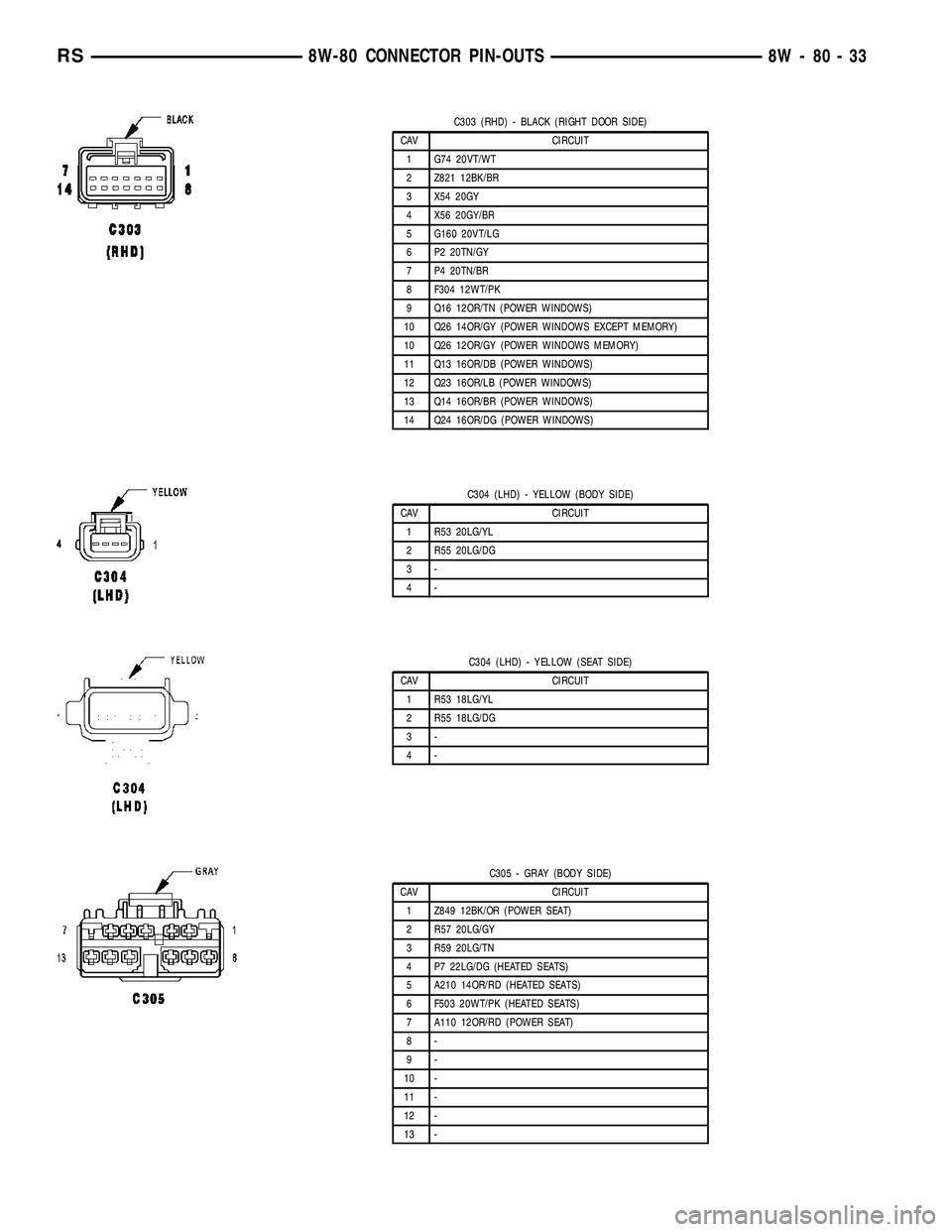

CHRYSLER CARAVAN 2005 Service Manual C303 (LHD) - BLACK (BODY SIDE) CAV CIRCUIT 1 G74 20VT/WT 2 Z822 20BK/BR 3 X202 20GY (HIGHLINE AUDIO EXPORT) 3 X202 18GY (HIGHLINE AUDIO EXCEPT EXPORT) 3 X54 20GY (LOWLINE AUDIO) 4 X292 18GY/BR (HIGHLI

Page 1002 of 2339

CHRYSLER CARAVAN 2005 Service Manual C303 (RHD) - BLACK (RIGHT DOOR SIDE) CAV CIRCUIT 1 G74 20VT/WT 2 Z821 12BK/BR 3 X54 20GY 4 X56 20GY/BR 5 G160 20VT/LG 6 P2 20TN/GY 7 P4 20TN/BR 8 F304 12WT/PK 9 Q16 12OR/TN (POWER WINDOWS) 10 Q26 14OR

Page 1003 of 2339

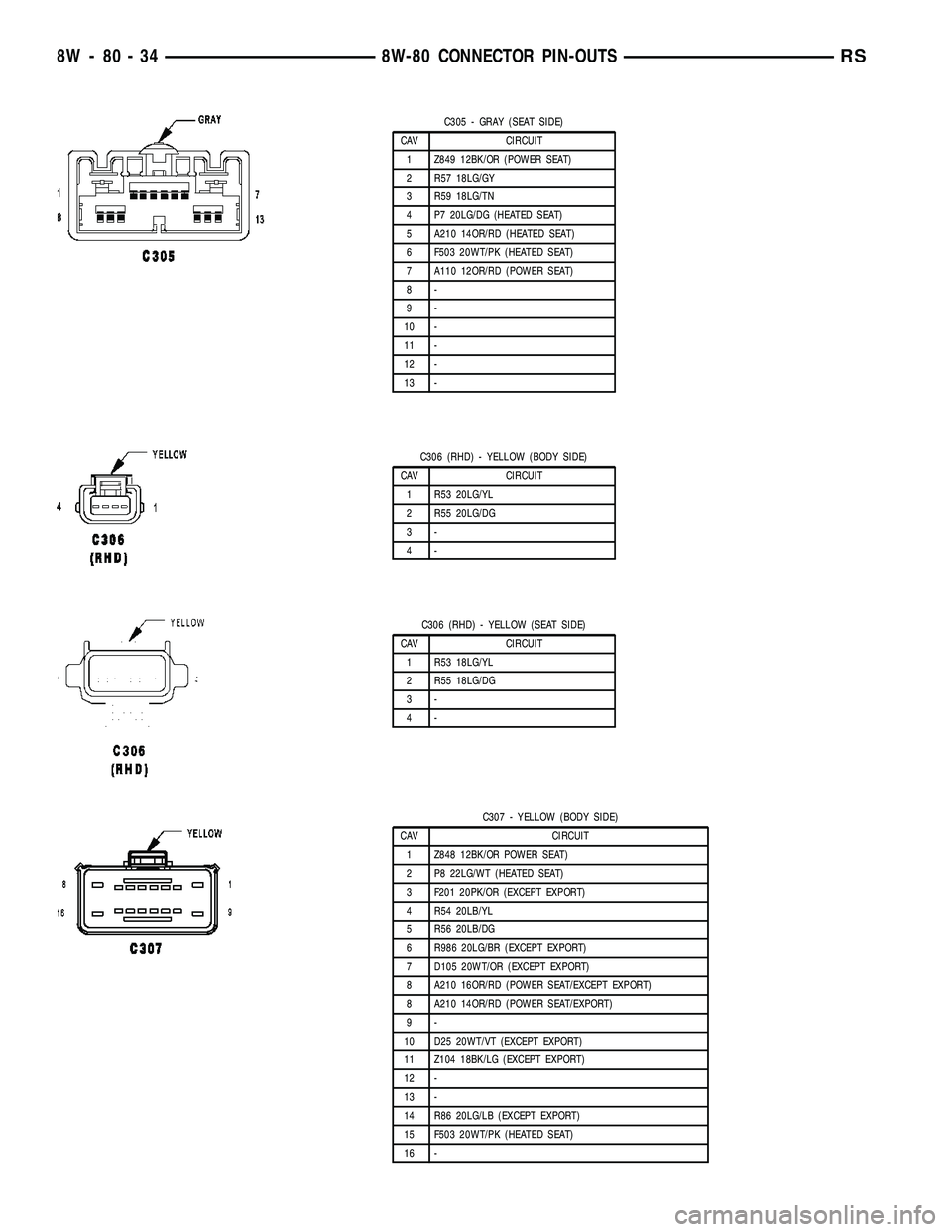

CHRYSLER CARAVAN 2005 Service Manual C305 - GRAY (SEAT SIDE) CAV CIRCUIT 1 Z849 12BK/OR (POWER SEAT) 2 R57 18LG/GY 3 R59 18LG/TN 4 P7 20LG/DG (HEATED SEAT) 5 A210 14OR/RD (HEATED SEAT) 6 F503 20WT/PK (HEATED SEAT) 7 A110 12OR/RD (POWER S

Page 1004 of 2339

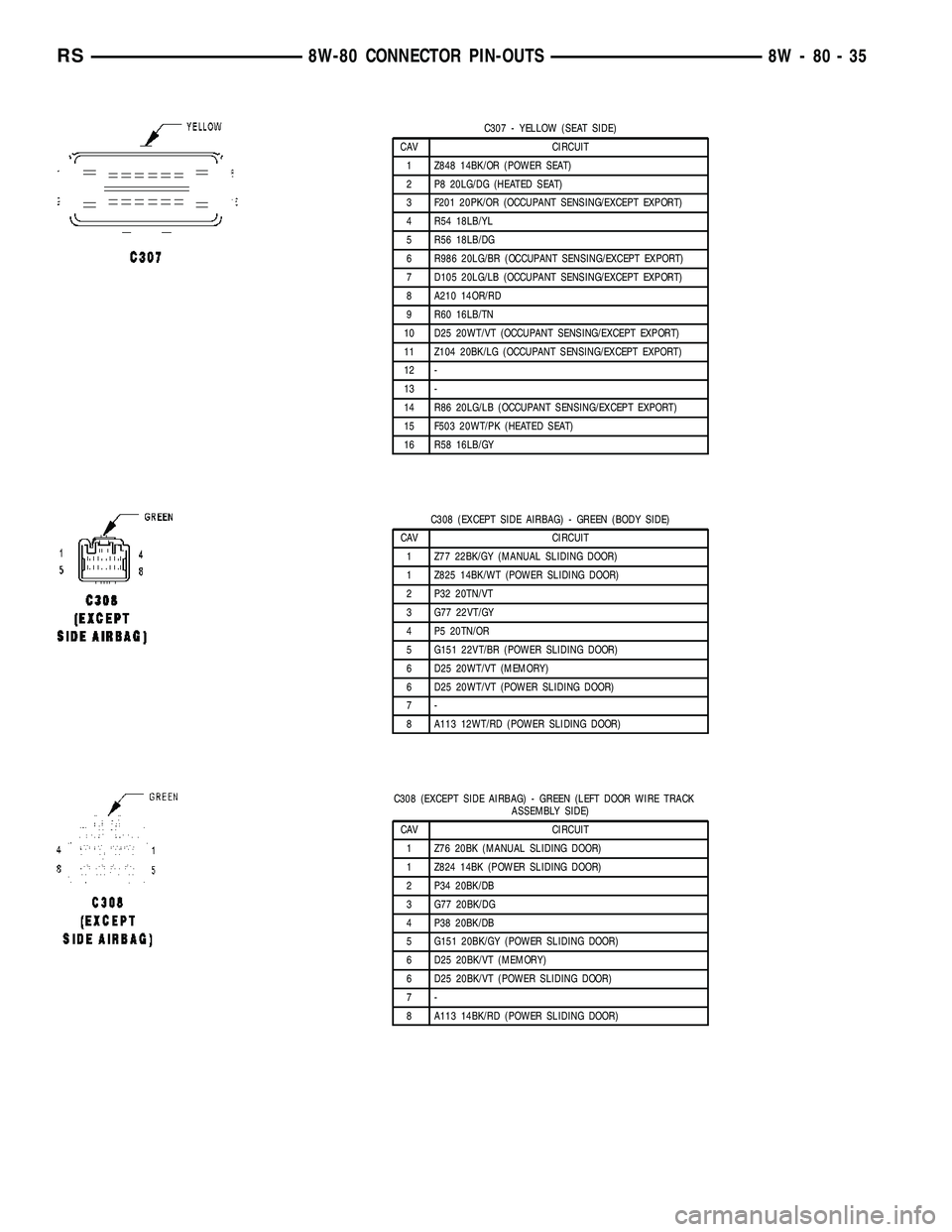

CHRYSLER CARAVAN 2005 Service Manual C307 - YELLOW (SEAT SIDE) CAV CIRCUIT 1 Z848 14BK/OR (POWER SEAT) 2 P8 20LG/DG (HEATED SEAT) 3 F201 20PK/OR (OCCUPANT SENSING/EXCEPT EXPORT) 4 R54 18LB/YL 5 R56 18LB/DG 6 R986 20LG/BR (OCCUPANT SENSIN

Page 1005 of 2339

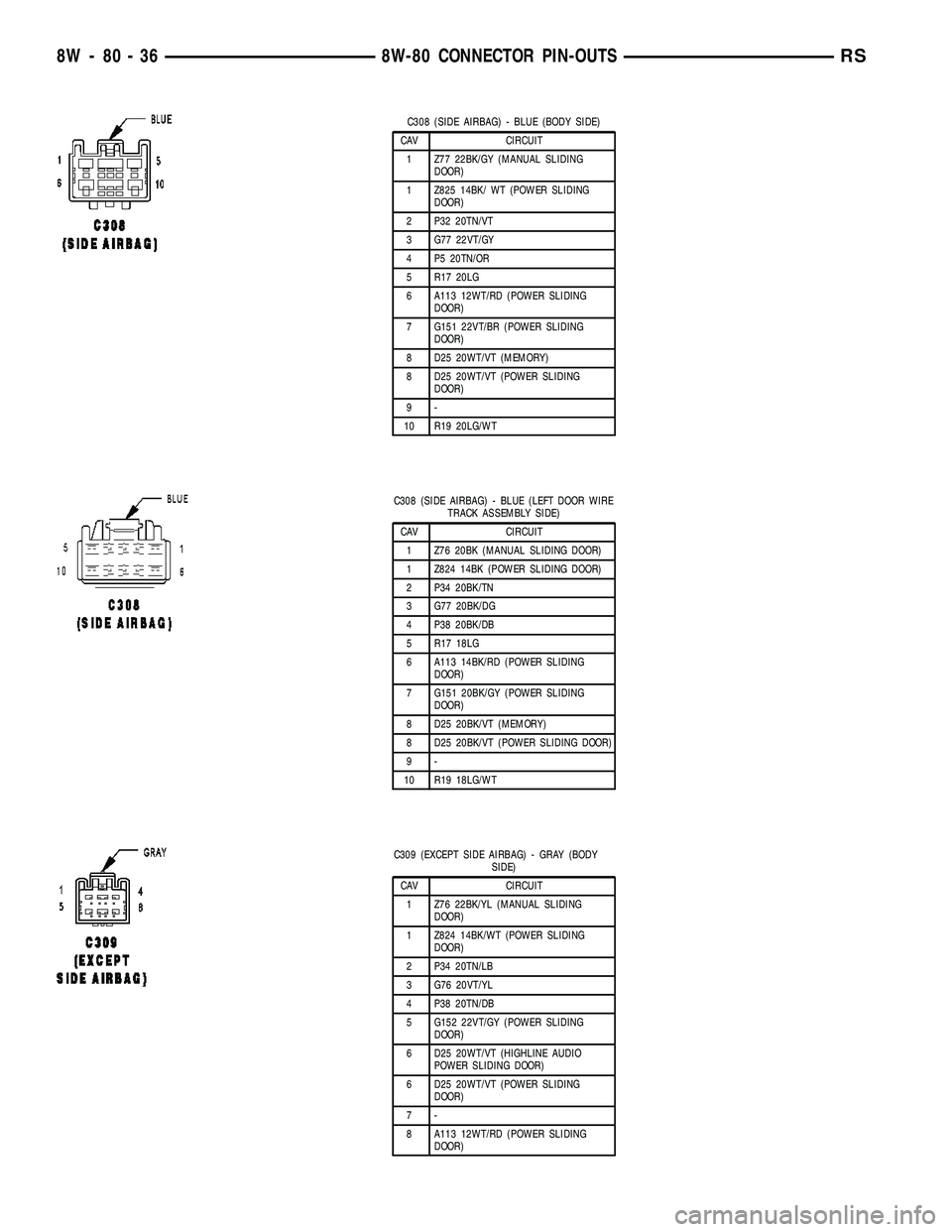

CHRYSLER CARAVAN 2005 Service Manual C308 (SIDE AIRBAG) - BLUE (BODY SIDE) CAV CIRCUIT 1 Z77 22BK/GY (MANUAL SLIDING DOOR) 1 Z825 14BK/ WT (POWER SLIDING DOOR) 2 P32 20TN/VT 3 G77 22VT/GY 4 P5 20TN/OR 5 R17 20LG 6 A113 12WT/RD (POWER SLI

Page 1006 of 2339

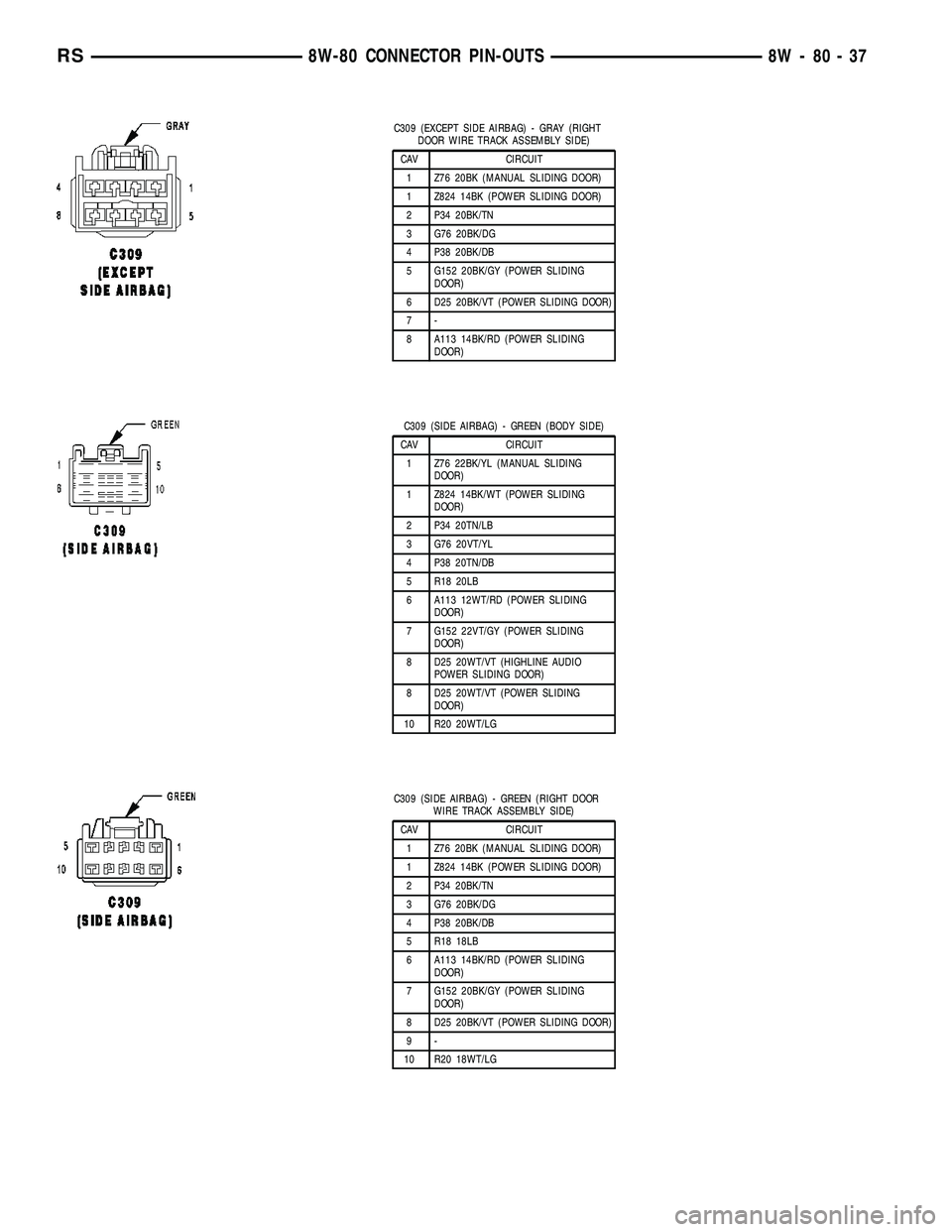

CHRYSLER CARAVAN 2005 Service Manual C309 (EXCEPT SIDE AIRBAG) - GRAY (RIGHT DOOR WIRE TRACK ASSEMBLY SIDE) CAV CIRCUIT 1 Z76 20BK (MANUAL SLIDING DOOR) 1 Z824 14BK (POWER SLIDING DOOR) 2 P34 20BK/TN 3 G76 20BK/DG 4 P38 20BK/DB 5 G152 20

Page 1007 of 2339

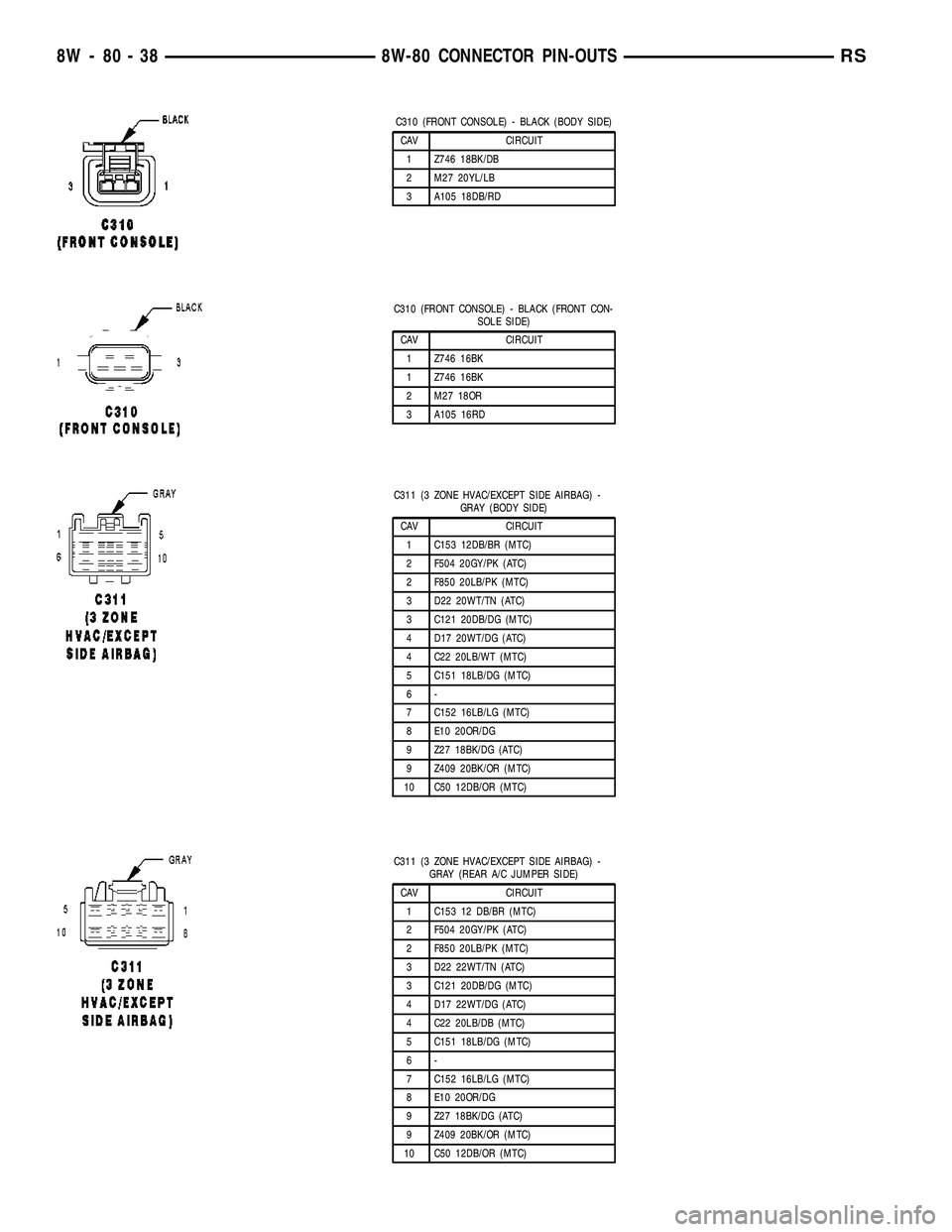

CHRYSLER CARAVAN 2005 Service Manual C310 (FRONT CONSOLE) - BLACK (BODY SIDE) CAV CIRCUIT 1 Z746 18BK/DB 2 M27 20YL/LB 3 A105 18DB/RD C310 (FRONT CONSOLE) - BLACK (FRONT CON- SOLE SIDE) CAV CIRCUIT 1 Z746 16BK 1 Z746 16BK 2 M27 18OR 3 A1

Page 1008 of 2339

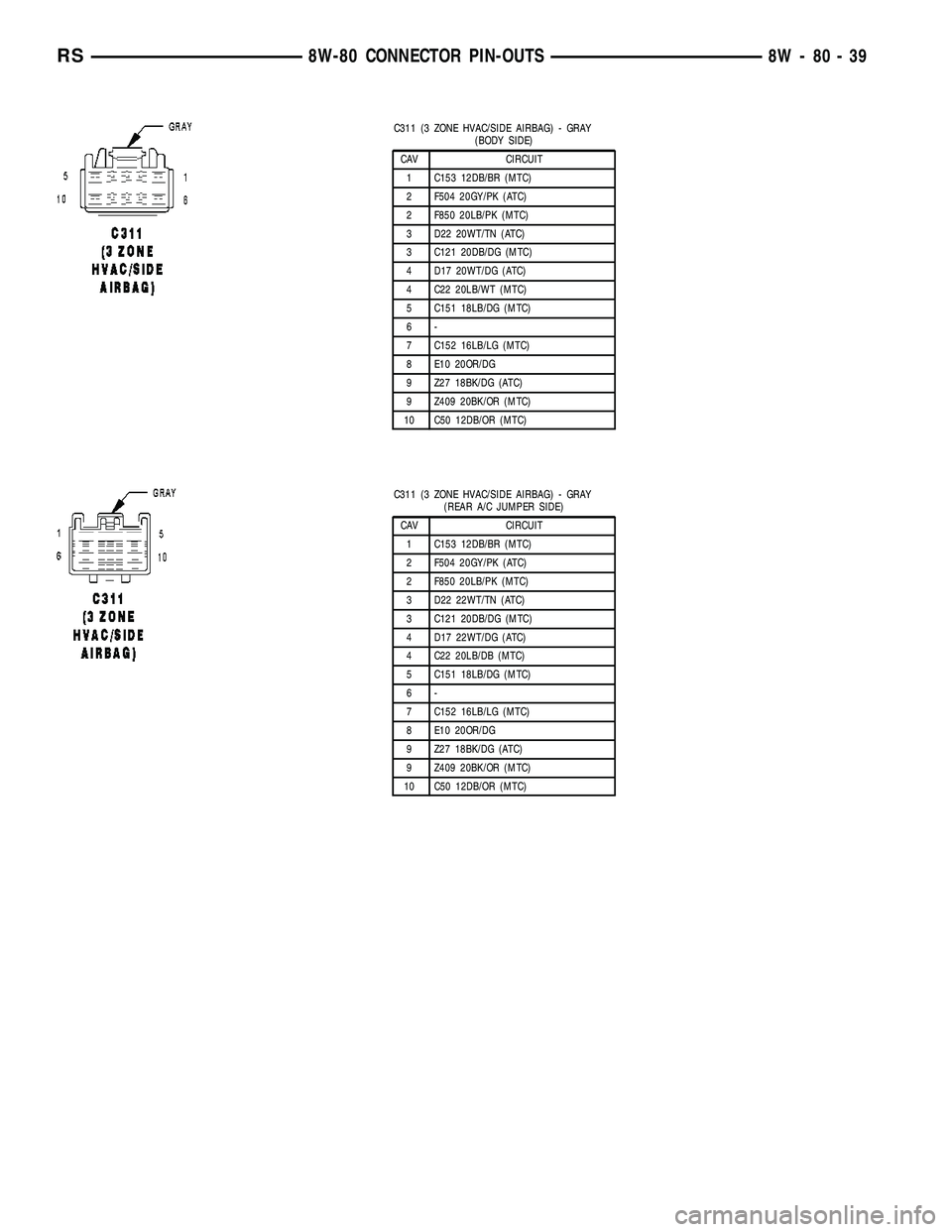

CHRYSLER CARAVAN 2005 Service Manual C311 (3 ZONE HVAC/SIDE AIRBAG) - GRAY (BODY SIDE) CAV CIRCUIT 1 C153 12DB/BR (MTC) 2 F504 20GY/PK (ATC) 2 F850 20LB/PK (MTC) 3 D22 20WT/TN (ATC) 3 C121 20DB/DG (MTC) 4 D17 20WT/DG (ATC) 4 C22 20LB/WT
