Page 2025 of 2339

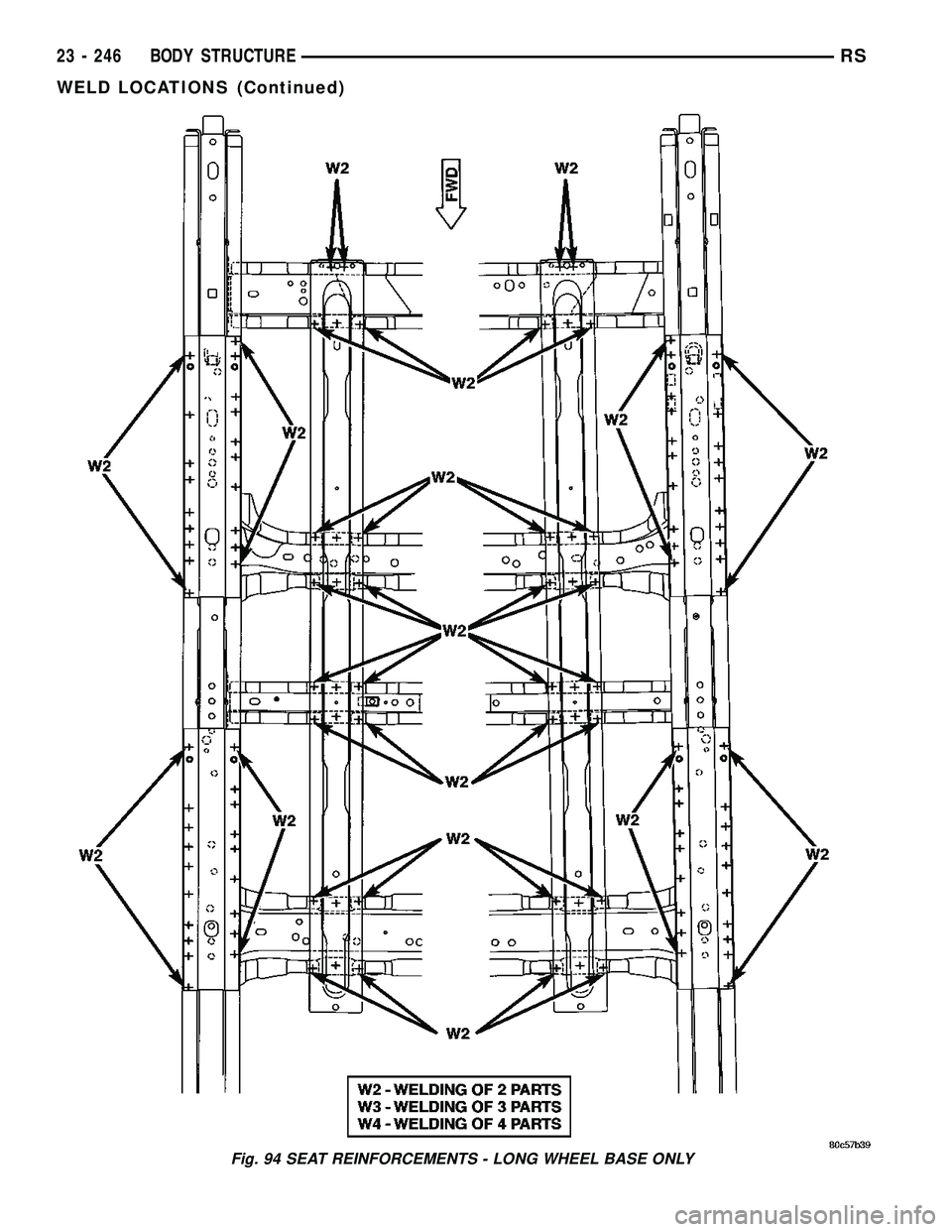

CHRYSLER CARAVAN 2005 Service Manual Fig. 94 SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY 23 - 246 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2026 of 2339

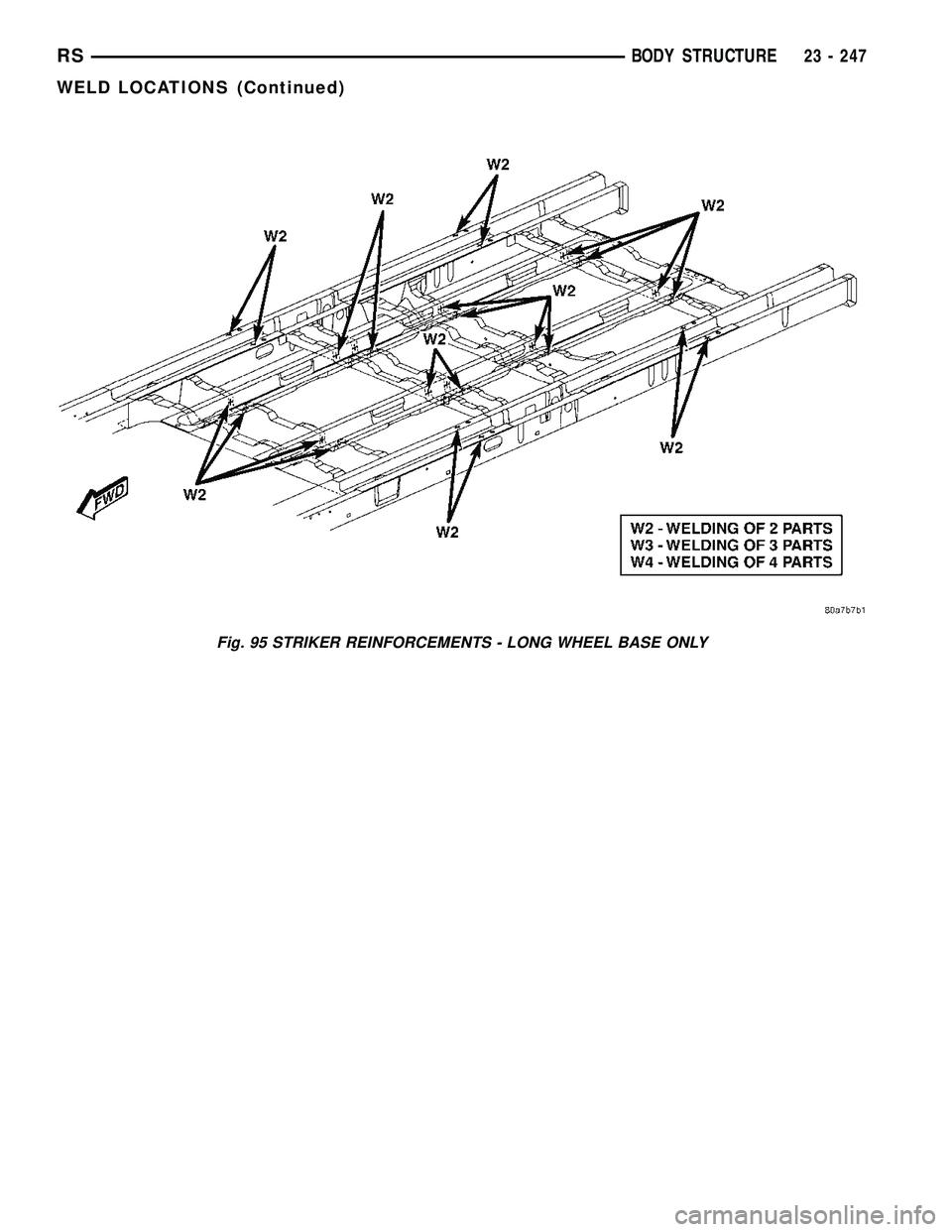

CHRYSLER CARAVAN 2005 Service Manual Fig. 95 STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY RSBODY STRUCTURE23 - 247 WELD LOCATIONS (Continued)

Page 2027 of 2339

CHRYSLER CARAVAN 2005 Service Manual Fig. 96 FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION 23 - 248 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2028 of 2339

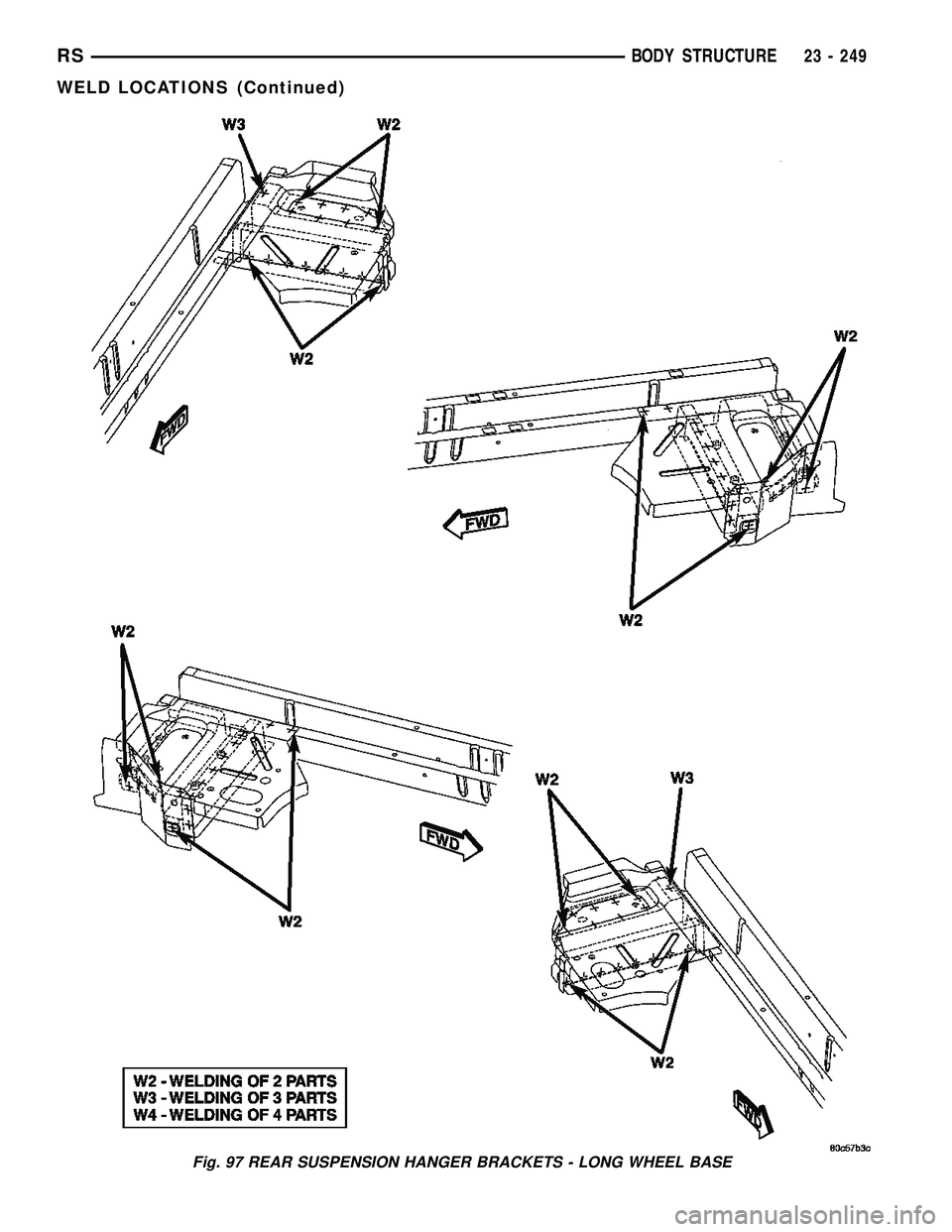

CHRYSLER CARAVAN 2005 Service Manual Fig. 97 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE RSBODY STRUCTURE23 - 249 WELD LOCATIONS (Continued)

Page 2029 of 2339

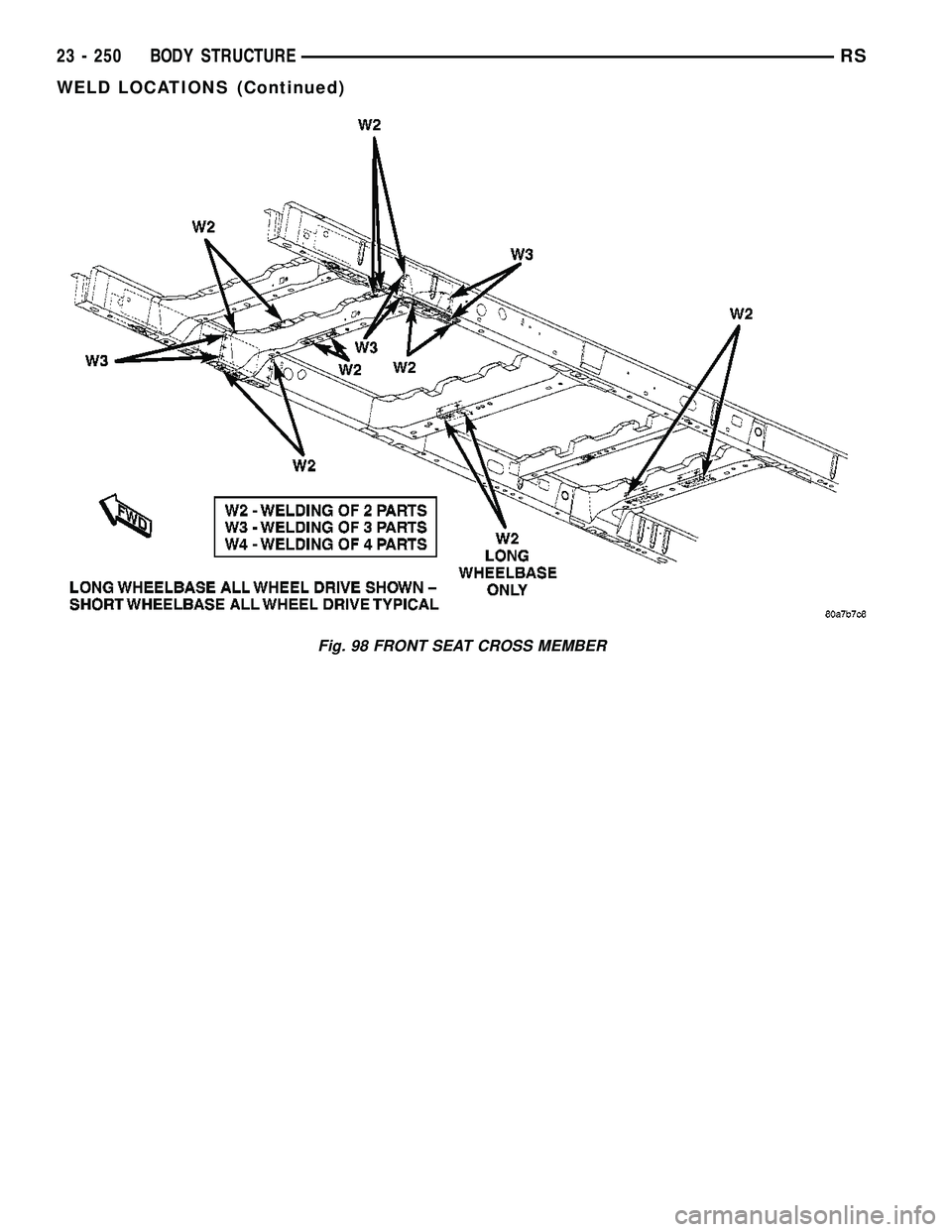

CHRYSLER CARAVAN 2005 Service Manual Fig. 98 FRONT SEAT CROSS MEMBER 23 - 250 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2030 of 2339

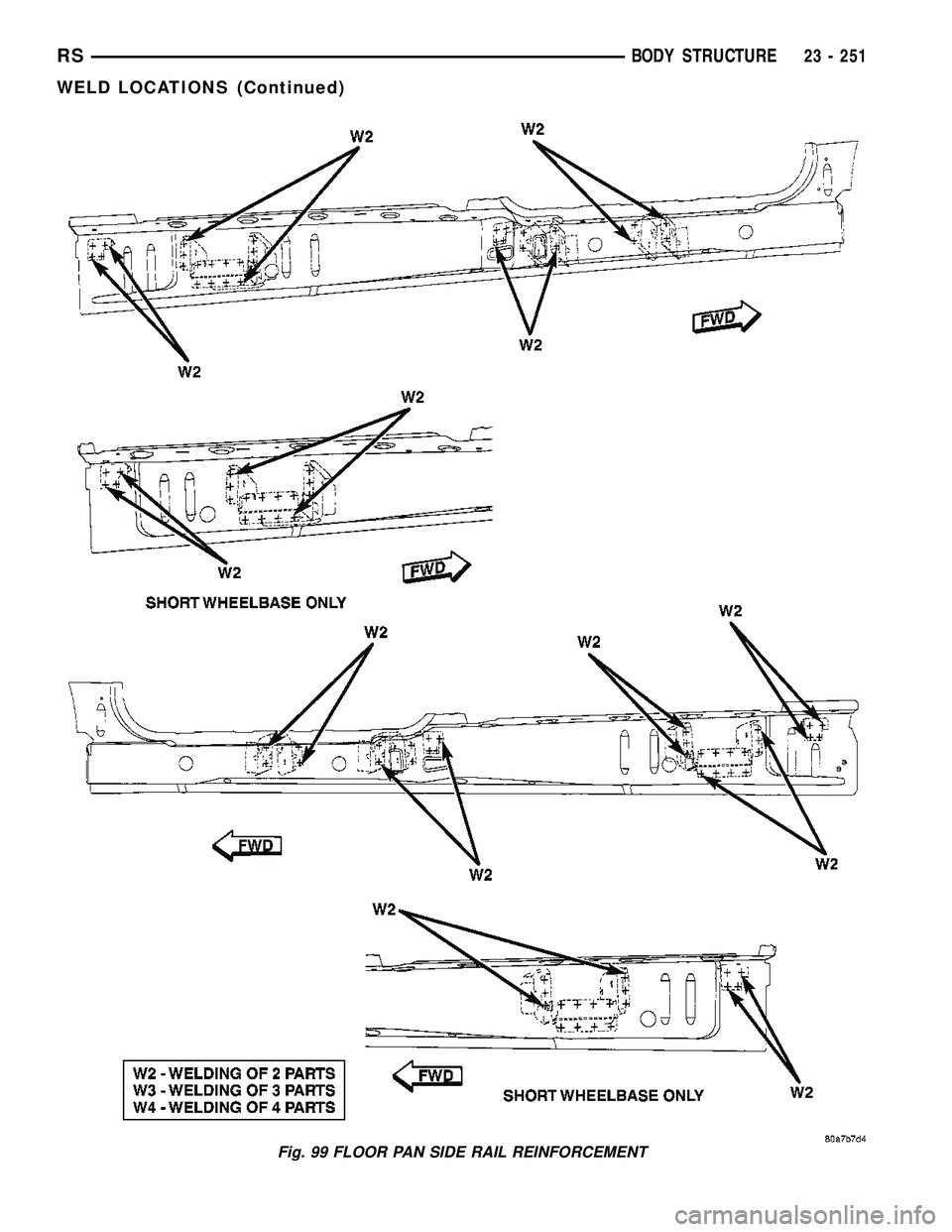

CHRYSLER CARAVAN 2005 Service Manual Fig. 99 FLOOR PAN SIDE RAIL REINFORCEMENT RSBODY STRUCTURE23 - 251 WELD LOCATIONS (Continued)

Page 2031 of 2339

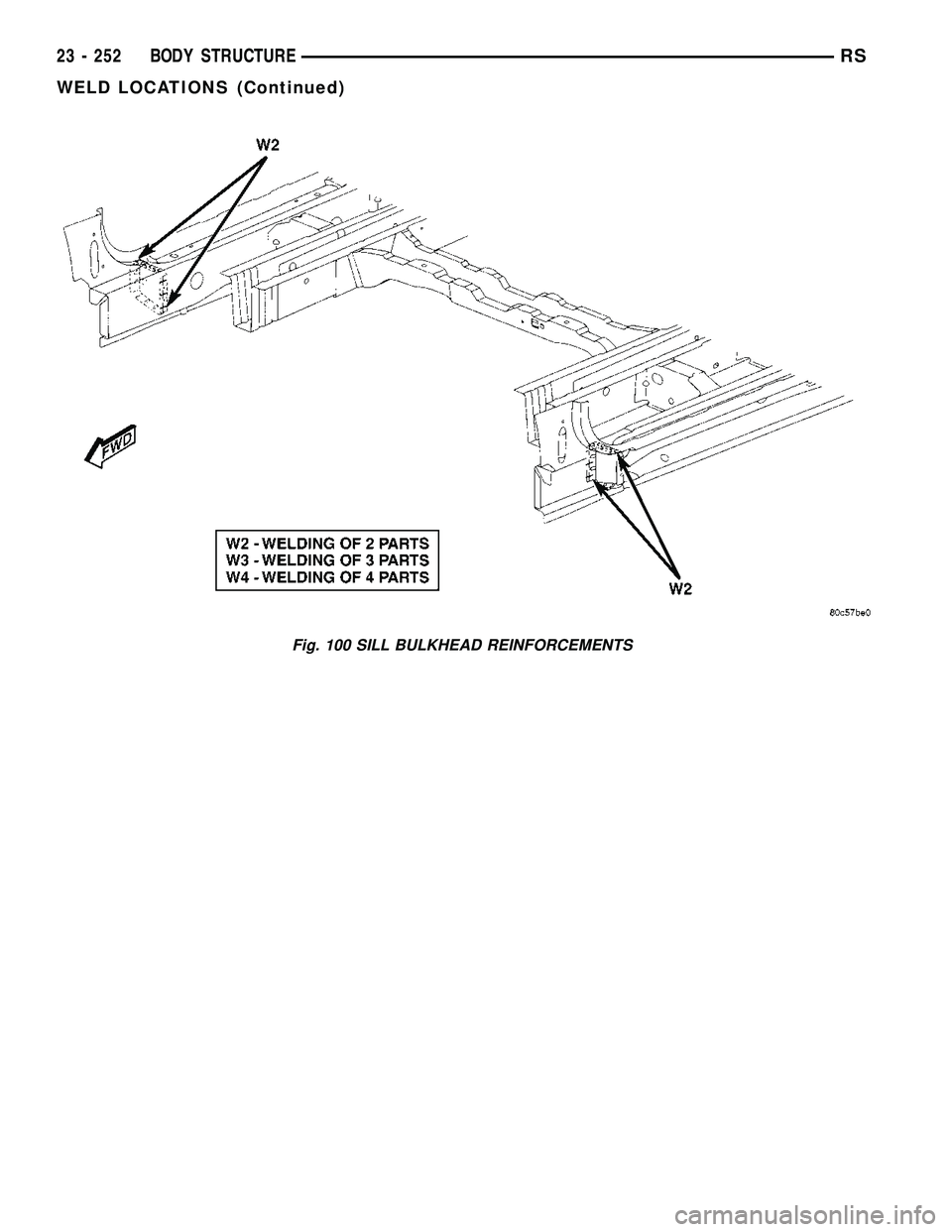

CHRYSLER CARAVAN 2005 Service Manual Fig. 100 SILL BULKHEAD REINFORCEMENTS 23 - 252 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2032 of 2339

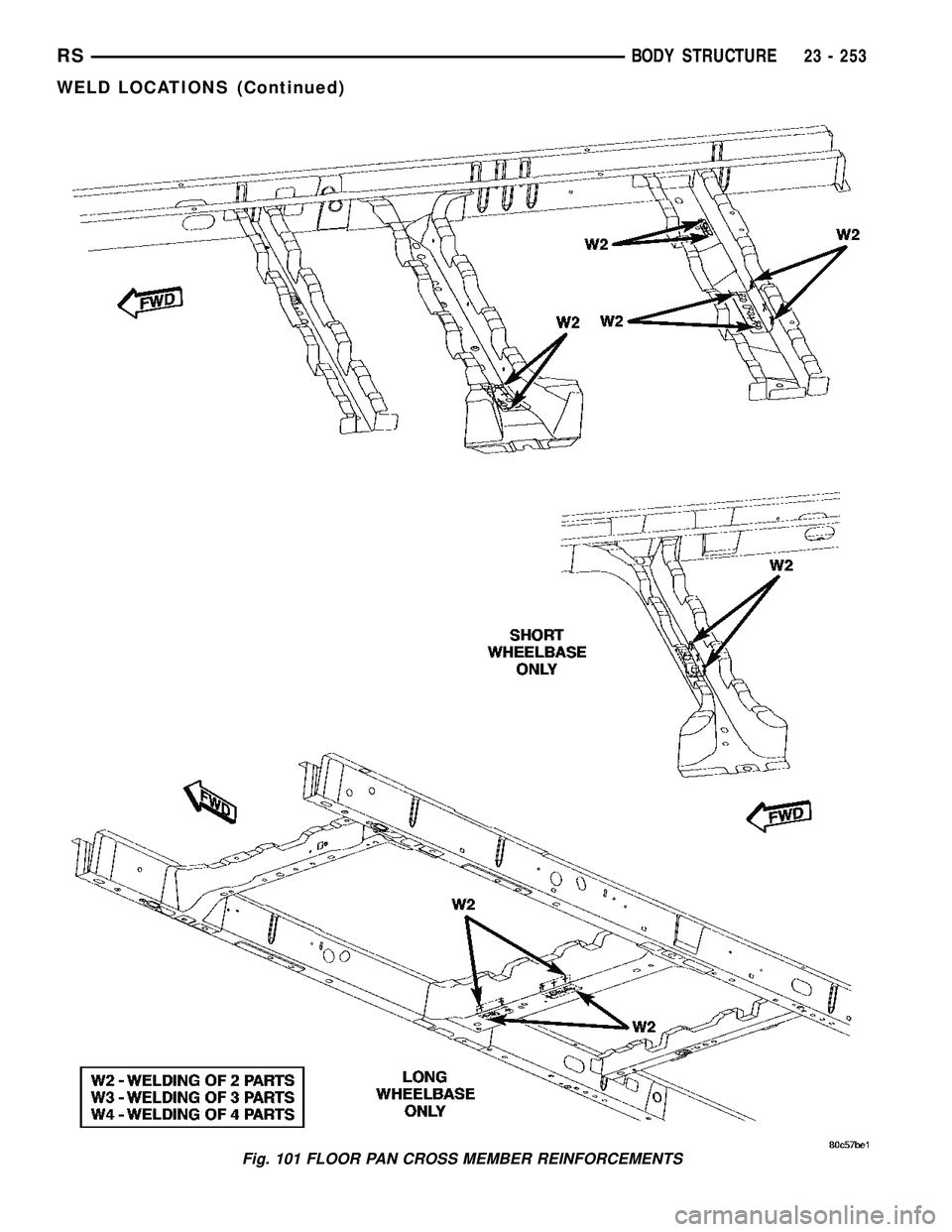

CHRYSLER CARAVAN 2005 Service Manual Fig. 101 FLOOR PAN CROSS MEMBER REINFORCEMENTS RSBODY STRUCTURE23 - 253 WELD LOCATIONS (Continued)
