Page 2129 of 2339

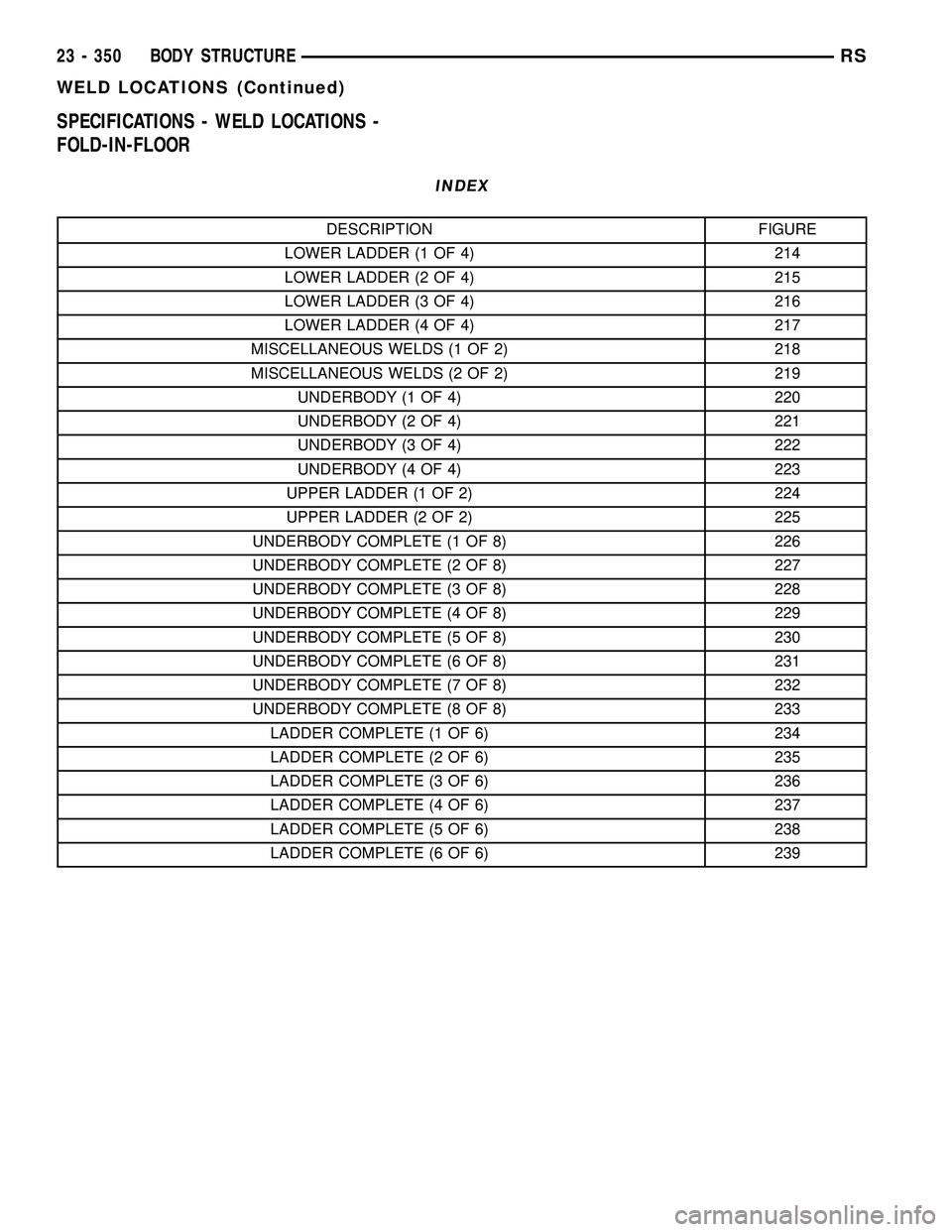

CHRYSLER CARAVAN 2005 Service Manual SPECIFICATIONS - WELD LOCATIONS - FOLD-IN-FLOOR INDEX DESCRIPTION FIGURE LOWER LADDER (1 OF 4) 214 LOWER LADDER (2 OF 4) 215 LOWER LADDER (3 OF 4) 216 LOWER LADDER (4 OF 4) 217 MISCELLANEOUS WELDS (1

Page 2130 of 2339

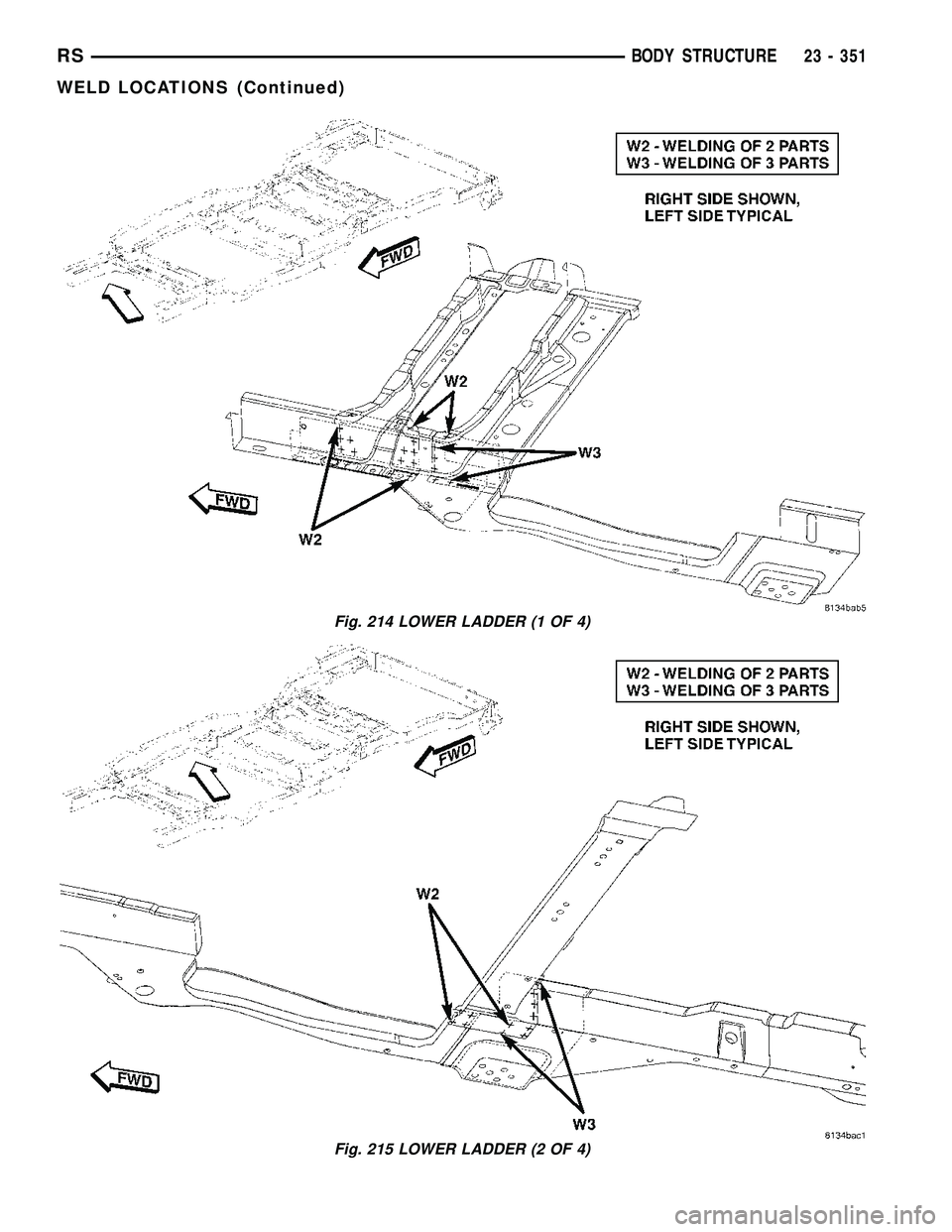

CHRYSLER CARAVAN 2005 Service Manual Fig. 214 LOWER LADDER (1 OF 4) Fig. 215 LOWER LADDER (2 OF 4) RSBODY STRUCTURE23 - 351 WELD LOCATIONS (Continued)

Page 2131 of 2339

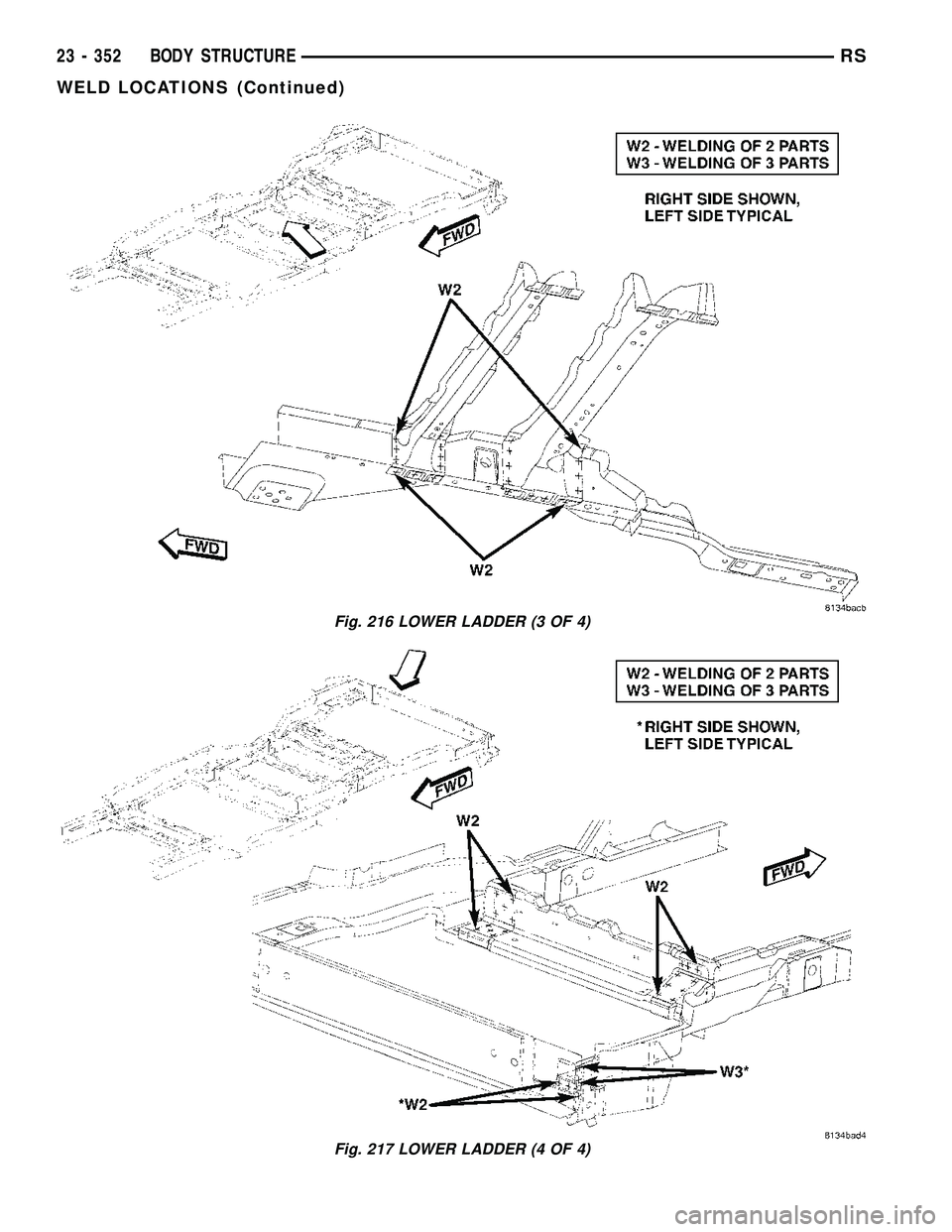

CHRYSLER CARAVAN 2005 Service Manual Fig. 216 LOWER LADDER (3 OF 4) Fig. 217 LOWER LADDER (4 OF 4) 23 - 352 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2132 of 2339

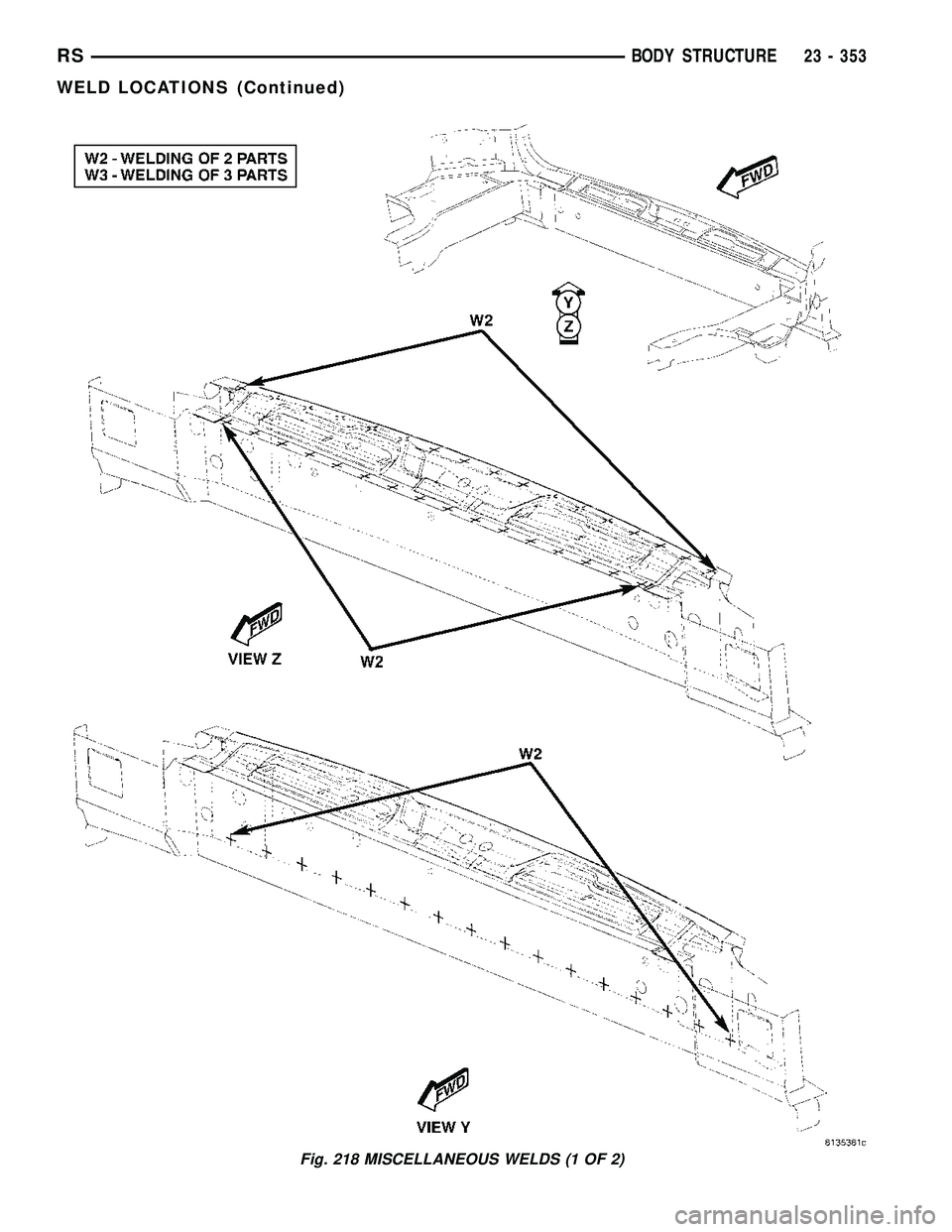

CHRYSLER CARAVAN 2005 Service Manual Fig. 218 MISCELLANEOUS WELDS (1 OF 2) RSBODY STRUCTURE23 - 353 WELD LOCATIONS (Continued)

Page 2133 of 2339

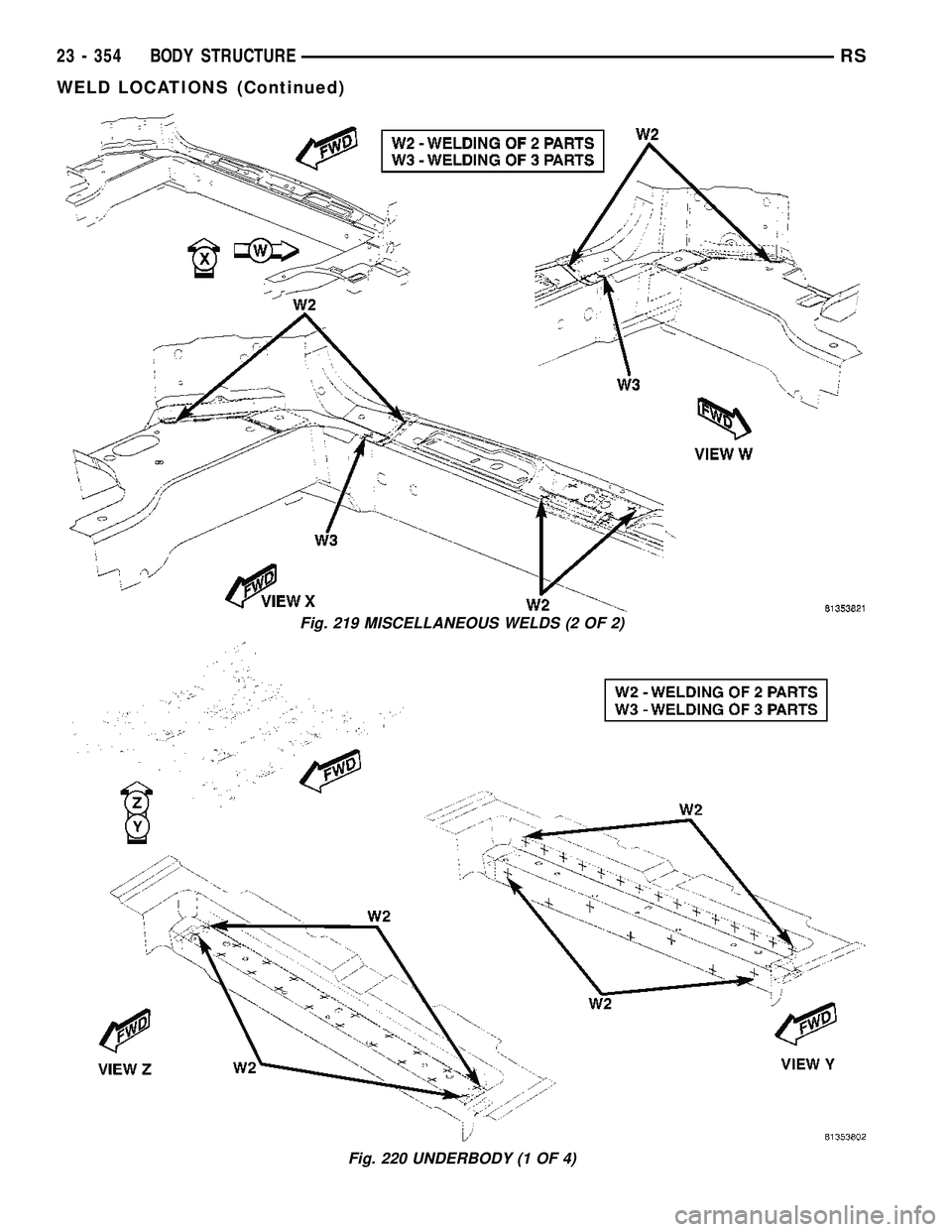

CHRYSLER CARAVAN 2005 Service Manual Fig. 219 MISCELLANEOUS WELDS (2 OF 2) Fig. 220 UNDERBODY (1 OF 4) 23 - 354 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2134 of 2339

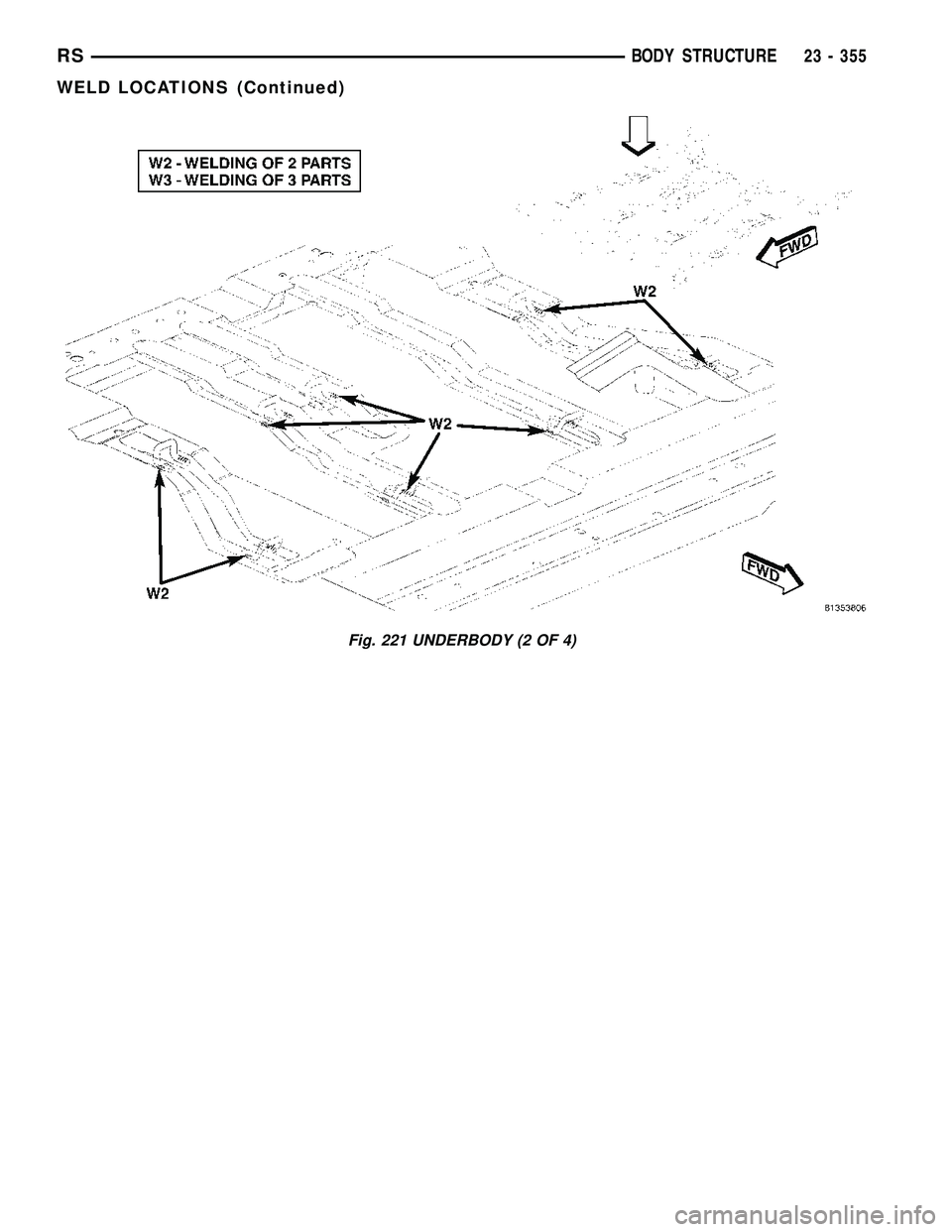

CHRYSLER CARAVAN 2005 Service Manual Fig. 221 UNDERBODY (2 OF 4) RSBODY STRUCTURE23 - 355 WELD LOCATIONS (Continued)

Page 2135 of 2339

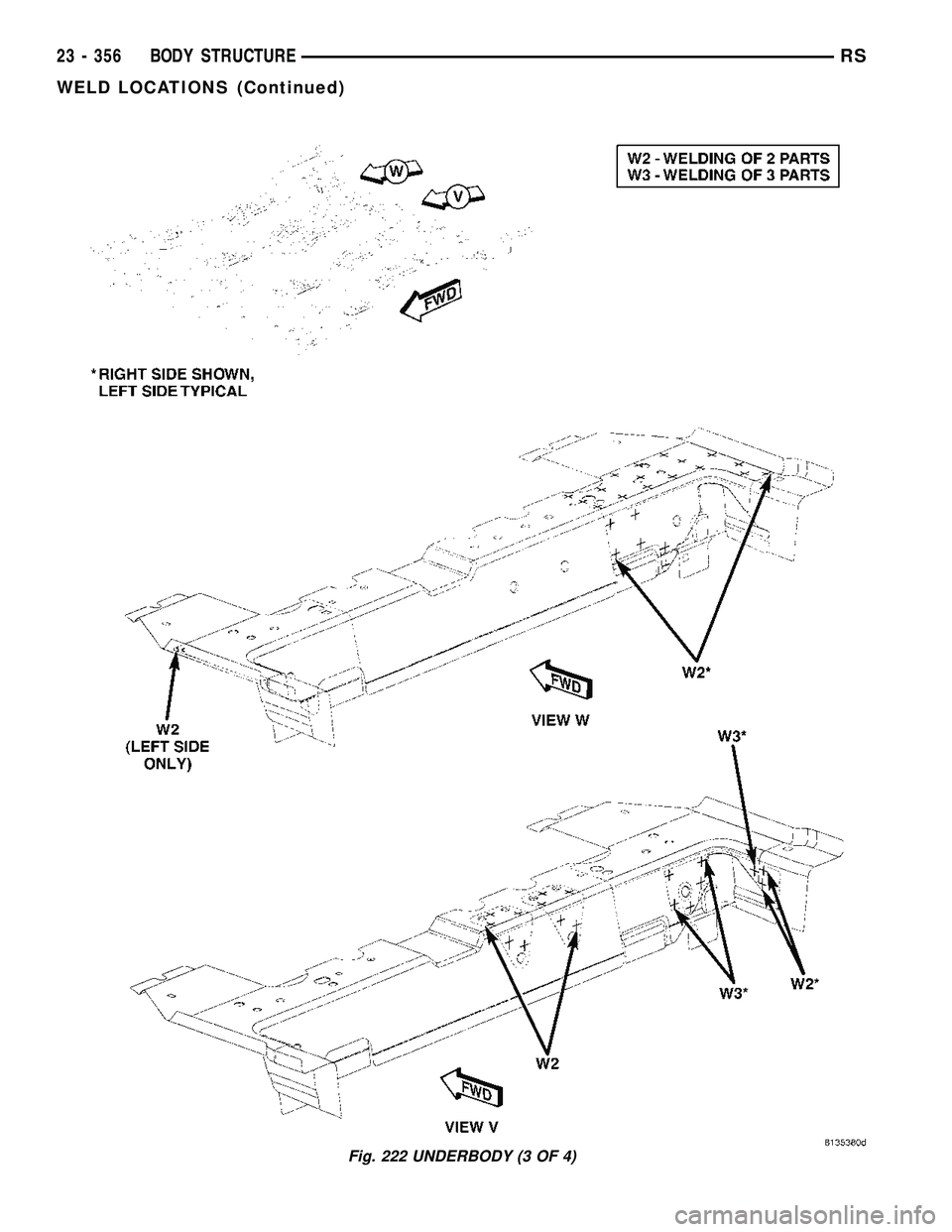

CHRYSLER CARAVAN 2005 Service Manual Fig. 222 UNDERBODY (3 OF 4) 23 - 356 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2136 of 2339

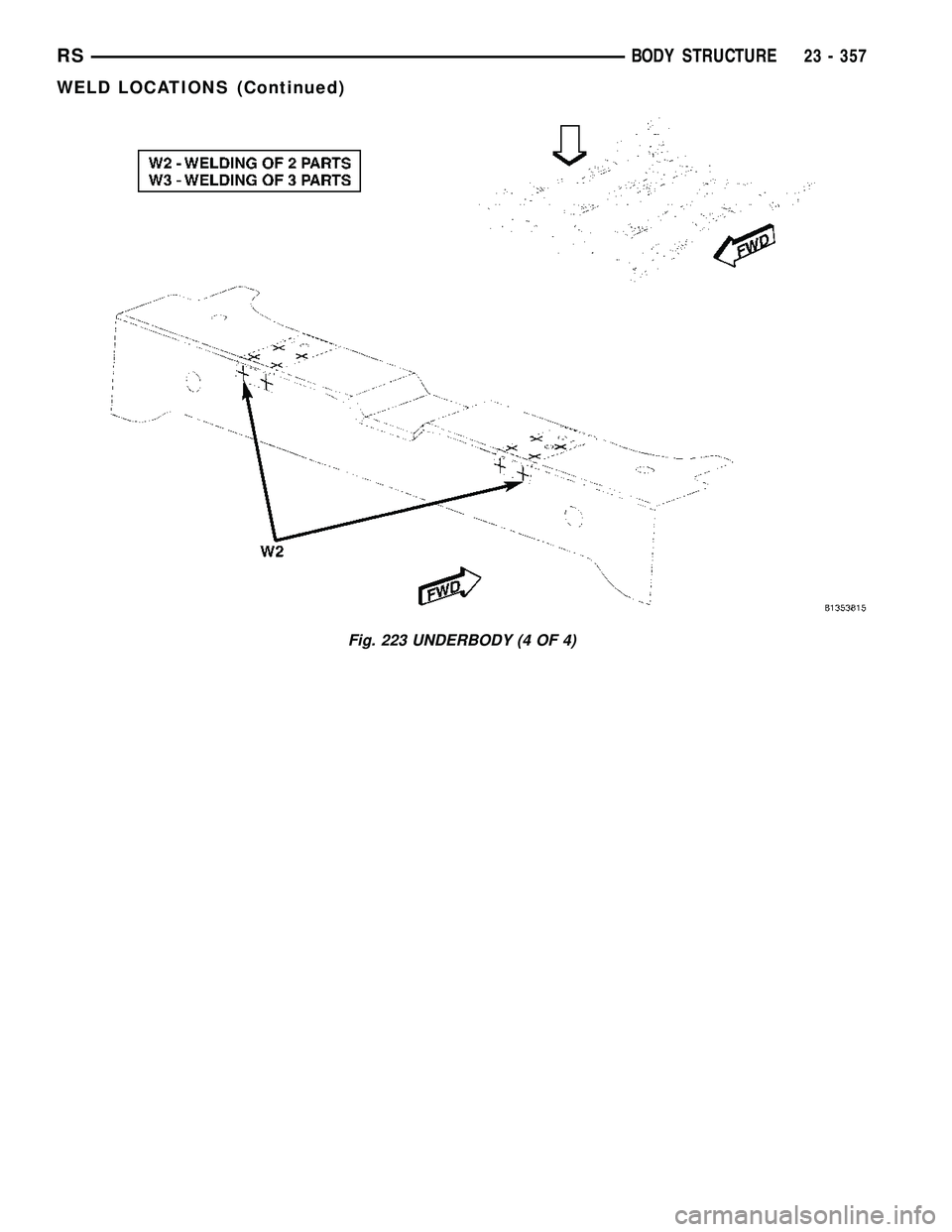

CHRYSLER CARAVAN 2005 Service Manual Fig. 223 UNDERBODY (4 OF 4) RSBODY STRUCTURE23 - 357 WELD LOCATIONS (Continued)
