CHRYSLER CARAVAN 2005 Service Manual Fig. 195 REAR JACKING REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 334 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2114 of 2339

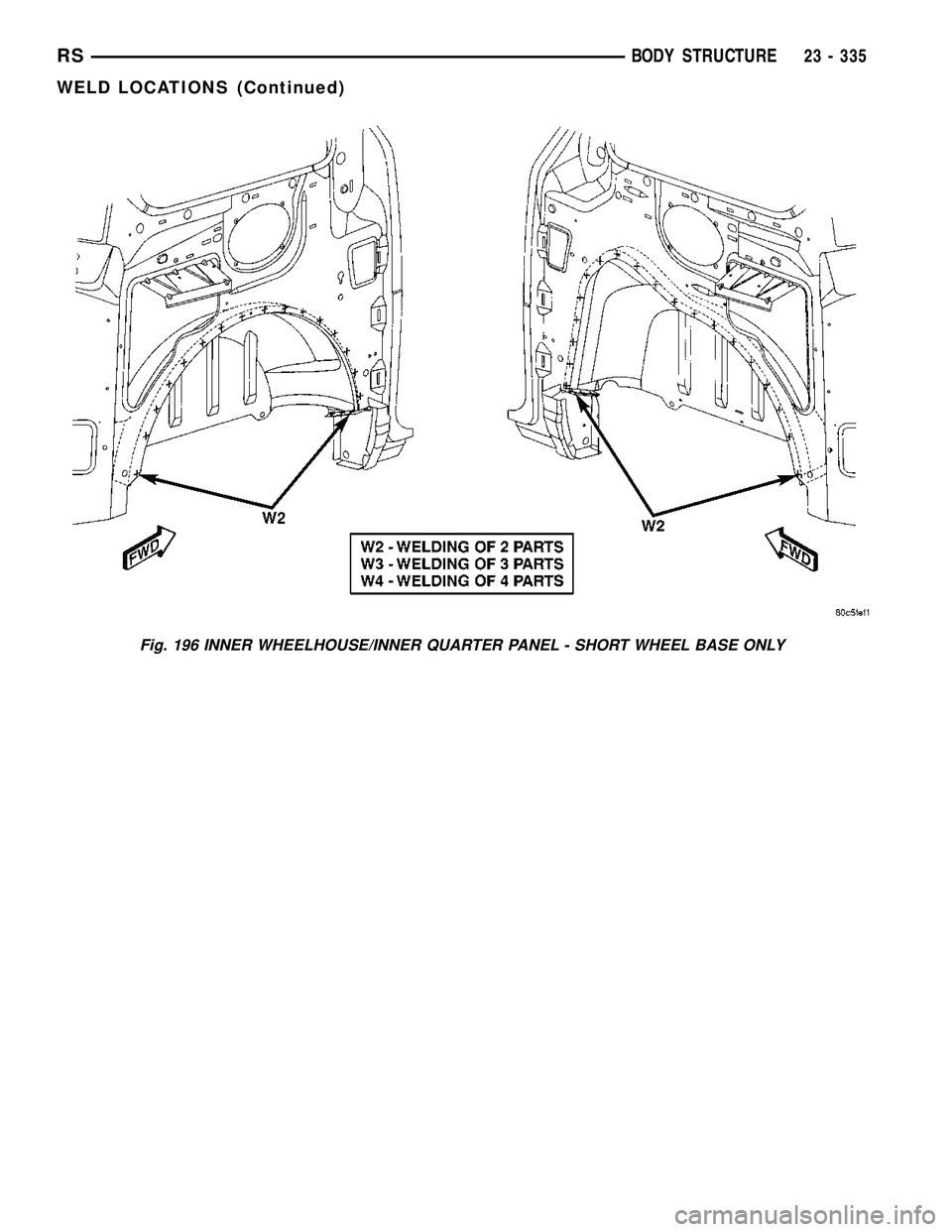

CHRYSLER CARAVAN 2005 Service Manual Fig. 196 INNER WHEELHOUSE/INNER QUARTER PANEL - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 335 WELD LOCATIONS (Continued)

Page 2115 of 2339

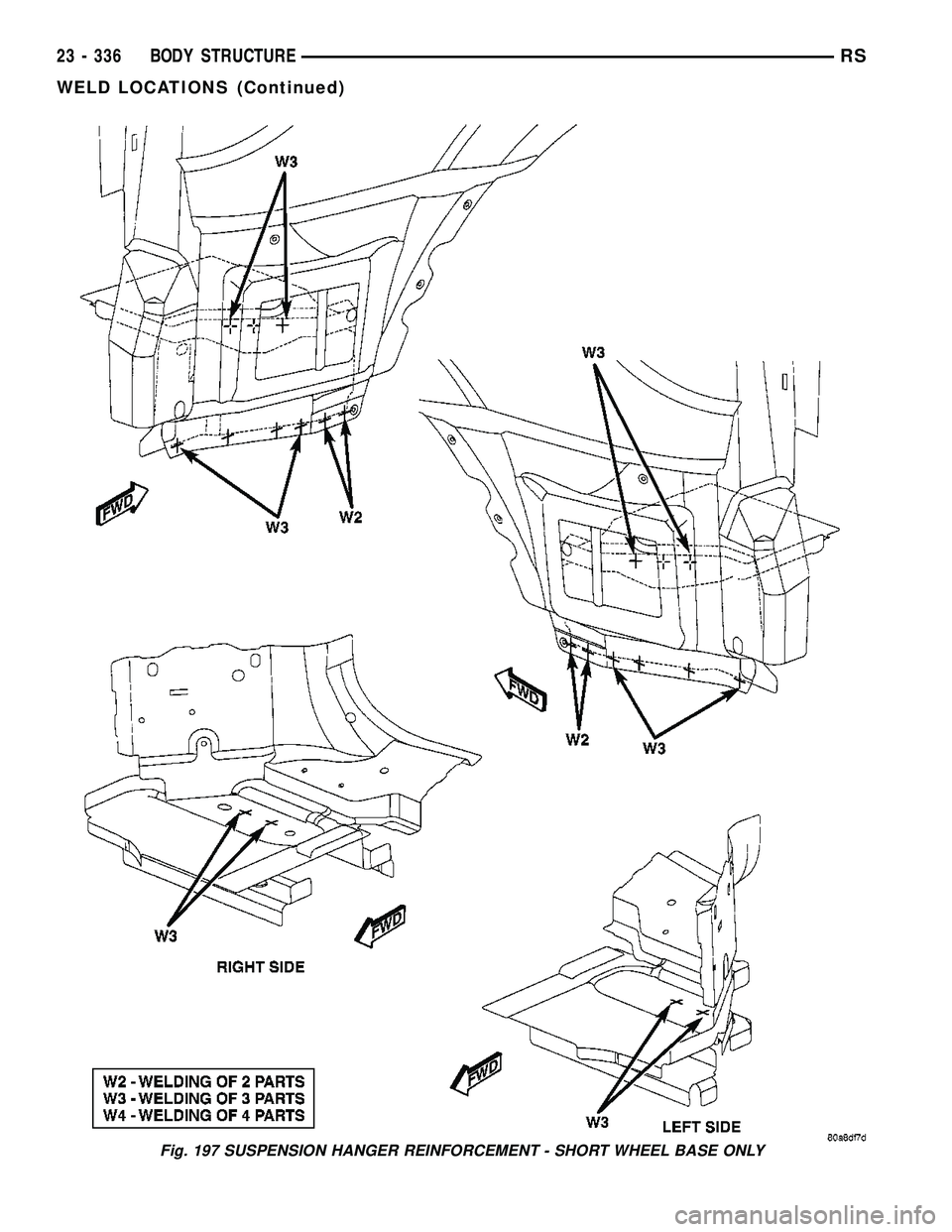

CHRYSLER CARAVAN 2005 Service Manual Fig. 197 SUSPENSION HANGER REINFORCEMENT - SHORT WHEEL BASE ONLY 23 - 336 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2116 of 2339

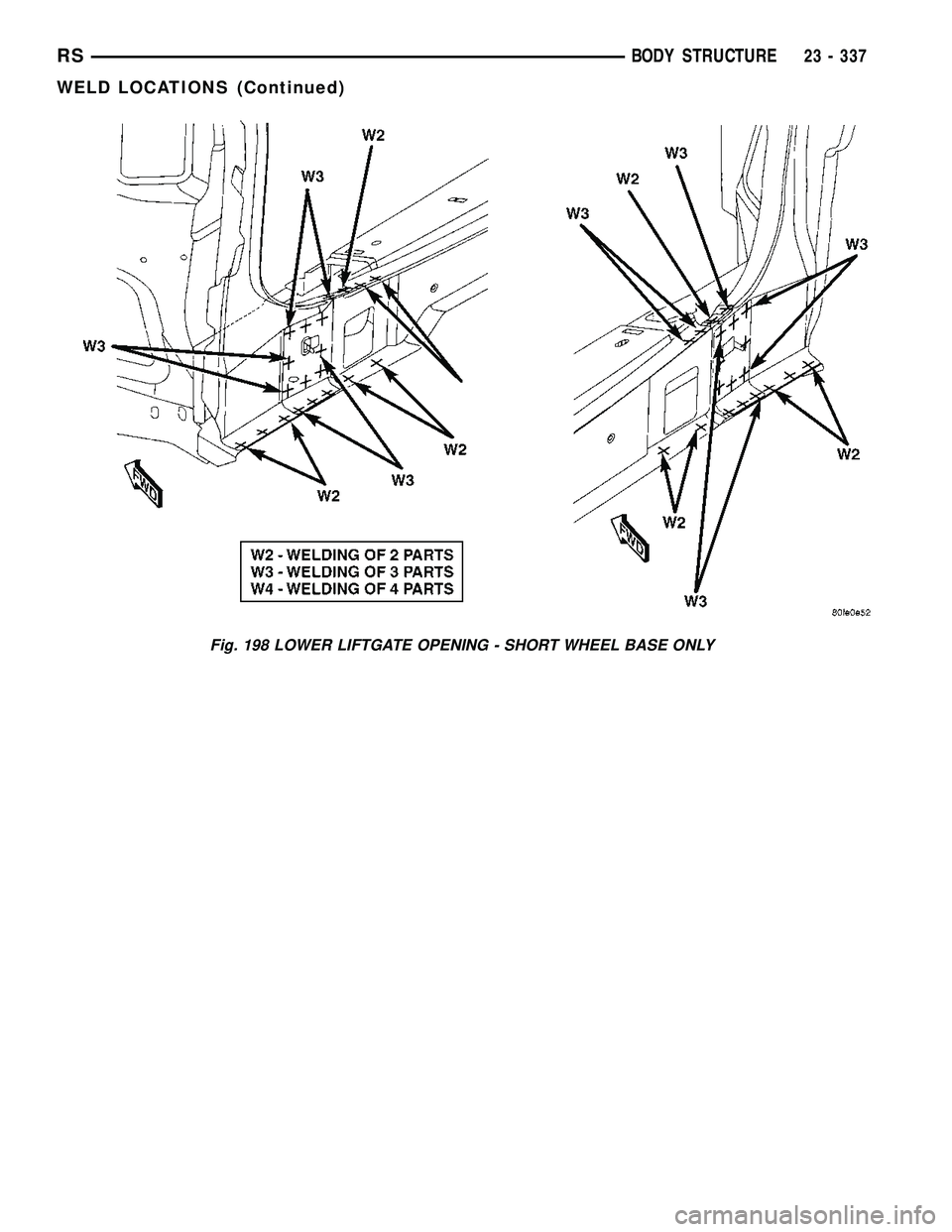

CHRYSLER CARAVAN 2005 Service Manual Fig. 198 LOWER LIFTGATE OPENING - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 337 WELD LOCATIONS (Continued)

Page 2117 of 2339

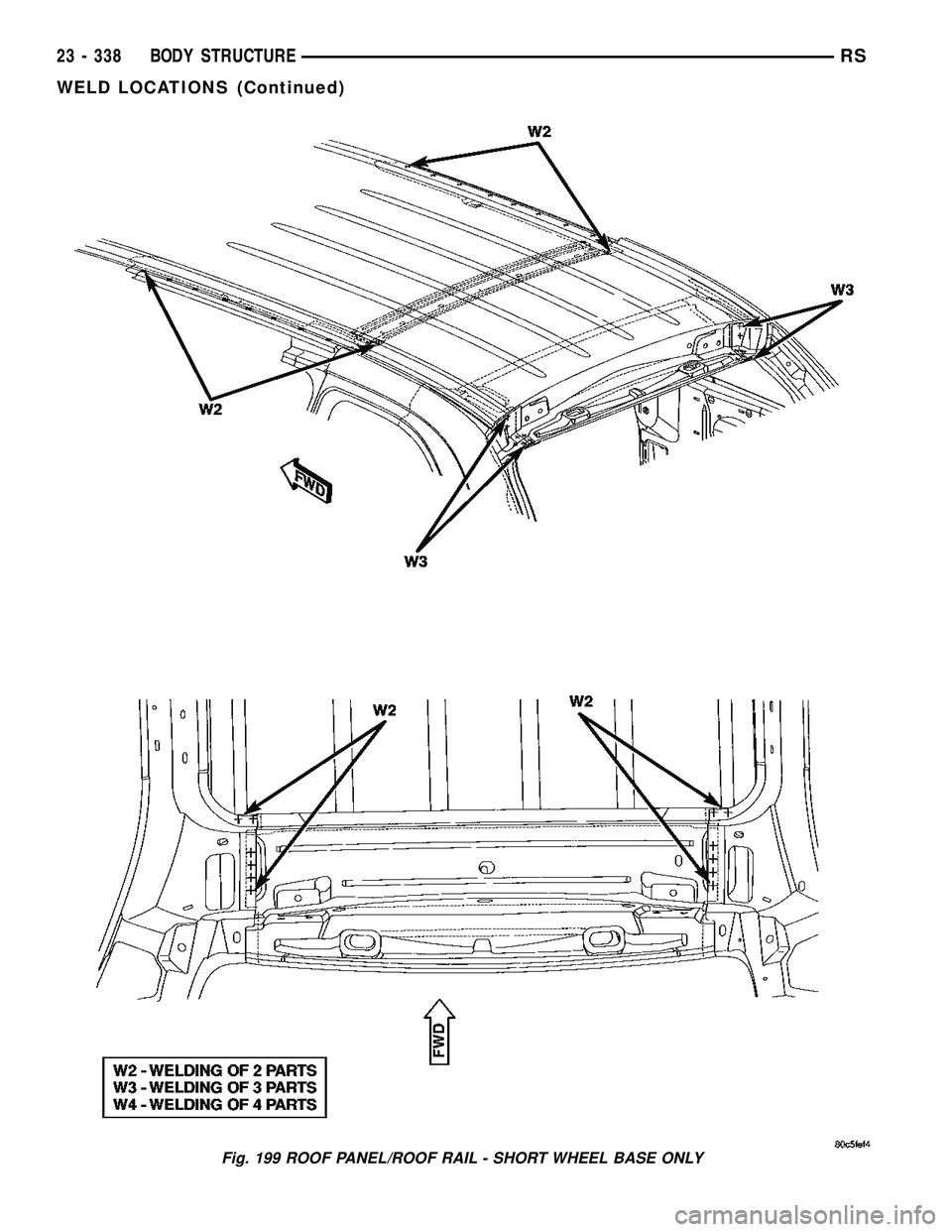

CHRYSLER CARAVAN 2005 Service Manual Fig. 199 ROOF PANEL/ROOF RAIL - SHORT WHEEL BASE ONLY 23 - 338 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2118 of 2339

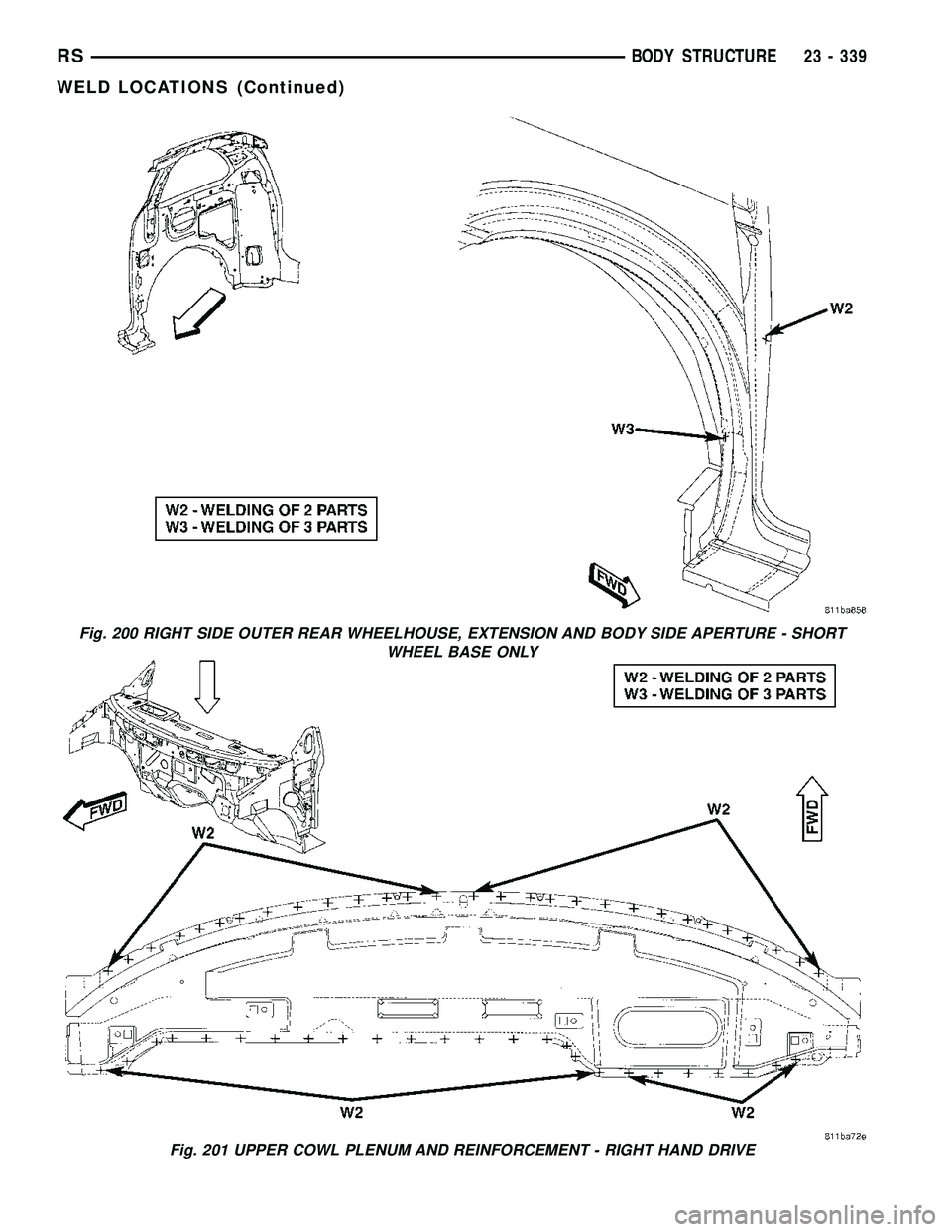

CHRYSLER CARAVAN 2005 Service Manual Fig. 200 RIGHT SIDE OUTER REAR WHEELHOUSE, EXTENSION AND BODY SIDE APERTURE - SHORT WHEEL BASE ONLY Fig. 201 UPPER COWL PLENUM AND REINFORCEMENT - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 339 WELD LOCATI

Page 2119 of 2339

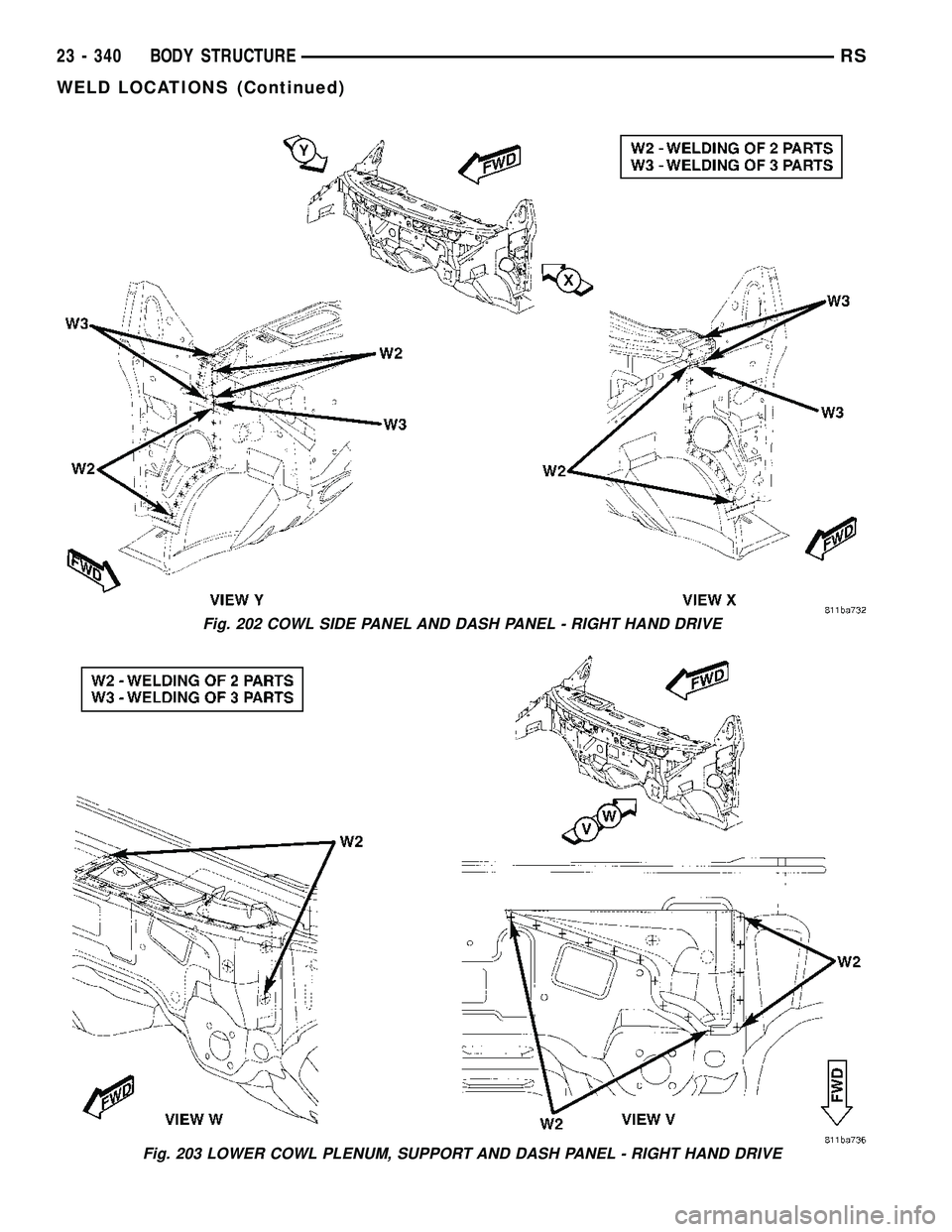

CHRYSLER CARAVAN 2005 Service Manual Fig. 202 COWL SIDE PANEL AND DASH PANEL - RIGHT HAND DRIVE Fig. 203 LOWER COWL PLENUM, SUPPORT AND DASH PANEL - RIGHT HAND DRIVE 23 - 340 BODY STRUCTURERS WELD LOCATIONS (Continued)

Page 2120 of 2339

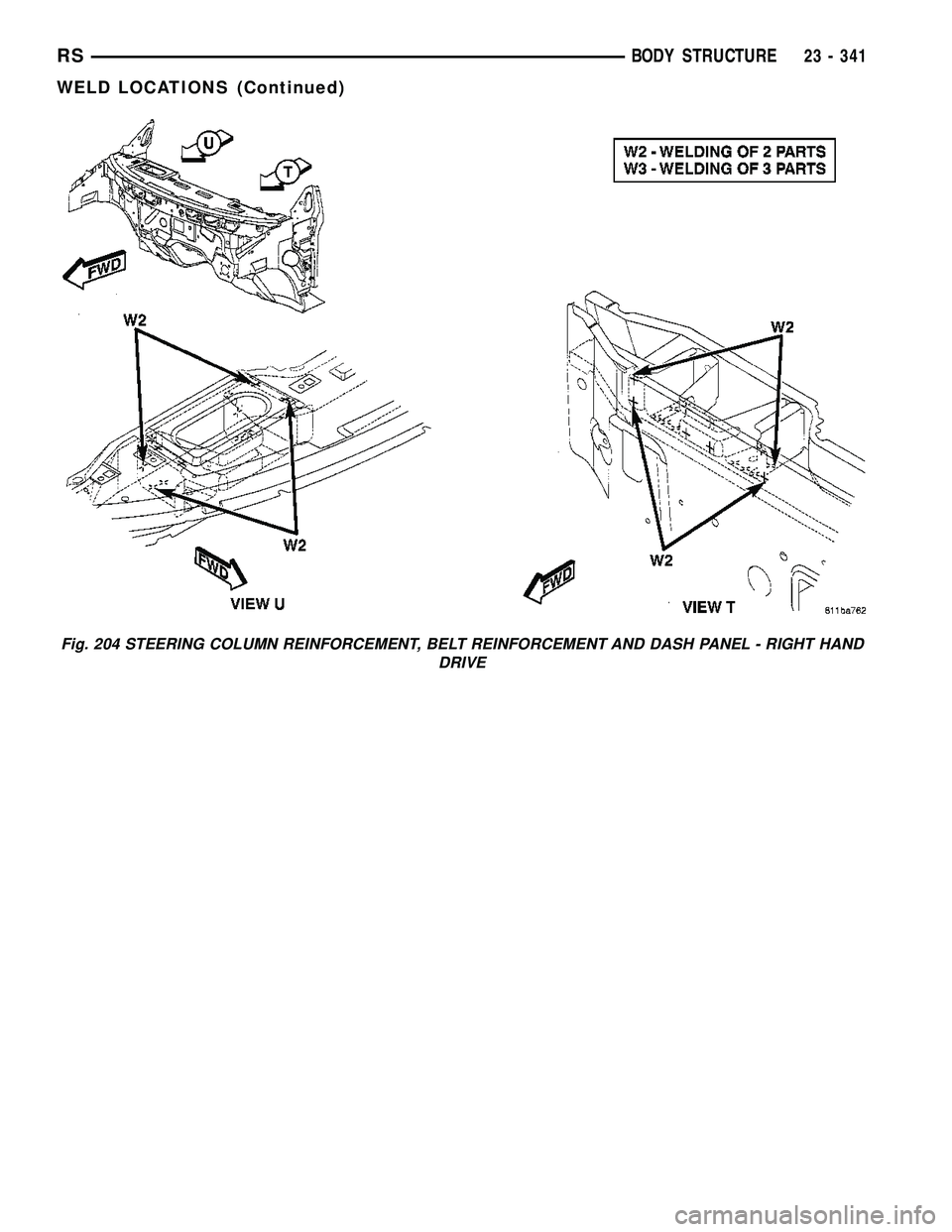

CHRYSLER CARAVAN 2005 Service Manual Fig. 204 STEERING COLUMN REINFORCEMENT, BELT REINFORCEMENT AND DASH PANEL - RIGHT HAND DRIVE RSBODY STRUCTURE23 - 341 WELD LOCATIONS (Continued)
