Page 1153 of 2339

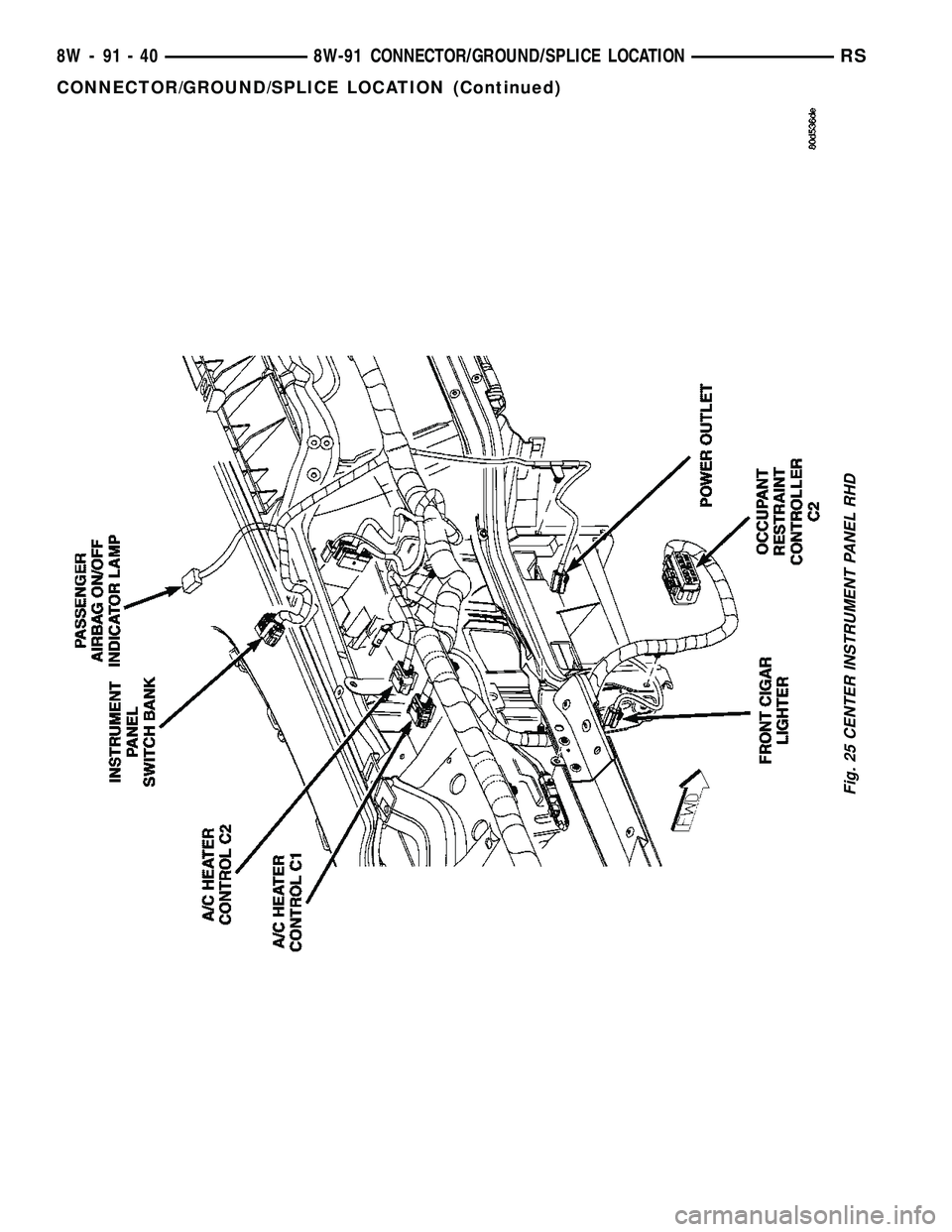

CHRYSLER CARAVAN 2005 Service Manual Fig. 25 CENTER INSTRUMENT PANEL RHD 8W - 91 - 40 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1154 of 2339

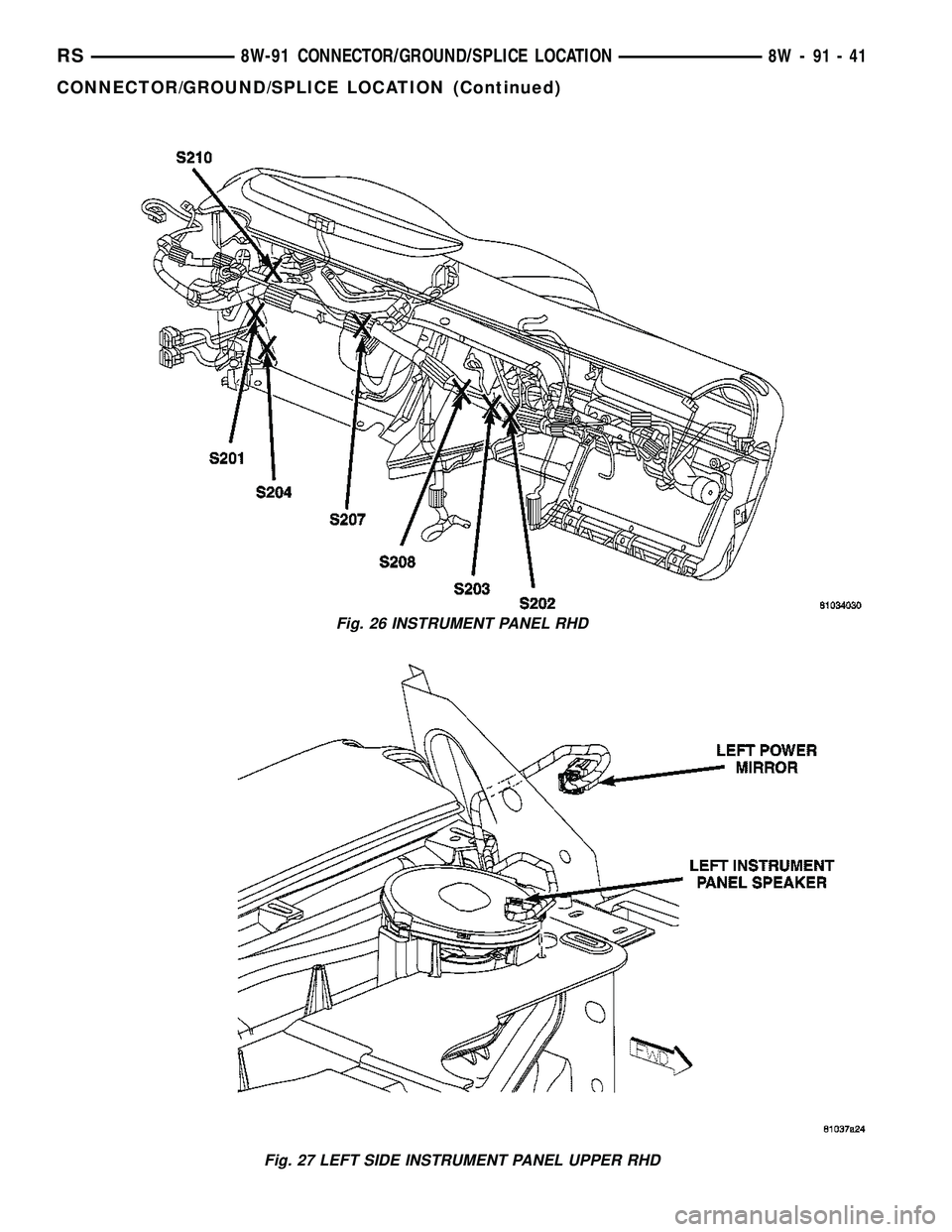

CHRYSLER CARAVAN 2005 Service Manual Fig. 26 INSTRUMENT PANEL RHD Fig. 27 LEFT SIDE INSTRUMENT PANEL UPPER RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-41 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1155 of 2339

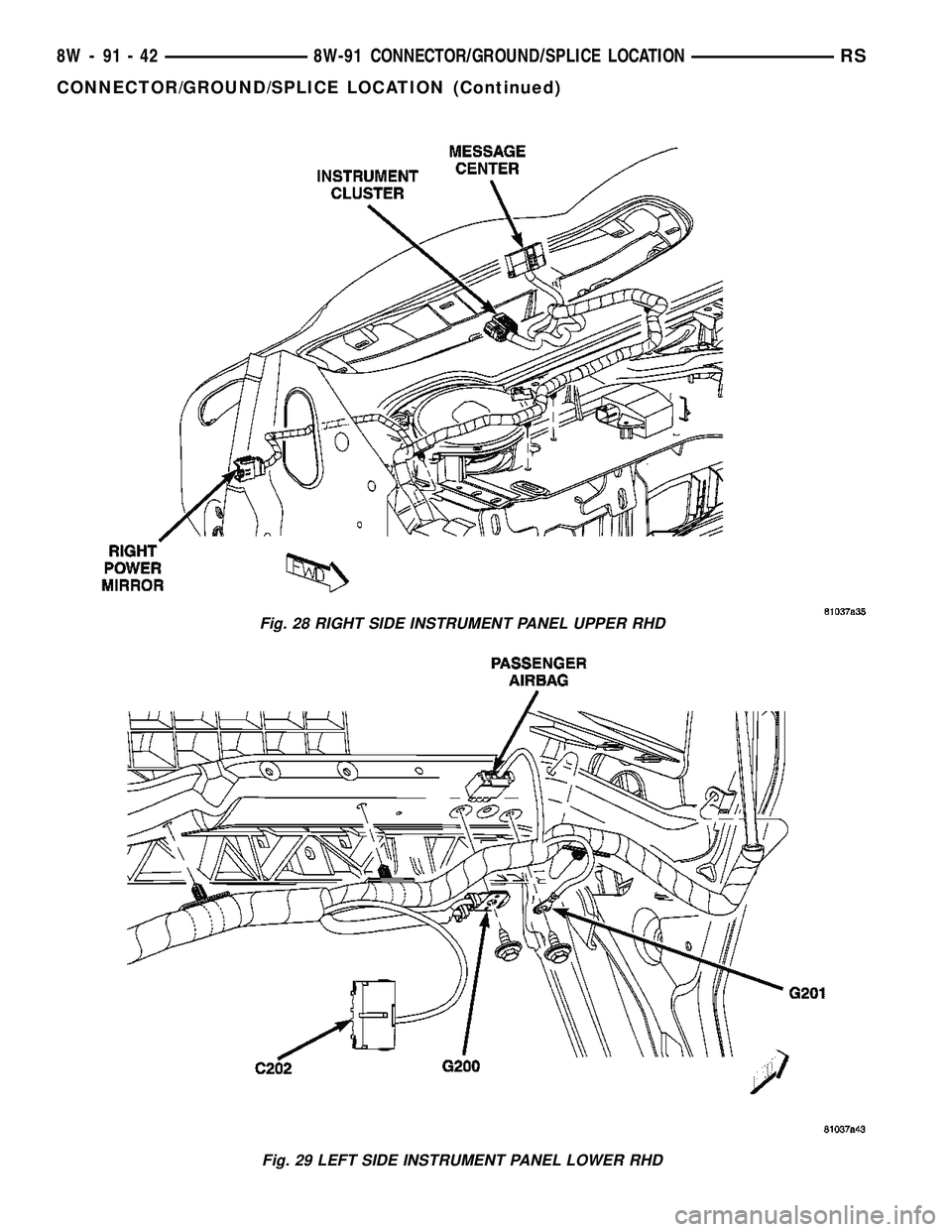

CHRYSLER CARAVAN 2005 Service Manual Fig. 28 RIGHT SIDE INSTRUMENT PANEL UPPER RHD Fig. 29 LEFT SIDE INSTRUMENT PANEL LOWER RHD 8W - 91 - 42 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1156 of 2339

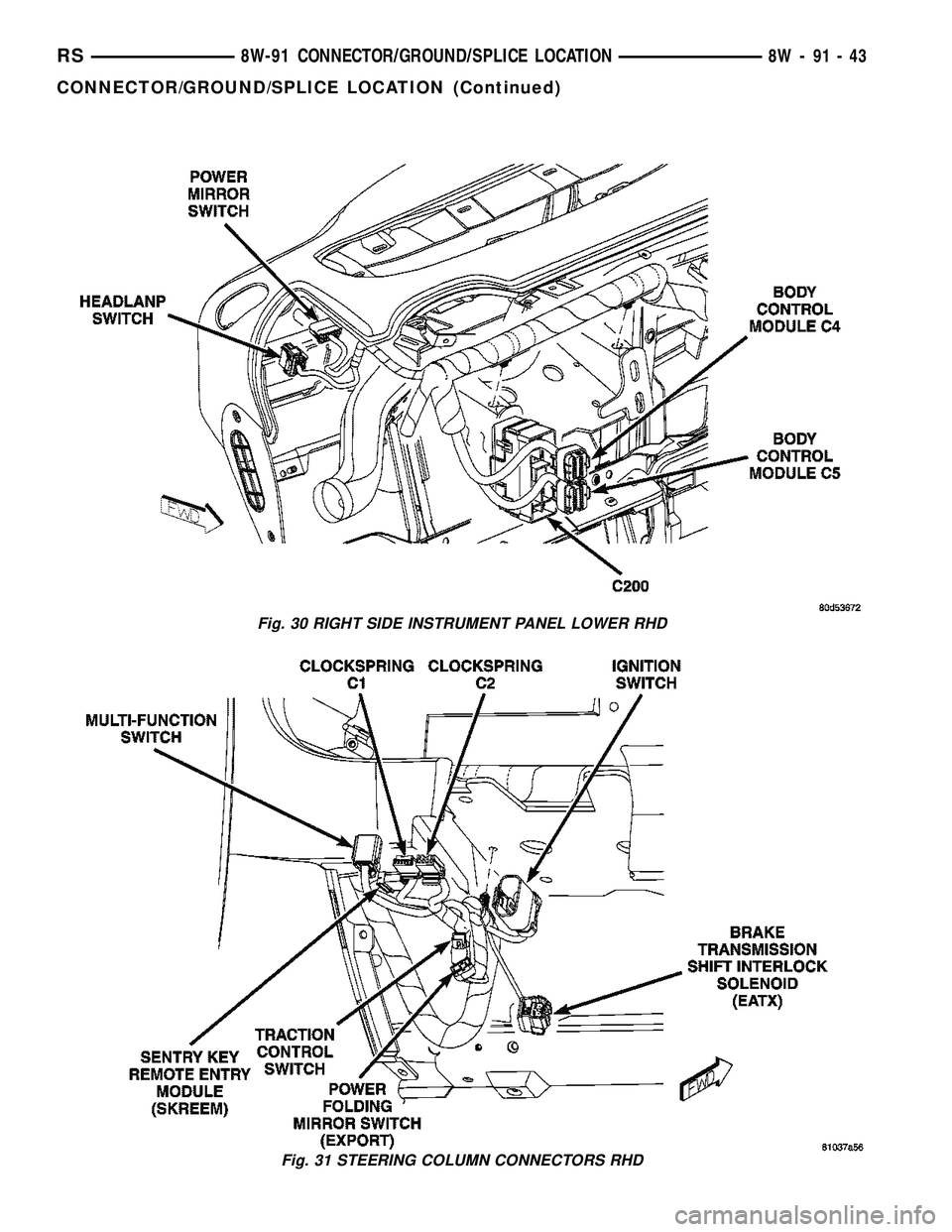

CHRYSLER CARAVAN 2005 Service Manual Fig. 30 RIGHT SIDE INSTRUMENT PANEL LOWER RHD Fig. 31 STEERING COLUMN CONNECTORS RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-43 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1157 of 2339

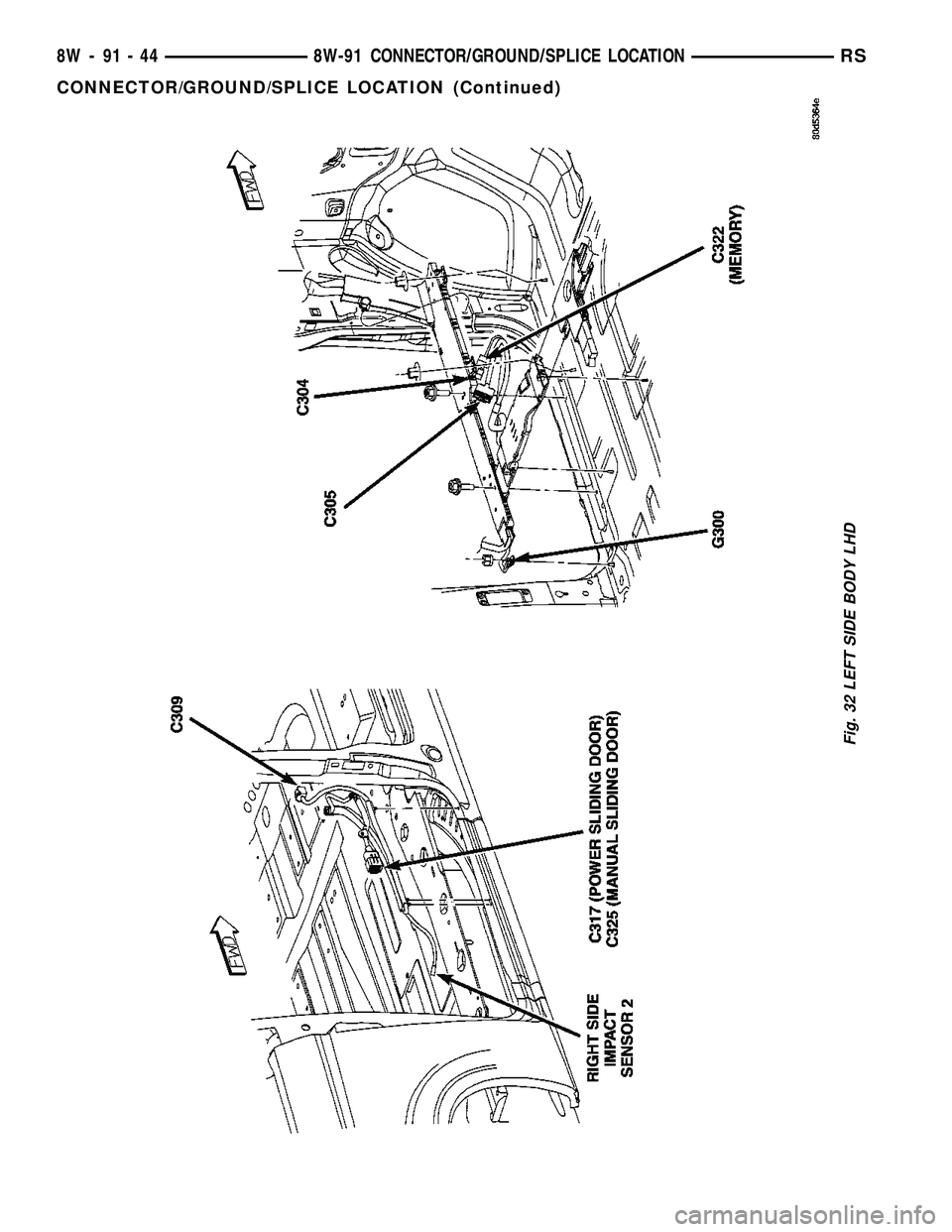

CHRYSLER CARAVAN 2005 Service Manual Fig. 32 LEFT SIDE BODY LHD 8W - 91 - 44 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1158 of 2339

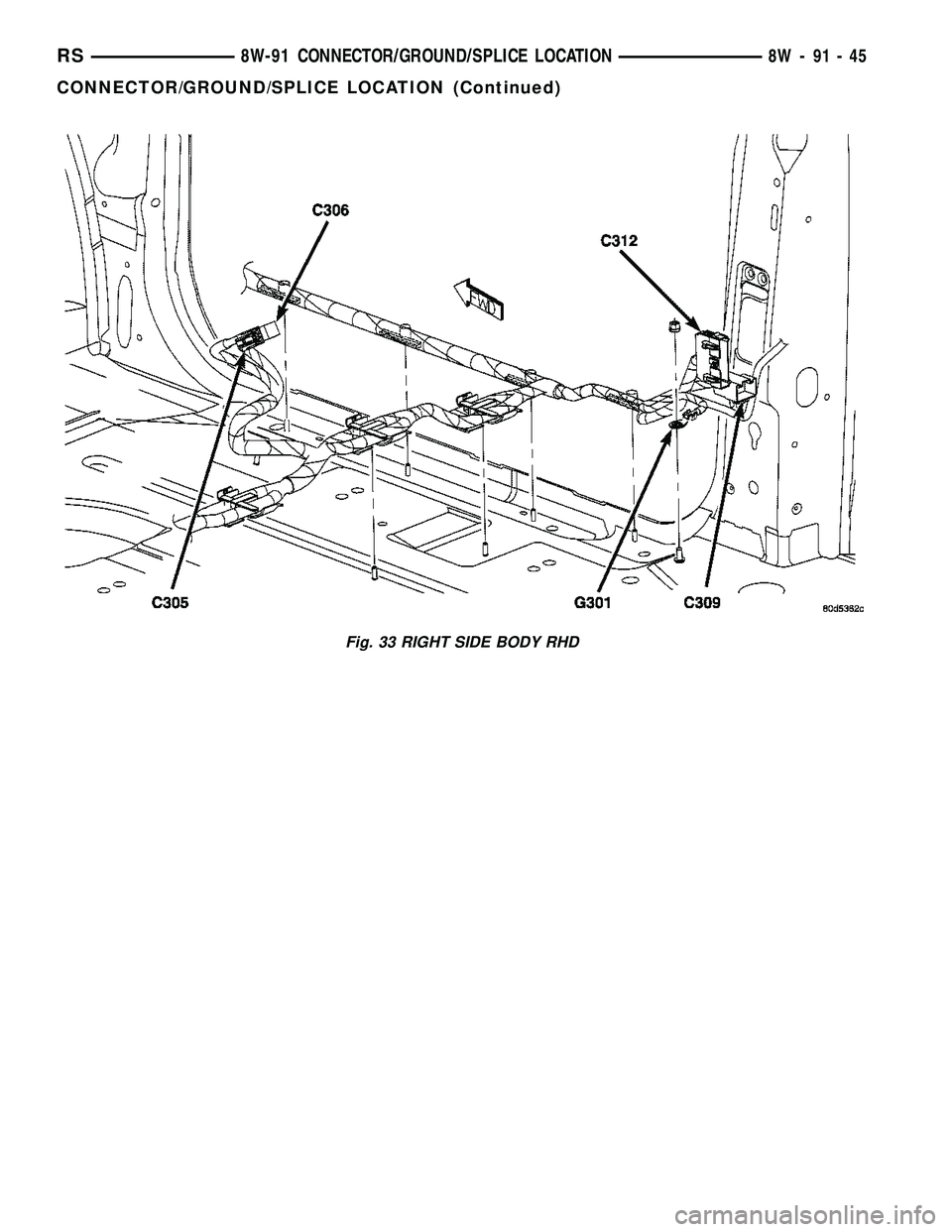

CHRYSLER CARAVAN 2005 Service Manual Fig. 33 RIGHT SIDE BODY RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-45 CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1159 of 2339

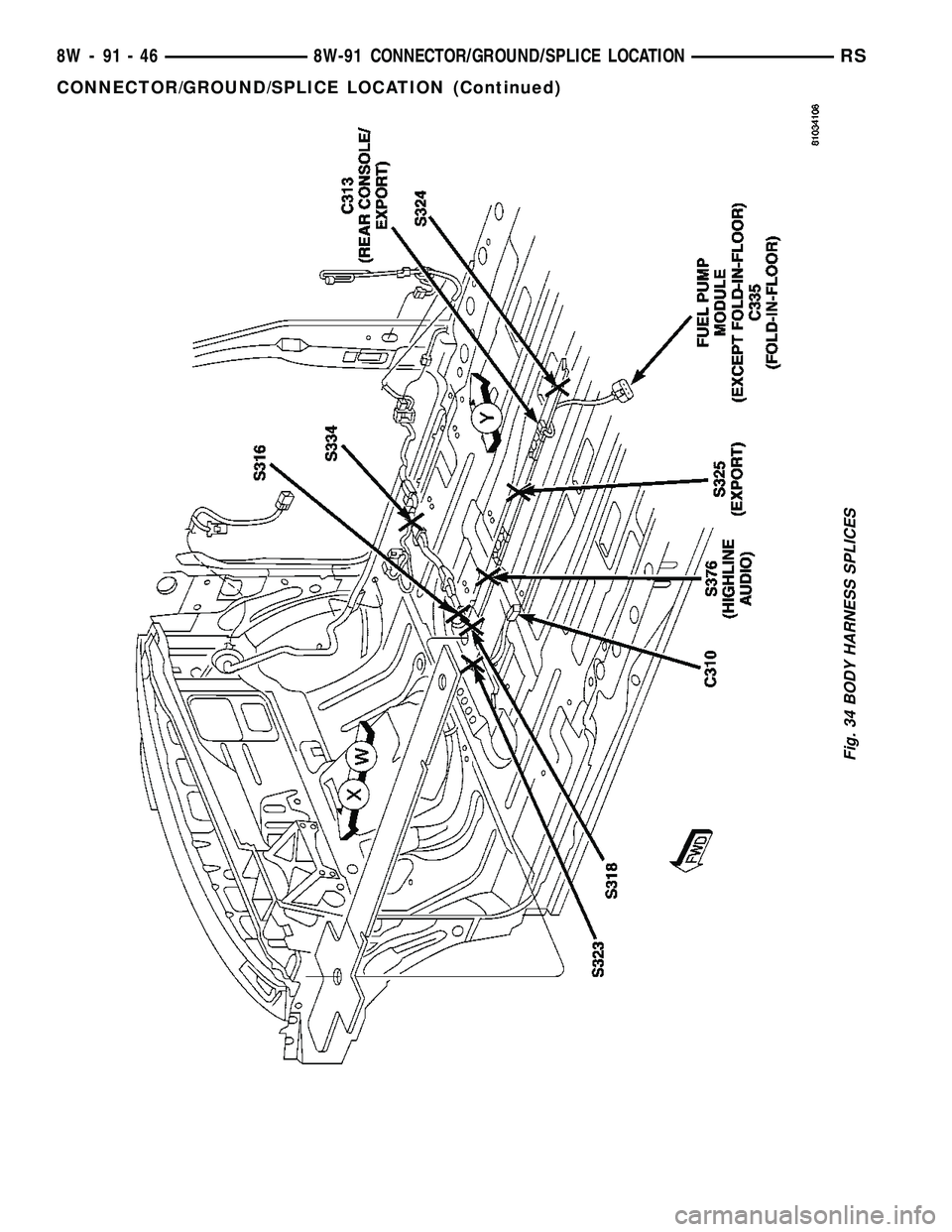

CHRYSLER CARAVAN 2005 Service Manual Fig. 34 BODY HARNESS SPLICES 8W - 91 - 46 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Page 1160 of 2339

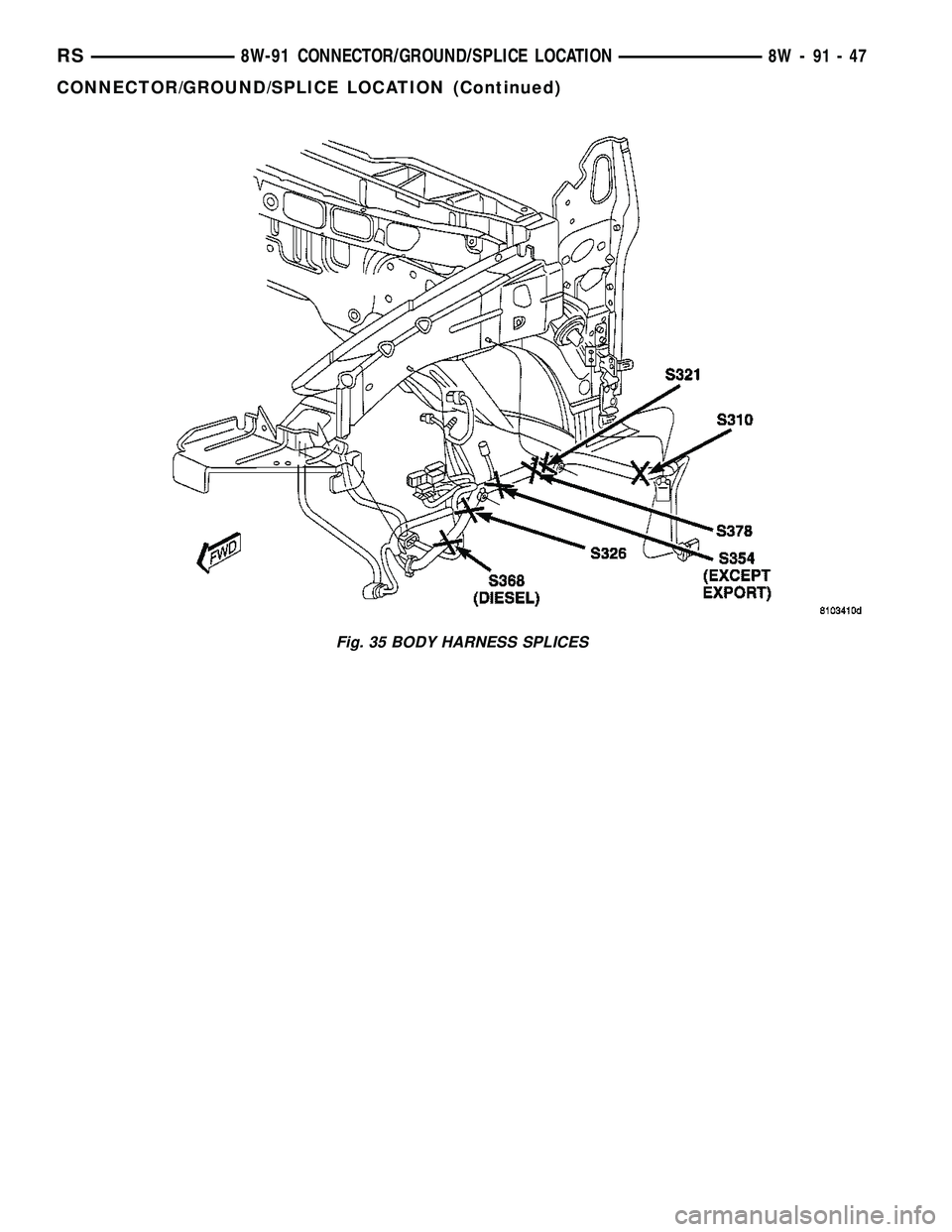

CHRYSLER CARAVAN 2005 Service Manual Fig. 35 BODY HARNESS SPLICES RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-47 CONNECTOR/GROUND/SPLICE LOCATION (Continued)
